Automatic Sand Blasting Machine with Turnale Table Sandblasting Machine for Alloy Wheel

1 / 5

Automatic Sand Blasting Machine with Turnale Table Sandblasting Machine for Alloy Wheel

Customization:	Available
After-sales Service:	1 Year Warranty
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.	KF-1212A-4A
Drive	Electric
Principle	Inhaled
Control	PLC
Layout	Horizontal
Automation	Automatic
Kind	Dry Sandblaster
Condition	New
Certification	CE
Customized	Customized
Product	Abrasive Blast Machine
Working Size	L1000W1000H850mm
Application	Deburring, Descaling, Cleaning

Product Overview

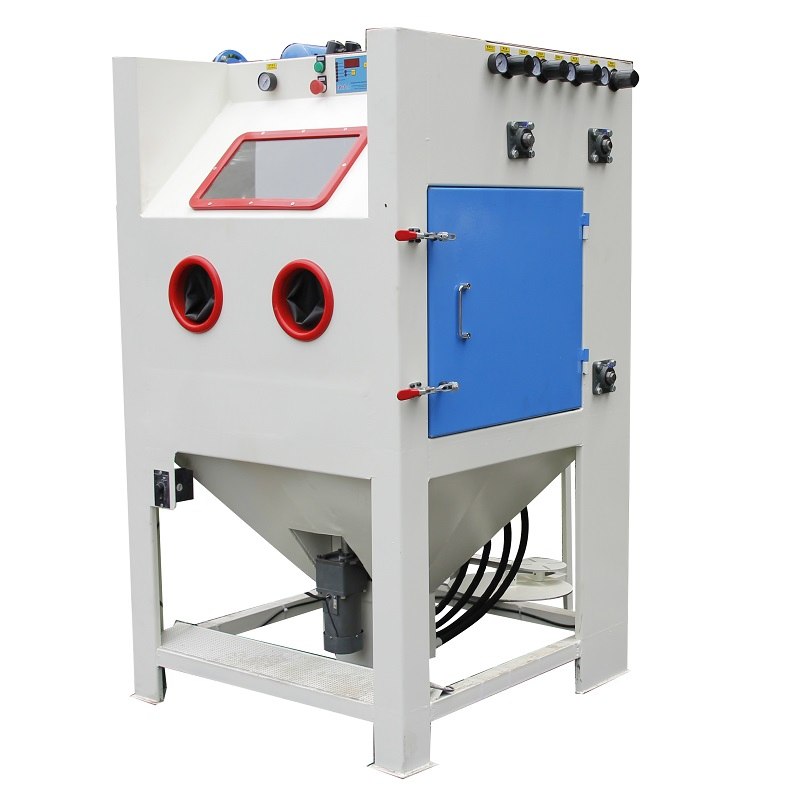

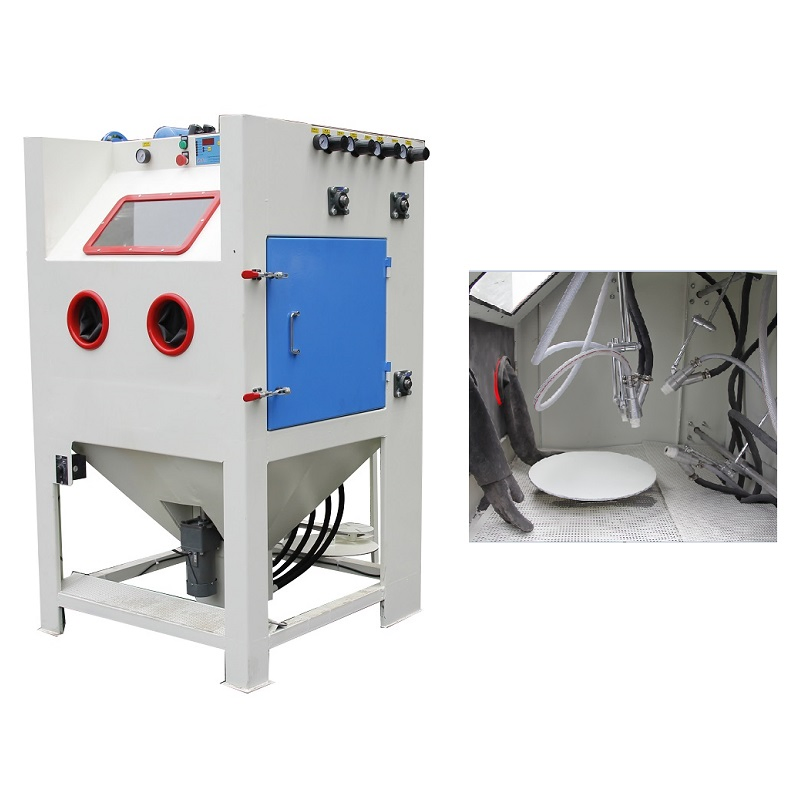

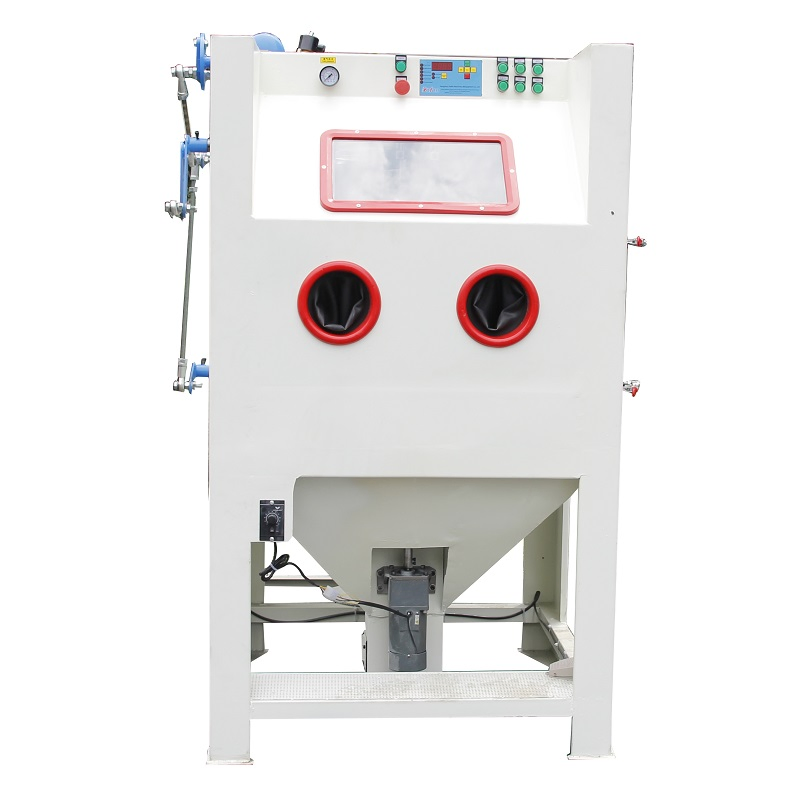

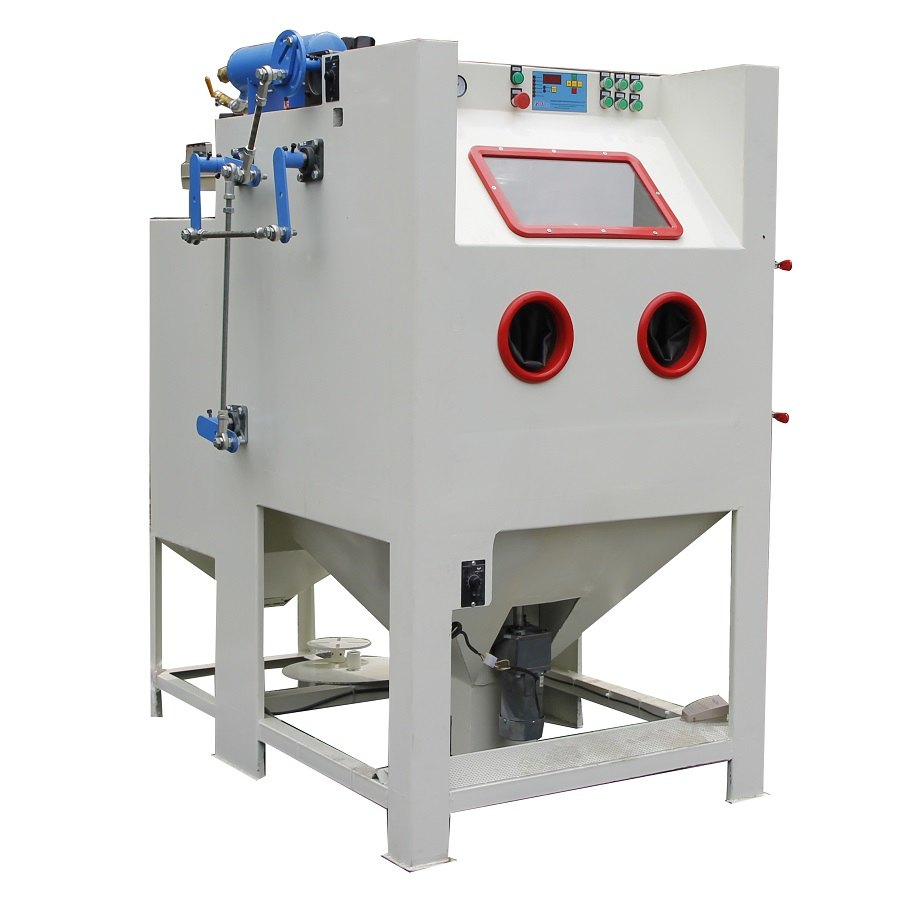

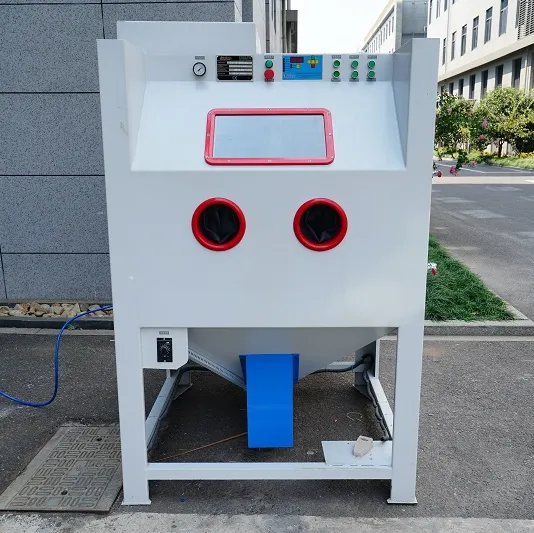

Automatic Sand Blasting Machine with Turntable

The Automatic Sand Blasting Machine with Turntable achieves manual & automatic blasting in one cabinet. For automatic operation, as a group of auto guns blasting and swinging, the turntable rotates automatically at the same time, thus all surfaces and corners of the object can be cleaned thoroughly and evenly, which greatly improves efficiency and application quality.

Key Advantages

Preservation of Parts: Blasting process will not damage the original parts, whose dimensional accuracy will not change.
Surface Integrity: Parts surface will not be contaminated; there is no chemical reaction between media and parts.
Complex Geometry Handling: Easily handles grooves, concaves, and other difficult-to-access corners.
Eco-Friendly: The cabinet does not pollute the environment, eliminating environmental management costs.
Efficiency: Production cost is significantly reduced while meeting various finishing requirements like deburring and polishing.

Technical Features

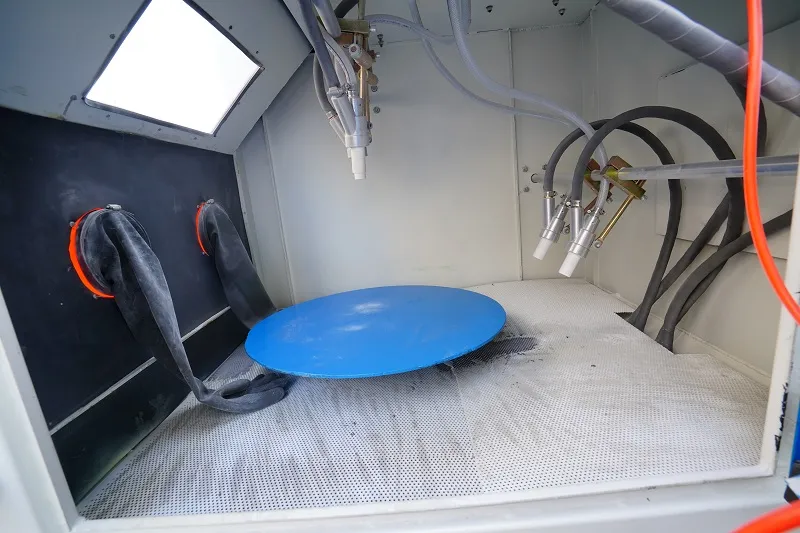

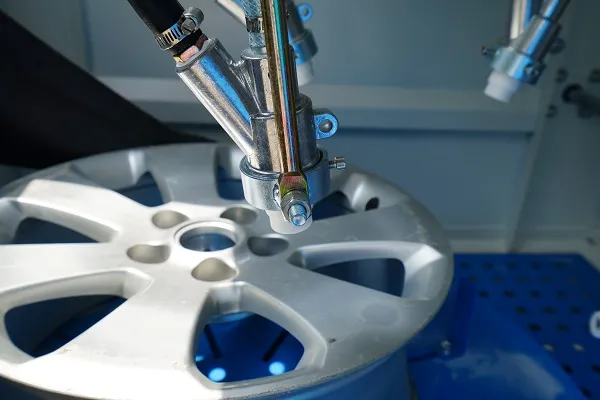

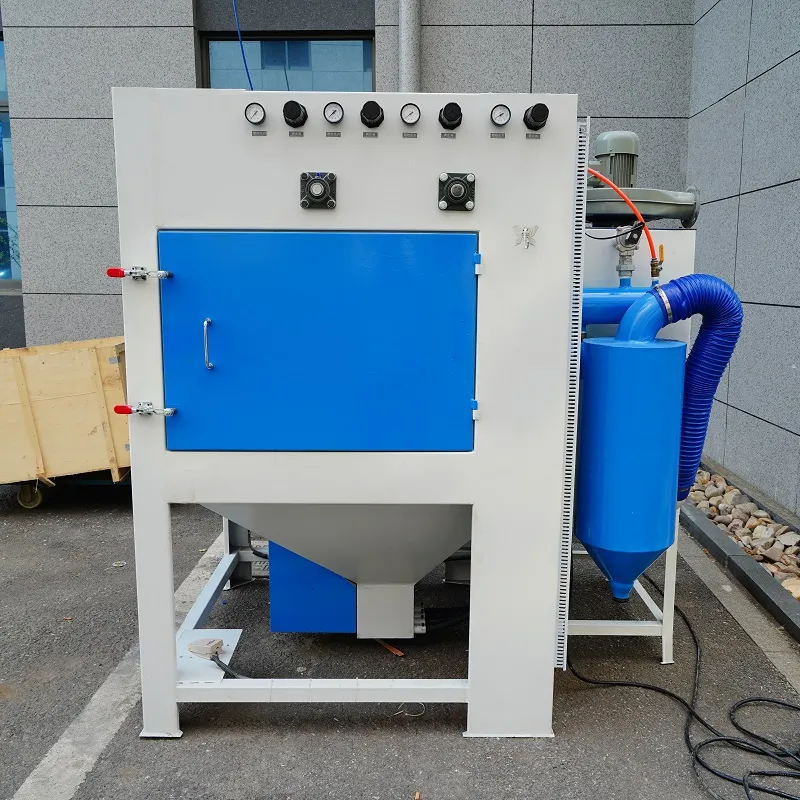

Turntable and Blast Guns

Designed with a turntable to achieve high processing efficiency and labor saving. Configured with 4pcs automatic blast guns, each equipped with a 100% purity boron carbide nozzle for maximum wear resistance.

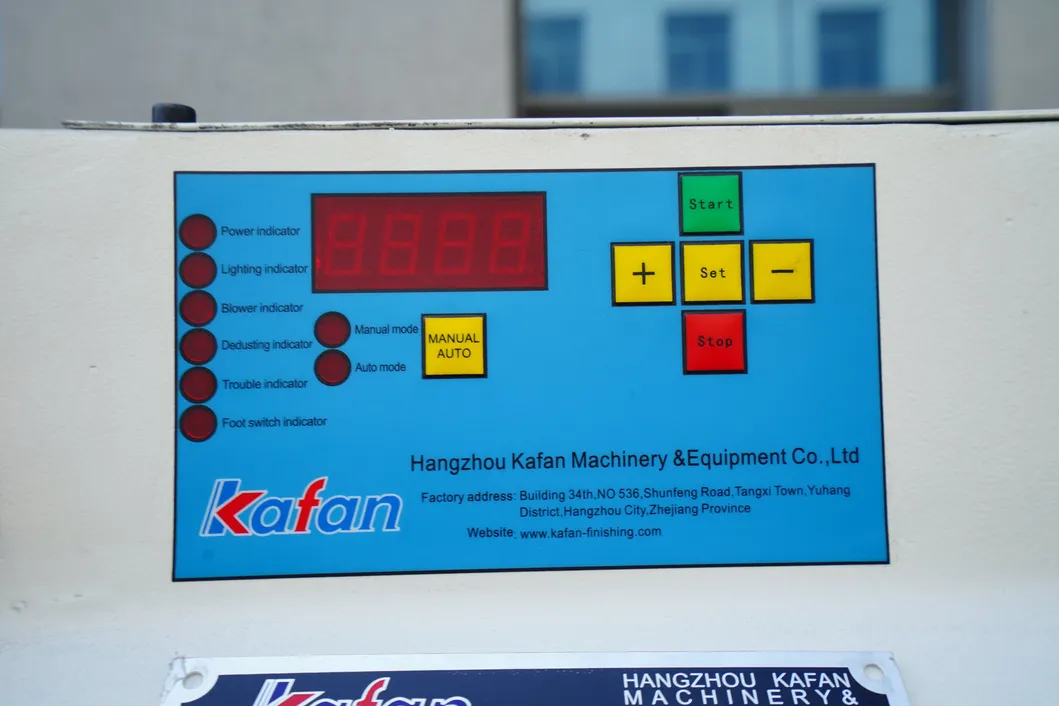

Smart Control System

Manual Mode: Controlled by a foot switch for precise blasting.
Automatic Mode: Set parameters and time on the smart panel. The machine stops automatically when the cycle is complete.

Wide Application

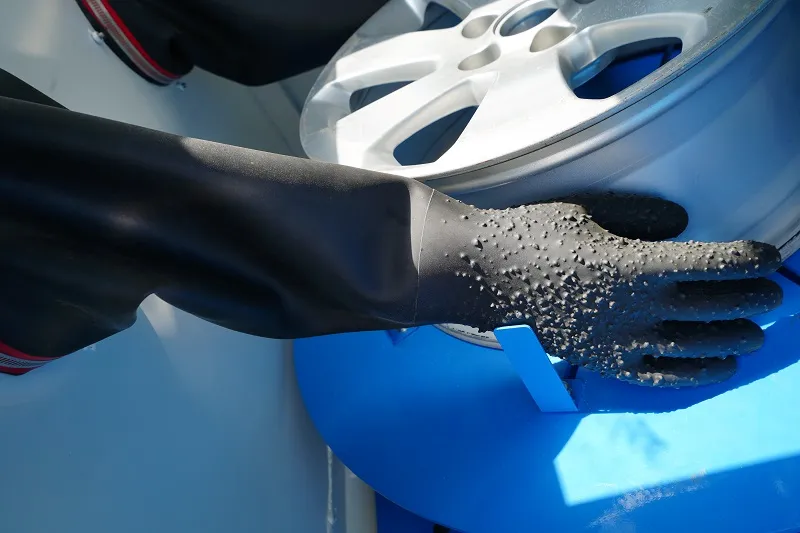

Extremely popular for wheel finishing, heavy tools, and moulds. Full automatic operation ensures consistency, quality, and flexibility for heavy-weight products.

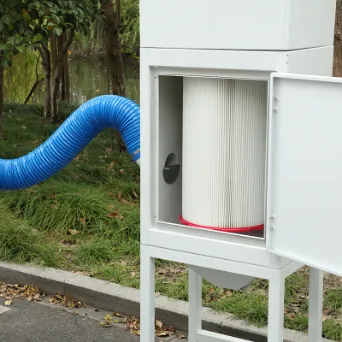

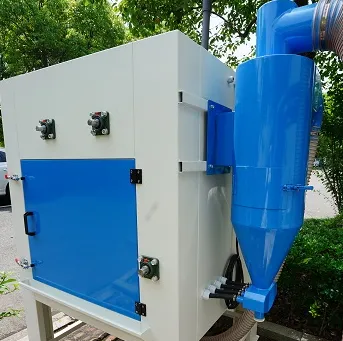

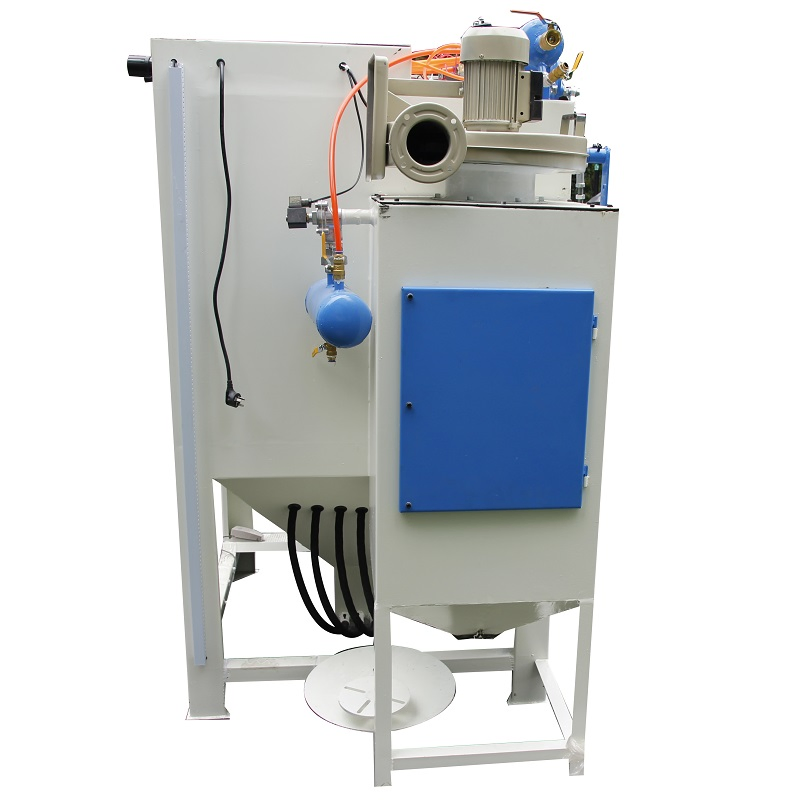

Dust Collection System

Equipped with an effective dust collecting system including cartridge filter and fan motor. This removes dust from the operator's window for increased visibility. An optional cyclone device can separate ultrafine abrasives from dust.

Detailed Specifications

Nozzle Material: Boron Carbide

Model	KF-1212-4A
Working chamber dimension	L1200mm * W1200mm * H850mm
Power supply	220V, 50HZ (customizable)
Machine light power	220V, LED* 2
Compressed air source	5-7bar(kg/m^2)
Air flow	0.8-3m3/min dry and clean compressed air
Separator air volume	8.5m3/min
Dust removal method	Cartridge Filter Type
Blasting Gun Qty	4 pcs

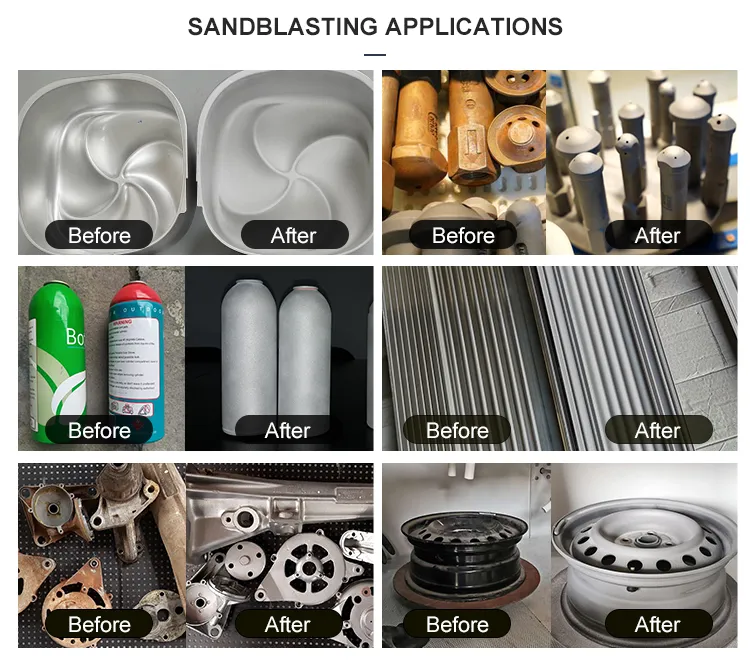

Primary Applications

Pretreatment for plating, painting, and powder spraying.
Cleaning of casting, welding, and stamping pieces.
Surface hardening of metal products.
Burnishing vehicle and machinery accessories.
Removal of old coatings and unqualified coverage.
Removing surface marks from plastic, glass, and ceramics.
Deburring industrial components.

Production Overview

Frequently Asked Questions

Can this machine handle both manual and automatic tasks?

Yes, this sandblasting cabinet is designed to achieve both manual and automatic blasting in a single unit, providing high flexibility for different processing needs.

What materials are the blast nozzles made of?

The machine is configured with 100% purity boron carbide nozzles, which ensure excellent wear resistance and a long service life.

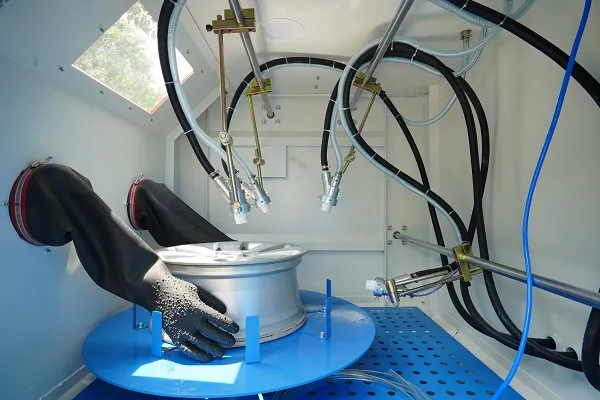

How does the automatic turntable improve efficiency?

The turntable rotates automatically while a group of guns blasts and swings, ensuring all surfaces and corners of the object are cleaned thoroughly and evenly without manual intervention.

Is the machine suitable for heavy-weight products?

Absolutely. It is specifically popular for large and heavy items such as alloy wheels, heavy tools, and moulds, as the automatic operation reduces the labor required for moving parts.

Does the blasting process affect the dimensions of the parts?

No, the blasting process is designed to clean or finish the surface without damaging the original parts or changing their dimensional accuracy.

What kind of dust collection system is used?

The machine uses a cartridge filter type dust collector with a fan motor to keep the working area clean and maintain high visibility through the operator's window.
