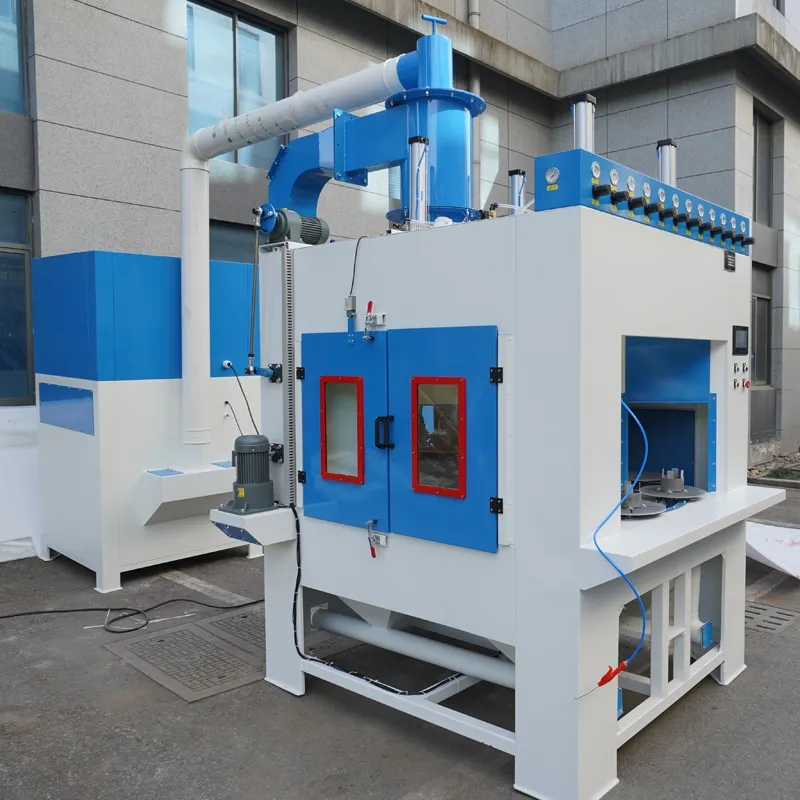

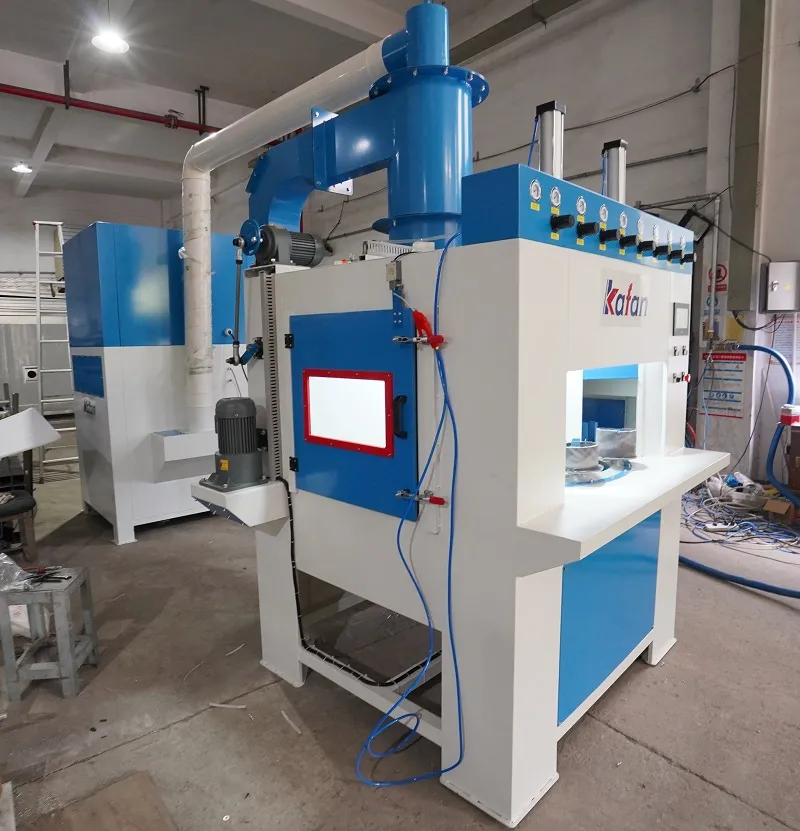

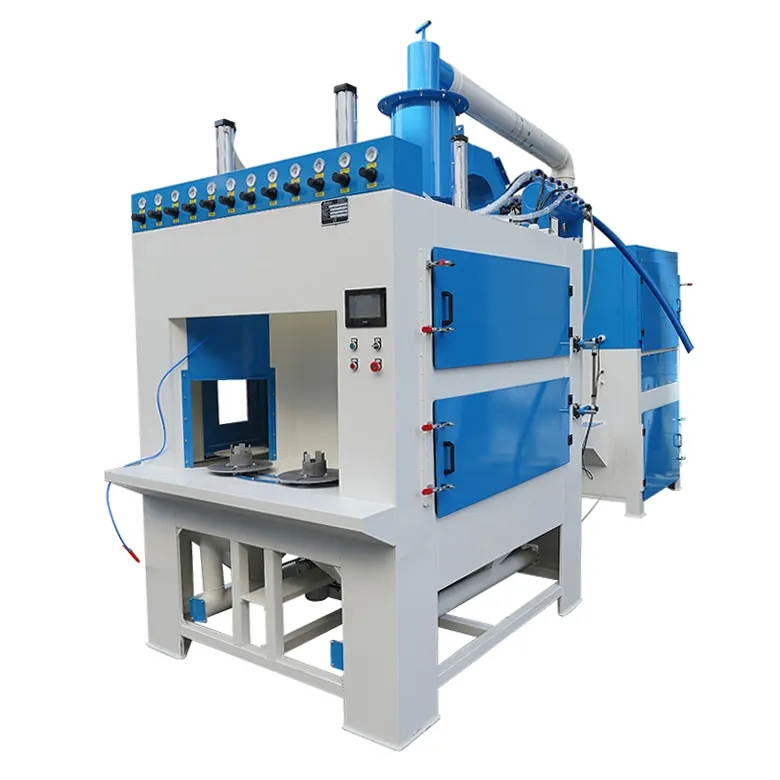

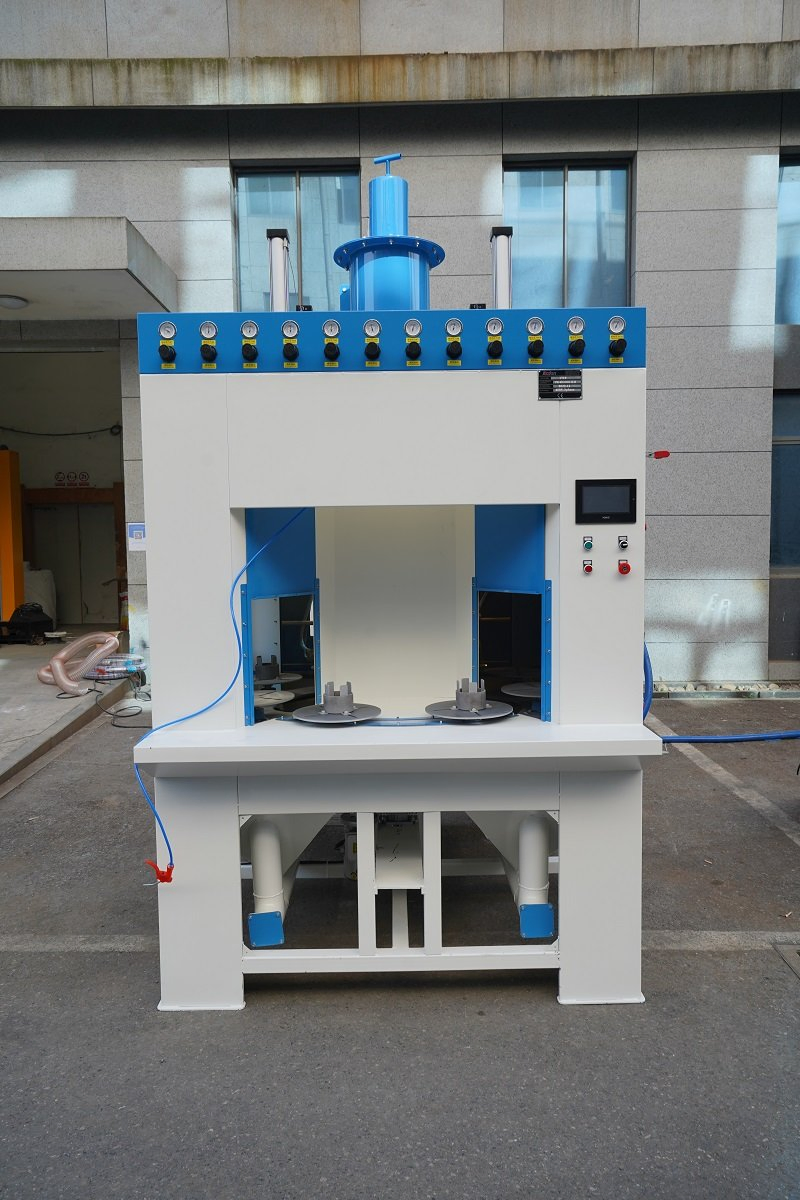

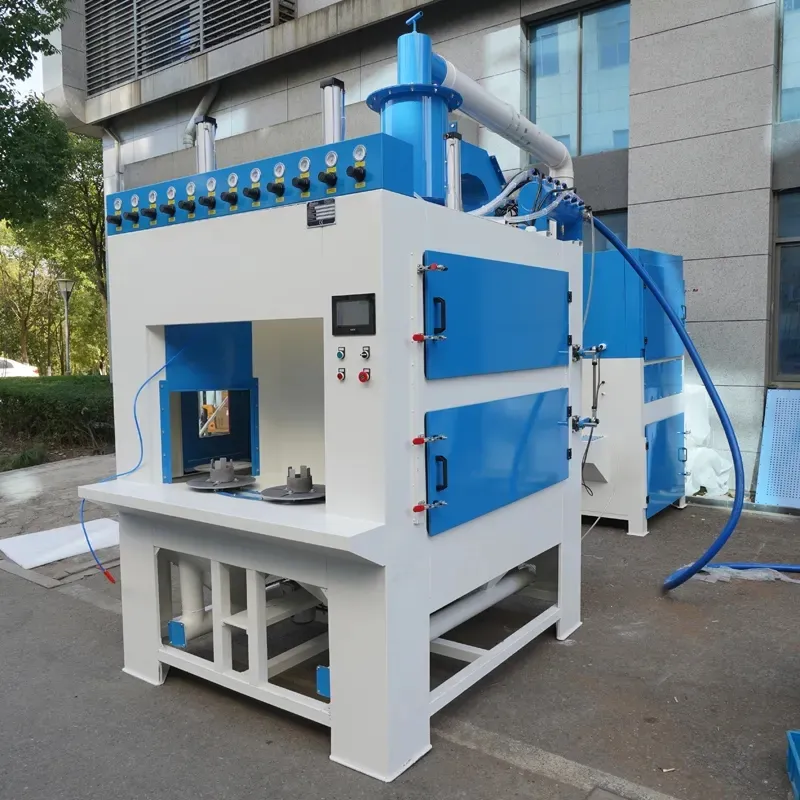

Bottles and Pans Batch Turntable Automatic Sand Blasting Machine

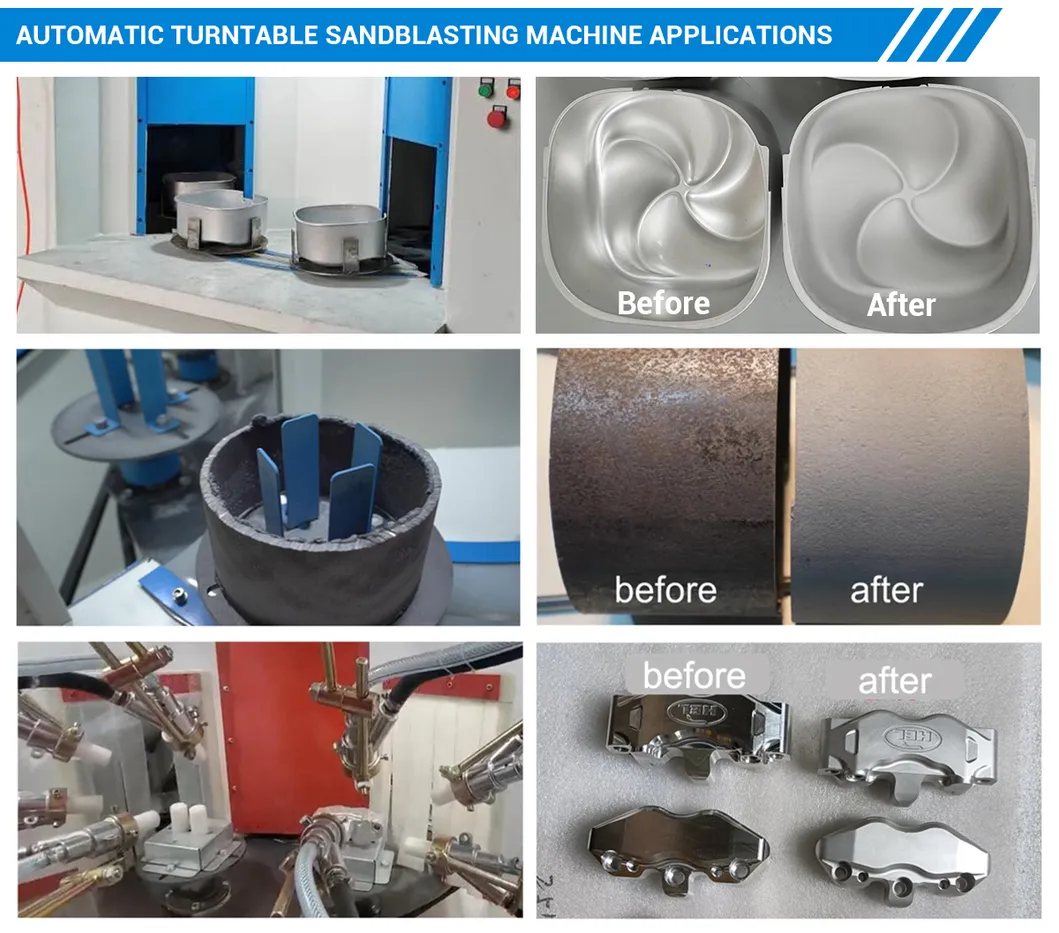

This automatic sandblasting machine is specially designed for batch processing of cylinder shape of workparts, such as wine bottle, glass cup, pot, wine cooker, etc. Automatic rotary blasting machine tends to improve working efficiency and ensure quality consistency.

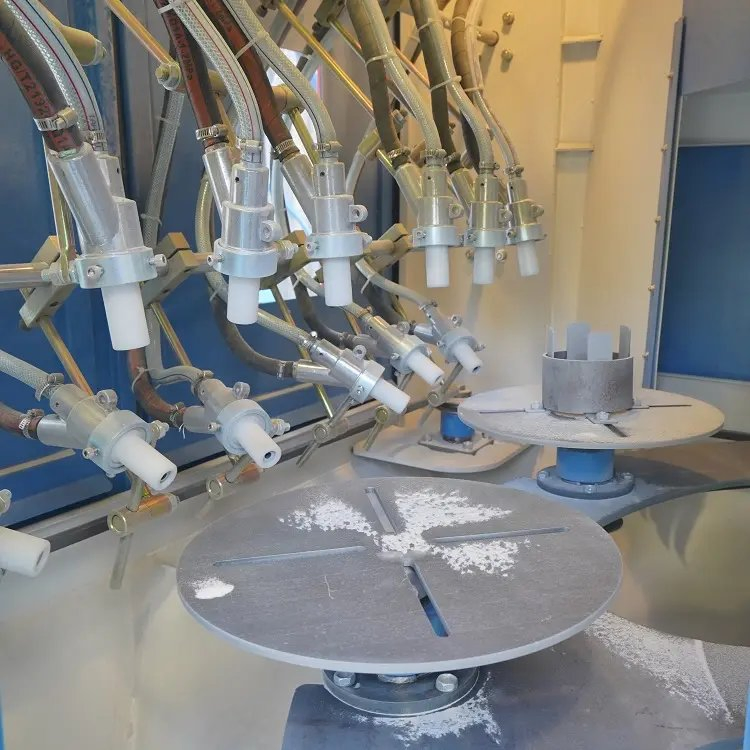

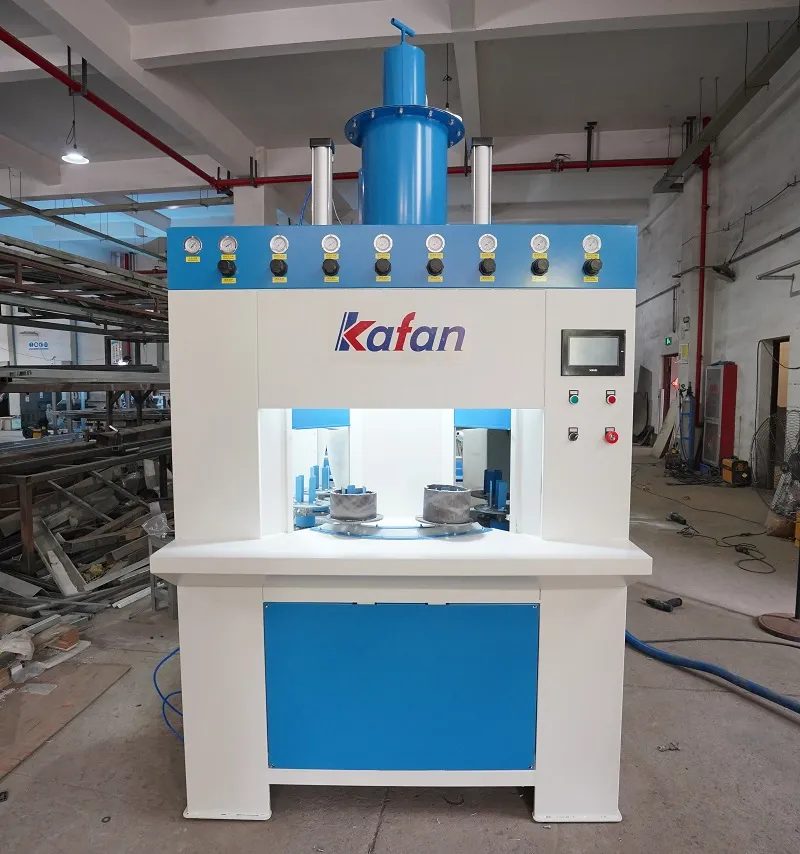

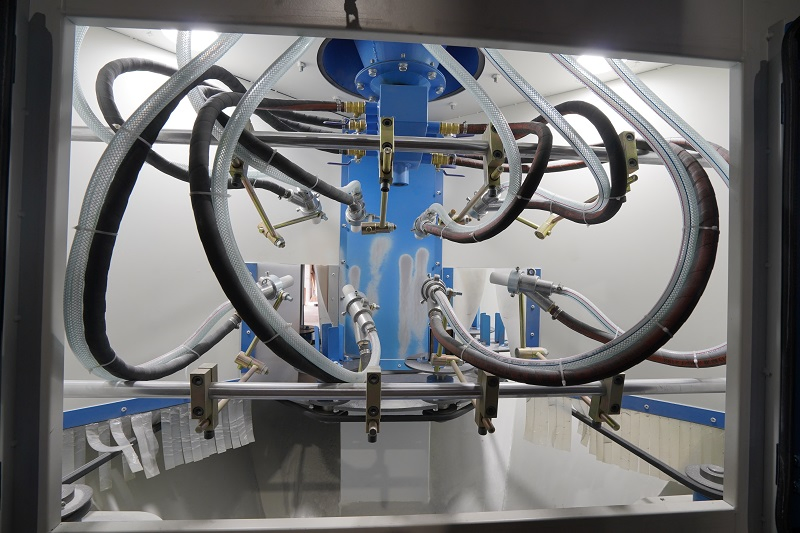

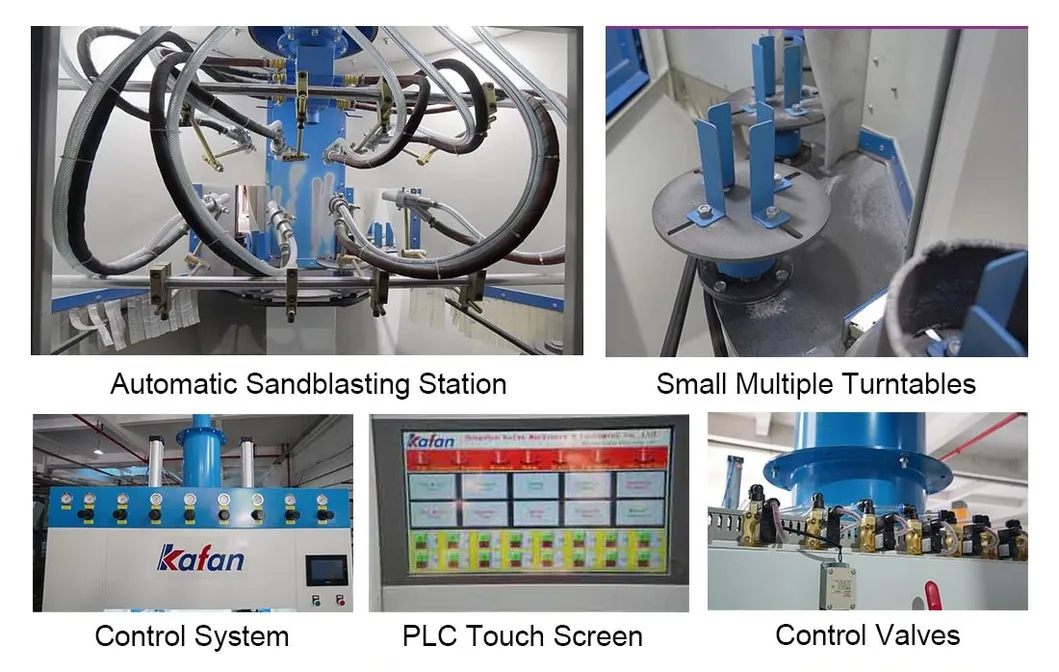

This automatic blaster works through an index turntable taking a quantity of small turntable stations, both rotating in 360 degrees. The index turntable rotates intermittently, while the small turntables rotate constantly. After operators clip the parts in the small turntables, the index turntable drives them to the blasting stations, and auto guns swinging and blasting to make a high-quality entire finish.
✔ High Output Efficiency: achieves consistent quality results, suitable for finishing of inner and outer surfaces of round disc, cylinder or polygon shaped products.
| Model | KF-1719-12A |
| Main Dimension | 1700x1900x2350mm |
| Dust Collector Size | 1400x1400x1700mm |
| Large Turntable Size | Dia 1400mm x Thick 15mm |
| Qty of Small Turntables | 12pcs |
| Small Turntable Size | 150/180mm |
| Loading Capacity (Small Turntable) | 20kgs |
| Max. Size of Parts Allowed | Dia 350mm x Height 450mm |
| Qty of Blast Guns | 8pcs |
| Blast Gun Nozzle | Durable Boron Carbide |
| Power Supply | 380V/220V As required |
| Total Power | 7kw |
| Machine Weight | 4150kgs |
Note: We provide Custom Design services. Working chamber size, gun quantity, and fixtures can be customized based on requirements.
