Blatrixo Machine
Blatrixo Machine

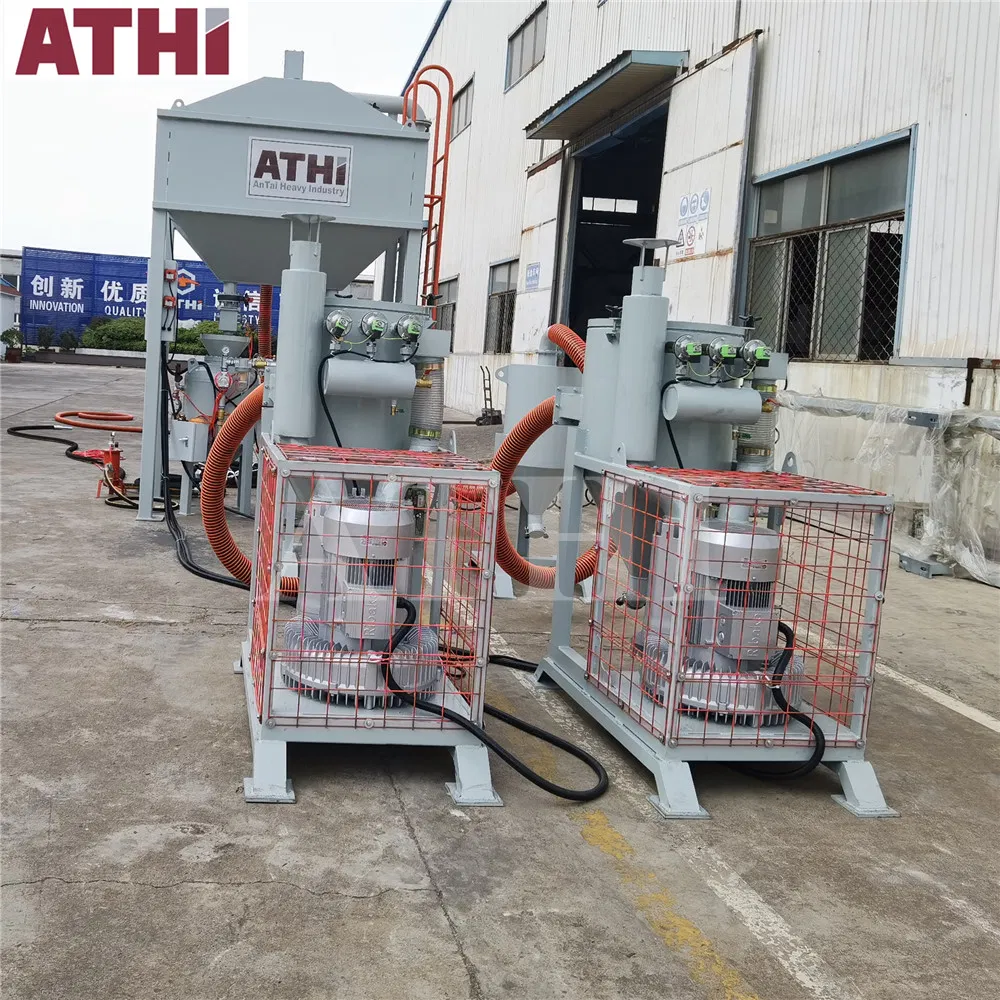

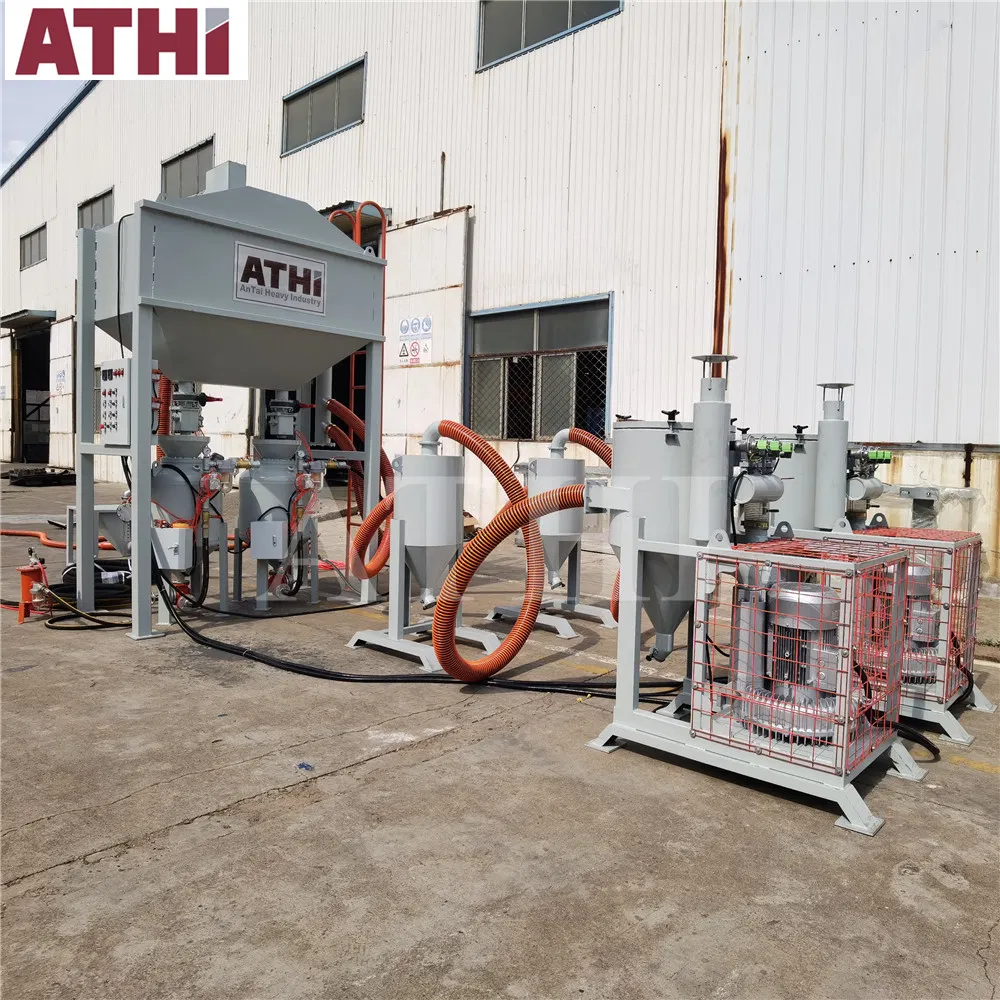

This vacuum reclamation system is designed to help you choose the best abrasive vacuum recovery system for your specific industrial blasting applications. Efficient abrasive recovery is critical for projects on ship hulls, inside tanks, or bridge containments. These systems ensure spent abrasives are collected at a central point for recycling or disposal.

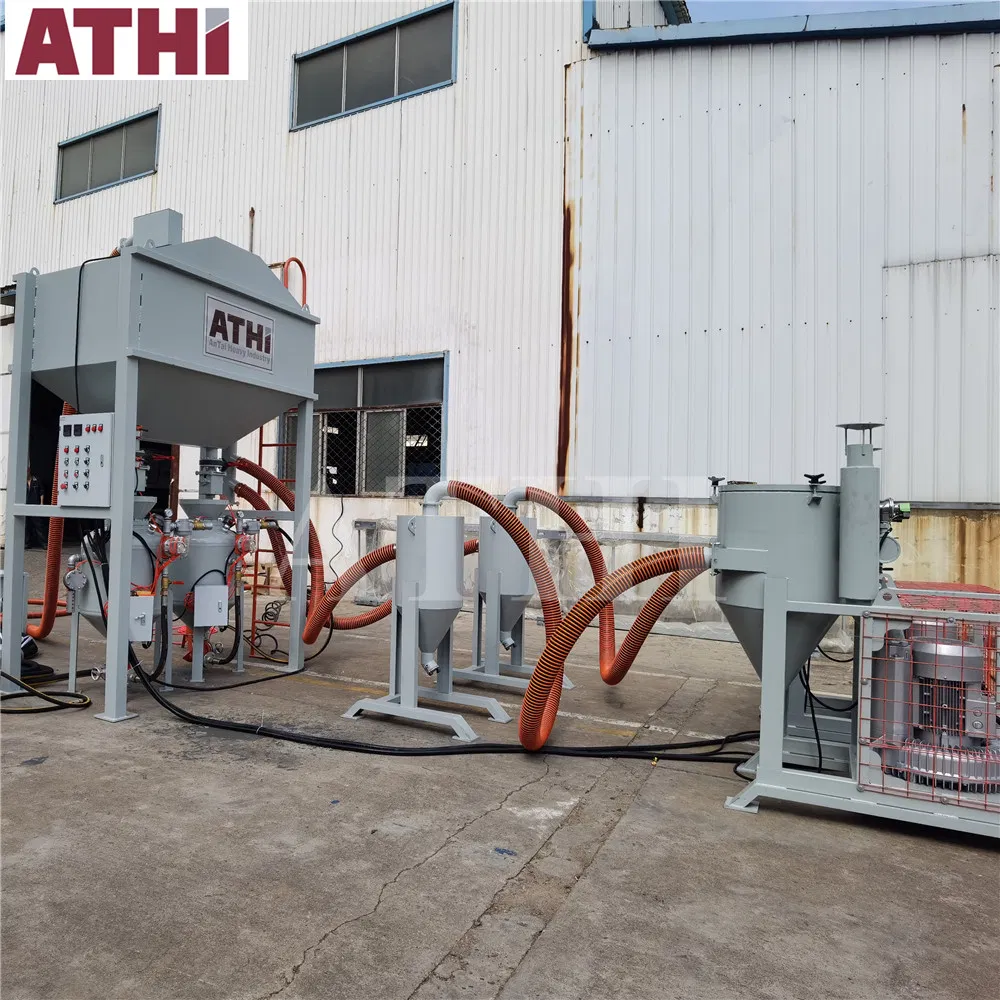

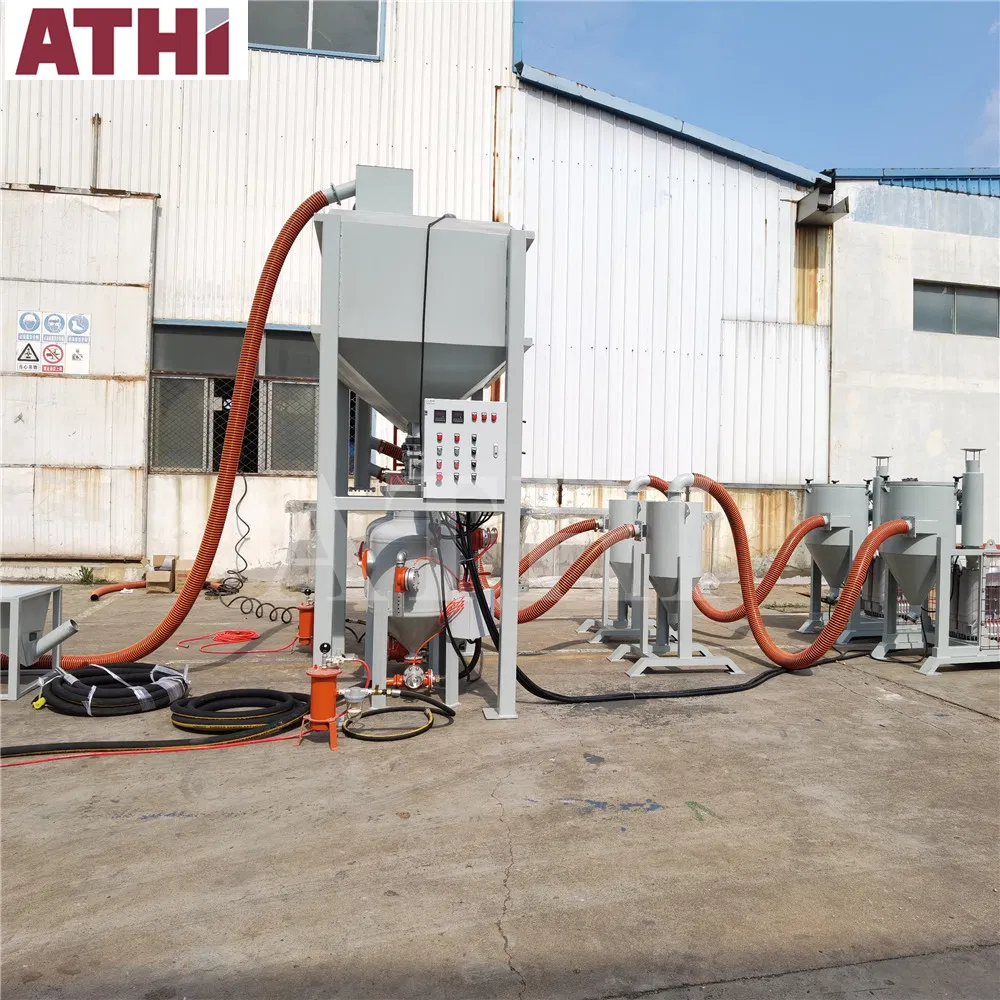

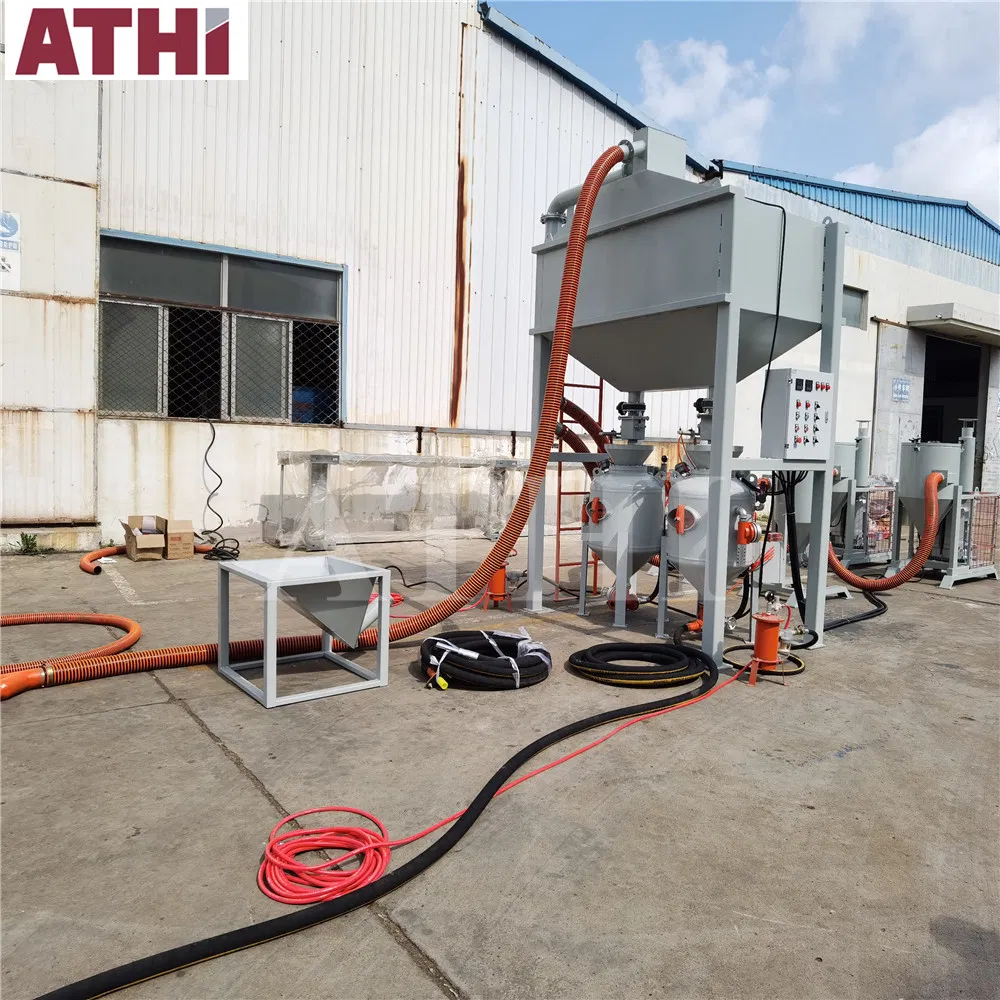

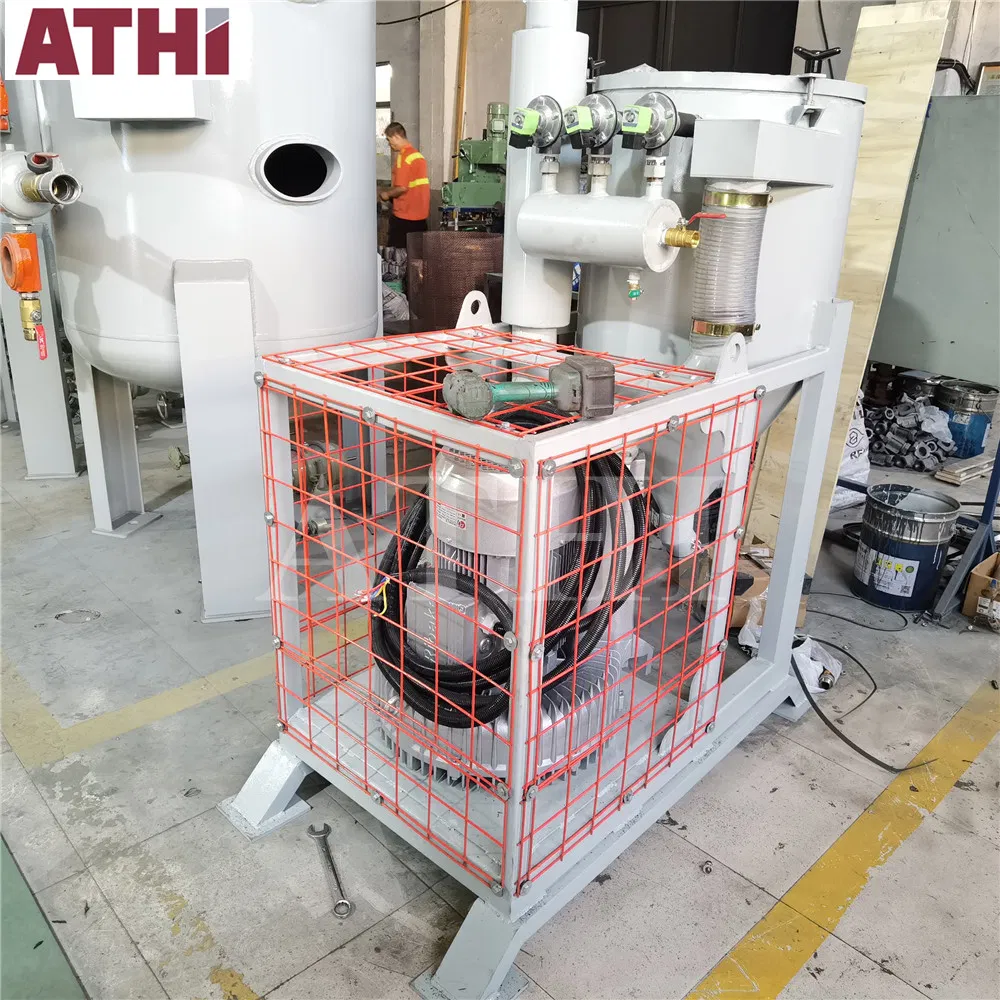

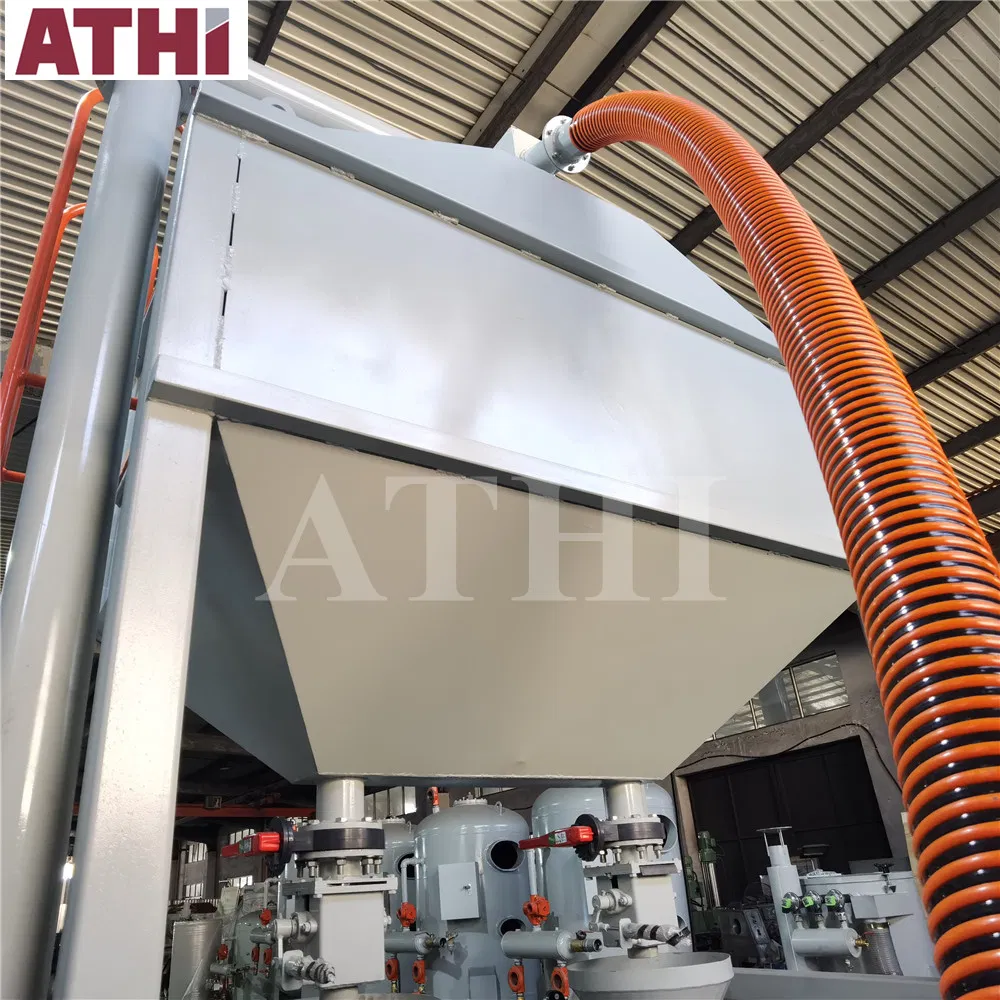

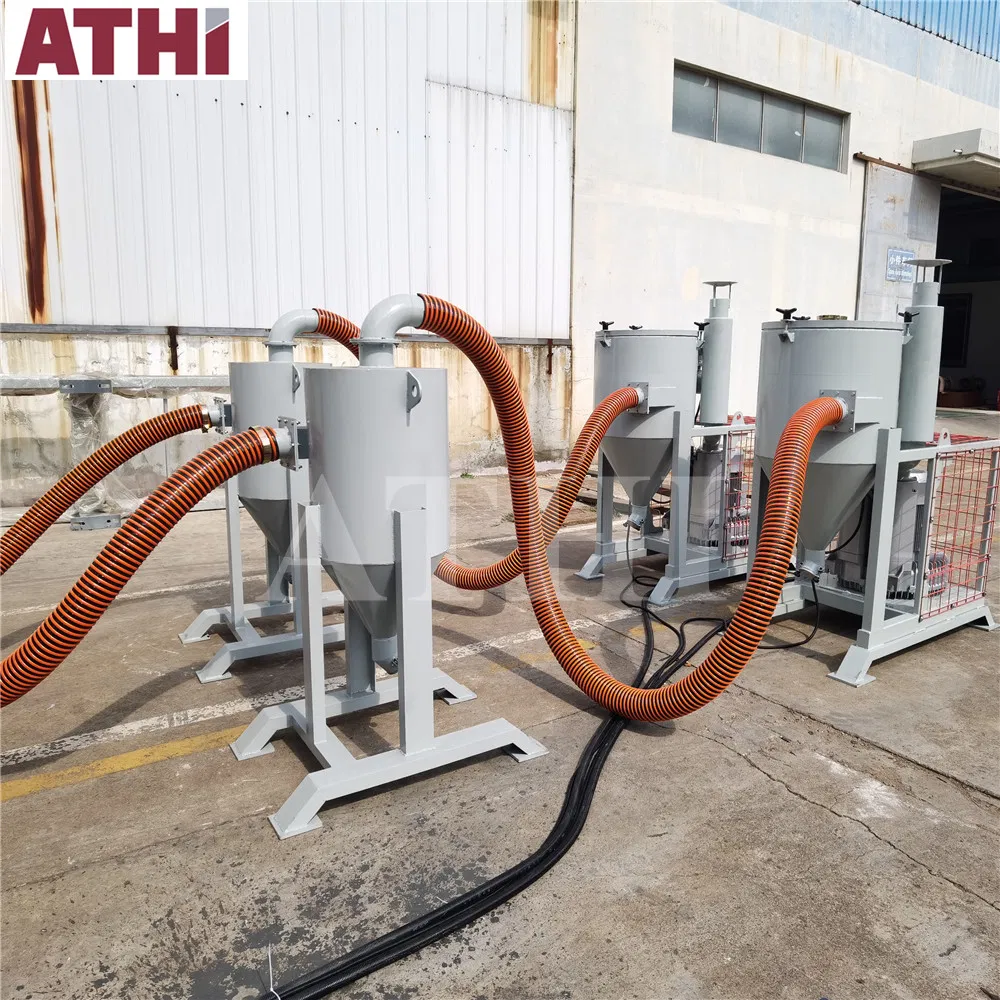

System Functionality: The vacuum method consists of a vacuum unit (pump or industrial cleaner), a silo with an integrated separator, suction and vacuum hoses, and specialized nozzles. It can be used with scraper floors or as standalone equipment for manual collection of steel grit.
| No. | Item | Parameter Specification |
|---|---|---|
| 1 | Power Supply | AC three-phase, 380V ±10%, 50Hz ±1 |
| 2 | Motor | 15kW × 2, IP55 Protection Class |
| 3 | Air Volume / Operating Noise | 22 m³/min; ≤ 85dB(A) |
| 4 | Sand Suction Capacity / Distance | 2-3 t/h; 6m vertical, 30m horizontal |
| 5 | Maximum Vacuum Degree | -0.04 MPa |
| 6 | Dust Collector Filter Area | 33 m² / high-efficiency polyester fiber / 99.9% |
| 7 | Dust Emission Concentration | ≤15 mg/m³ |
| 8 | Pulse Backflush Control | Automatic timed blowdown |
| 9 | Filter Cleaning System | Pulse backflush dust removal with compressed air |
| 10 | Suction Pipe Specification | Ø100 mm (10 m); Ø64 mm (20 m) |

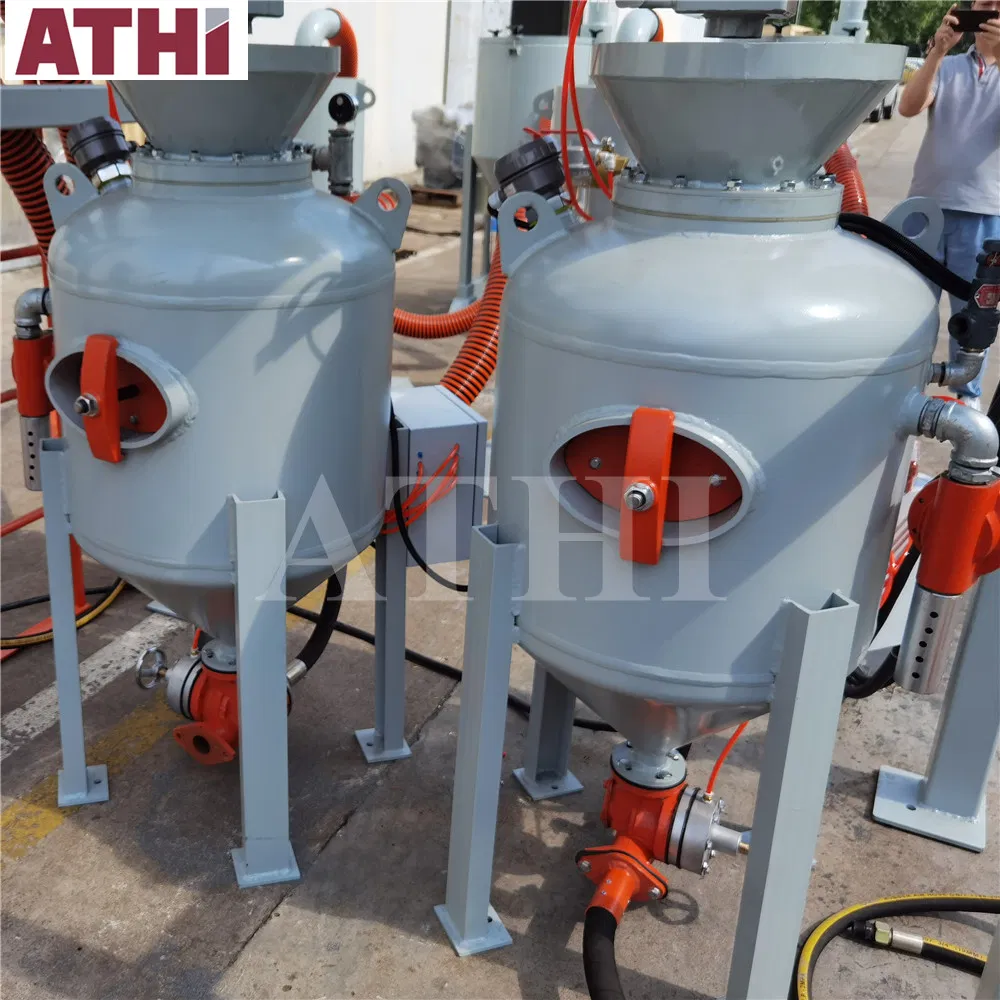

| Item | Specification |
|---|---|
| Sand Tank Capacity | 0.26 m³ × 2 units |
| Air Source Pressure | 0.6-0.8 MPa |
| Working Pressure | 0.6-0.7 MPa |
| Nozzle Diameter | 10 mm |
| Sand Valve Opening Pressure | 0.4 MPa |
| Air Consumption per Unit | 6-8 m³/min |
| Sandblasting Area | 6-15 m³/h |
| Control Mode | Wireless Remote Control |
