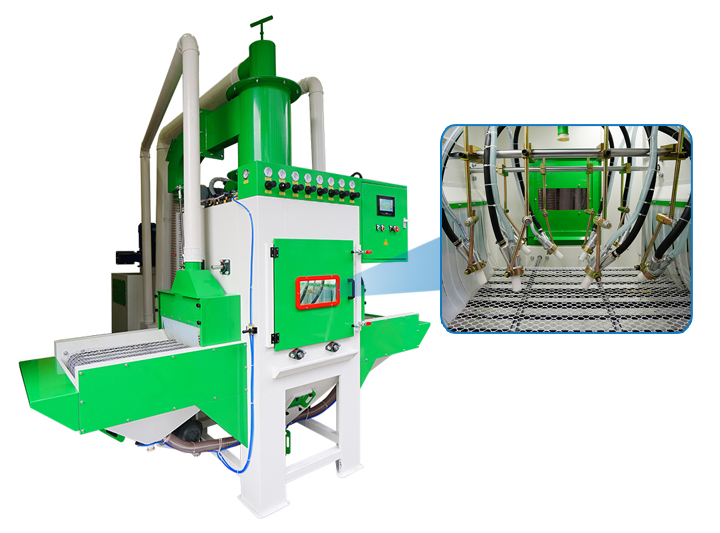

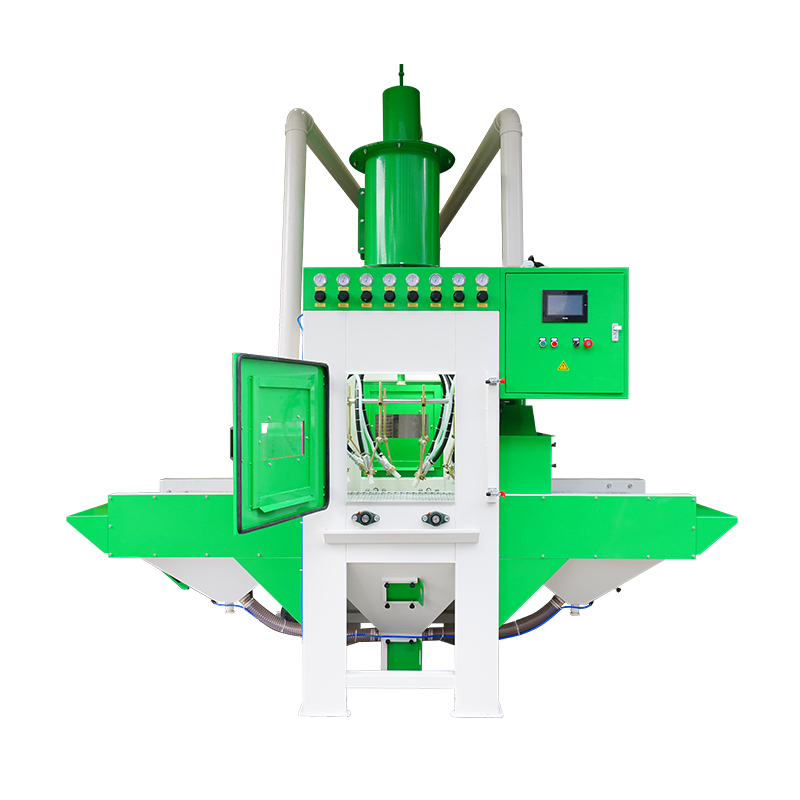

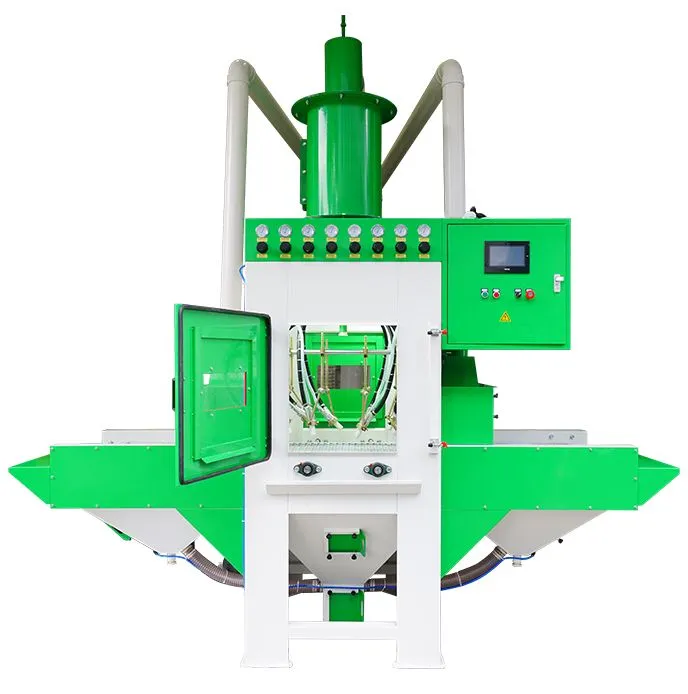

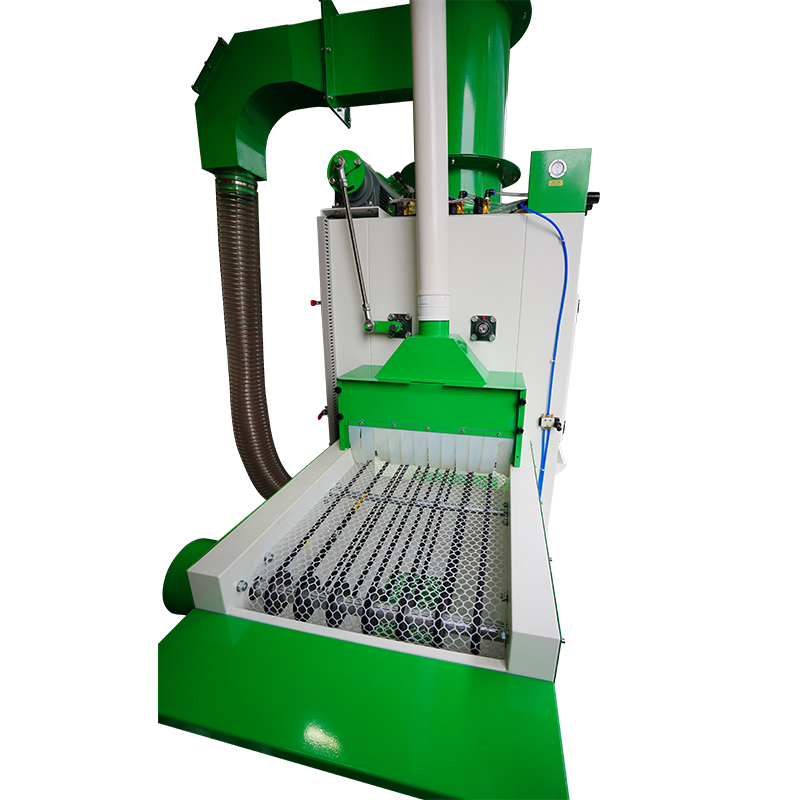

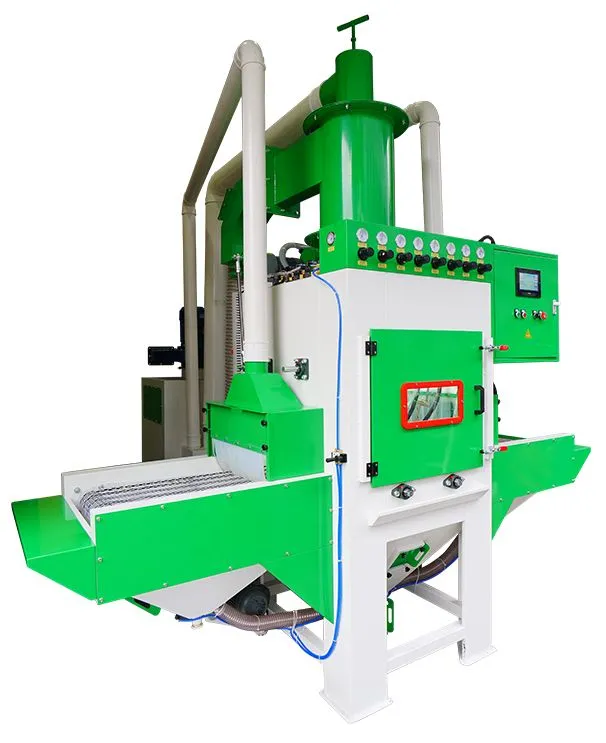

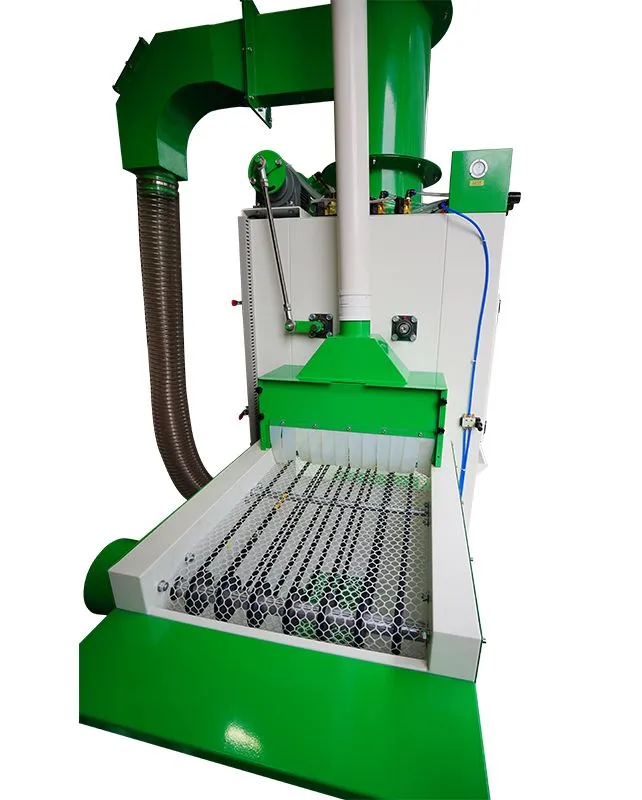

Automatic Sandblasting Machine Conveyor Belt Sand Blasting System for Rust Removing
This automatic conveyor belt sand blasting system is designed for automatic blasting of small work-parts in panel, tube or pan shapes, achieving batch production with high efficiency and consistent quality. Sizes, colors, conveyor type, blasting gun quantities and other special requirements can all be customized.
Automatic conveyor belt sandblasting machine applications:

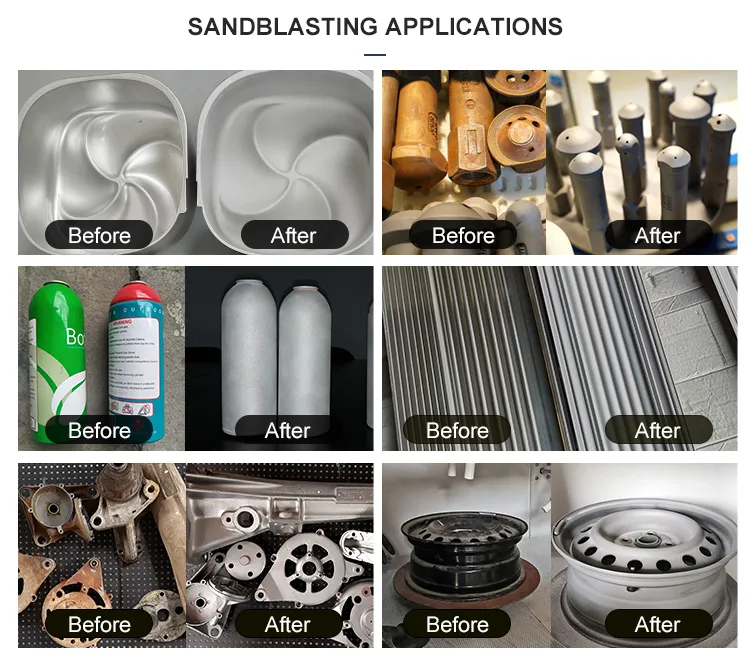

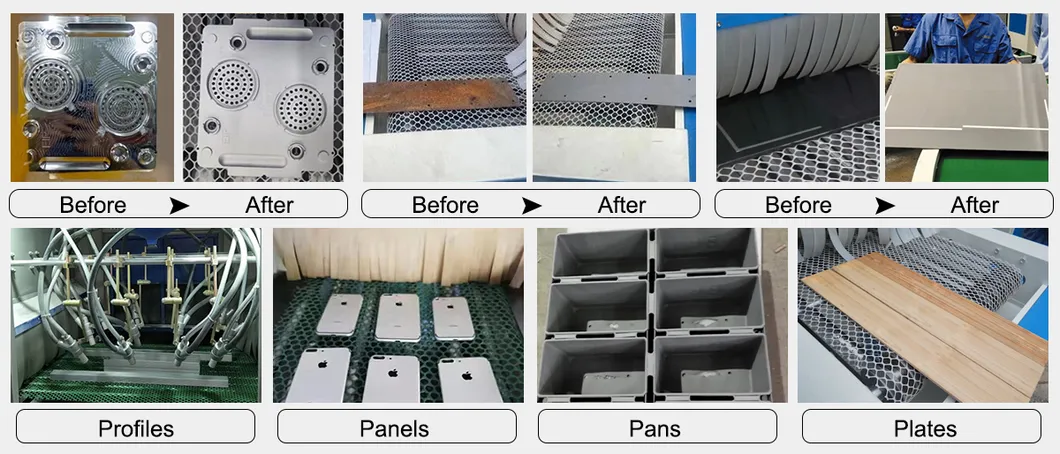

Ideal for high-volume production of parts that cannot be subjected to part-on-part contact. Recommended for processing flat shape workpieces like steel plate, glass plate, wood plates, plastic plates, aluminum plates or profiles, as well as pipe or tube shaped objects. It is efficient for paint removing and rust-removing with uniform quality.

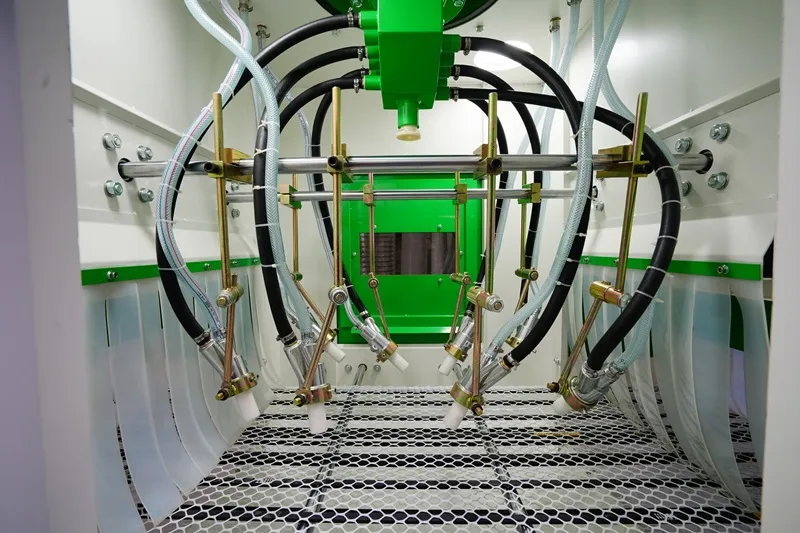

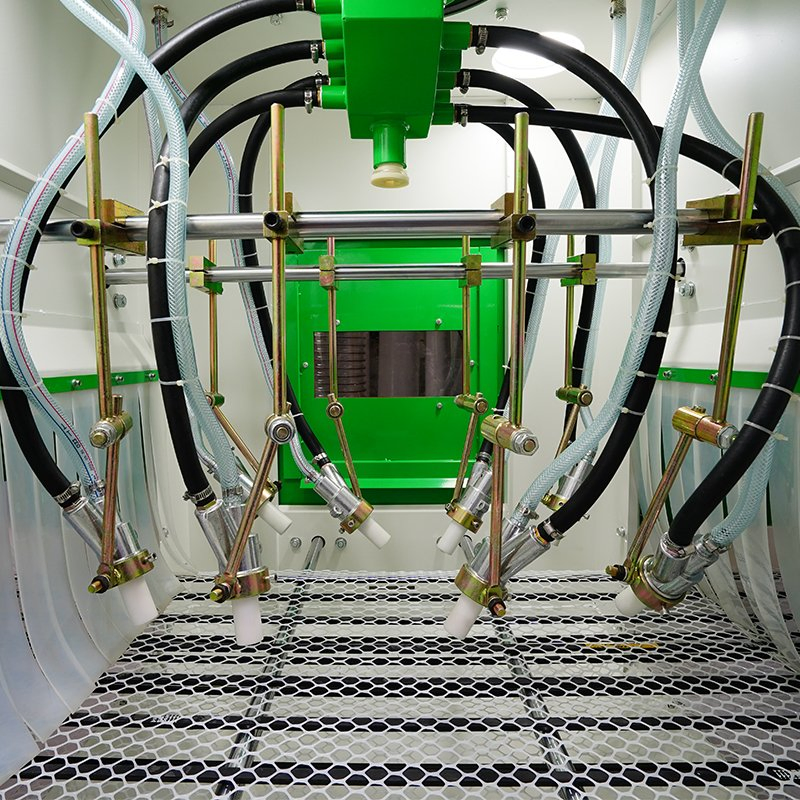

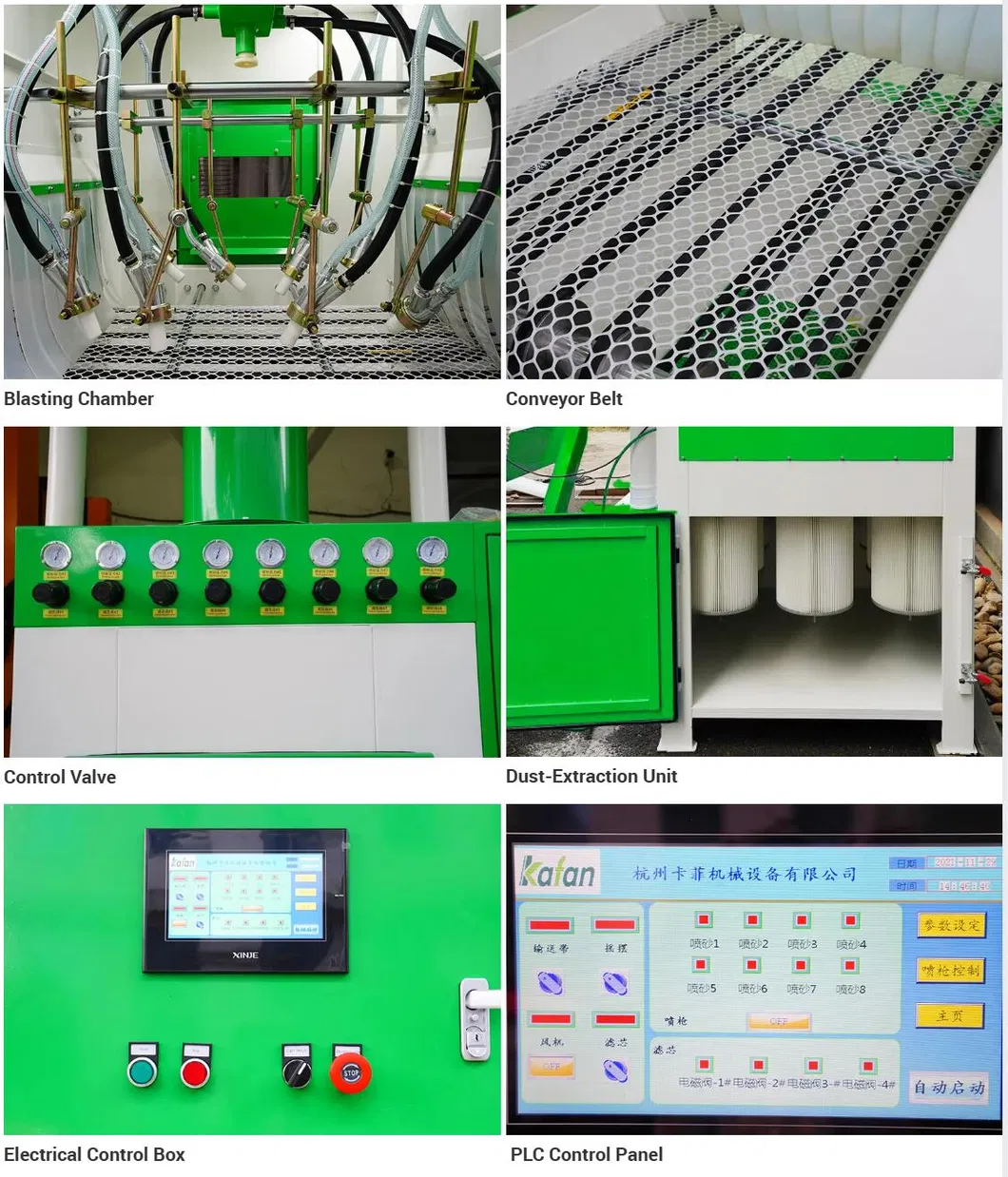

Operators fix work-parts on the conveyor belt. As they enter the sandblasting chamber, the guns automatically swing and blast, ensuring full coverage. Finally, parts exit the other side for discharging.
| Type: | Pass Through Conveyor Type |
| Model: | KF-2706-8A |
| Overall dimensions: | Length 2700 * Width 1000 * Height 2059 mm |
| Working Space: | Length 900 * Width 1000 * Height 922 mm |
| Through Size: | Length 600 * Width 300 mm |

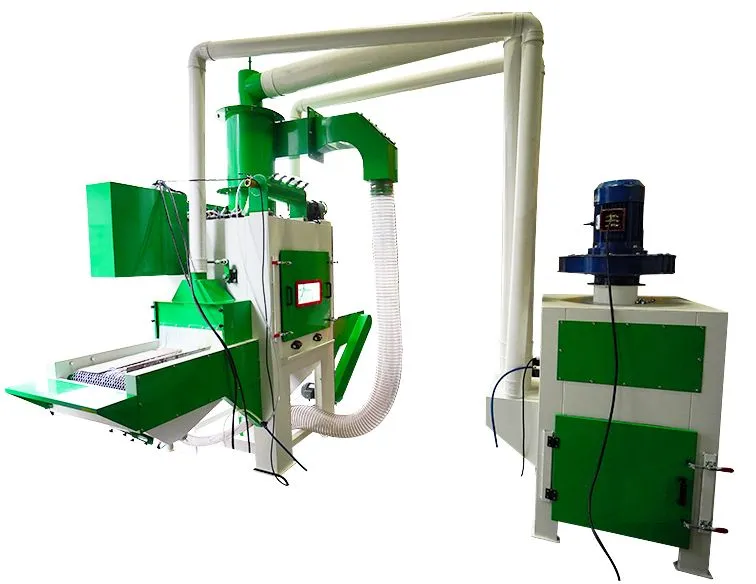

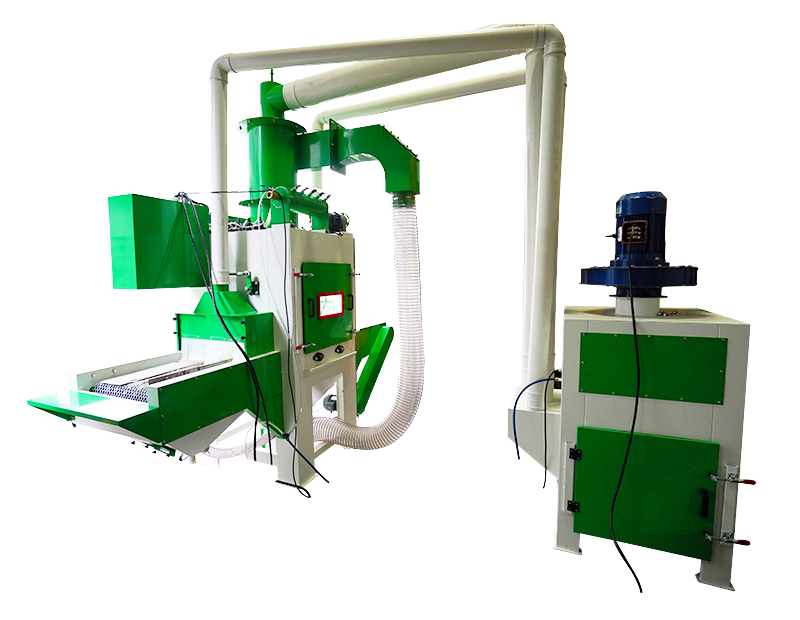

| Dust collector size: | Length 1200 * Width 700 * Height 1900 mm |
| Dust fan power: | 5.5kw |
| Conveyor motor: | 0.75kw, 0-2 m/min speed adjustable |
| Blast gun motor: | 0.4kw, frequency adjustable |
| Machine material: | 2.5mm-6mm cold-rolled steel plate welded |
| Abrasive funnel: | 3pcs |
| Pressure: | 7 bar (kg / cm2) |
| Air compressor: | 8 cubic meter/min |
| Total power: | 7KW |
*Note: The machine can be fully customized with different sizes according to the site and workpiece requirements.
