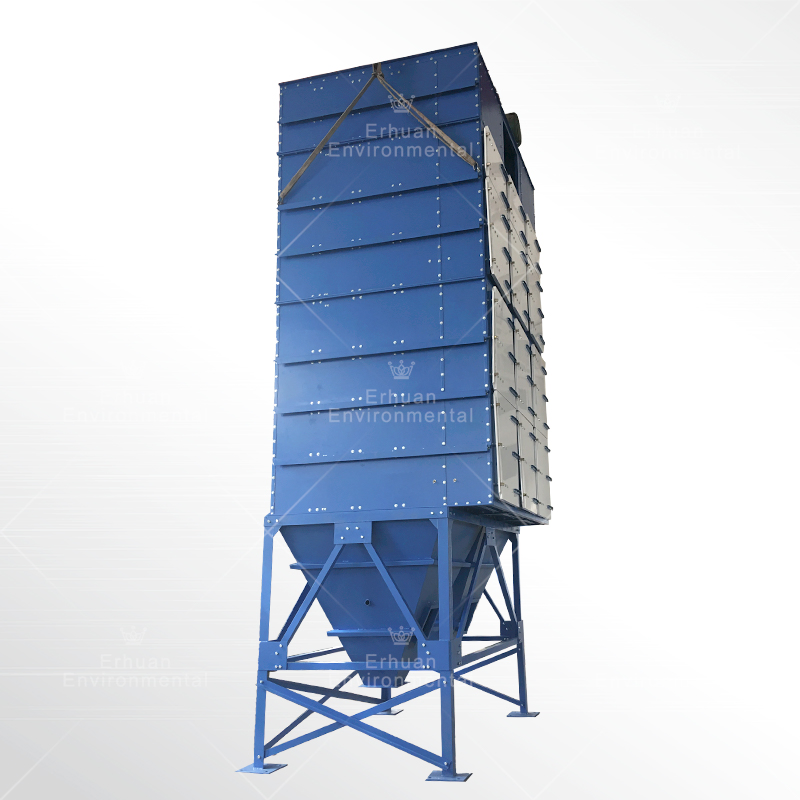

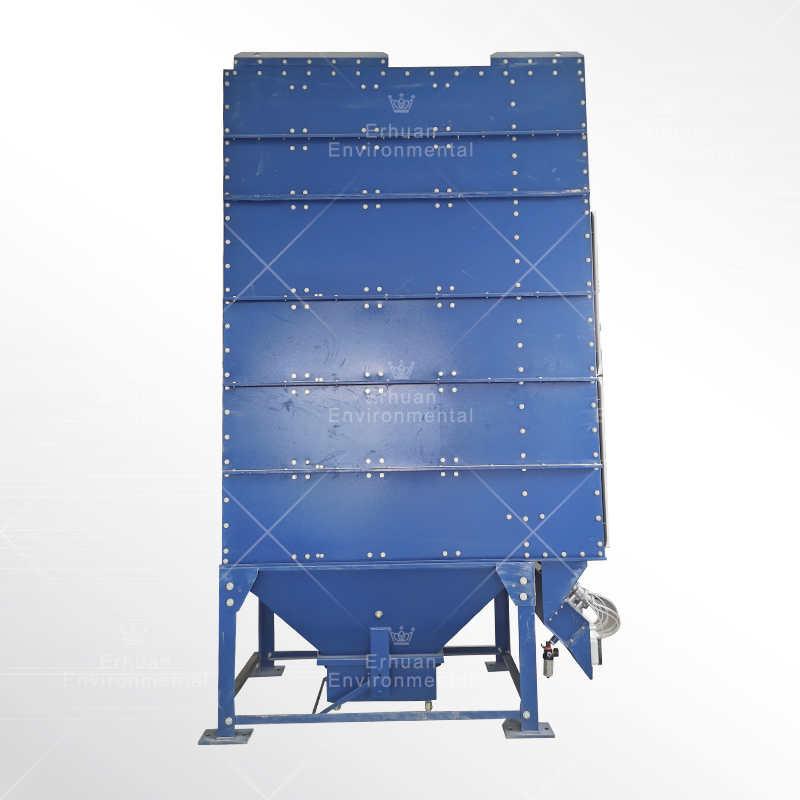

Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector
Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector
Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector
Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector
Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector
1 / 5
Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector
Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector
Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector
Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector
Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector

Flat Bag Filter Air Cleaning Equipment Industrial Woodworking Pulse Dust Collector

Customization: Available
Certification: CE, ISO
Installation
Method:		 Vertical
Send Inquiry

Product Description

Basic Information

Model NO.
DLMC
Operation Type
Automatic
Medium Material
Natural Fiber
Method
Dry Dust Collecting
Type
Flat Bag Dust Collector
Air Volume
3000-5000m3/H
Filter Type
Polyester Filter Bag
Voltage
380V/220V/415V

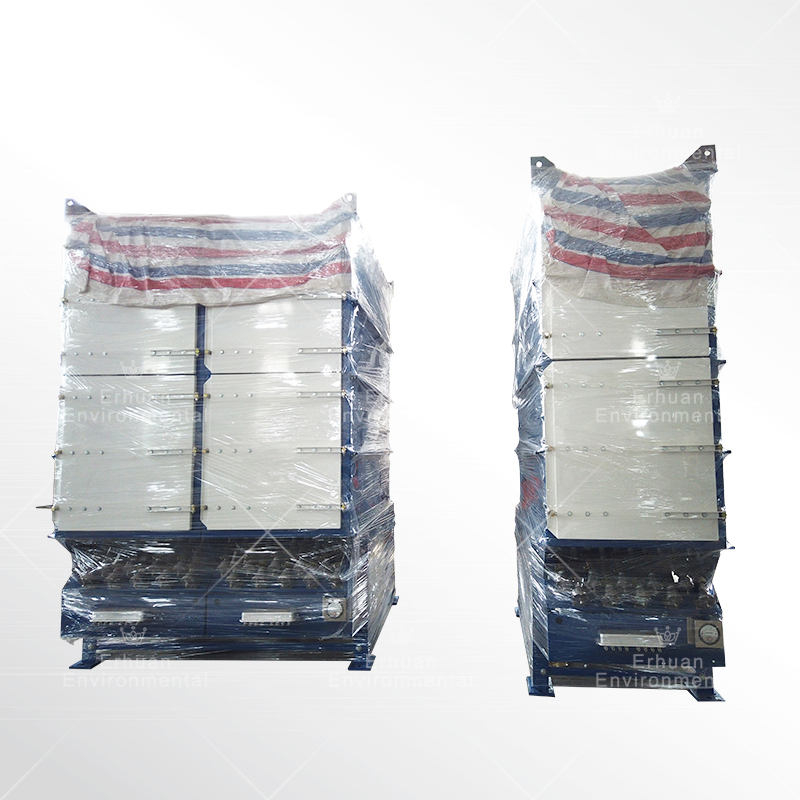

Packaging & Delivery

Package Size
1374 * 3717 * 5409 cm
Gross Weight
2000.00kg
Transport
Container

High-Performance Vacuum Dust Collector

Our high-performance flat baghouse vacuum dust collector is engineered for durability, efficiency, and versatility. Designed with advanced carbon steel and stainless materials and high-efficiency filter cartridges, this system ensures superior filtration, smooth operation, and energy efficiency. It is built for heavy-duty applications in diverse industrial environments.

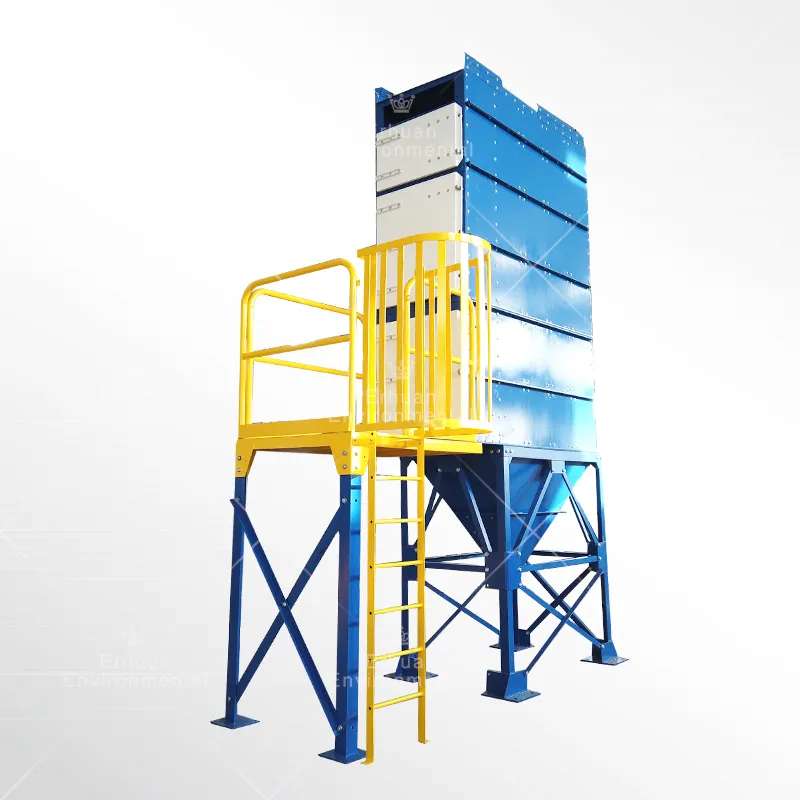

Flat Bag Filter Equipment

Main Applications

Metalworking (welding, grinding, polishing)
Pharmaceutical & Chemical Production
Cement, Lime, and Gypsum Plants
Food and Grain Processing
Foundries and Mineral Processing
Battery & Electronics Manufacturing

Operation Showcase

Key Configurations

High-Efficiency Fans: Equipped with industrial fans from trusted global brands, offering strong airflow and low energy consumption.

Premium Filter Bags: Long service life bags designed to withstand high dust loads and temperatures with low resistance.

Rotary Valve Motors: Durable motors ensuring consistent discharge of collected dust with minimal maintenance.

Pulse Valves: High-response jet valves maintain optimal airflow and minimize pressure drops.

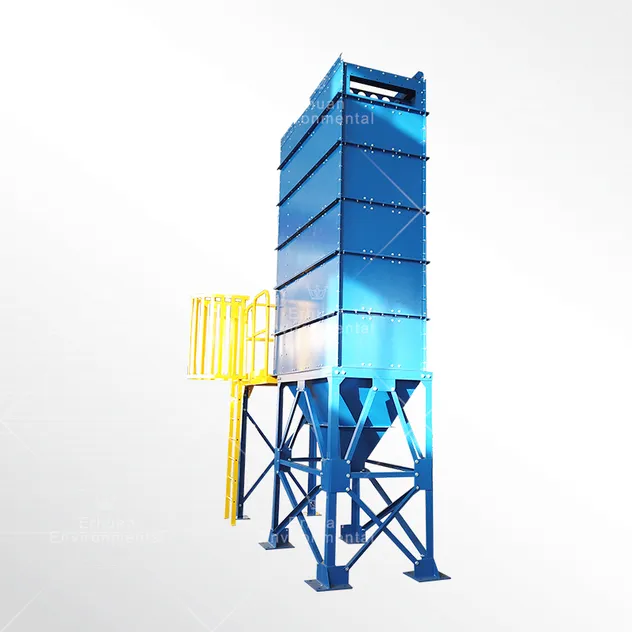

Right Elevation
Right Elevation

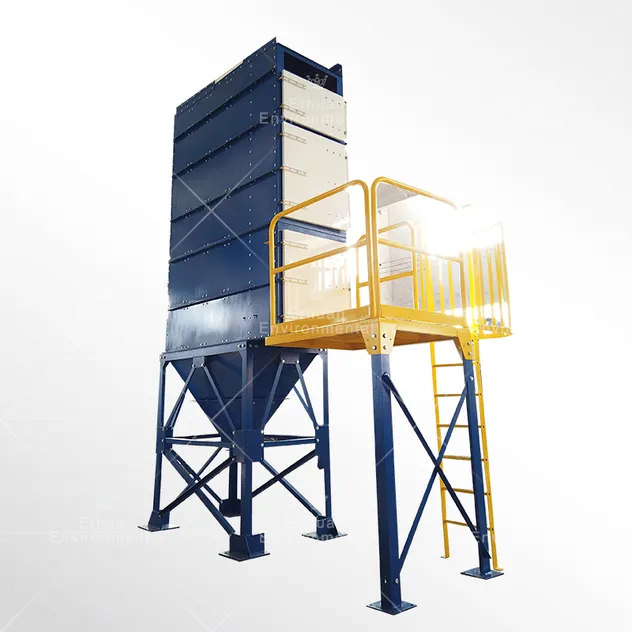

Left Elevation
Left Elevation

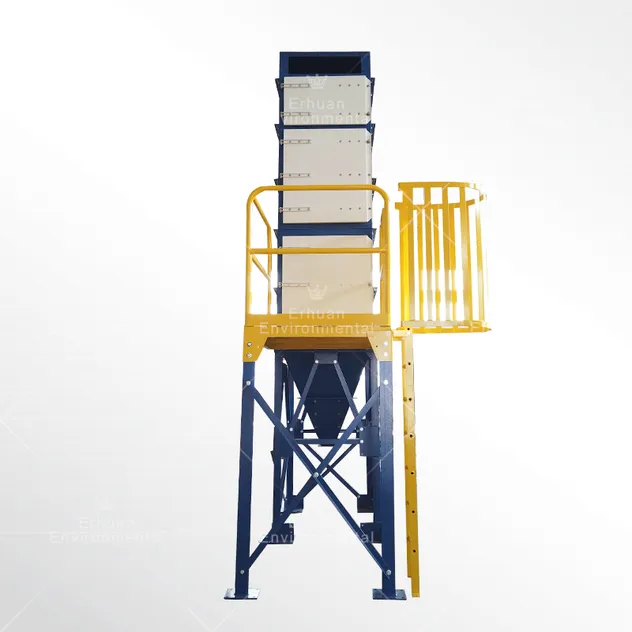

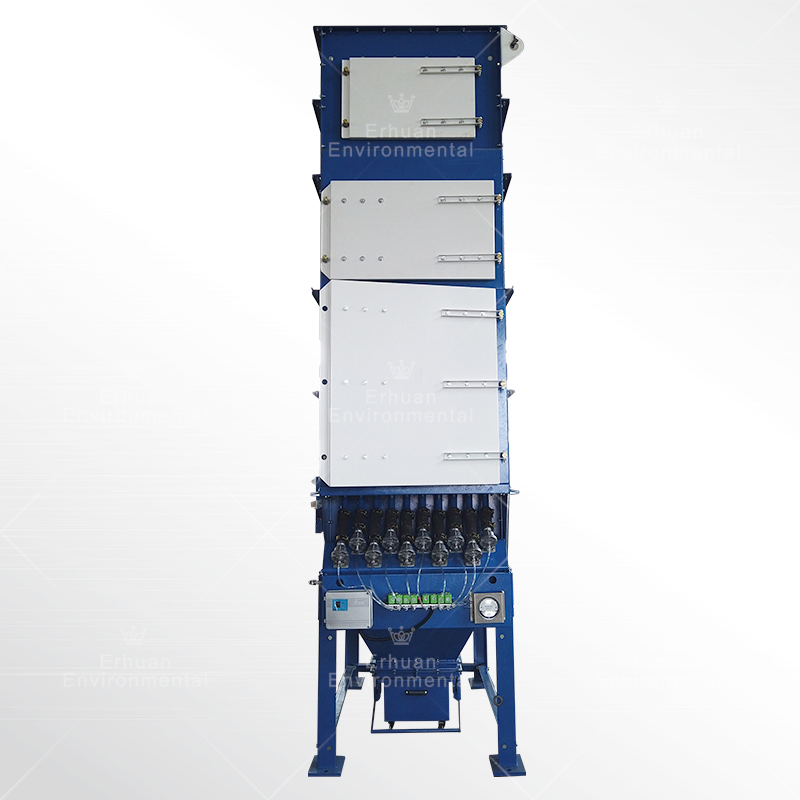

Front Elevation
Front Elevation

Technical Specifications

Model HVF-510 HVF-520 HVF-530
Operating Weight (kg)160028003100
Vacuum Pressure-30Kpa-30Kpa-30Kpa
Air Volume (m³)90012002000
Filter Area (m²)102030
Bag Size (mm)500*1000500*1000500*1000
Bag Quantity (pcs)102030

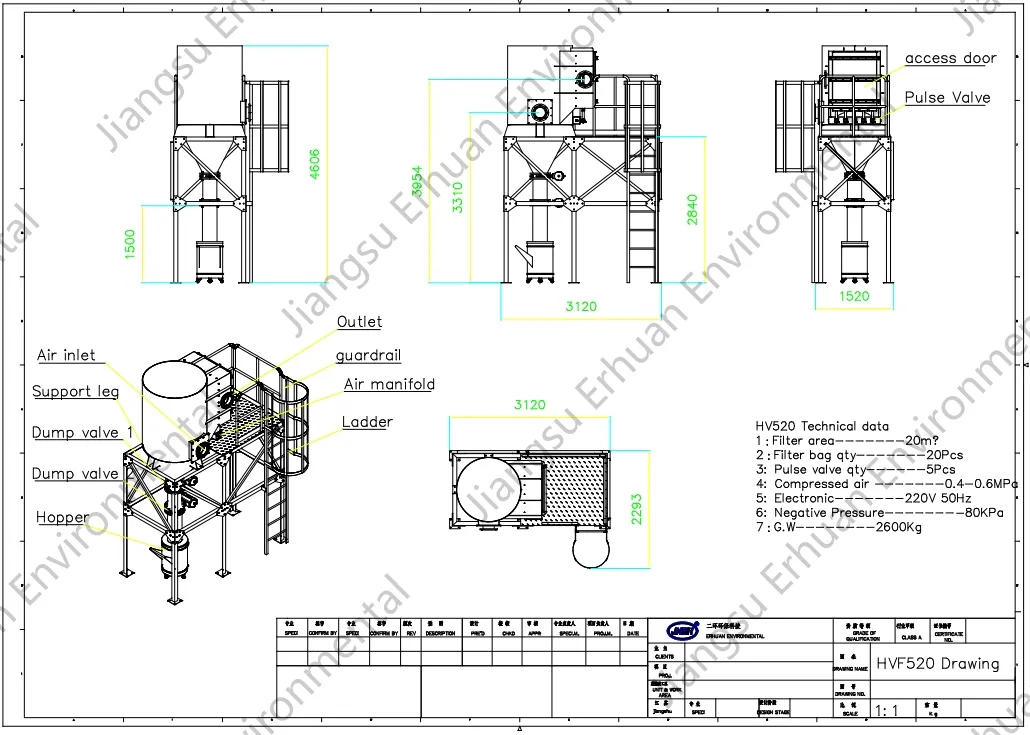

Dimensions Drawing

After-Sales Service

Standard Warranty: 12 months or 2,000 operating hours.
Extended Support: Optional coverage up to 15 months.
Technical Assistance: 24/7 global support and spare parts supply.
Training: On-site or remote maintenance training provided.

Professional Manufacturer

As a leading manufacturer of environmental protection equipment with over 40 years of expertise, we provide ISO 9001 & CE certified solutions. Our machinery is exported to 50+ countries, backed by innovation and strict quality control.

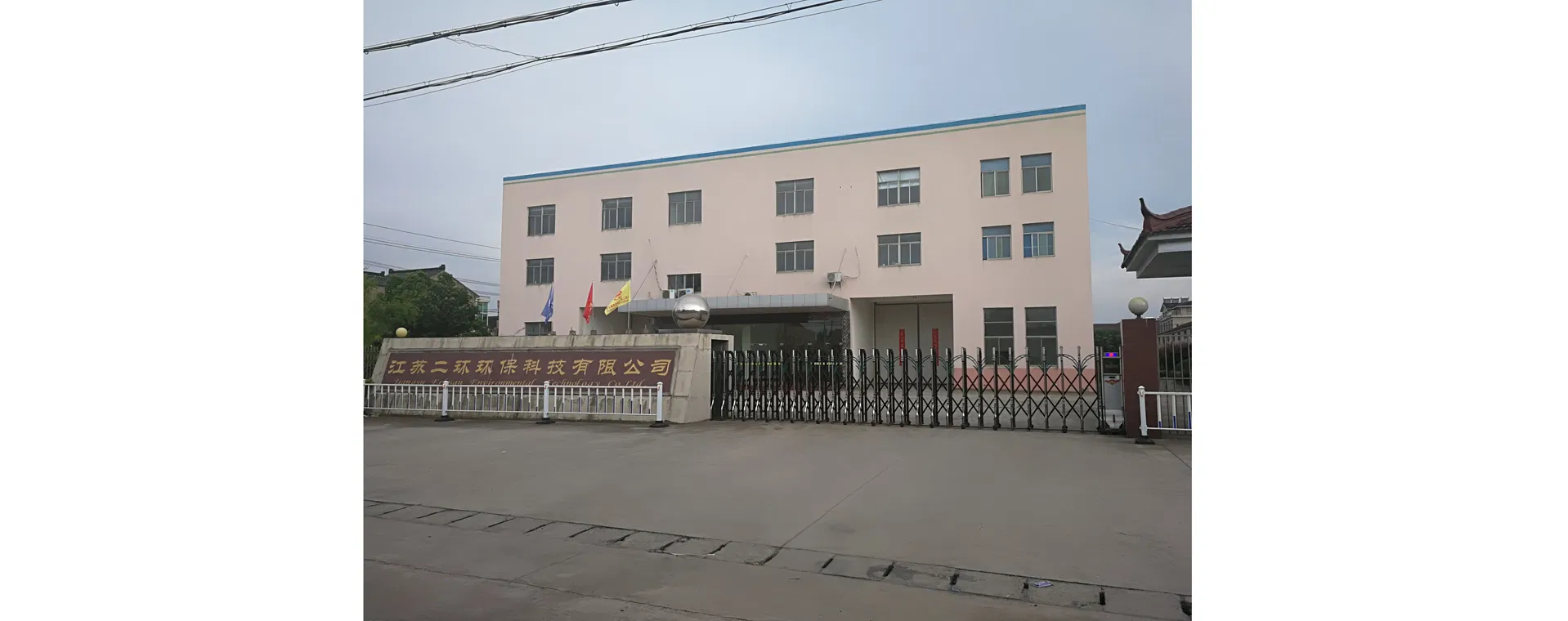

Factory Overview
Production Line
Quality Control

Frequently Asked Questions

What is the typical lead time for an order?
Standard models are usually ready to ship within 15–20 days. Customized units tailored to specific requirements generally require 30–45 days for production.
Can the dust collector be customized for specific industries?
Yes, we offer tailored configurations for various industries including woodworking, metalworking, and chemical processing, including custom hopper sizes and discharge options.
What kind of filtration efficiency can I expect?
Our flat baghouse collectors are designed for high efficiency. Optional HEPA secondary filters are available for industries with ultra-clean air requirements.
How is the filter cleaning system operated?
The unit utilizes a high-efficiency pulse jet cleaning system which ensures consistent performance with minimal compressed air usage.
Do you provide documentation for international export?
We provide a full export package including Commercial Invoices, Packing Lists, Bills of Lading, and necessary certifications like COC.
What is the vacuum pressure capability of this equipment?
The system features vacuum-grade construction suitable for negative-pressure operation down to -30kPa, reinforced with vacuum-tight seals.
