Blatrixo Machine
Blatrixo Machine

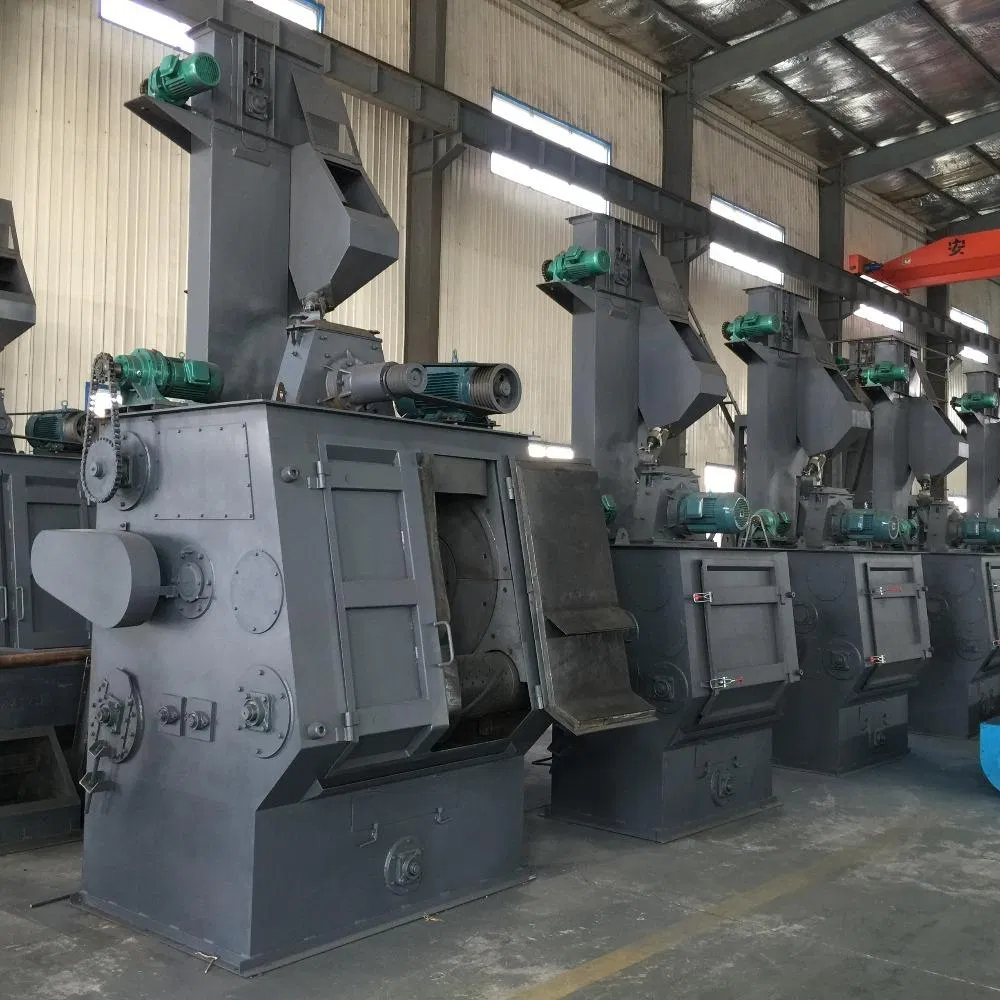

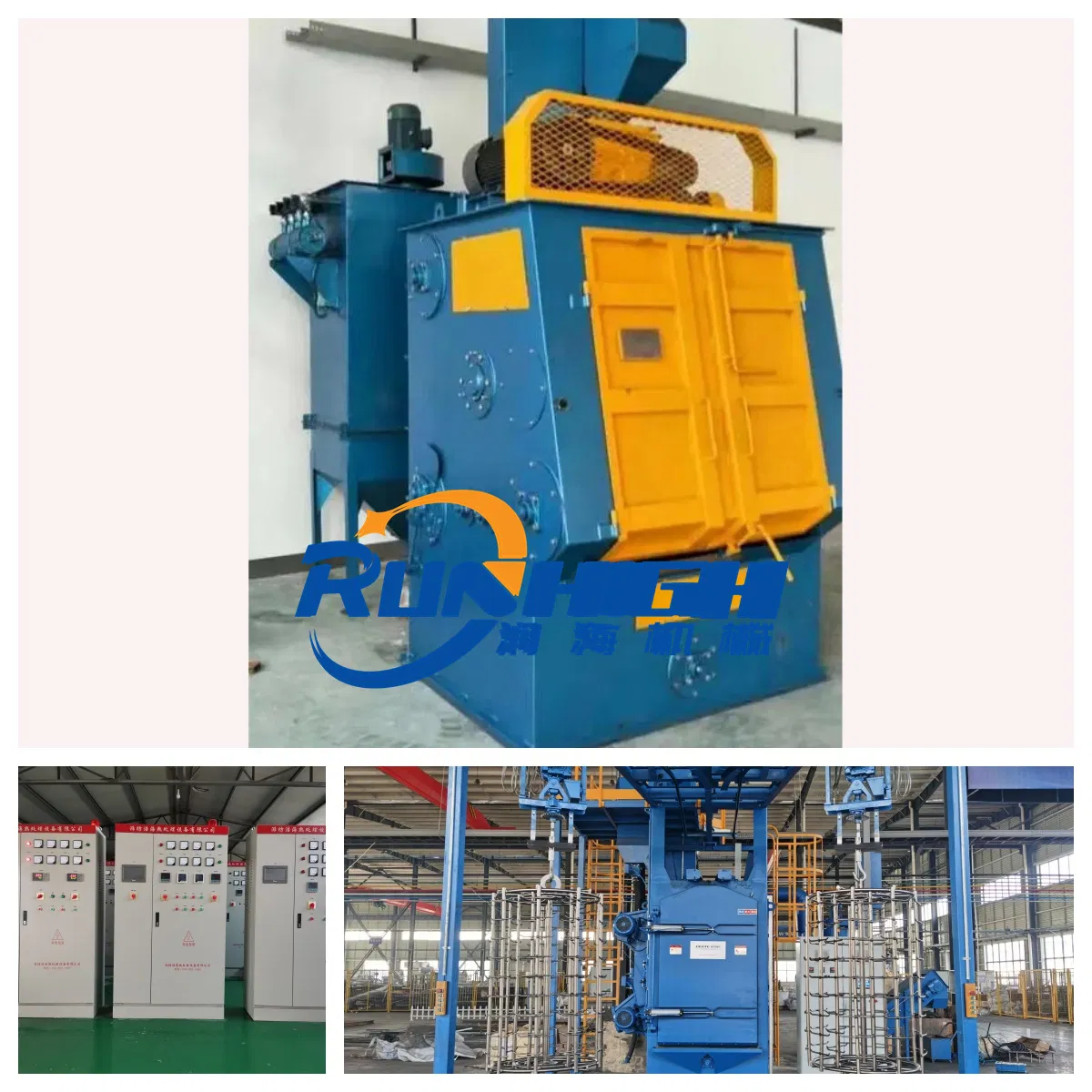

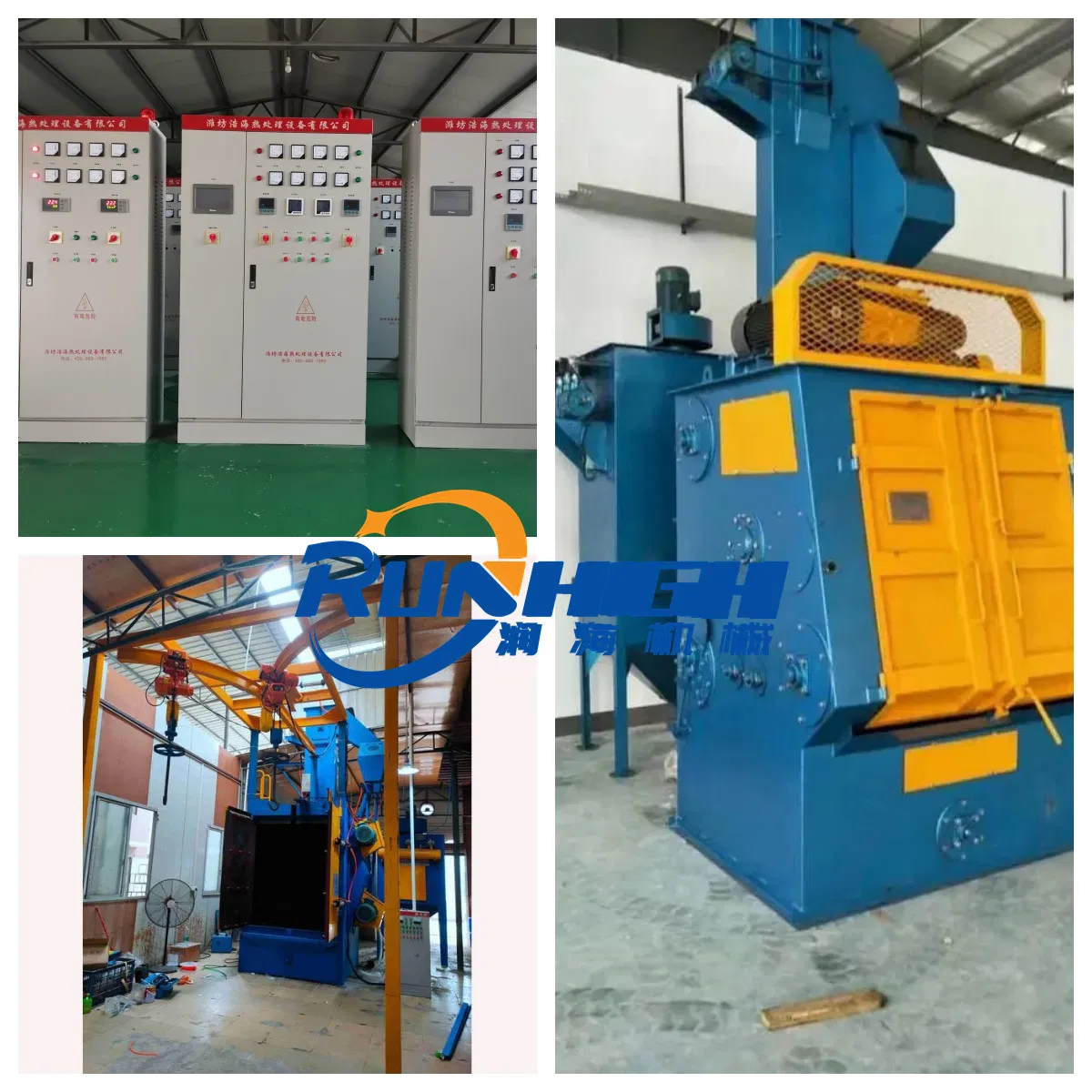

The apron wheel type hot blasting machine is a standard serialized product. It is suitable for small castings, forgings, weldments, stampings, non-ferrous metal casings, etc., which are easy to tumble and not afraid of collision in various industries. It plays a vital role in cleaning, derusting, removing surface oxide scale, and surface strengthening.
The workpiece is evenly tumbling in the drum surrounded by the crawler belt, while being hit by the high-speed shot abrasive beam to achieve superior cleaning.
Features automatic loading and unloading. It can be used as a standalone unit or integrated into a productivity line.
This model offers small occupancy (footprint), stable performance, and high productivity.
| MODEL | Cleaning Chamber Size (mm) | Max Load (kg) | Max Piece (kg) | Blasting Capacity (kg/min) | Productivity (kg/h) | Dust Air Volume (m3/h) | Note |
|---|---|---|---|---|---|---|---|
| Q326 | Φ600×900 | 200 | 10 | 160 | 800-1200 | ~2500 | Rubber Crawler |
| Q328 | Φ600×900 | 300 | 20 | 200 | 1000-1500 | ~3500 | Rubber Crawler |
| Q3210 | Φ1000×1100 | 600 | 30 | 200 | 2000-2500 | ~4500 | Rubber Crawler |
| Q3220 | Φ1200×1500 | 1200 | 30 | 2×200 | 4000-5000 | ~7500 | Steel Crawler |
| 15GN | Φ1092×1245 | 1360 | 200 | 480 | 4000-6000 | ~5500 | Steel Crawler |
We specialize in customized production according to customer requirements:
