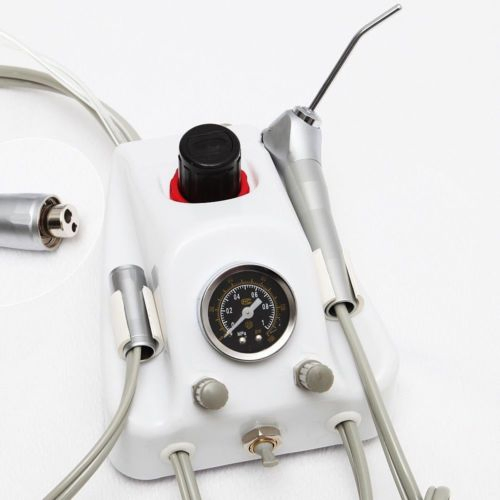

Dental Lab Products Portable Turbine Unit Dental Clinic Use

1 / 5

Dental Lab Products Portable Turbine Unit Dental Clinic Use

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:WM-315

Applicable Dept.:Orthodontic Department

Certification:CE

Model Type:Portable Dental Unit

Specification:365*315*300mm

Weight:3kg (Package)

Trademark:VIMEL

Origin:China(Mainland)

Production Capacity:50,000 piece/Year

Technical Parameters

Control way	Pneumatic control
Handpiece interface	International universal interface
Air pressure input	4-8kg
Air pressure output	0-4kg
Air pressure to handpiece	0.01Mpa-0.4Mp+C317a
Water pressure input	2kg
Water pressure output	0-2kg
Dimensions	160mm x 120mm x 80mm
Weight	1.4KG
SKU	XNE-D-7-04-M4

Note: Just connect to air compressor (0.4Mpa-0.8Mpa required) to work.

Method of Use

1. Connection Connect the gas source with fast interface; connect water with files. According to different requirements, connect it with external accessories and equipments. Turn on water vapor switch. After work, shut off the gas source.

2. Operational Adjustment

High-speed Handpiece: Adjust pneumatic to 0.2, adjust cooling water to frost-like state.
Sandblasting Guns: Adjust pneumatic to 0.3, set proper water amount. Shut off gun first after use.
Scaler: Adjust pneumatic to 0.3, adjust water to make the scaler vibrate.
Low-speed Motors: Aircraft control valve system is pre-adjusted to 0.4. User should not exceed 0.3 air pressure.

* Note: This item does not include the handpiece.

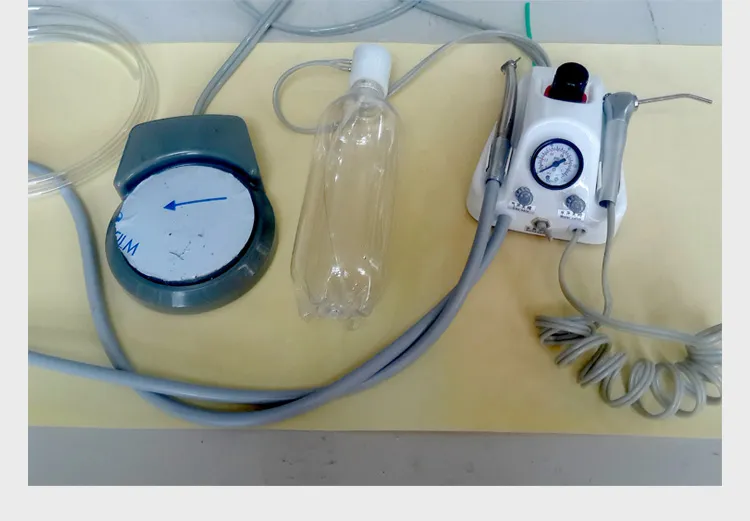

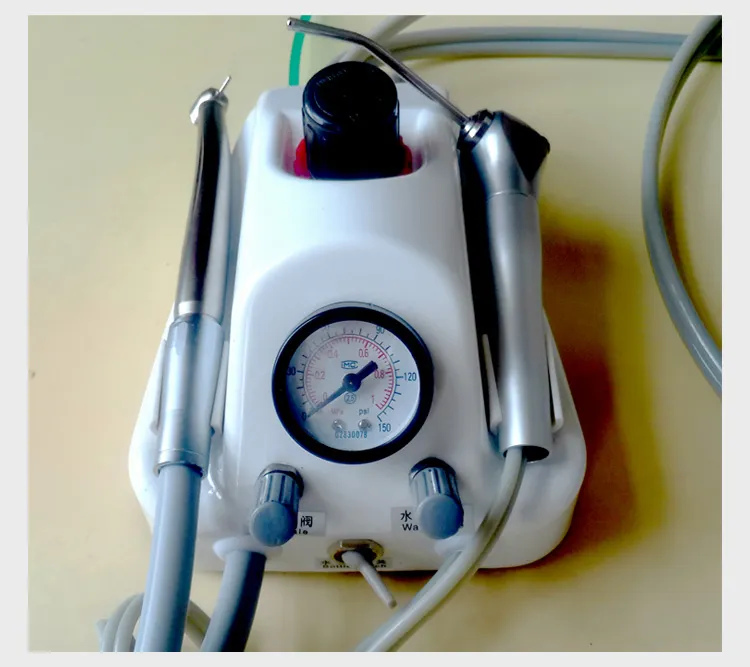

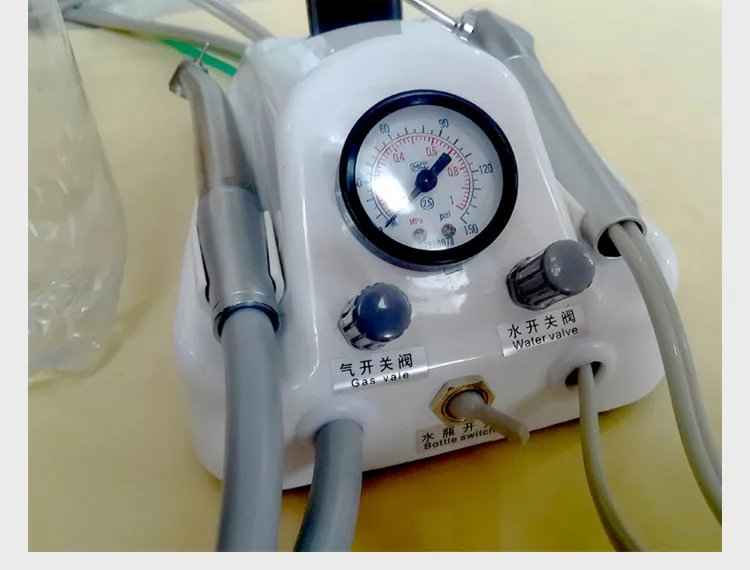

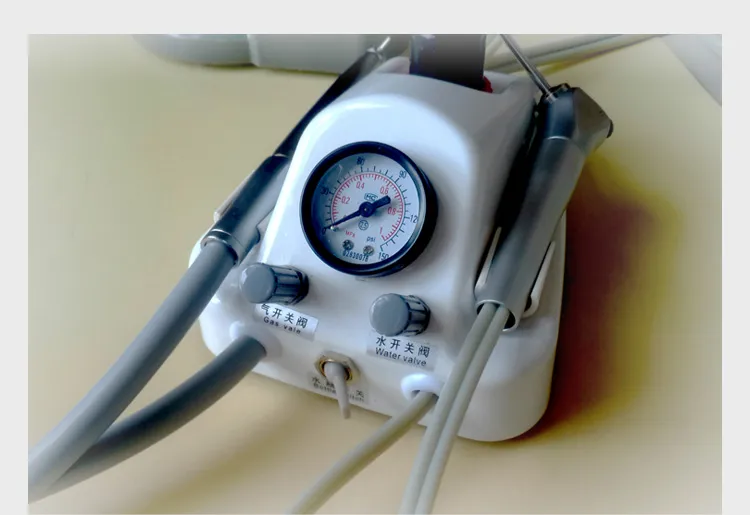

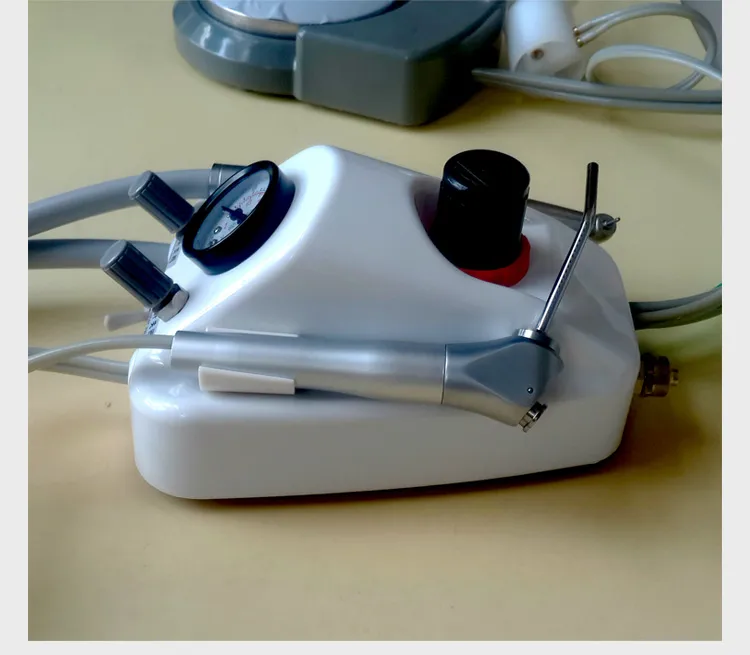

Product Details Gallery

Frequently Asked Questions

What is the required air pressure for this portable unit?

The unit requires an air compressor with a stable output between 0.4Mpa and 0.8Mpa to operate effectively.

Is the dental handpiece included in the package?

No, this item is the turbine control unit only. Handpieces must be purchased separately.

What type of interface does this unit use?

It uses an international universal interface, making it compatible with most standard dental high-speed and low-speed handpieces.

Can this unit be used for scaling procedures?

Yes, you can connect a scaler. It is recommended to adjust the pneumatic pressure to 0.3 for optimal vibration and water flow.

How heavy and portable is this dental unit?

The unit itself weighs approximately 1.4KG, and the total transport package is around 3KG, making it highly portable for clinic or laboratory use.

Is the unit certified for medical/dental use?

Yes, this portable dental turbine unit is CE certified, ensuring it meets safety and performance standards.
