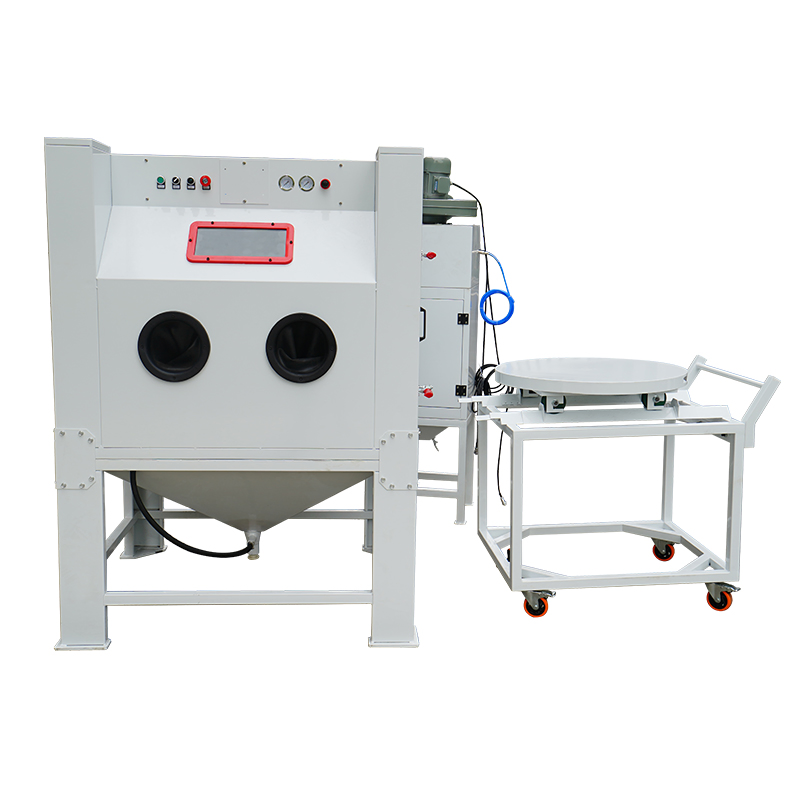

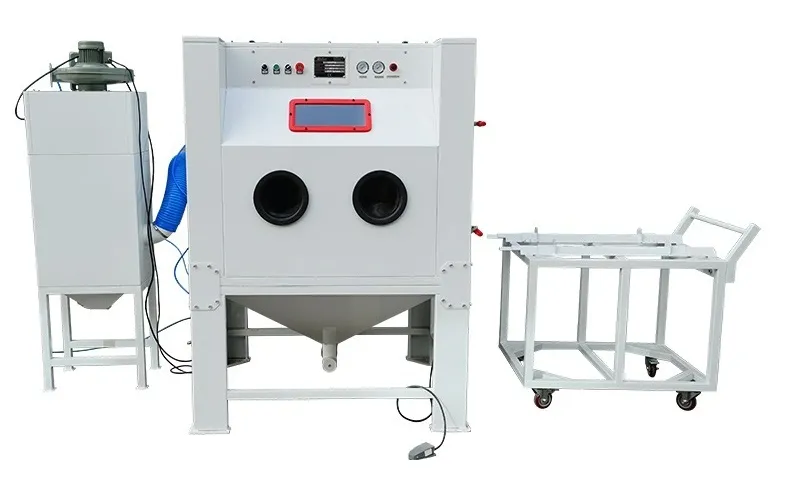

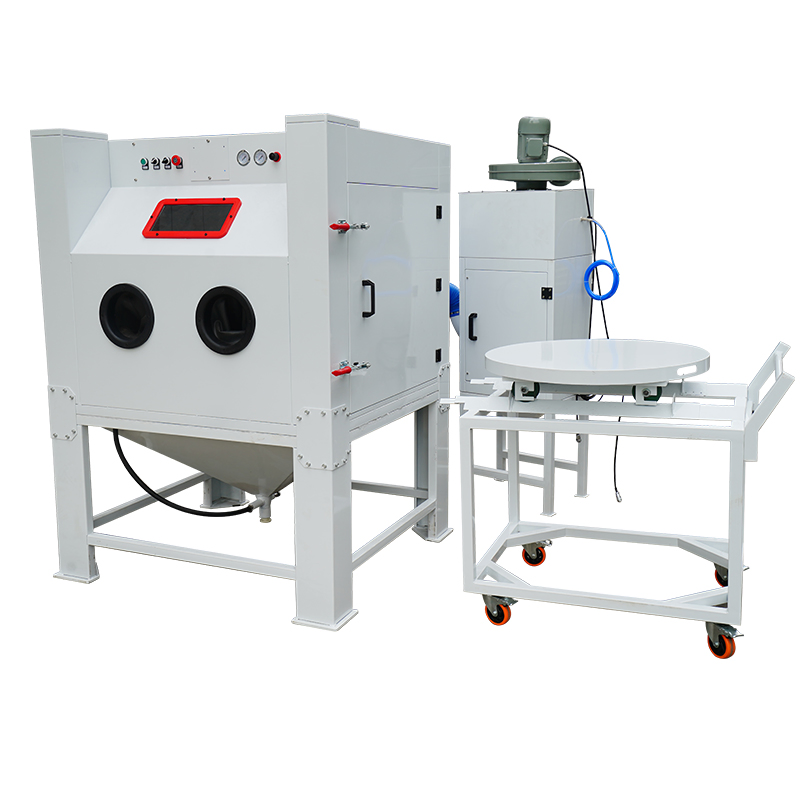

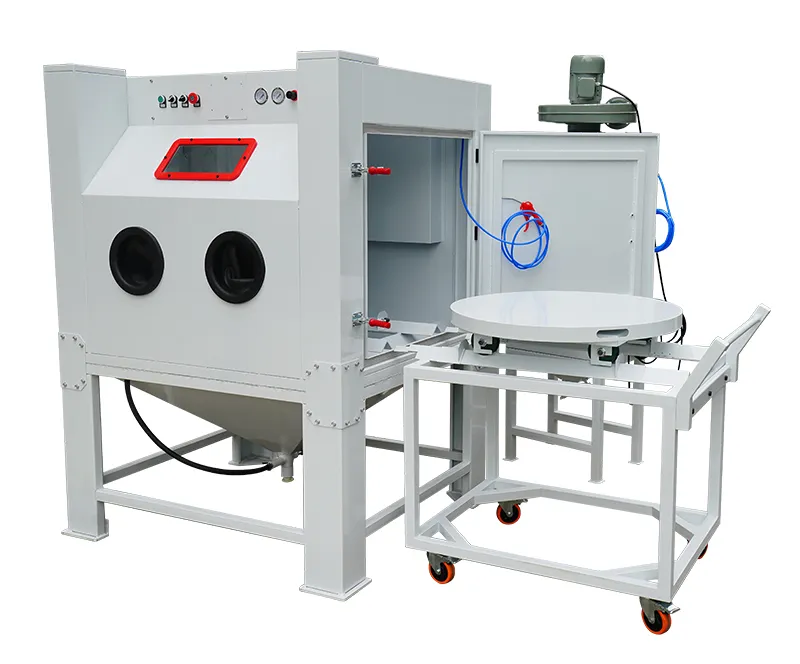

Wheel Blaster Machine, Manual Sand Blasting Cabinet for Car Rim
This machine is specially applicable for surface treatment of cylinder shape, irregular-shaped or heavy products, like car wheels, mold, statue, motor, etc, which significantly reduce efforts and increase the working efficiency.

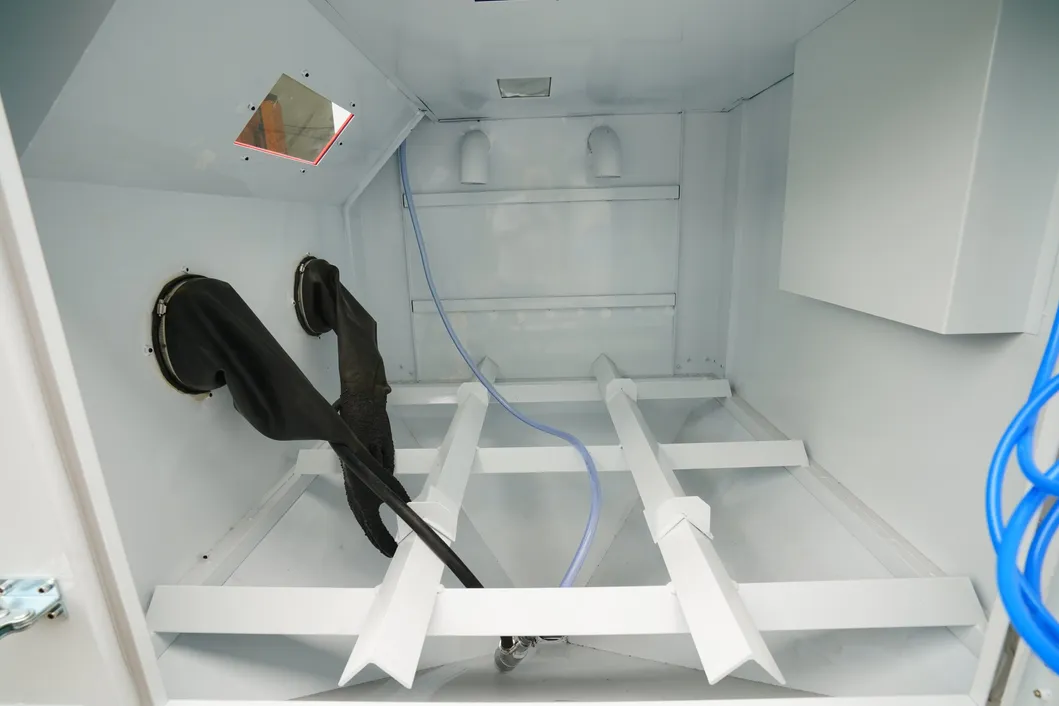

Well-sealed enclosed cabinet without dust leakage or abrasive leakage, always keep the environment clean.
Our blast cabinet are welded from 2mm durable steel plate, and powder-coated surfaces, anti-rust and extended life.

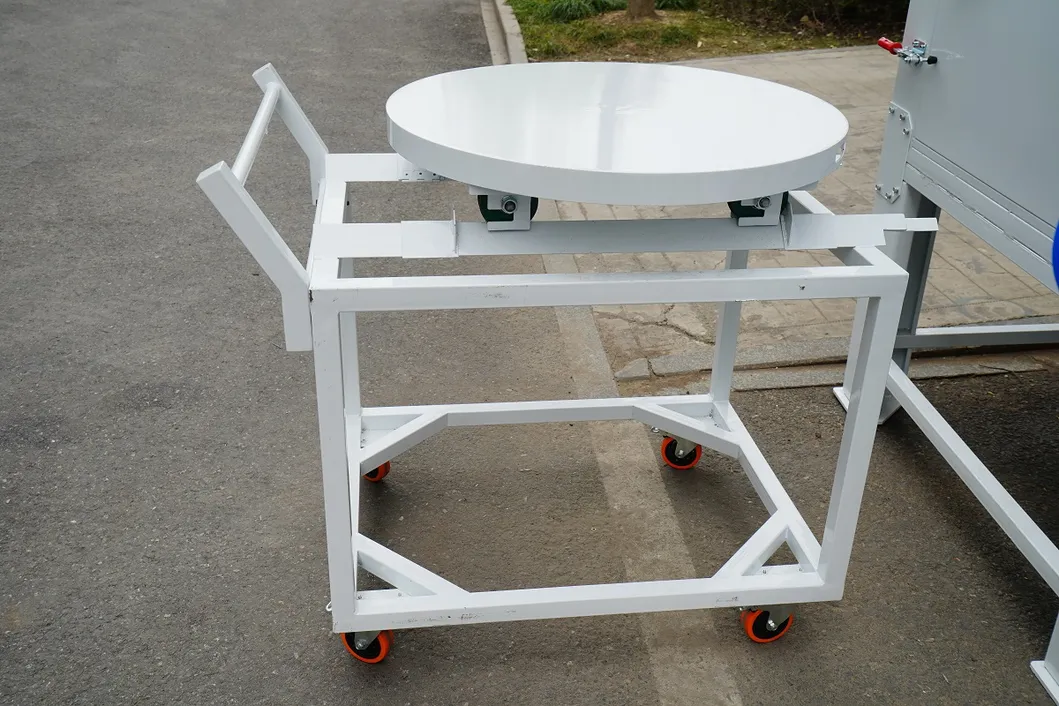

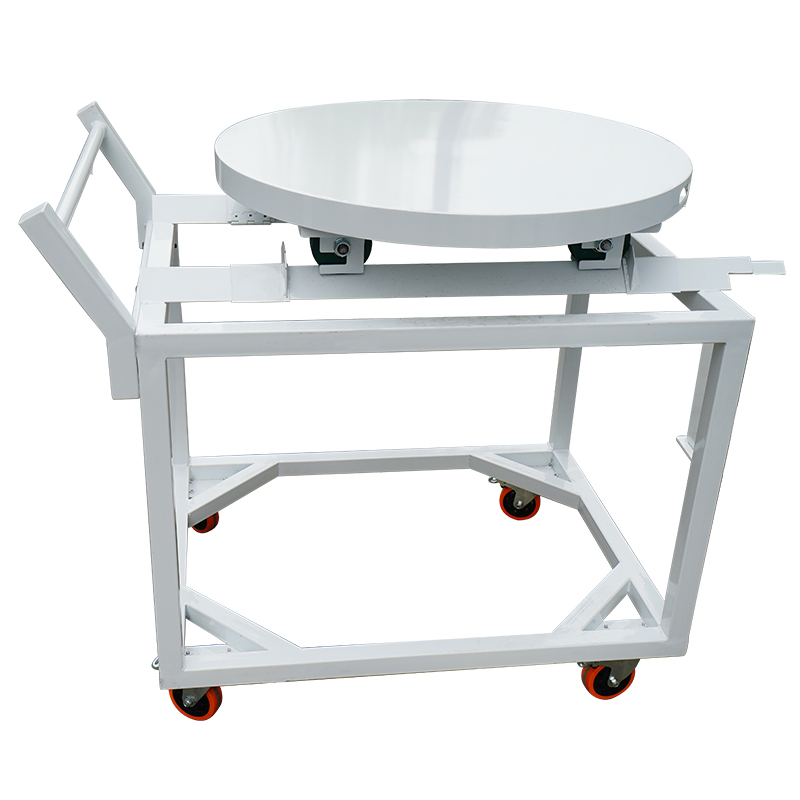

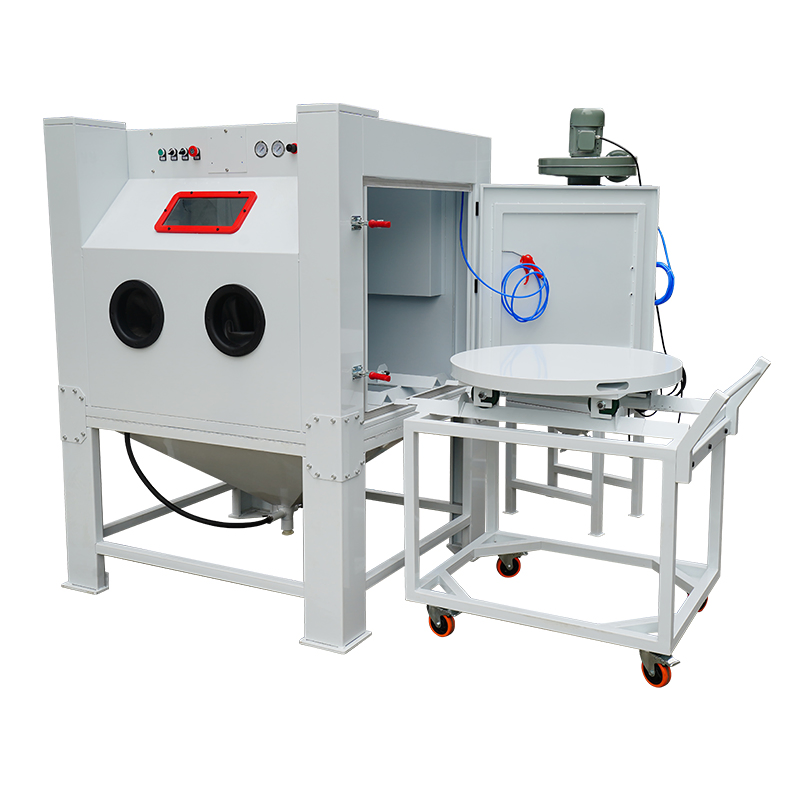

These blast cabinets often incorporate a turntable with cart on a track extension used to roll the tooling in and out with minimal force. The size of turntable can be made as actual needs.

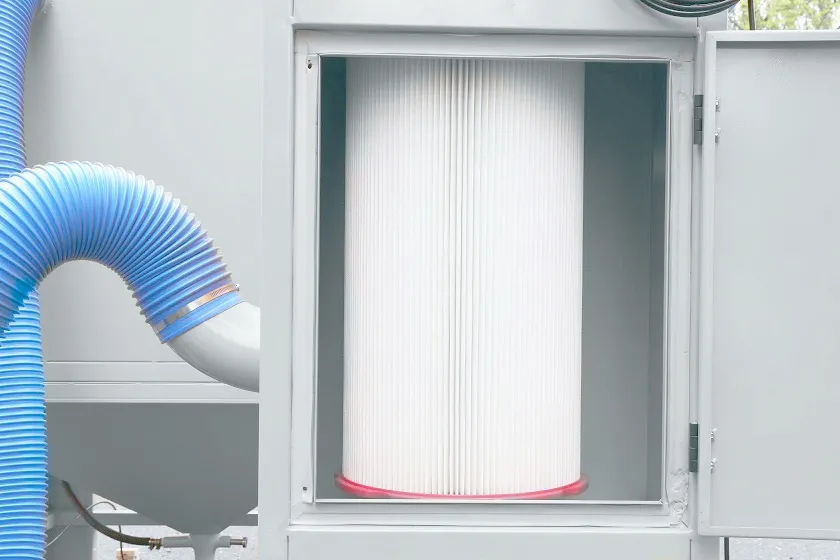

An independent cartridge filter dust collector effectively remove dust from the working chamber, ensure the pure abrasives are recycled, and it keeps dust away from the operator's window for increased visibility and accuracy when cleaning.

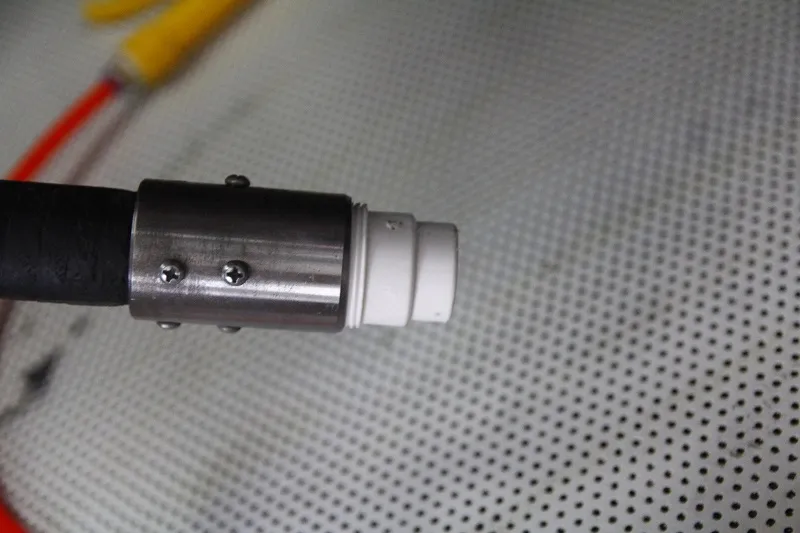

Long-life blasting gun with boron carbide nozzle, which is the most durable material in the market. Blast gun working is controlled by foot pedal switch, increase safety and reduce operator's fatigue.
| Parameter | Specification |
|---|---|
| Model | KF-1212FTA |
| Overall Dimension | Length 1200 * Width 1680 * Height 1840mm |
| Work Chamber | Length 1200 * Width 1200 * Height 800mm |
| Turntable | Diameter 800mm |
| Loading | Max. 200kgs |
| Door Size | W830 x H770mm |
| Power Supply | 110V/220V, 50-60Hz (customized) |
| Motor Power | 0.75kw |
| Lighting | 18w Fluorescent |
| Blasting Gun | 1 piece with boron carbide nozzle |
| Compressed Air | 5-8 bar(kg/cm2) |
| Flow | 0.5-1.2m3/min |

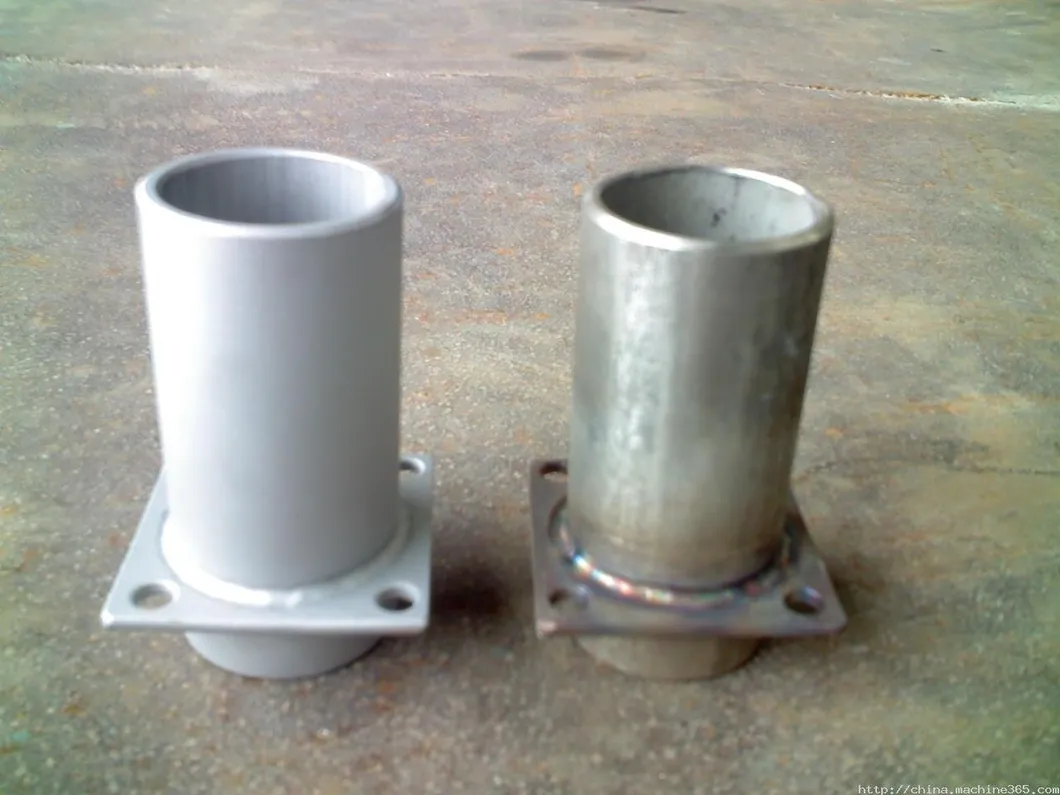

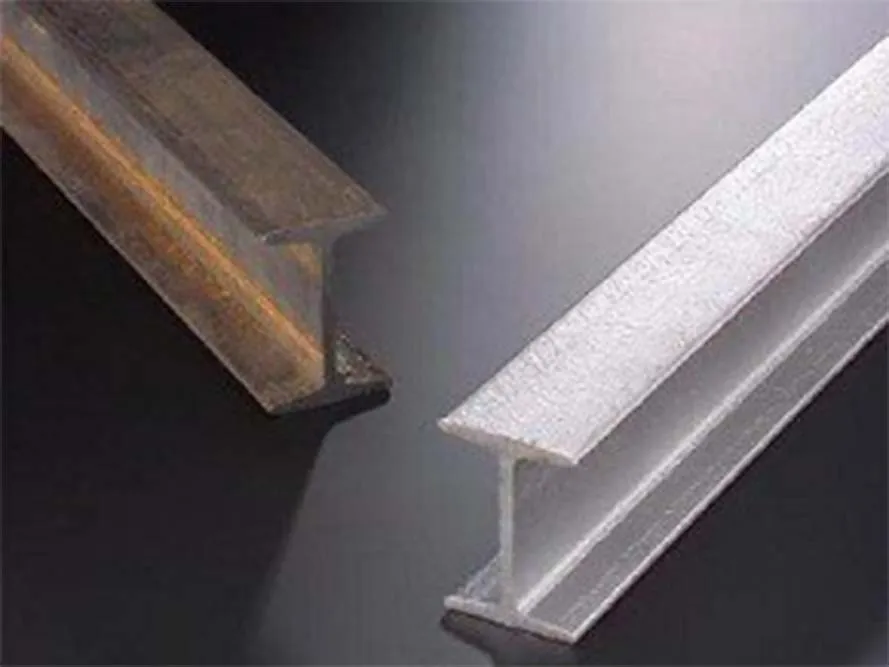

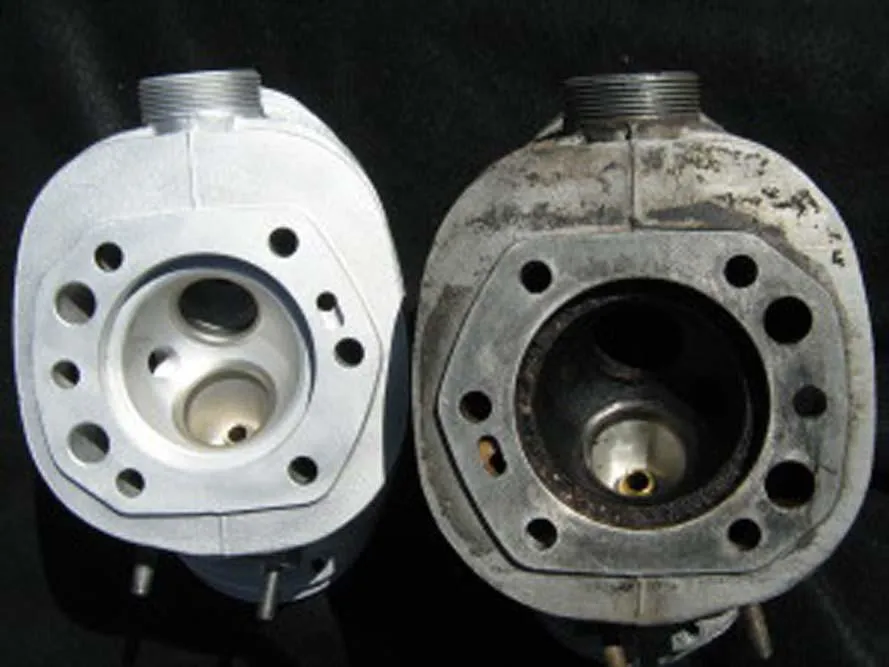

Wheel Blaster Machine can do cleaning work on forgings, castings, welded components, heat-treated components and rough surfaces on machines components. It has the function of removing scales, slugs and burrs. It is good for pretreatment before painting, coating and electric plating.
Specialized in the research, development and production of sandblasting equipment, including automatic conveyor sandblasting machines, automatic turntable sandblasting machines, automatic rotary indexing table sandblasters, wet sandblasters, high pressure sandblasters, and normal sandblasting machines. We focus on offering superior quality products and efficient service.
