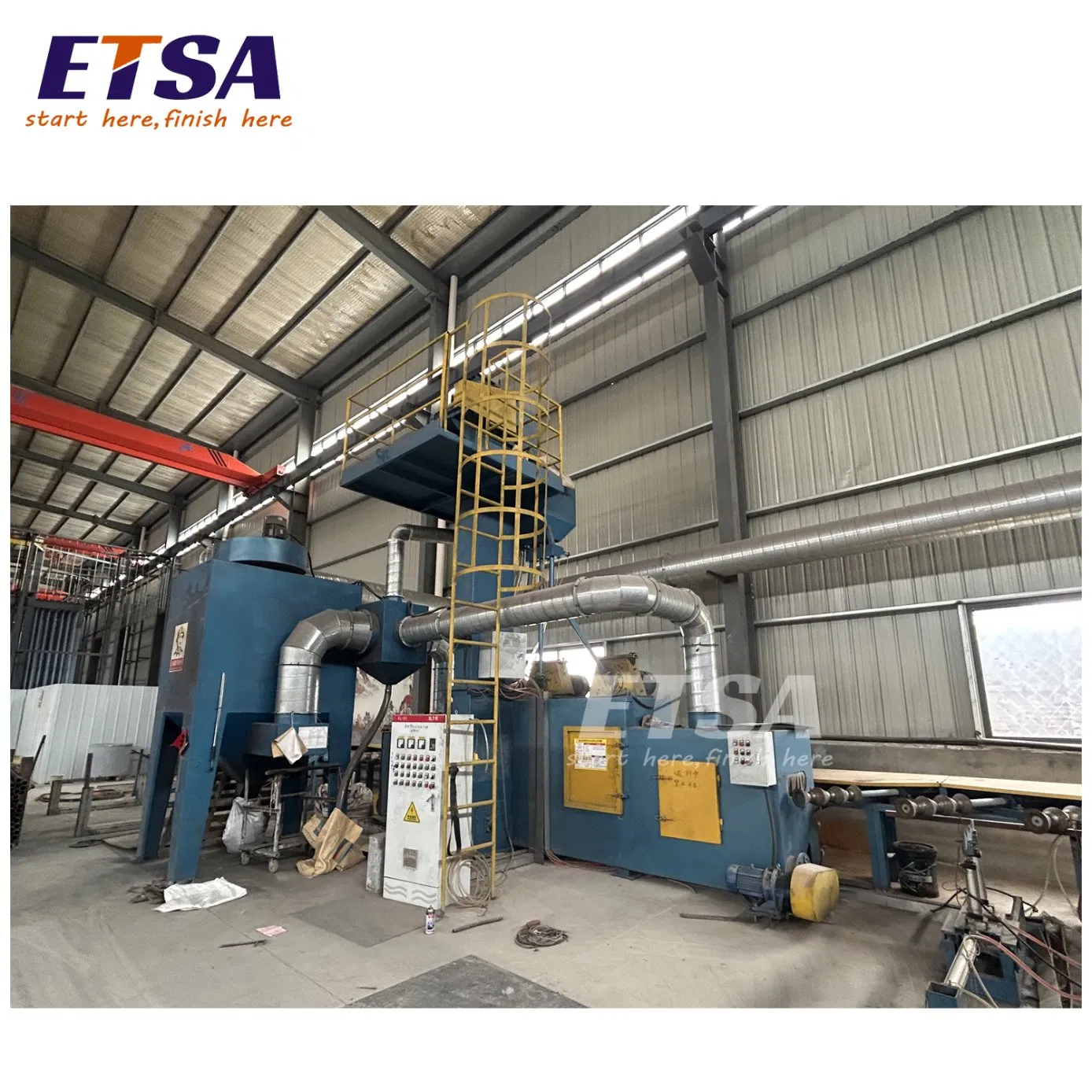

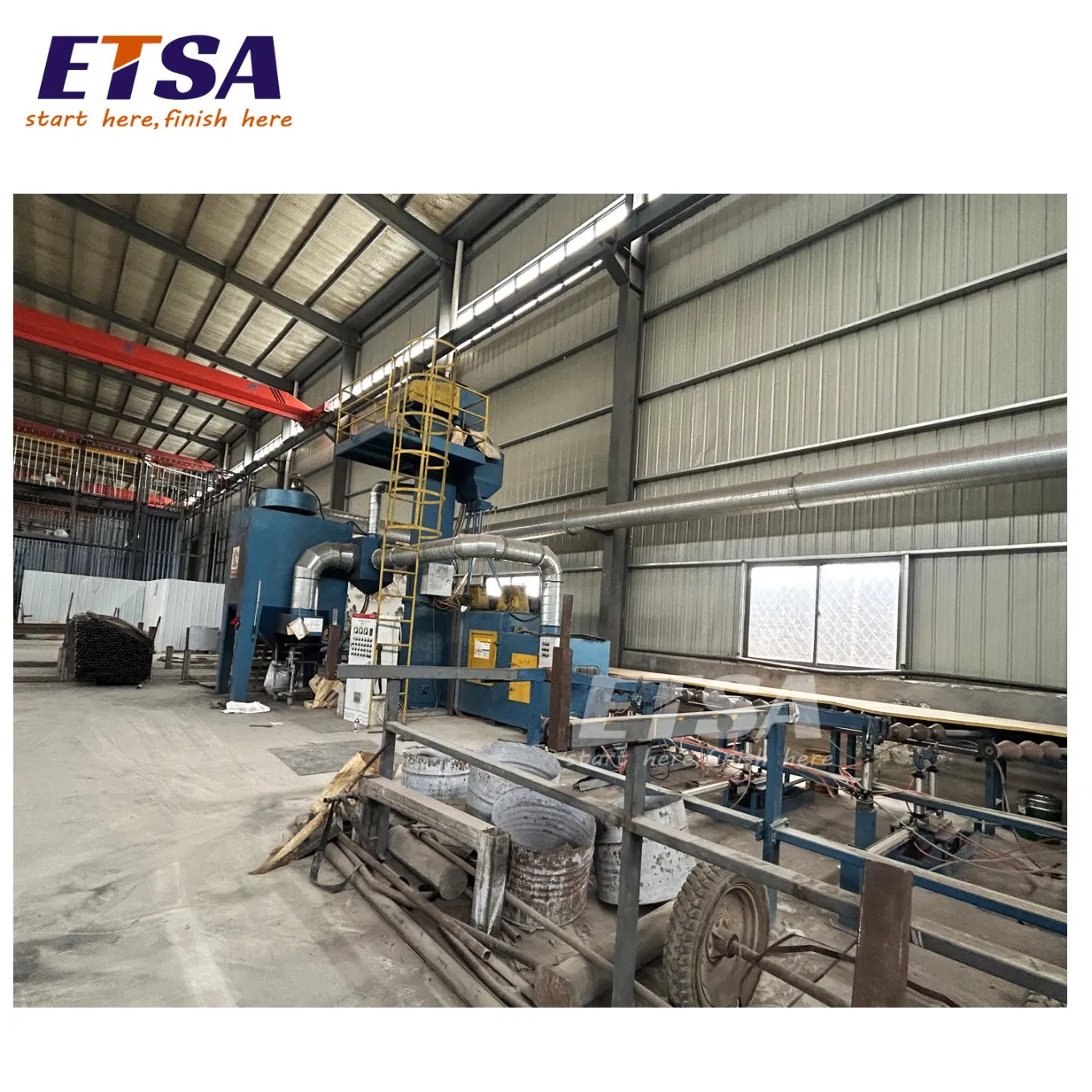

Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine
Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine
Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine
Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine
Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine
1 / 5
Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine
Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine
Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine
Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine
Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine

Automatic Pipe Blasting Cleaning Diabola Conveyor Shot Blasting Machine

Customization: Available
After-sales Service: on Site Installation, Online Technical Support
Warranty: 2 Years
Send Inquiry

Product Description

Basic Information
Model NO.
OWB-INB
Application
Degreasing, Descaling, Stripping, Sterilizing
Fuel
Electric
Type
Pipes Shot Blasting Machine
Cleanliness
High Cleanliness (SA2.5 - SA3.0)
Automation
Automatic
Certification
CE, CB, ETL, RoHS, UR
Condition
New
Blast Media
Shot Steel, Shot Grit, Wire Cut etc
Dust Collector
Donaldson Filter Cartridge
Bearings
SKF or NSK
Blast Cleaning Speed
0.5-4 M/Min

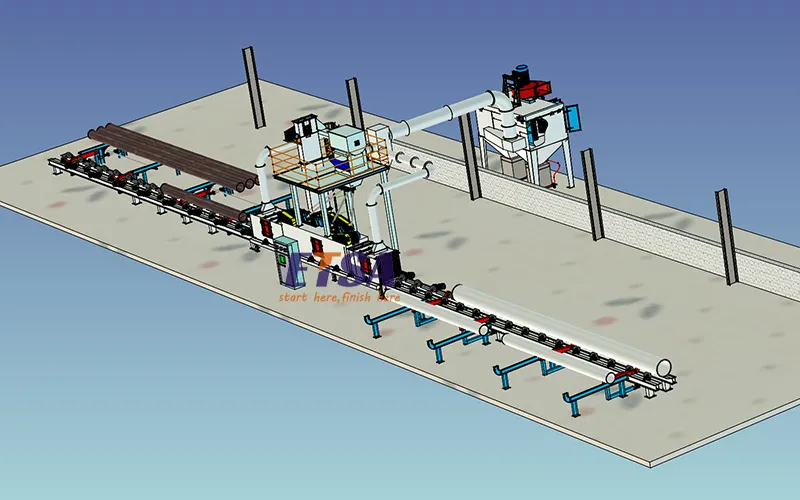

Pipe Blasting Machine

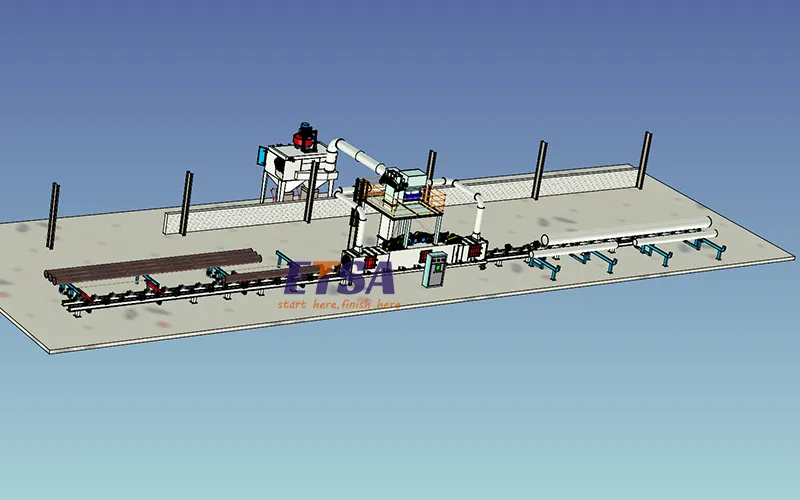

Shot Blasting Equipment
Product Description

Pipes shot blasters are specifically designed as continuous machines to shot blast pipes. They remove welding spatters and oxide layers from the surface, obtaining a metallic luster with a fine and homogeneous finish. Fully automated upblast or downblast pipes machines are engineered for surface profiling and removing rust and mill scale from welded steel pipe. It is essential that pipes are cleaned and dust-free prior to the coating process.

1
Outer Wall Steel Pipe Shot Blasting
Utilizes roller conveyor systems or skew roll systems to clean steel pipes, metal plates, and profiles in a continuous through-feed process.
2
Skew Roll & Rubber Wheel Systems
The skew roll system is designed for cylindrical parts such as pipes, tubes, round bars, and gas cylinders. The rubber wheel system provides specialized material handling for efficient external cleaning.

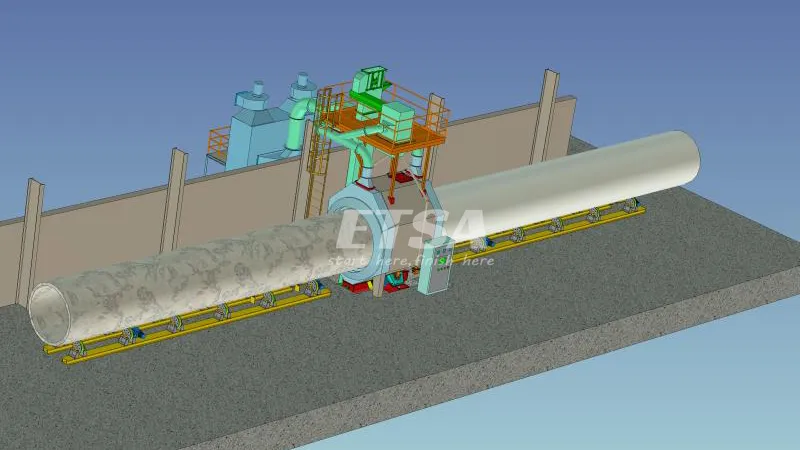

Roller Conveyor System

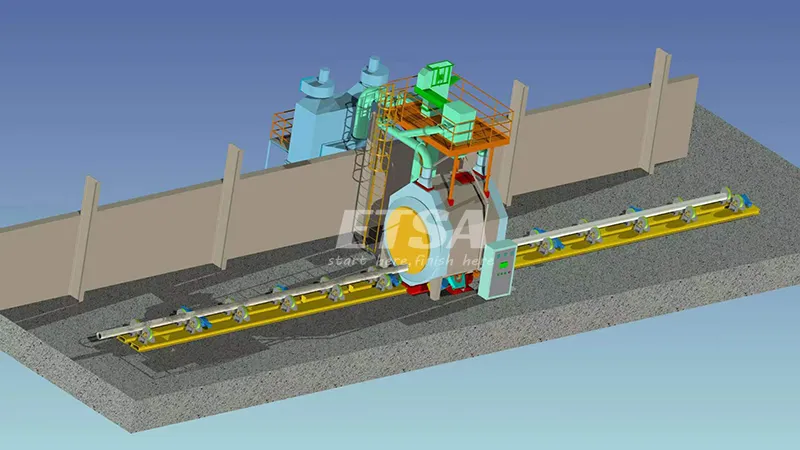

Rubber Wheel System
3
Inner Wall Steel Pipe Cleaning
Available in air blasting (for diameters under 500mm) and wheel blasting (for diameters above 500mm). These systems reduce internal surface stress and increase the service life of the steel pipe by reducing corrosion.

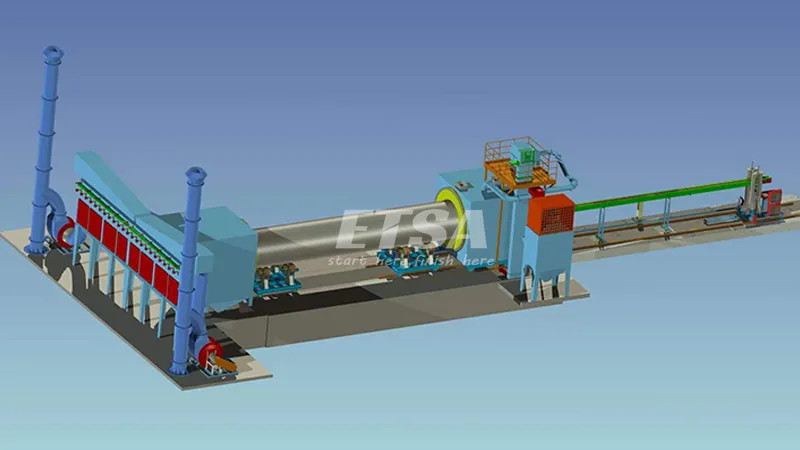

Inner Wall Cleaning

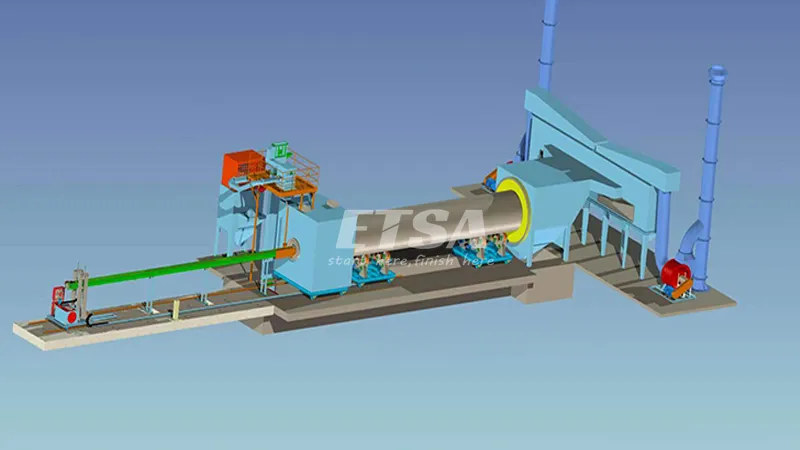

Sandblasting Equipment
Product Parameters
Model Type Cleaning Size (Diameter mm) Cleaning Speed (m/min) Purpose
OWB10050 - 3002 - 10Outer Wall
OWB720159 - 7202 - 6
OWB1200219 - 10161 - 6
OWB1500325 - 16001 - 6
OWB28001026 - 28001 - 2
INB10050 - 3001 - 4Inner Wall
INB700325 - 7201 - 2
INB1000720 - 10161 - 4
INB15001016 - 15001 - 4
Detailed Photos

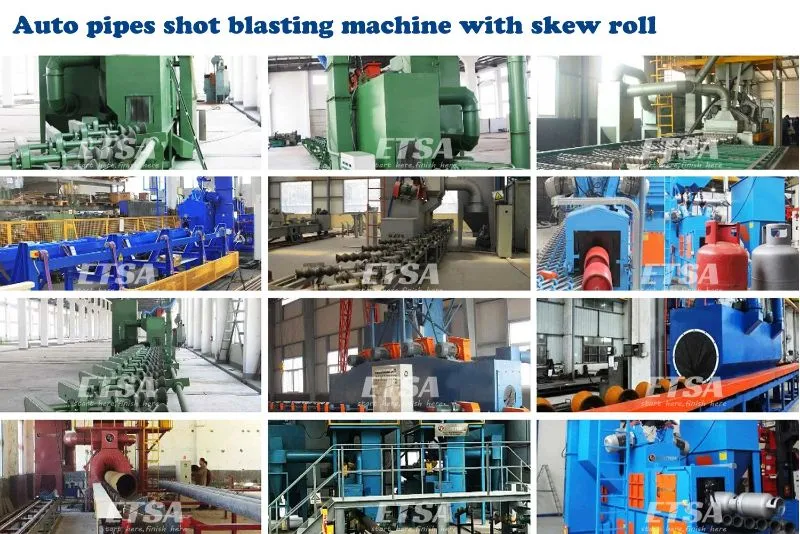

Machine Detail 1

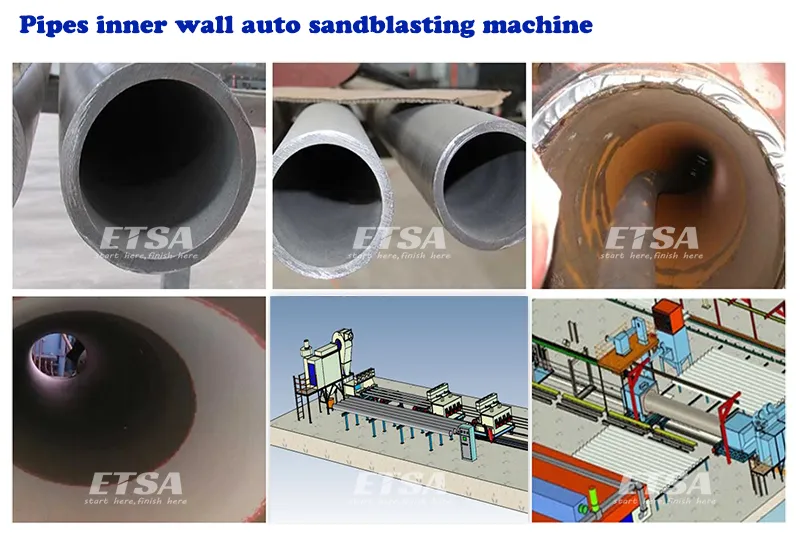

Machine Detail 2

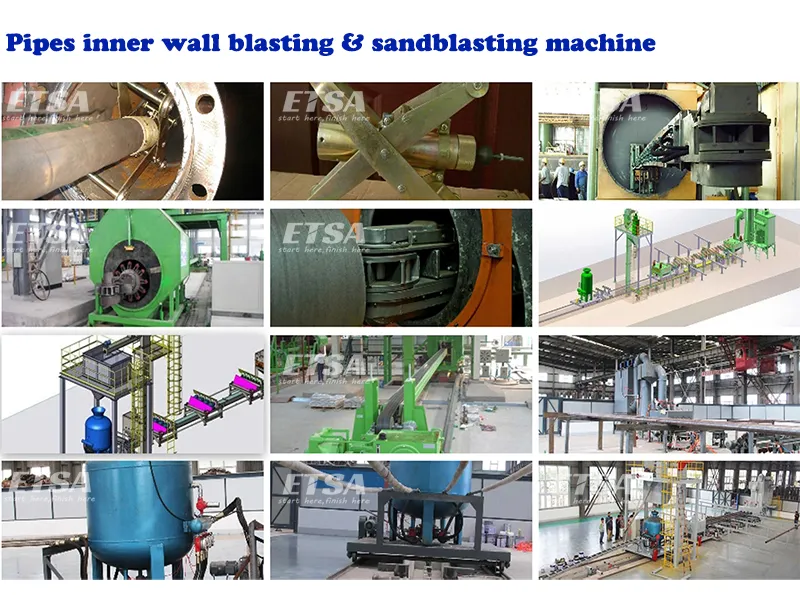

Machine Detail 3

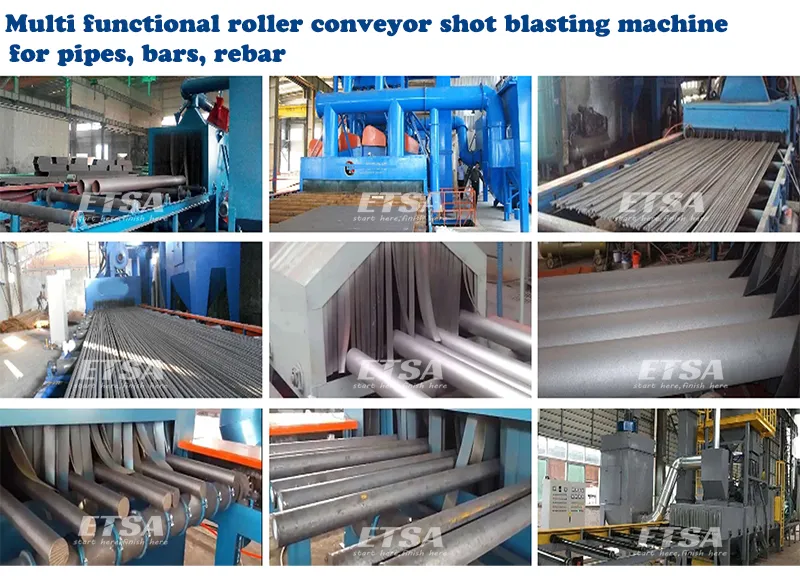

Machine Detail 4

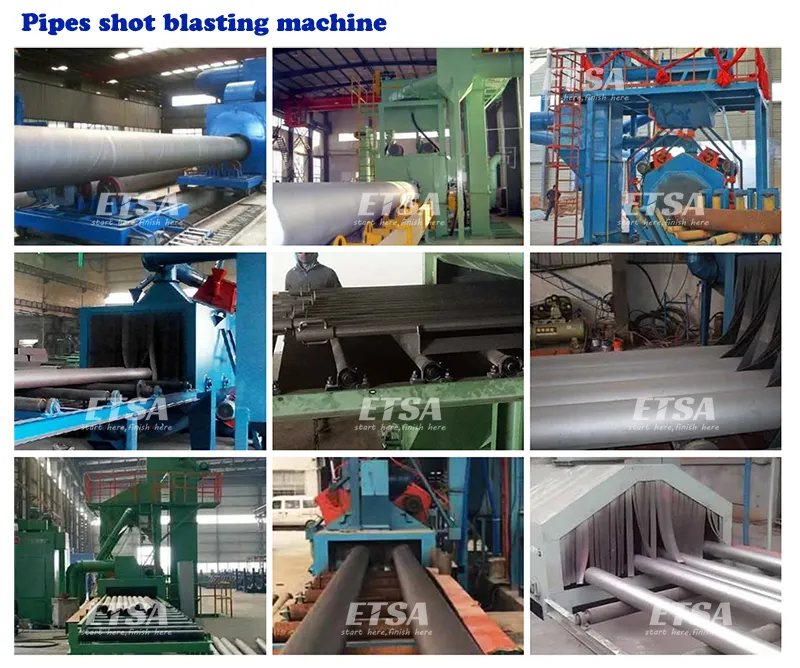

Machine Detail 5
Machine Detail 6
Structure Detail Component Detail Finished Product
Frequently Asked Questions
Q: What is the main application of this pipe shot blasting machine? A: It is primarily used for degreasing, descaling, removing rust and oxide layers from steel pipes to achieve a metallic luster surface.
Q: Can it clean both the interior and exterior of the pipes? A: Yes, we provide specific models for both inner wall and outer wall cleaning using air blasting or wheel blasting technology.
Q: What cleanliness level can be achieved? A: The machine can achieve high surface cleanliness levels ranging from SA2.5 to SA3.0.
Q: Is the machine easy to operate? A: Yes, it is fully automatic and controlled by high-quality PLC systems (like Siemens or Omron) for consistent and reliable operation.
Q: What materials can be used as blasting media? A: Common media include steel shot, steel grit, and wire cut shots, depending on the required surface finish.
Q: Are the core components durable? A: Absolutely. We use premium components including SKF/NSK bearings and high-performance motors to ensure a long service life.
Very sincerely look forward to your inquiry!
