Blatrixo Machine
Blatrixo Machine

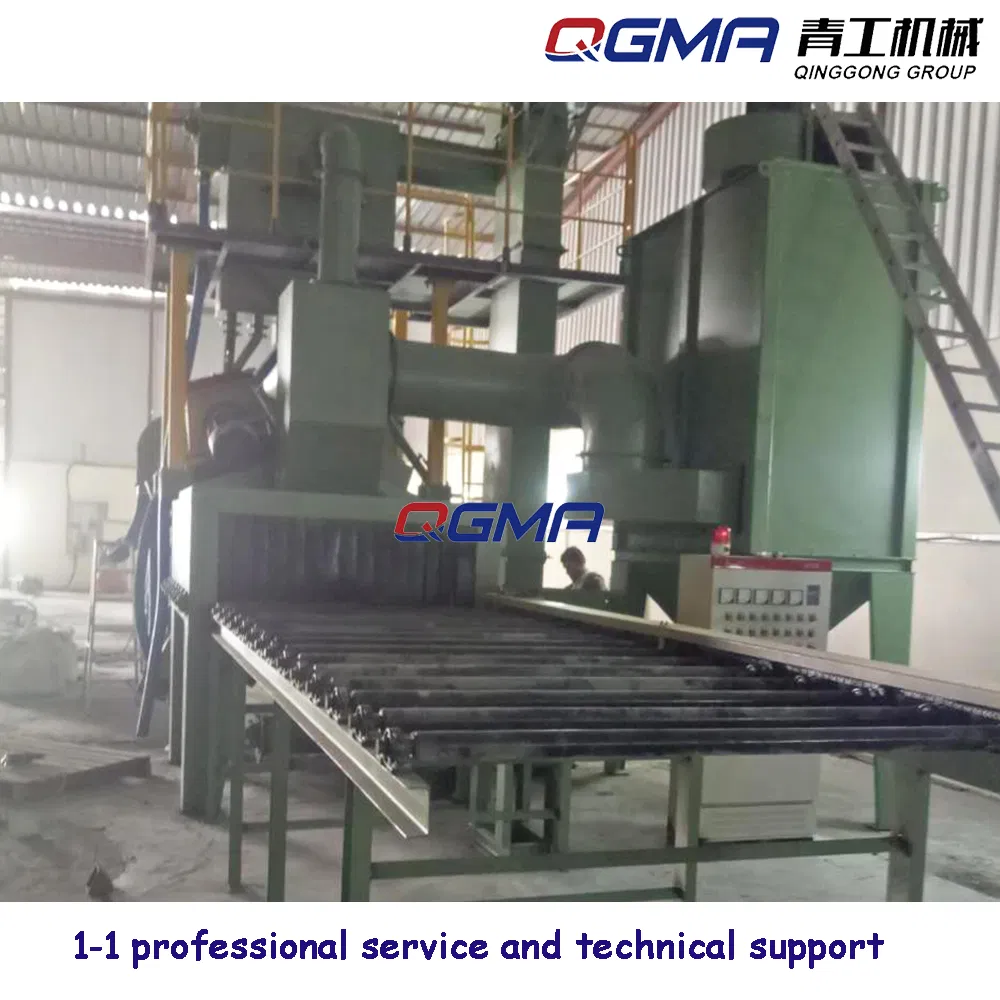

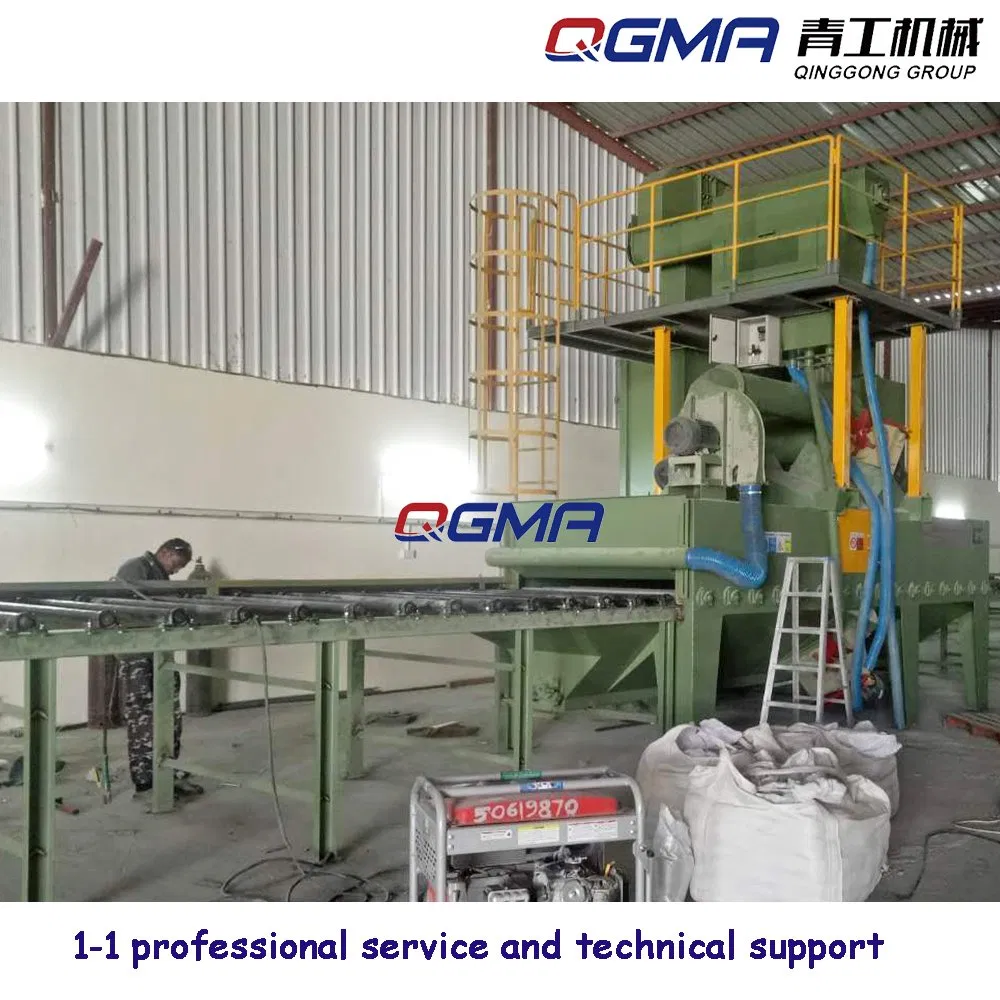

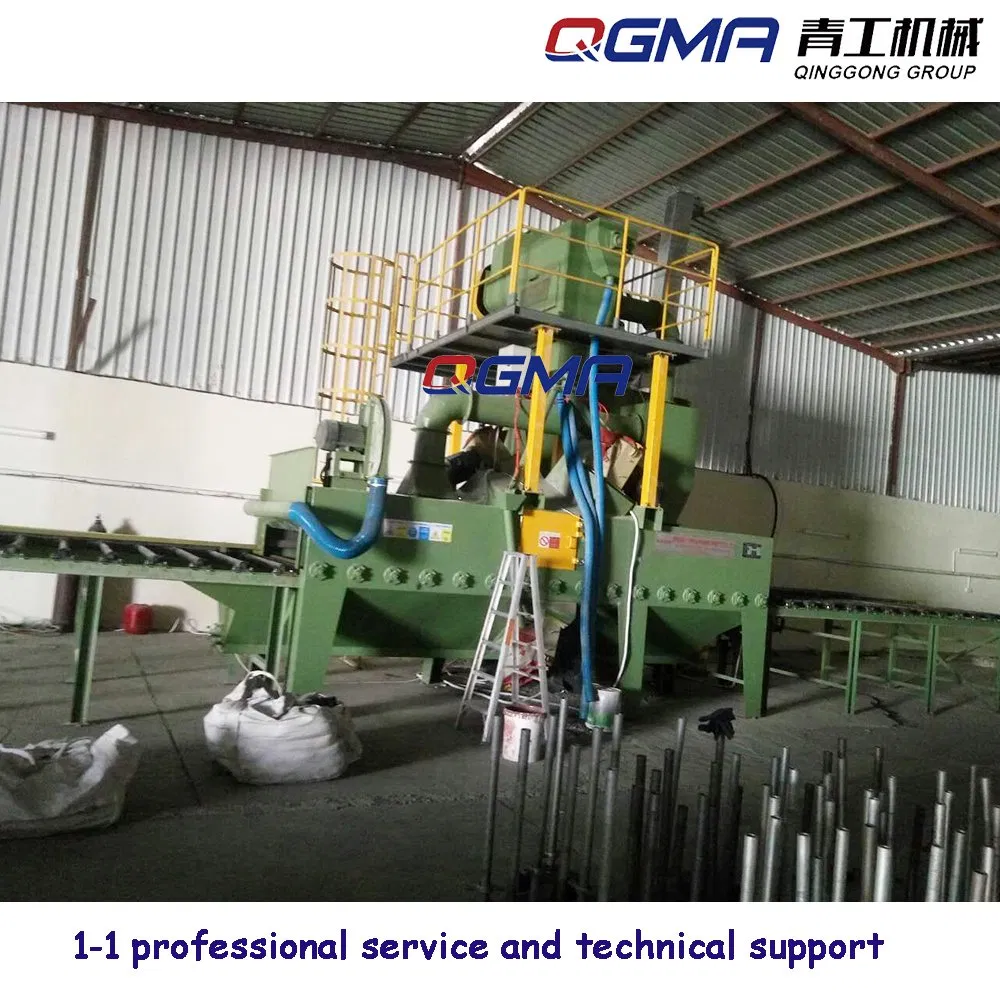

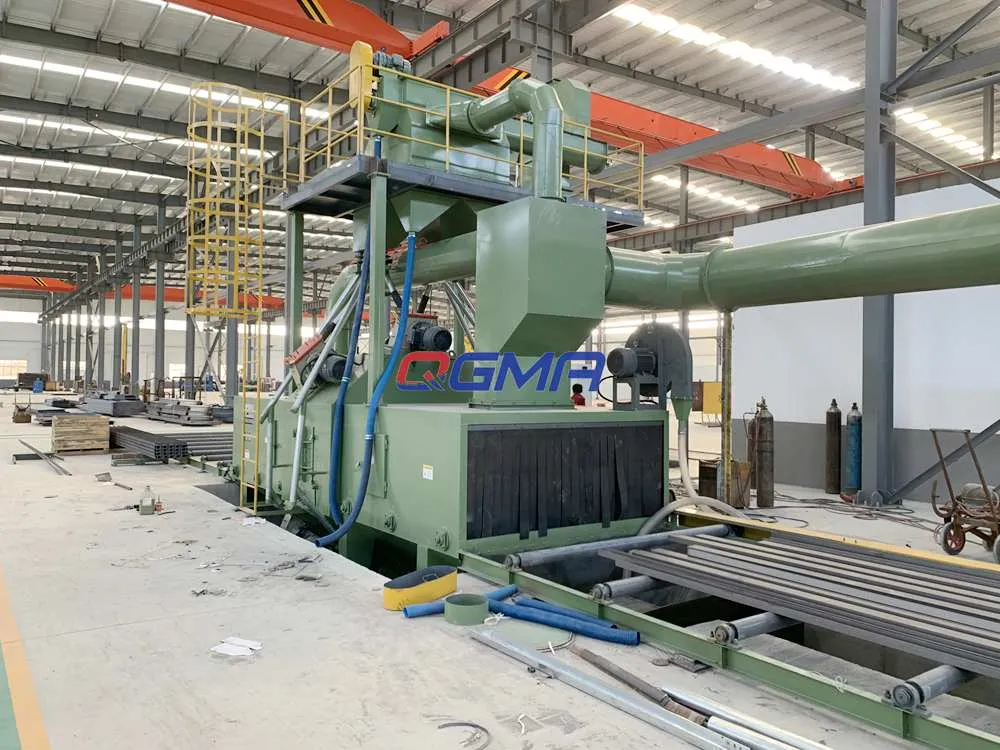

Q69 Steel Profiles shot blasting machines are specifically designed to remove scale and rust from metal profiles and sheet metal components. This equipment is widely applied in industries such as shipping, automotive, bridge construction, and heavy machinery. By integrating a roller conveyor with crossover conveyors, various process steps including blasting, conservation, sawing, and drilling can be seamlessly interlinked.
This integration ensures a flexible manufacturing process and high material output efficiency.

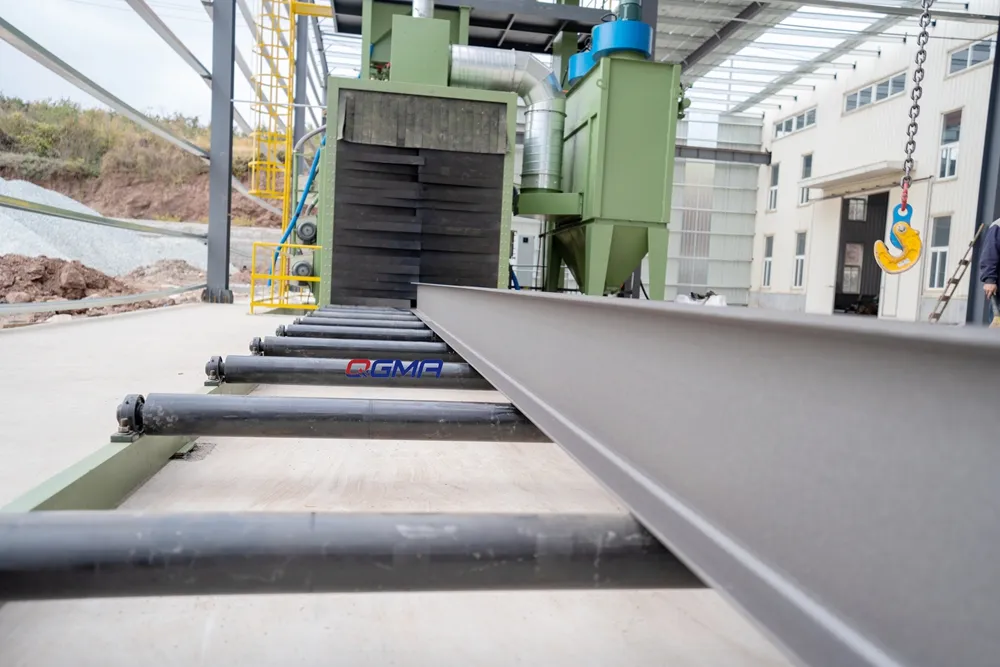

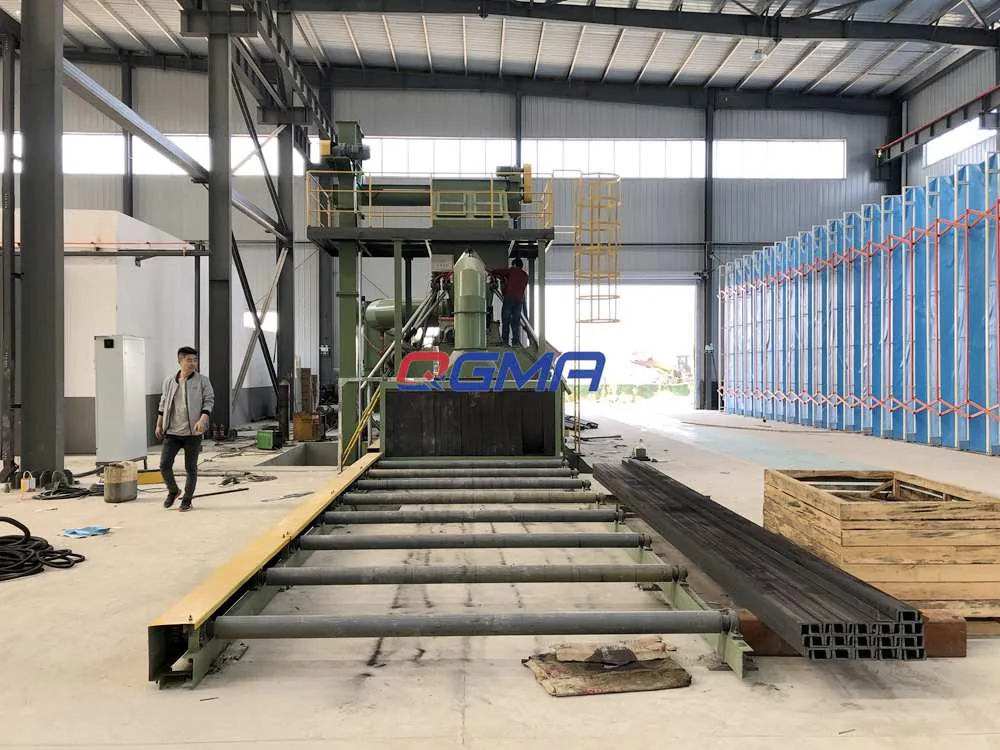

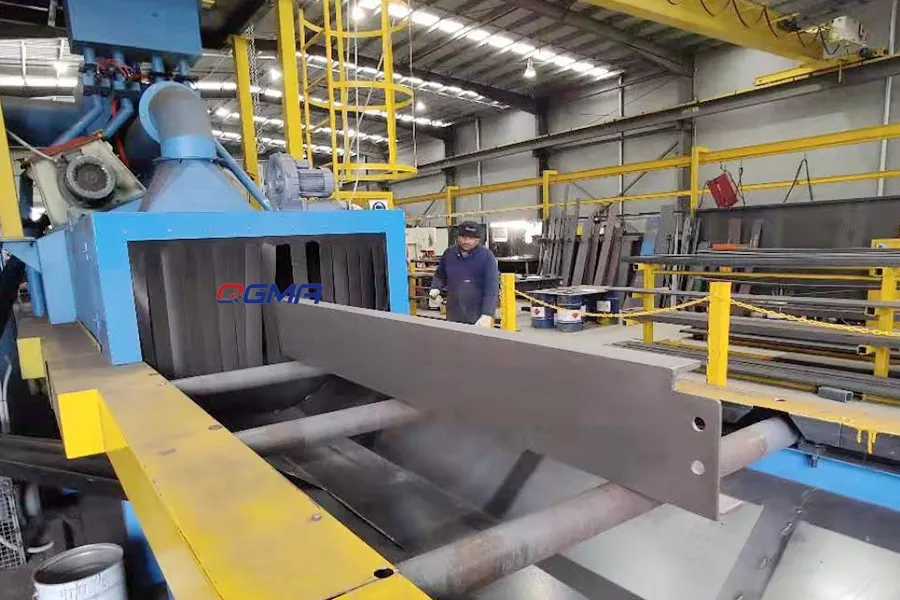

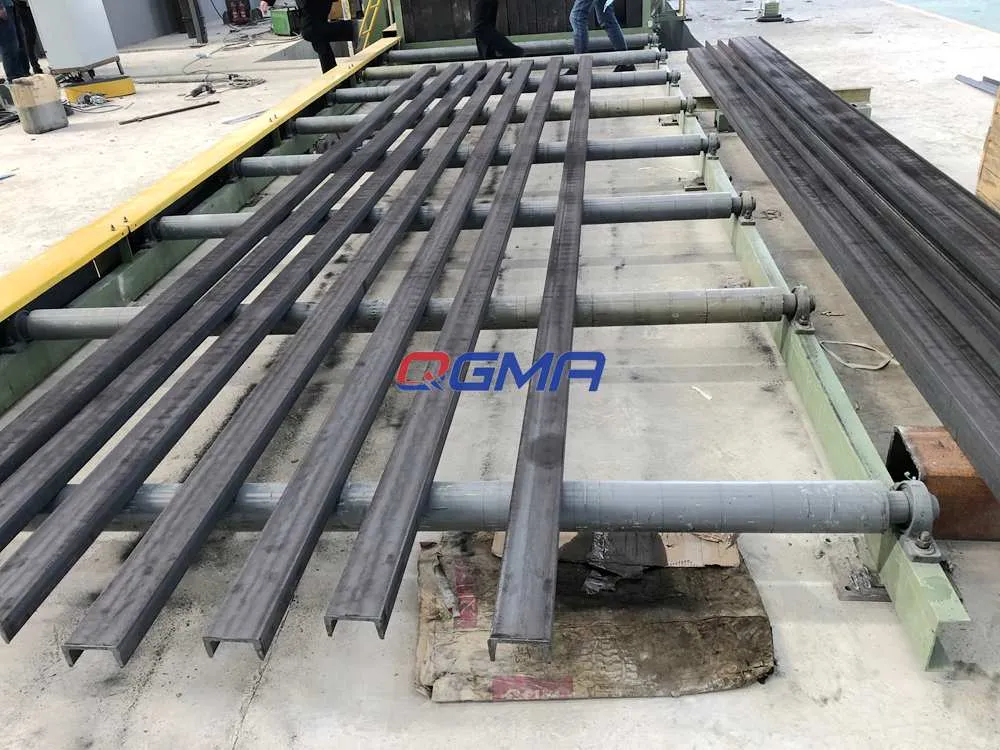

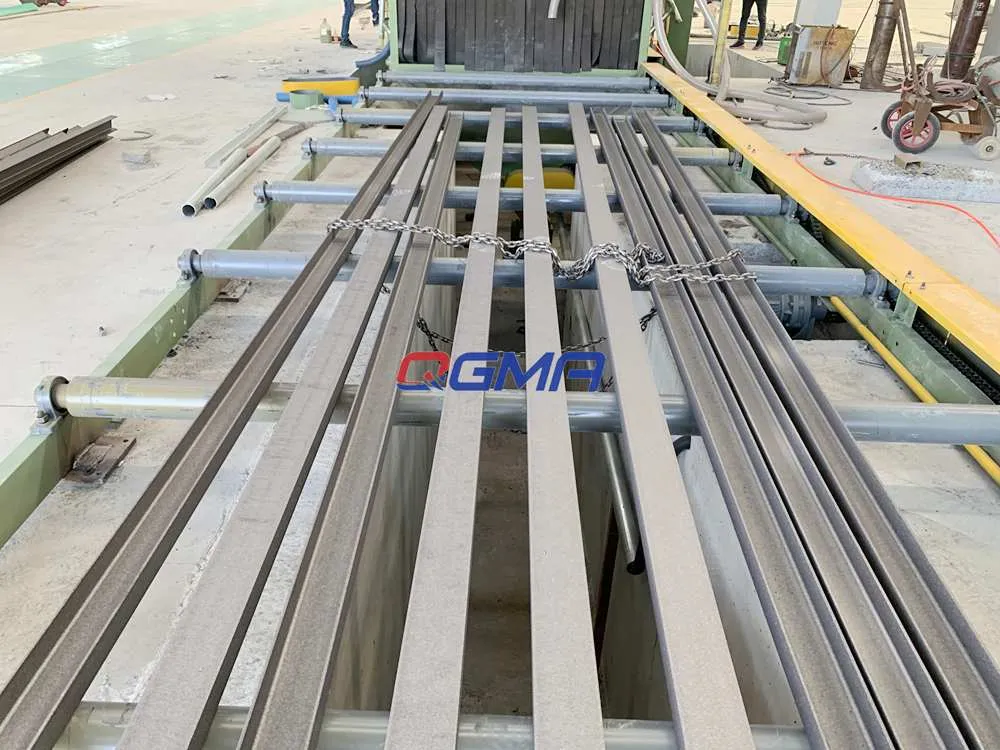

Equipped with a robust roller conveyor system. Width ranges from 500-4500mm with a load capacity between 300-10000kg.

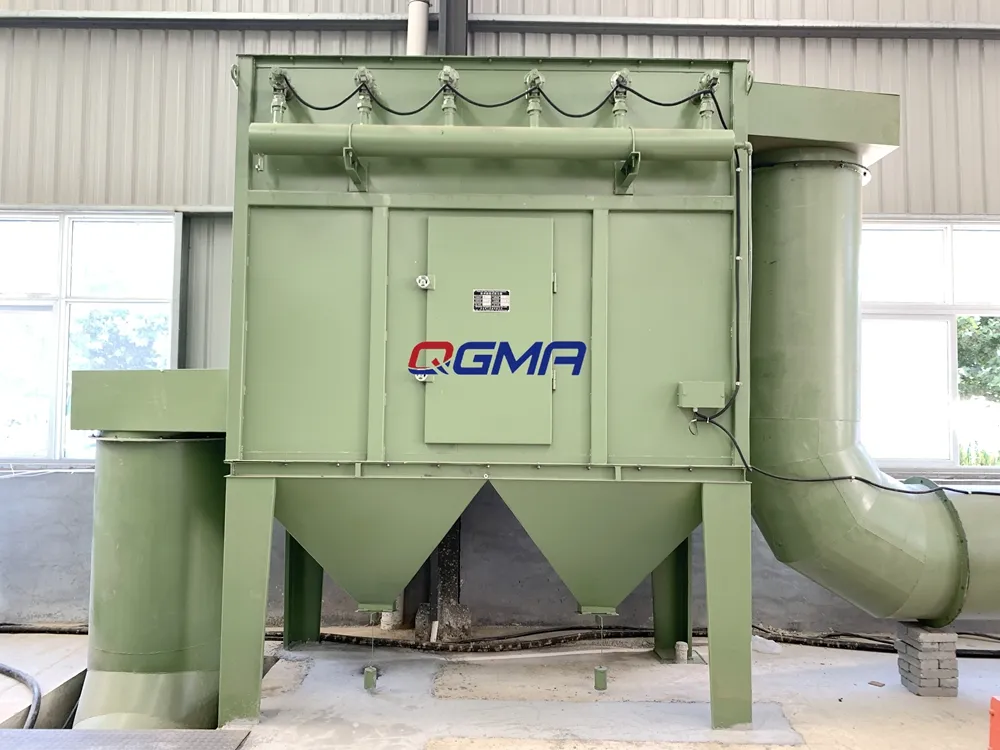

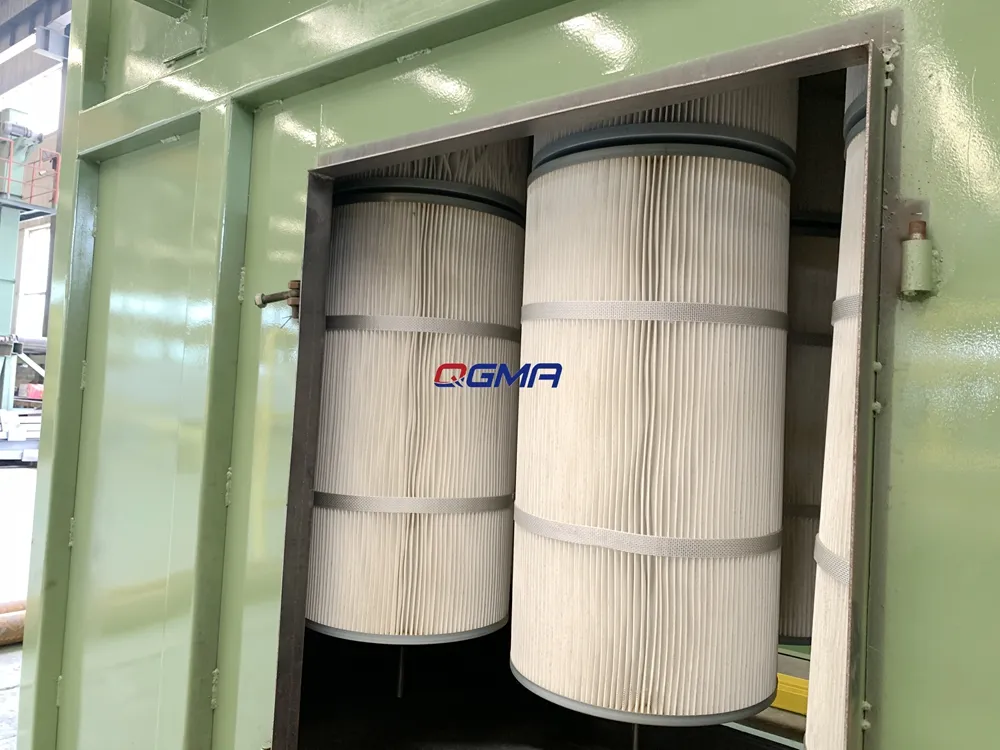

Our intelligent system extends service time by up to 20% and saves up to 30% in energy. The dust collection system features a settling chamber combined with a cartridge-type collector, providing a filter service life of up to 5 years.
| Type (Unit) | Effective Width (mm) | Entrance Dim (WxH mm) | Speed (m/min) | Wheels x Power (kW) | Initial Filling (kg) | Workpiece Length (mm) |
|---|---|---|---|---|---|---|
| QGX600 | 600 | 800×1400 | 0.5~3 | 8×7.5/11 | 4000 | 1200~12000 |
| QGX1200 | 1200 | 1400×1600 | 0.5~3 | 8×11/15 | 4000 | 1200~6000 |
| QGX1500 | 1500 | 1700×1600 | 0.5~3 | 8×11/15/18.5 | 4500 | 3000~12000 |
| QGX1800 | 1800 | 2000×1700 | 0.5~3 | 8×11/15 | 8000 | 2400~12000 |
| QGX2000 | 2000 | 2200×2400 | 0.5~2 | 12×11/15/18.5 | 11000 | 2400~18000 |
