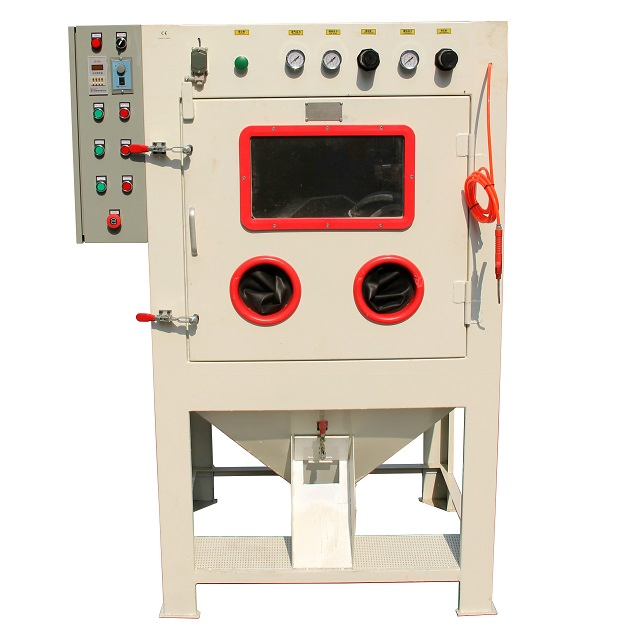

Automatic Rotary Drum Sand Blasting Machine Industrial Sandblasting Cabinet for Small Sized Accessories

Customization: Available
After-sales Service: 1 Year Warranty
Warranty: 1 Year Warranty

Product Description

Basic Information
Model NO.
KF-1080ZL
Drive
Pneumatic
Principle
Press-in
Control
Artificial
Layout
Horizontal
Automation
Automatic
Kind
Dry Sandblaster
Condition
New
Certification
CE
Operation
Manual
Production Capacity
200PCS/Month
📋 Product Description
Automatic Rotary Drum Sandblasting Machine

Automatic Rotary Drum Sandblasting Cabinet offers batch production by automatic tumbling & blasting, greatly saving manual labor and increasing output. Installed with a sandblasting basket which holds large volumes of small-sized accessories, it performs cleaning jobs with consistent quality results.

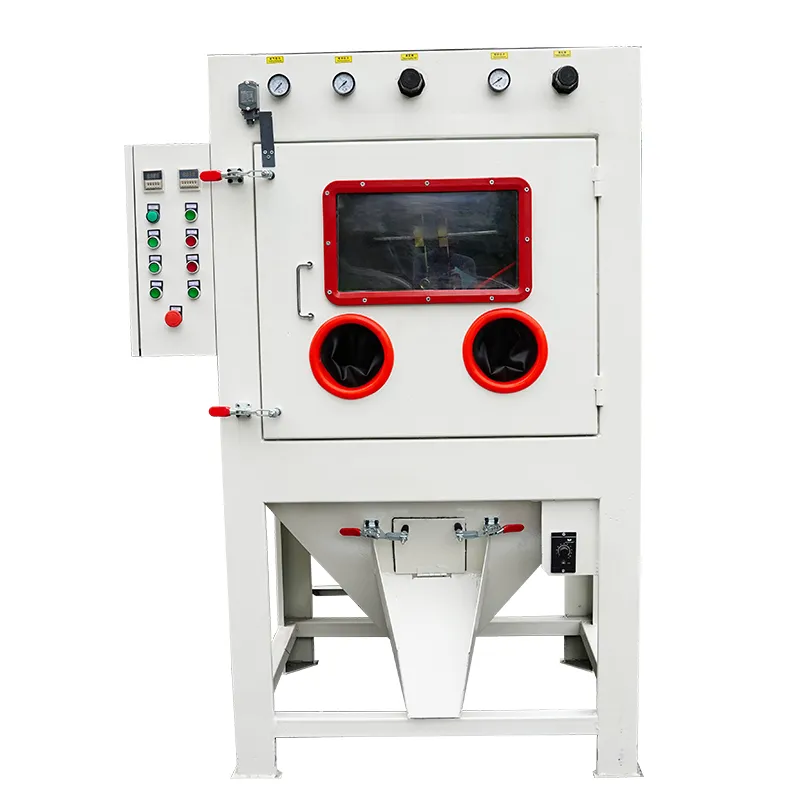

Sandblasting Equipment 1

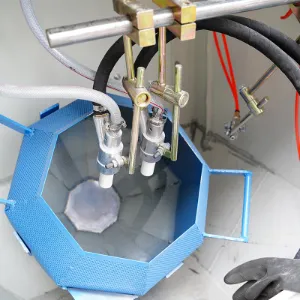

Sandblasting Equipment 2
Sandblasting Equipment 3

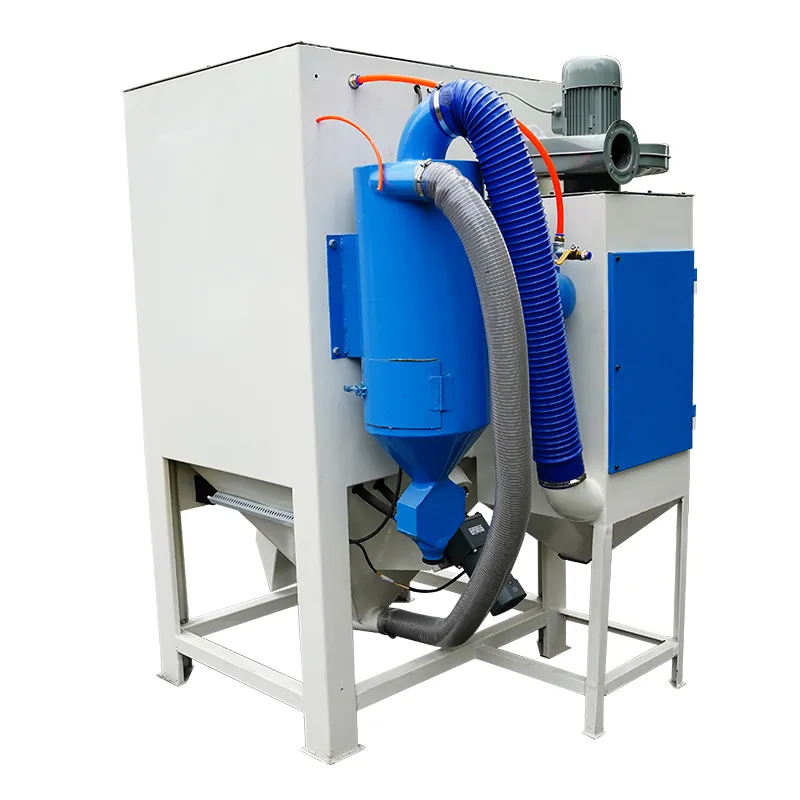

Sandblasting Equipment 4
Applications

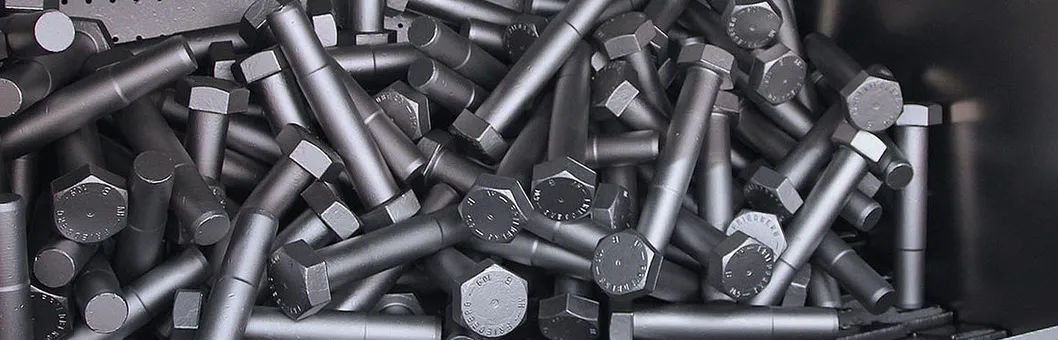

This Rotary Drum Sandblasting Cabinet is mainly suitable for batch sandblasting of small accessories, such as hardware parts, screws, zipper heads, locks, small electronics, and plastic parts. Ideal for deburring, rust removal, cleaning, and other surface treatments.

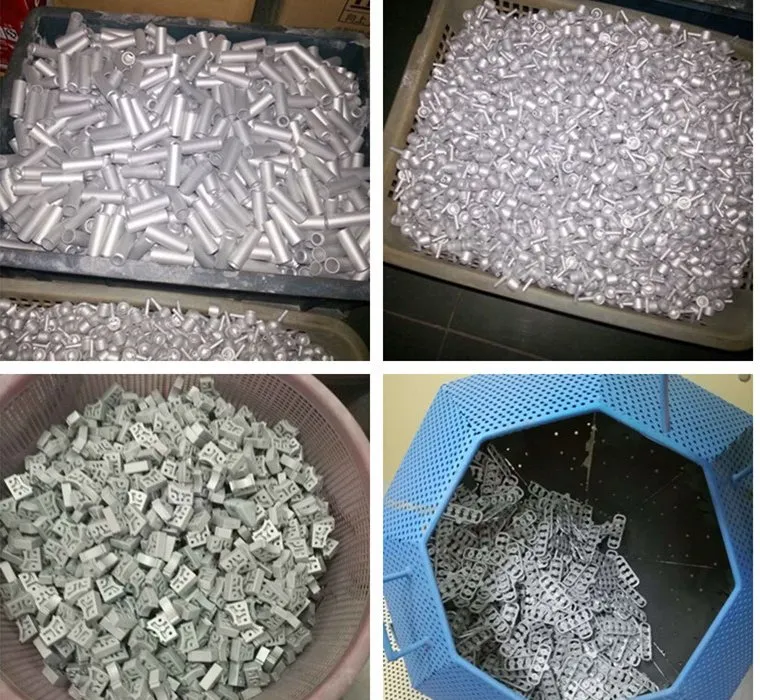

Applications Display
Detail Features
  • The tumble blasting time and rotating speed can be set based on customer-requested effects.

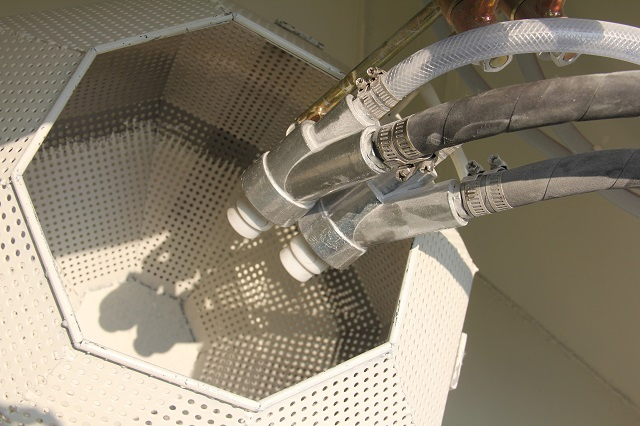

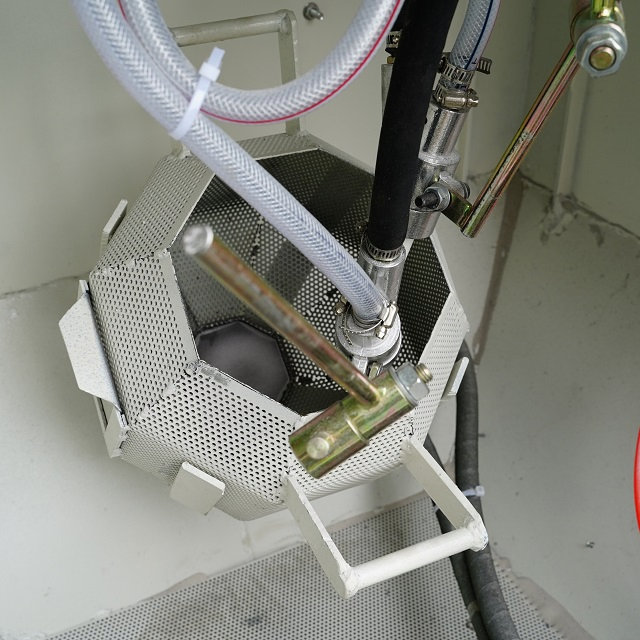

  • The 360-degree rotating basket and the gun swing mechanism increase the coverage of blasting abrasive.
  • Equipped with durable blasting guns with 8mm boron carbide nozzles, and an air blow gun for final cleaning.
  • Quantity of auto blast guns and the diameter of the basket can be customized.

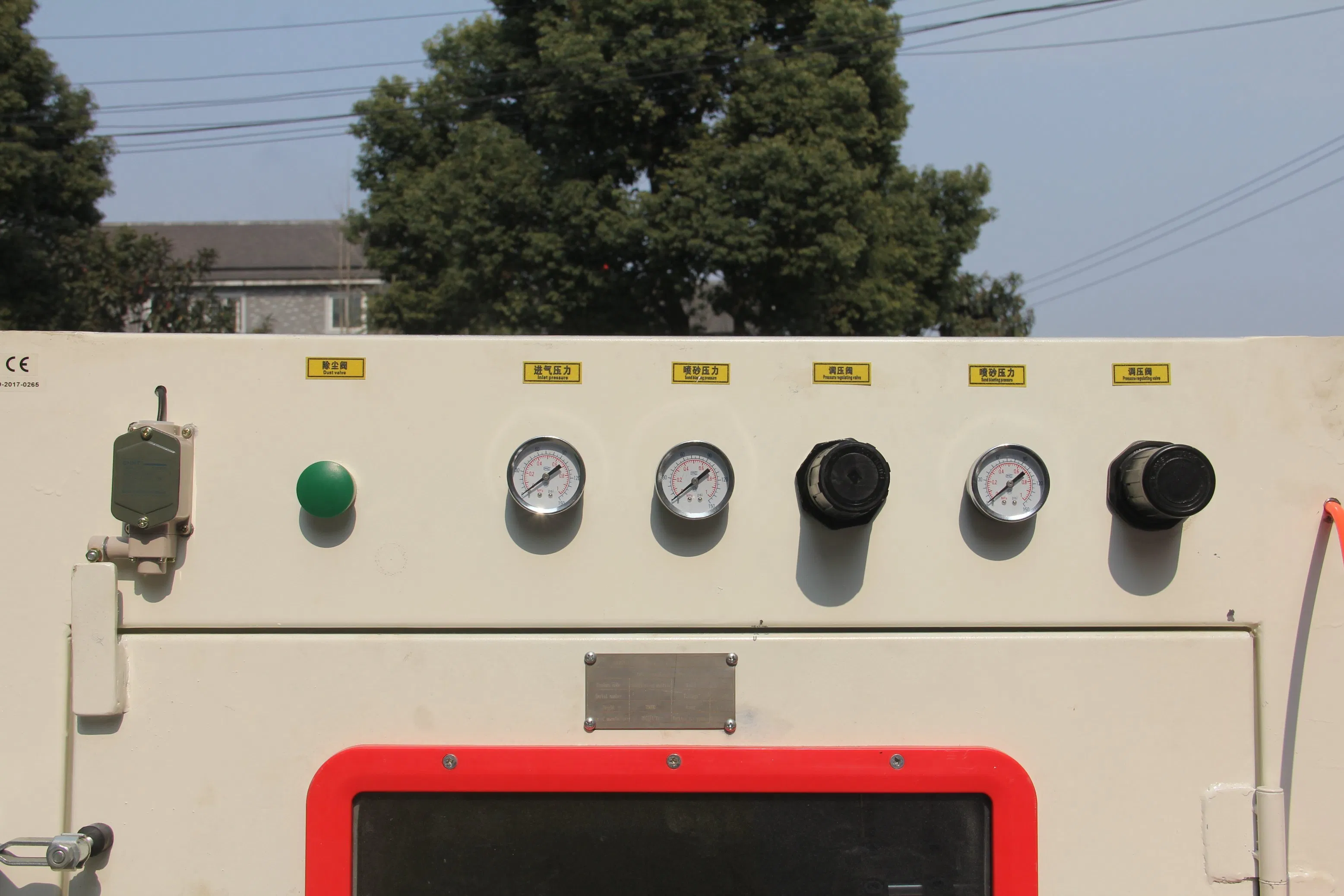

  • Easily set processing parameters via the electric control system.

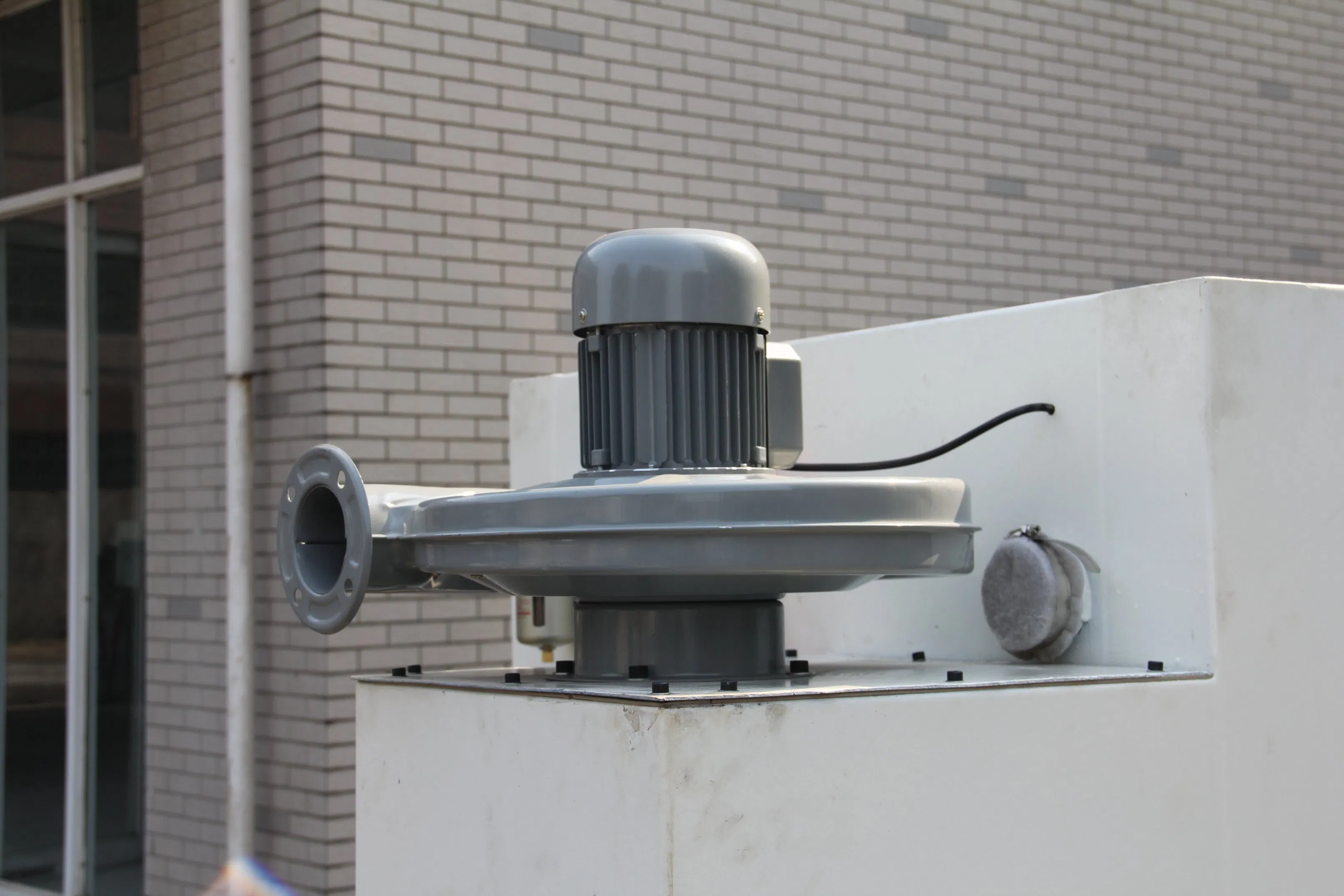

  • Cartridge filter dust collector effectively removes dust from the cabin, ensuring a clear working space and dust-free discharge.

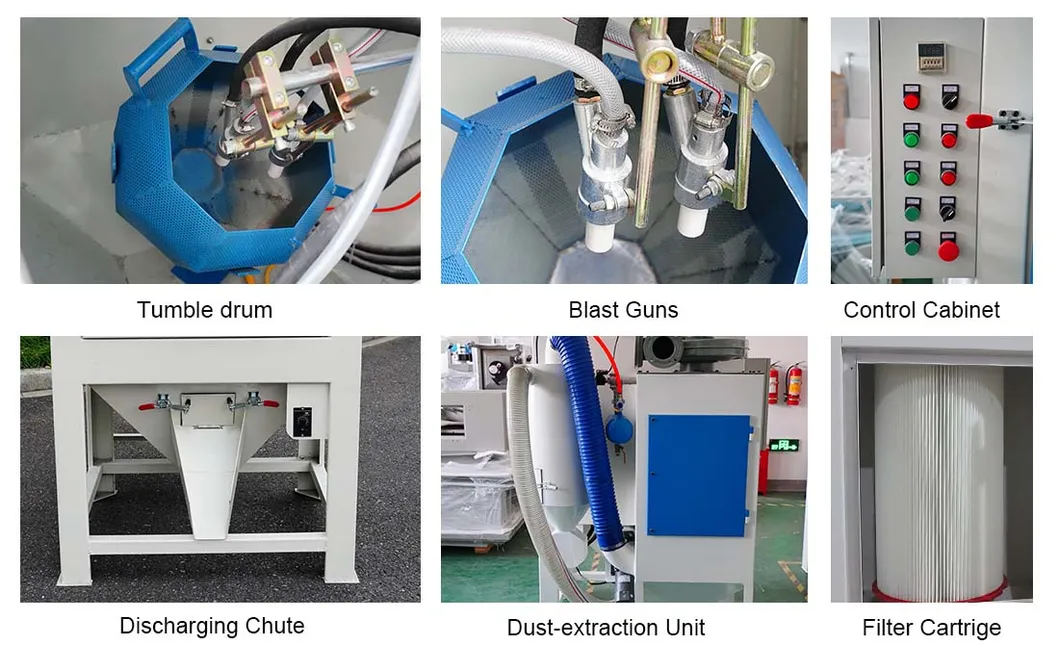

Technical Details
🔄 Working Principle

The simple blasting system provides easy operation. Users load workparts into the tumbling basket, close the door, set the blasting time, turn on the dust collector, and start the machine. All parts will be automatically finished entirely and evenly. After the cycle, parts are unloaded from the discharge chute. The automatic tumble blast machine significantly improves production quantity and quality.

📊 Specifications
ModelKF-1080ZL
Outer DimensionsLength 1200mm * Width 1250mm * Height 1800mm
Working Cabinet SizeLength 1000mm * Width 800mm * Height 780mm
Tumble Basket Diameter500mm
Blasting Guns2pcs wear-resistant guns (20 * 8 * 60mm)
Basket Rotating Speed8 rev / min (Frequency control optional)
Basket Motor380V / 50HZ / 400W
Dust CollectorPulse Jet Cartridge Filter
Dust Removal Motor380V / 50HZ / 550W
Pressure Requirements2-7 bar (kg / cm2)
Compression Flow1.5-2.0m³/min
Single Loading1-20KG
Machine Weight300KG

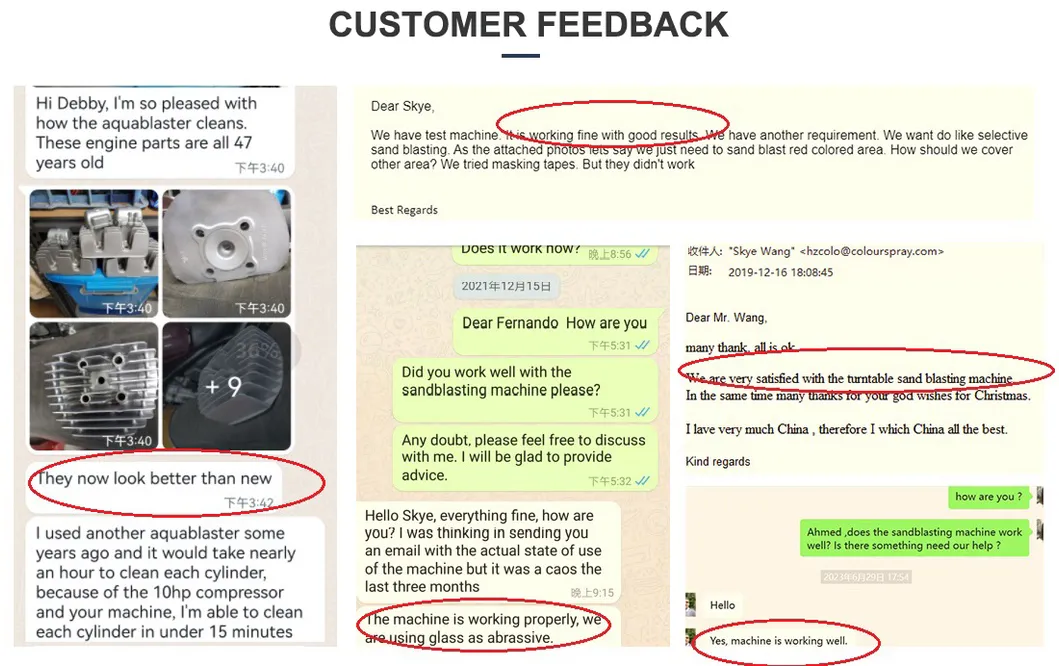

💬 Customer Feedback
Customer Feedback
Frequently Asked Questions
What types of parts are best suited for this machine?
It is ideal for batch processing small accessories like hardware, screws, zipper heads, locks, and small electronic or plastic components.
How does the automatic rotary drum save labor?
The machine uses a tumbling basket that rotates 360 degrees, allowing multiple parts to be blasted simultaneously without manual handling of each piece.
Can I adjust the speed of the basket rotation?
Yes, the rotating speed can be customized and an optional frequency control system can be installed to meet specific processing requirements.
Is the environment kept clean during operation?
Absolutely. The machine is equipped with a high-efficiency pulse jet cartridge filter dust collector that removes dust from the cabin and ensures clean air discharge.
What is the maximum weight the machine can handle per load?
The standard model supports a single loading capacity of 1kg to 20kg of workpieces.
