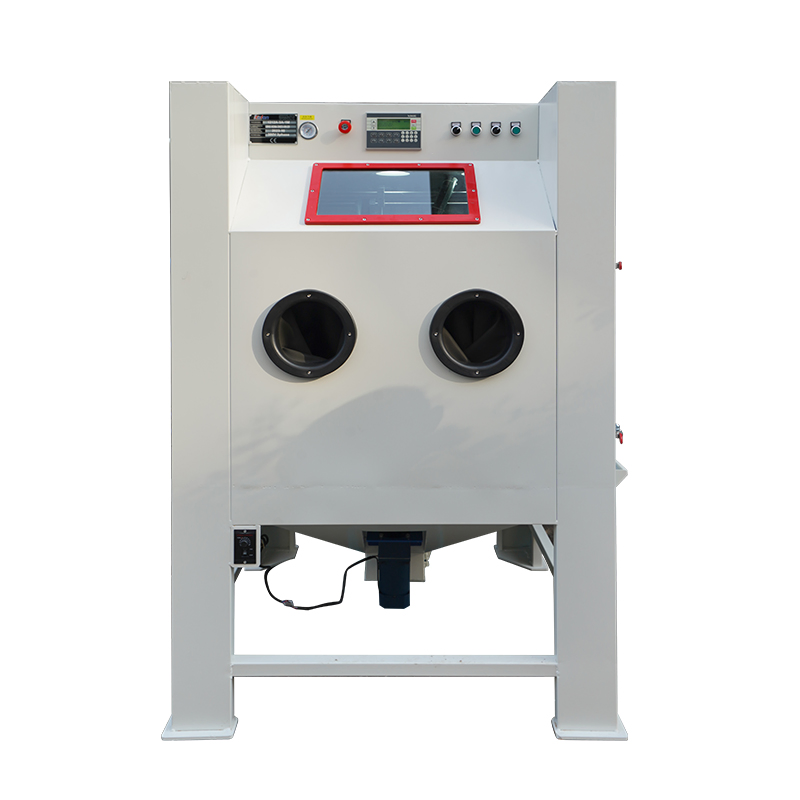

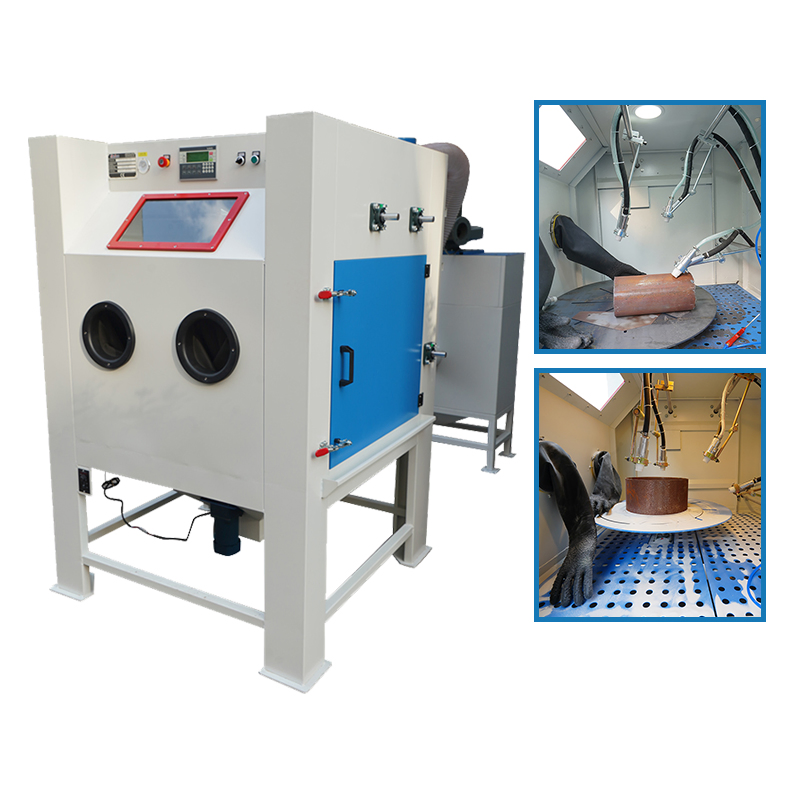

Automatic Abrasive Blasting Cabin Sandblasting Cabinet for Complex Shaped Parts

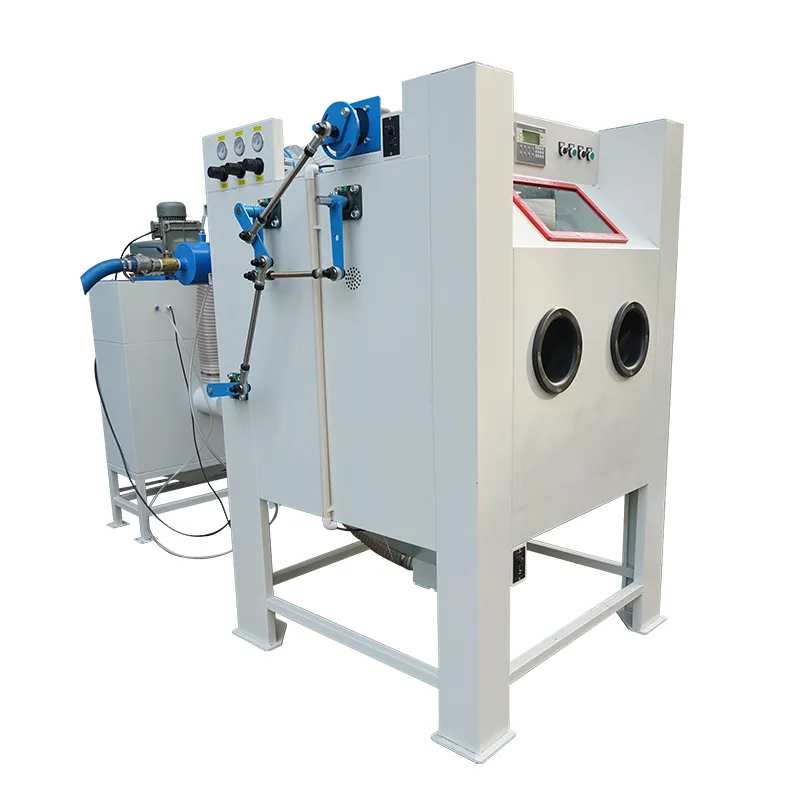

KF-1212-4A automatic abrasive blasting cabin is designed with an automatic turntable which could result in thoroughly and uniformly processing and cleaning on all surfaces and corners of the workpiece. This machine is ideal for any shape of parts and any blasting requirements with excellent efficiency and great labor-saving.

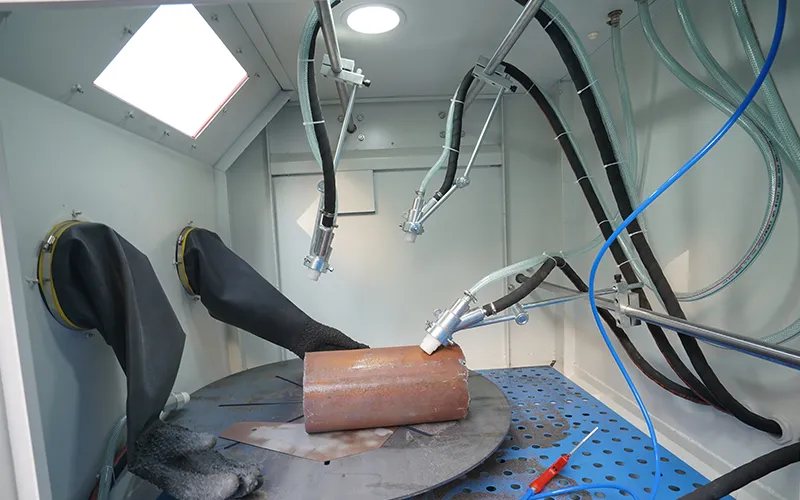

Automatic and heavy-duty turntable is ideal to load large or irregular shaped workparts, supports to adjust speed of turntable to meet different requirements.

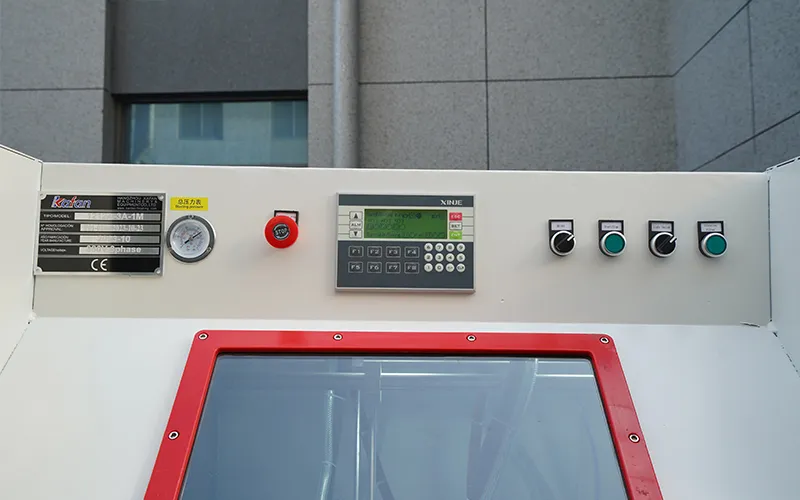

Includes: power switch, pressure regulating valve, dust valve, inlet pressure gauge and blasting pressure gauge, also control to turn on/off swing, turntable, blasting gun, etc.

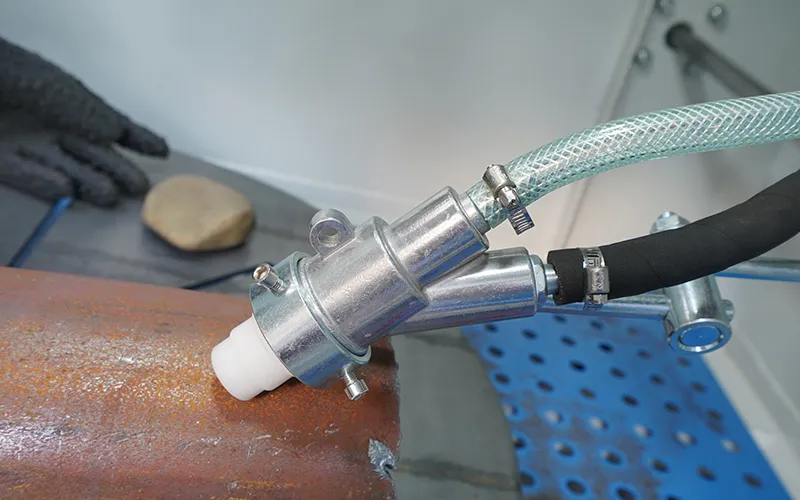

Equipped with automatic blasting guns. High-performance blasting guns with durable boron carbide nozzles.
| Model | KF-1212-4A |
|---|---|
| Working chamber dimension (L*W*H) | 1200mm*1200mm*850mm |
| Power supply | 220V, 50HZ (customizable) |
| Machine light power | 220V, LED* 2 |
| Compressed air source | 5-7bar |
| Air flow | 0.8-3m3/min dry and clean compressed air |

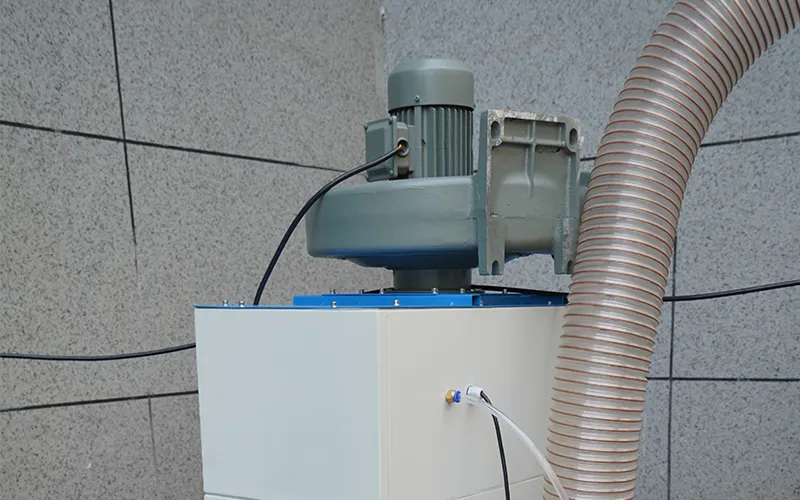

| Separator air volume | 8.5m3/min |

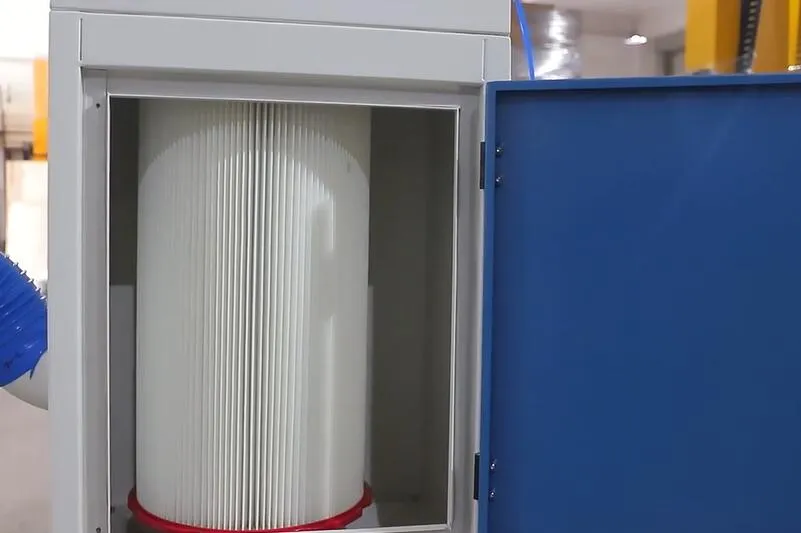

| Dust removal method | Cartridge Filter Type |
| Blasting Gun Qty | 4 pcs |
| Blasting Nozzle | Boron Carbide |

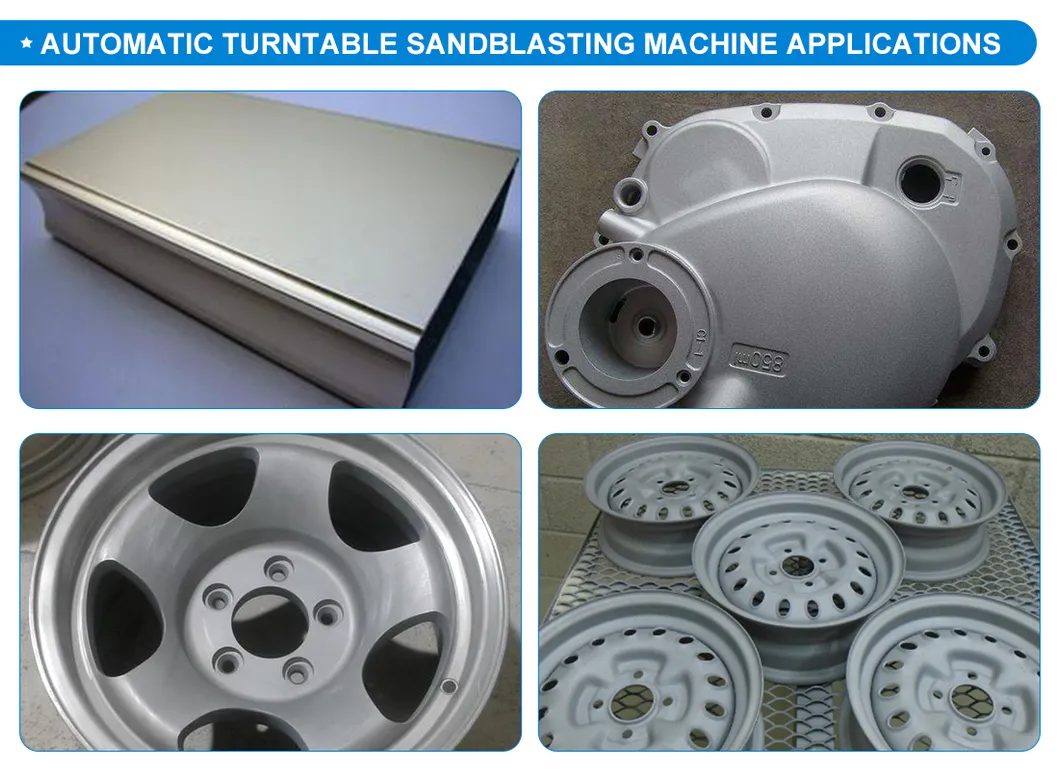

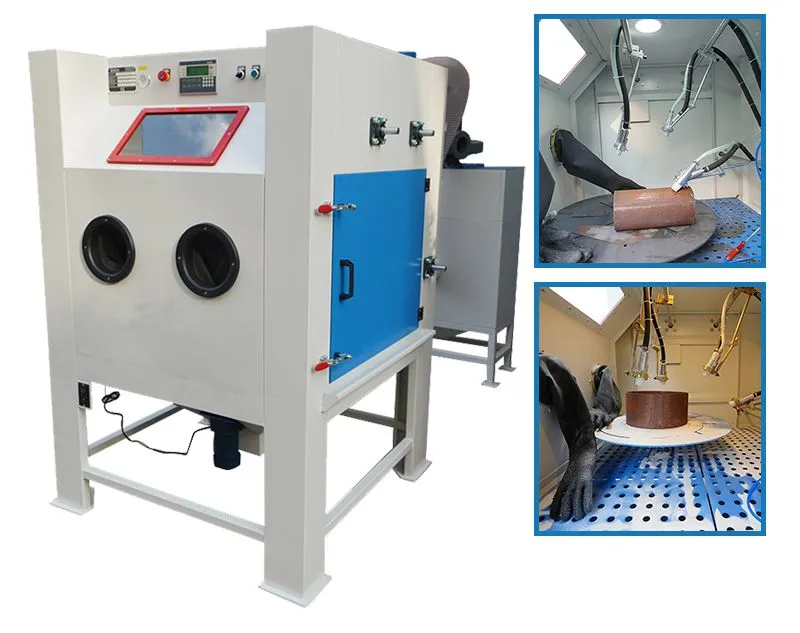

KF-1212-4A automatic sandblasting cabinet with turntable is suitable for blasting bigger / heavier, often alloy wheel/rim or complex shaped parts. The abrasive blasting cabin is being carried out at a turntable which can be set manual or automatic rotating.
Our range of solutions includes two main categories:
Sandblasting Equipment: Manual sandblasting machines, suction sand blast cabinets, pressure blasting machines, wet abrasive blasting equipment, portable blaster pots, automatic conveyor blast systems, tumbler blasters, and rotary table blast machines.
Mass Finishing Systems: Vibratory polishing & deburring bowls, centrifugal barrel tumbling machines, and centrifugal disc finishing systems.
