Basic Information
Model NO.JD 6050-9080
DriveElectric
PrinciplePress-in
ControlArtificial
LayoutVertical
AutomationAutomatic

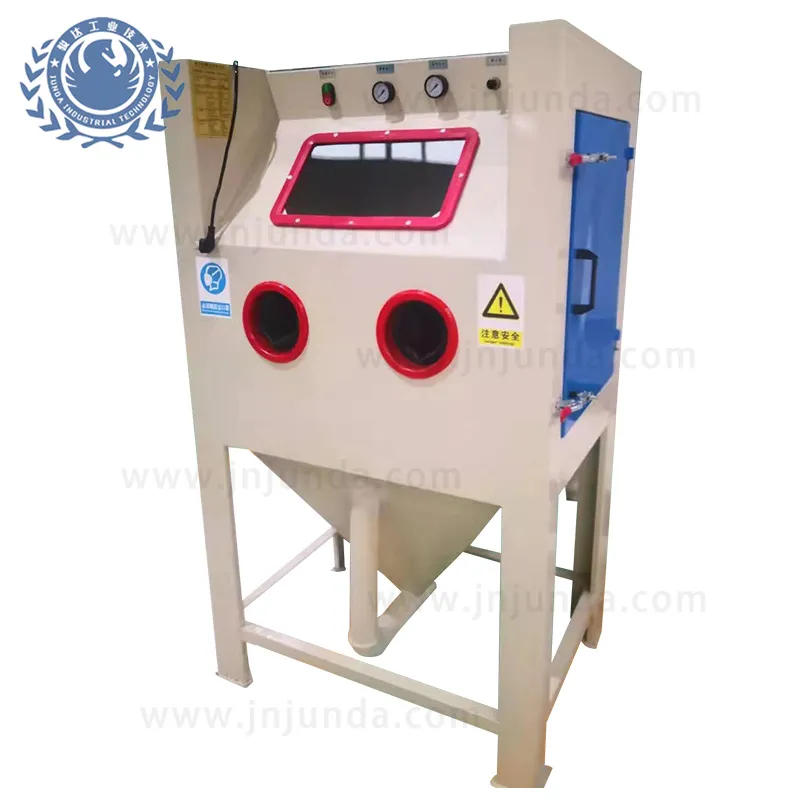

KindDry Sandblaster
ConditionNew
CertificationCE, RoHS, ISO 9001
Power Supply220V, 50Hz
Air Pressure0.8MPa
Loading Weight100kgs
Product Description

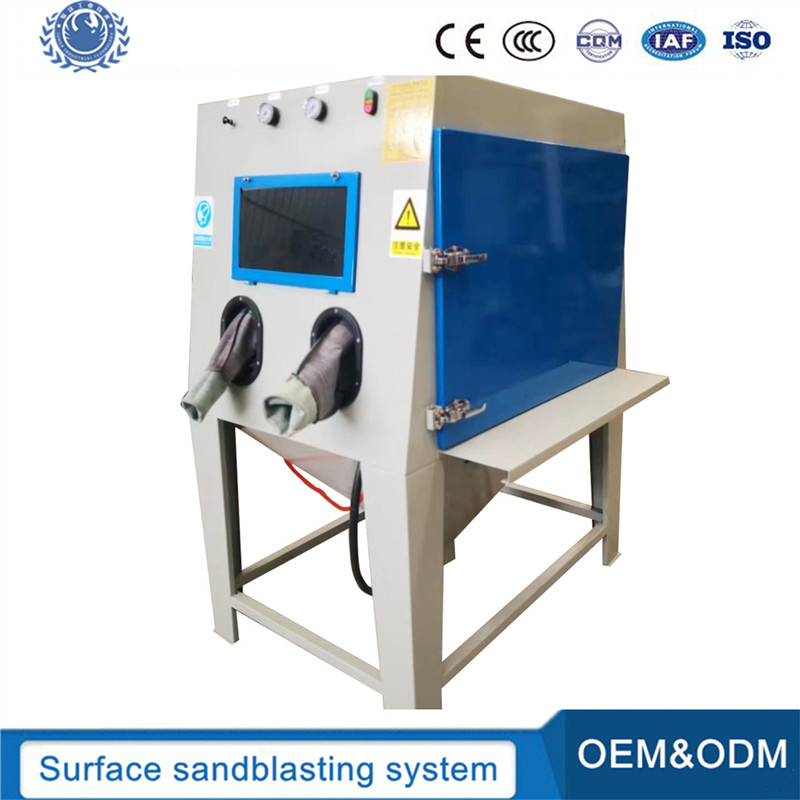

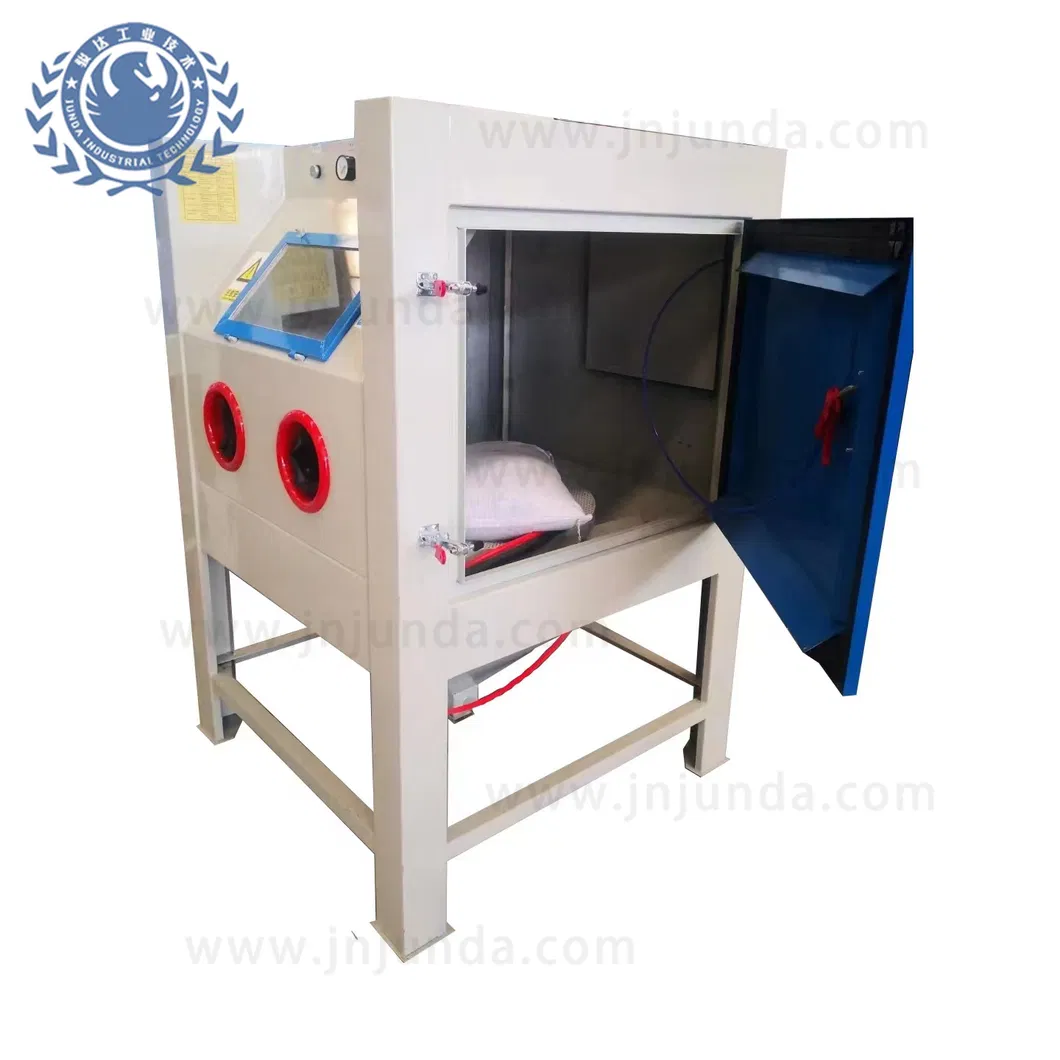

Our blasting cabinets are produced by an experienced engineers team. To pursue the best performance, the cabinet body is steel plate welded with a powder-coated surface, which is more durable, wear-resistant, and lifelong than traditional painting. The main components are high-quality brands.

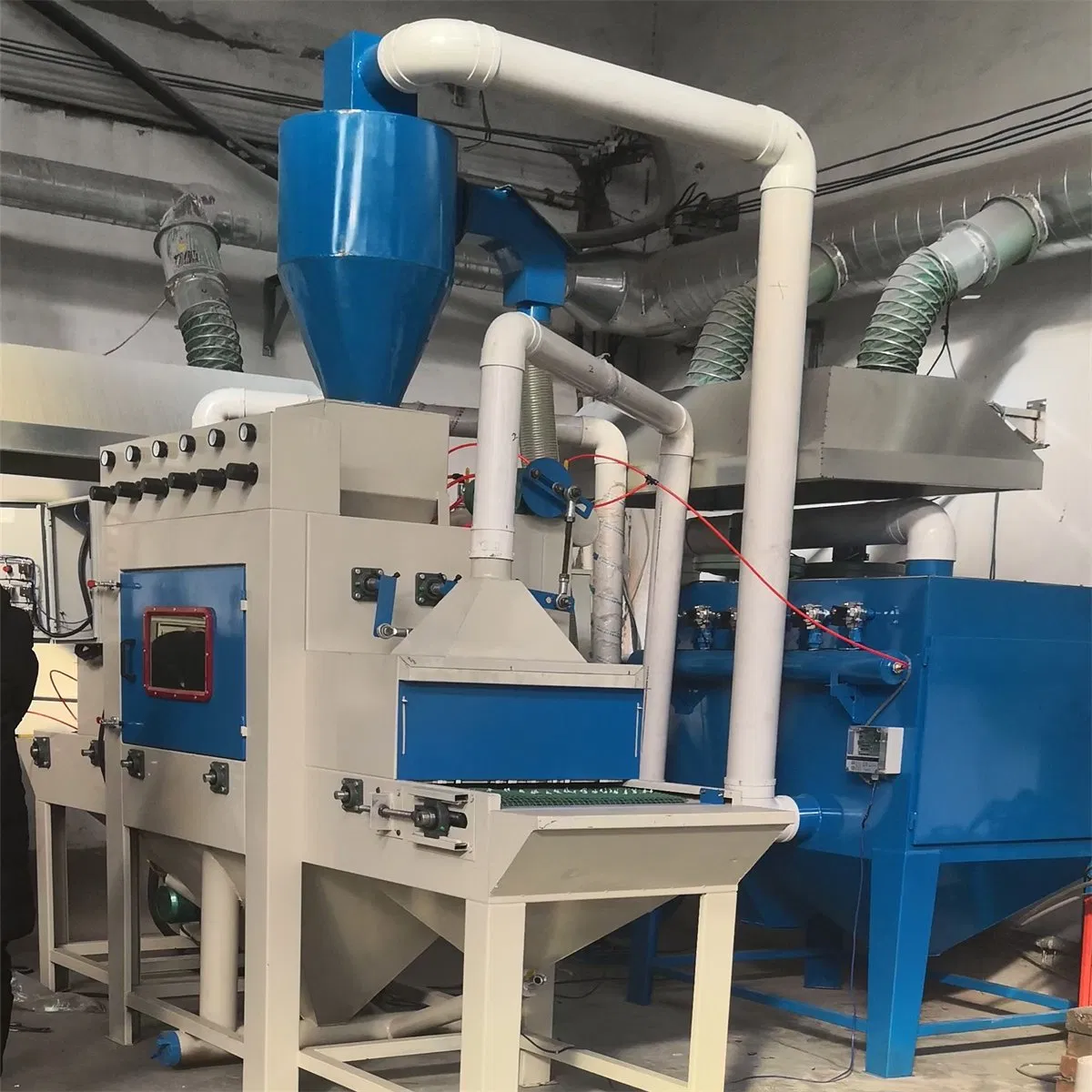

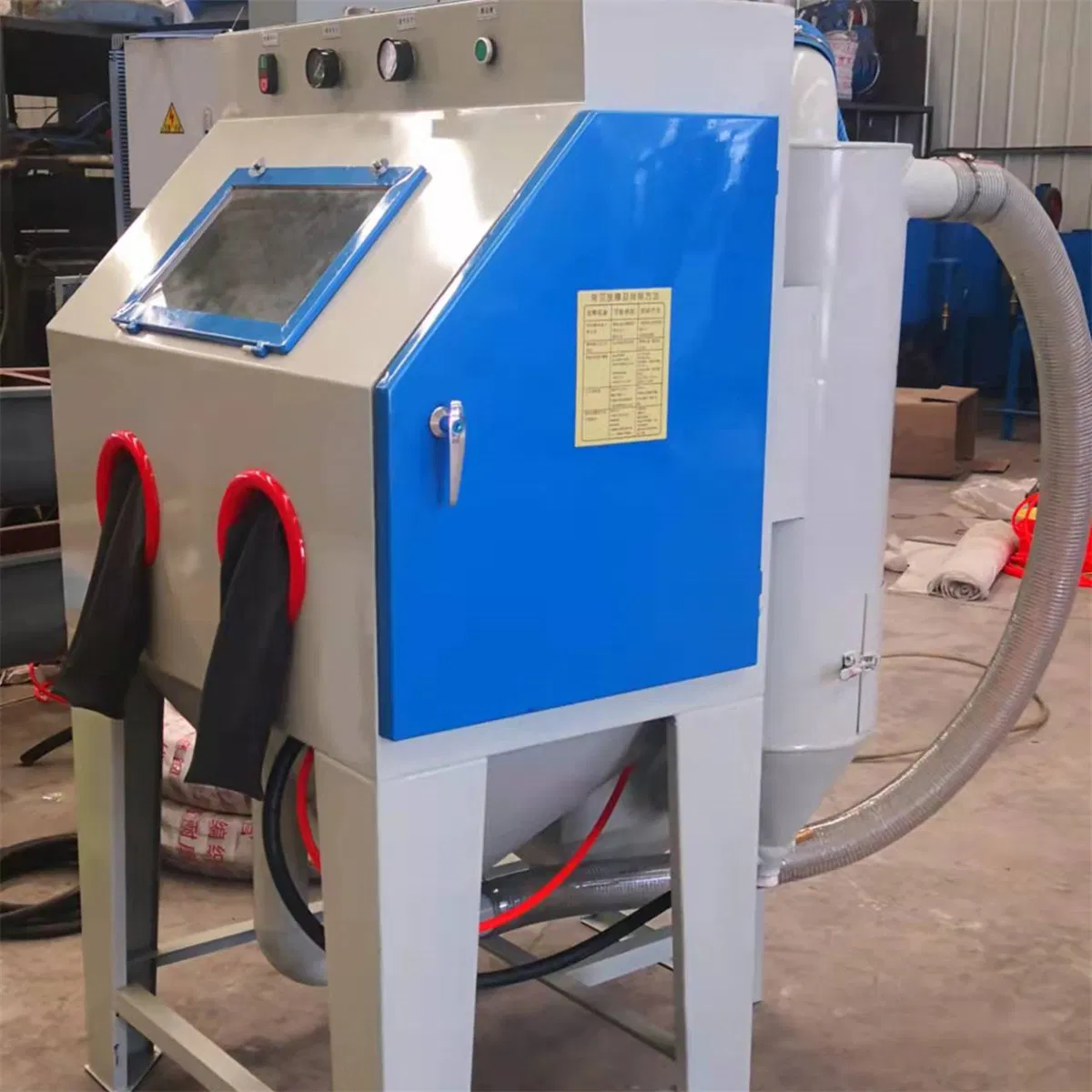

A dust removing system is used in the sandblasting machine, thoroughly collecting dust, creating a clear working view, and ensuring that the recycled abrasive is pure and the air discharged to the atmosphere is dust-free. Each blast cabinet includes a durable aluminum alloy casting blast gun with a 100% purity boron carbide nozzle.
Technology & Working Principle

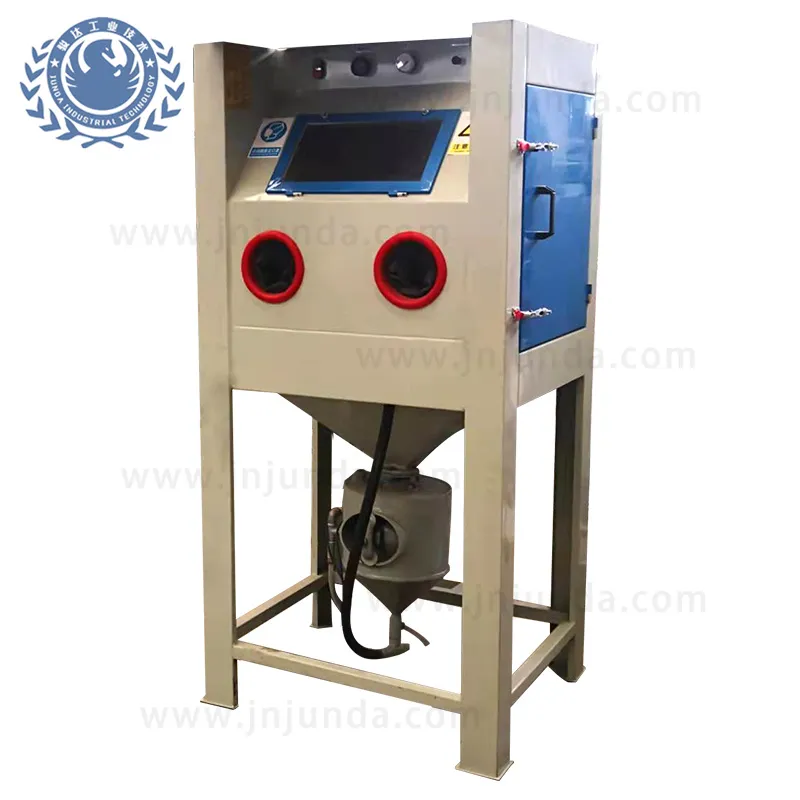

Suction or Siphon Blast Cabinet: These employ the venturi siphon effect to suck abrasive into a pressurized stream of fluid, air, or water.
Direct Pressure Blast Cabinets: Pressure abrasive blast equipment makes use of a pressure vessel to energize the abrasive media. Direct pressure cabinet blast machines expel the media at much higher flow rates, cleaning up to 4 times faster than suction machines.

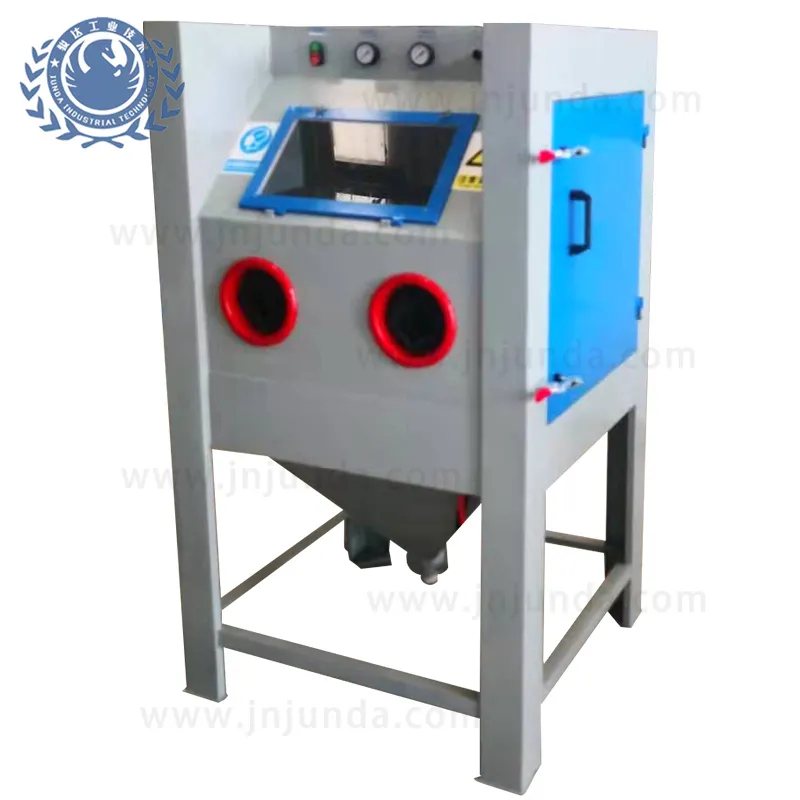

Wet Abrasive Blast Cabinets: Water replaces air to propel media. It reduces dust by over 90%, keeps parts cooler to prevent warping, and provides deep cleaning with no embedding of abrasive media.
Key Features
- Suitable for precision work pieces surface treatment.
- Fine sand materials can be recycled for low consumption and cost.
- Well-confined structure prevents powder dust pollution.

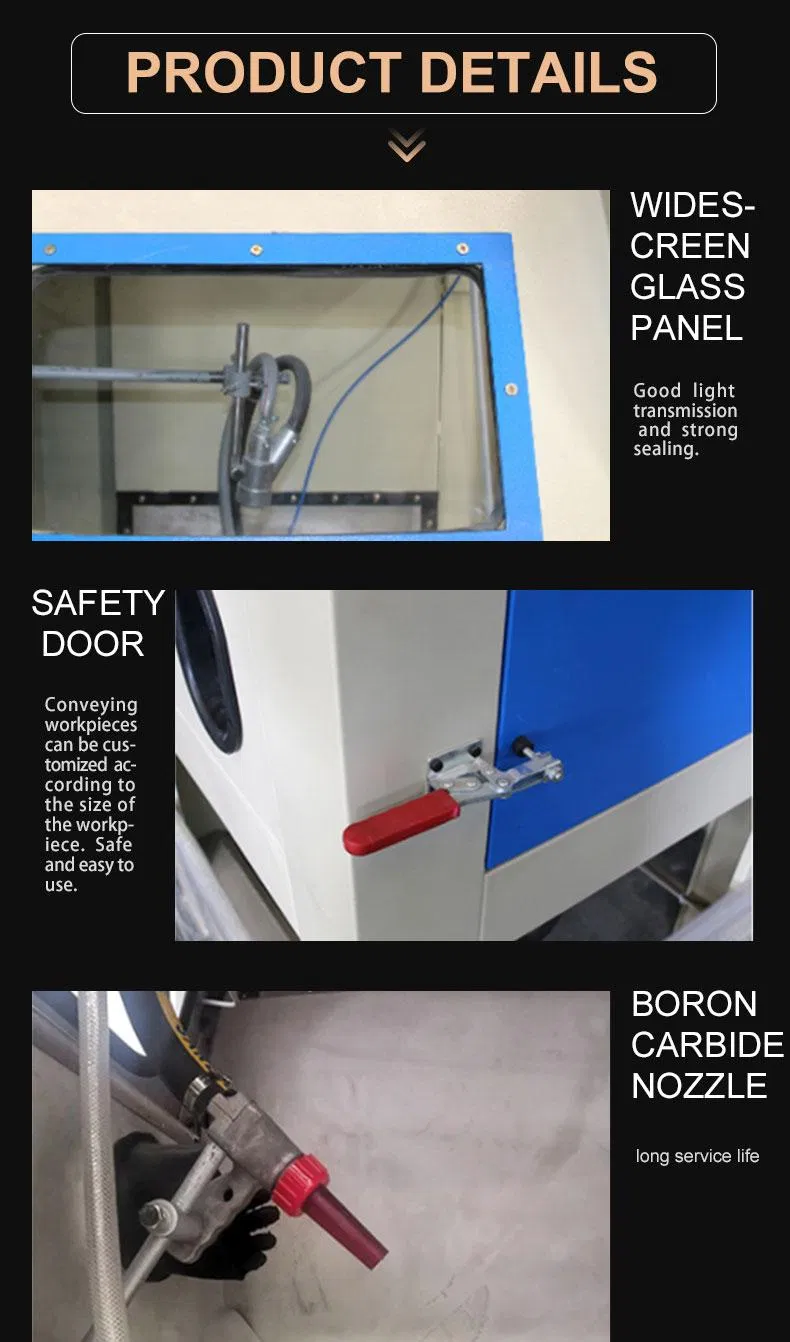

- Large window equipped with windshield wiper for clear visibility.
- Stainless steel construction for long-term durability.
- Low noise levels and simple operation with minimal breakdowns.
Technical Parameters
| Model |
JD-6050NC/HC |
JD-9060NC/HC |
JD-9070NC/HC |
JD-9080NC/HC |
| Outline Dimension |
600x900x1500mm |
900x1000x1900mm |
900x1000x1900mm |
900x1200x1900mm |
| Working Chamber Size |
600x500mm |
900x600mm |
900x700mm |
900x800mm |
| Loading Weight |
100KG |
100KG |
100KG |
100KG |
| Power Supply |
220V, 50HZ |
220V, 50HZ |
220V, 50HZ |
220V, 50HZ |
| Air Consumption (Gun) |
1-1.2m³/min |
1-1.2m³/min |
1-1.2m³/min |
1-1.2m³/min |
Product Applications

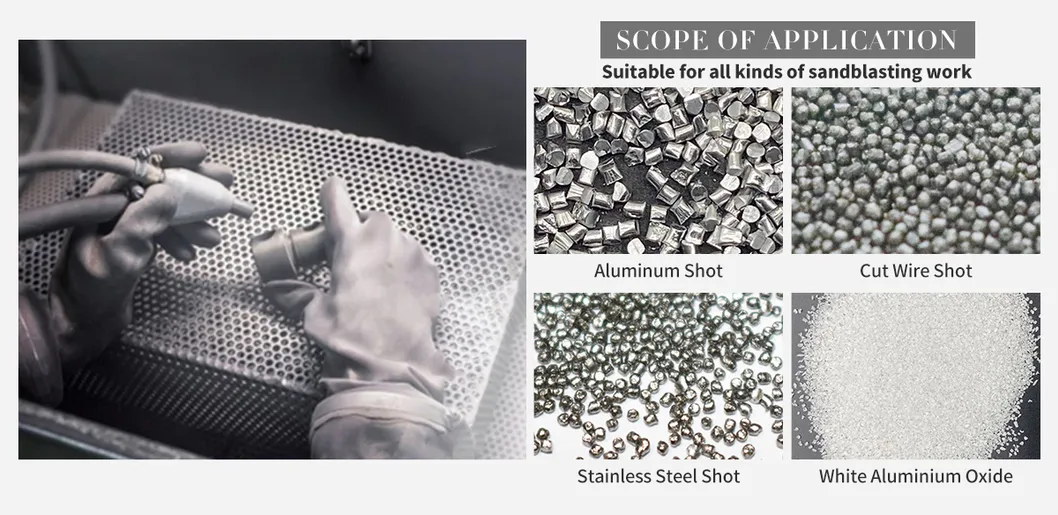

Ideally suited for liquid sand and shot blasting processing. It effectively cleans rough surfaces of precision castings, removes oxide scales, micro-burrs of machined parts, and handles dirt/rust on oil-stained parts.
Packaging & Certifications
Standard wooden box packaging suitable for long-distance sea transportation ensures the machine arrives undamaged.
Frequently Asked Questions
Q1: What is the standard delivery time for the machine?
A: Typically, it takes 5-10 working days after receiving the payment.
Q2: How is the sandblasting cabinet packaged for shipping?
A: We use professional wooden box packaging to ensure safety during transit.
Q3: Do you provide technical support for the equipment?
A: Yes, we have a professional technology supporting team. We provide technical documents and support via telephone or online chat.
Q4: What payment methods do you accept?
A: We accept T/T, Western Union, Money Gram, and L/C.
Q5: How can I ensure the machine is not damaged upon arrival?
A: Our packaging is shipping standard. We confirm the product is undamaged before packing. We also provide insurance for shipping to cover any potential issues.
Q6: Can the turntable size be customized?
A: Yes, the turntable size and rotation (manual or automatic) can be customized based on your specific requirements.
