Blatrixo Machine
Blatrixo Machine

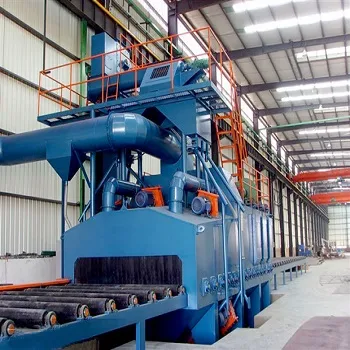

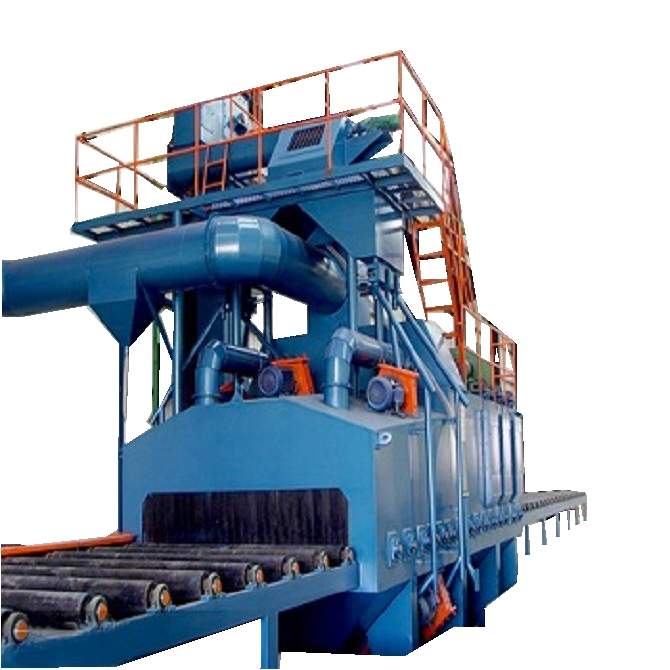

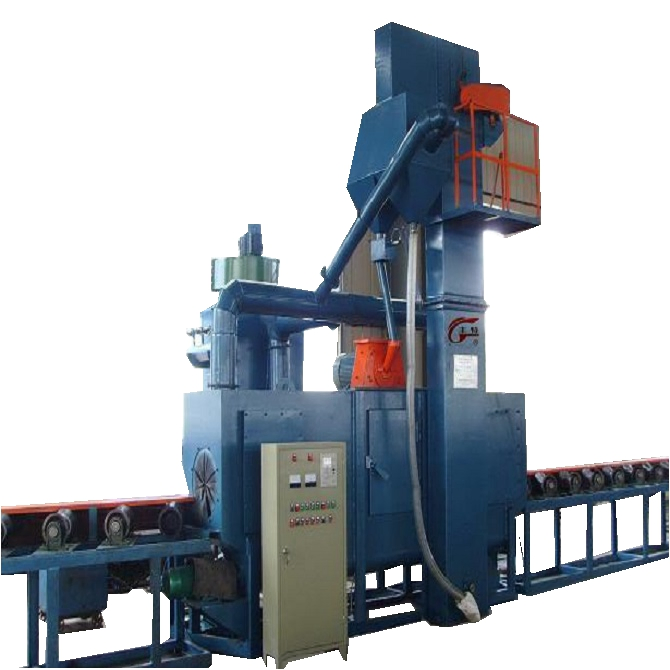

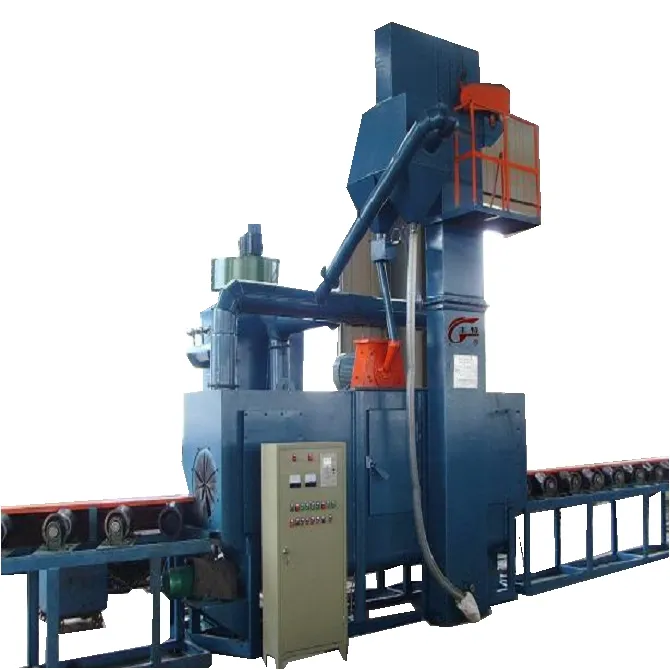

The shot-blasting machine is an advanced equipment designed to clean the surface of steel structure welding workpieces, H-style steel, plates, and various profiles. It effectively removes rust spots, scales, welding slag, and welding stress, significantly improving surface lacquer quality and the rot-proof properties of the steel.
| Workpiece Size & Quality | |
| Width × Height | ≤800×1800mm |
| Length | 3000-12000mm |
| Quality Requirement | Sa2.5, Ra15-50 |
| Impeller Head System | |
| Model | QZ320 |
| Quantity of Shot-blasting | 8×200kg/min |
| Turning Speed | 2940r/min |
| Blasting Speed / Power | 73m/s / 8×11KW |
| Conveying System | |
| Roller Conveyor Length (Input/Output) | 12000mm / 12000mm |
| Conveying Speed | 0.5-5m/min |
| Load Capacity | 1000kg/m |
| Dusting & Ventilation | |
| Handling Volume | 15000m3/h |
| Discharge Quantity | <120mg/m3 |
| Overall Power | ≈140KW |

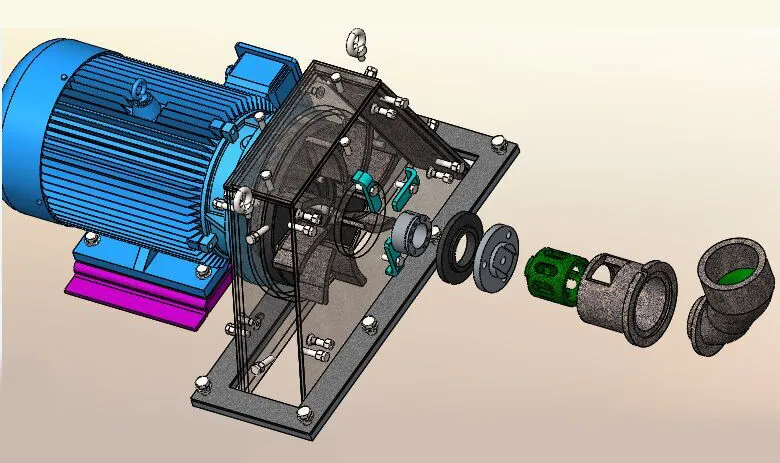

Impeller Head: The key part of the machine. It creates centrifugal and wind force during high-speed rotation to accelerate shots through the pipeline. The formed shot sector stream cleans the workpiece surface effectively.

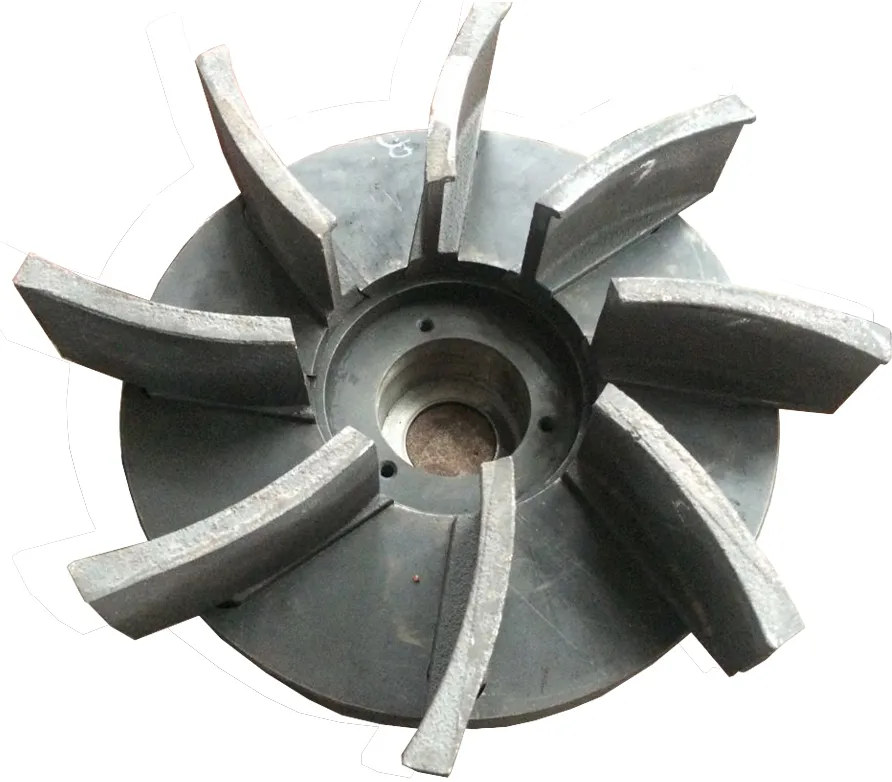

Includes vane wheel, orientation jacket, and motor. Vanes use high-chromium wearing alloy for long life (approx. 1500-2000 hours). The blasting direction can be adjusted by turning the orientation jacket to ensure complete coverage.
