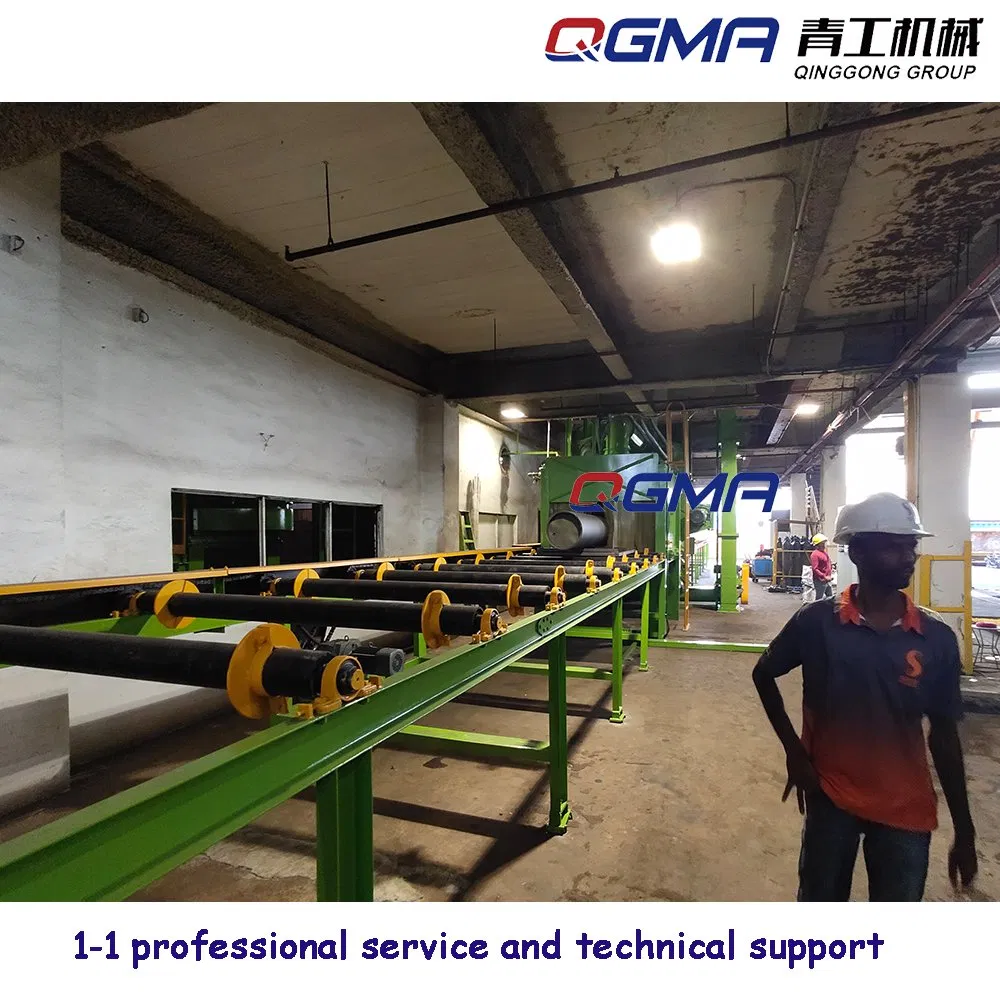

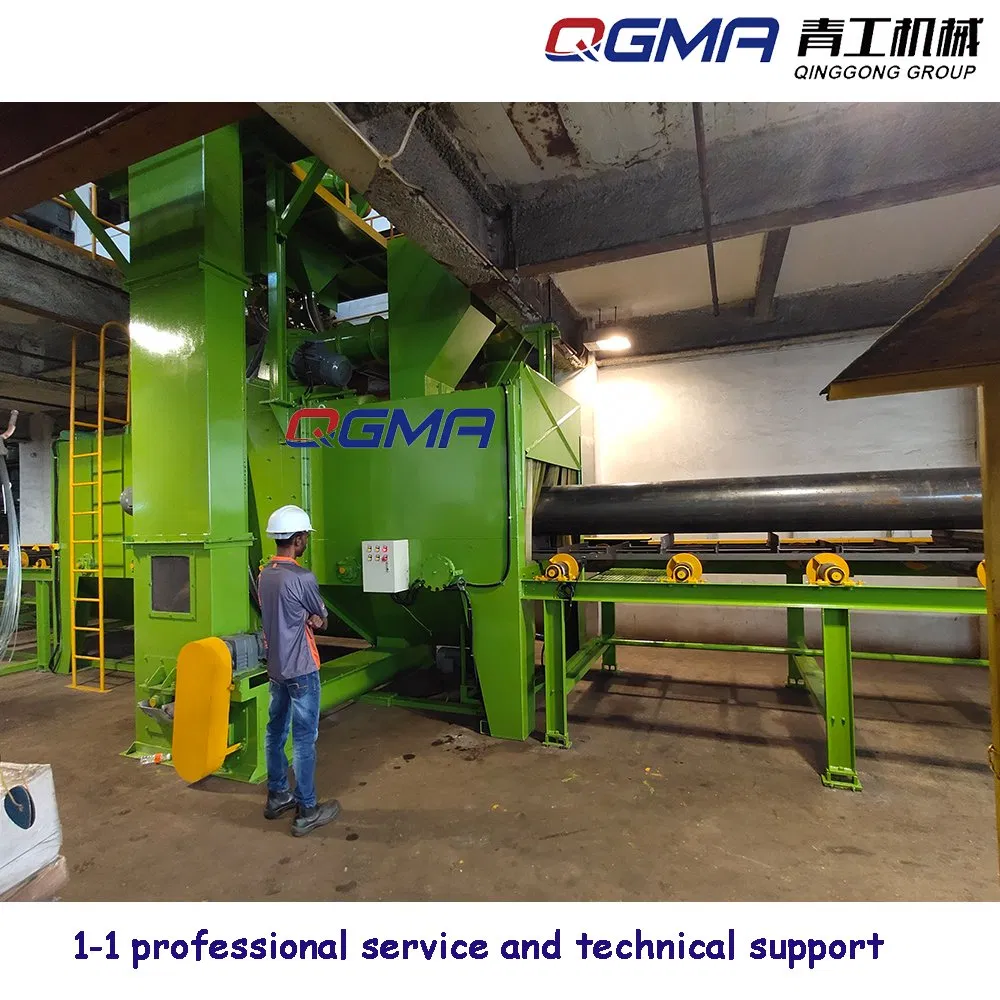

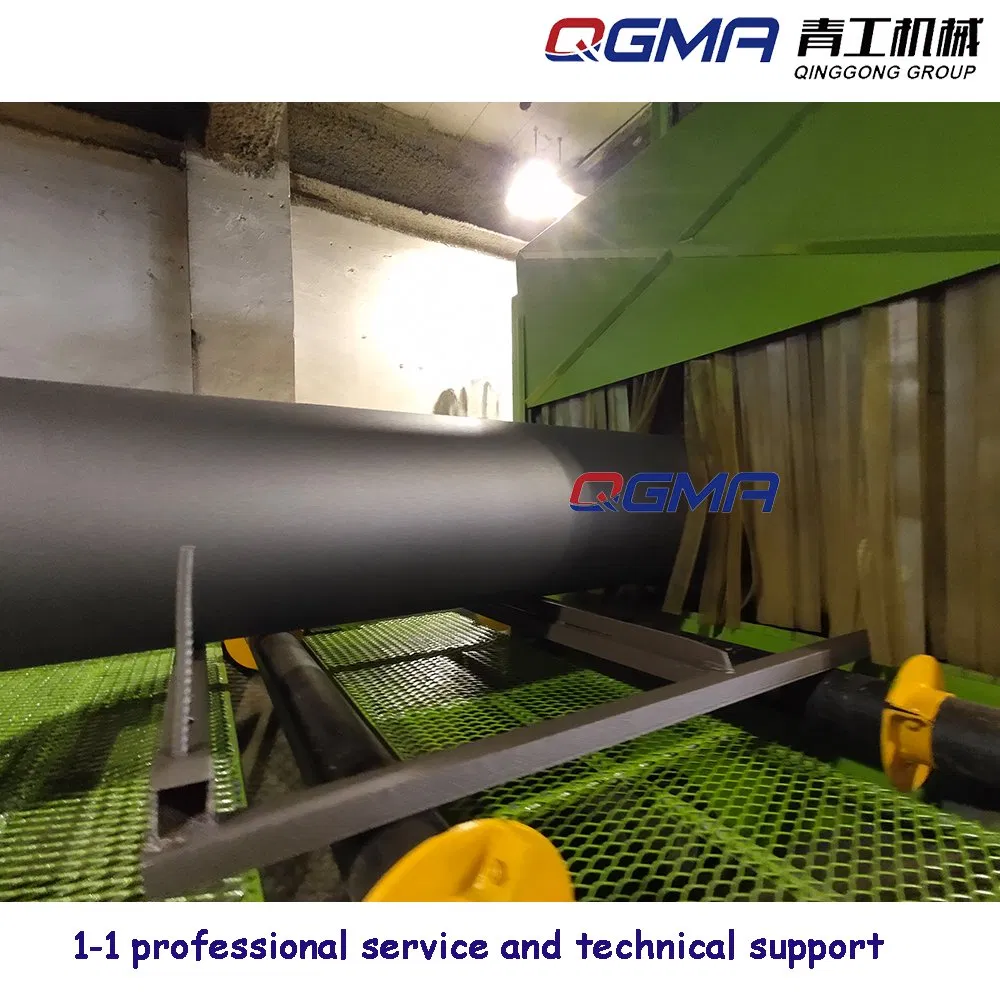

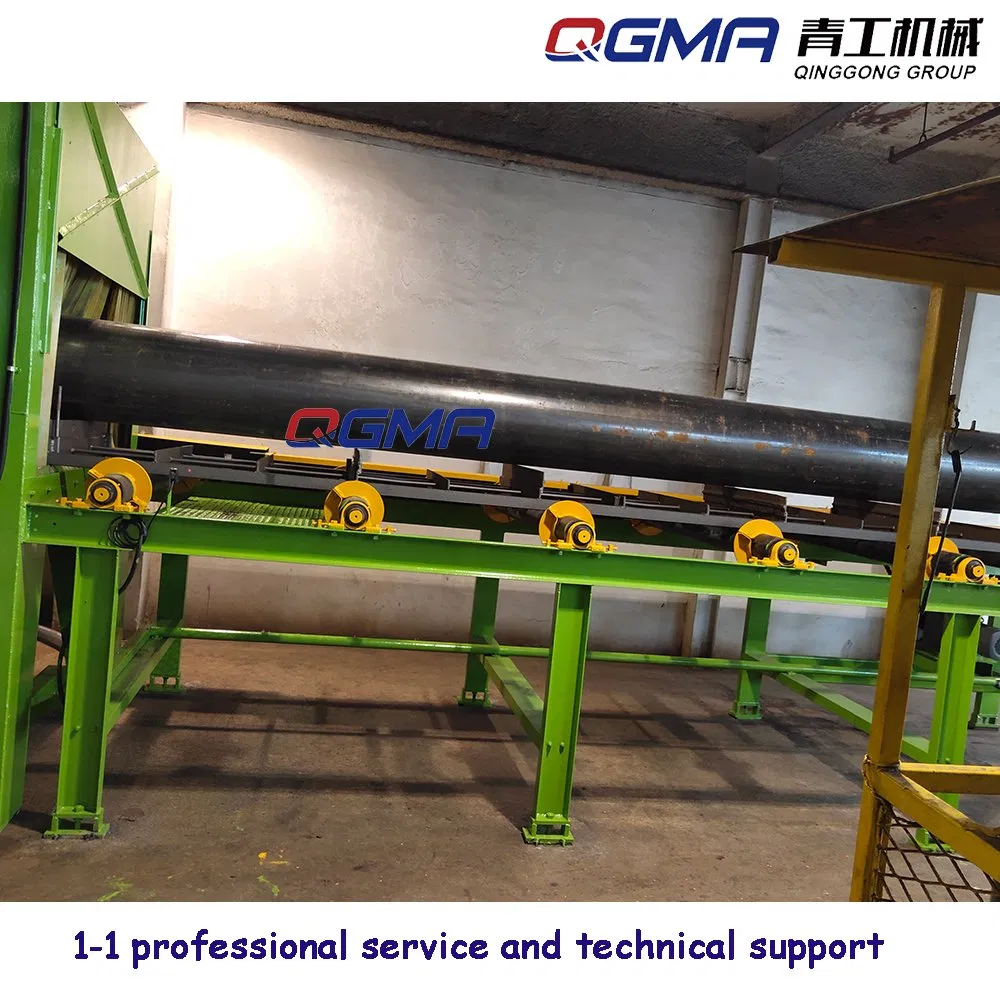

SA2.5-3.0 Blast Effective for Steel Pipe Round Bar Roller Conveyor Shot Blasting Cleaning Machine

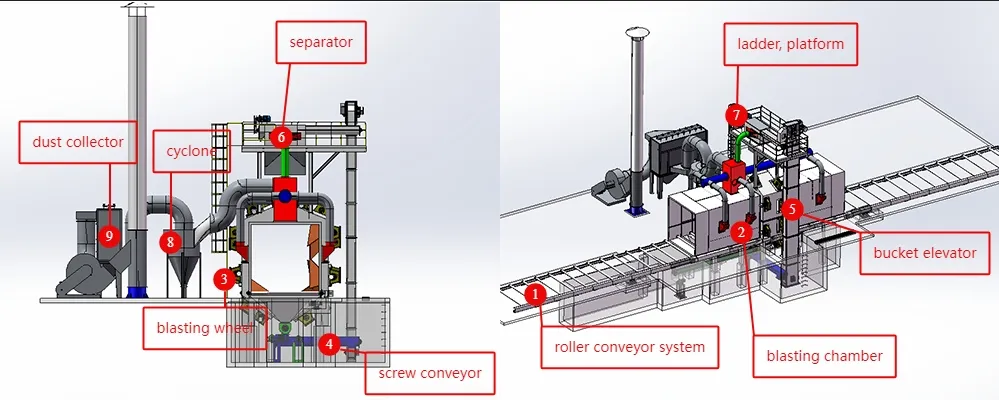

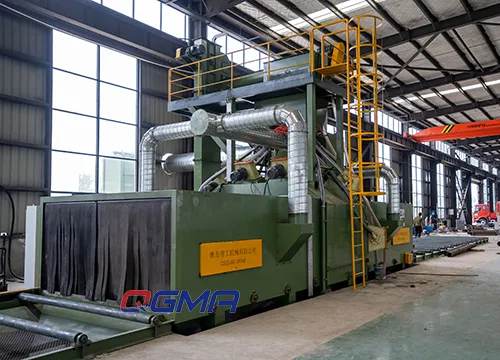

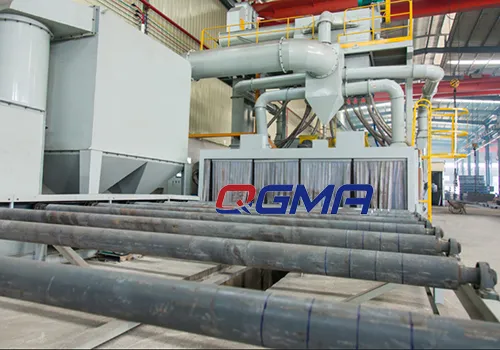

The roller conveyor shot blasting machine is a pass-through automatic shot blasting equipment. It is mainly used for surface rust cleaning and stress relief of various steel workpieces to enhance the surface adhesion of the coating, improve the fatigue resistance of steel workpieces and extend its service life.
| Type | Unit | QGX600 | QGX1200 | QGX1500 | QGX1800 | QGX2000 |
|---|---|---|---|---|---|---|
| Effective blasting width | mm | 600 | 1200 | 1500 | 1800 | 2000 |
| Dimension of entrance(W×H) | mm | 800×1400 | 1400×1600 | 1700×1600 | 2000×1700 | 2200×2400 |
| Work speed (Sa2.5) | m/min | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~3 | 0.5~2 |
| Number of wheels × power | kW | 8×7.5/11 | 8×11/15 | 8×11/15 | 8×11/15 | 12×11/15 |
| Abrasive filling capacity | kg | 4000 | 4000 | 4500 | 8000 | 11000 |

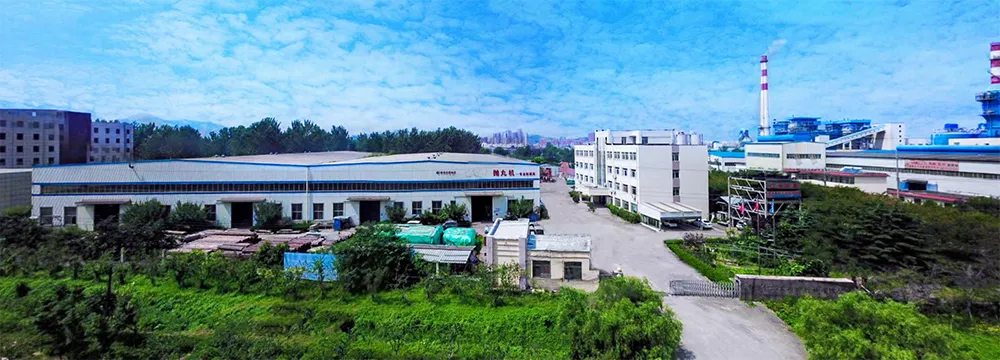

Located in the Industrial Park, providing perfect solutions for shot blasting machines, preservation lines, sandblasting rooms, and spray booths to users around the world.
Adhering to the concept of efficient, intelligent, creative, and environmental protection product development, we focus on sustainable development to better serve future customers.
Strong production bases, abundant manufacturing experience, and a professional engineer team contribute to the in-depth development of blasting machines. From standard machines to non-standard automatic blasting lines, we are at your disposal to answer all needs related to blasting technology.
Certifications: CE Certificate, ISO9001, Multiple Patents.
