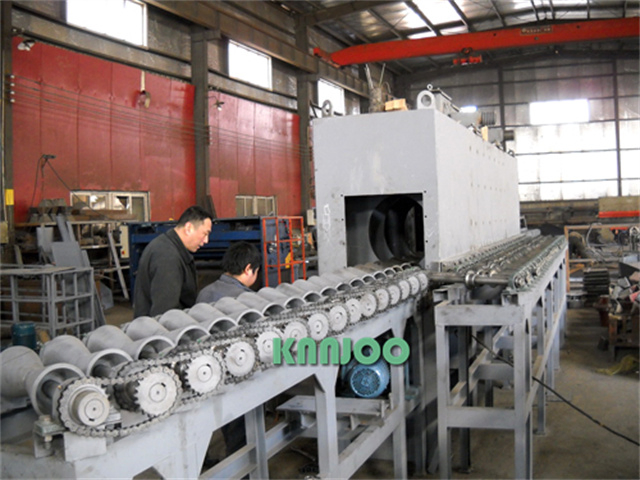

China Cheap Outer Pipe Shot Blasting Cleaning Machine
China Cheap Outer Pipe Shot Blasting Cleaning Machine
China Cheap Outer Pipe Shot Blasting Cleaning Machine
China Cheap Outer Pipe Shot Blasting Cleaning Machine
China Cheap Outer Pipe Shot Blasting Cleaning Machine
1 / 5
China Cheap Outer Pipe Shot Blasting Cleaning Machine
China Cheap Outer Pipe Shot Blasting Cleaning Machine
China Cheap Outer Pipe Shot Blasting Cleaning Machine
China Cheap Outer Pipe Shot Blasting Cleaning Machine
China Cheap Outer Pipe Shot Blasting Cleaning Machine

China Cheap Outer Pipe Shot Blasting Cleaning Machine

Customization: Available
Warranty: 1 Year
Application: Electronic Industry
Send Inquiry

Product Description

📋
Basic Specifications
Model NO.
QGW Series
Fuel
Electric
Type
Steel Pipe Shot Blasting Machine
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, UR
Condition
New
Customized
Customized
Electric Parts
Siemens, Omron, Chint, etc
Industrial Exp.
Over 20 Years
HS Code
8460909000
Capacity
50/Month
📦
Packaging & Delivery
Package Size
8000.00cm * 3000.00cm * 5000.00cm
Gross Weight
10000.000kg
Transport
Nude Packaging
🛠️
Product Description

The Steel Pipe Shot Blasting Machine is designed for high-quality cleaning of steel tubes and pipes. It effectively removes mill scale from new pipes or rust and corrosion from used pipes. The uniformly cleaned matte surface facilitates inspection and provides superior bonding for subsequent coating applications.

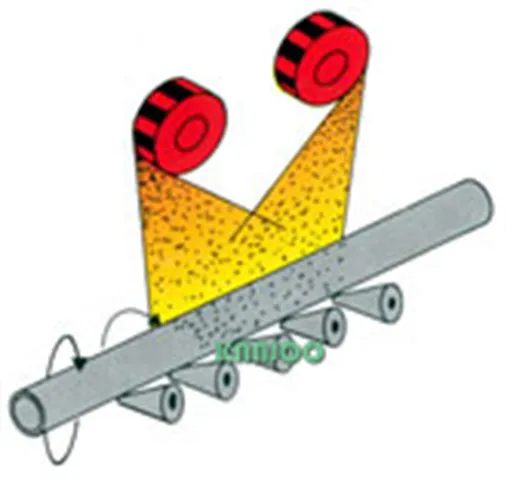

Outer Pipe Shot Blasting Cleaning Machine

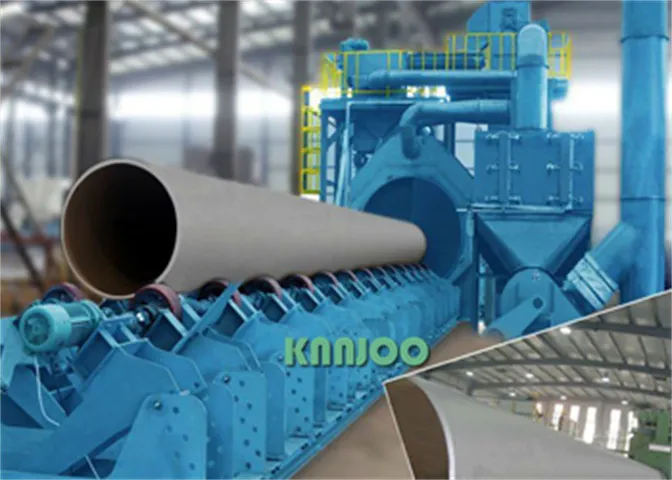

Pipe Cleaning Equipment
External Pipe Cleaning

Capacity: 2" to 24" / 24" to 60" / 60" to 120" inch diameter. Ideal for cleaning new or used pipes for oil, gas, or waterlines.

Internal Pipe Cleaning

Capacity: 6 to 24 inch diameter (150 mm to 600 mm). Operates on an air blast principle using a lance blast nozzle for interior surfaces.

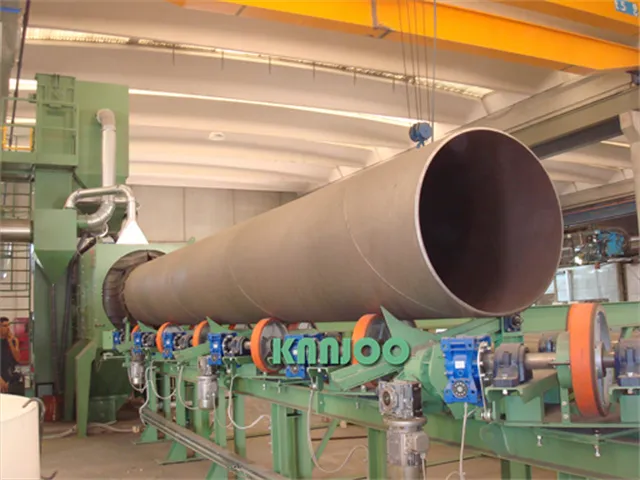

Internal Pipe Shot Blasting

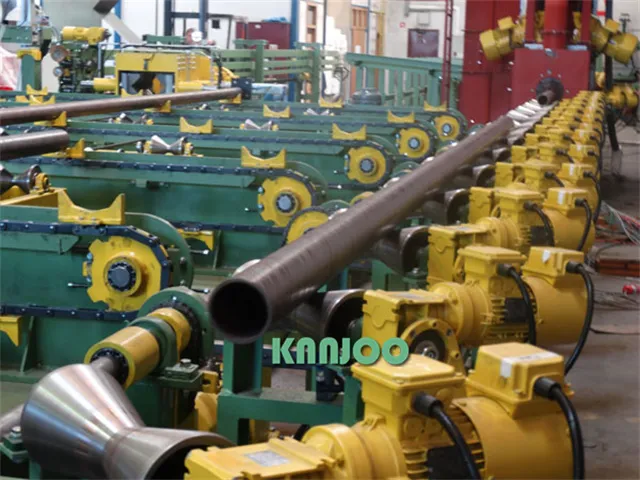

Steel Tube Cleaning Machine
📊
Technical Parameters
Model QGW03 QGW04 QGW05 QGW06
Workpiece Size (mm) ø50-ø400 ø150-ø800 ø80-ø1000 ø100-ø1200
Rollgang Speed (m/min) 2-8 0.5-0.6 0.5-0.6 0.5-0.6
Pill Impelling Volume 2*280 2*360 2*280 2.320
Blast Wheel Power (kW) 2*15 2*30 2*22 2*22
Total Wind Volume 8000 8500 9000 9000
Total Power (kW) 42.6 77.77 76.57 77.77
Dimensions (mm) 35200*5250*5200 35200*5860*5900 35200*6240*6300 18750*6645
🔍
Core Features & Details
  • Protecting Plate: Main chamber utilizes high wear-resistant Mn13 steel plates, designed for simple installation and easy maintenance.
  • Sealed Import & Export: Features quick-exchange chamber doors adaptable for both large and small diameter workpieces to prevent abrasive leakage.
  • Drive Mechanism: Multiple options available including Tire drives and V-Ramp Rollers to suit different pipe characteristics.
  • Recycling & Purifying System: Integrated system including abrasive hoppers, screw conveyors, bucket elevators, and separators for efficient shot reuse.
  • Dust-Removing System: High-efficiency collector and fan system with butterfly valves to maintain a dust-free working environment.

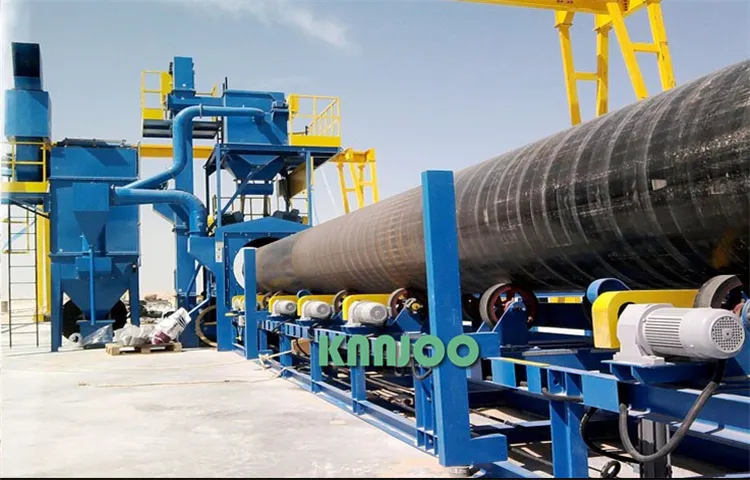

Shot Blasting Machine Detail
📝
Additional Information
Production Time
30 Days
Installation Time
20 Days
Warranty
12-18 Months
Documentation
Full English Manuals & Drawings
Frequently Asked Questions
What types of steel pipes can this machine clean?
It is designed for both new and used seamless steel tubes, pipes for oil, gas, and waterlines, handling diameters from 2" up to 120" for external cleaning.
How does the internal pipe cleaning system work?
The internal system operates on an air blast principle using a specialized lance blast nozzle to reach and clean the interior surfaces of pipes ranging from 6 to 24 inches.
What materials are used for the wear parts?
The machine uses high wear-resistant steel manganese 13 (Mn 13) for protecting plates and high-quality spare parts like Zgmn13 and Mn65 to ensure long-term durability.
Is the machine compatible with international electrical standards?
Yes, the machine uses high-quality electric components from world-renowned brands such as Siemens and Omron to ensure reliability and safety.
What is required for a customized equipment design?
To design the most suitable machine, please provide the workpiece type, maximum dimensions (length, width, height), and your required daily production capacity.
What kind of after-sales support is provided?
Professional engineers are available for overseas service, including installation assistance, commissioning, and providing full technical documentation in English.
