Dustless Blasting Machine Wet Sandblasting Cabinet

1 / 5

Dustless Blasting Machine Wet Sandblasting Cabinet

Customization:	Available
After-sales Service:	1 Year Warranty
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.KF-1212W

DrivePneumatic

PrinciplePress-in

ControlArtificial

LayoutVertical

AutomationManual

KindWet Sandblaster

CertificationCE

Working Area1200*1200*800mm

Motor2.2kw

Lighting2*18W Saving Lamps

Voltage380V/220V 3 Phase

Product Description

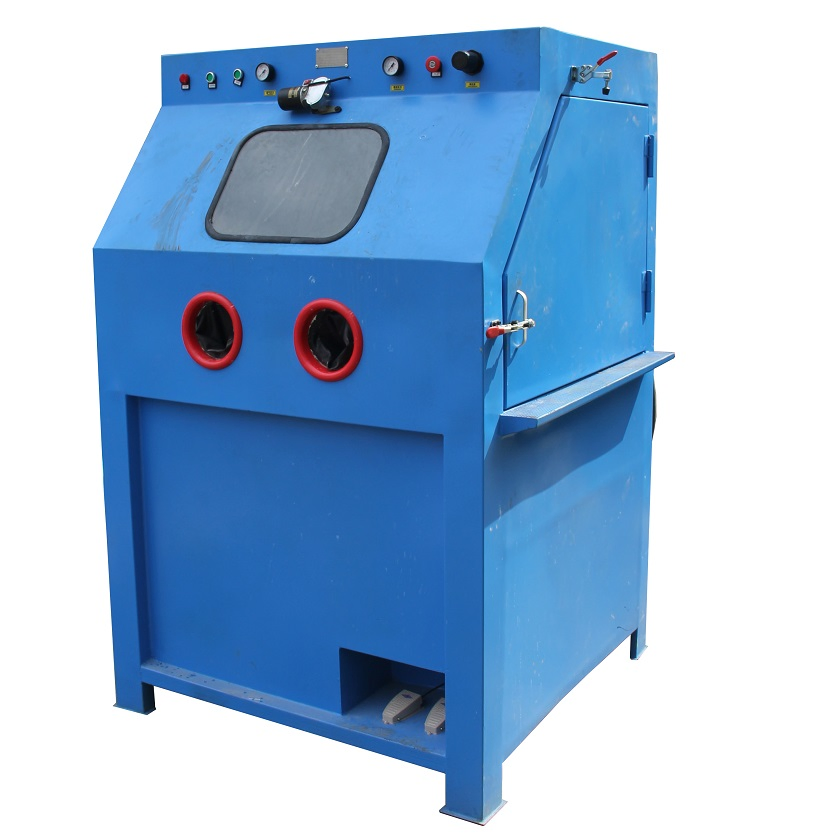

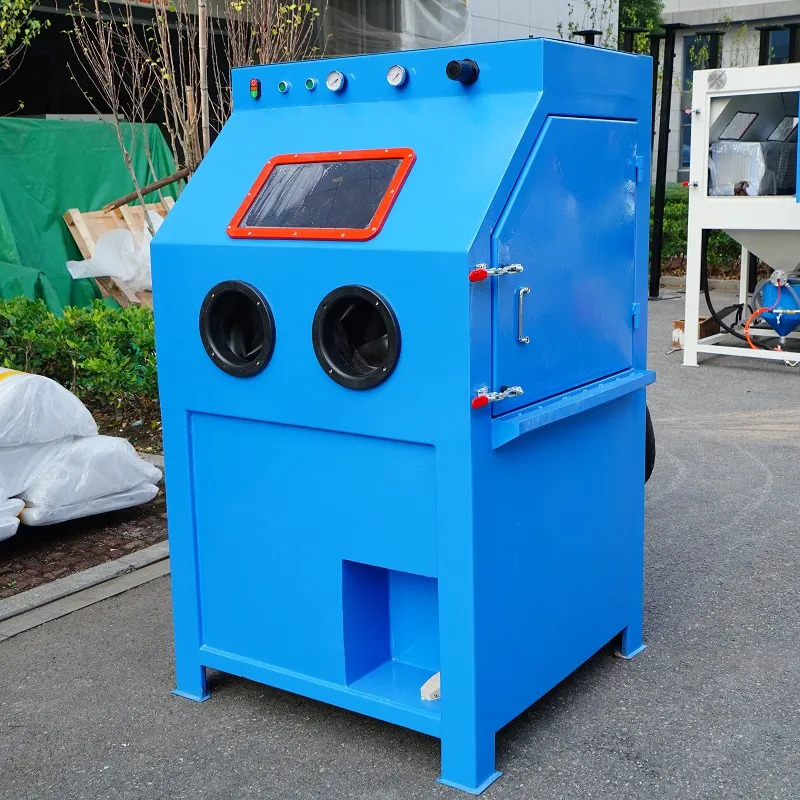

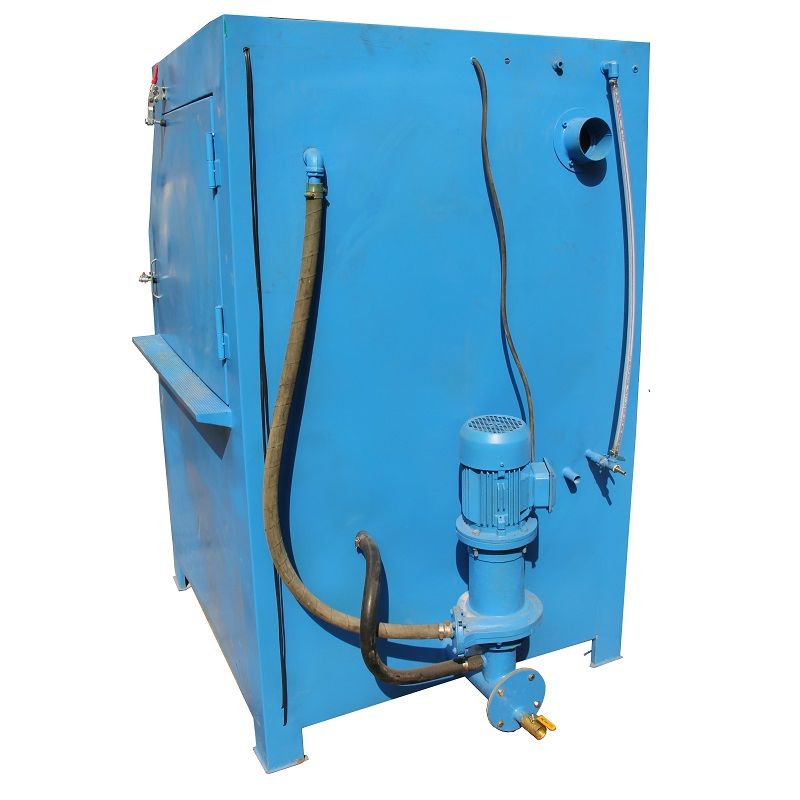

Dustless Blasting Machine Wet Sandblasting Cabinet

Wet Sandblasting Cabinet blasts a water and abrasive mixture to the target, attaining the purpose of removing rust, contaminants, and other imperfections.

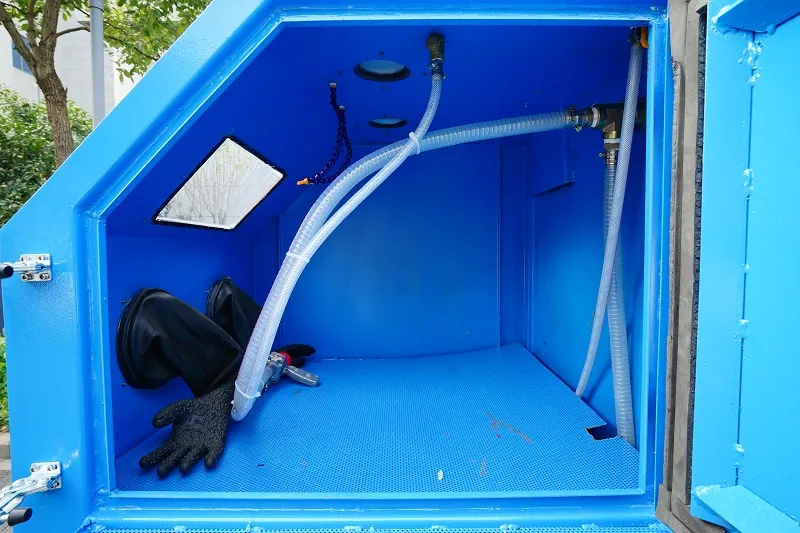

Dustless Sand Blasting Machine creates a dust-free working chamber. With the water's function, it makes the workpieces cleaner and brighter. It is also ideal for precise and delicate parts, making it an innovative blasting solution.

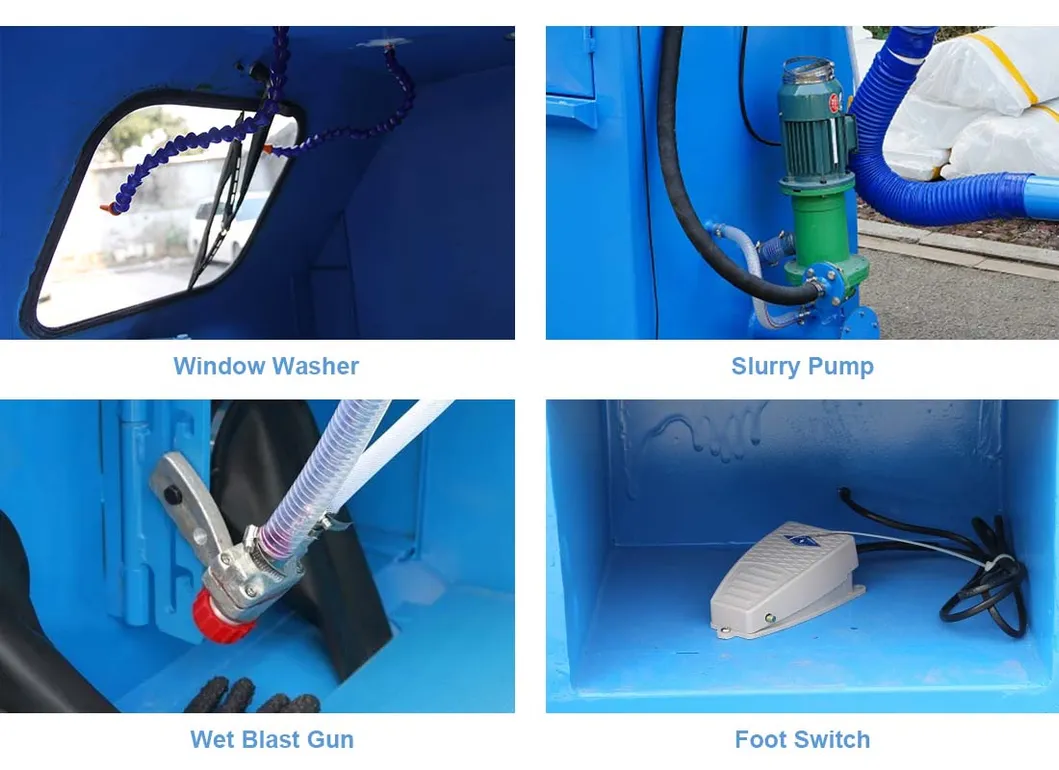

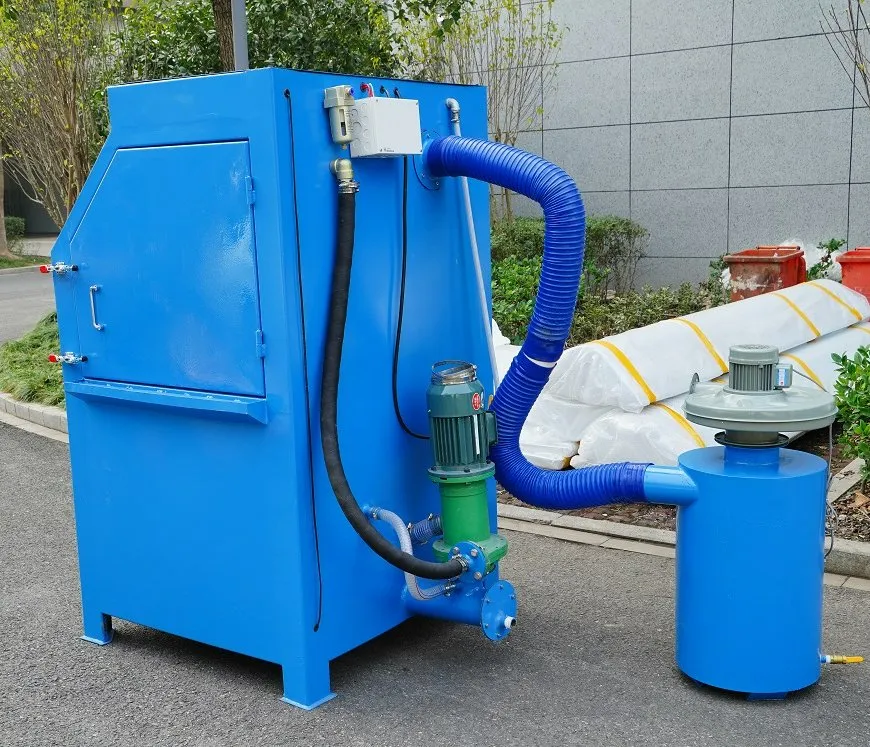

Detail Features

Made of 3mm thick stainless steel with a powder-coated surface, rigid and anti-rust.

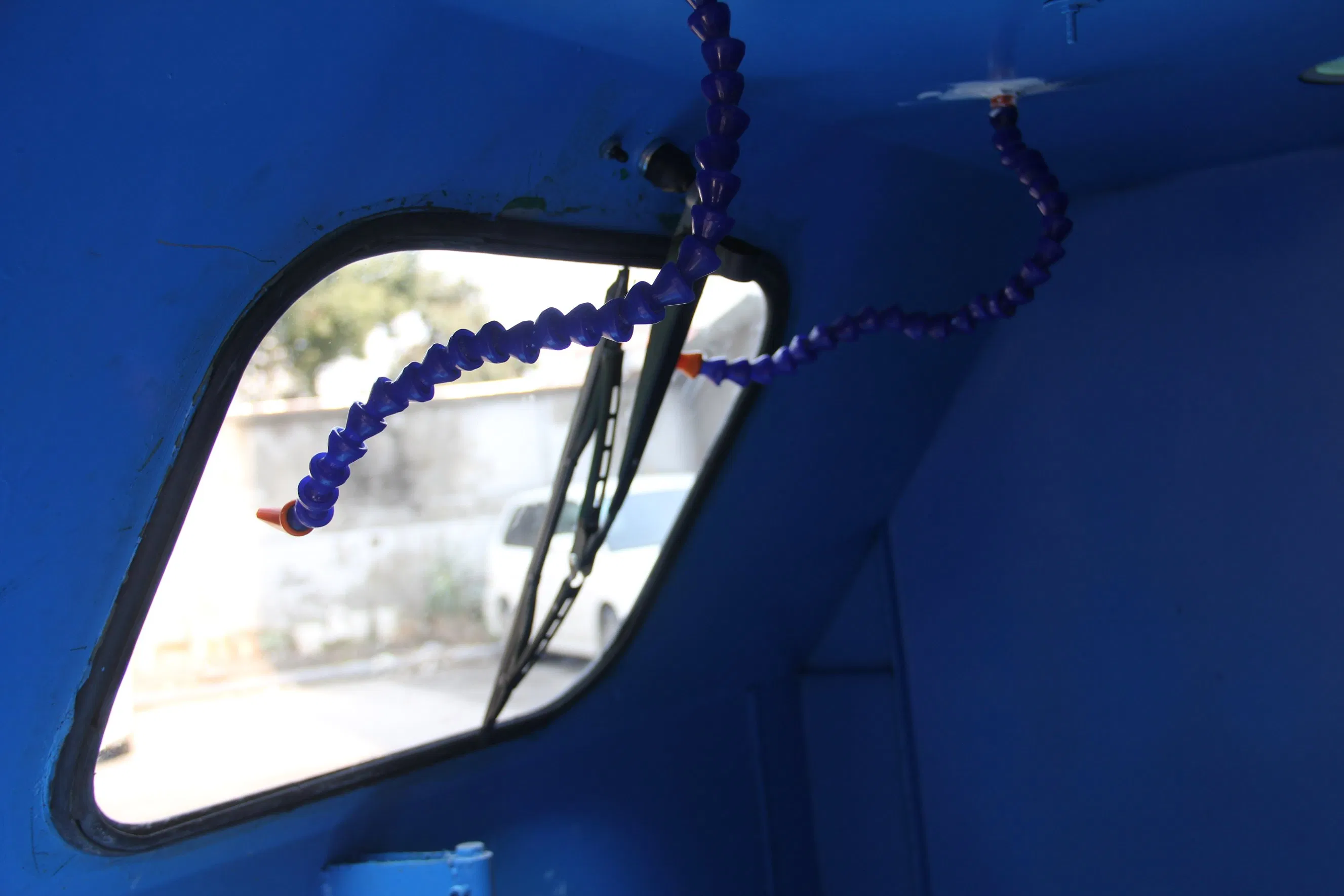

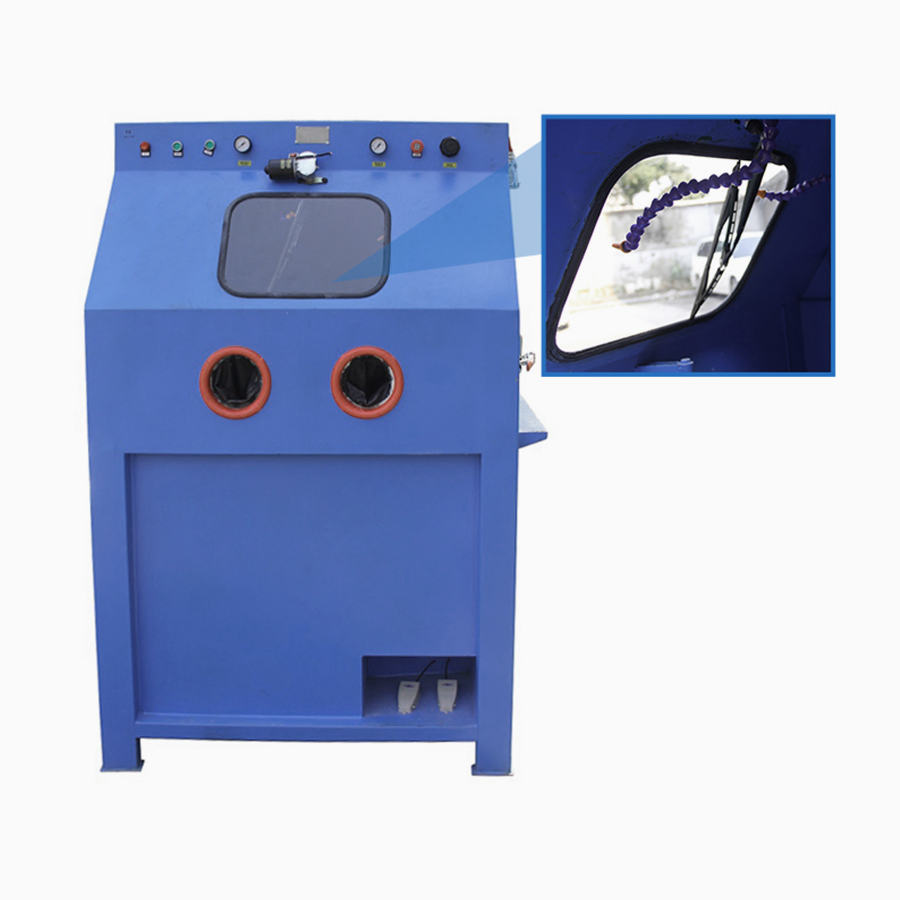

Low voltage windscreen wiper and wash facility to maintain visibility throughout the process.

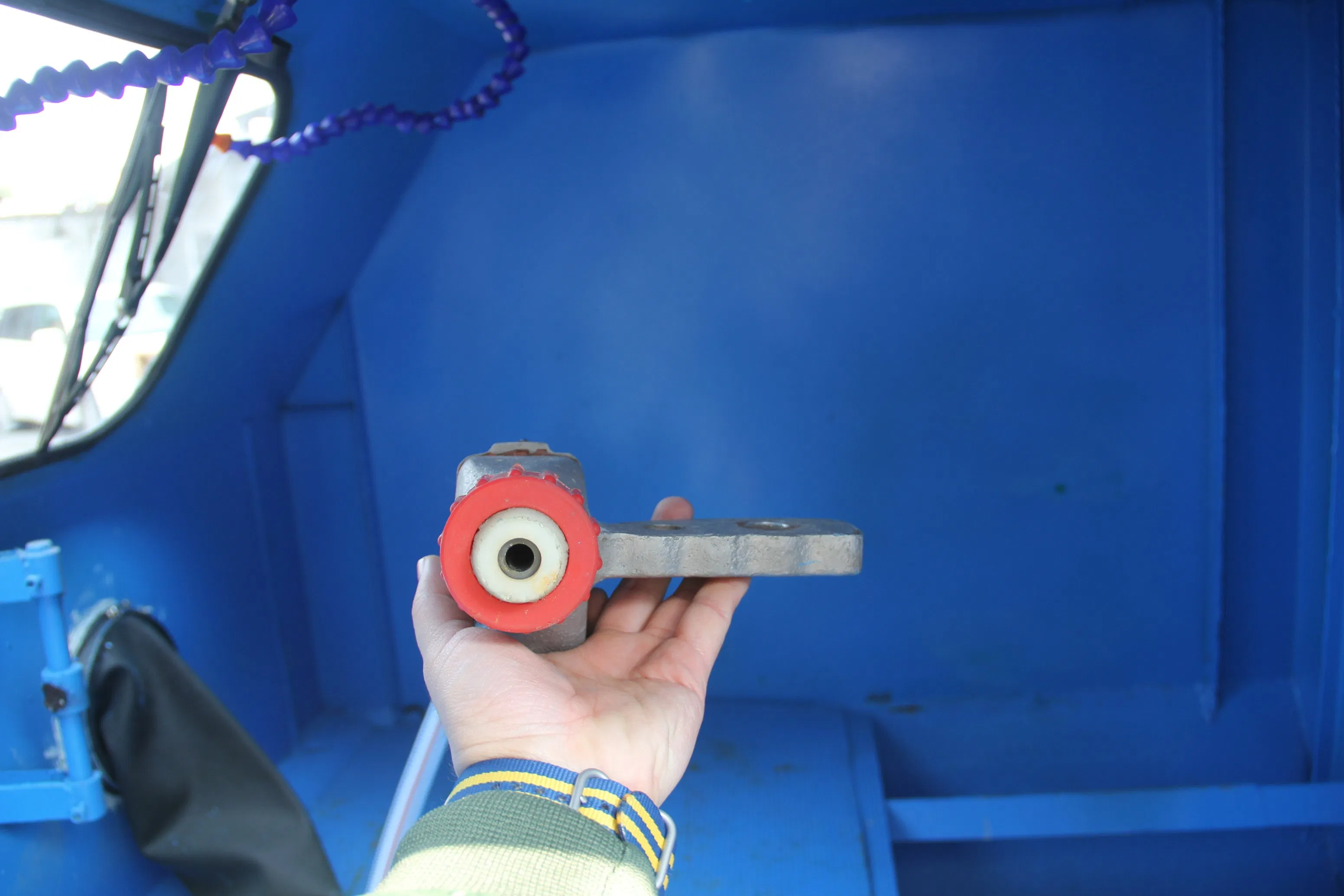

Durable wet blast gun with 8mm boron carbide nozzles specially designed for wet blasting.
Reliable foot pedal controls the working of the blast gun to increase operation safety.
A demister at the back of the machine ensures a better view of the blasting process.
Abrasive can be effectively recycled, resulting in lower consumption and cost.
Simple structured wet blast cabinet requires significantly less maintenance.

Technical Specifications

Parameter	KF-1212W Specifications
Outer Size	1300 * 1600 * 2000mm
Working Area	1200 * 1200 * 800mm
Motor Power	2.2Kw
Air Requirement	Flow 0.5-1.1m³/min
Blast Gun	1 pc wet blast gun with 8mm boron carbide nozzle
Air Consumption	0.4-0.8Mbar
Volume of Abrasive & Water	25L
Suitable Abrasive	Glass beads, Brown Aluminum Oxide (80#-320#)
Abrasive : Water Ratio	1 : 3

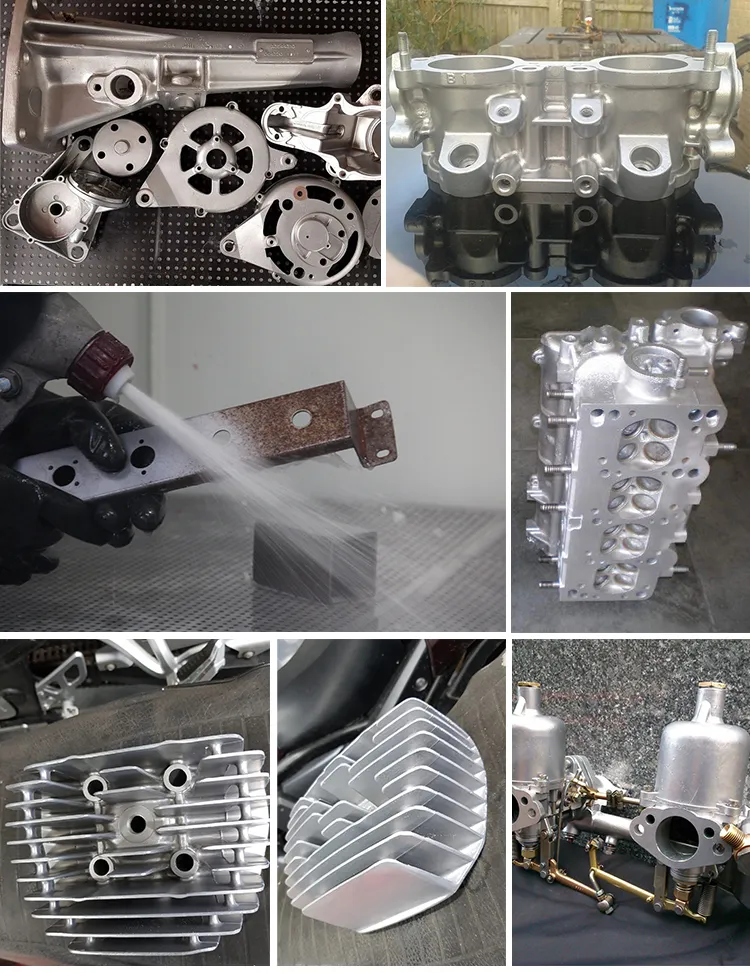

Applications

This machine is perfect for motors, cylinder heads, sub-sea components, aviation parts, crankcases, wheel hubs, suspension parts, bolts, master cylinders, brake calipers, and valuable restoration projects.

As the media material can be varied, the gentle cleaning action of Water Blasting is not limited to metals; it cleans exceptionally well with plastics and rubbers.

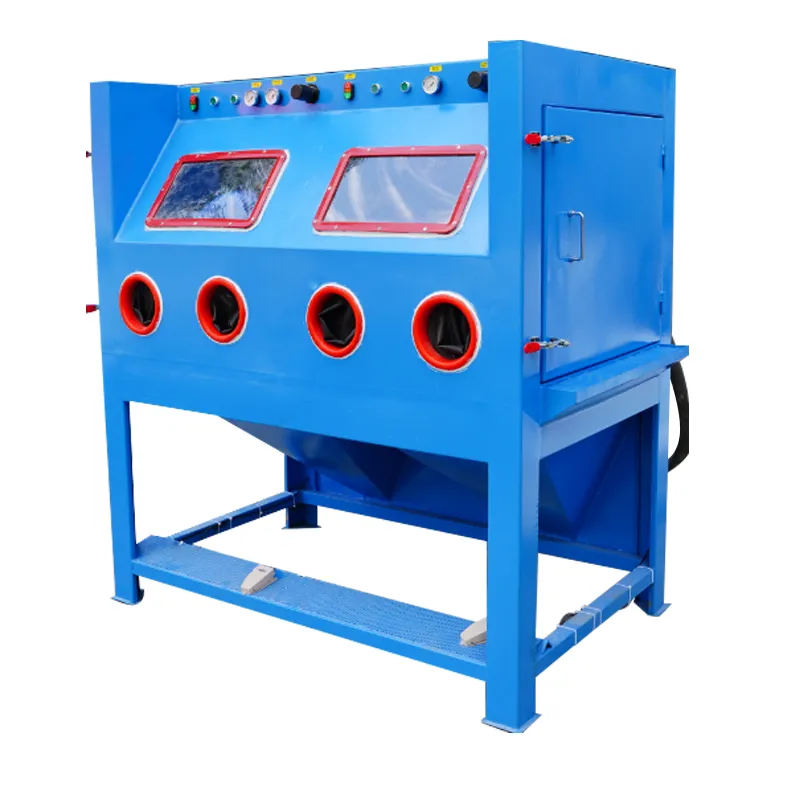

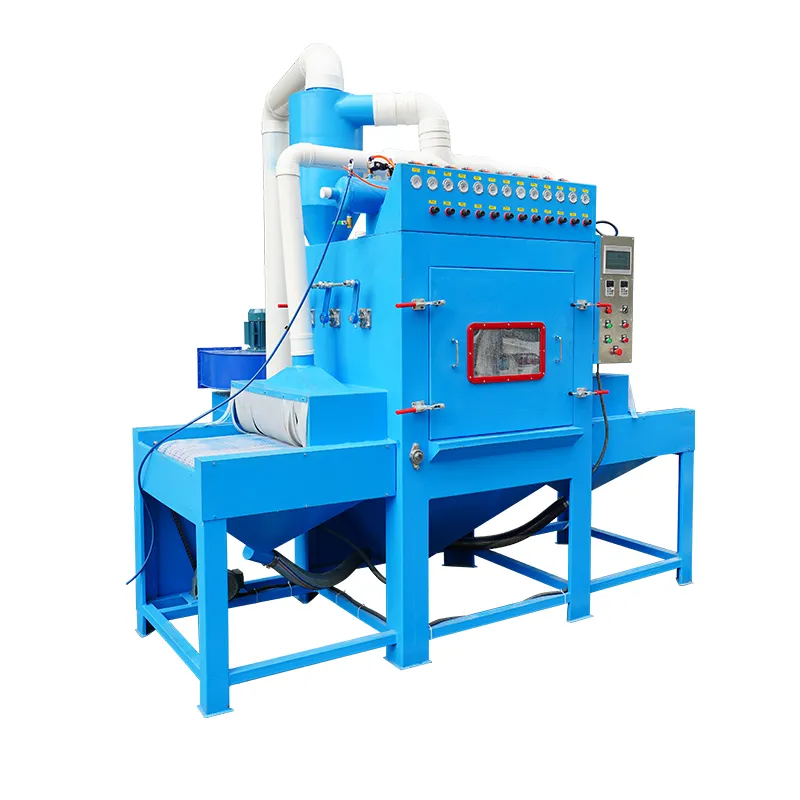

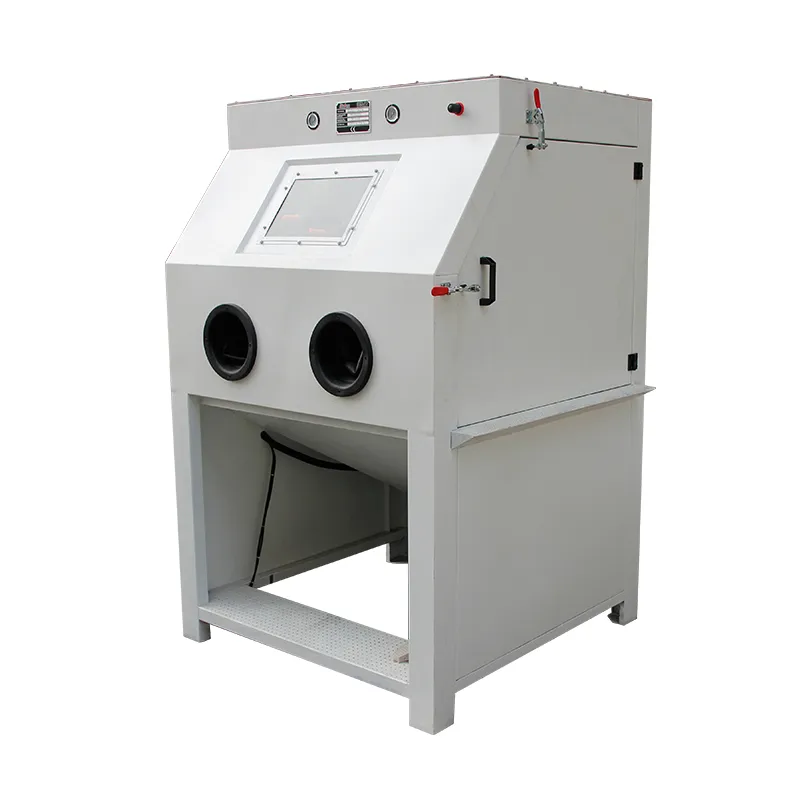

Standard Models for Selection

Model	KF-1610W (Double Gun)	KF-1010W	KF-9080W
Working Size	16001000800mm	10001000800mm	900900800mm
Weight	320kgs	300kgs	280kgs
Loading Capacity	100-140kgs	50-80kgs	30-50kgs

Frequently Asked Questions

What is the main advantage of wet sandblasting over dry blasting?

The main advantage is the dust-free operation. The water cushions the impact on the surface, providing a smoother, brighter finish, which is ideal for delicate or high-precision parts.

Can this machine handle rust removal?

Yes, the mixture of water and abrasive is highly effective at removing rust, old coatings, and other contaminants from various surfaces.

What materials are used in the construction of the cabinet?

The cabinet is constructed from 3mm thick stainless steel with a powder-coated finish to ensure maximum durability and resistance to corrosion.

Is the abrasive material recyclable?

Yes, the machine is designed to effectively recycle the abrasive mixture, reducing operational costs and material waste.

What types of abrasives are recommended for the KF-1212W?

We recommend using glass beads for aluminum and stainless steel, or Brown Aluminum Oxide (80#-320#) for steel and other harder materials.

Can it be used on non-metal surfaces like plastic?

Absolutely. Because the water blasting action is gentle, it can be safely used to clean and finish plastic and rubber components without damaging the substrate.
