Blatrixo Machine Blatrixo Machine

Dustless Sand Blasting Machine, Wet Blasting Cabinet

Customization: Available
After-sales Service: All The Time
Warranty: 1 Year

Product Description

Overview & Basic Info
Model NO.
KF-7070W
Drive
Pneumatic
Principle
Press-in
Control
Electric
Layout
Vertical
Automation
Manual
Kind
Wet Sandblaster
Certification
CE
Motor
220V/380V, 3phase 50Hz
Air Requirement
Flow 0.5-1.1m^3/Min
Blasting Gun
1 PC with Boron Cabide Nozzle
Abrasive & Water Vol
25L
Product Description

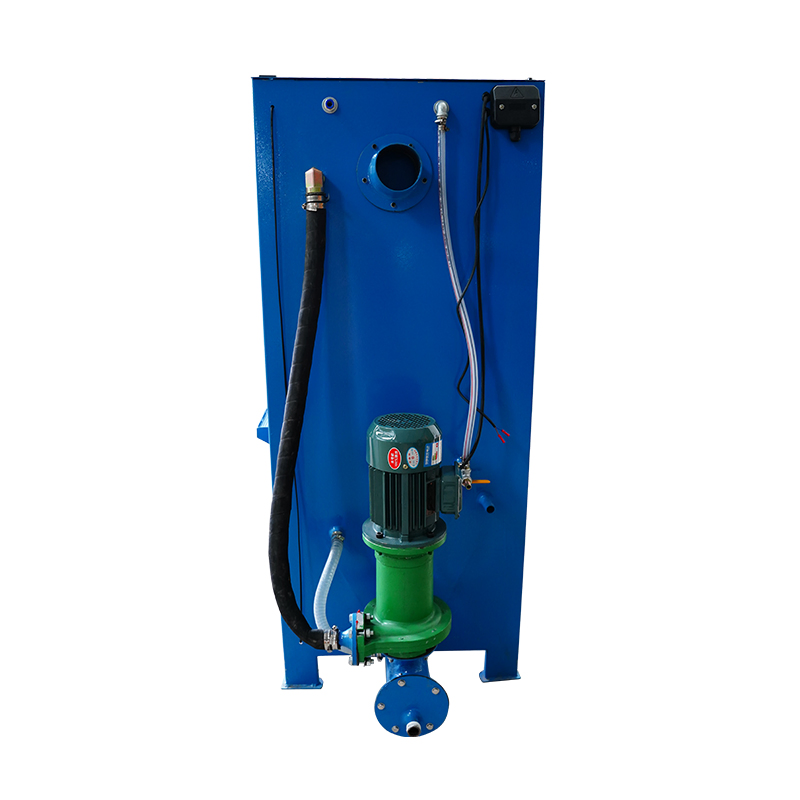

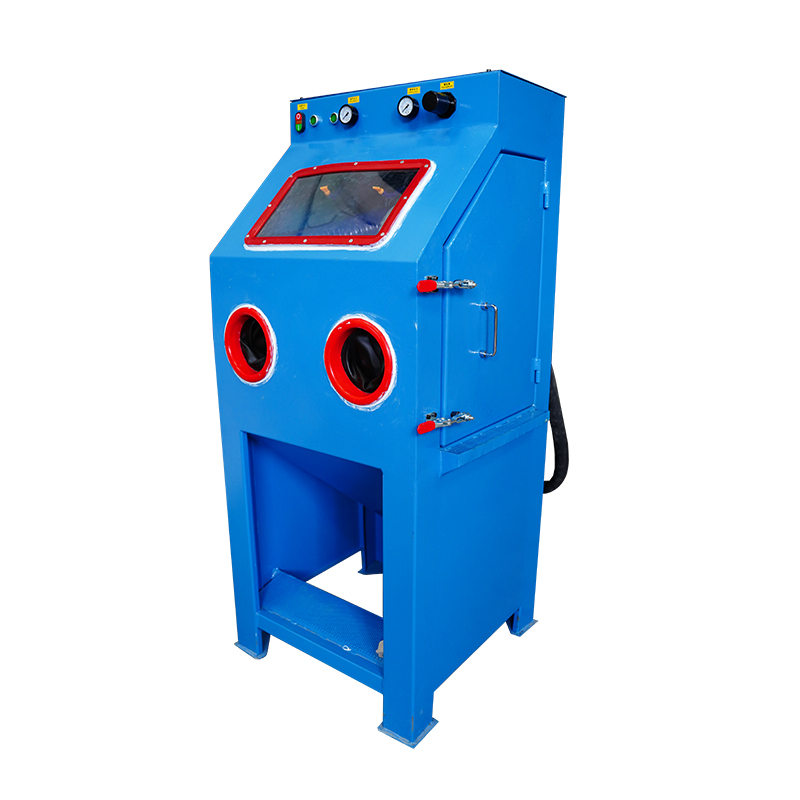

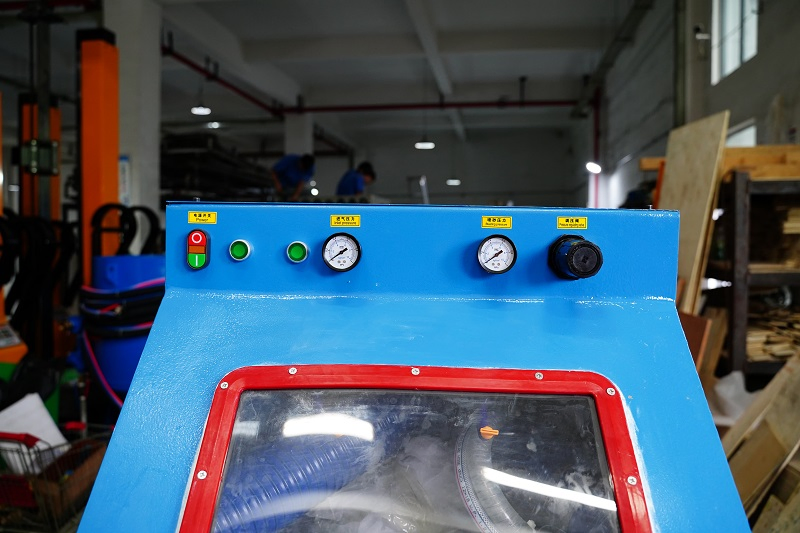

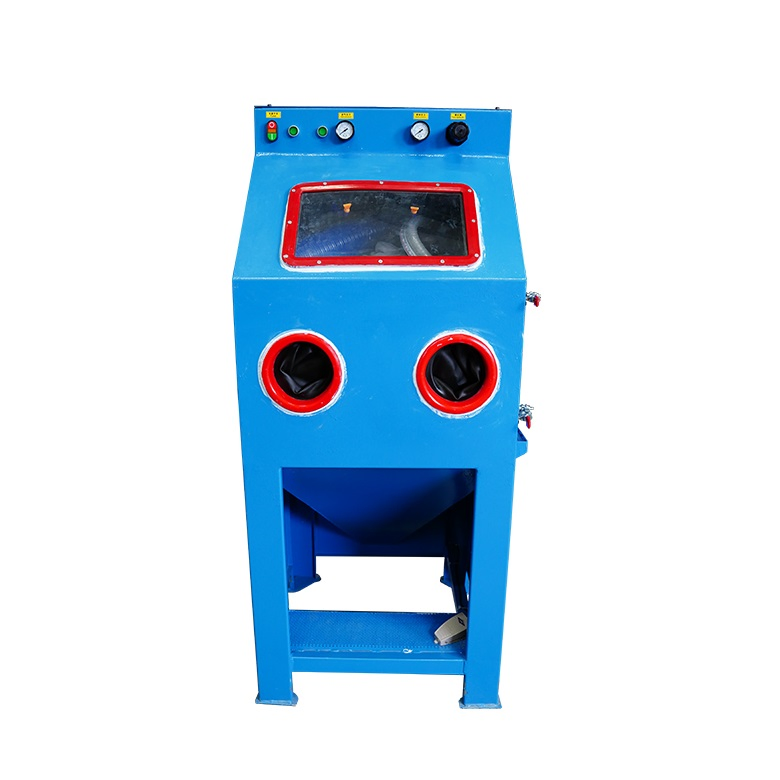

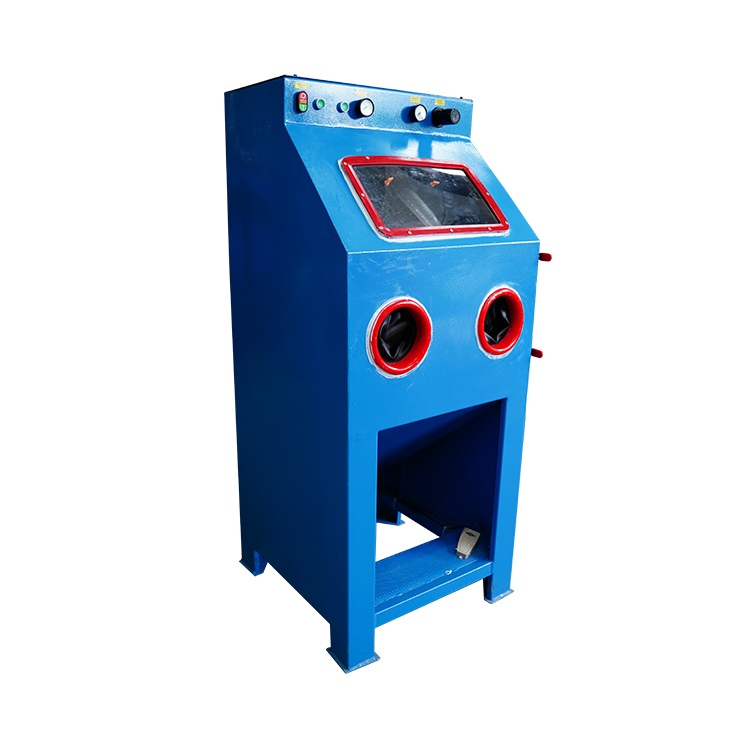

Dustless Sand Blasting Machine, Wet Blasting Cabinet

Wet blasting cabinet, also called dustless blasting machine. The sandblaster blasts a water and abrasive mixture to the target, attaining the purpose of removing rust, contaminants, and other imperfections.

Vapor sandblasting machine creates a dust-free working chamber. With the function of water, it makes the workpieces cleaner and brighter. It is also very ideal for precise and delicate parts, making it an innovative blasting solution.

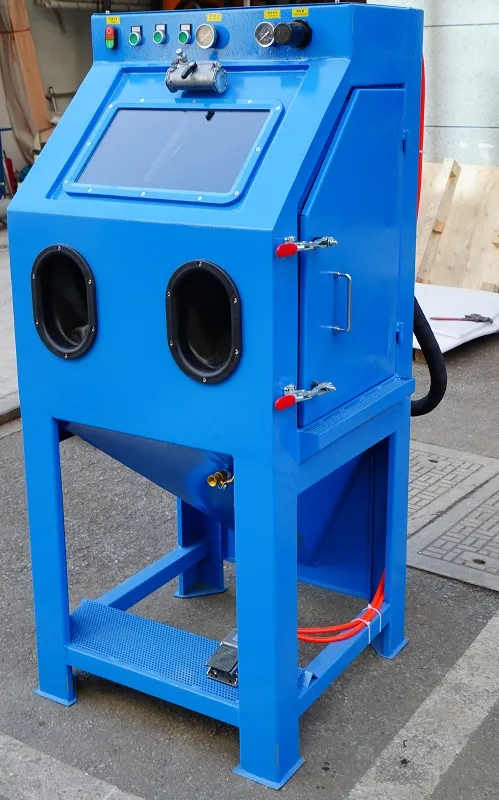

Wet Blasting Cabinet

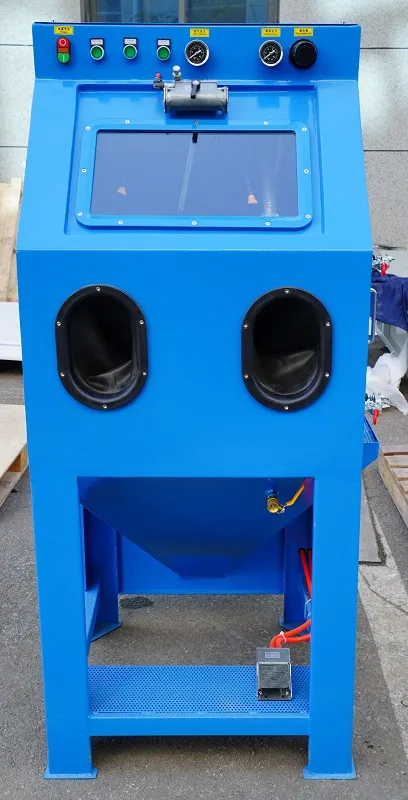

Dustless Sand Blasting

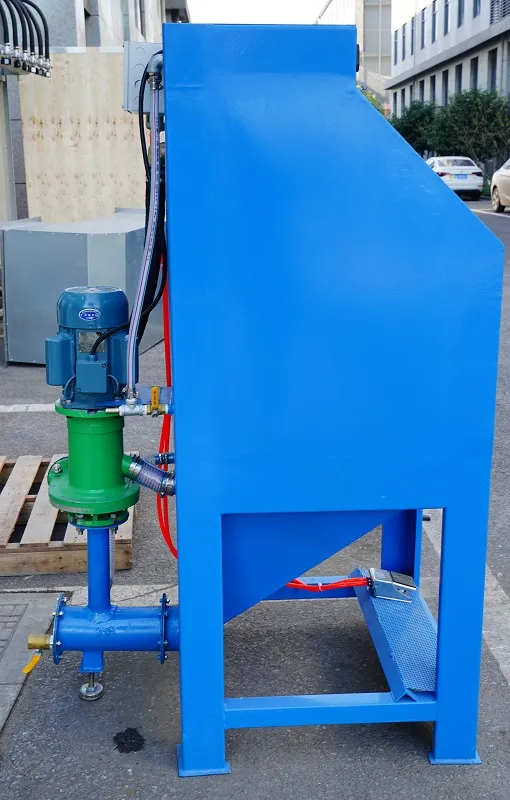

Vapor Blasting Machine
Specifications
ModelKF-7070W
Working AreaLength 700 * Width 700 * Height 800mm
Motor220V, 50Hz, 1.1kw
Air RequirementFlow 0.5-1.1m^3/min
Light1*18W saving lamps
Blast Gun1 pc wet blast gun with 1 boron carbide nozzle (4-8mm)
Air Consumption0.4-0.8 Mbar
Volume of Abrasive & Water25L
Suitable AbrasiveGlass beads (aluminum, stainless steel); Brown Aluminum Oxide (steel or other) 80#-320#
Abrasive Feeding4-6kg
Detail Features
  • Made of 3mm thick stainless steel with powder-coated surface, rigid and anti-rust.
  • Low voltage windscreen wiper and wash facility to maintain visibility throughout.
  • Durable wet blast gun with 8mm boron carbide nozzles specially for wet blasting process.
  • Reliable foot pedal controls the working of the blast gun to increase operation safety.
  • A demister at the back of the machine for a better view of the blasting process.
  • Abrasive can be effectively recycled, leading to lower consumption.
  • Simple structured wet blast cabinet requires less maintenance.

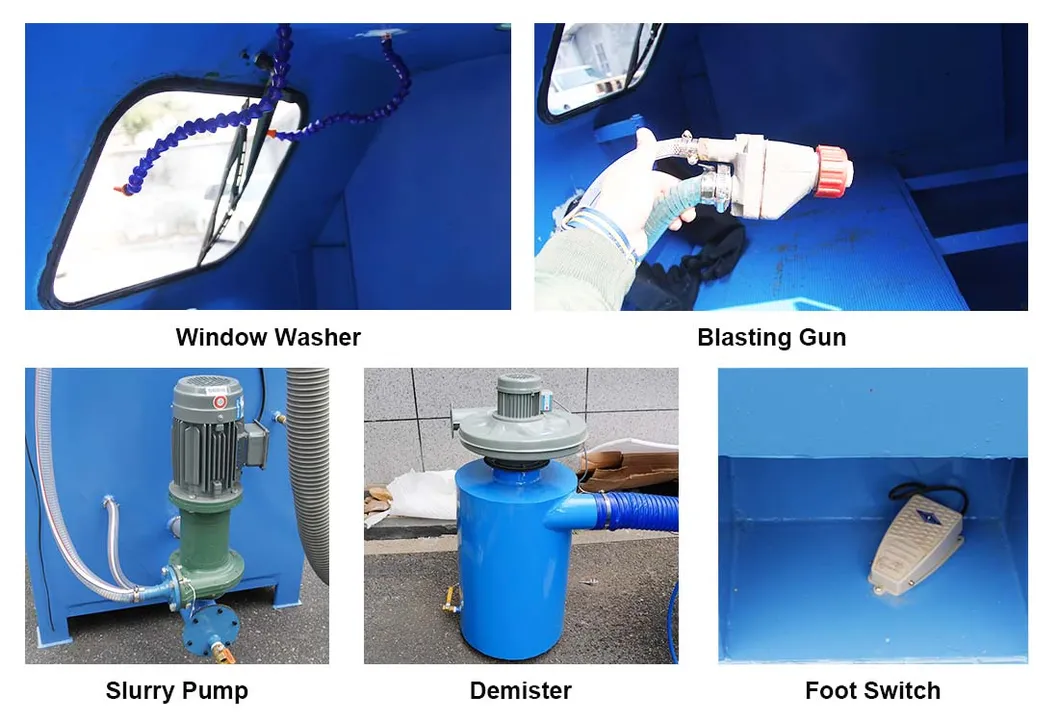

Wet Blasting Features
Applications

This small blast cabinet is simple structured with a budget-saving cost which meets most surface finishing applications, such as removing rust, oxides, old coatings, cleaning contaminants, imperfections, deburring, and descaling.

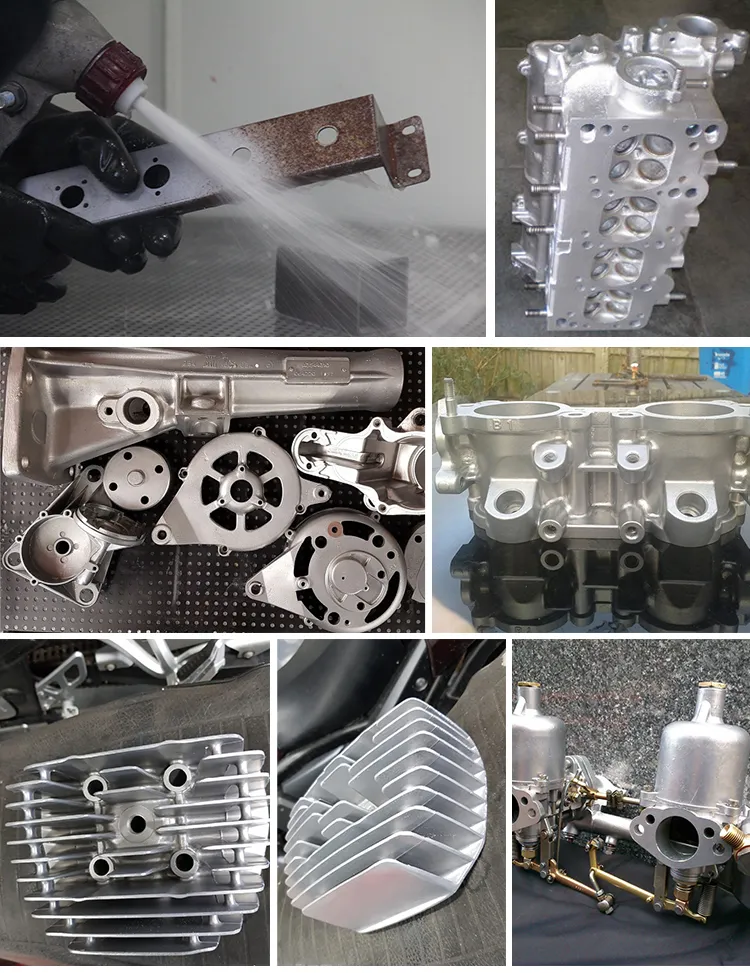

Surface Finishing Applications
Customer Feedback & Global Reach
Customer Feedback
Global Presence

We have attracted more and more world customers for new establishments and further cooperation. We are looking forward to being of service for your surface finishing applications.

Frequently Asked Questions
Q1: What is the main advantage of wet blasting compared to dry blasting? A1: Wet blasting is dust-free, making it safer for the operator and the environment. It also provides a smoother, cleaner finish and is gentler on delicate parts due to the lubricating effect of the water. Q2: What types of abrasive media can be used in this cabinet? A2: It is compatible with a wide range of media, most commonly glass beads for a bright finish on aluminum/stainless steel, or brown aluminum oxide for aggressive cleaning of steel. Q3: How do I maintain visibility through the window during operation? A3: The machine is equipped with a low-voltage windscreen wiper and a wash facility, as well as a rear demister to ensure a clear view of the blasting process. Q4: Does the abrasive media get wasted after one use? A4: No, the abrasive and water mixture is effectively recycled within the cabinet system, significantly reducing media consumption and operating costs. Q5: Is the cabinet resistant to rust? A5: Yes, the cabinet is constructed from 3mm thick stainless steel with a powder-coated surface, specifically designed to resist rust and corrosion from water exposure. Q6: What are the electrical and air requirements for this model? A6: It requires a 220V/380V power supply and a compressed air flow of 0.5-1.1m³/min with a pressure range between 0.4-0.8 Mbar.
