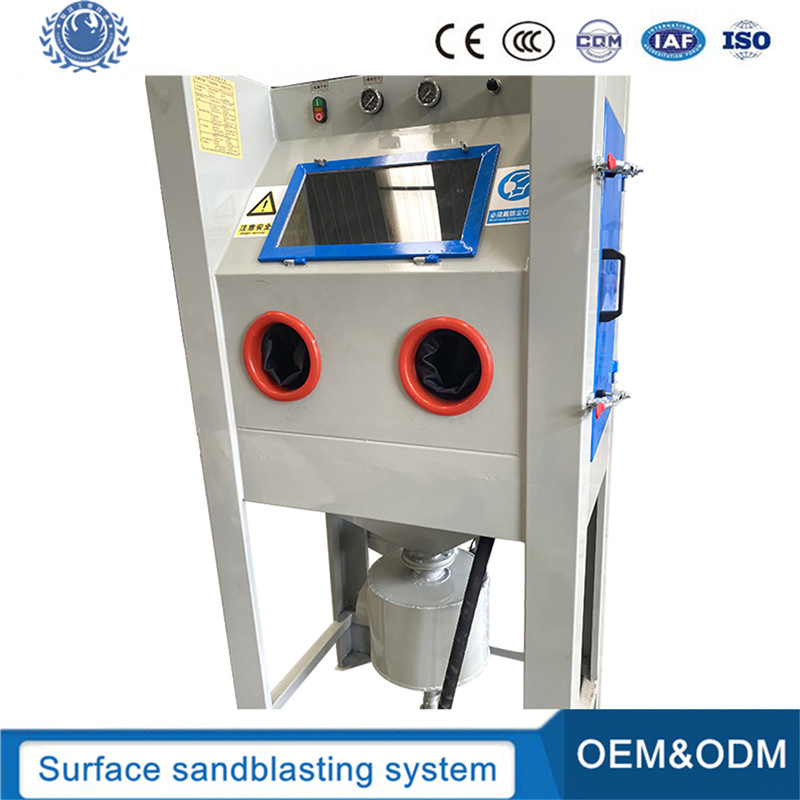

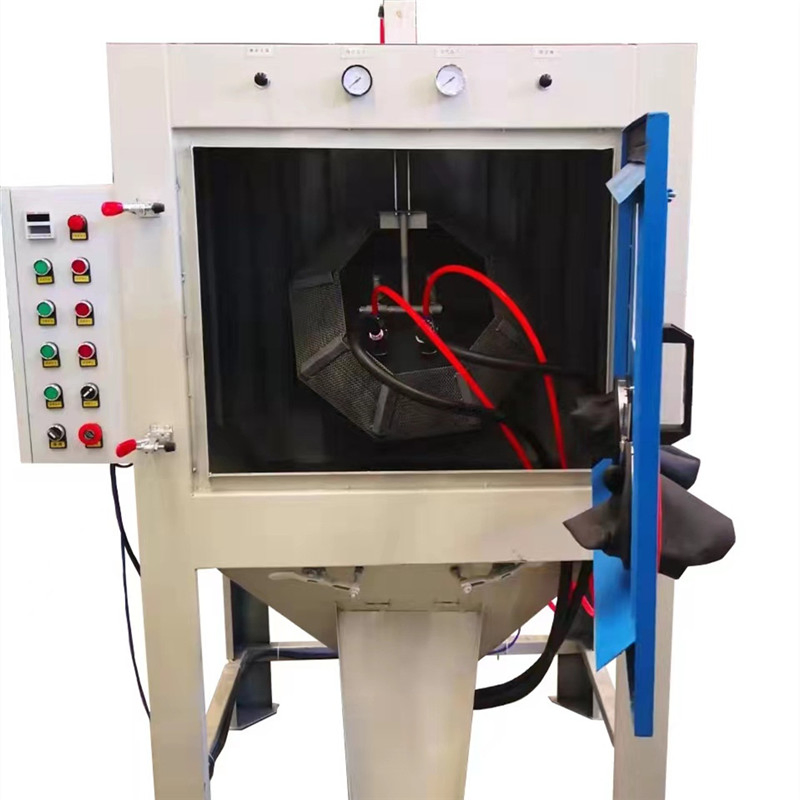

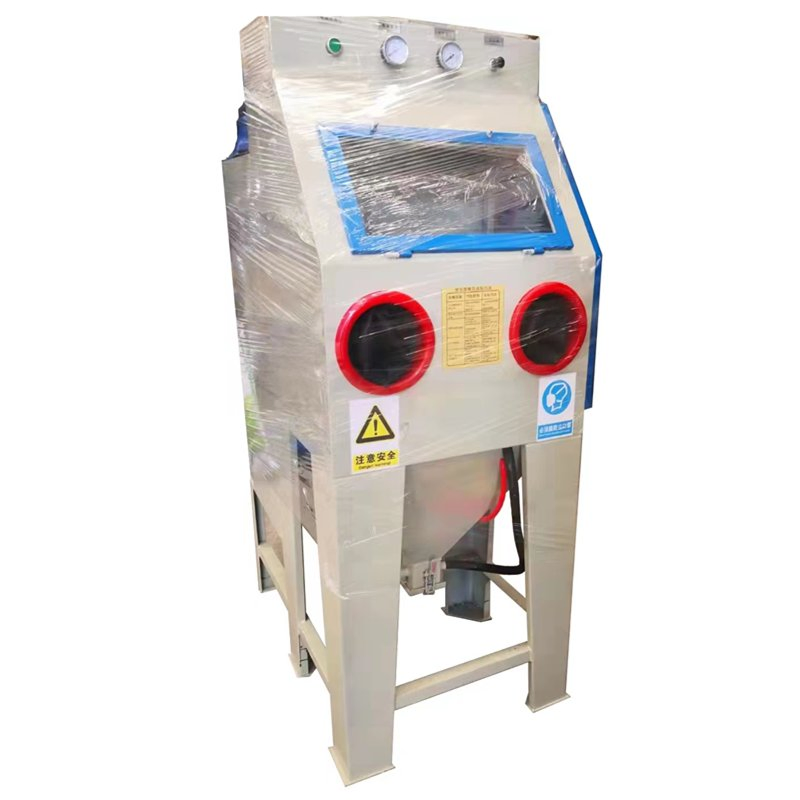

OEM China Factory Low Price Dry Sandblasting Cabinet, Sand Blasting, Blasting

Customization: Available
After-sales Service: Video Technical Support
Warranty: 1year

Product Description

📋 Basic Information
Model NO.
JD-9060NC
Drive
Electric
Principle
Press-in
Automation
Automatic
Kind
Wet Sandblaster
Power Supply
220V, 50Hz
Working Size
900X700mm
HS Code
8424200000
🔍 Product Description

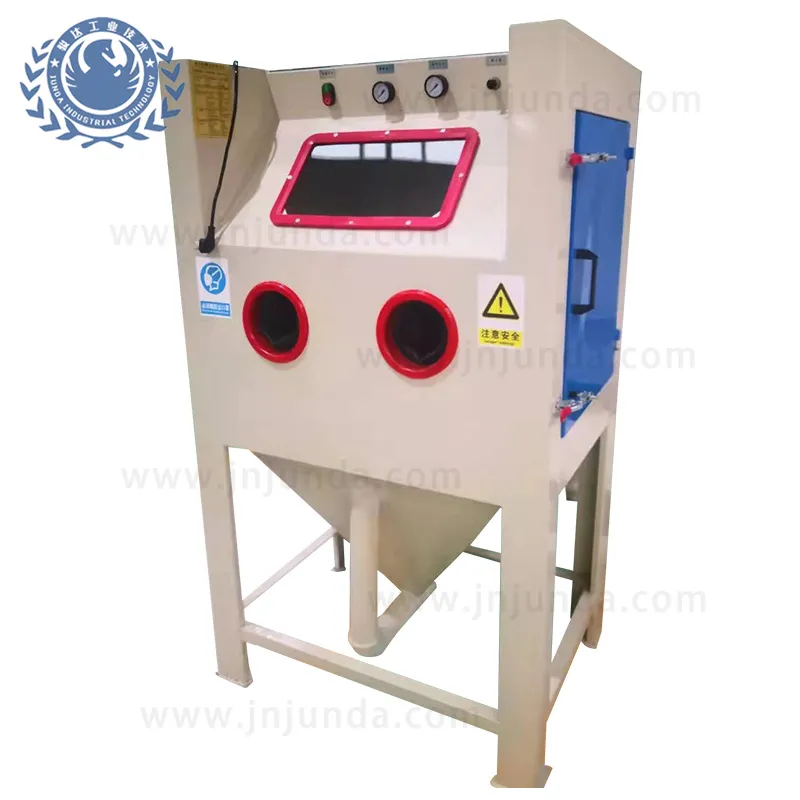

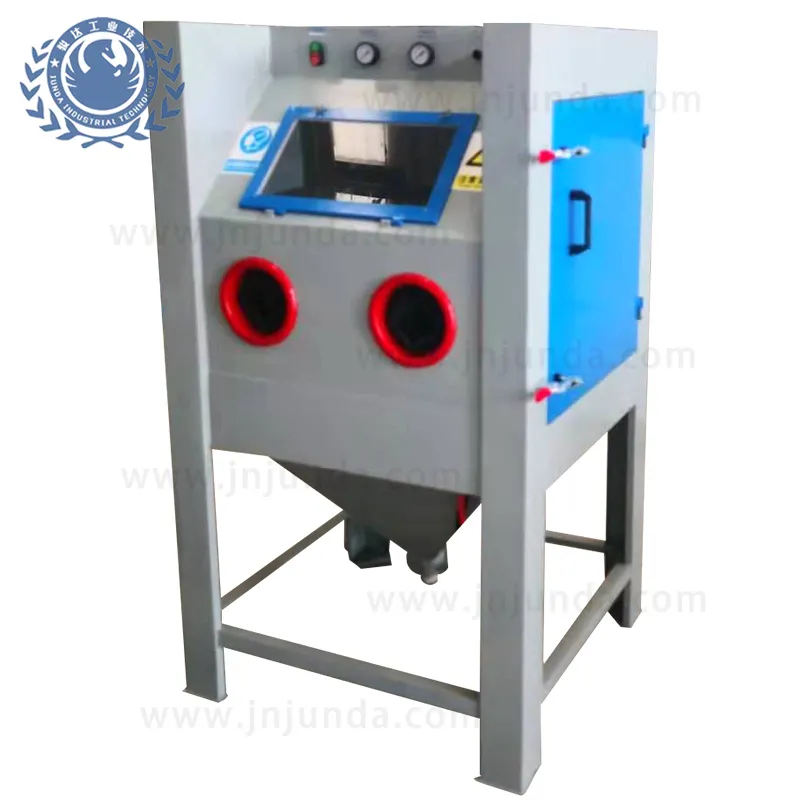

Sandblasting Cabinet Overview

Our blasting cabinets are produced by an experienced engineers team. To pursue the best performance, the cabinet body is steel plate welded with a powder-coated surface, which is more durable, wear-resistant, and long-lasting than traditional painting. The main components are sourced from famous brands to ensure high quality. We offer a 1-year warranty period for any quality issues.

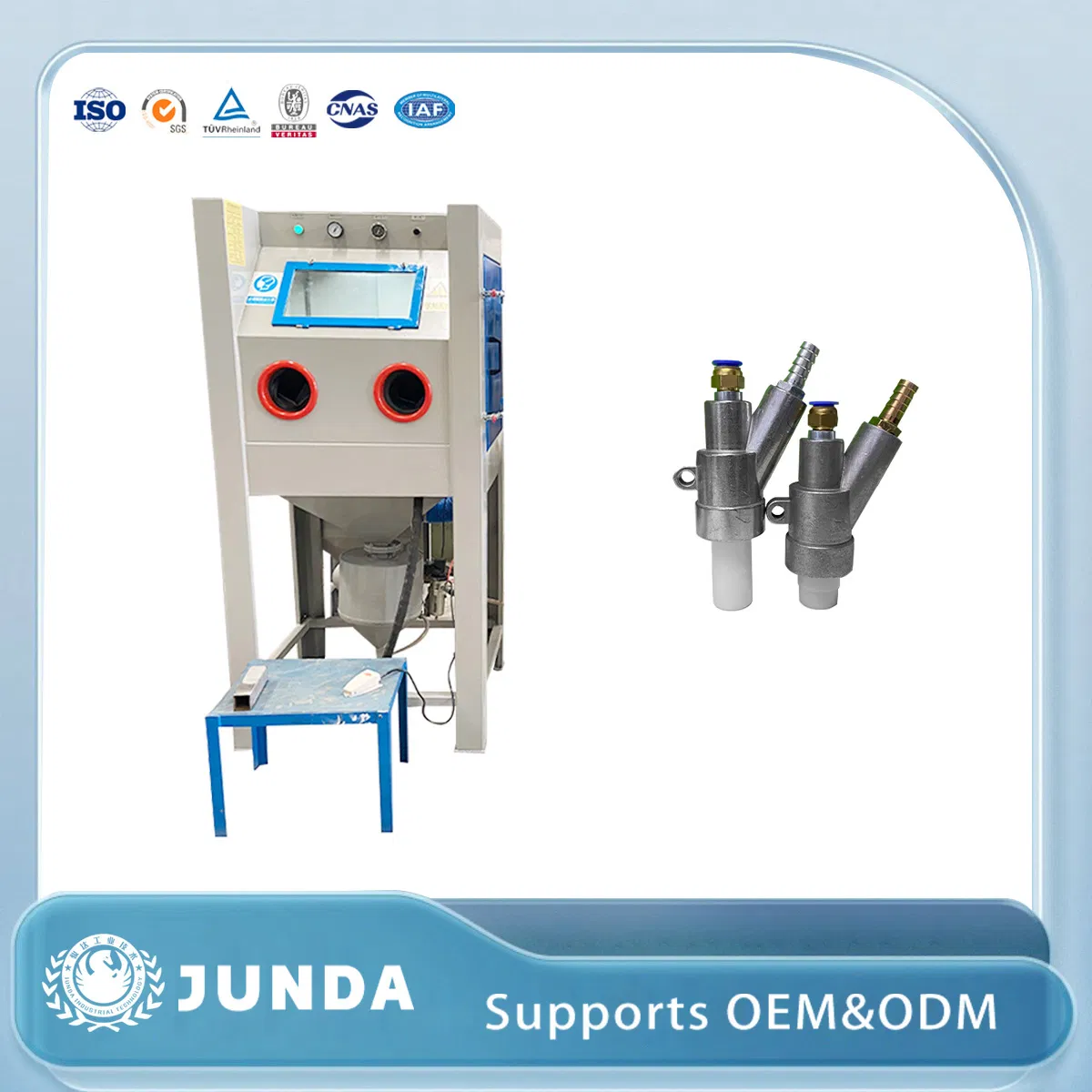

A dust removing system is integrated into the sandblasting machine, thoroughly collecting dust and creating a clear working view. This ensures the recycled abrasive remains pure and the discharged air is dust-free. Each blast cabinet includes a durable aluminum alloy casting blast gun with a 100% purity boron carbide nozzle.

Blasting Process
⚙️ Sandblast Cabinet Technology

Suction or Siphon Blast Cabinet: Employs the venturi siphon effect to pull abrasive into a pressurized stream of fluid, air, or water.

Direct Pressure Cabinets: Uses a pressure vessel to energize the media, expelling it at much higher flow rates. It is up to 4 times faster than suction machines and can handle heavy media like steel shot and grit.

Wet Abrasive Blast Cabinets: Uses water to propel media, reducing dust by over 90%. This keeps parts cooler, preventing warping in thin sections and suppressing static discharges for materials like aluminum or titanium.

✨ Key Features
  • Suitable for precision work pieces surface treatment.
  • Utilizes fine sand materials for effective blasting.
  • Automatic abrasive recycling for low consumption and cost.
  • Fully confined system prevents powder dust pollution.
  • Large window with windshield wiper for clear visibility.
  • Stainless steel construction for maximum durability.
  • Low noise operation and minimal breakdown rate.
📊 Technical Parameters
Model Outline Dimension Chamber Size Worktable Loading Air Pressure Consumption
JD-6050NC 600X900X1500MM 600X500MM 600X500MM 100KG 0.8Mpa 1M3/min
JD-9060NC 900X1000X1600MM 900X600MM 900X600MM 100KG 0.8Mpa 1M3/min
JD-9070NC 900X1000X1600MM 900X700MM 900X700MM 100KG 0.8Mpa 1M3/min
JD-9080HC 900X1200X1900MM 900X800MM 900X800MM 100KG 0.8Mpa 3M3/min

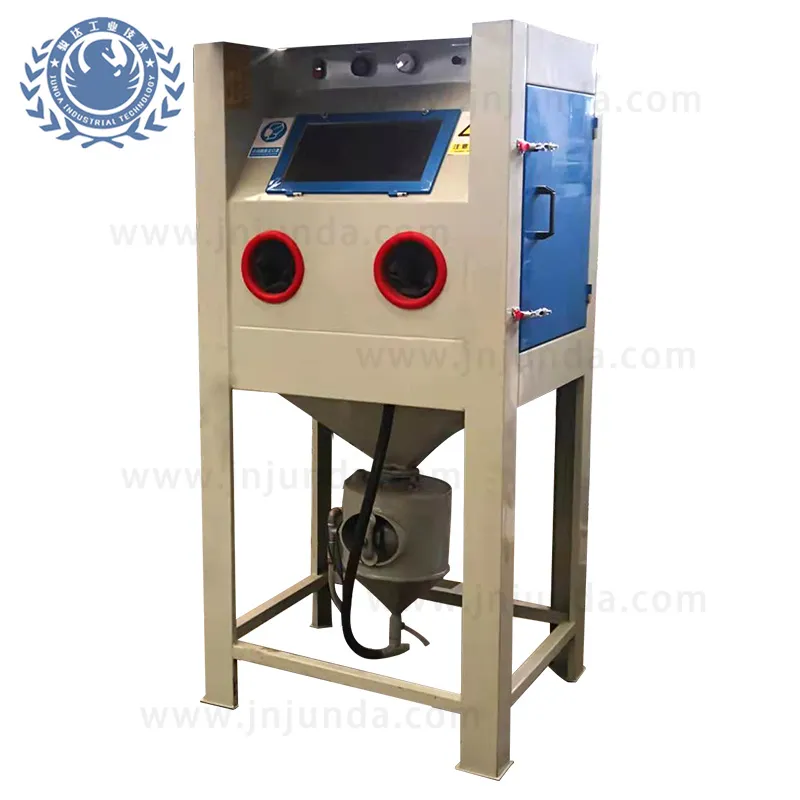

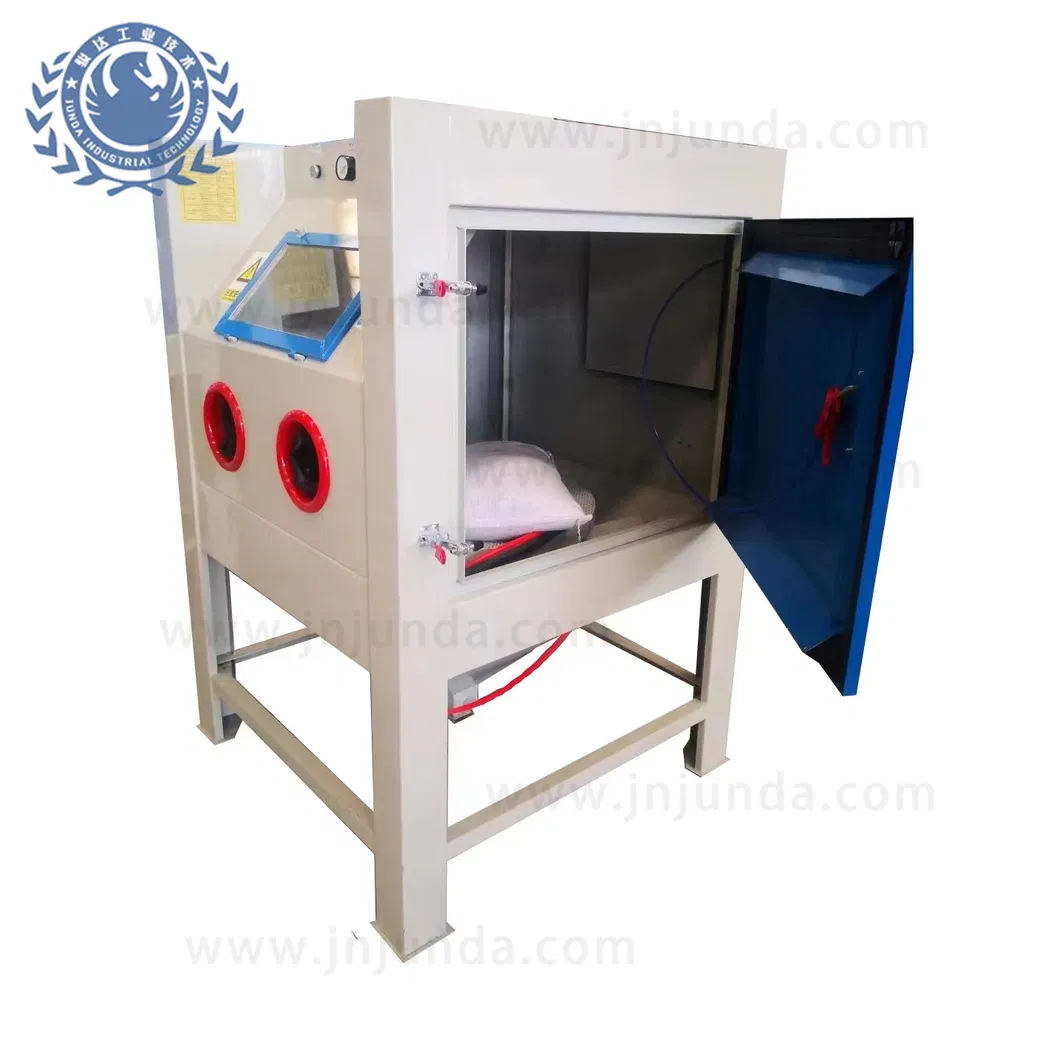

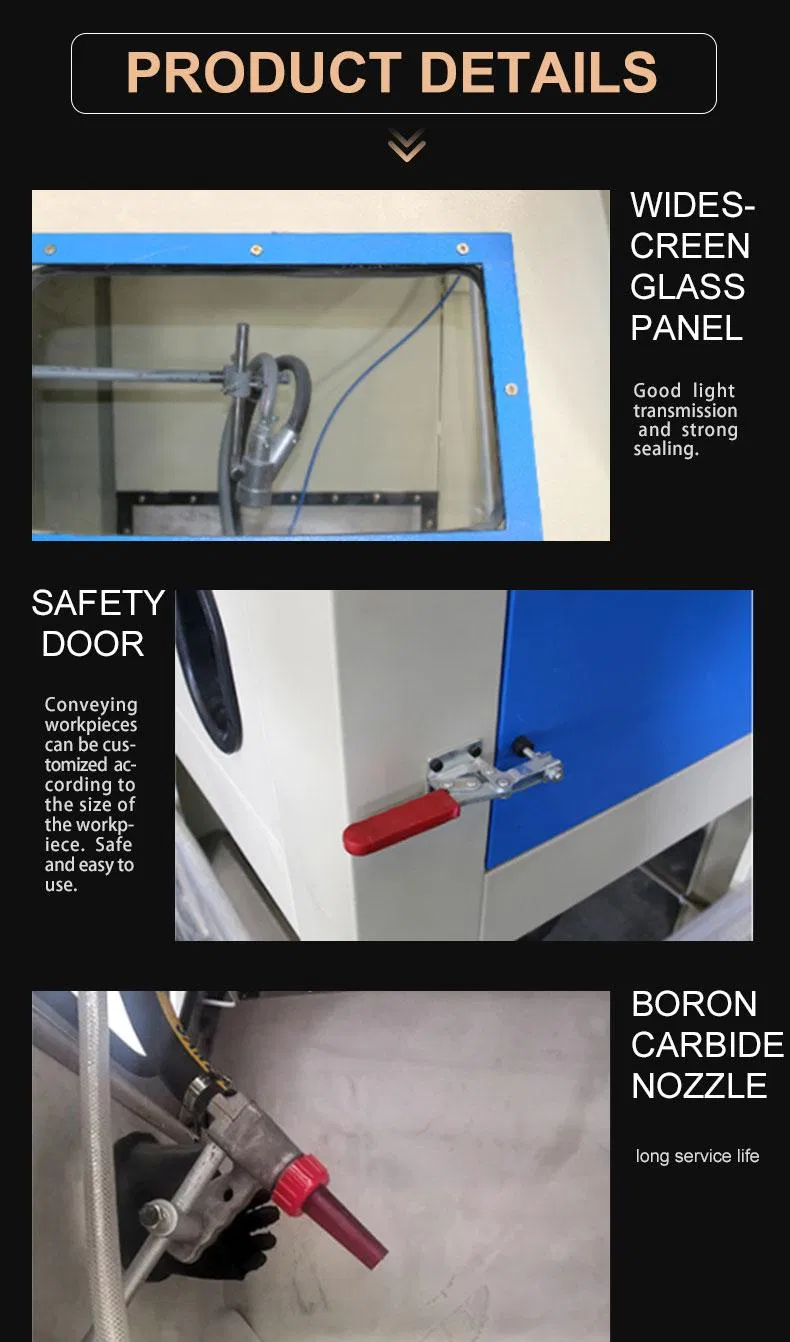

Product Technical Details
🚀 Product Applications

Ideal for liquid sand and shot blasting processing. It is specifically designed for:

  • Cleaning rough surfaces of precision castings.
  • Removing oxide scale and micro-burrs from machined parts.
  • Cleaning dirt and rust stains from oil-stained components.
  • Surface decoration and improving mechanical part performance.

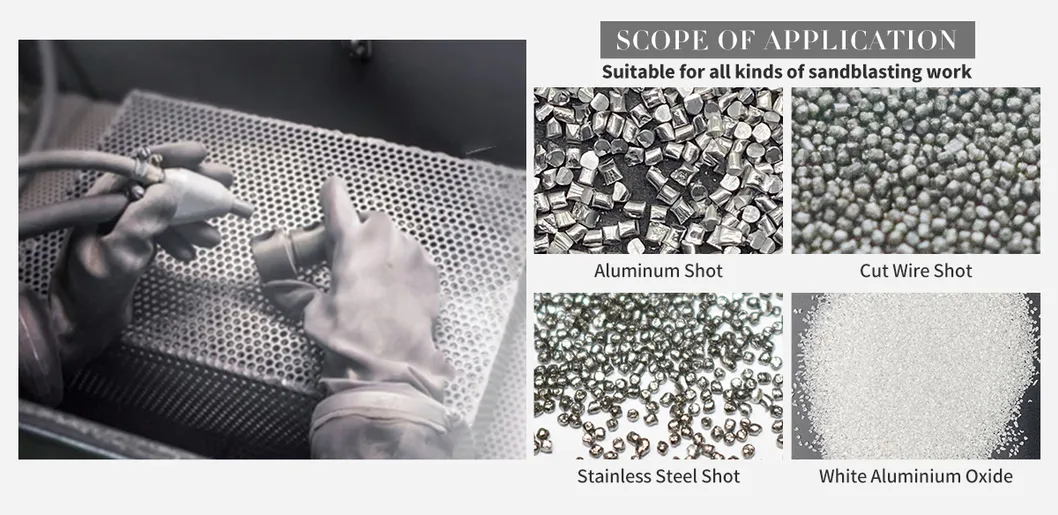

Application Samples Blasting Results
📦 Packaging & Shipping

All machines are packed in standard wooden boxes suitable for long-distance sea transportation to ensure safety during transit.

Wooden Box Packaging
🏢 Workshop & Certifications
Factory Workshop Customer Visit Product Certifications
❓ Frequently Asked Questions
Q1: What is the delivery time for the machines?
A: Usually 5-10 work days after receiving the client's payment.
Q2: What type of packaging do you use?
A: We use professional wooden box packaging suitable for international shipping.
Q3: Do you provide technical support?
A: Yes, we have a professional technology supporting team. We provide technical documents and support via telephone and online chat.
Q4: What are the accepted payment methods?
A: We accept T/T, Western Union, Money Gram, and L/C.
Q5: How do I ensure the machine is received undamaged?
A: Our packaging is standard for shipping and we confirm products are undamaged before packing. We also provide insurance for shipping.

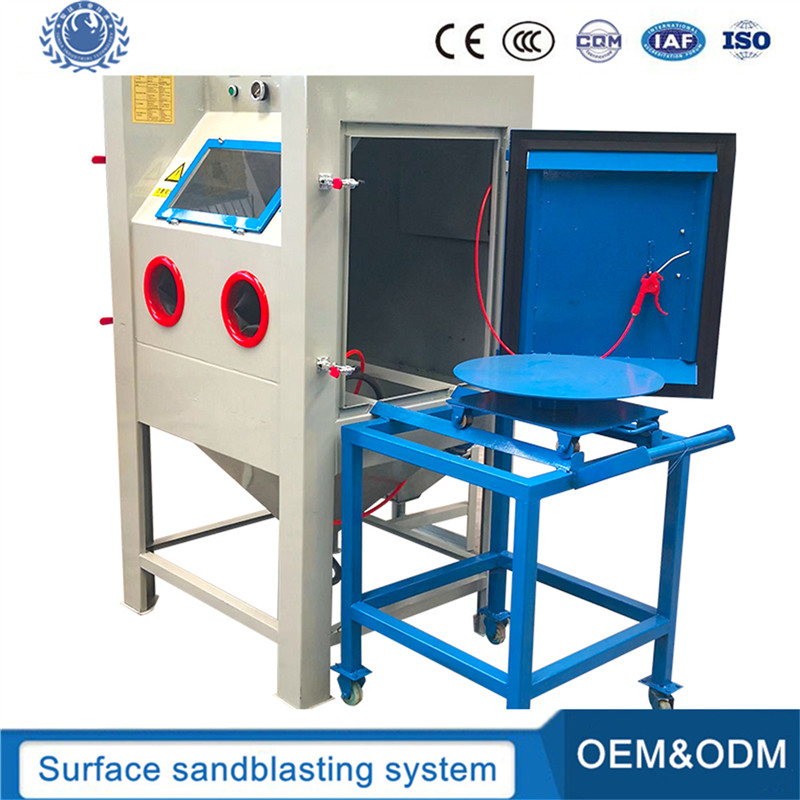

Q6: Can the turntable be customized?
A: Yes, the turntable size can be customized according to your product specifications and can be manual or automatic.
