Q35 Turning Plate (Rotary Table) Type Shot Blasting Machine

1 / 5

Q35 Turning Plate (Rotary Table) Type Shot Blasting Machine

Customization:	Available
After-sales Service:	1 Year Warranty and Consult Forever
Warranty:	12 Months From Date of Commissioning Completion.

Send Inquiry

Product Description

⚙ Basic Information

Model NO.

Q35 Turning Plate Type Shot Blasting Machine

Application

Steel Plate Pre-Treatment

Fuel

Electric

Type

Crawler Abrator

Cleanliness

High Cleanliness

Automation

Automatic

Certification

CE, RoHS

Condition

New

Cleaning Standard

SA 2.5

Weight (Kg)

5tons - 30tons

Features

High Efficiency and Environmental Protection

Core Components

PLC, Engine, Bearing, Gearbox, Motor...

📄 Product Description

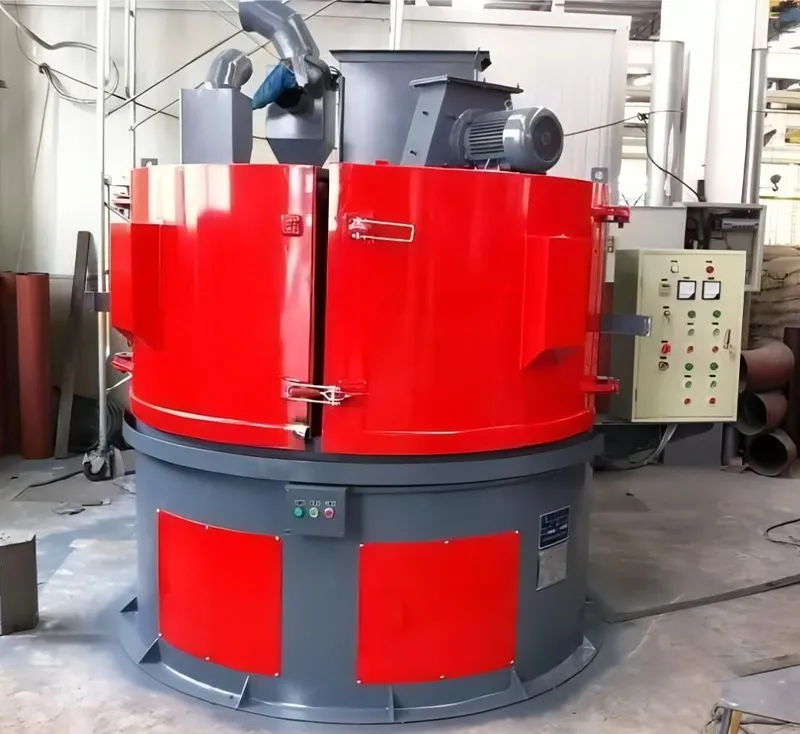

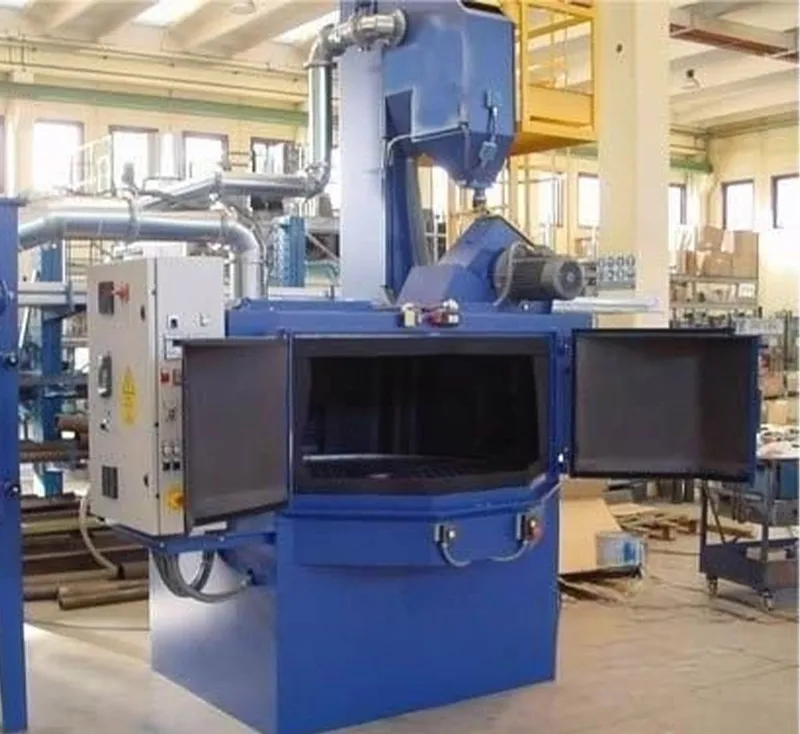

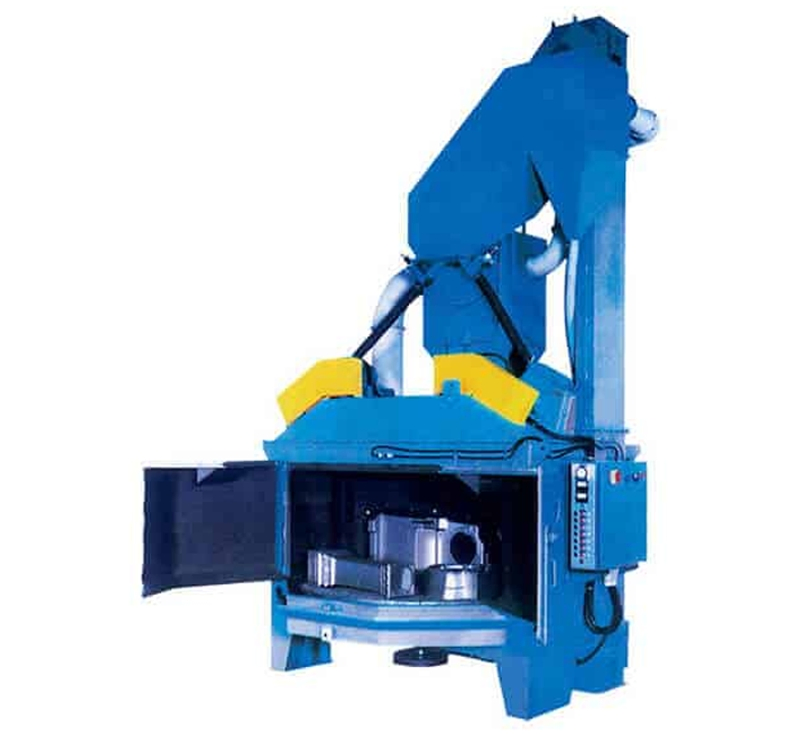

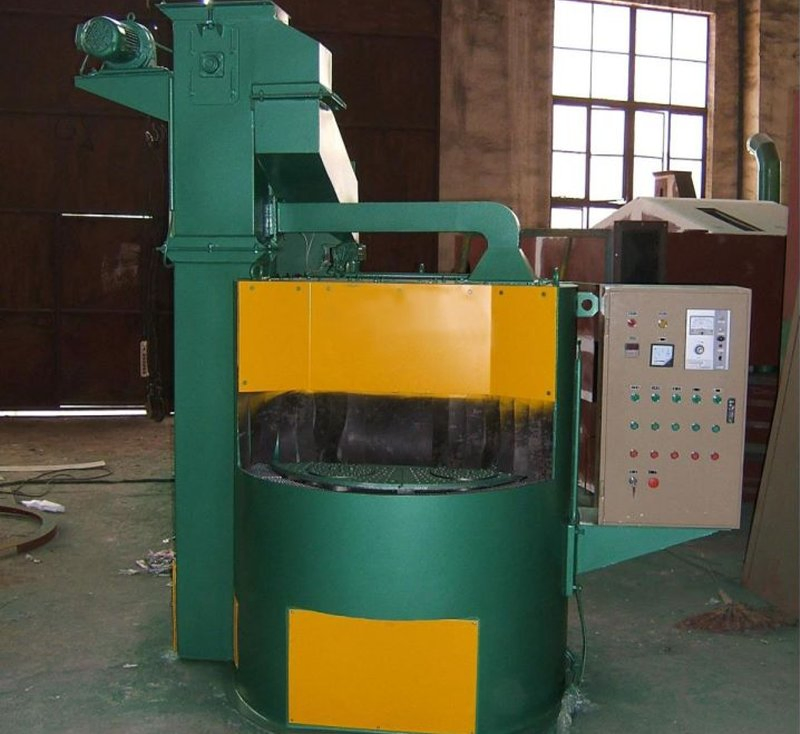

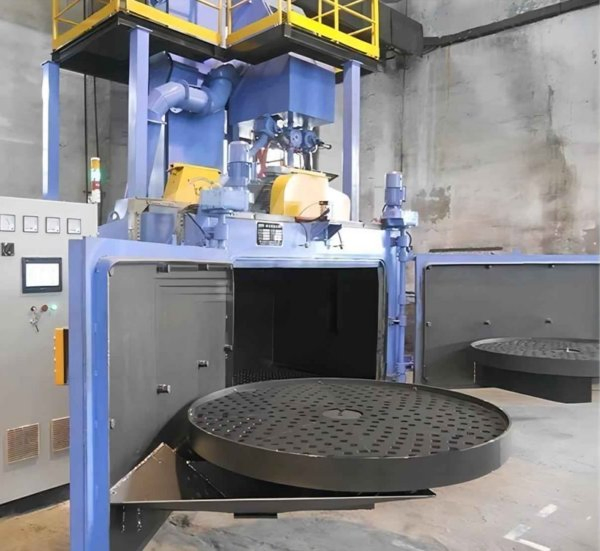

Q35 series turning plate (rotary table) type shot blasting machine is available with one or two work doors and tables based on production requirements. This system features a robust rubber curtain liner system with cast liners aligned with the blast wheels. Designed for use with recyclable, long-lasting steel shot, it significantly reduces operating costs while maintaining high production efficiency and excellent sealing effects.

Key Benefits:

Integrated, fully automatic production from molding to clean castings
Ideal to clean, deburr and deflash parts in a totally self-contained unit
Designed for use with recyclable, long-lasting steel shot for reduced operating costs
Heavy-duty construction for the most demanding industrial environments
Compact design with a simple, reliable operating principle
Targeted high-performance shot blasting for specific applications

Main Features:

Efficient Cleaning: High-speed abrasive media ensures effective removal of surface contaminants without damaging the workpiece.

Cost-effective: Continuous circulation of grinding media and automatic recovery system reduce material waste.

Increased Productivity: The turntable system precisely controls movement, ensuring complete coverage and reduced processing time.

Environmentally Friendly: Advanced dust collection system captures and filters generated dust and debris.

📊 Technical Parameters

Type	Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
Effective cleaning width(mm)	800	1200	1500	2000	2500	3000	4000
Room feed-in size(mm)	1000*400	1400*400	1700*400	2200*400	2700*800	3200*800	4200*400
Conveyer speed(m/min)	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4
Shot blasting qty(kg/min)	4*180	4*250	4*250	6*250	6*250	6*360	8*360
Total power(kw)	90	78.3	113.5	156.6	204.8	224.55	293.6

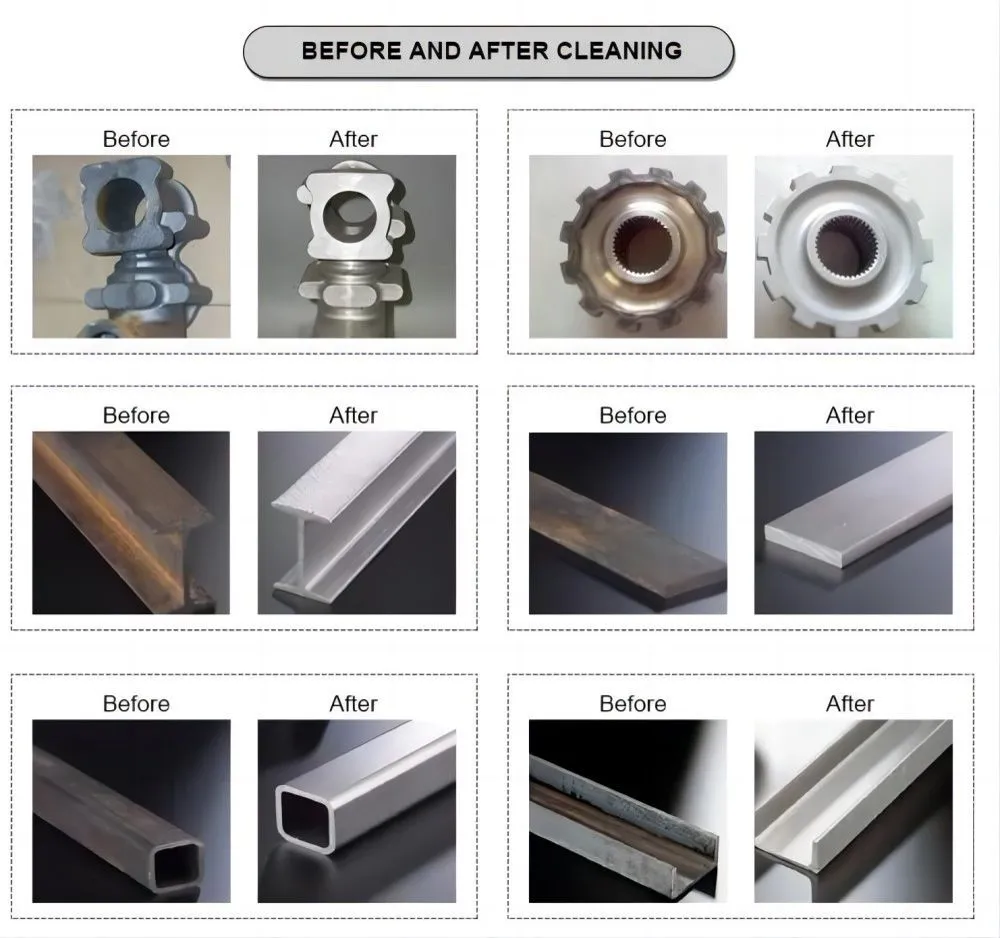

✨ Cleaning Effect & Certifications

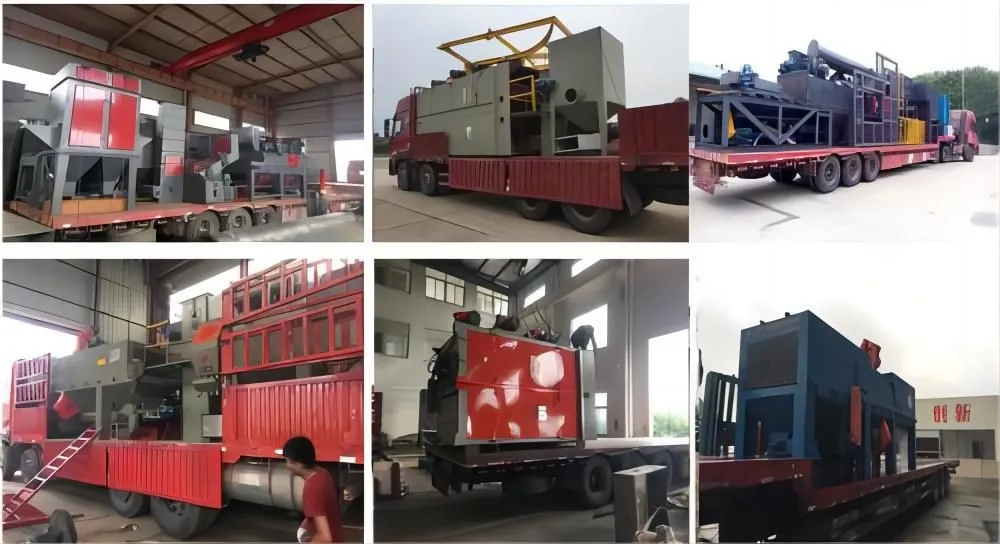

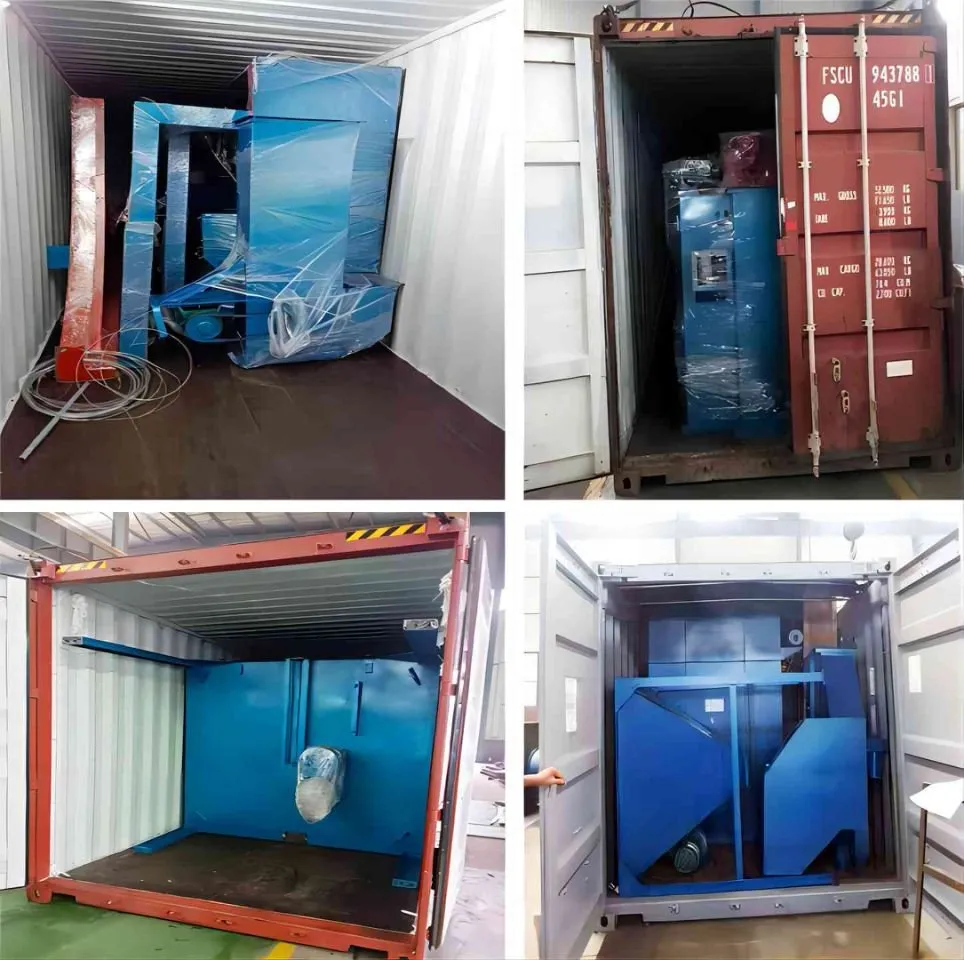

📦 Packaging & Shipping

Packaging Details: 40'HQ container
Leading Time: Around 30 days

🛠 After-Sales Service

Installation: We dispatch 1-2 technicians to assist with machine installation, commissioning, and staff training.
Warranty: 12 months from the date of commissioning completion.
Documentation: Full English documents provided, including foundation drawings, manuals, and electric wiring diagrams.

Frequently Asked Questions

How many days are required to produce this machine?

Standard machines are often in stock for immediate delivery. For customized designs, the process from engineering to completion typically takes 30 to 50 days.

How is quality control managed during production?

Quality control is prioritized at every stage. Each machine is fully assembled and undergoes rigorous testing before shipment to ensure perfect operation.

What is the quality guarantee period?

We provide a one-year quality guarantee. We utilize world-famous brand components (such as Siemens and Omron) to maintain high reliability.

Do you provide overseas installation and commissioning?

Yes, we offer overseas services. Small machines usually take about 5 days for setup, while larger systems may require 20 to 60 days depending on complexity.

Can I trust the delivery of the correct machine?

Absolutely. We deliver high-quality machines as confirmed in the order. Our culture is built on innovation, quality, and integrity, backed by a clean record of customer satisfaction.

What documents are provided with the machine?

We supply a complete set of English documentation, including foundation drawings, operation manuals, maintenance books, and electrical wiring diagrams.
