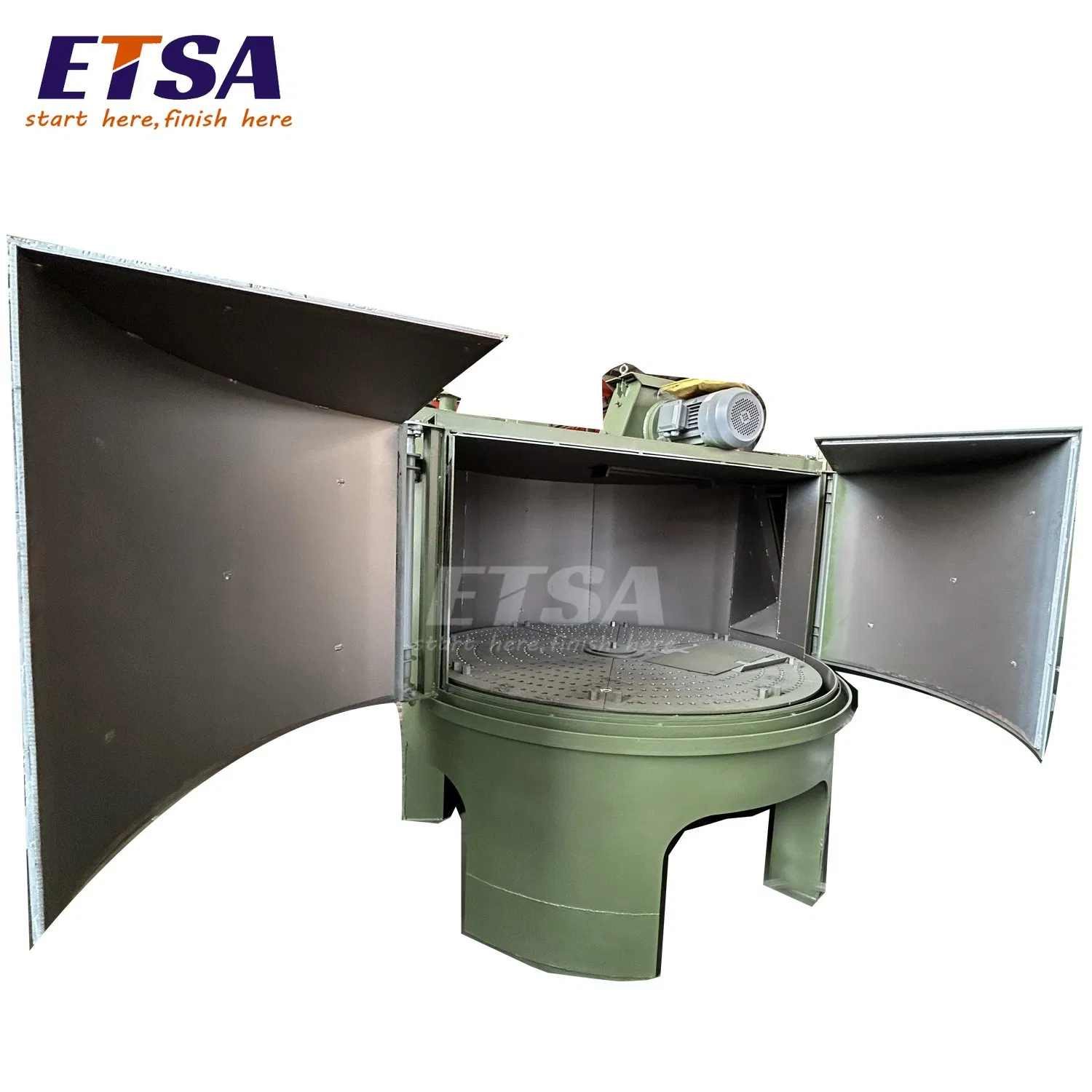

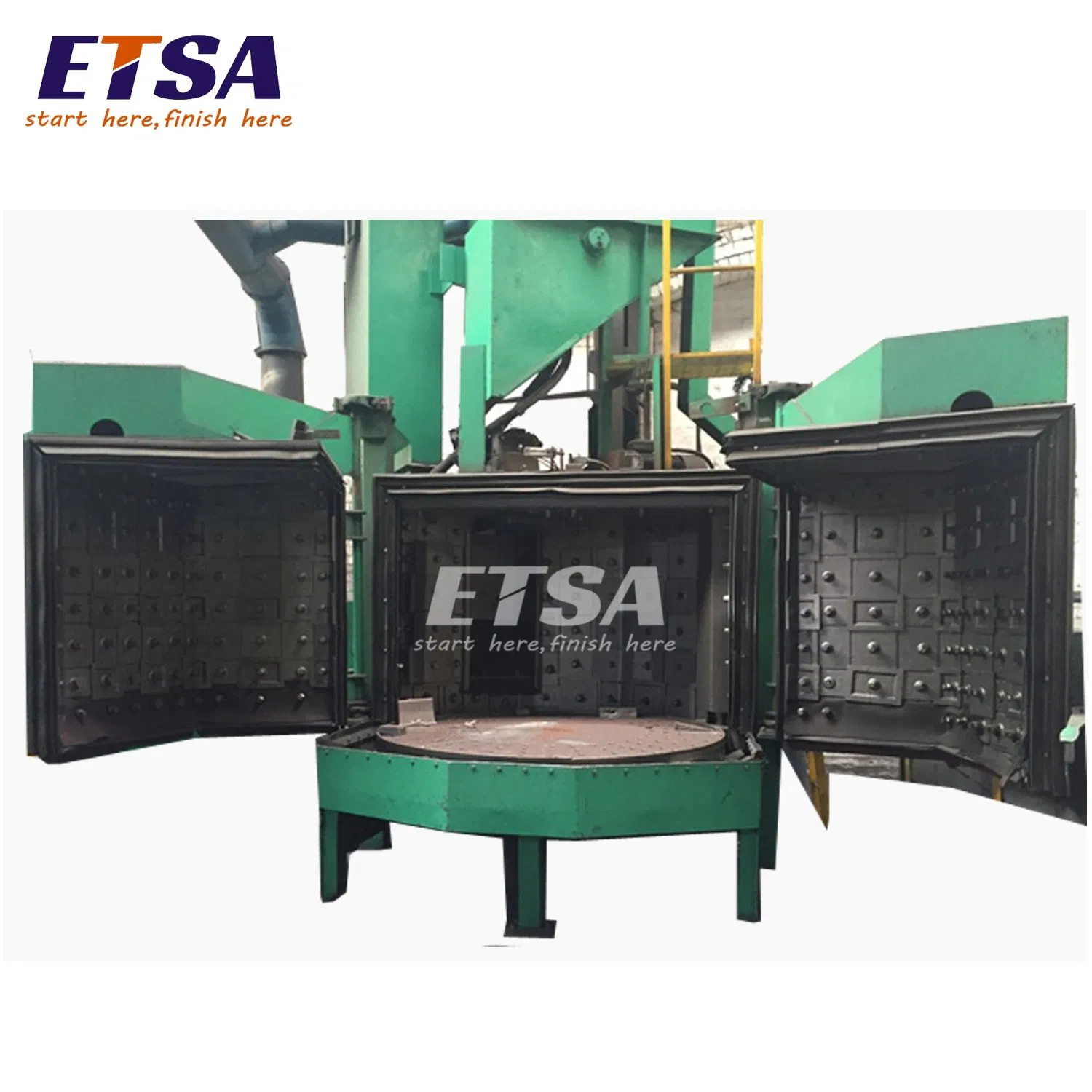

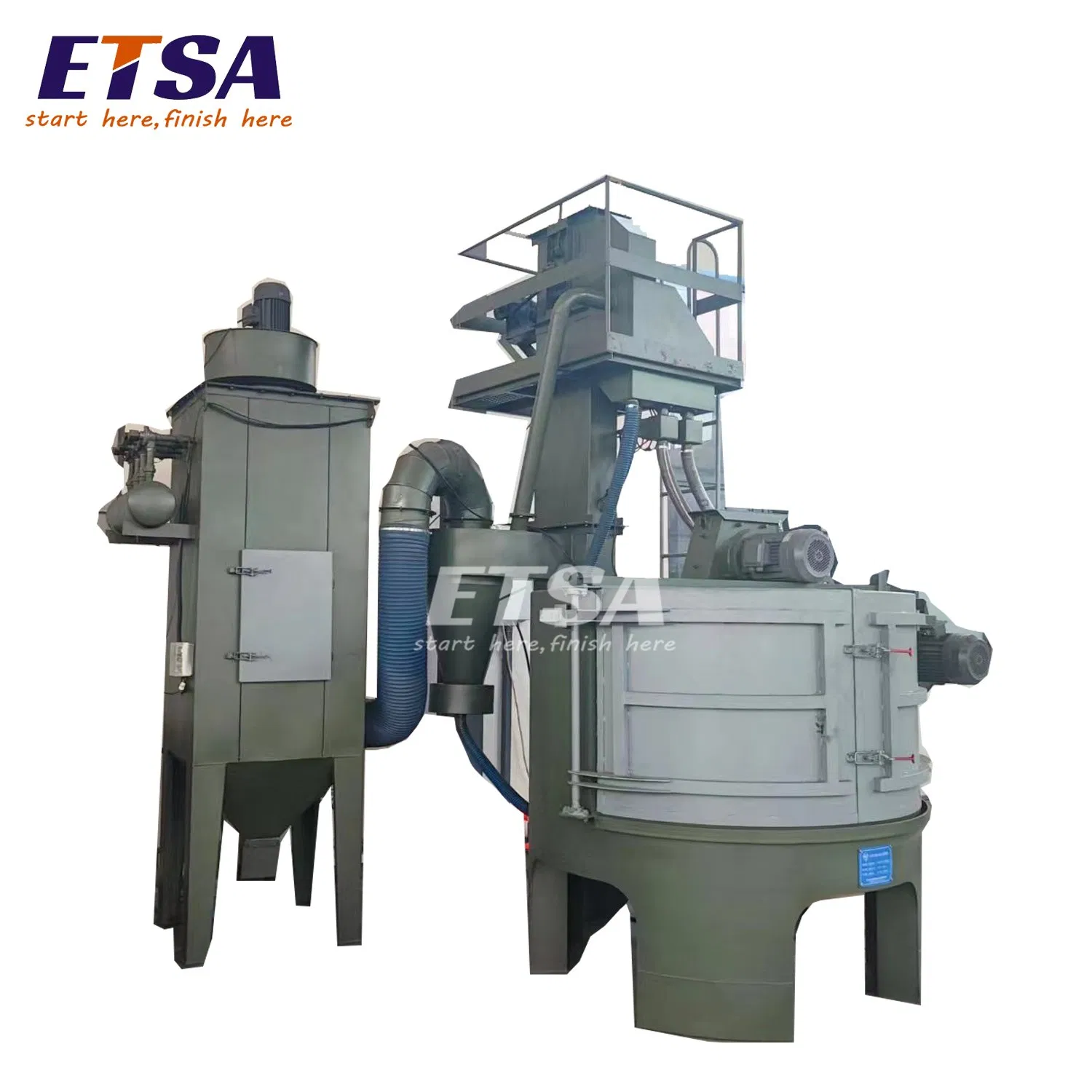

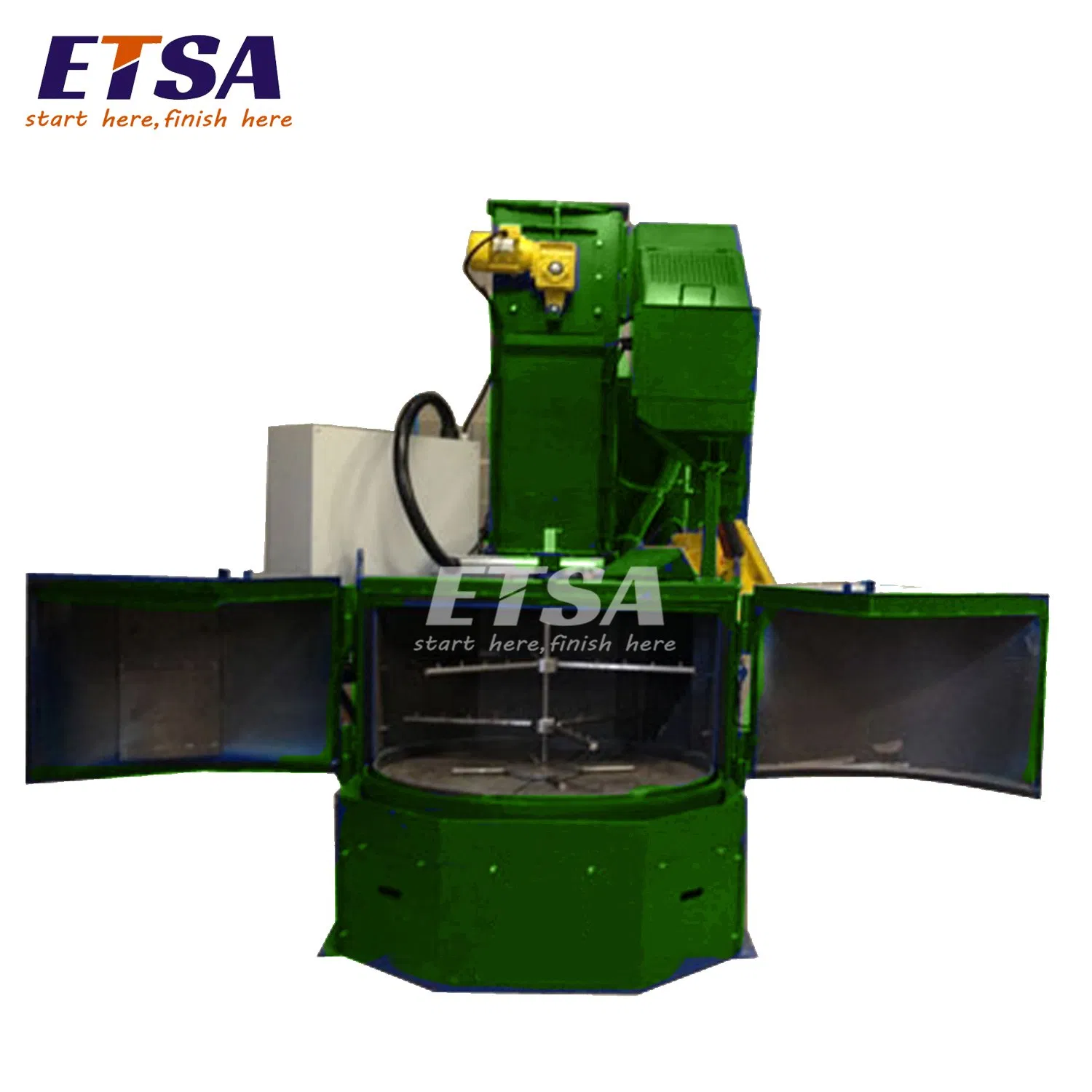

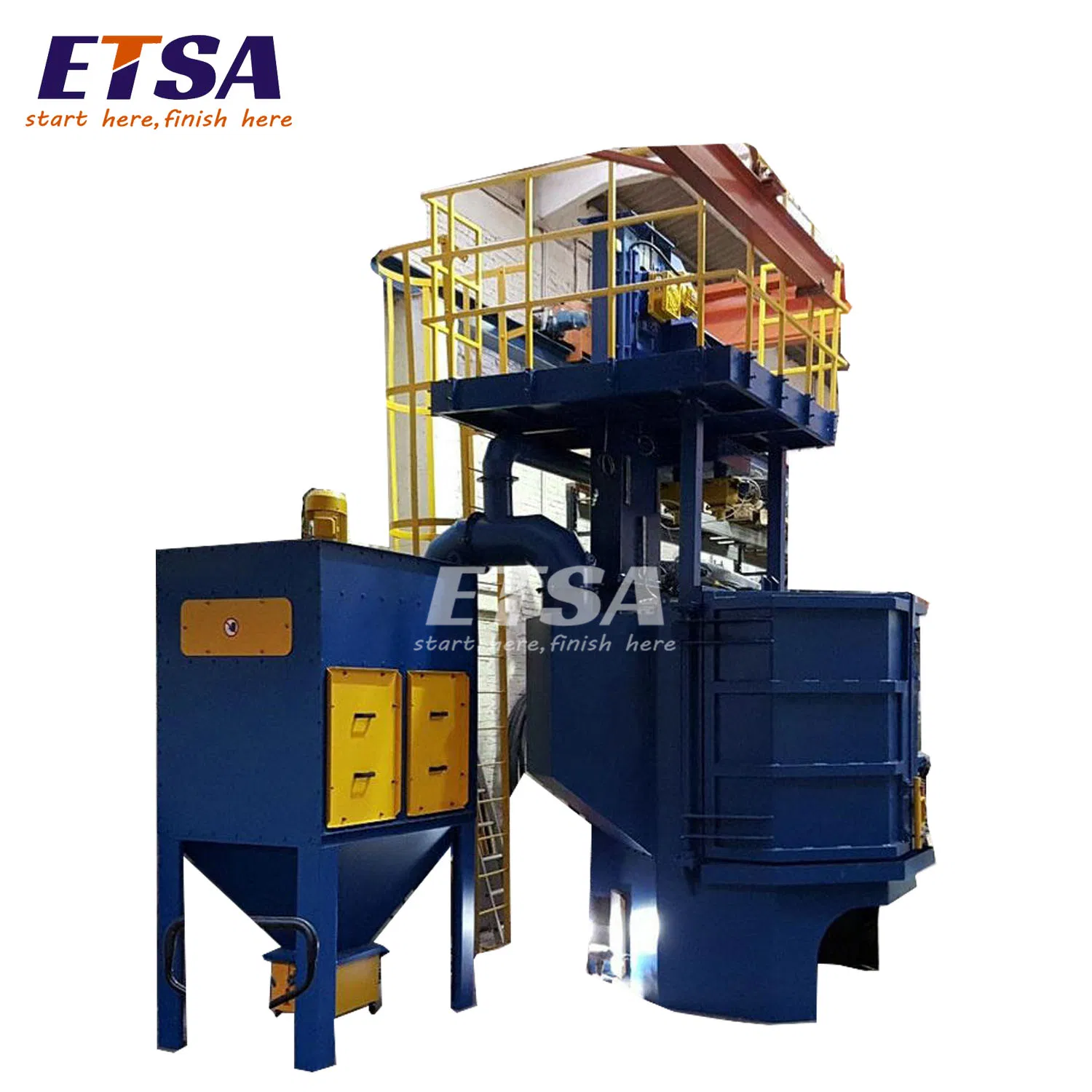

Rotary Table Shot Blasting Machine/Rotating Table Type Blast Cleaner

1 / 5

Rotary Table Shot Blasting Machine/Rotating Table Type Blast Cleaner

Customization:	Available
After-sales Service:	on Site Installation, Online Technical Support
Warranty:	2 Years

Send Inquiry

Product Description

Basic Info.

Model NO.

Application

Degreasing, Descaling / Stripping, Sterilizing

Fuel

Electric

Type

Crawler Abrator

Cleanliness

High Cleanliness

Automation

Automatic

Certification

CE, CB, ETL, RoHS, UR

Condition

New

Blast Media

Shot Steel/Shot Grit/Wire Cut etc

Dust Collector

Donaldson Filter Cartridge

Bearings

Sfk or NSK

Blast Wheel

1-3 Wheels

Surface Level

SA2.5 to SA3.0

Chamber

10mm Shell & 10mm Mn Alloy Liner

Product Description

Rotary table shot blasting machines are universal units used for blasting a wide variety of workpieces, such as welded constructions, castings, and forgings. The carefully planned position of the turbines provides optimum efficiency and a uniformly cleaned surface for all sorts of workpieces, irrespective of their shape and size.

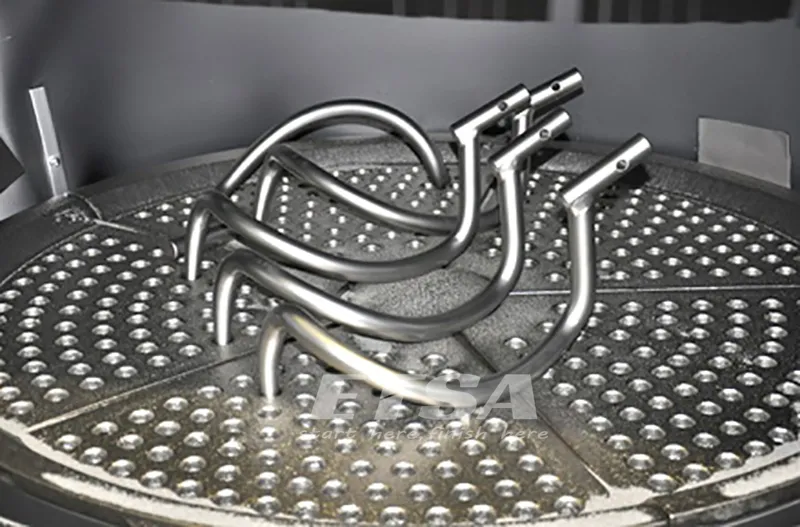

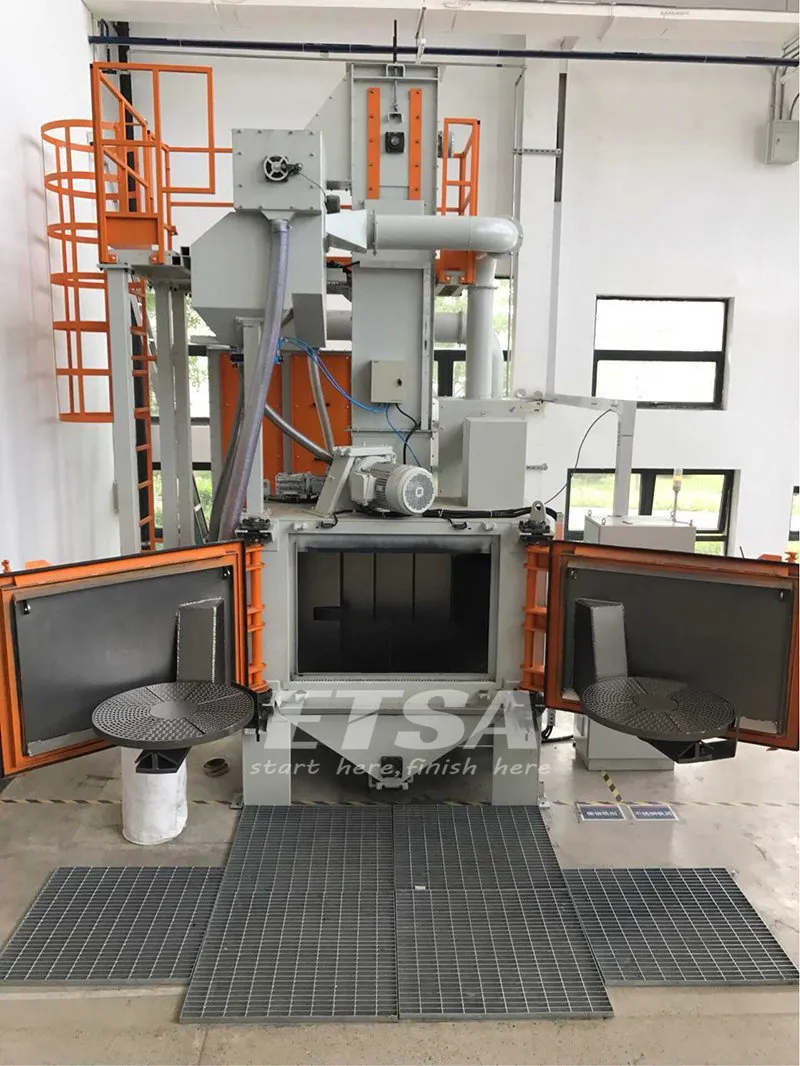

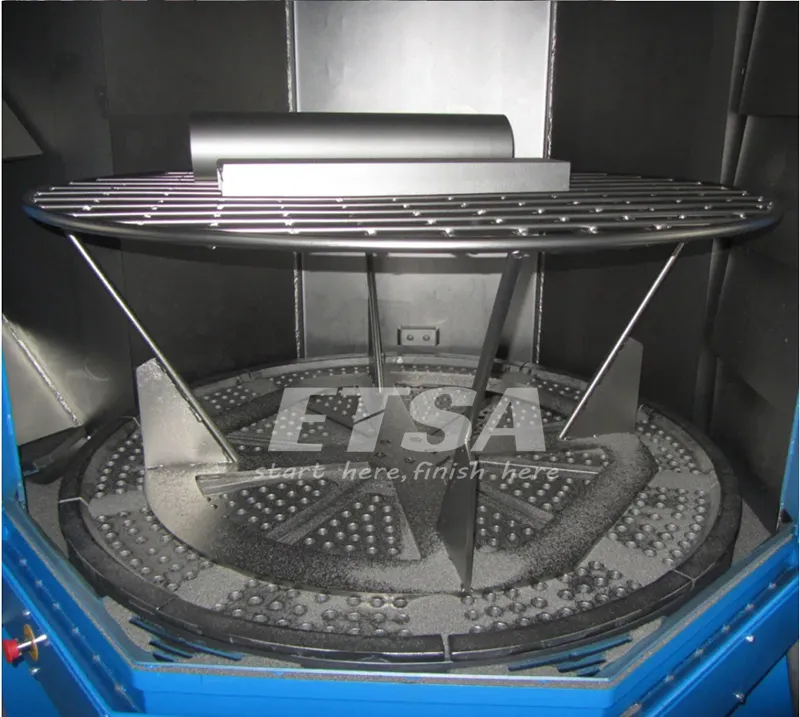

Workpieces are loaded on a table or on satellites fixed to a table prior to entering the blast chamber. There is no movement between the work and no part-on-part contact. The table rotates in the shot blasting chamber, providing the optimum cleaning of workpieces.

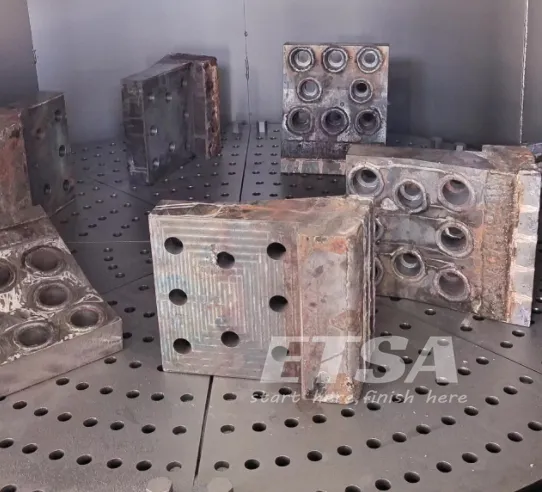

🛡️ Main Applications

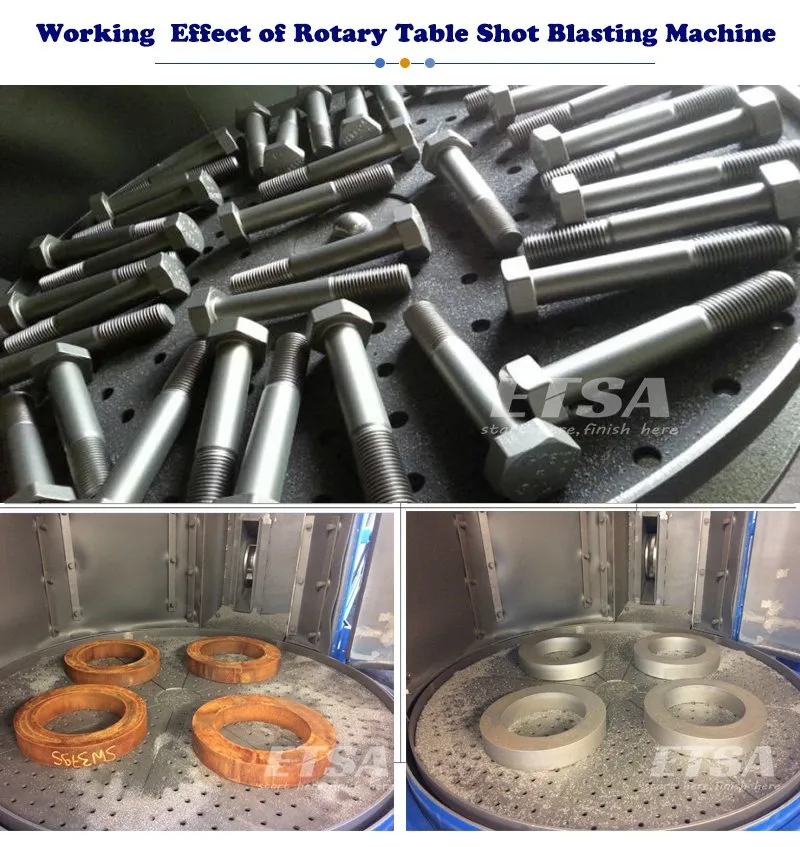

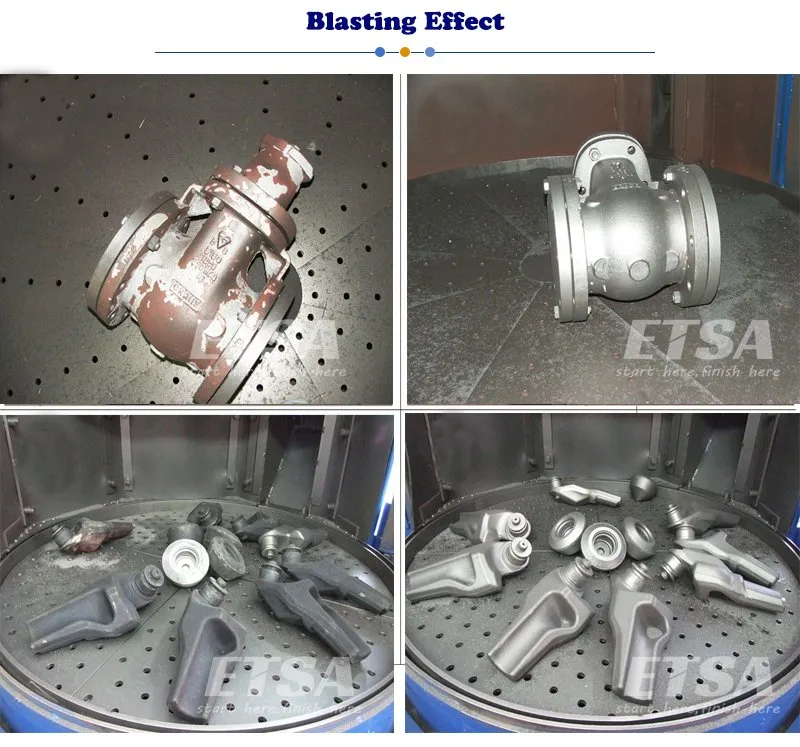

●Descaling of forged or heat treated parts
●Desanding of ferrous and non-ferrous metal castings
●Deburring of metallic and non-metallic parts
●Deflashing of die cast parts
●Contaminant removal

Key Benefits & Features

★Compact design with simple operating principles.
★Targeted high performance shot blasting for specific applications.
★Ruggedly built abrasive resistant blast chamber.
★Continuous abrasive handling with patented air wash separator.
★Integral cartridge type dust collector included.
★Air operated abrasive gate as standard.
★Available with 1, 2, or 3 wheels depending on the model.

Product Parameters

Type	RT 1000/600	RT 1200/900	RT 1500/600

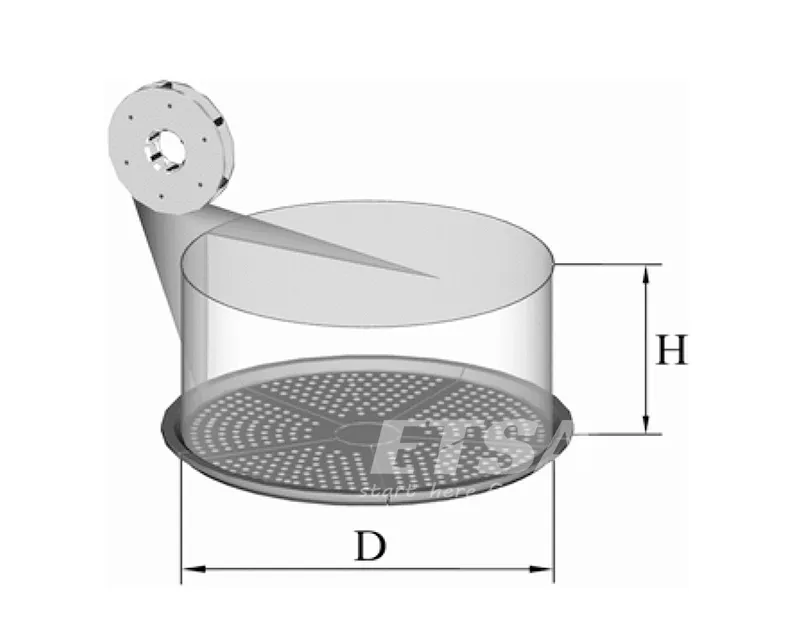

Max. dimension of chamber (mm)	Φ1350×560	Φ1350×860	Φ1800×560
Max. workpiece weight (kg)	500	500	1000
Diameter of Turn Table (mm)	1200	1200	1500
Material of blast chamber	Mild steel	Mild steel	Mild steel
Number of blast wheels	1	2	2
Power per blast wheel (kW)	7.5/11	7.5/11	11/15
Material of table	Rubber/Manganese	Rubber/Manganese	Rubber/Manganese

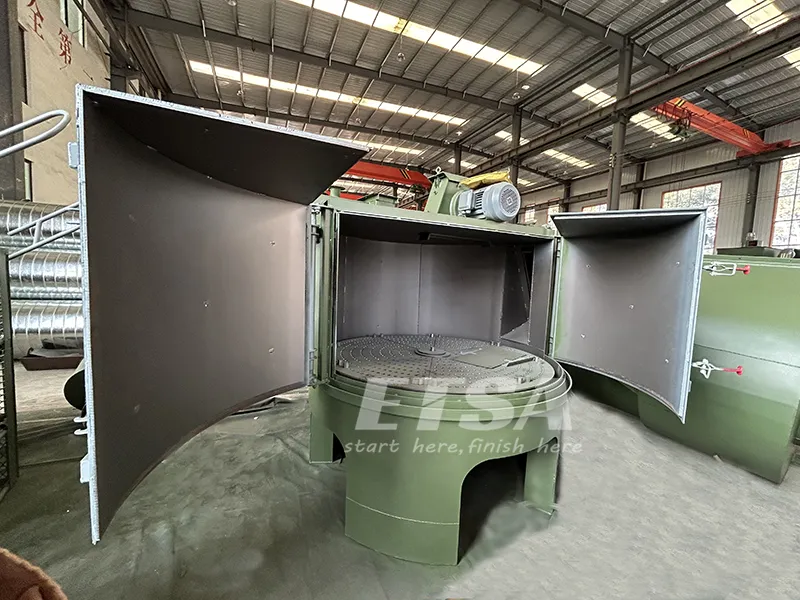

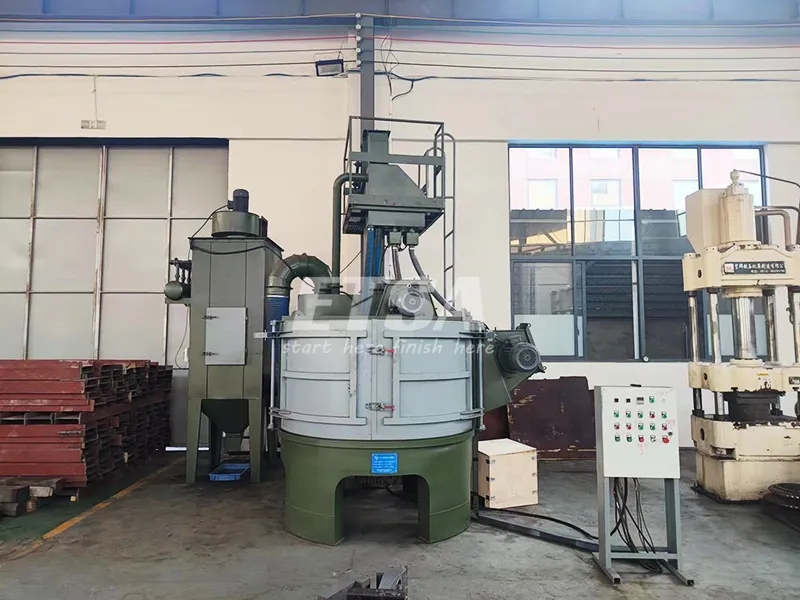

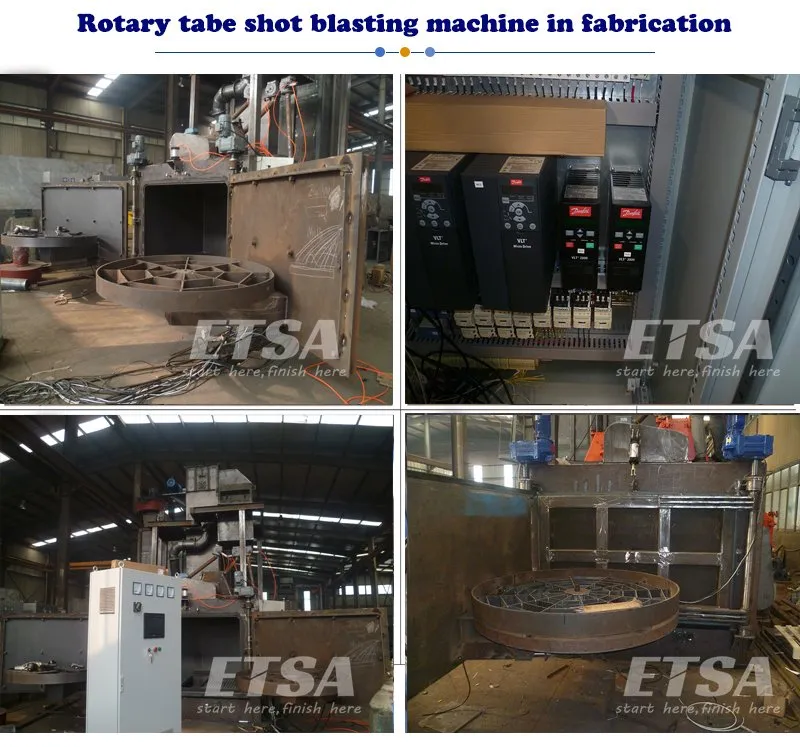

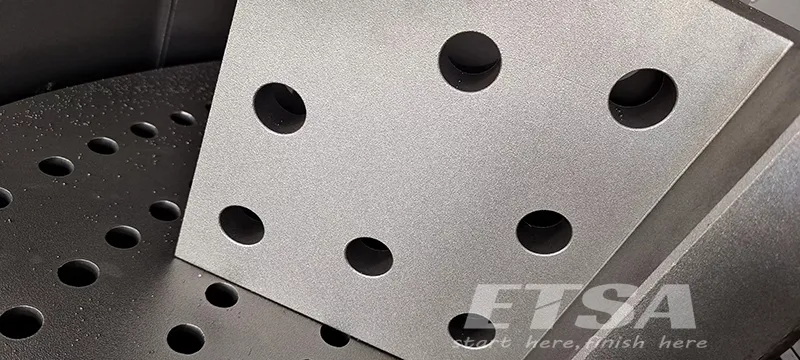

Detailed Photos

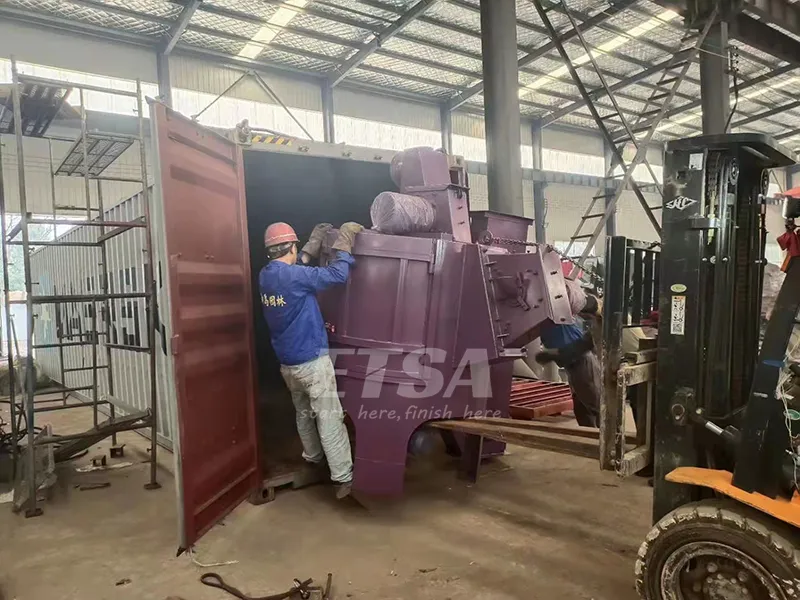

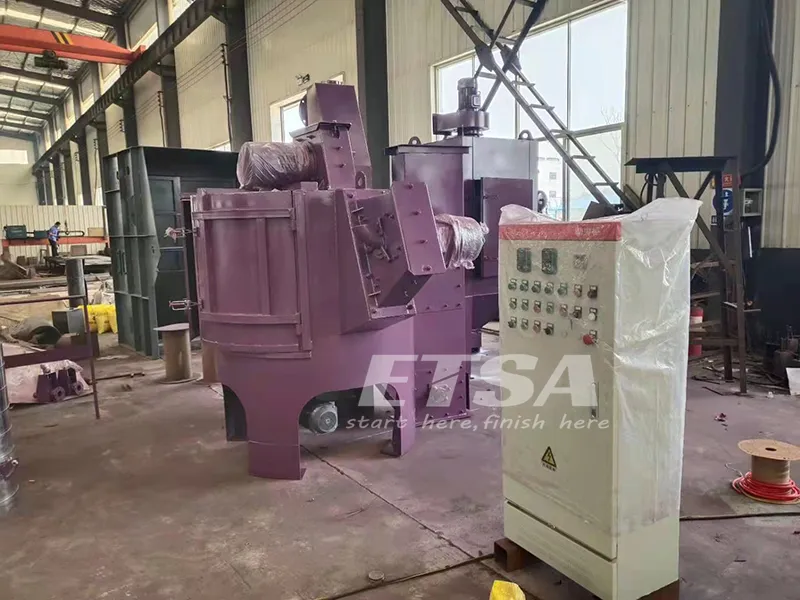

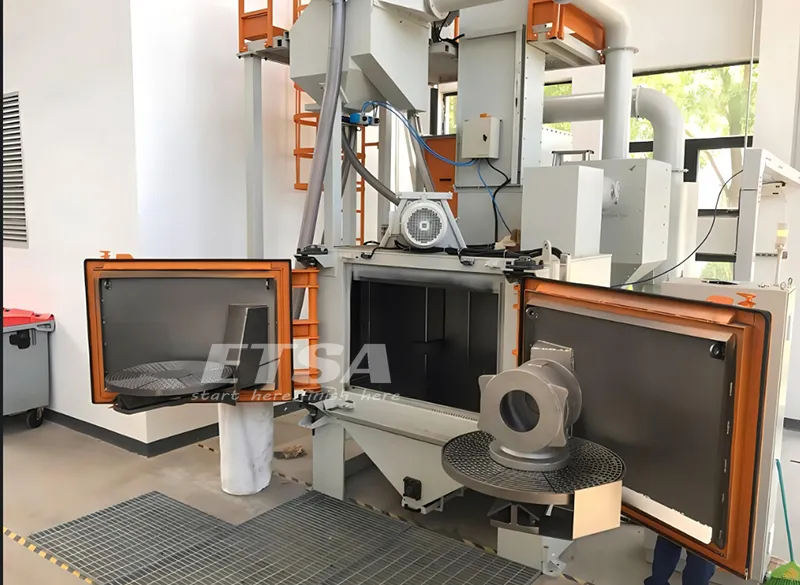

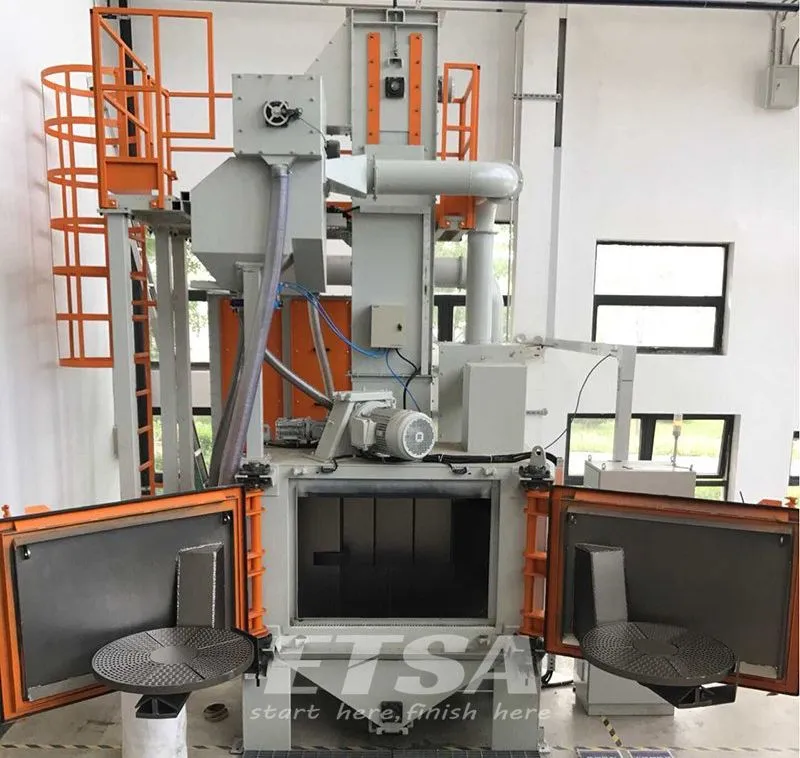

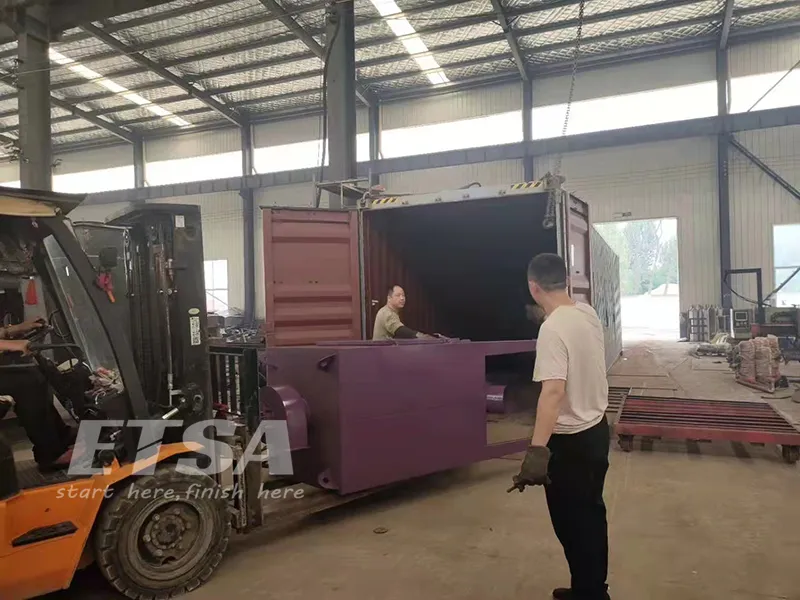

Packaging & Shipping

Frequently Asked Questions

1. What types of workpieces can the Rotary Table Shot Blasting Machine handle?

It is a universal machine suitable for a wide variety of workpieces, including welded constructions, castings, forgings, and both metallic and non-metallic parts.

2. How many blast wheels can be installed on this machine?

Depending on the specific model and production requirements, the machine can be equipped with 1, 2, or 3 blast wheels.

3. Does the machine include a dust collection system?

Yes, all models come with an integral cartridge type dust collector (typically using Donaldson filter cartridges) to ensure a clean working environment.

4. What is the maximum workpiece weight the machine can support?

The weight capacity varies by model; for example, the RT 1000 and RT 1200 models support up to 500kg, while the RT 1500 model can handle up to 1000kg.

5. What surface finish level can be achieved?

The machine is capable of achieving high cleanliness surface finish levels ranging from SA2.5 to SA3.0.

6. What are the key materials used in the blast chamber construction?

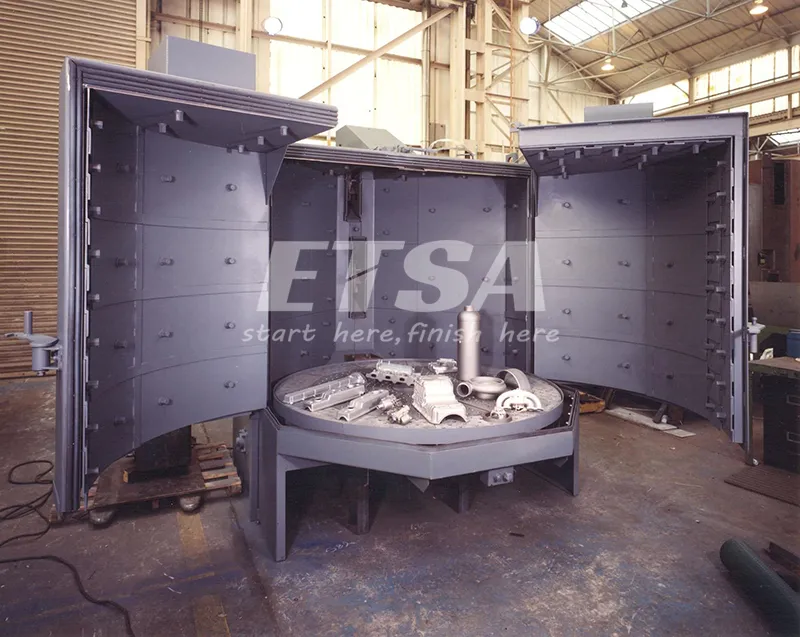

The blast chamber is ruggedly built with a 10mm steel shell and lined with 10mm Manganese (Mn) alloy liners for high abrasive resistance and long service life.
