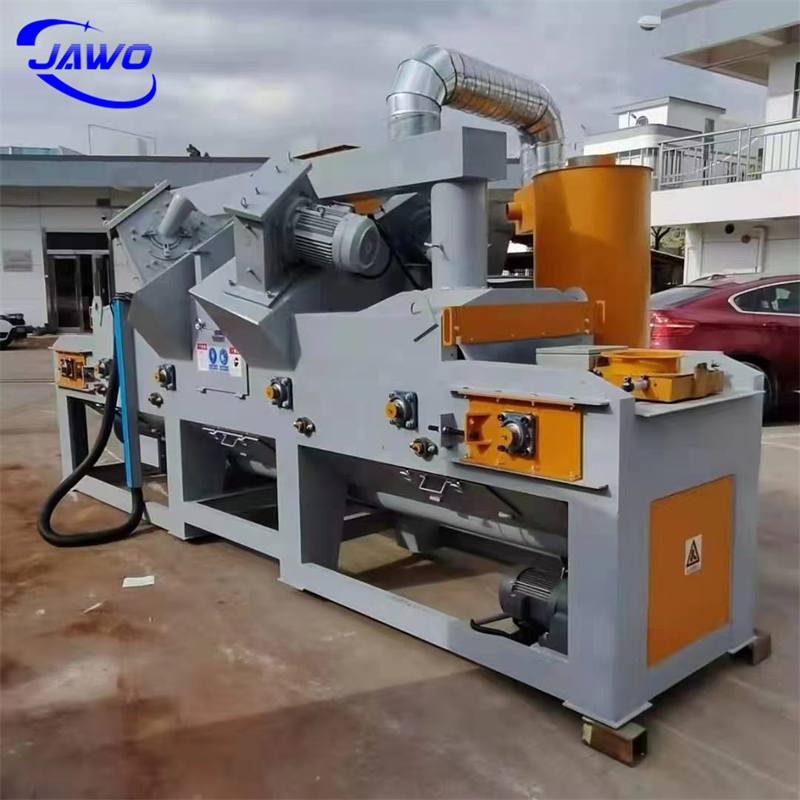

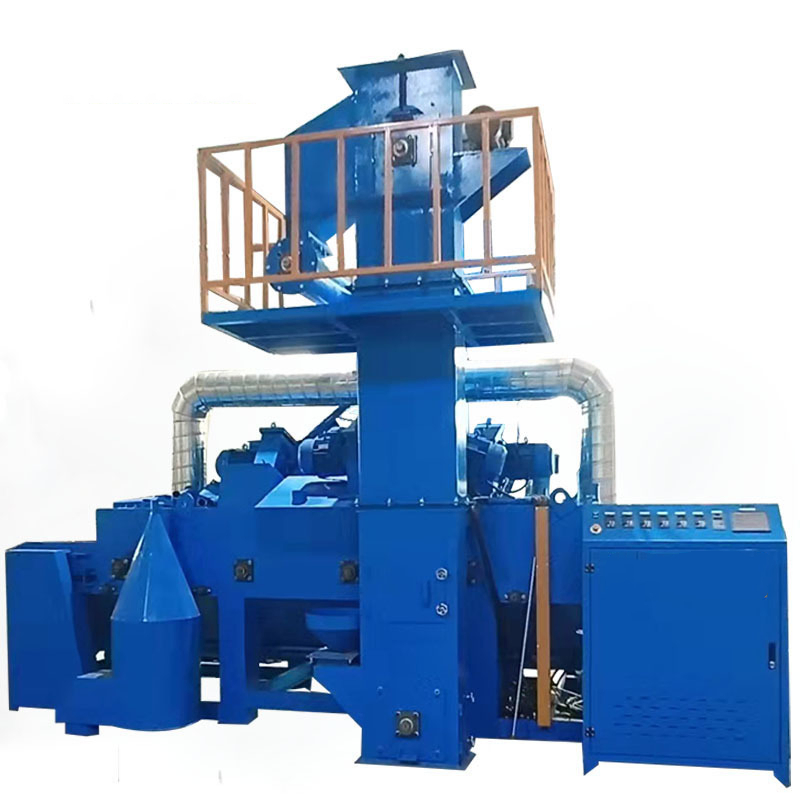

Rotary Table Sandblasting Cabinet Portable Type Steel Shot Blasting Machine

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
JW-Q324
Fuel
Electric
Type
Hook Type Abrator
Cleanliness
Medium Cleanliness
Automation
Automatic
Certification
CE, SGS
Feature
Rust / Corrosion Proof
Condition
New
Customized
Customized
Productivity
0.3~0.8t/H
Feeding Amount
100kg
Power
10kw

Product Description

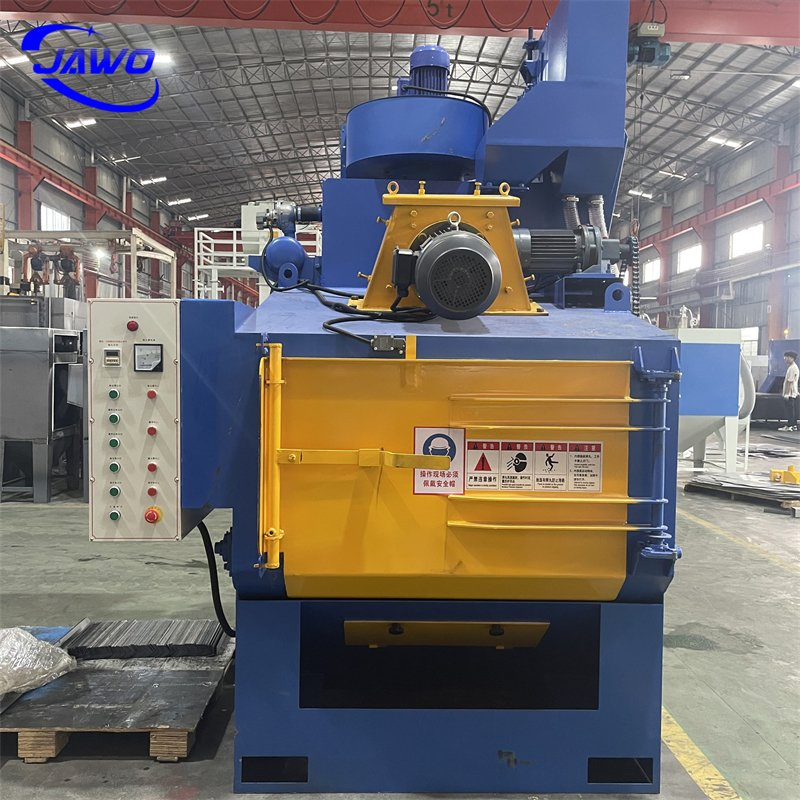

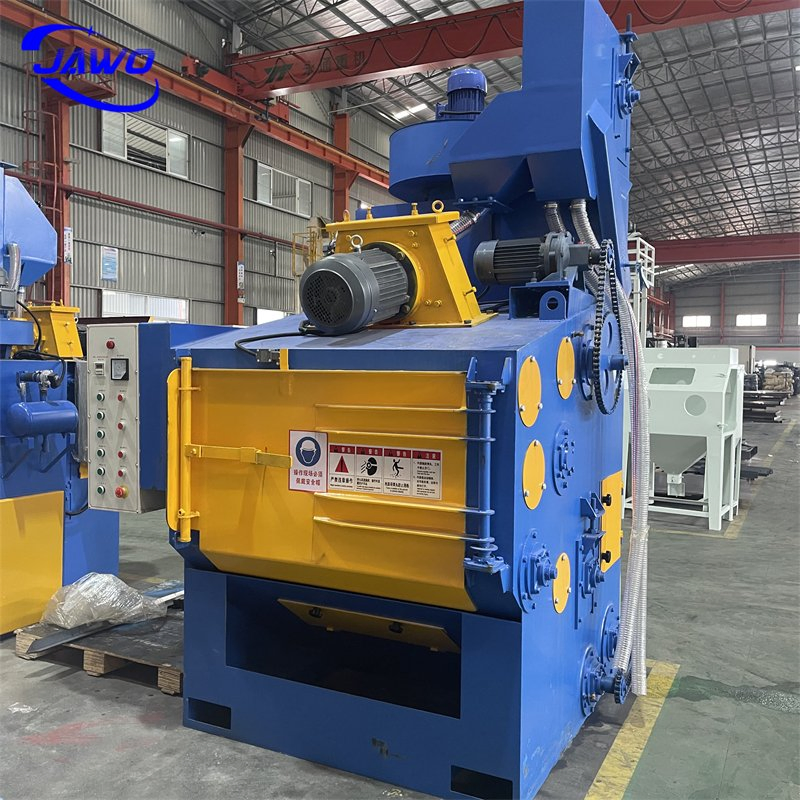

Rotary Table Sandblasting Cabinet Portable Type Steel Shot Blasting Machine

It is called crawler type machine because it has a moving track system that moves along the workpiece to ensure complete coverage. The machine consists of a blasting wheel responsible for propelling the abrasive media at high speed, a bucket elevator system for continuous circulation of the abrasive media, a separator for removing impurities from the abrasive media, and a dust collector for capturing and collecting the generated abrasive. Dust and debris. Tumble belt shot blasting machines are designed for heavy-duty applications and are commonly used in industries such as automotive, foundry, construction and shipbuilding. It is particularly effective at removing scale, rust, paint and other surface contaminants from small and irregularly shaped parts.

Product Parameters

Item/Model JW-Q324 JW-Q326 JW-Q3210
Productivity (t/h) 0.3~0.8 0.6~1.2 1.5~2.5
Feeding amount (kg) 100 200 600
Max weight of single piece (kg) 6 10 30
Diameter of end disk (mm) 480 650 1000
Effective volume (m³) 0.08 0.15 0.3
Abrasive flow rate (kg/min) 100 120 250
Ventilation capacity (m³/h) 1800 2200 5000
Power (kw) 10 12.6 19
Dimension (mm) 1500*1500*2700 3680*1650*2800 3976*2600*4768
Apron Rubber Rubber Rubber
📷

Detailed Photos

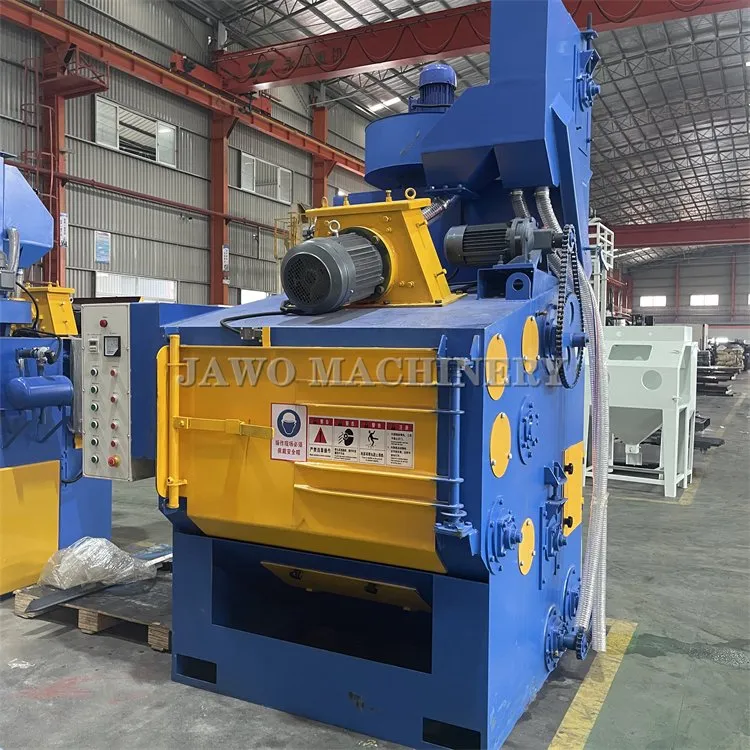

Shot Blasting Machine Detail 1

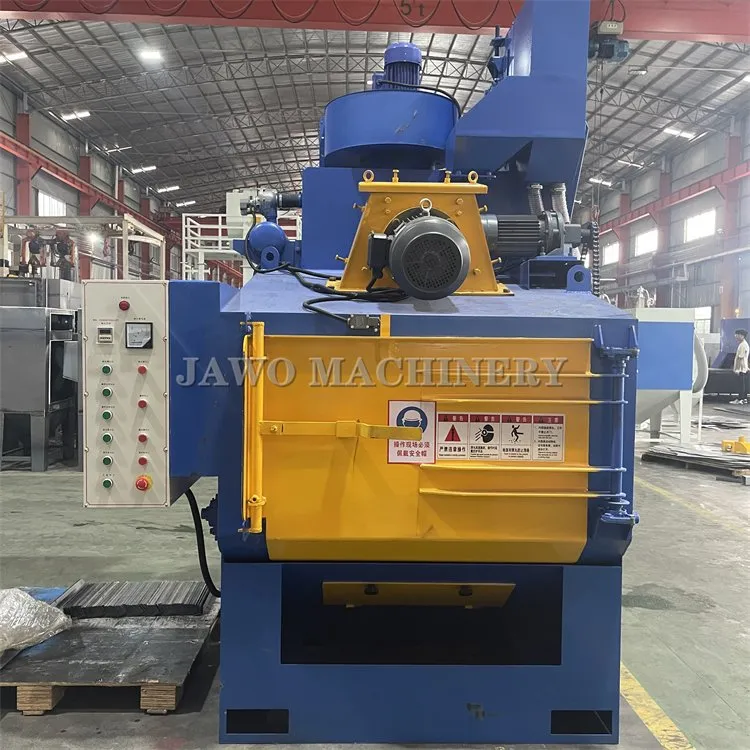

Shot Blasting Machine Detail 2

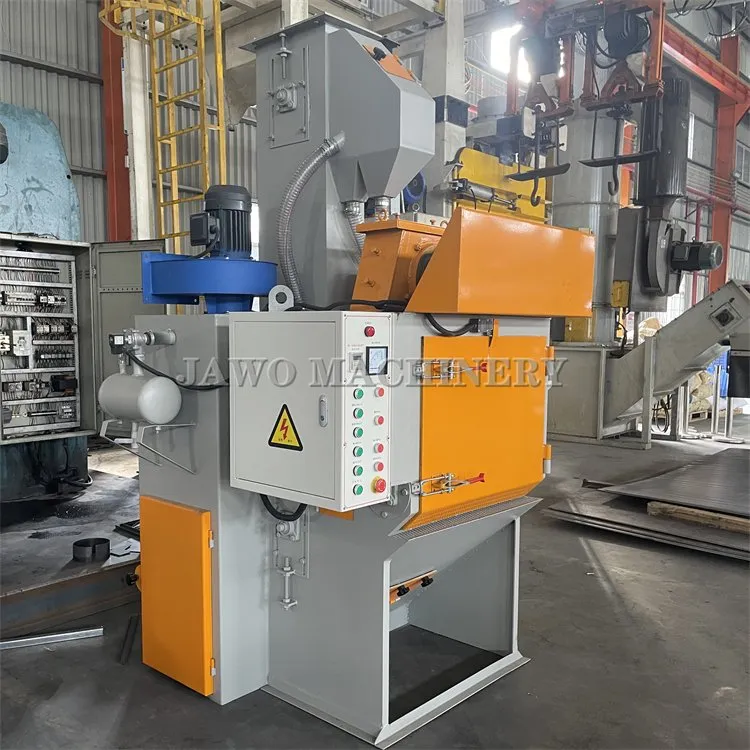

Shot Blasting Machine Detail 3

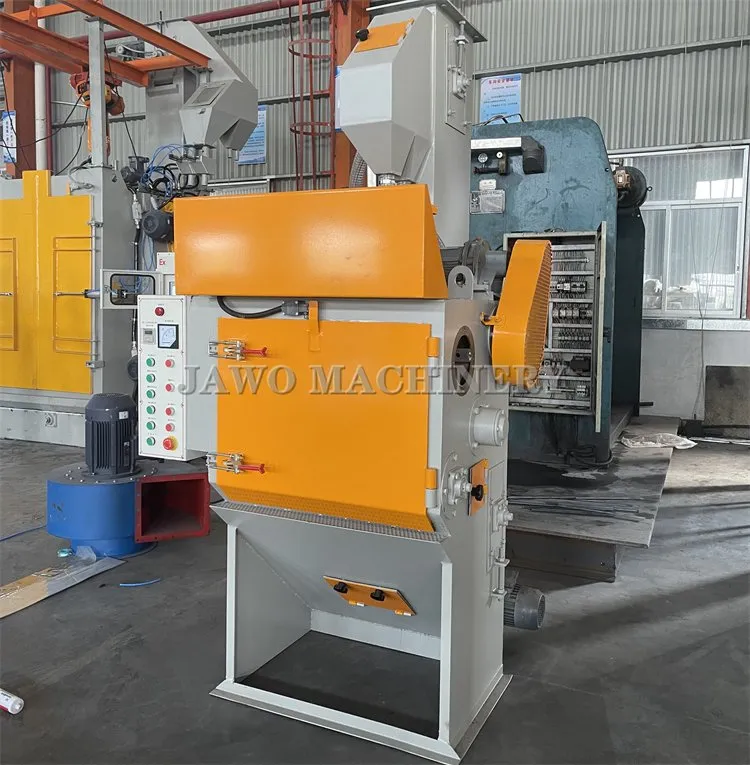

Shot Blasting Machine Detail 4

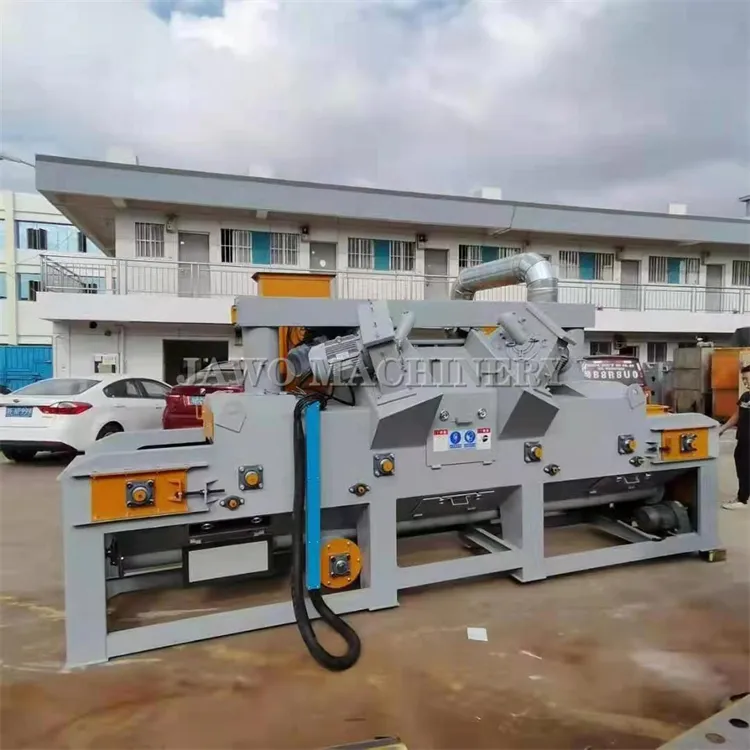

Shot Blasting Machine Detail 5

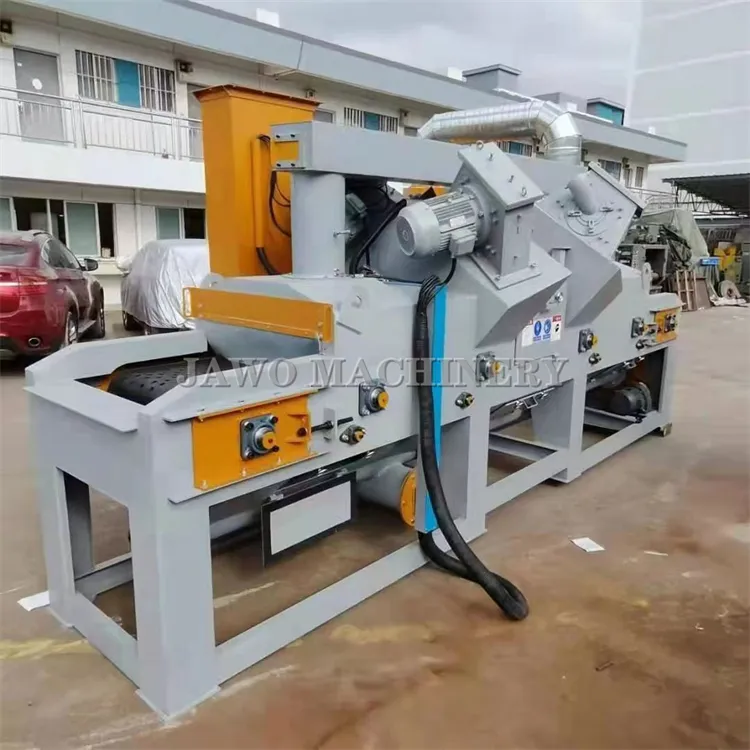

Shot Blasting Machine Detail 6

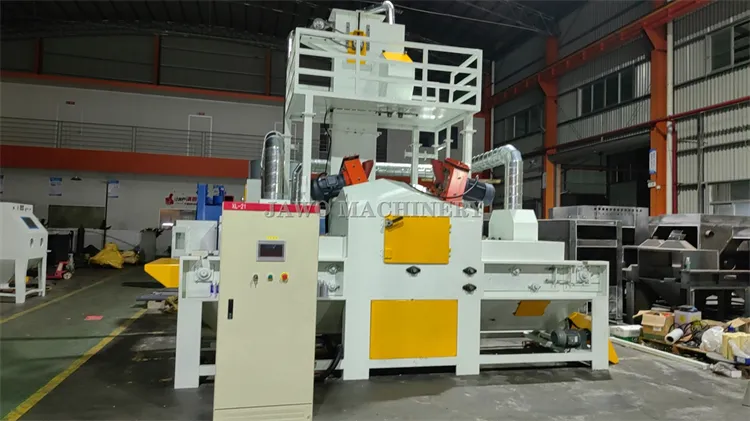

Shot Blasting Machine Detail 7

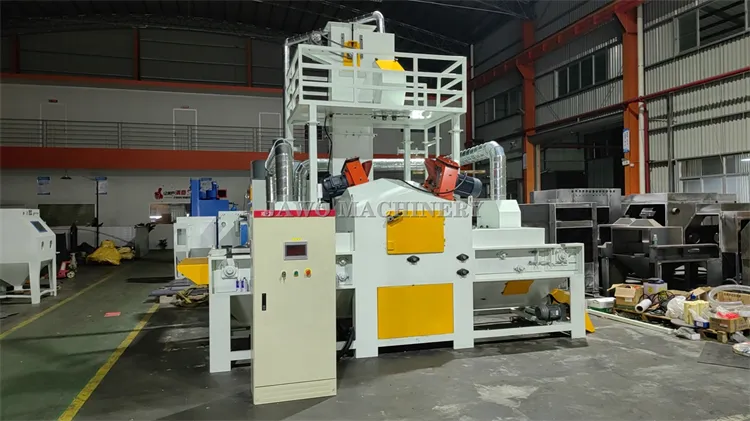

Shot Blasting Machine Detail 8
Shot Blasting Machine Detail 9
Shot Blasting Machine Detail 10
📦

Packaging & Shipping

Packaging and Shipping
🏢

Manufacturing Excellence

Factory Overview 1
Factory Overview 2
Workshop 1
Workshop 2

1. The manufacturer is highly professional in producing and exporting machinery, with a production history dating back to 1998, establishing a leading position in the machinery industry.

2. Operating as a direct factory, we offer significant advantages in providing standard machines with short delivery times and customizing equipment to meet specific client requirements. A dedicated quality control department ensures all units are thoroughly tested before delivery, with visual documentation provided to the customer.

3. Our equipment has been exported to over 100 countries. Most machines have attained CE certification, and we welcome independent inspections before shipment to ensure a successful cooperation.

?

Frequently Asked Questions

Are you a manufacturer or a trade company?
We are a professional manufacturer with extensive experience in the industry since 1998. We have successfully passed international inspections such as SGS.
What certifications do your machines have?
Our equipment is compliant with major international standards, including CE, ISO, and SGS certifications.
How do you manage quality control?
Quality is our priority. Every machine undergoes rigorous performance testing and inspection before being cleared for shipping.
Is customization available for specific needs?
Yes, we offer customization based on raw material processing requirements, production capacity, and specific product finishes. We can also manufacture based on your designs.
What is the warranty period for your equipment?
We provide a 2-year warranty. Within this period, we supply replacement parts for any non-human errors for free. After 2 years, parts are provided at a significant discount.
What kind of after-sales service do you provide?
We offer 24-hour support via phone, email, and video call. Our engineers are available for on-site installation, testing, and staff training at the buyer's facility.
