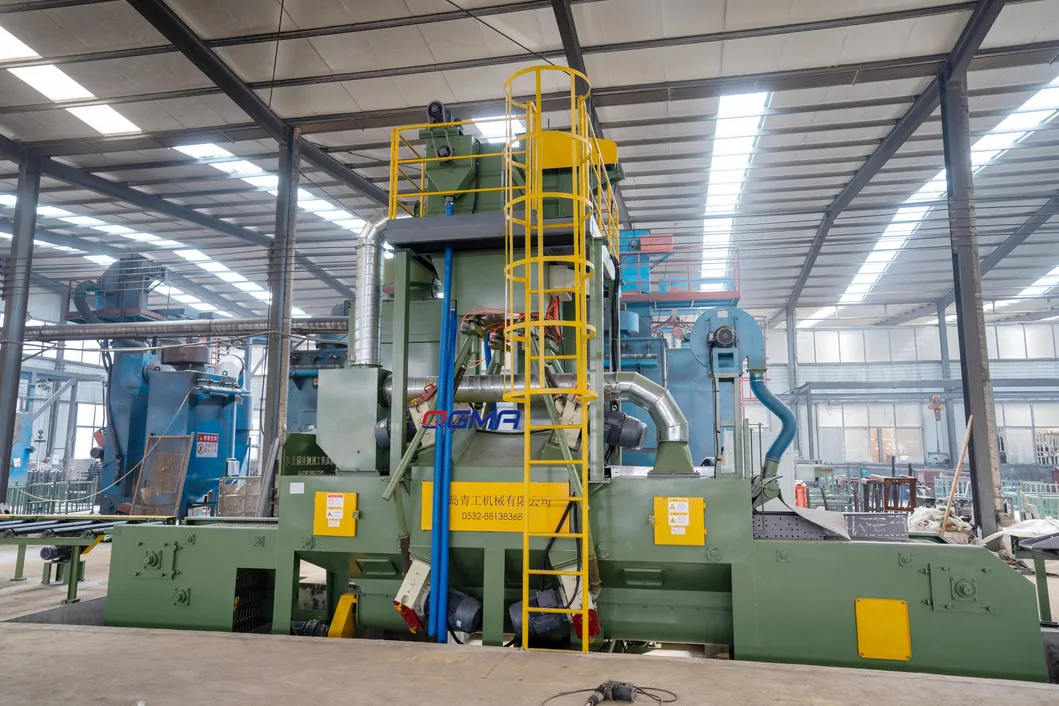

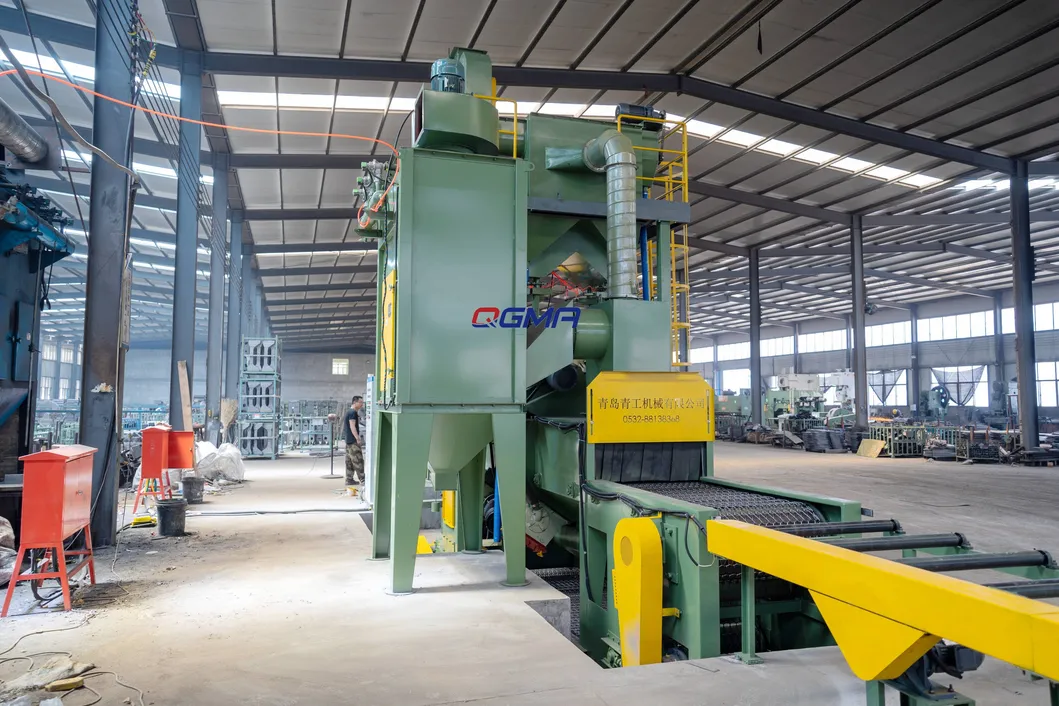

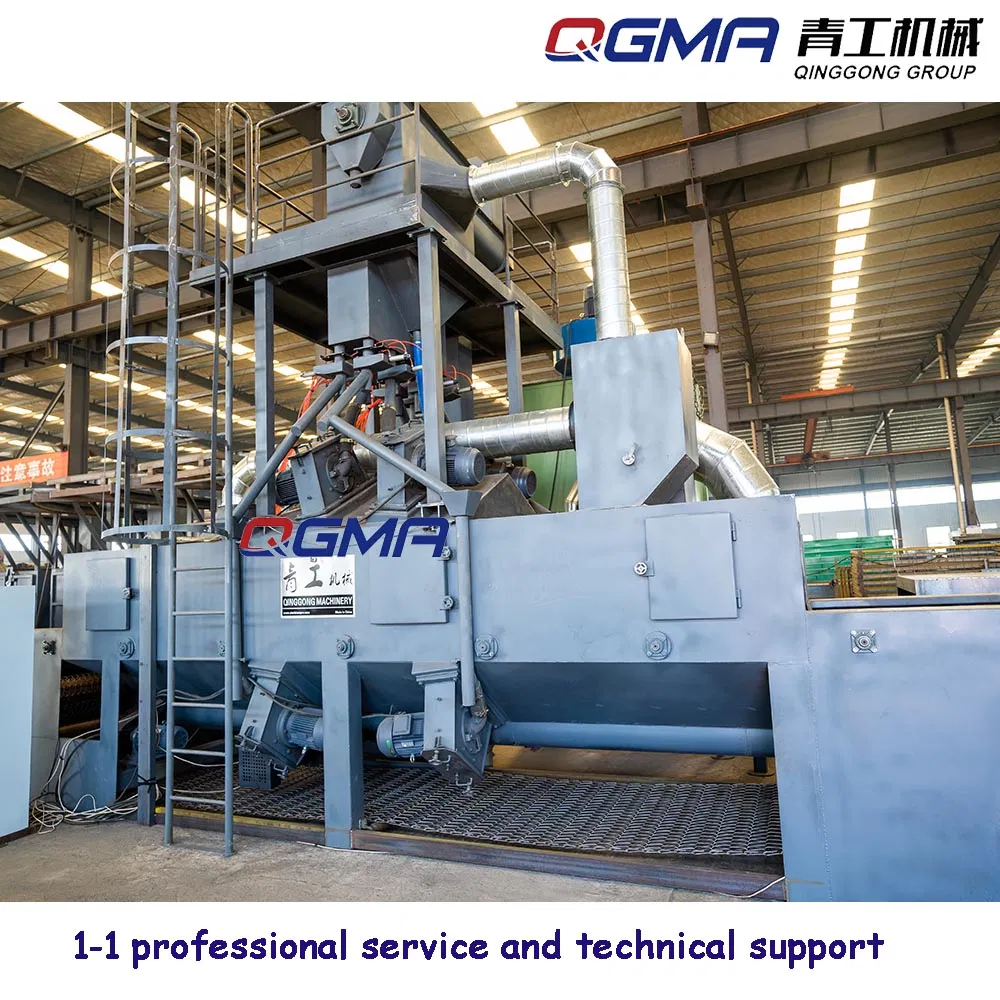

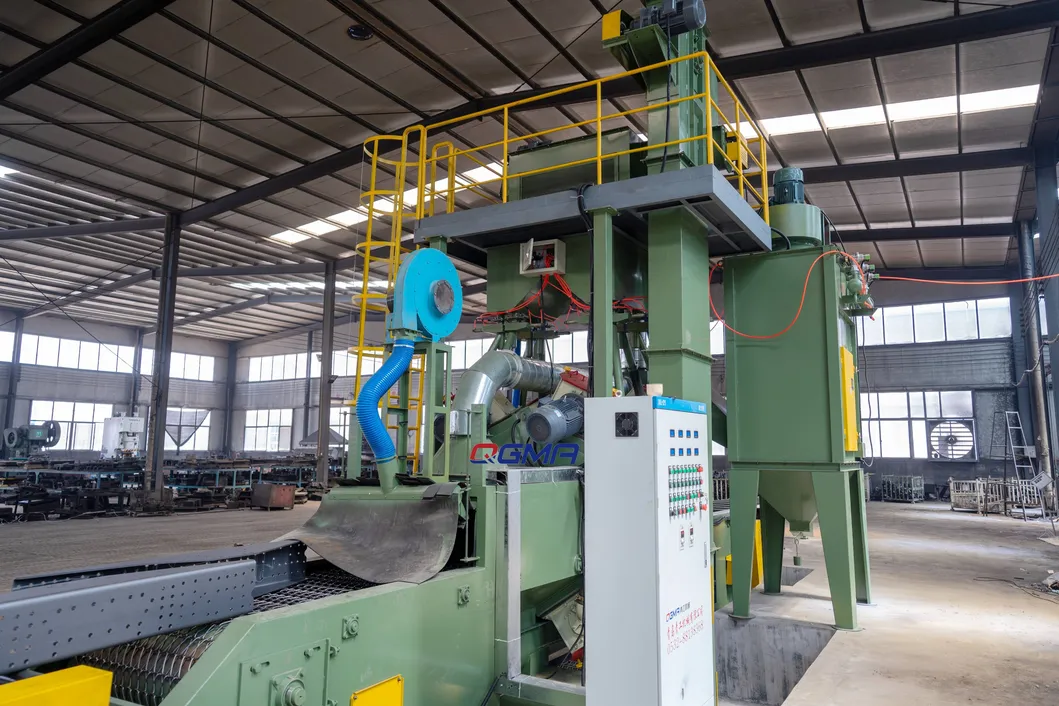

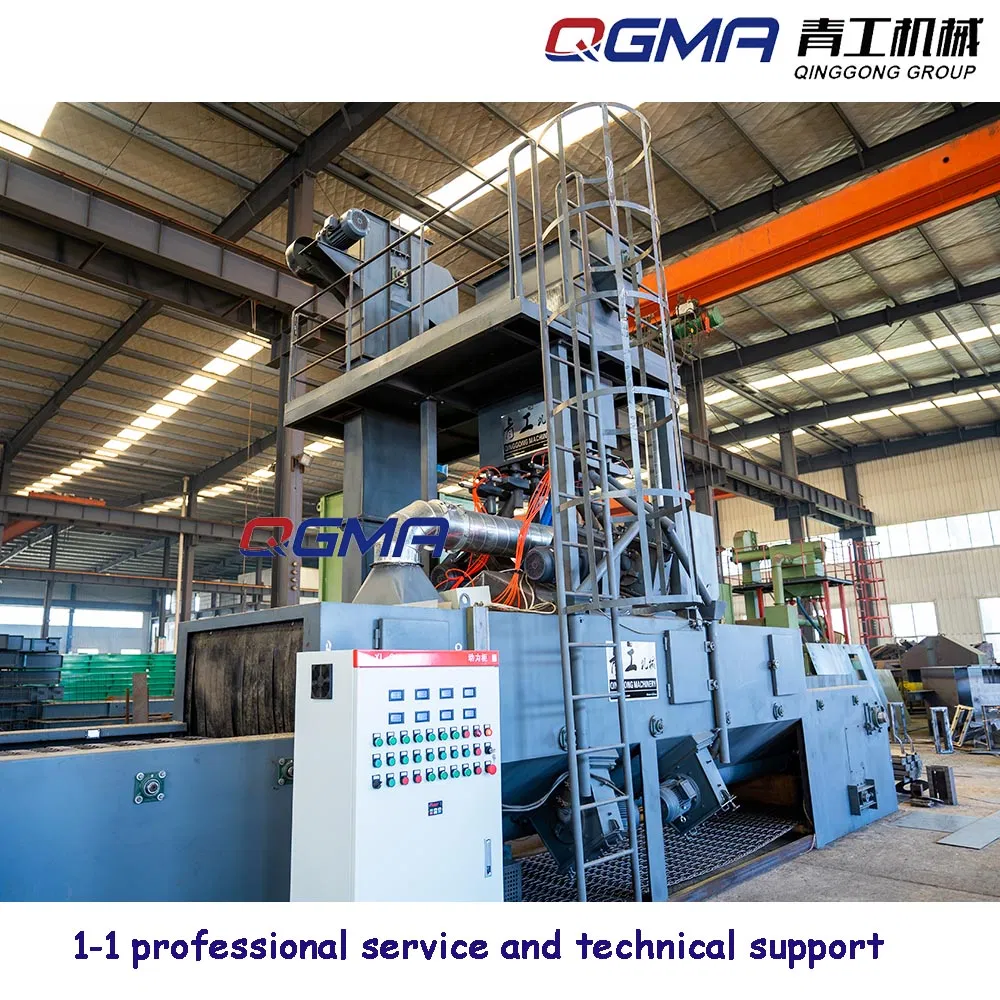

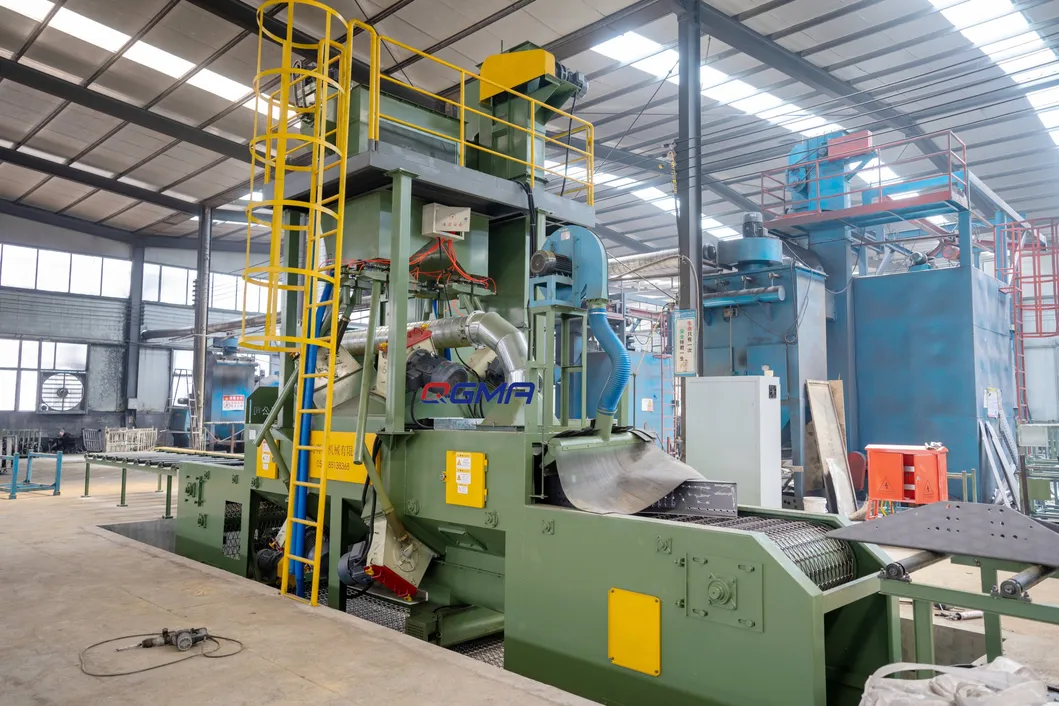

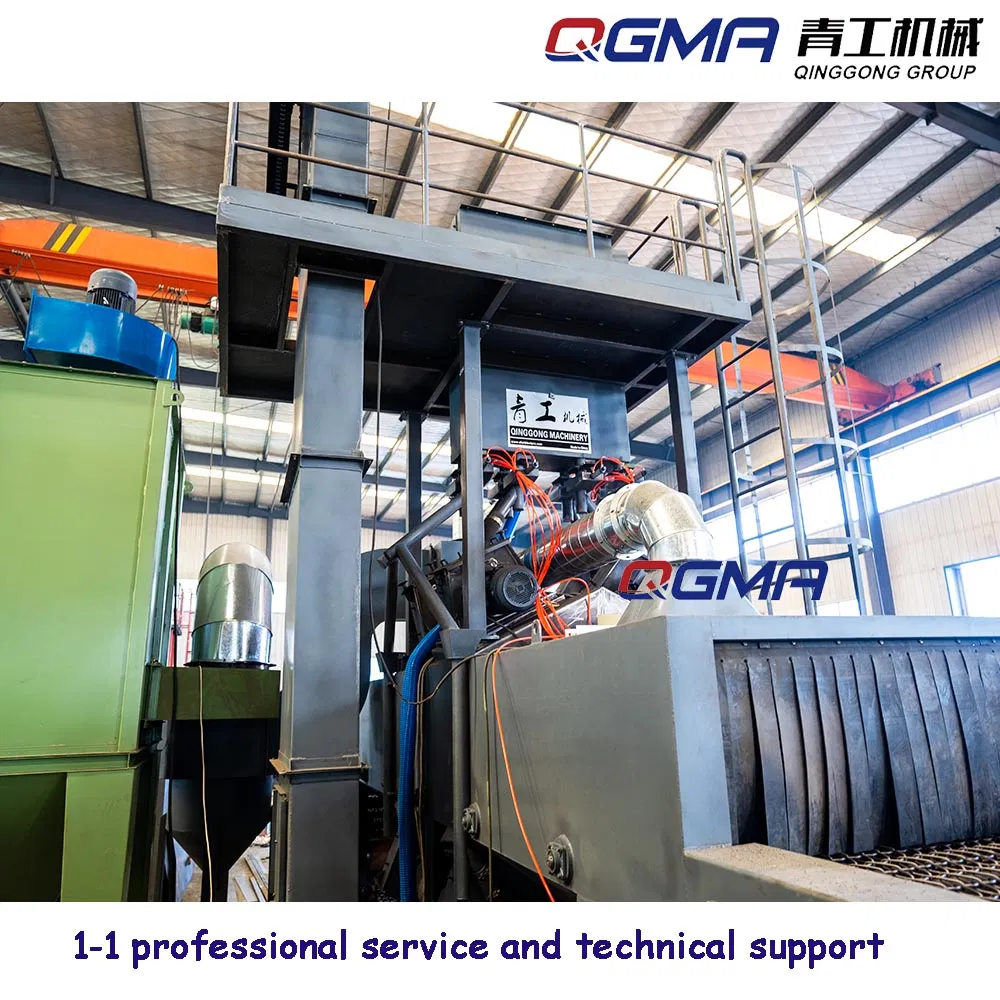

Roller Conveying Wheel Blasting Machine for Motor Shells Cleaning Steel Wire Mesh Belt Shot Blasting Machine

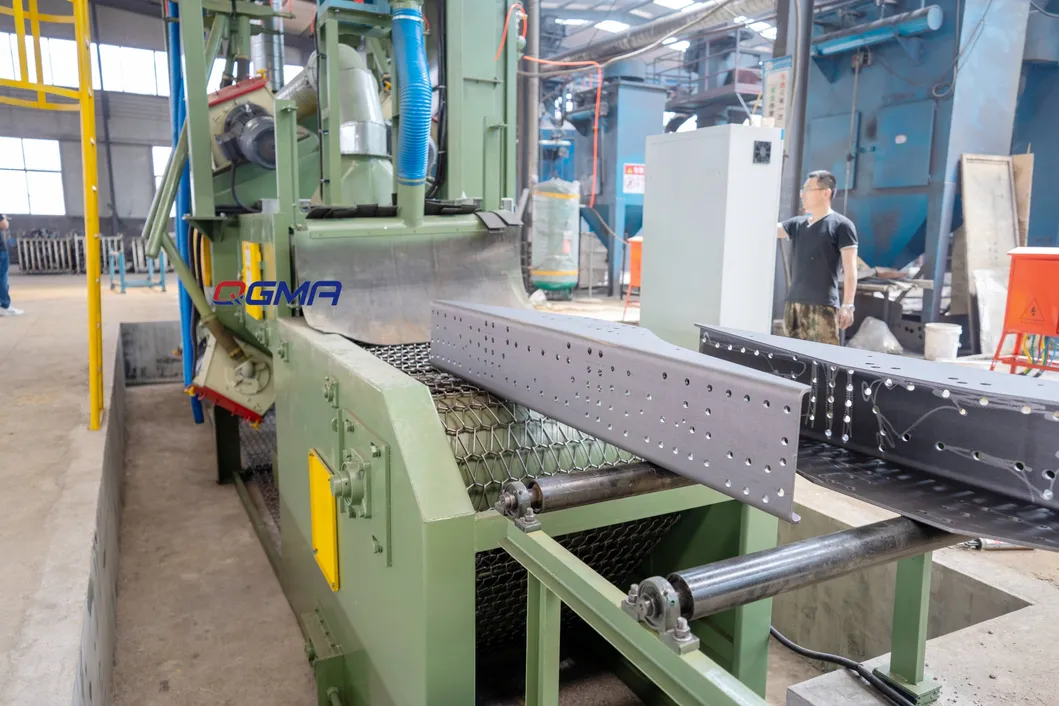

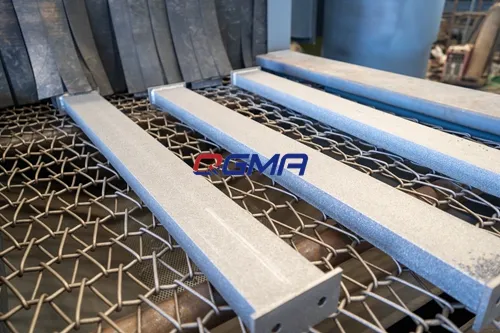

The wire mesh belt shot blasting machines were developed according to market demand. The wire mesh belt structure ensures steel shot coverage is uniform. With frequency control of speed according to artifact types, shot blasting efficiency is greatly improved. The workpiece will not collide or fall, making it ideal for thin-walled parts. Fully automated operation avoids collision and improves clean-up efficiency.
Applications:

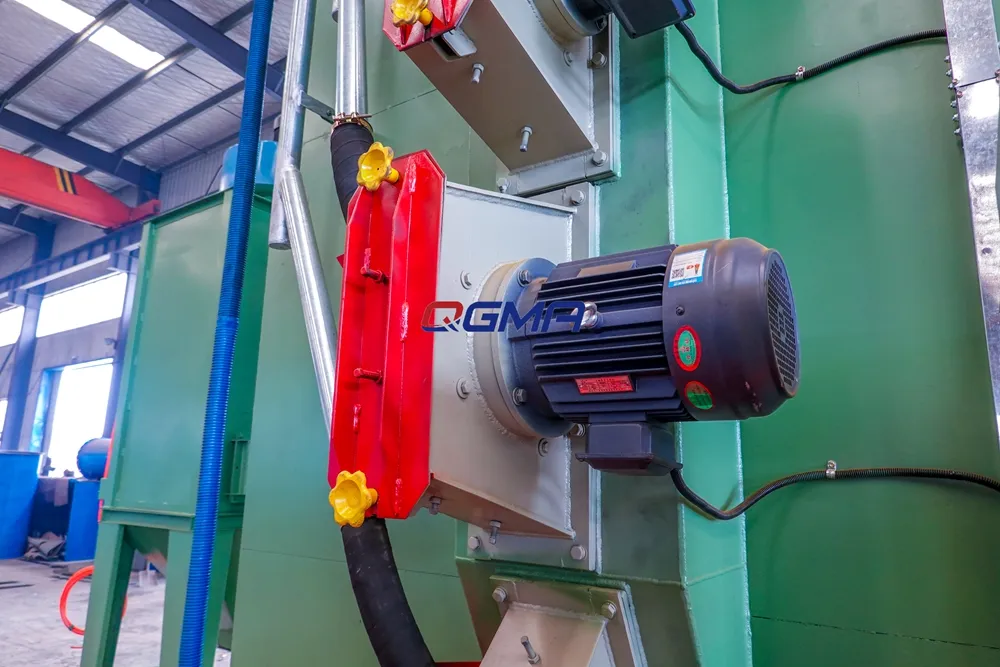

Transportation System & Blast Turbine:

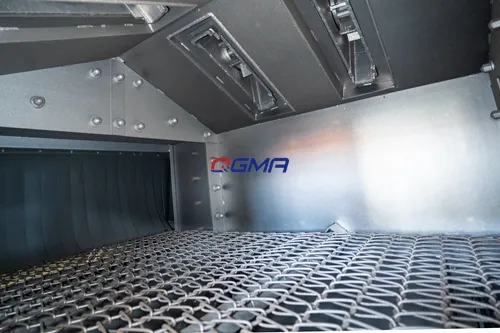

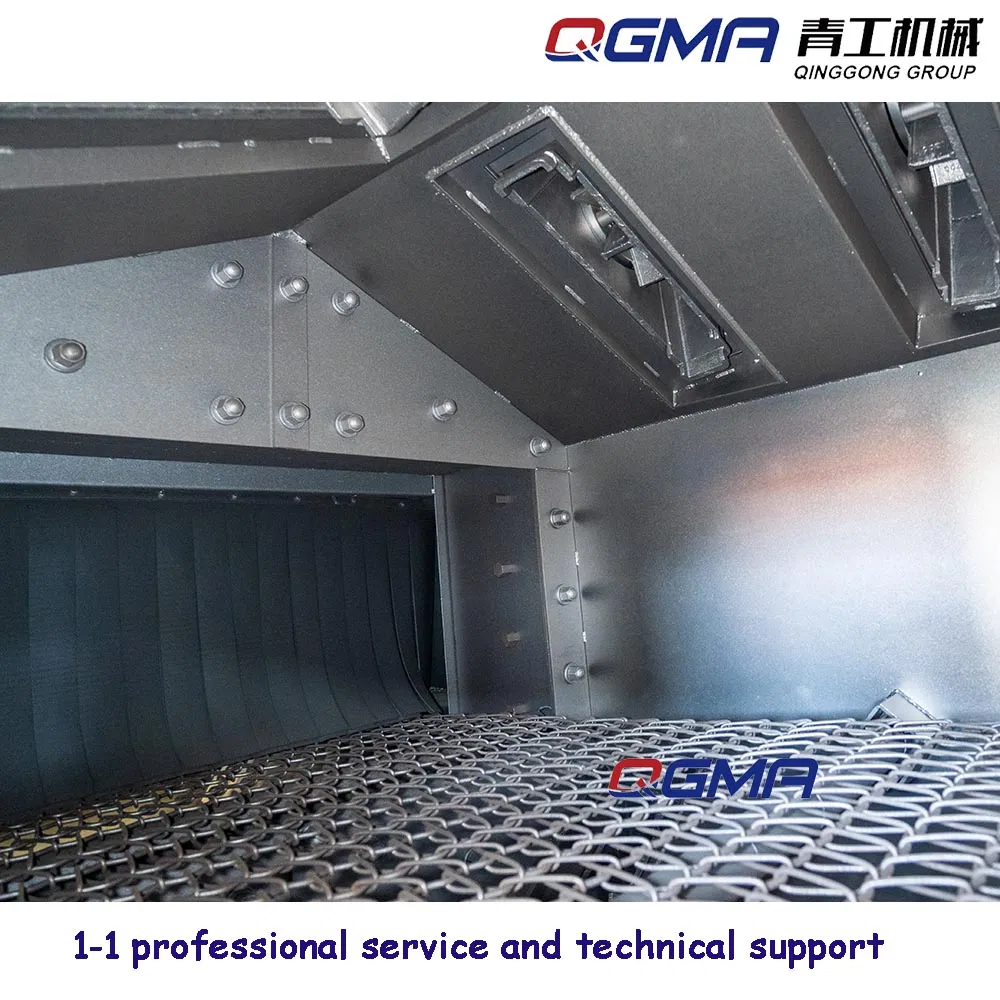

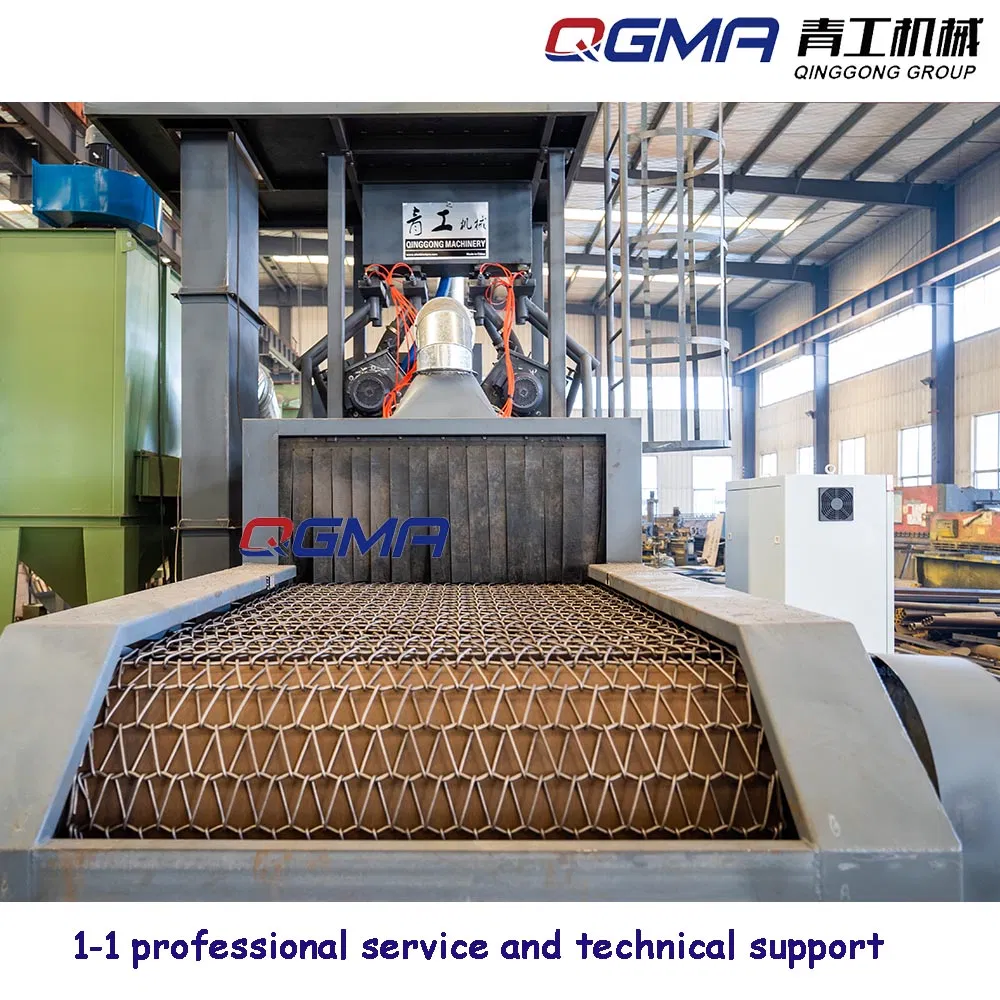

Metal wire mesh conveyor (600-1000mm width, 300-3000kg load capacity). Includes 4-8 blast turbines with 7.5-18.5KW power.

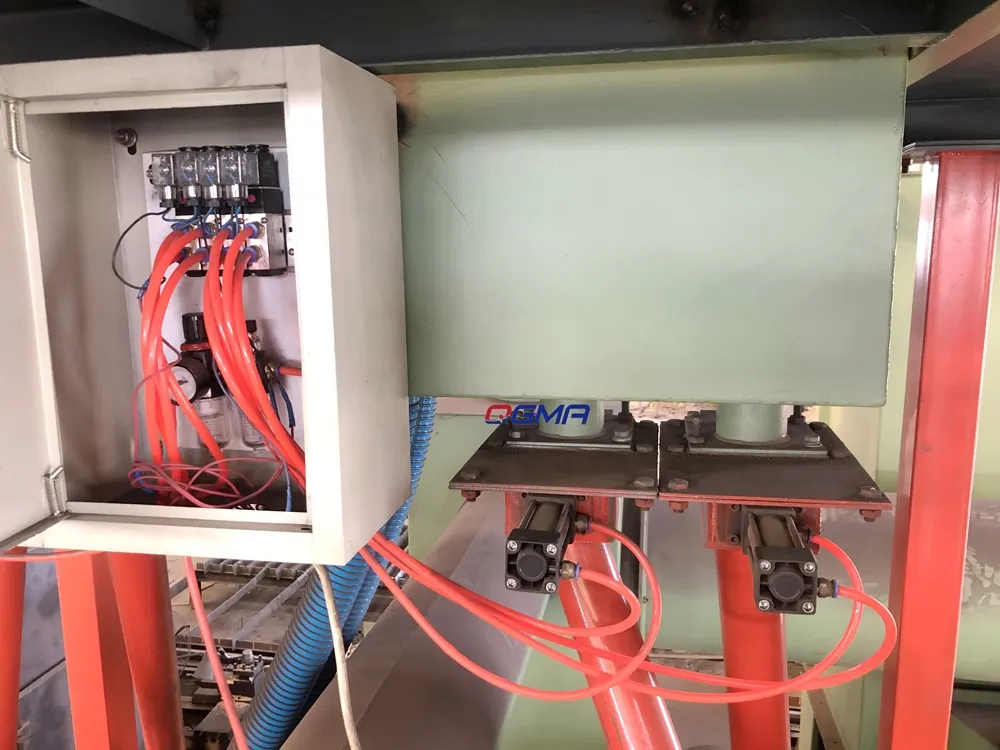

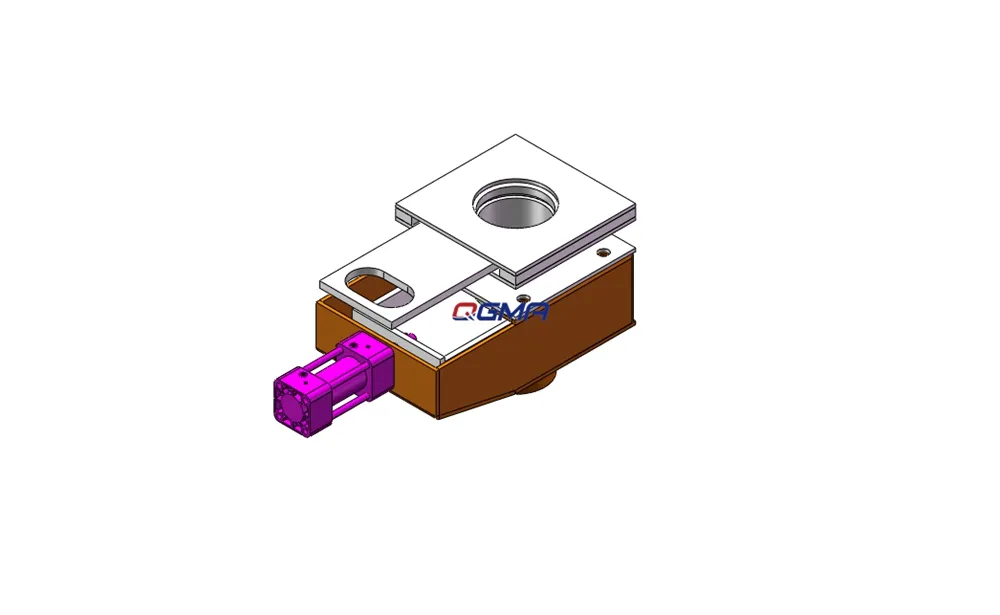

Intelligent Abrasive Dosing System:
Service time increased by up to 20%, energy saved up to 30%.
| Items | Cast iron | Cast aluminium | Cast iron (Alt) | Cast aluminium (Alt) |
|---|---|---|---|---|
| Mesh belt width(mm) | 1250 | 1250 | 800 | 800 |
| Productivity(t/h) | 3.5/7.5 | Based on workpieces | 3.5/7.5 | Based on workpieces |
| Passing speed(m/min) | 0.5-2.5/1-5 | 0.5-2/1-4 | 0.5-2.5/1-5 | 0.5-2/1-4 |
| Number of blast turbines | 4/8 | 4/8 | 4/8 | 4/8 |
| Power of blast turbines(KW) | 11-18.5 | 7.5-15 | 11-18.5 | 7.5-15 |
In case of technical issues, we provide online remote assistance. Our engineers are also available for on-site factory visits to solve complex problems that cannot be handled locally.
We provide perfect solutions for shot blasting machines, preservation lines, blasting rooms, and spray booths to users worldwide. We adhere to the concept of efficient, intelligent, creative, and environmental protection product development.
Our patented technology and certifications guarantee the high quality of our equipment.
