Product Description

Sandblasting Room Equipment Overview

Specializing in the research, development, and production of automated sandblasting and shot peening equipment. We provide comprehensive solutions for surface treatment front-end processes. This product range is widely utilized in aerospace, automotive manufacturing, photovoltaic new energy, large-scale infrastructure, heavy machinery, high-end consumer electronics, and metallurgy industries.

Model NO.

MH1208/MH1210/MH1212

Drive

Electric

Automation

Automatic

Control System

PLC Human-Machine Interface

Number of Guns

4-12

Workpiece Height

100-450mm

Workpiece Width

800-1200mm

Layout

Horizontal

Operation Video

Product Gallery

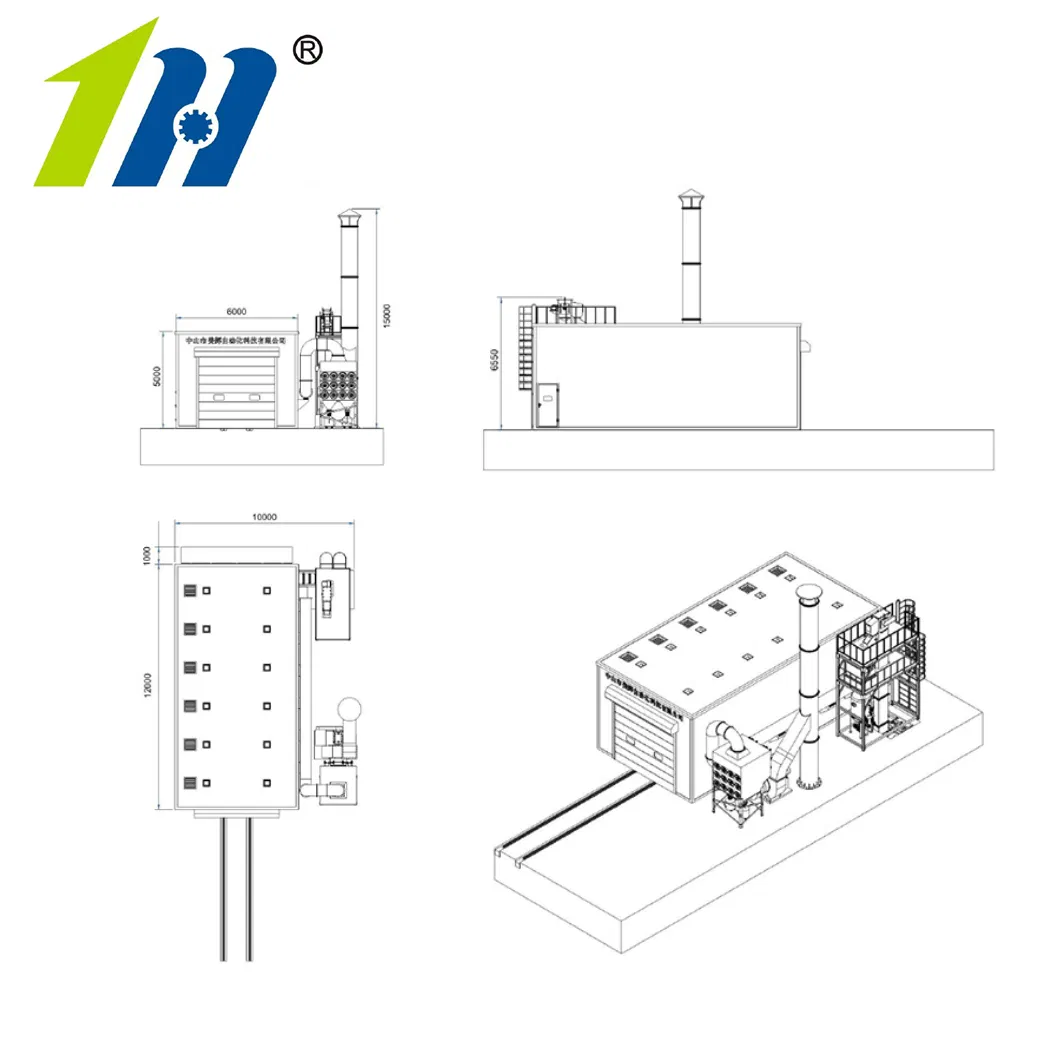

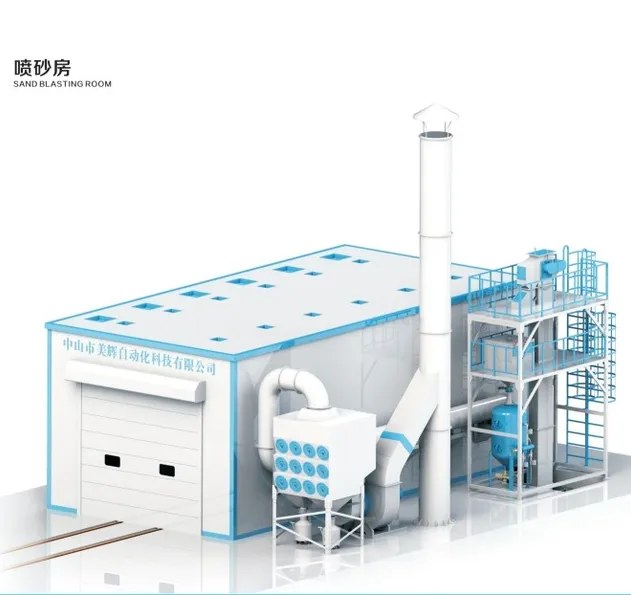

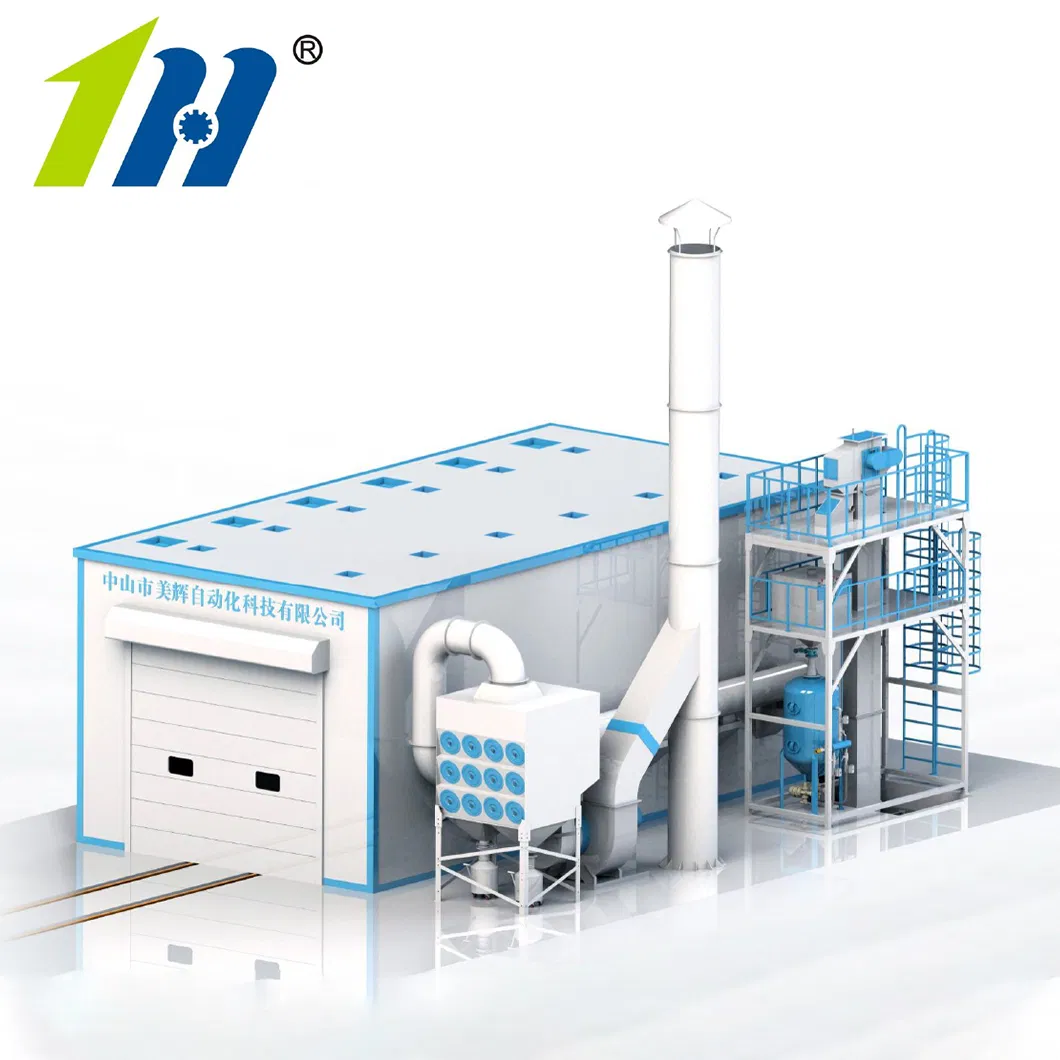

Product Standard Main View

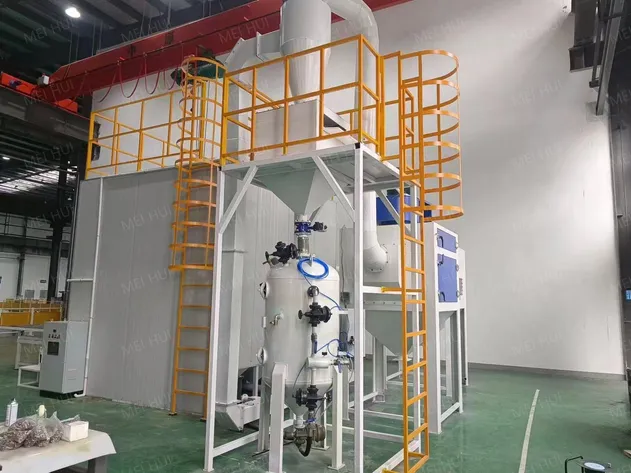

Equipment Side View

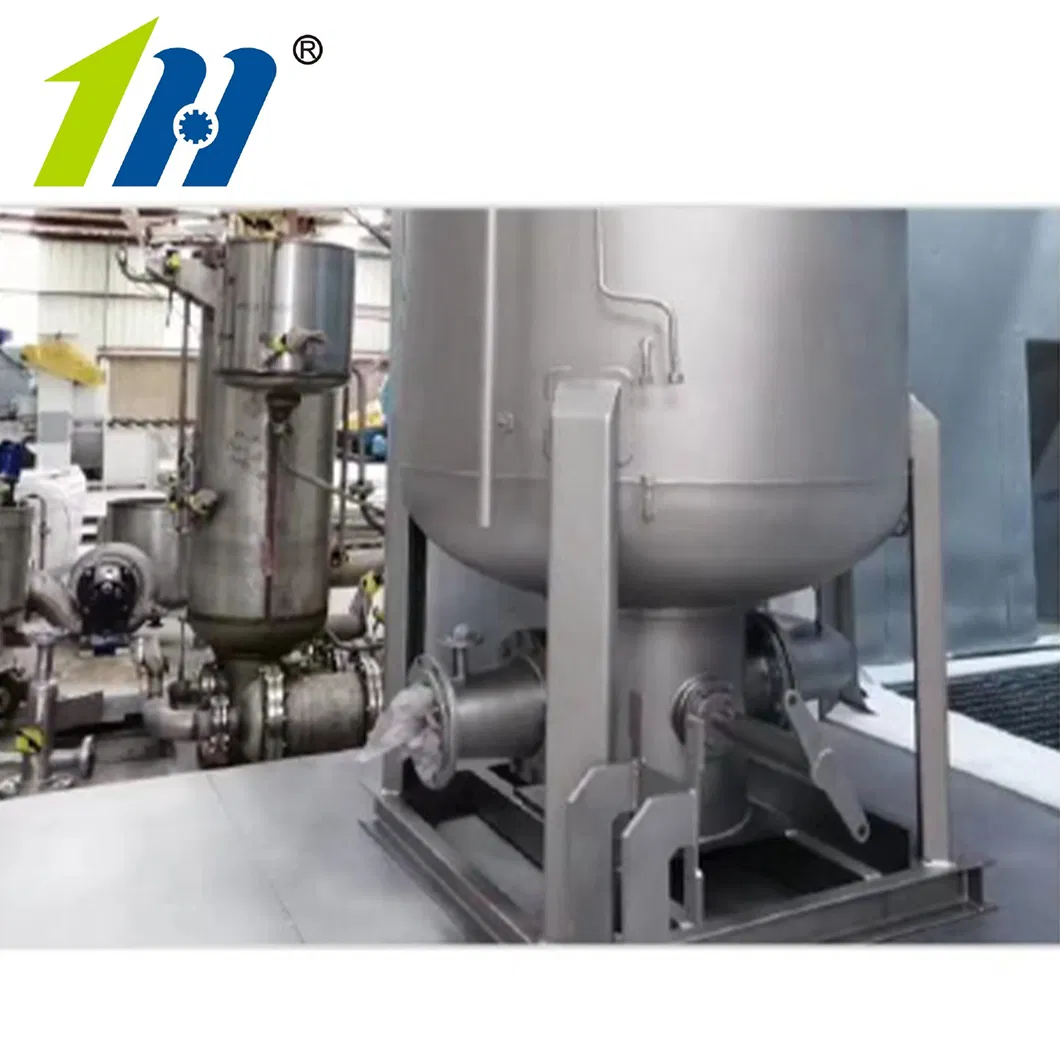

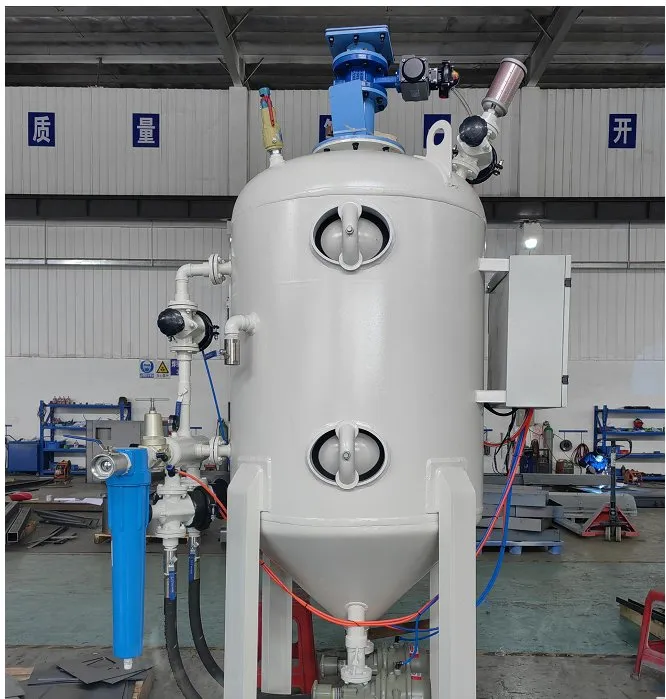

Internal Component Detail

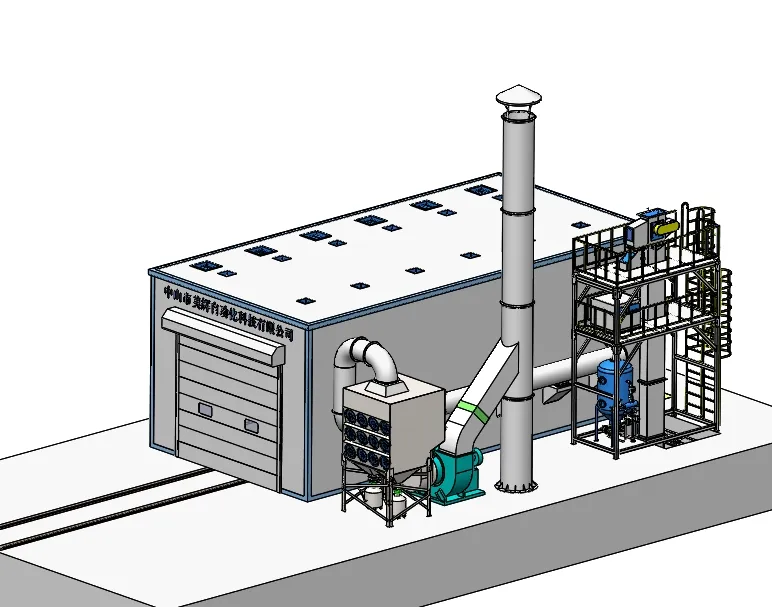

Advanced Engineering Design

Surface Treatment Solutions

Key Features & Technical Advantages

♻️ Efficient Recycling

Combined sand material recycling method suitable for various media, ensuring cost-effectiveness.

🛡️ Eco-Friendly

Dust suppression circulation with upper intake and bottom suction ensures a clean working environment.

⚙️ PLC Control

Centralized human-machine interface with interlocking control for safety and ease of operation.

🏗️ Easy Installation

Small footprint with modular light steel frame design. No deep excavation required.

Automated scraper conveyor system eliminates manual cleaning.
Wear areas feature standard replaceable modules for low maintenance.

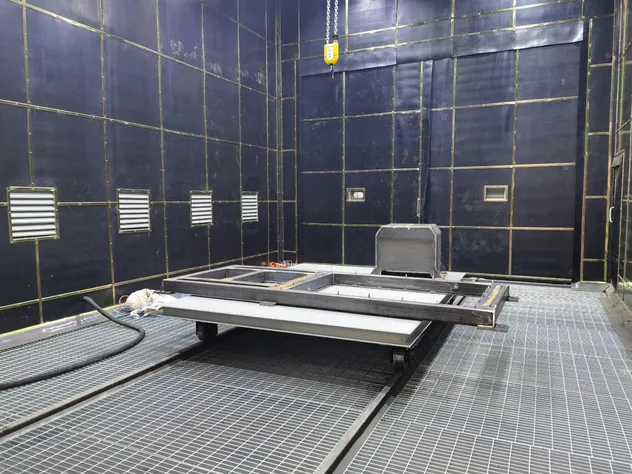

3mm protective rubber lining inside the chamber for long-term durability.
Meets or exceeds national and local environmental protection dust emission standards.

Technical Specifications

Parameter	MH-1280	MH-1210	MH-1212
Workpiece Width	800mm	1000mm	1200mm
Workpiece Height	100-450mm
Number of Guns	4-12	8-20	8-20
Transport Speed	0.2-5m/min
Material Recovery	Wind / Mechanical Automatic Recovery
Sorting Method	Rotary separator, precision screening
Control System	PLC Human-Machine Interface

Frequently Asked Questions

Q1: Can the equipment be customized for specific workpiece sizes?

Yes, the specifications of the sandblasting room can be fully customized according to the dimensions and requirements of the workpieces you need to process.

Q2: What industries typically use this equipment?

It is widely used in aerospace, automotive manufacturing, new energy sectors, household appliances, and heavy industrial machinery for surface treatment.

Q3: How does the dust removal system benefit the operators?

The system uses a downward dust suppression circulation, ensuring high visibility inside the chamber and keeping emissions below environmental requirements, protecting worker health.

Q4: What are the maintenance requirements for the recycling system?

The system adopts a modular design in key wear areas, making it easy to replace parts without heavy maintenance work. The pneumatic scraper also saves cleaning time.

Q5: Is deep excavation required for installation?

No, compared to traditional mechanical sandblasting rooms, our design does not require deep pit excavation, significantly saving initial construction costs.

Q6: What types of sandblasting methods are supported?

The equipment supports various methods including pneumatic sandblasting, high-pressure sandblasting, and wet sandblasting depending on the configuration.
