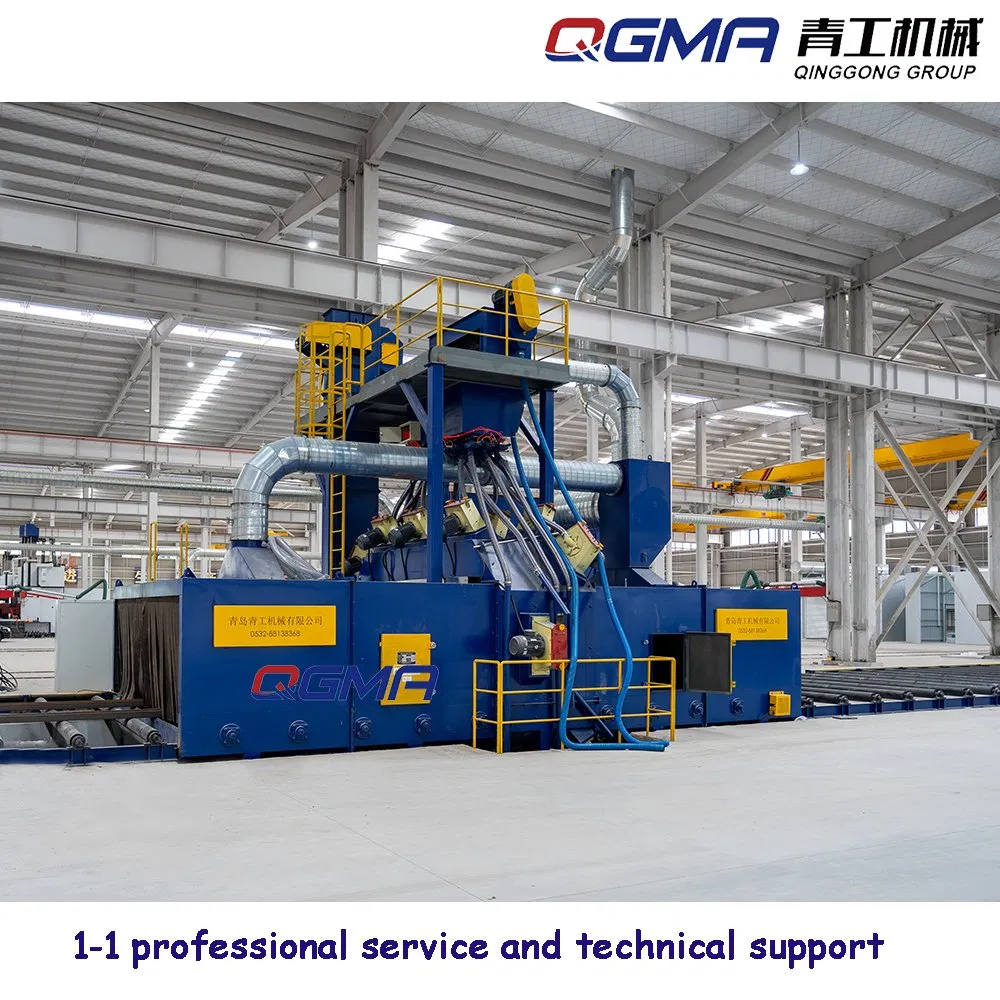

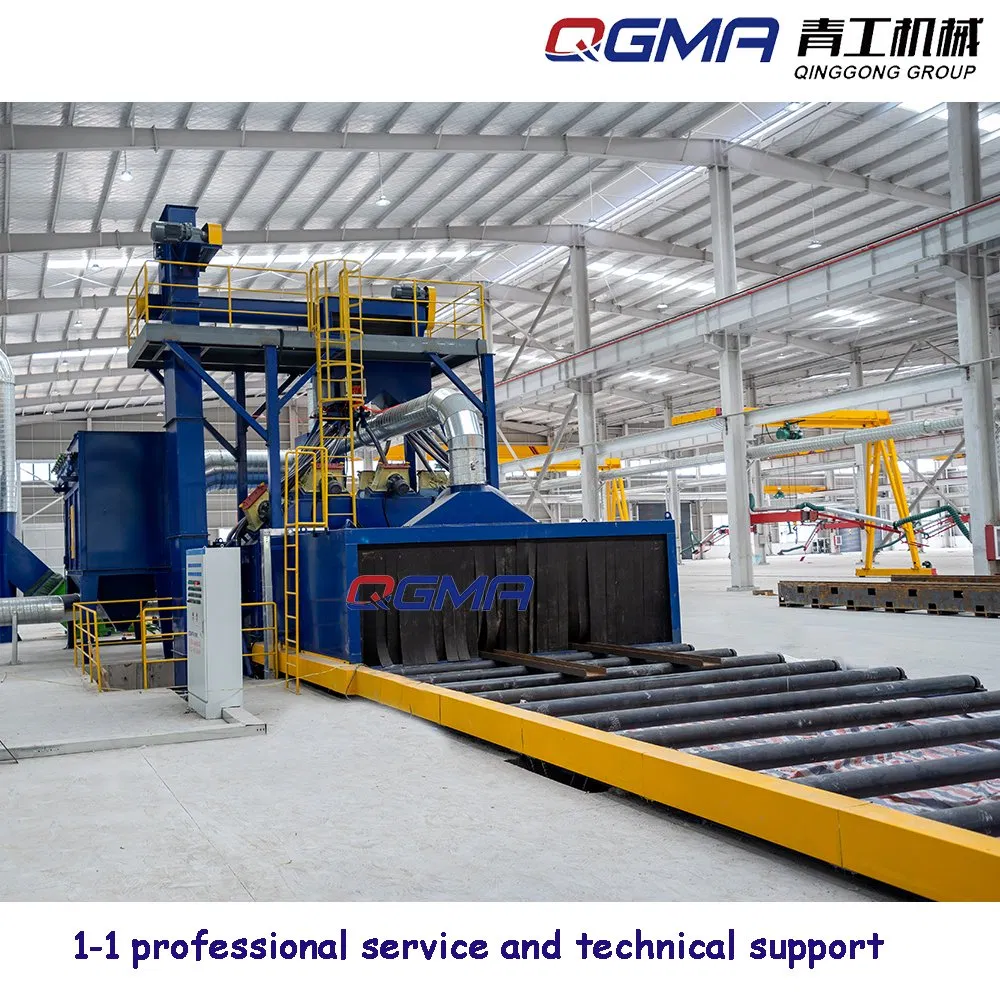

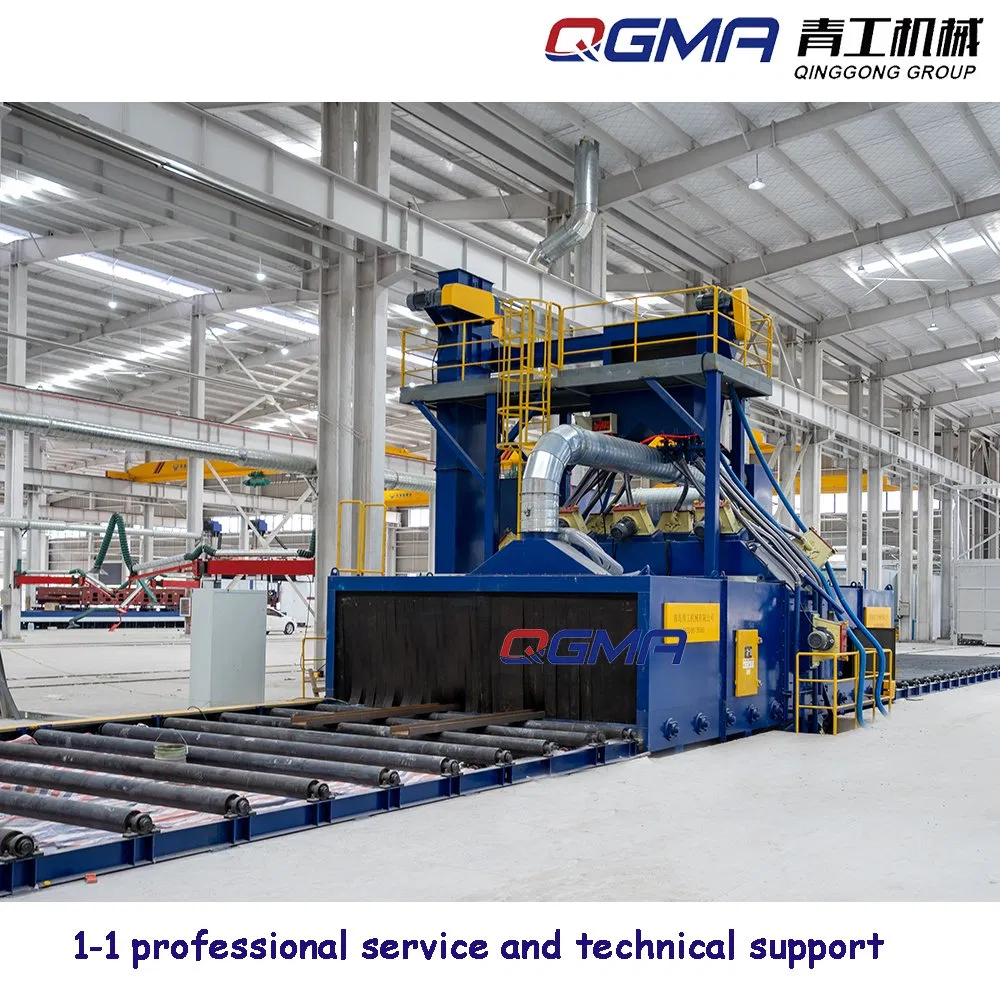

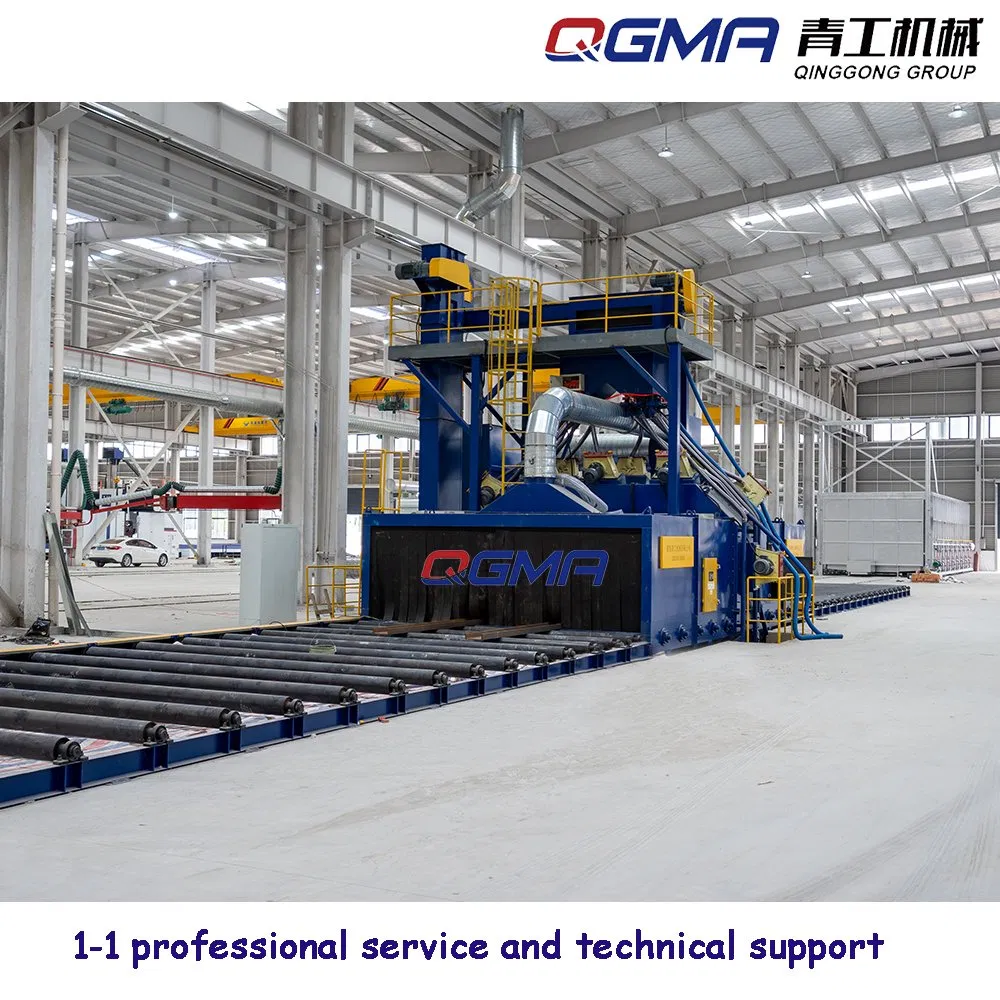

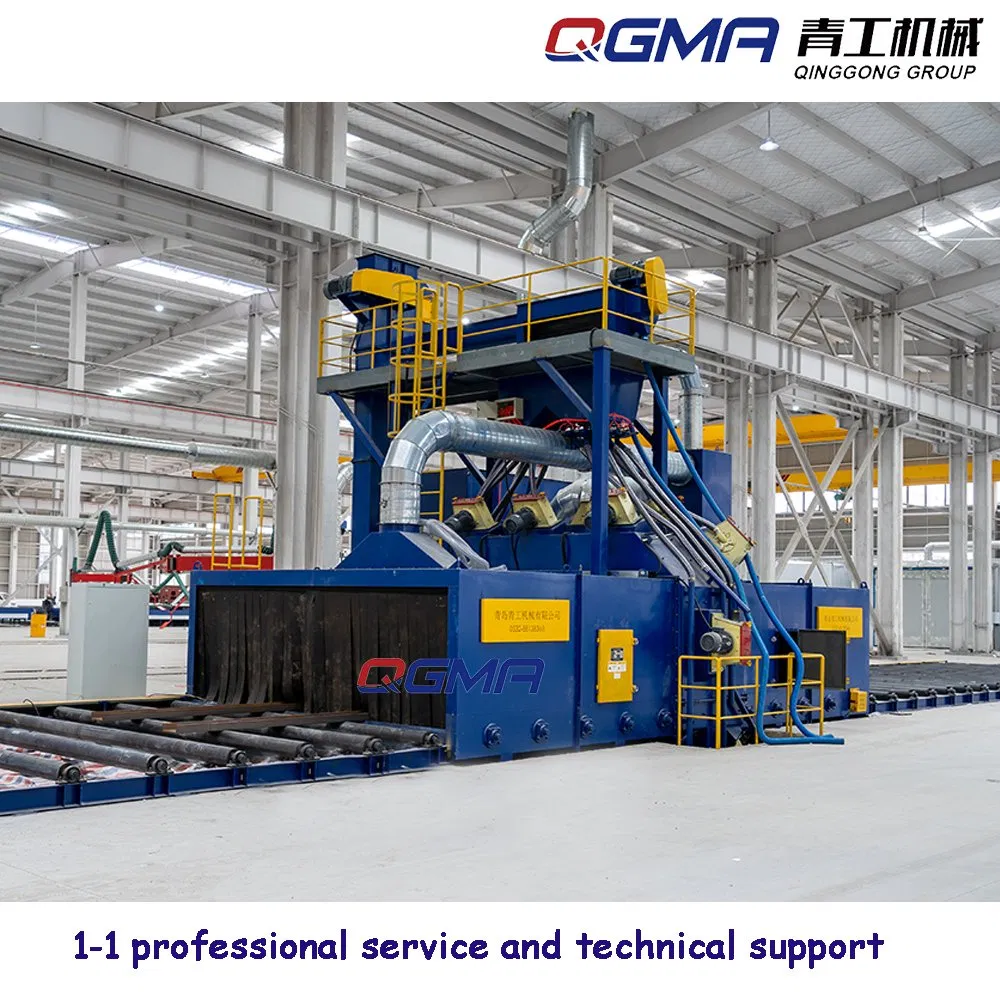

Steel Plate H Beam Structure Roller Conveyor Automatic Shot Blast / Blasting Machine

1 / 5

Steel Plate H Beam Structure Roller Conveyor Automatic Shot Blast / Blasting Machine

Customization:	Available
After-sales Service:	Support
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.:

QGRB

Application:

Steel Industry

Fuel:

Electric

Type:

Catenary-Through Abrator

Cleanliness:

High Cleanliness

Automation:

Automatic

Certification:

CE, UR

Feature:

Rust / Corrosion Proof

Condition:

New

Dust Collector:

3-Level Cartridge Filter Type

Blast Effect:

SA2.0-2.5

Blast Speed:

0.5-2.5m/Min

Loading Capacity:

1-2tons/M

Roughness:

40-75um

PLC System:

Siemens/ Omron

Touch Screen:

Siemens

Product Description

The roller conveyor shot blasting machine is a pass-through automatic shot blasting equipment. It is mainly used for surface rust cleaning and stress relief of various steel workpieces to enhance coating adhesion, improve fatigue resistance, and extend service life.

Cantilevered centrifugal blast turbines provide high blasting speeds and large abrasive flow rates, significantly improving cleaning efficiency. It is equipped with a high-efficiency dust collector and an intelligent PLC system for full automation.

Main Applications

Surface Cleaning
Corrosion Removal
Paint Stripping
Rust and Heat Scale Removal

Suitable Workpieces

Steel plates and H-beams
Steel tubes and rebars
Complex steel structures and pipes

Key System Components

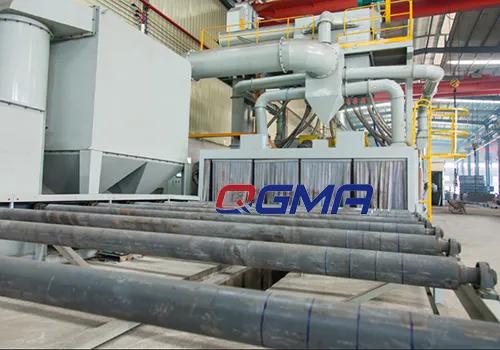

1. Roller Conveyor System: Includes inlet, blasting chamber, and outlet sections. Features frequency conversion stepless speed control. The rollers are protected by replaceable wear-resistant sheaths.

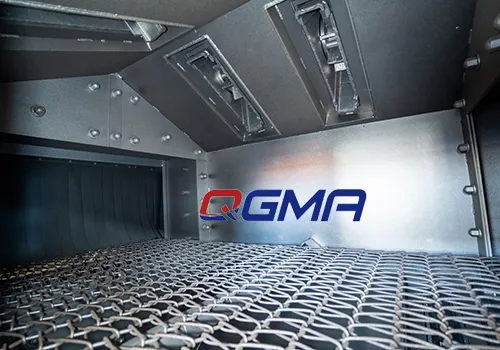

2. Blasting Chamber: Constructed from high-quality steel with Mn13 rolled guard plates for protection. High impact toughness design utilizes reflected kinetic energy to improve cleaning efficiency.

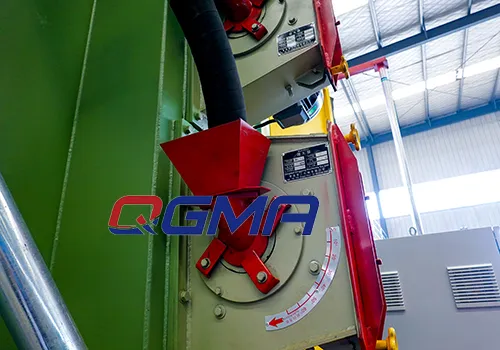

3. Blast Turbines: Advanced technology increases efficiency by 20% while saving 20% in energy consumption. High-precision CNC machining ensures balance and low noise operation.

Technical Parameters

Type (Unit: mm)	QGX600	QGX1200	QGX1200L	QGX1500	QGX1800	QGX2000
Effective Blasting Width	600	1200	1200	1500	1800	2000
Entrance Dimension (WxH)	800×1400	1400×1600	1400×2000	1700×1600	2000×1700	2200×2400
Work Speed (Sa2.5 ISO)	0.5~3 m/min	0.5~3 m/min	0.5~3 m/min	0.5~3 m/min	0.5~3 m/min	0.5~2 m/min
Wheel Number × Power (kW)	8×7.5/11	8×11/15	8×11/15	8×11/15/18.5	8×11/15	12×11/15/18.5
Abrasive Filling Capacity	4000 kg	4000 kg	4000 kg	4500 kg	8000 kg	11000 kg
Processed Workpiece Length	1200~12000	1200~6000	1200~12000	3000~12000	2400~12000	2400~18000

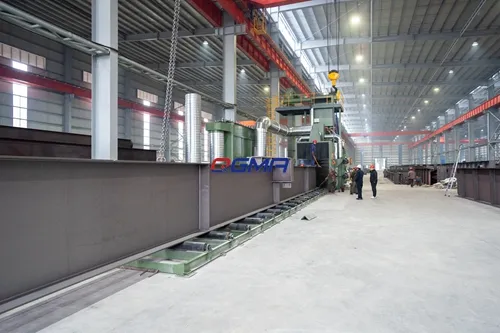

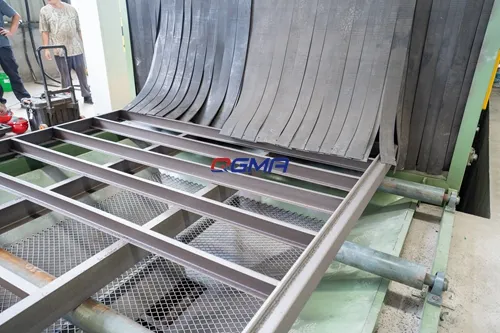

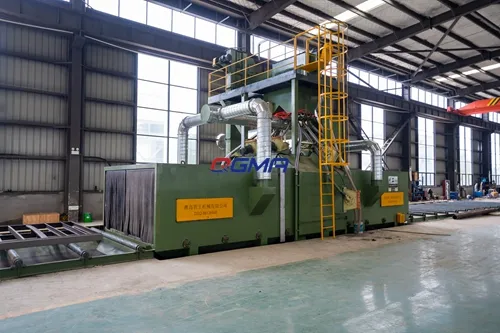

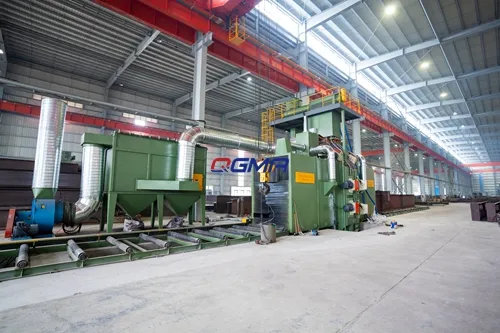

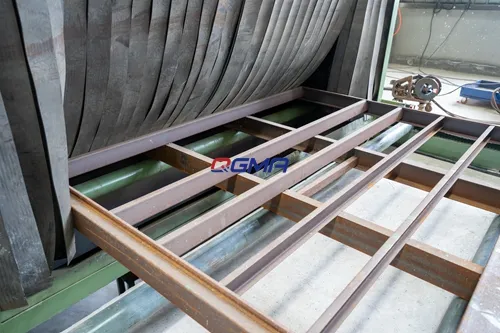

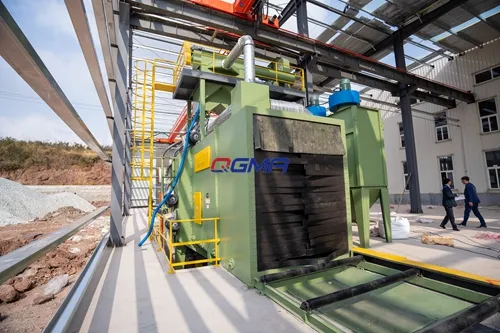

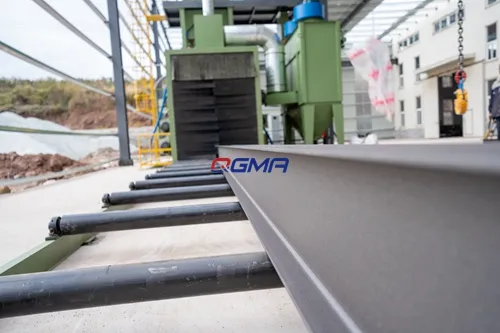

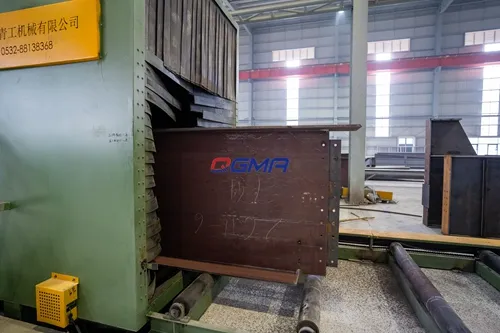

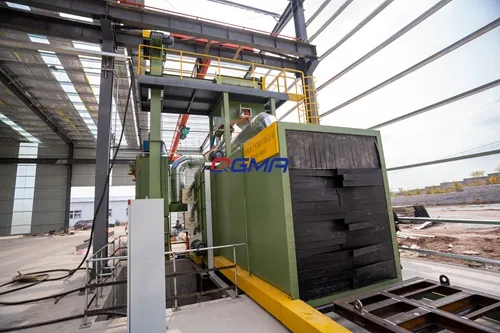

Detailed Photos

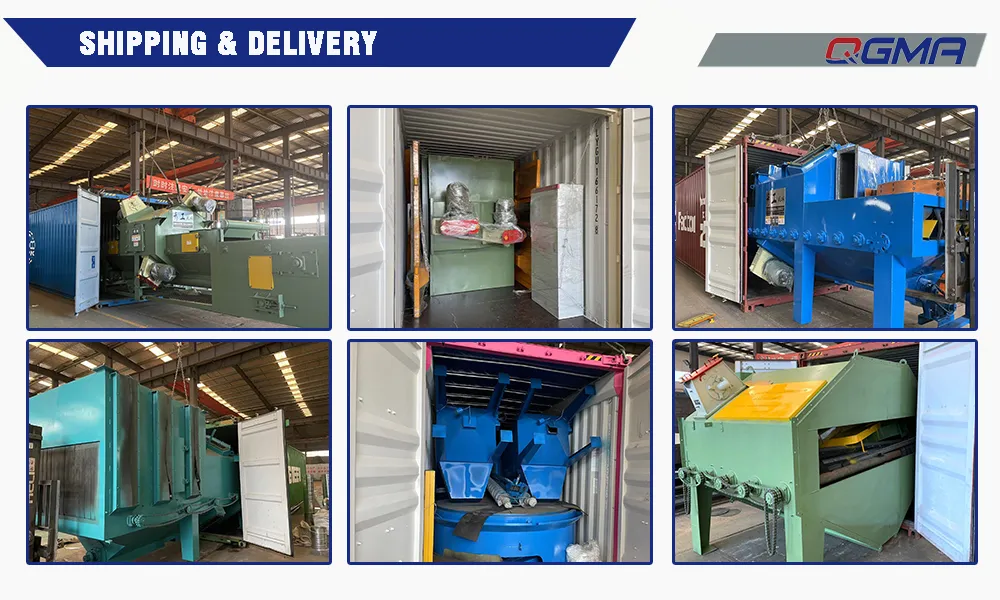

Packaging, Shipping & After-Sales

Production Time: 40-60 days

Shipping Options: 20GP / 40HQ / 40OH / 40FR

Comprehensive Service Support

One-to-one after-sales installation service
Detailed video guidance for operation
Experienced installation engineer guidance on-site

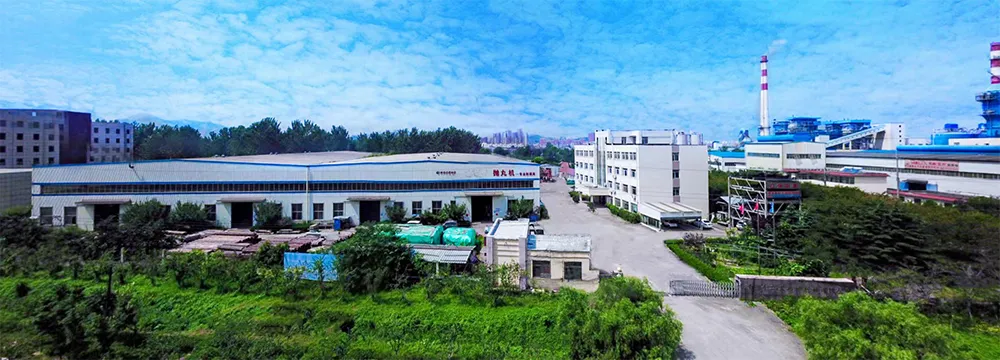

Professional Profile

Focused on efficient, intelligent, and environmentally friendly product development. We provide comprehensive solutions for shot blasting machines, preservation lines, and sandblasting rooms to global users. Our engineering team and manufacturing expertise contribute to high-performance standard and custom automatic blasting lines.

Frequently Asked Questions (FAQ)

1. How do I choose the right shot blasting machine type? Please provide information regarding your specific workpiece dimensions and required productivity. Our experienced engineers will suggest the most suitable configuration.

2. Which abrasive material should I use? Selection depends on the workpiece and desired finish. Common options include steel shot, cut wire shot, and stainless steel shot in various sizes.

3. Is a foundation pit required for installation? This depends on the machine size and your workshop layout. Small models may not require a pit, while larger systems often do.

4. How many workers are needed to operate the equipment? Usually 1 to 2 workers are sufficient to operate the automated system effectively.

5. What kind of installation assistance is provided? We offer 1-on-1 installation assistance and complete operation training on-site conducted by our professional engineers.

6. What is the after-sales service policy? We maintain a full stock of spare parts and offer regular after-sales maintenance and support services.
