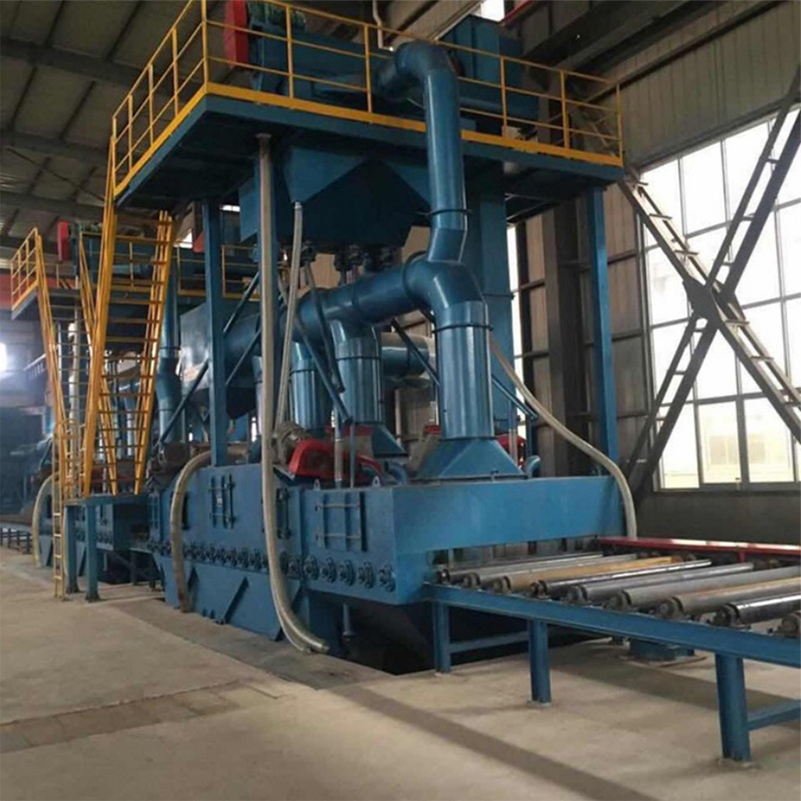

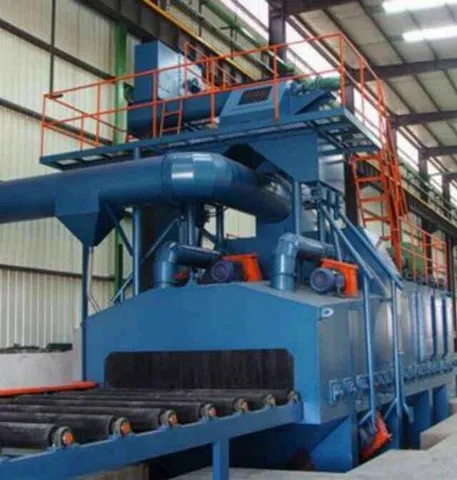

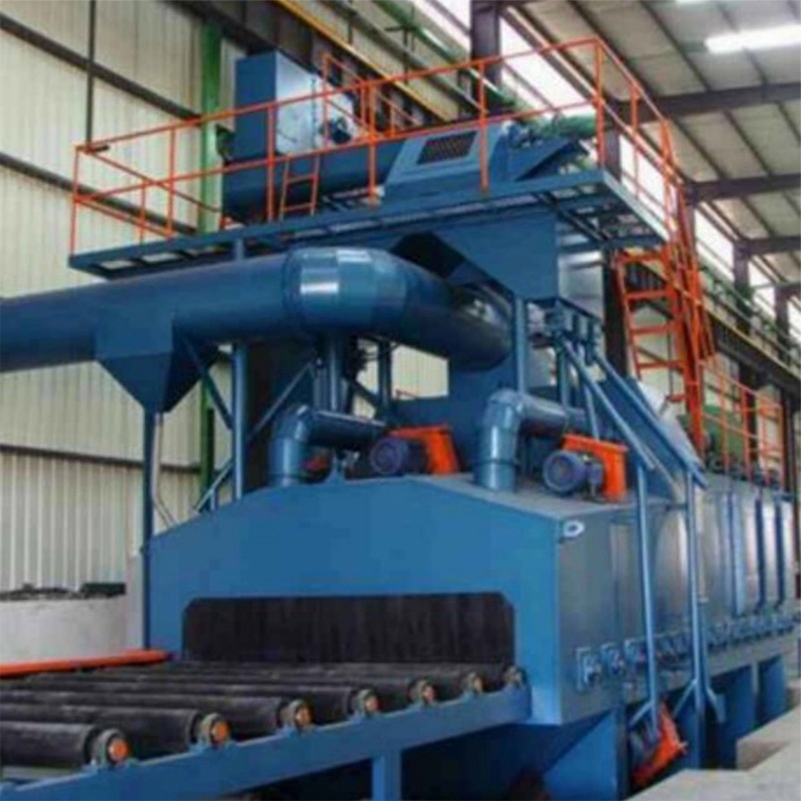

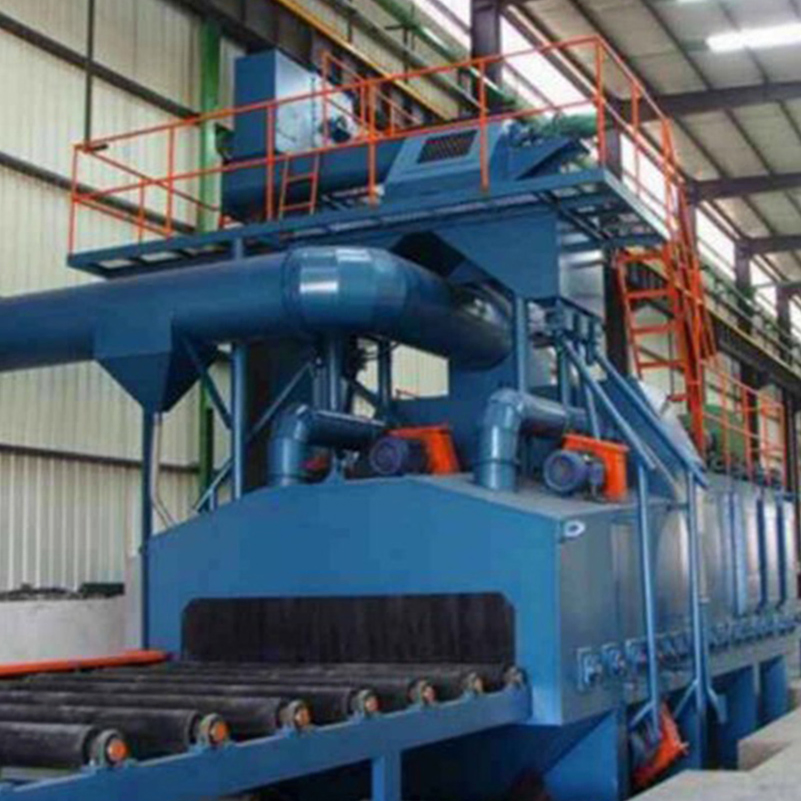

Roller Conveyor Shot Blasting Machine

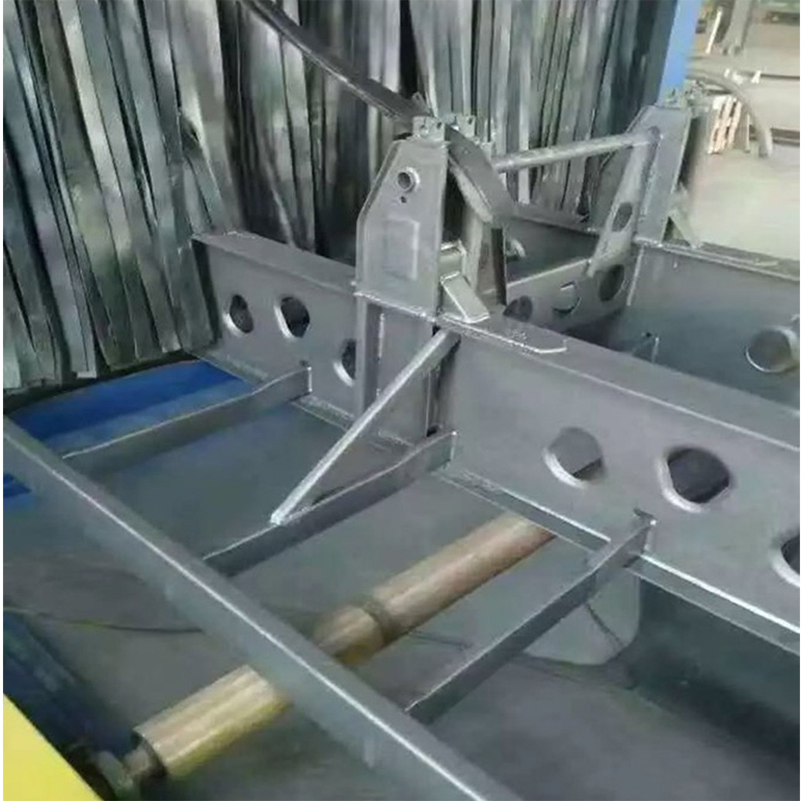

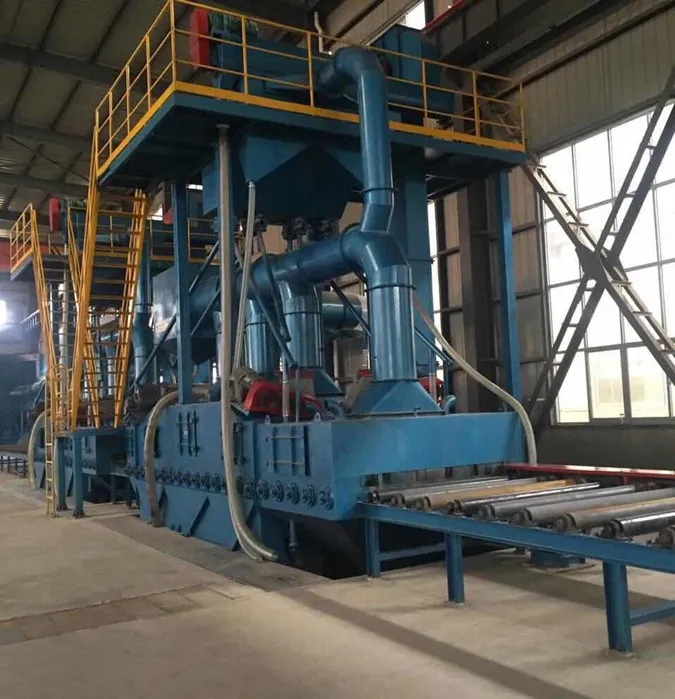

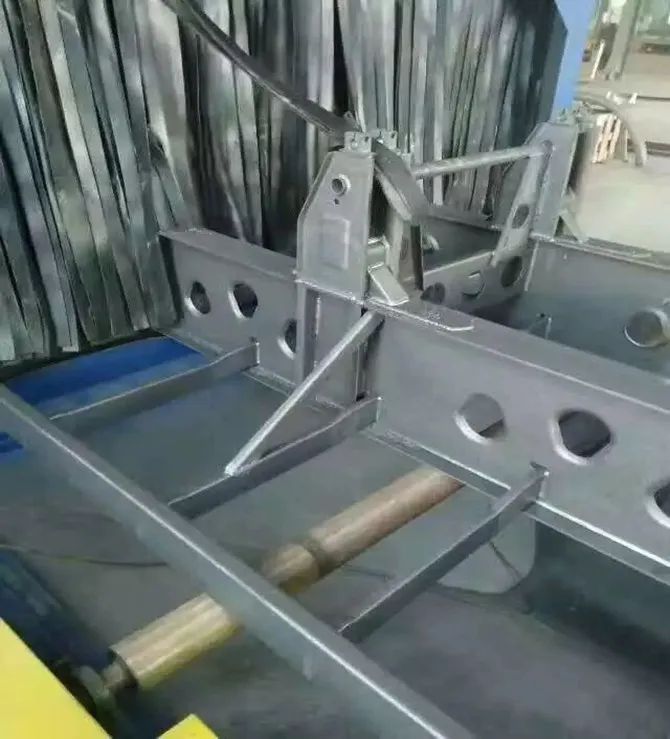

When workpieces enter the main shot blasting chamber via the roller conveyor mechanism, the shot blasters start operating in sequence. After shot blasting treatment, most of the oxide scale, dirt and other attachments on the workpiece surface are thoroughly removed, achieving a surface cleanliness grade of Sa2-Sa2.5. The entire workflow runs in a continuous and cyclic manner.
The pellets used in the shot blasting system are collected and processed by the recycling system for repeated use. Scattered pellets are conveyed to the bucket elevator through the lower longitudinal screw conveyor, lower belt conveyor and horizontal screw conveyor. The bucket elevator lifts the pellets and impurities to the high-efficiency BE separator. After treatment, dust and impurities are separated from qualified pellets, which are then stored in the hopper for subsequent supply.
To handle the large amount of dust generated, the machine is equipped with a high-efficiency pulse jet filter cartridge dust collector, featuring high removal efficiency and convenient maintenance.
| Item | QXY-1500 | QXY-2000 | QXY-2500 | QXY-3000 | QXY-4000 |
|---|---|---|---|---|---|
| Shot blasting machine units | 4~6 | 6 | 6 | 6 | 8 |
| Single motor Power | 15~22kw | 15~30kw | 15~30kw | 22~37kw | 22~37kw |
| Cleaning speed | 1 - 5 meters per minute (Grade Sa2.5) | ||||
| Electrical control | PLC controlled with Touch Screen, Variable frequency speed control | ||||
| Workpiece Width (mm) | 1000-1500 | 1000-2000 | 1000-2500 | 1000-3000 | 1000-4000 |
| Workpiece Thickness (mm) | 5-32 | 5-32 | 5-32 | 5-60 | 5-60 |
| Roller conveyor load | 1 - 1.5 T/m | ||||

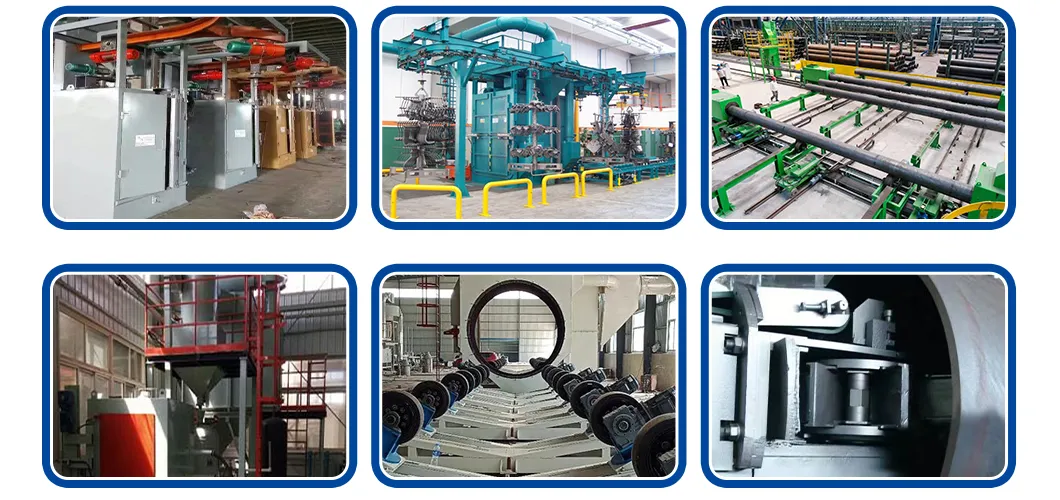

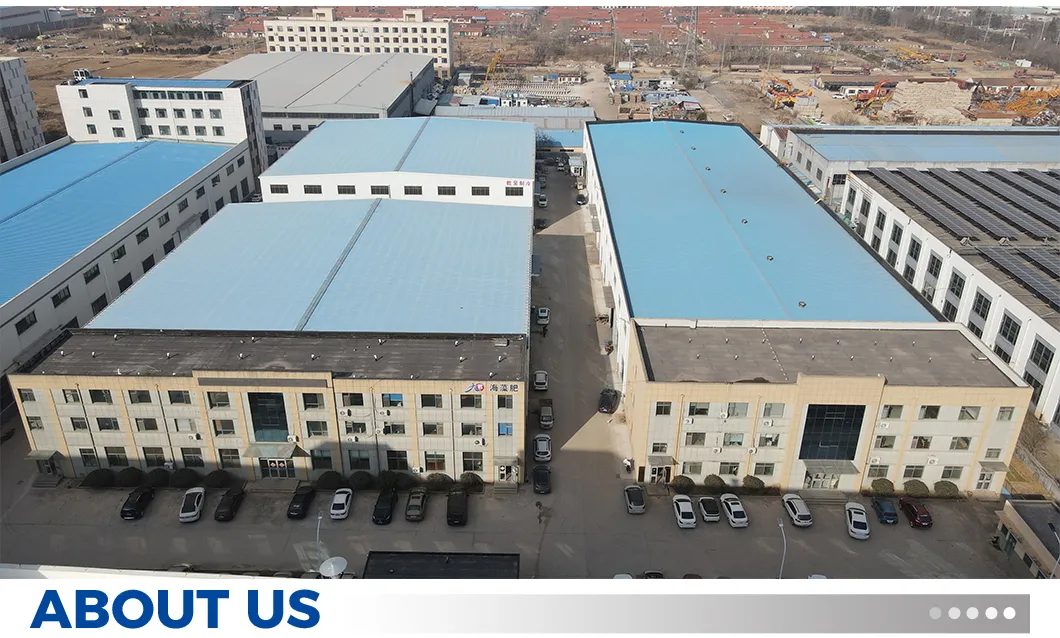

We are a leading manufacturer specializing in automated shot blasting machines and surface treatment equipment. With over 20 years of experience, we provide complete solutions for surface cleaning, rust removal, and coating preparation. Our product range includes mixing, cleaning, and dust collection equipment with nearly 20 different models designed to meet diverse industrial needs.
Our operations are certified under ISO 9001:2015 and comply with EU Machinery Directive 2006/42/EC (CE certification standards EN ISO 12100:2010, EN 60204-1:2018). We ensure fast and cost-effective delivery to clients across the globe through our strategic logistics network.
