Blatrixo Machine
Blatrixo Machine
| Model NO. | KF-1080ZL |
| Drive | Electric |
| Principle | Press-in |
| Control | Electric Control Cabinet |
| Layout | Horizontal |
| Automation | Automatic |
| Kind | Wet Sandblaster |
| Condition | New |
| Certification | CE, RoHS |
| Customized | Customized |
| Item | Rotary Drum Automatic Sandblasting Machine |
| Key Word | Automatic Sandblasting Machine |
| Origin | China |

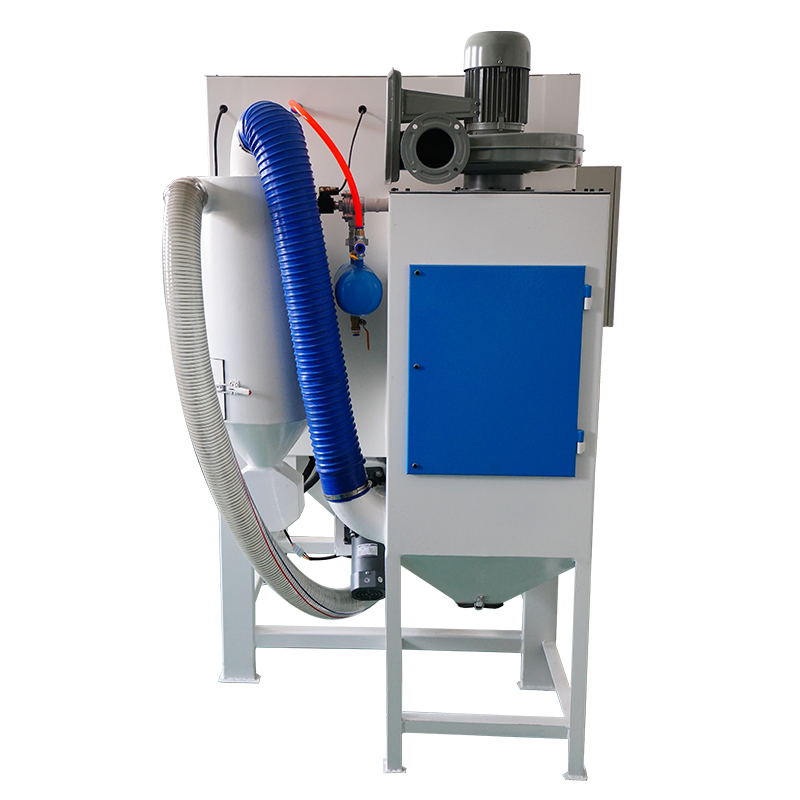

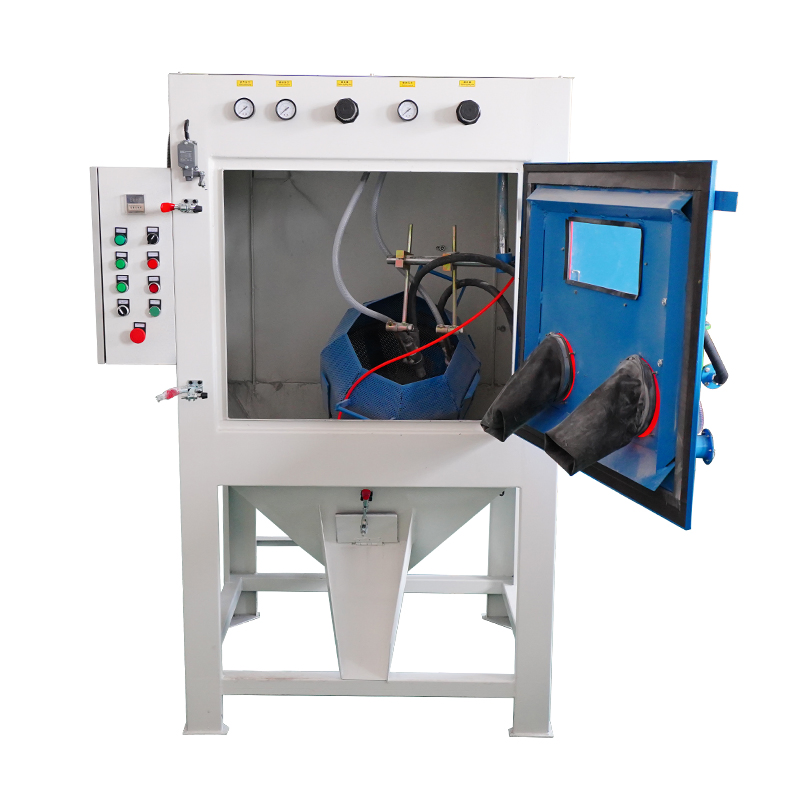

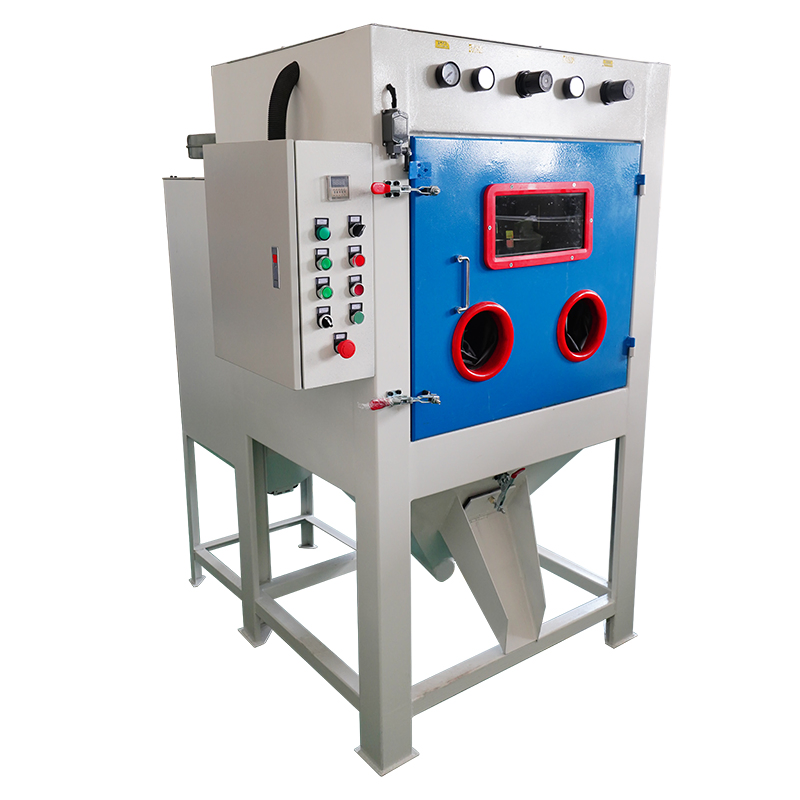

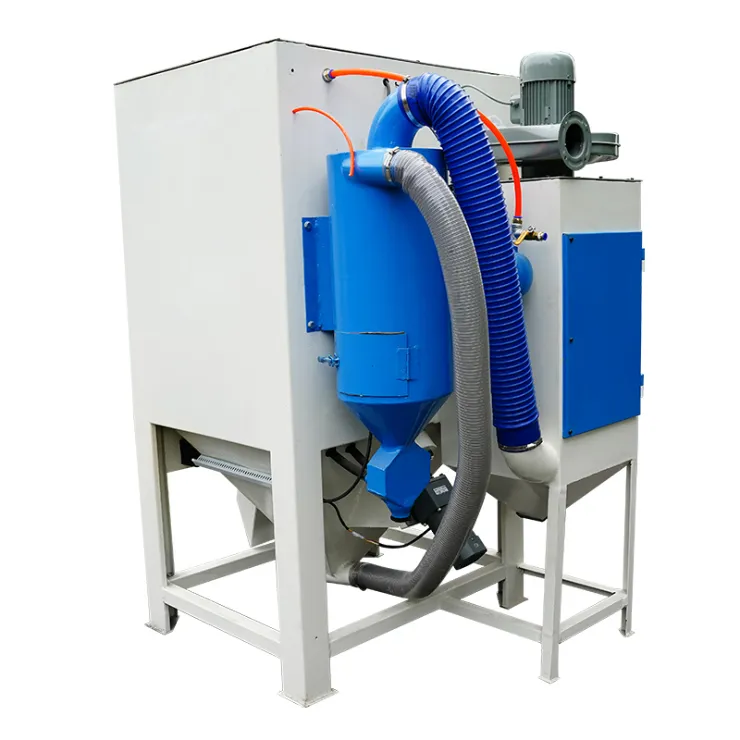

This Tumble Sand Blasting Gun System is specifically designed for batch processing small components such as zipper heads, screws, small hardware, gears, saw blades, and circular shafts. The integration of automatic tumbling and blasting ensures superior uniformity and consistent quality across all parts.

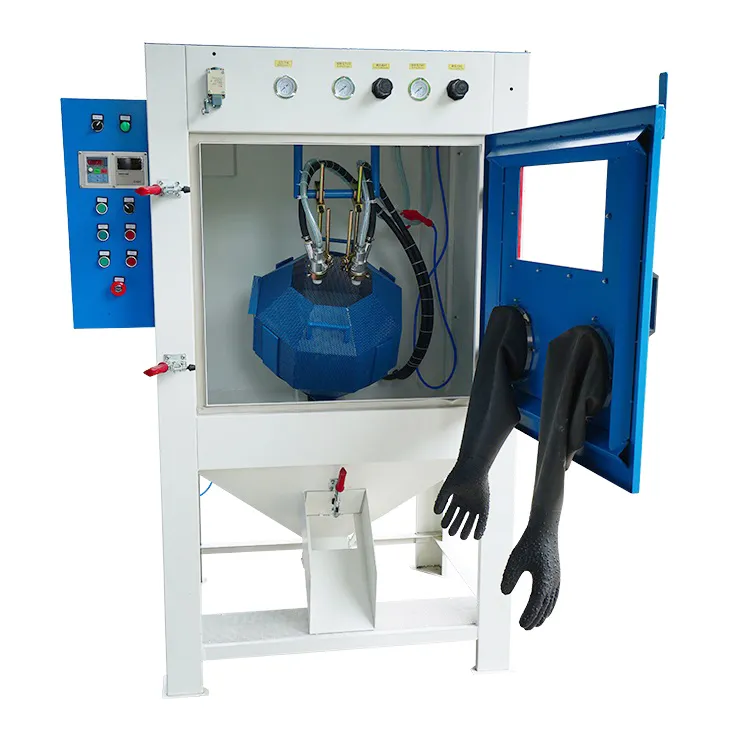

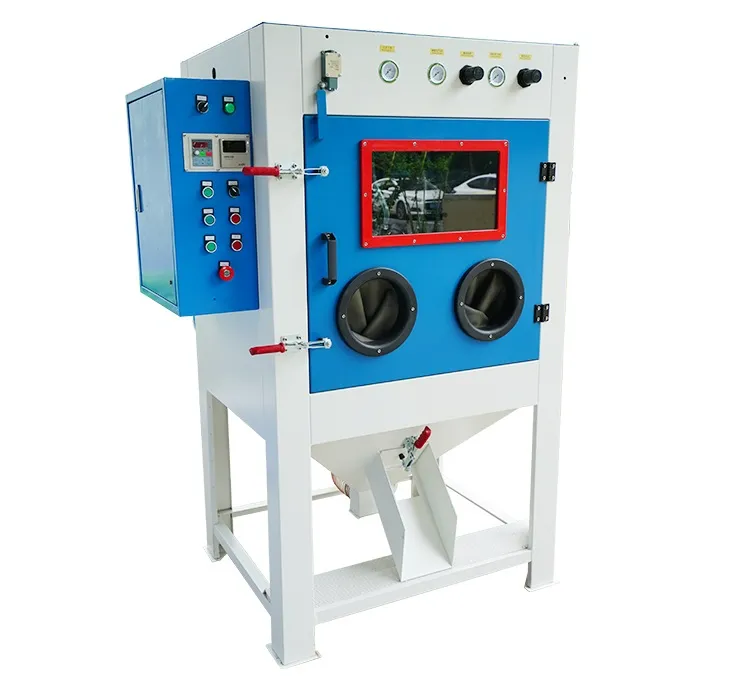

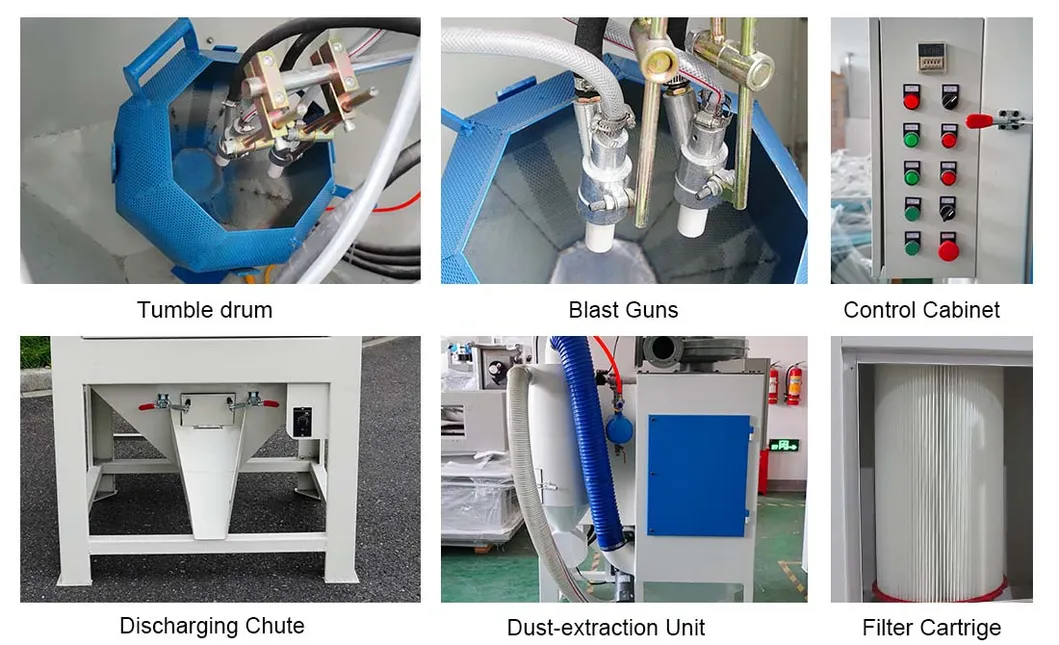

The system is engineered for ease of use. Operators simply load workpieces into the tumbling basket, close the door, and set the blasting duration. Once the dust collector is activated and the machine starts, all parts are processed automatically and evenly. Upon completion, parts are conveniently unloaded via the discharge chute.
| Model | KF-1080ZL |
| Outer Size | Length 1200 * Width 1250 * Height 1800mm |
| Working Chamber Size | Length 1000 * Width 800 * Height 800mm |
| Barrel Diameter | 500mm (Customizable) |
| Sandblasting Gun | 2 pcs with Boron Carbide Nozzle |
| Rotating Speed | 8 RPM |
| Barrel Motor | 380V / 50HZ / 400W |

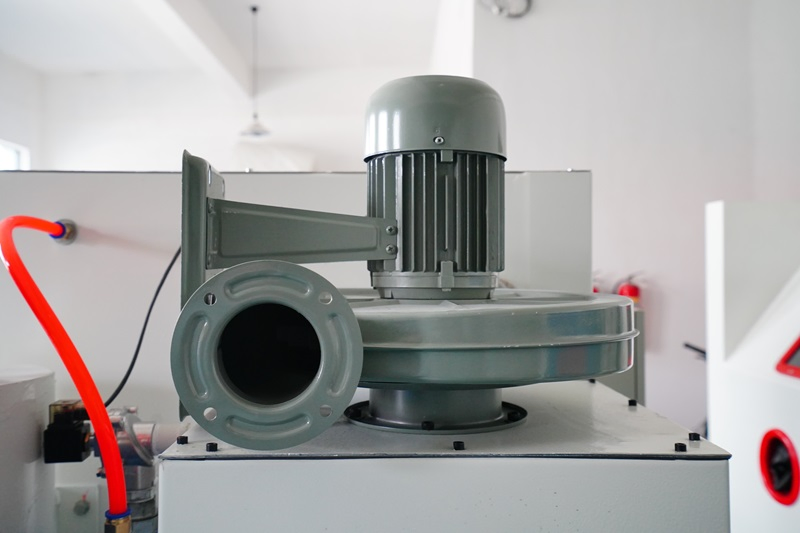

| Dust Collector Motor | 380V / 50HZ / 550W |
| Air Source Pressure | 2-7 bar (kg/cm²) |
| Compressed Flow | 1.5-2.0 m³/min |
| Shell Thickness | 2-5mm Coated Steel Plate |
| Total Power | 380V / 50HZ / 1100W |

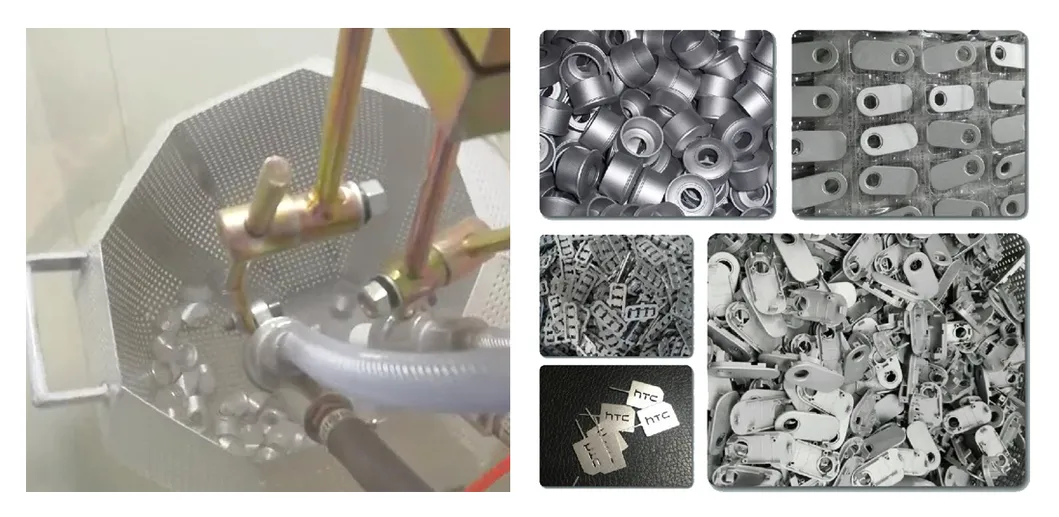

The Automatic Rotary Drum Sand Blasting Machine is ideal for treating various small workpieces:
Specializing in the research, development, and production of high-performance sandblasting equipment. Our range includes automatic conveyor machines, rotary indexing table sandblasters, wet sandblasters, and high-pressure systems. We are committed to providing superior quality products and efficient industrial solutions.
