Technical Specifications Overview
Production Capacity
1000 Sets/Year
Product Introduction

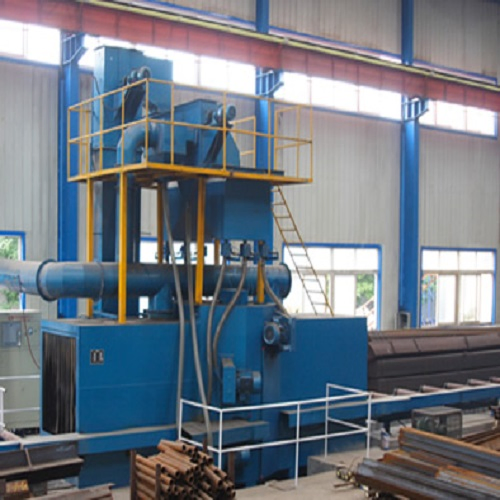

The shot-blasting machine is specialized equipment designed for cleaning the surfaces of steel structure welding workpieces, H-style steel, plates, and various profiles. It efficiently removes rust spots, scales, welding slag, and welding stress. This process enhances the surface lacquer quality and significantly improves the rot proofness of steel structures.
Key Advantages
◆
Computer Simulation Design: The arrangement of 8 impellers is calculated by computer mass ejection simulation to ensure overall coverage of the steel surface, including ends.
◆
High Efficiency: Adopts centrifugal peering shot-blasting with high ejection speeds, shortening cleaning time and achieving superior surface quality.
◆
Advanced Dedusting: Utilizes nano-meter fiber technology with a filtration efficiency exceeding 99.99% for 0.5μm particles. The air can be recycled or emitted safely indoors.
◆
Precise Separation: Full curtain type shot-sand separation system combines wind selection and screening to obtain clean steel shot from fragments and dust.
◆
Smart Control: Features international advanced projectile controllers and transducer-based roller speed adjustment for handling different shapes and complexities.
Product Parameters
| 1 | Chamber open size (W*H) | 2000*1000mm |
| 2 | Finish level | Sa2.5 (GB8923-88) |
| 3 | Roller conveying speed | 0.5~1.0m/min (Variable Frequency) |
| 4 | Surface roughness | 40~85 μ (Depends on abrasive) |
| 5 | Electric power supply | 380V, 3P, 50HZ or customized |
| Roller Conveyor |
Total length | 20000mm |
| Loading capacity | 1000KG/m |
| Driving power | 2*2.2kw |
| Shot Blasting |

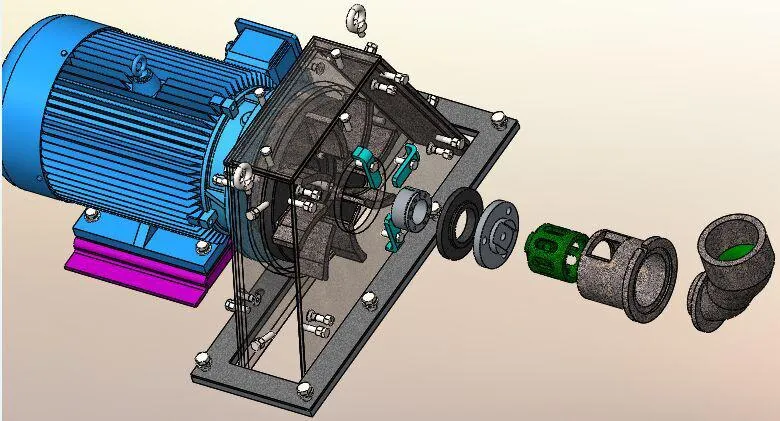

Wheel quantity | 8 Units |
| Power | 11 kw each |
| Speed | 76 m/s |
| Dust Removal |
Filtering area | 300m2 |
| Efficiency | ≥99.2% |
| Emission level | ≤100mg/m3 |
Service & Quality
■
Packing & Shipping: Professional export packaging with appropriate transportation modes selected based on requirements.
■
After-sale Service: Professional technical support and 12-month product quality assurance.

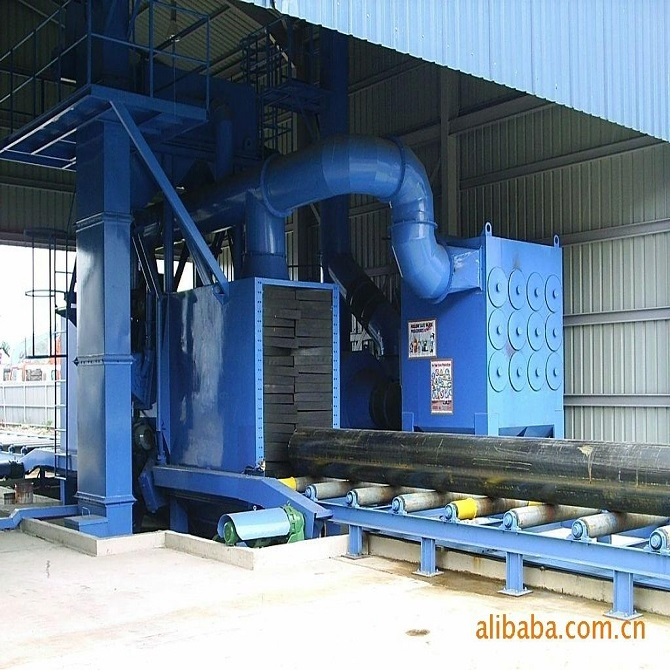

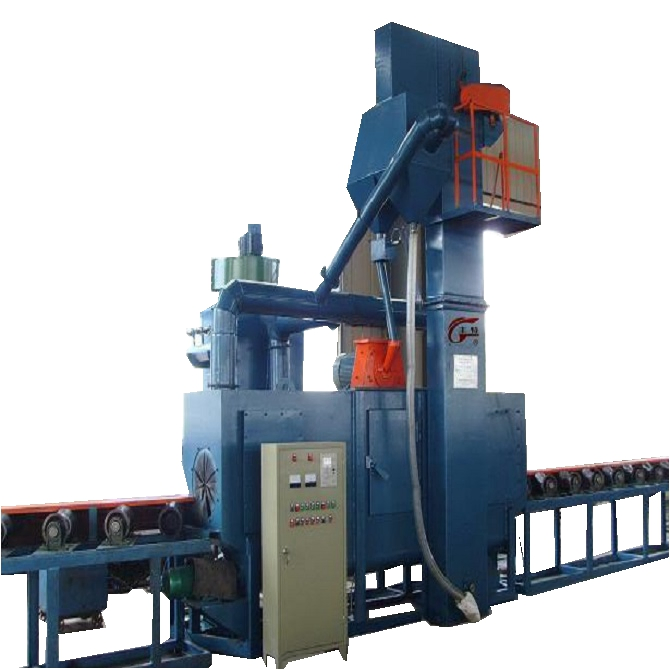

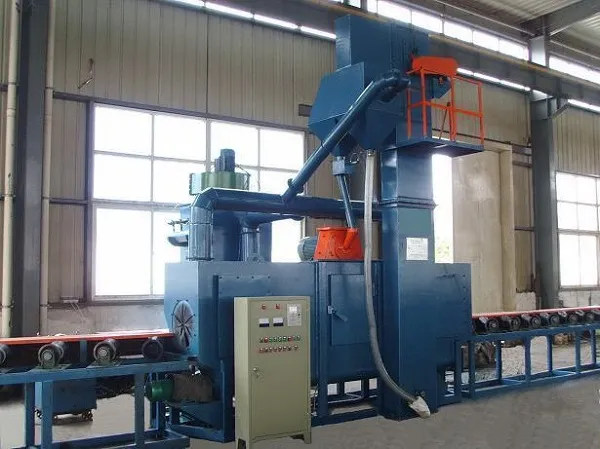

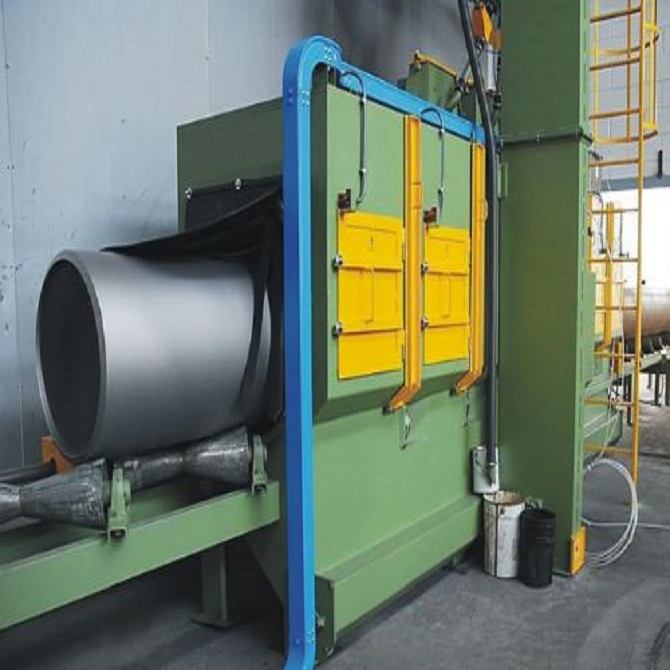

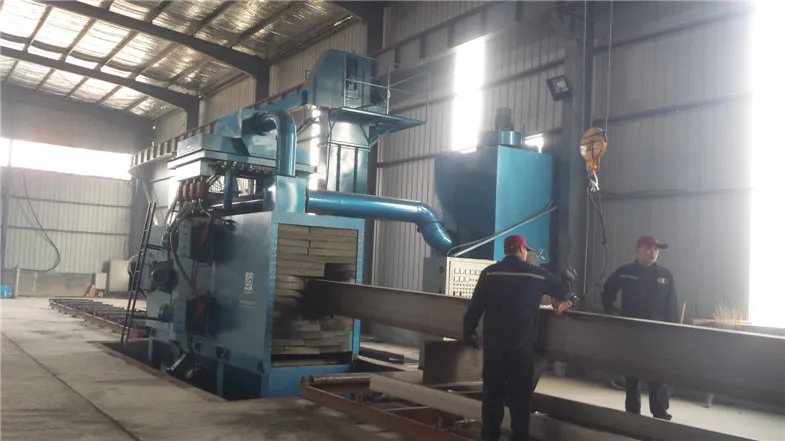

Product Gallery
Frequently Asked Questions
What types of workpieces can this machine clean?

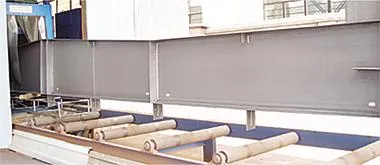

The machine is designed for cleaning steel structure welding workpieces, H-style steel, plates, and other various metal profiles.

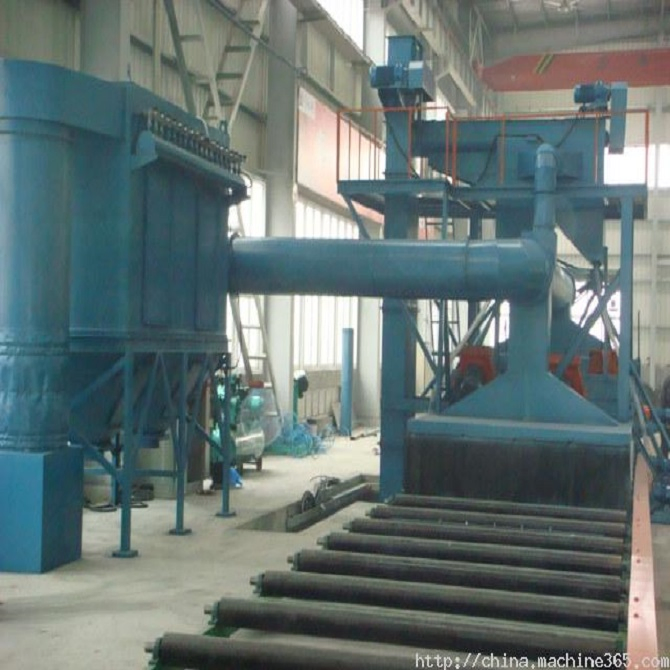

How does the dust collection system perform?
It uses a filtration-type back flushing system with nano-meter fiber technology. The efficiency is over 99.99%, and it can filter particles as small as 0.5μm.
Can the conveyor speed be adjusted for different parts?
Yes, the roller running speed can be adjusted online using a transducer to accommodate different specifications and shapes of steel.
What is the standard cleaning finish level?
The machine achieves a cleaning finish level of Sa2.5 according to the GB8923-88 standard.
What is the warranty period for this equipment?
The product comes with a standard 12-month warranty along with professional technical support.
How many blasting wheels are included in the system?
The system is equipped with 8 blasting wheel units, each with a power of 11kw, strategically placed for maximum coverage.
