1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale
1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale
1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale
1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale
1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale
1 / 5
1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale
1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale
1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale
1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale
1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale

1000bar 24 Inches Submarine Pipeline Surface Cleaning Equipment Hot Sale

Type: High Pressure Water Jets
Feature: High Pressure
Certification: CB, CE
Send Inquiry

Product Description

Basic Information

Model NO.
SP850
Condition
New
Customized
Non-Customized
Pressure
<1500bar
Applications
Surface or Tube Cleaning
Size
DN 500-2000mm
Transport Package
Wooden Case
Specification
STANDARD
Trademark
HBY
Origin
China
HS Code
8413302100
Production Capacity
50 Sets/Month

800-1500bar DN500-2000 Submarine Pipeline Surface Cleaning Machine

Introduction:

A leading manufacturer in the water blasting and jetting industry. For machines under 1000bar, all main parts are supplied internally. For machines above 1000bar (standard products: 15000psi/1000bar, 20000psi/1400bar & 40000psi/2800bar), we utilize expertise from German and US technical teams to provide high-performance solutions with competitive delivery times. Our products are widely implemented across various industrial fields:

◈ Surface prep & cleaning
◈ Stone Cutting & Pipeline cleaning
◈ Chimney & Cooling tower cleaning
◈ Fuel tank & Equipment maintenance
◈ Vessel & Undersea device cleaning
◈ Water jetting cutting & Fluid statics test

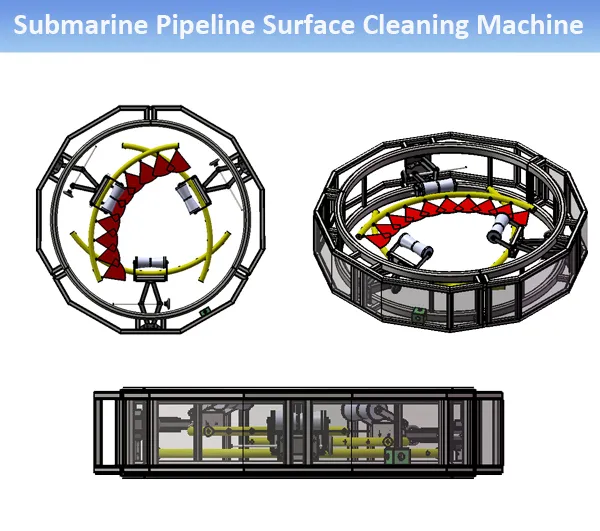

Submarine Pipeline Surface Cleaning Machine

Submarine Pipeline Surface Cleaning Machine

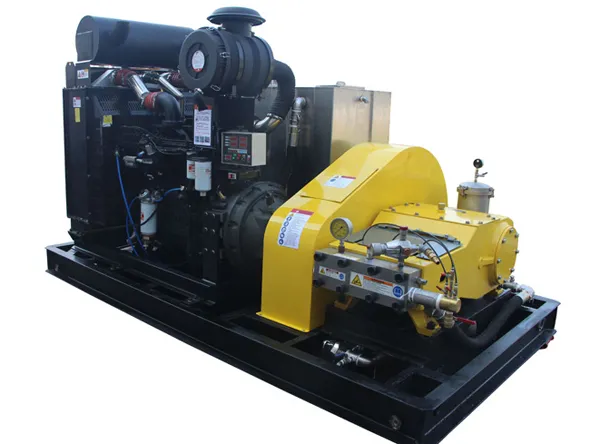

Diesel Engine Driving UHP Water Cleaning Machine

Diesel Engine Driving UHP

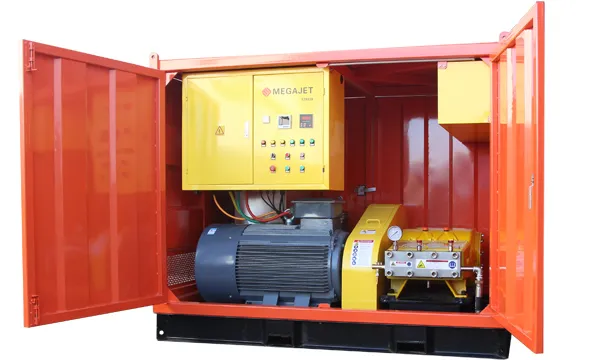

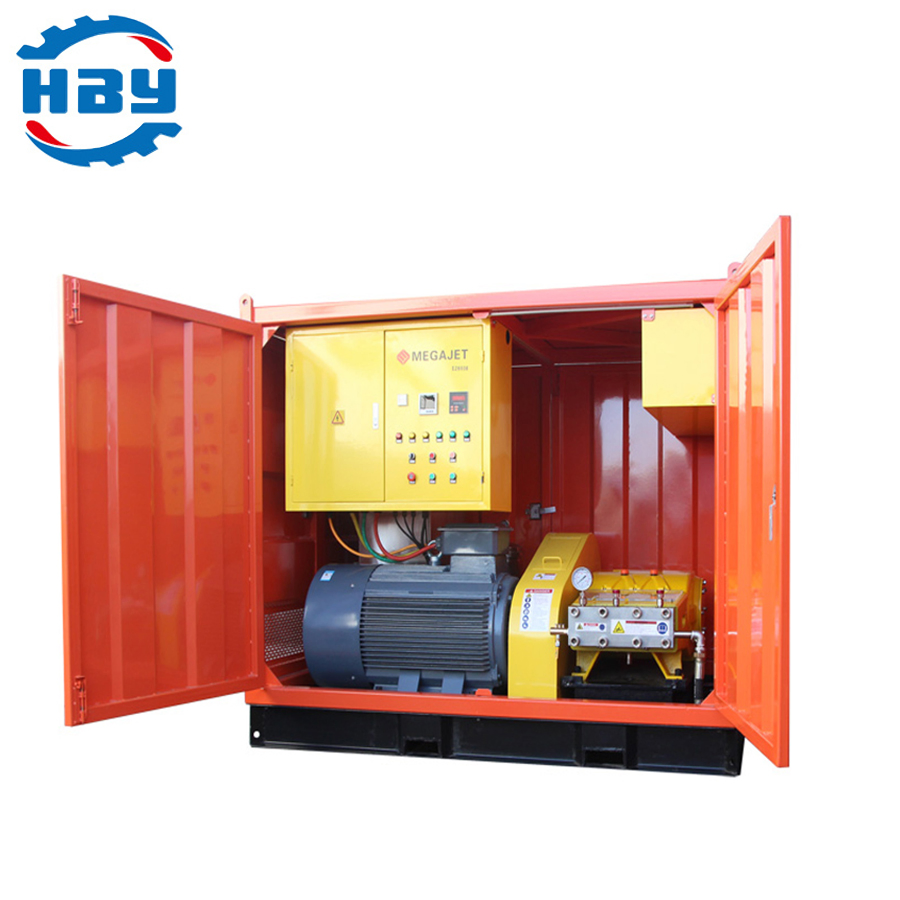

Electric Motor Driving UHP Water Cleaning Machine

Electric Motor Driving UHP

Main Specifications

Item Descriptions
Typical Fixing MethodSkid, Trailer, Container or Customized
Driving MethodMotor, Diesel Engine or Gasoline Engine
Standard PressureSurface, Tube or Pipeline Cleaning
Standard Flow Rate25L/min-125L/min
Input Power60Kw/75HP-350Kw/420Hp
Typical ApplicationsSurface, Tube or Pipeline Cleaning
Gun TypeDump Style, Shut-in Style or Foot Gun
HP Hose600bar - 3500bar
Nozzle TypeRotary, Banshee, Tornado, etc Stonage Supplied
Plunger Size#6, #7, #8, #9, #10, #11
Pressure Releasing MethodManual, Foot Gun or Pressure-adjustable Valve
Diesel Engine SupplierCummins or Customized

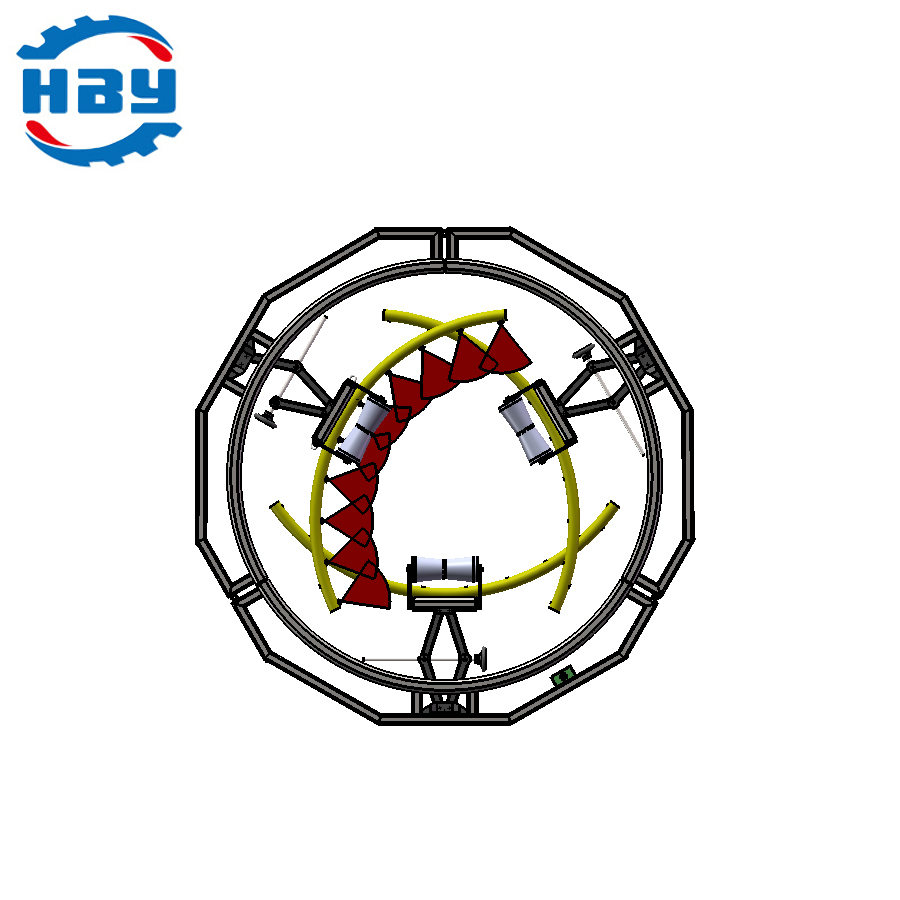

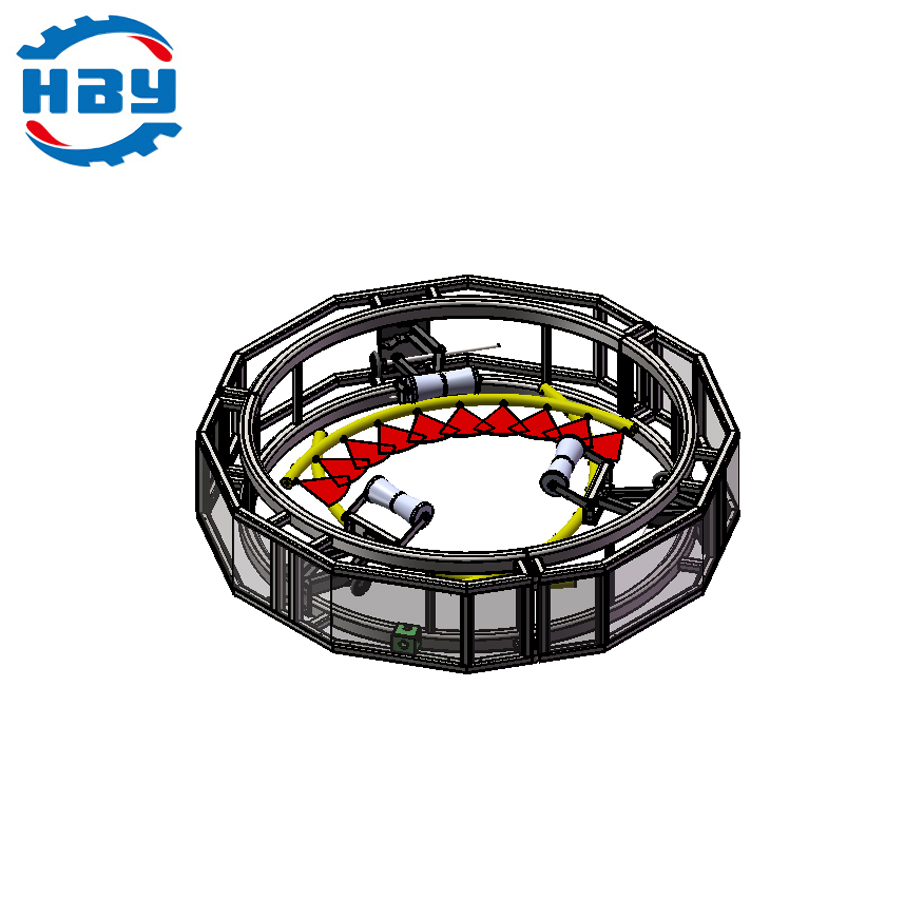

Marine Growth Removing Mechanism

Distance adjustable mechanism is a hand-controlled jack, adjustable distance is 100-350mm and can meet cleaning requirements for pipeline diameters from 20 to 40 inches.
Fan-shape nozzle hole diameter is 1mm and the best cleaning distance is 150mm (100-150 times' hole diameter).
Tension mechanism consists of rolling wheels and stretching springs, which can fasten the pipelines well while cleaning.
The HP water from HP pump will firstly enter into the 4-way valves and then distributed to 3 connection rods.
The total mechanism is a circle consisting of 3 branches and each 2 branches is connected by pins. 3 nozzles' rods are separated in 3 different layers, and thus will have no interference when changing pipelines' diameters.

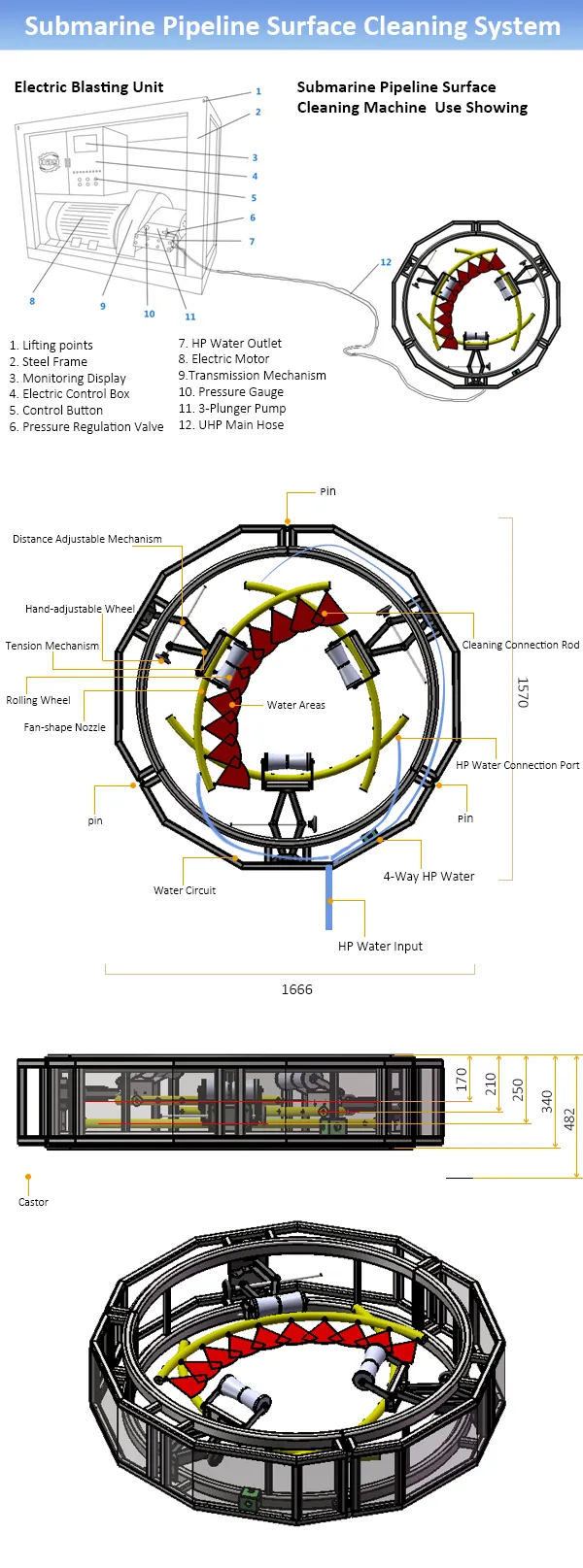

Marine Growth Removing Mechanism Detail

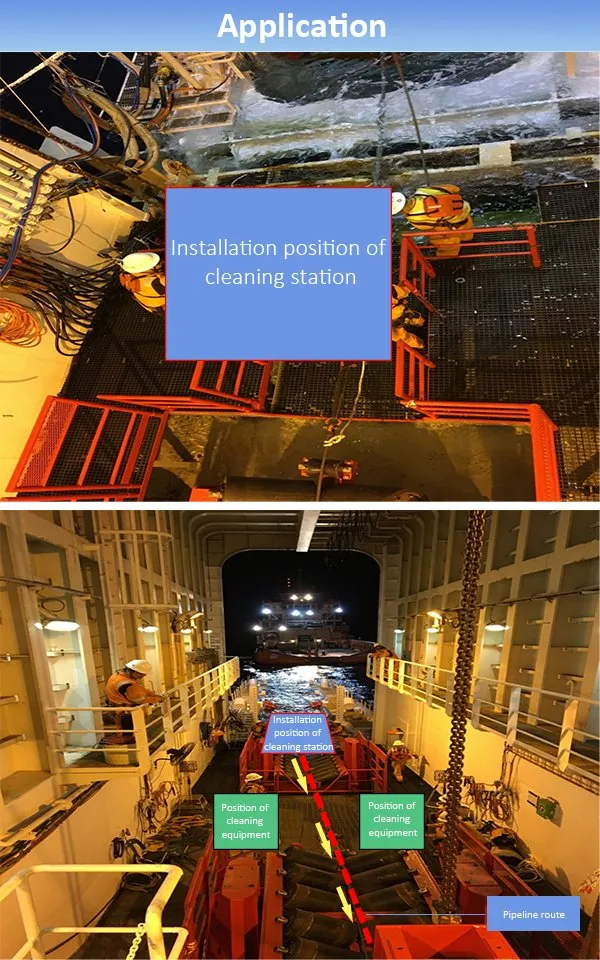

Cleaning Equipment Display 1

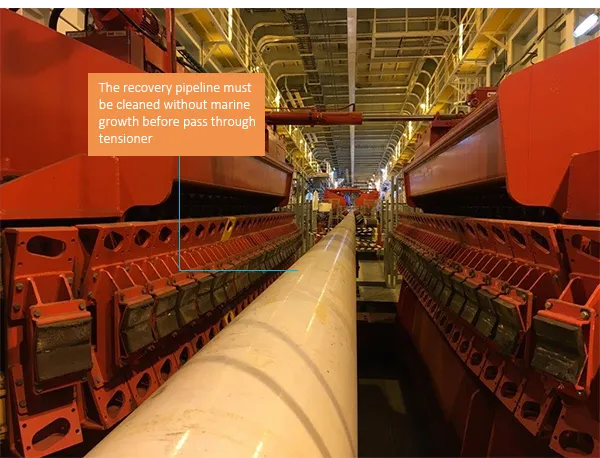

Cleaning Equipment Display 2

Frequently Asked Questions (FAQ)

What is the pressure range for the Submarine Pipeline Cleaning Machine?
The machine operates within a standard range of 800 bar to 1500 bar, depending on the specific cleaning requirements.
What pipeline diameters can this equipment handle?
This equipment is designed for pipeline diameters ranging from DN500mm to DN2000mm (approximately 20 to 40 inches).
What driving methods are available for these UHP cleaning machines?
We offer multiple driving options, including Electric Motor, Diesel Engine (typically Cummins), and Gasoline Engine.
How does the distance adjustable mechanism work?
It features a hand-controlled jack with an adjustable distance of 100-350mm to ensure optimal nozzle distance for different pipeline sizes.
What is the monthly production capacity for this model?
Our current production capacity for the SP850 and related models is approximately 50 sets per month.
What kind of nozzles are used for marine growth removal?
We use various nozzle types including Fan-shape, Rotary, Banshee, and Tornado nozzles, tailored to the specific hardness of the surface growth.
