Basic Specifications
Application
Pharmaceutical Cleaning
Type
Drum Blasting Machine
Cleanliness
High Cleanliness
Protection Liner
Mn13 Manganese Steel
Workpiece Weight
Less Than 65kg
Product Features & Advantages

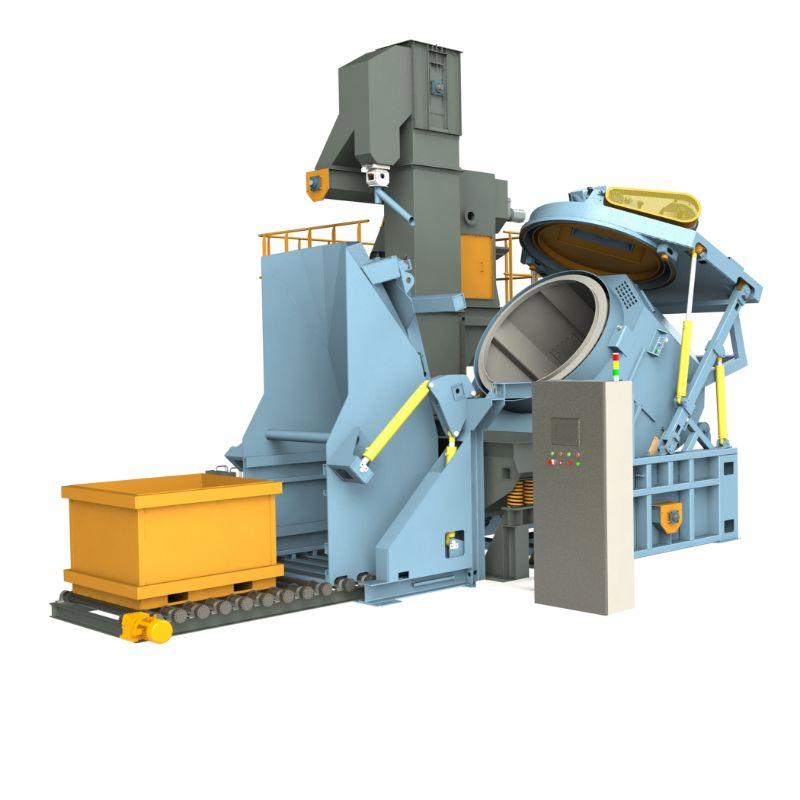

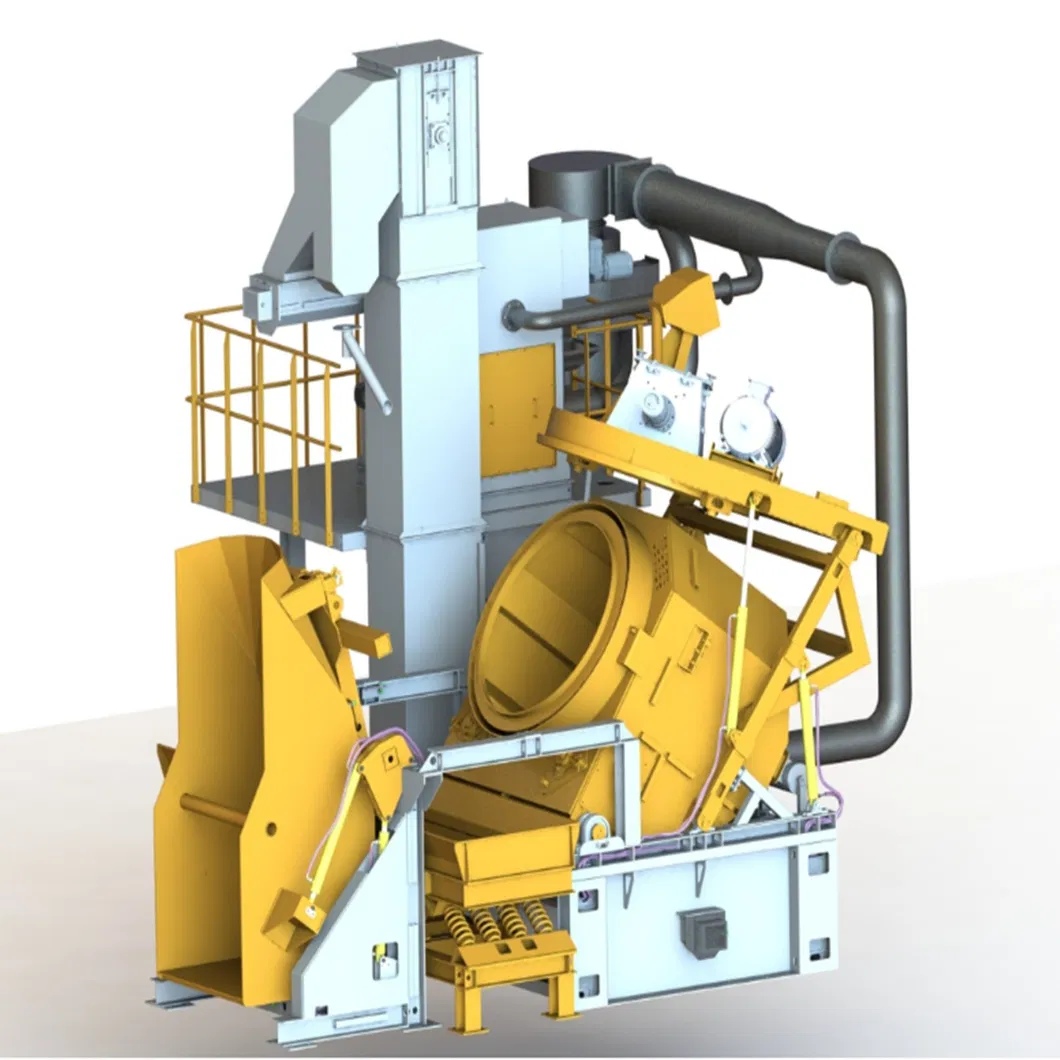

KT700-37 Multi-angle Drum Shot Blasting Machine
1
Polygonal roller design facilitates workpiece turnover and enhances cleaning effects.
2
Increased drum volume: loading capacity improved from 1.2 tons (0.6m³) to 1.8 tons (0.7m³).
3
Upgraded blasting power: Shot blaster increased from 30Kw to 37Kw.
4
Built-in roller system effectively prevents sand leakage common in traditional machines.
5
Dual lifting mechanism implemented to reduce overall installation height requirements.
6
Two-stage magnetic separation minimizes loss of wear-resistant components during cleaning.
7
Hydraulic-driven feeding mechanism and door lifting for exceptionally smooth operation.
8
Advanced hydraulic system with balancing valves for stable pressure regulation.
9
Real-time rotation detection mechanism monitors roller operations constantly.
10
Enhanced durability: Cylinder thickness increased to 12mm for a longer service life.
11
Detachable sand leakage orifice plate lowers long-term maintenance costs.
12
Optimized layout with platform and bin on one side for convenient maintenance.

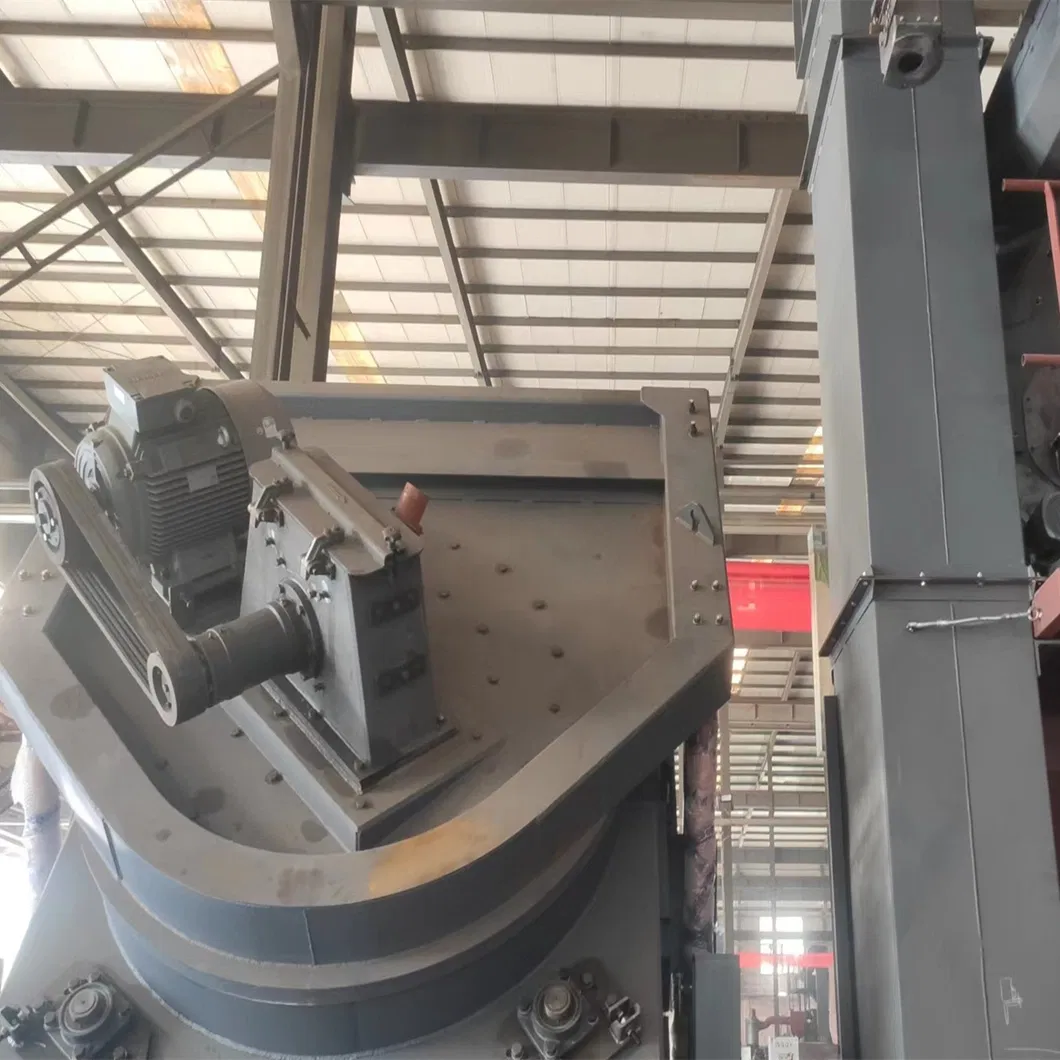

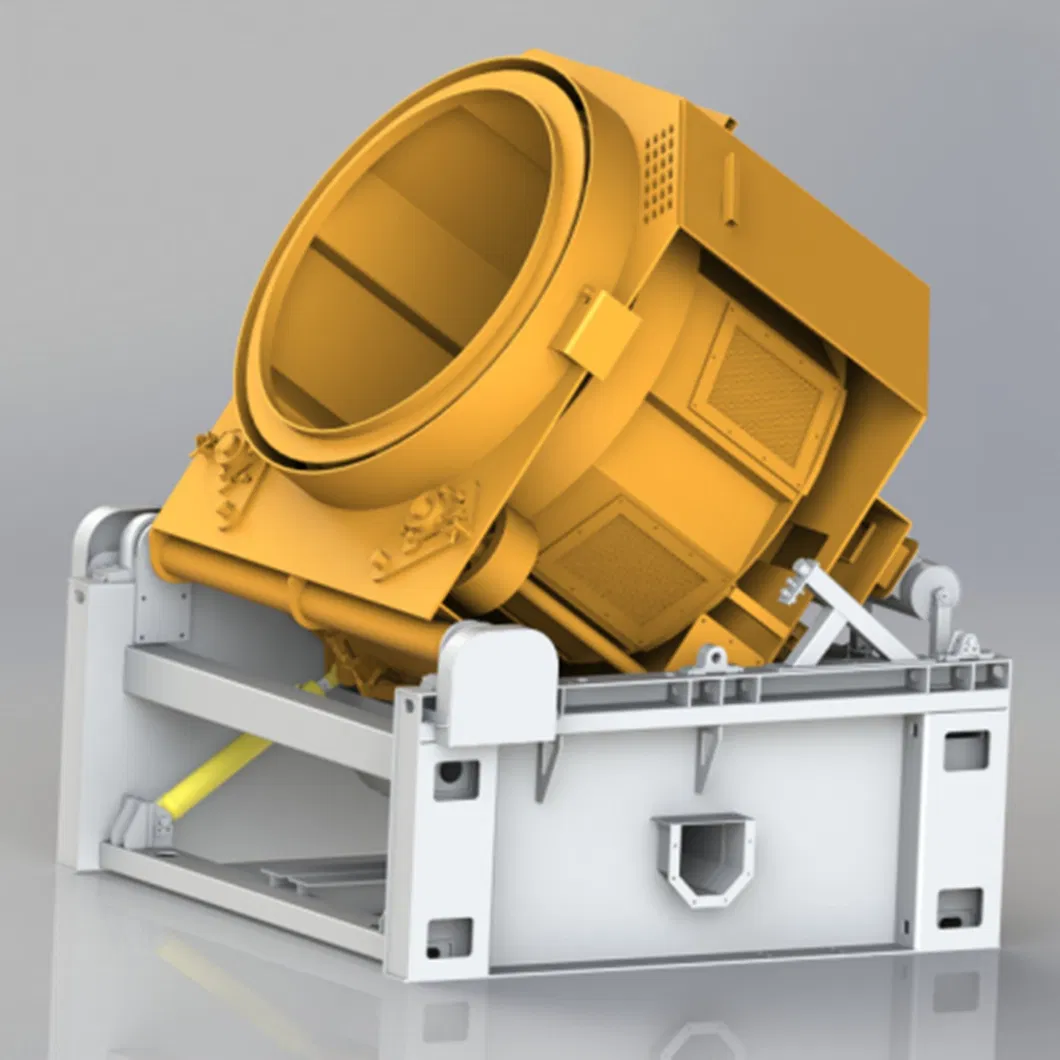

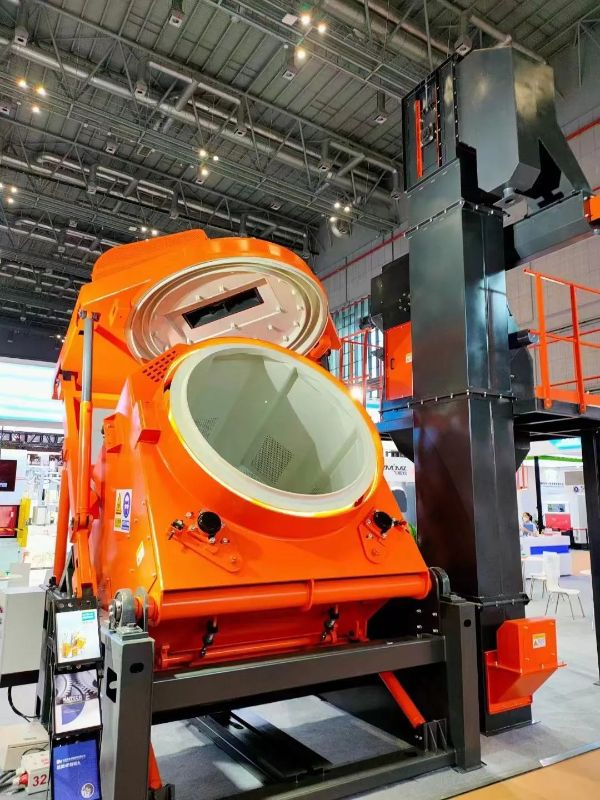

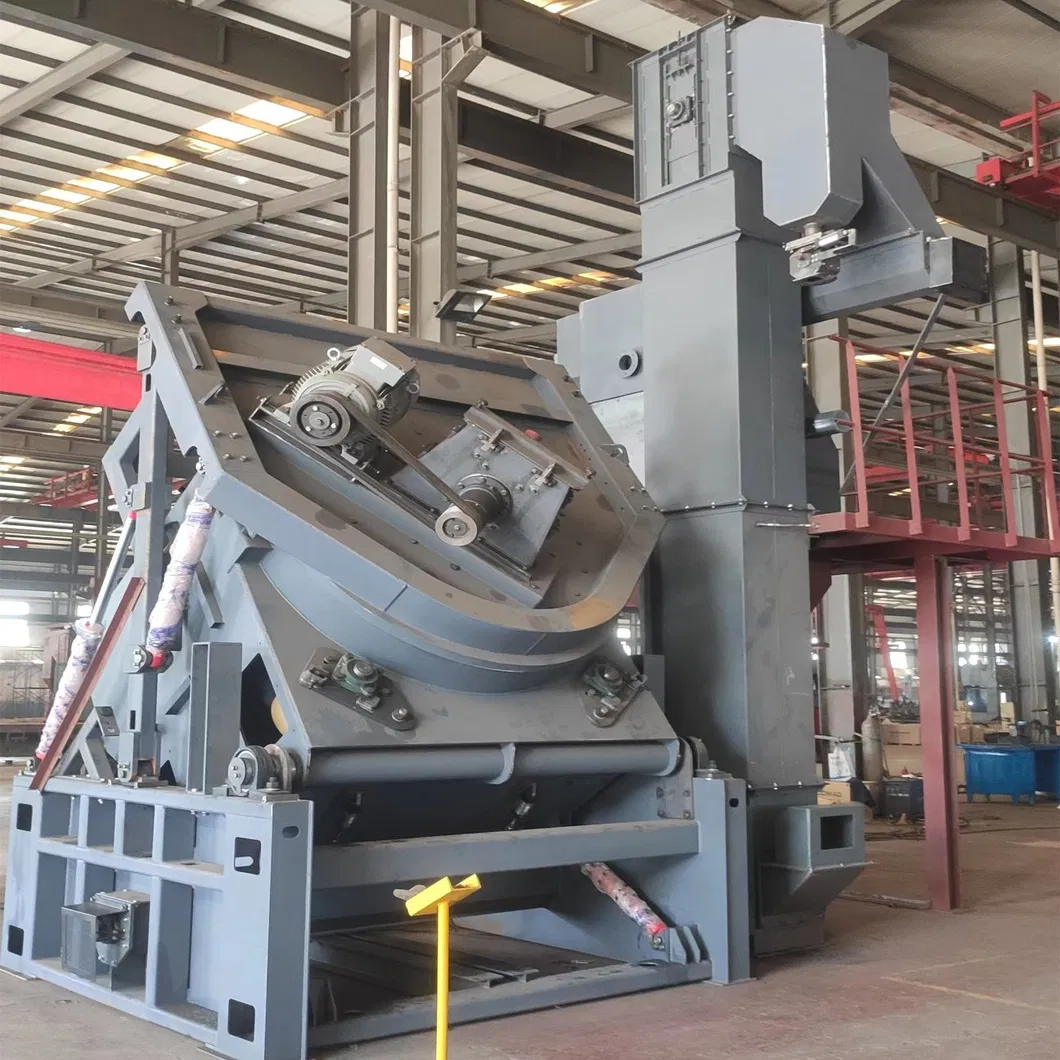

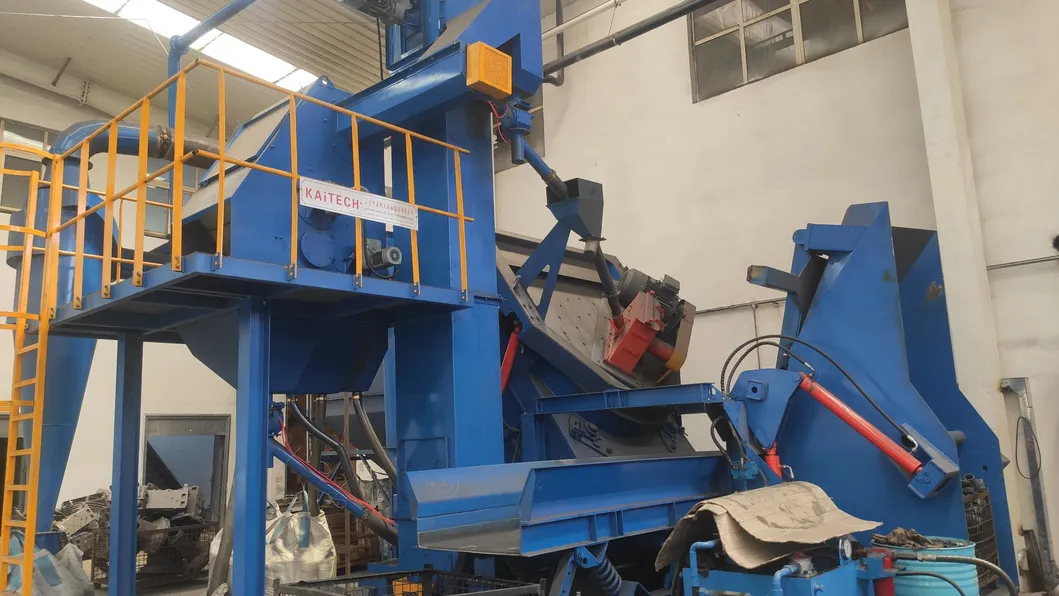

Detailed Equipment Gallery
Technical Parameters
| No. |
Component Name |
Qty |
Technical Parameters |
Remarks |
| 1 |
Roller Device |
1 |
φ Φ1780x1500L; Speed: 4.2r/min; Vol: 0.7m³ |
2.2 Kw Power |
| 2 |
Feeding Mechanism |
1 |
Automatic hydraulic lifting |
11kw Power |
| 3 |
Blasting Wheel |
1 |
Quantity: 560kg/min; Speed: 2100rpm |
Q180-4RK, 37kw |
| 4 |
Elevator |
1 |
Model: KTS60 (Double lift); Cap: 60T/h |
4KW with Braking |
| 5 |
Dust Collector |
1 |
Model: CMC81; Cap: 4500m³/h |
7.5KW Fan Power |
| 6 |
Total Power |
- |
~76KW |
380V/50HZ |
| 7 |
Dust Emission |
- |
≤10mg/ m³ |
Standard Compliant |
Scope of Supply
| No. |
Name |
Qty |
Main Composition |
| 1 | Bottom Bracket | 1 | Base, bracket, etc. |
| 2 | Blasting Chamber | 1 | Roller, chamber body, driving device |
| 3 | Magnetic Separator | 1 | Spiral drum screen, silo, valve, reducer |
| 4 | Vibrating Conveyor | 1 | Vibrating bed, motor, spring |
| 5 | Control System | 1 | PLC (Siemens), cable, hydraulic station |
Professional Manufacturing Excellence
As a leading professional manufacturer of shot blasting machines, we serve global markets including North and South America, the Middle East, Australia, and Asia. Our facilities utilize a first-class technology research and development center backed by an ISO9001 quality management system.
All products utilize CAD computer-aided design and three-dimensional software simulation to ensure structural integrity and performance efficiency. We provide ideal key equipment for casting, forging, steel structures, shipbuilding, and the machine tool industry.
Frequently Asked Questions
What standards are followed for production?
We strictly produce according to ISO9001 and ISO14001 international rules to ensure maximum quality and environmental safety.
How is the machine installation handled?
We provide professional technical guidance. We can arrange engineers to your facility to guide the installation and assembly process.
Do you supply the abrasive media for the machines?
Yes, we maintain production lines for steel shot, steel grit, stainless steel shot, and aluminum shot to provide a complete surface treatment solution.
What information is needed for a customized quote?
Please provide the workpiece material/shape, maximum dimensions (L/W/H), maximum weight, and your required daily productivity.
What is the standard power supply for the equipment?
Our standard supply is 380V, 3-Phase, 50HZ. However, we can customize electrical configurations based on your local industrial requirements.
Is the equipment capable of automatic operation?
Yes, the KT700 series is equipped with Siemens PLC and automatic feeding mechanisms for seamless, automatic production cycles.
