Blatrixo Machine
Blatrixo Machine

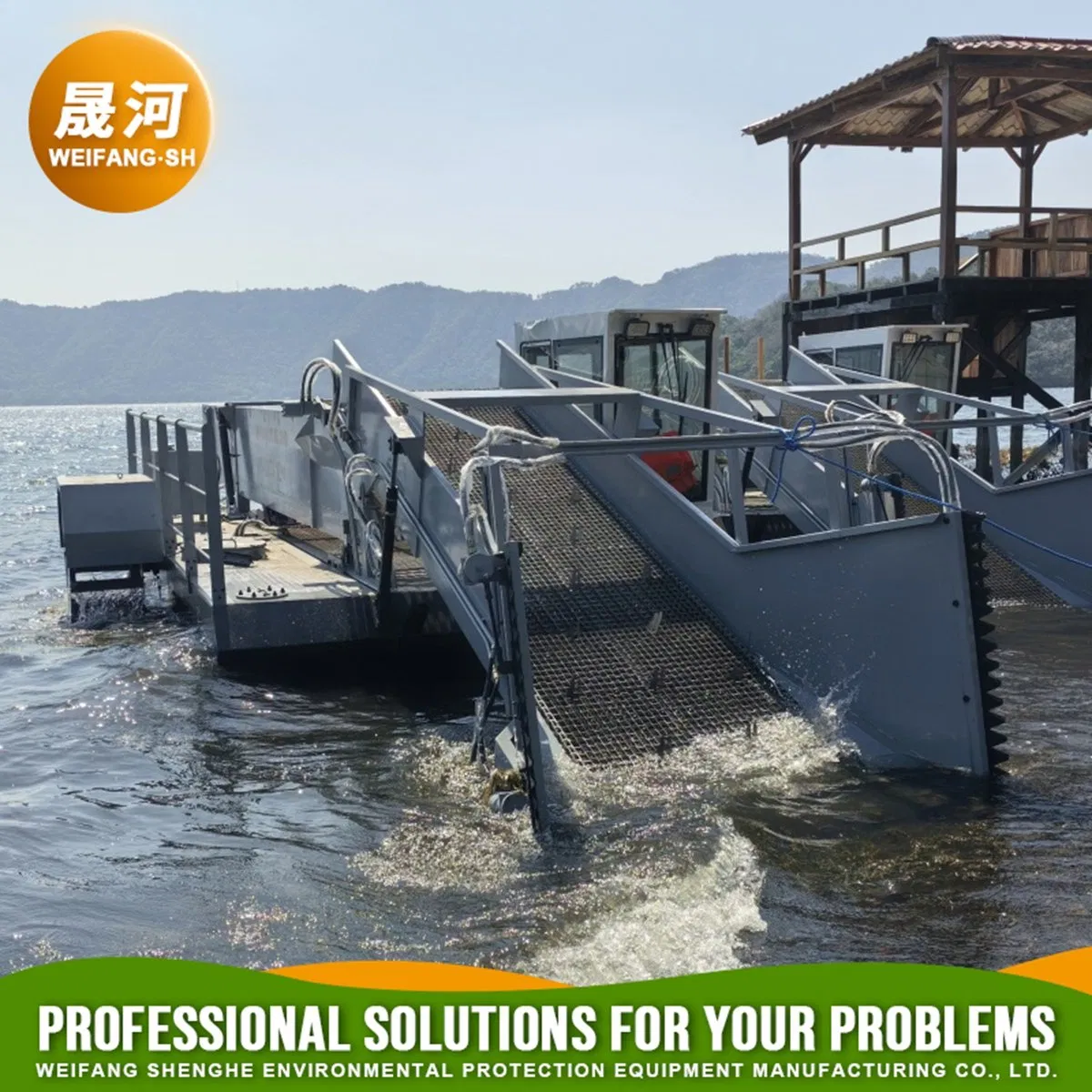

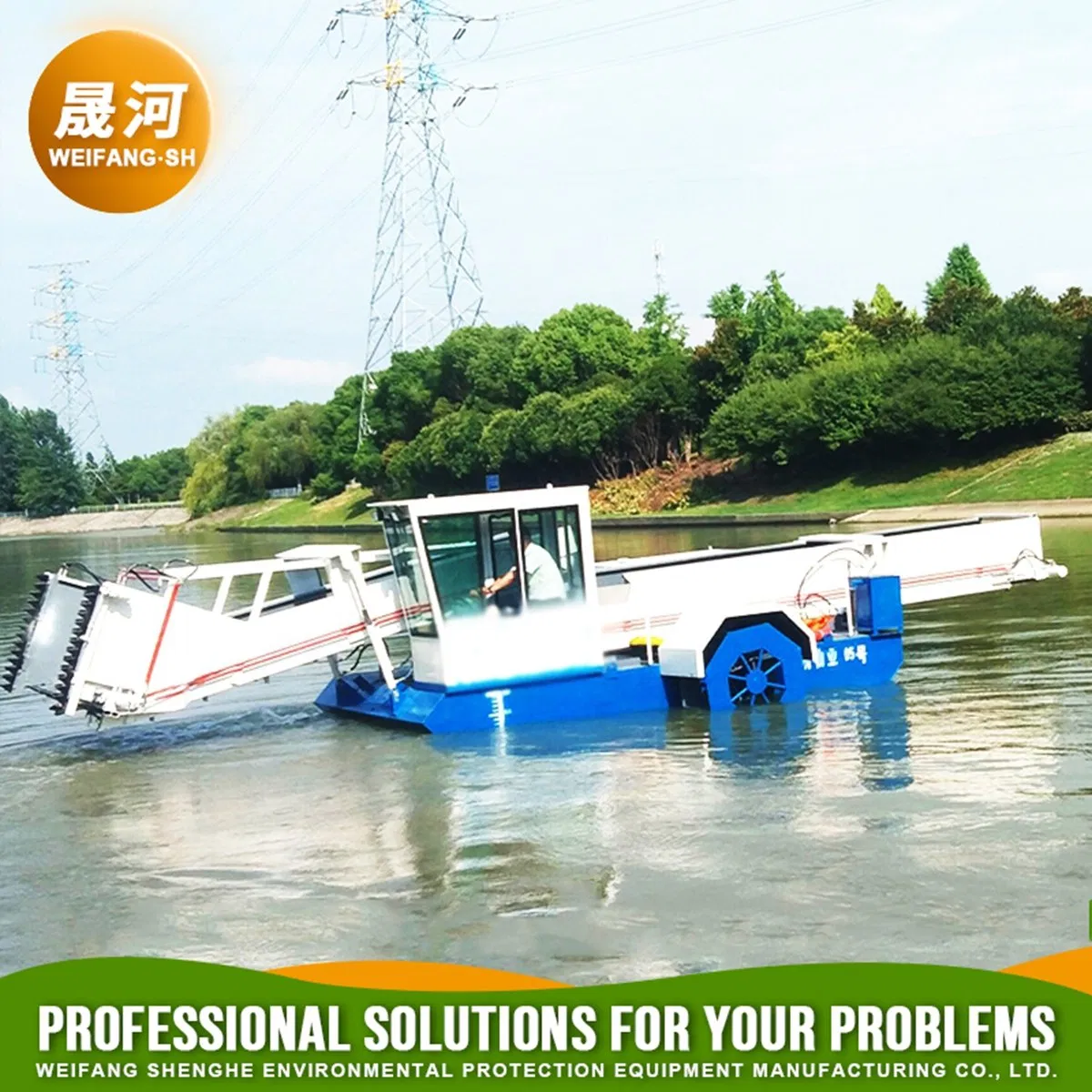

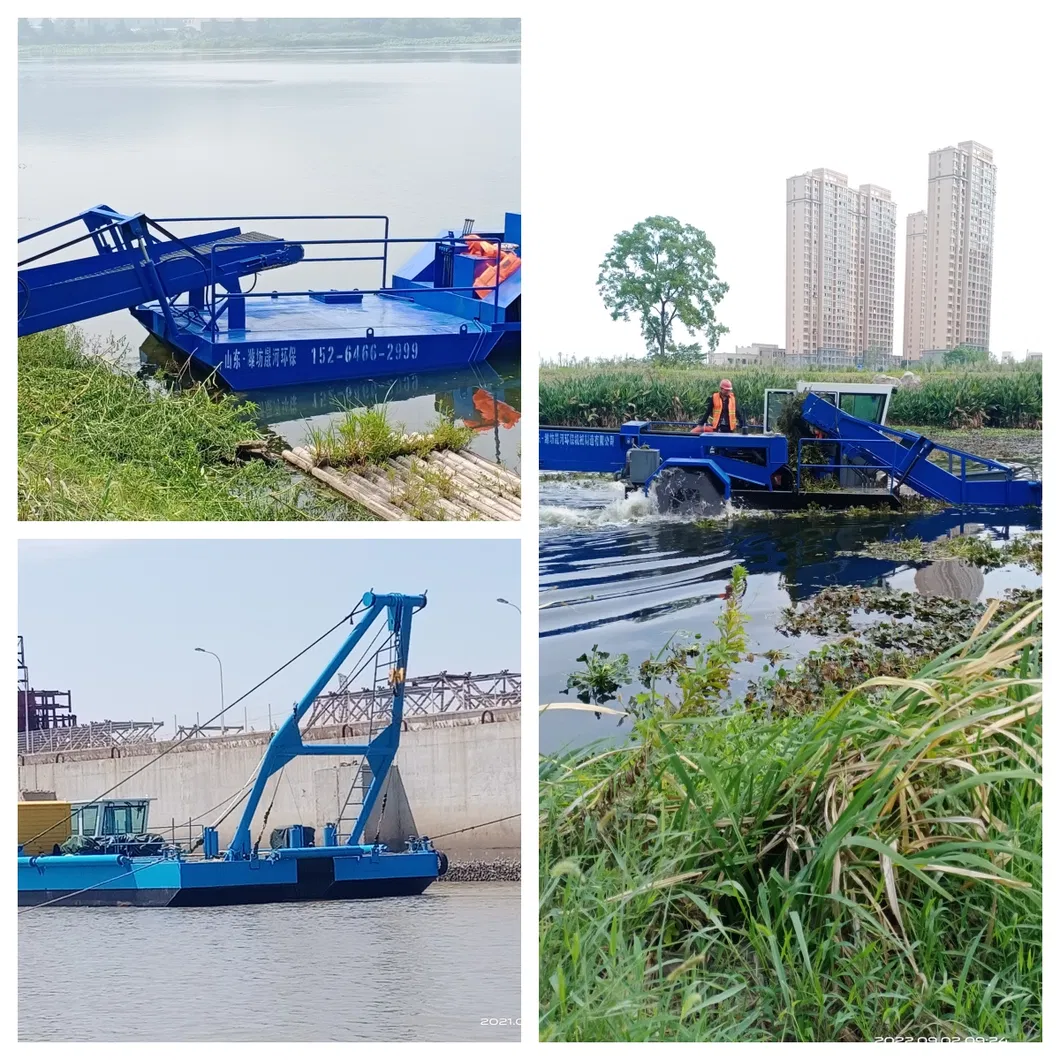

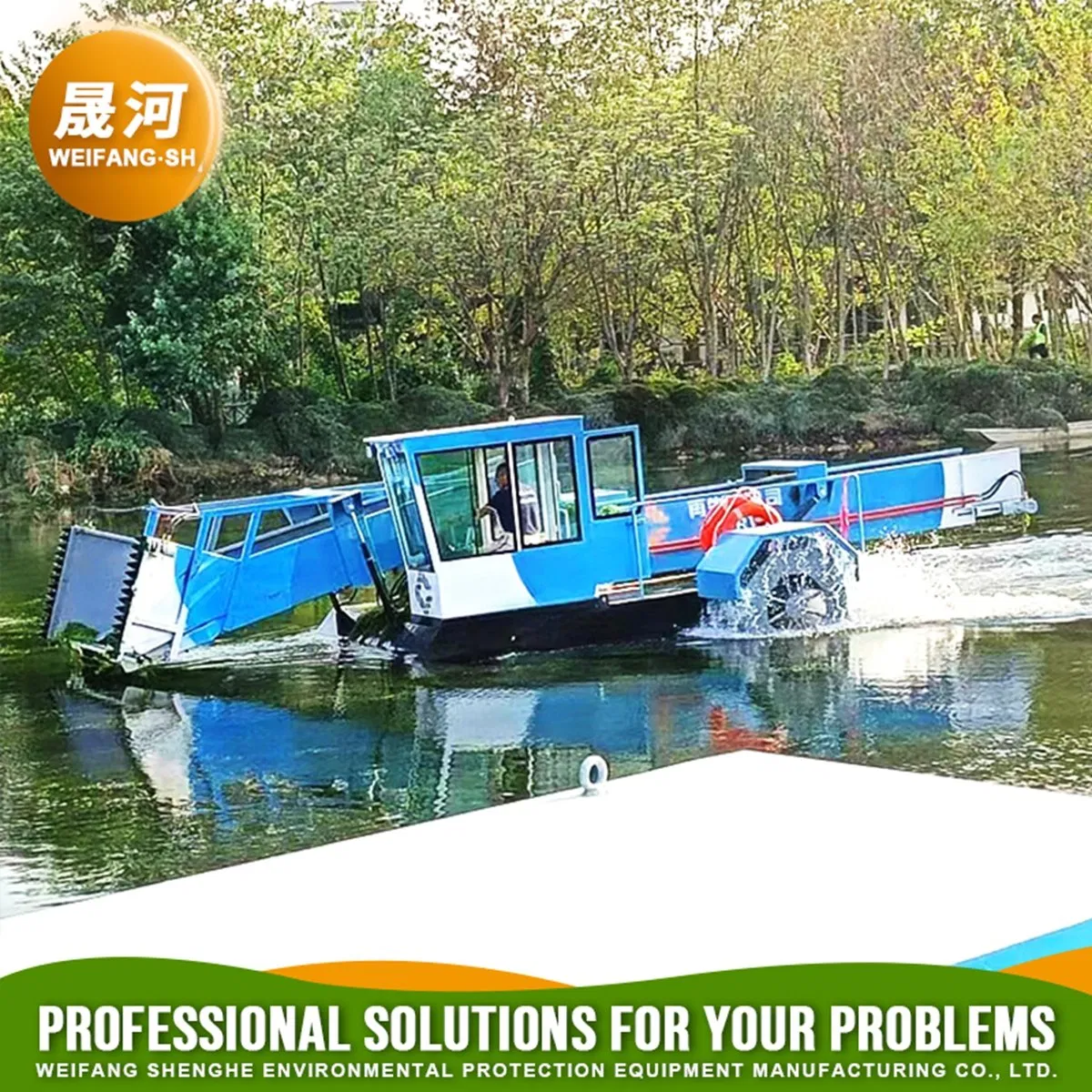

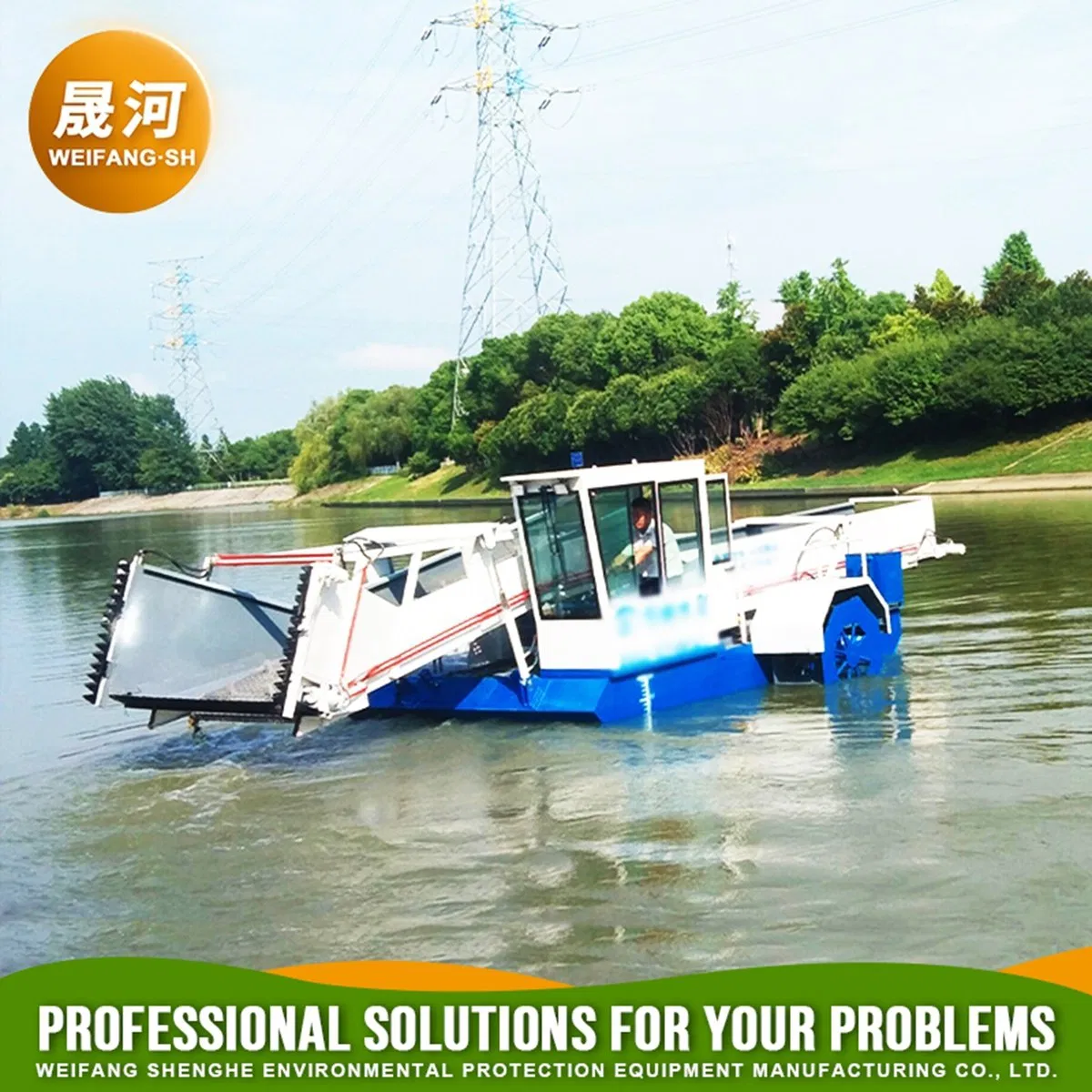

1) This Water Surface Cleaning Equipment is a modern aquatic plant harvesting system integrating mowing, gathering, salvaging, filtering, transporting, and unloading.

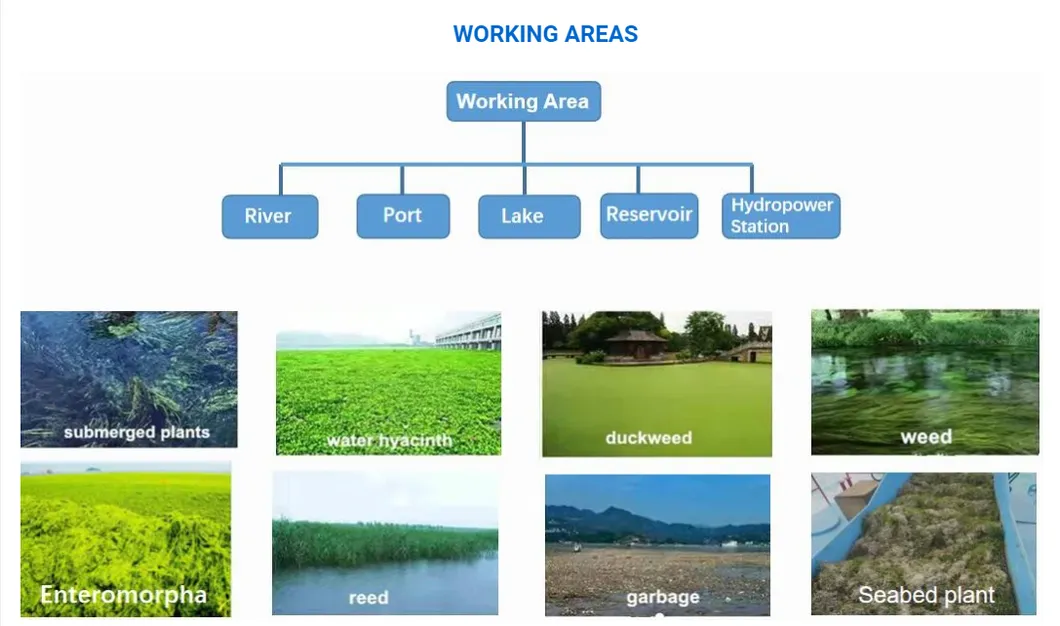

2) The entire operation utilizes full hydraulic control, making it simple, convenient, and flexible. It is essential for urban water scenic spots and effectively serves as a Rubbish Salvage Boat.
| Category | Item | Parameter |
|---|---|---|
| Main Performance | Capacity | 4500m2/h |
| Harvest Depth / Width | 1m / 1.8m | |
| Working / Sail Speed | 3-5KM/h / 5-7KM/h | |
| Continuous Working Time | 24 hours | |
| Hull Info | Material | Bottom 5mm, Side 5mm, Deck 3mm |
| Hull Dimensions | 7m x 3.2m x 1m | |
| Engine System | Engine Power | 80KW |
| Type | 4100 Weifang Diesel | |
| Drive System | Transmission | Full Hydraulic |
| Walking Way | Paddle Wheel (1.4m x 0.55m) | |
| Collection System | Front Arm Dimension | 6m x 1.2m x 1.5m |
| Chain Material | Stainless Steel |

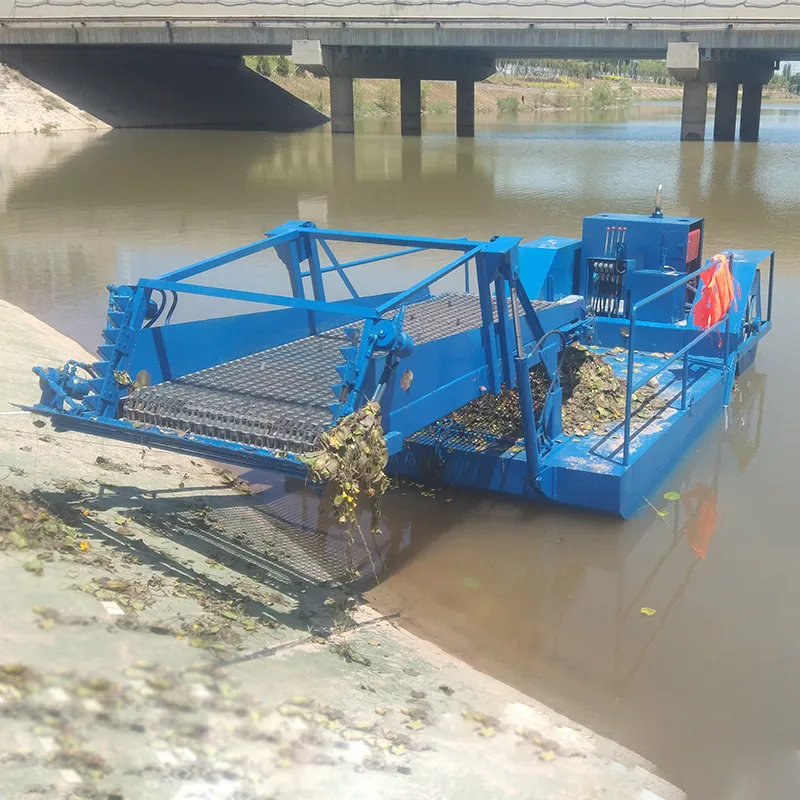

The equipment uses reciprocating knives mounted on the harvesting head to cut vegetation. Harvested weeds are transferred from the front conveyor to the storage hold, filtrating water during transport, and eventually discharged to the shoreline or dump trucks.

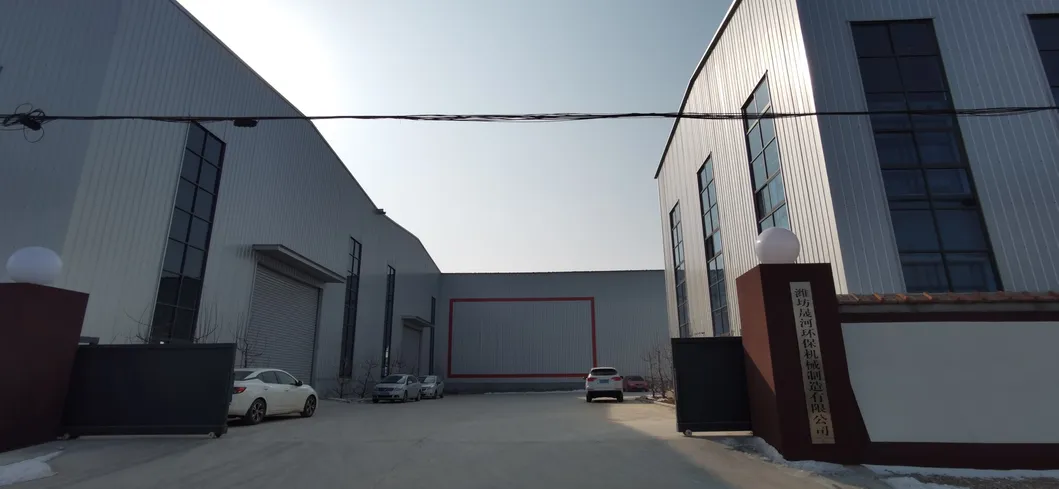

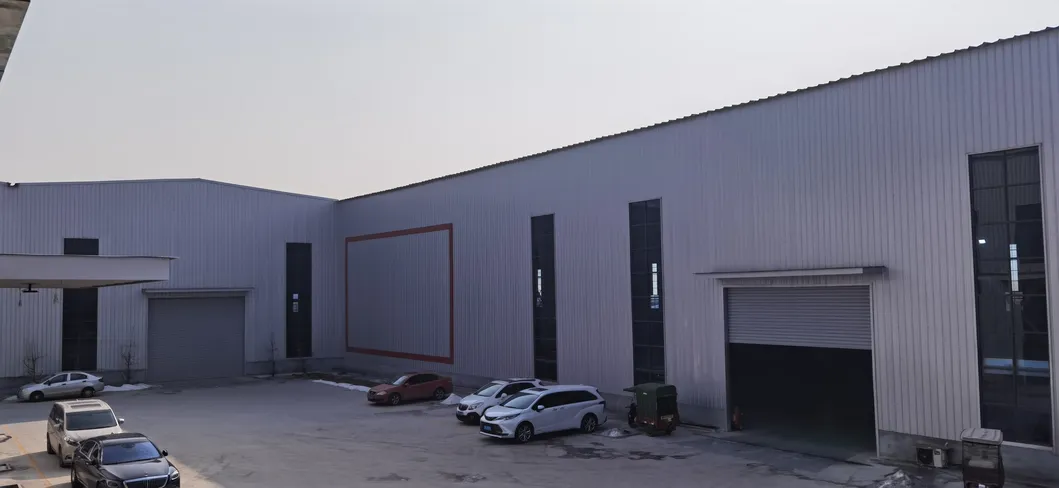

With over 10 years of experience, we provide optimized solutions for mineral processing and water cleaning. Our facility covers 15,000 square meters and operates under strict ISO9001 standards.
