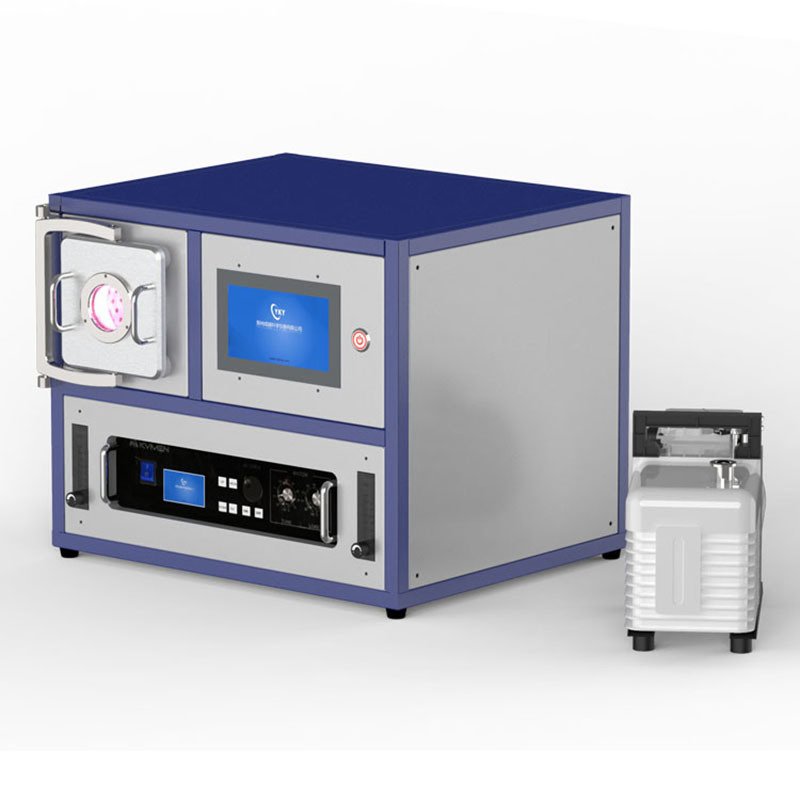

Compact Size Plasma Cleaning Equipment with Vacuum Pump for Surface Remove Dirt

Customization: Available
Customized: Customized
Structure: Desktop

Product Description

Basic Specifications

Model NO.
CY-P2L-300W
Material
Stainless Steel
Certification
CE, Cleaning Type
Application
School, Hospital, Lab
Type
Cleaning Type
Vacuum Valve
Solenoid Valve
Vacuum Pump
Two-Stage Rotary Vane
Cooling Method
Forced Air Cooling
Production Capacity
200 Sets Per Month
HS Code
8486204100

Product Introduction

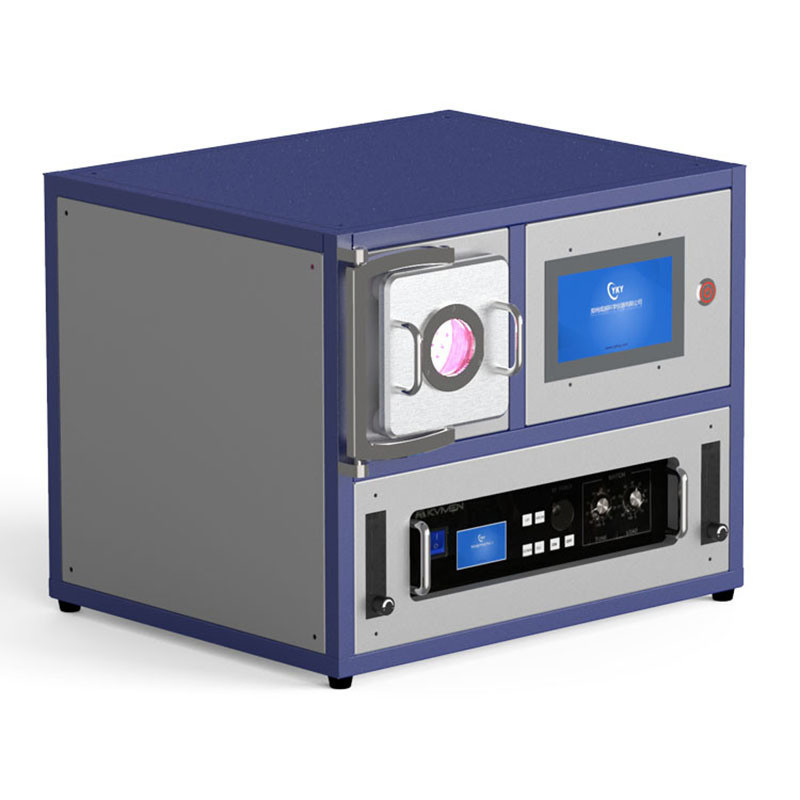

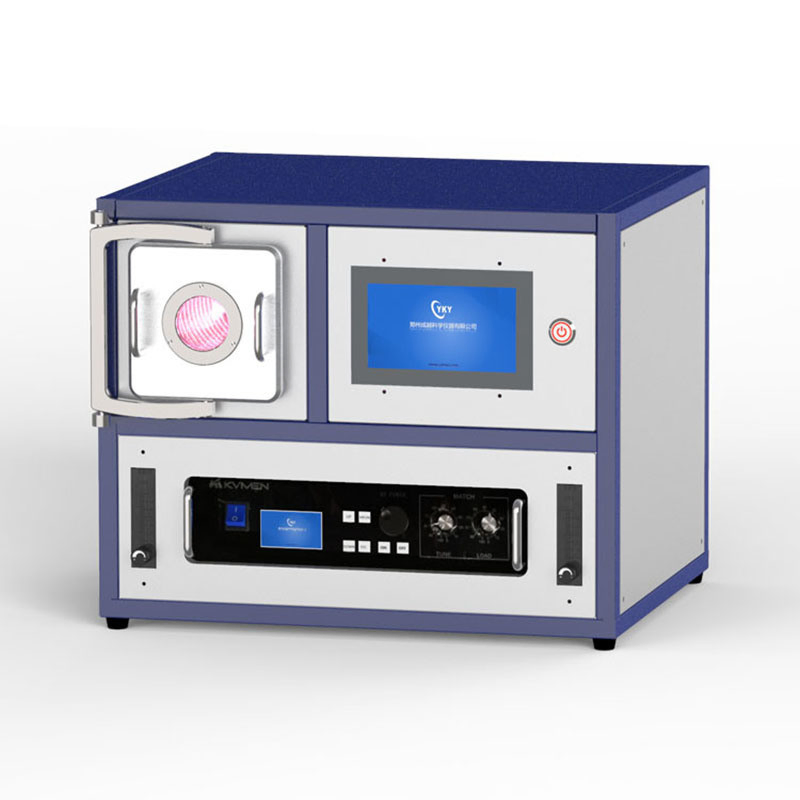

Compact size plasma cleaning equipment with vacuum pump for surface dirt removal

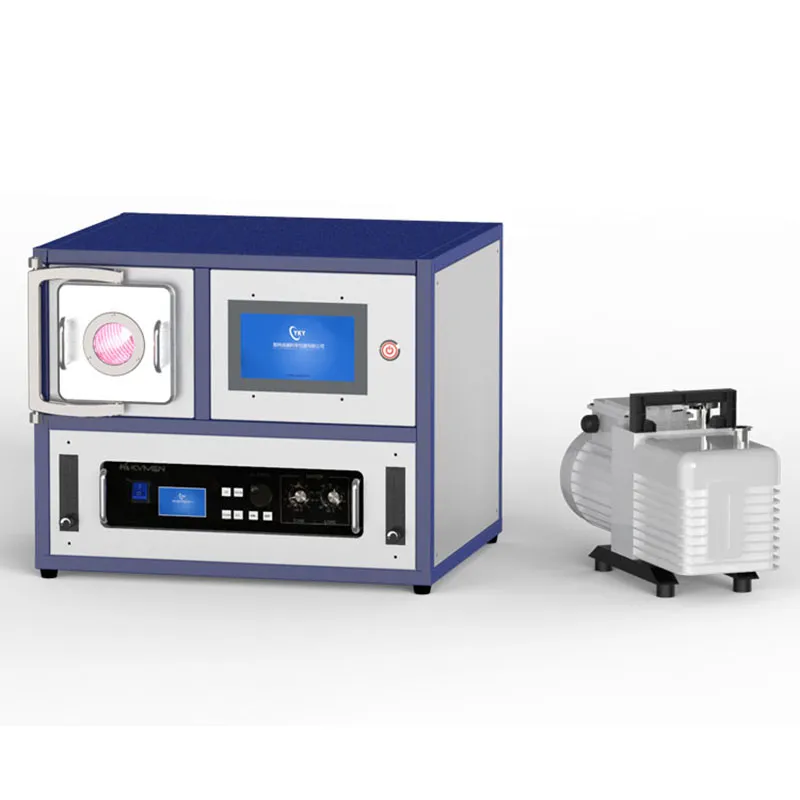

The 300W 2L plasma cleaner is a compact, non-destructive cleaning device. It utilizes low air pressure to excite plasma as a cleaning medium, effectively avoiding secondary pollution often caused by liquid cleaning agents. Equipped with a mechanical vacuum pump, the system maintains a consistent chamber vacuum while efficiently extracting pollutants post-reaction, ensuring complete removal of organic contaminants in a short duration.

Beyond cleaning, this versatile equipment can modify material surface properties. The glow discharge process enhances adhesion, compatibility, and wettability, while simultaneously providing disinfection and sterilization.

Applications

Small plasma cleaners are widely utilized in optics, optoelectronics, electronics, materials science, life sciences, polymer science, biomedicine, and microfluidics.

Technical Parameters

Main Parts Item Parameters
Cleaning Chamber Chamber Material High purity quartz
Chamber Size Diameter 100 mm; Length 270 mm
RF Power Supply Power Features All-solid-state RF, high-stability amplifier module, high quality components
RF Power 0~300W continuously adjustable
Signal Frequency 13.56MHz ± 0.005%
Gas Measurement Gas Channel Two channels (Float flowmeter)
Vacuum System Vacuum Pump Two-stage rotary vane vacuum pump
Ultimate Vacuum 0.5Pa
Dimensions Overall Size 540mm × 650mm × 440mm
Total Weight 58kg (including packaging)

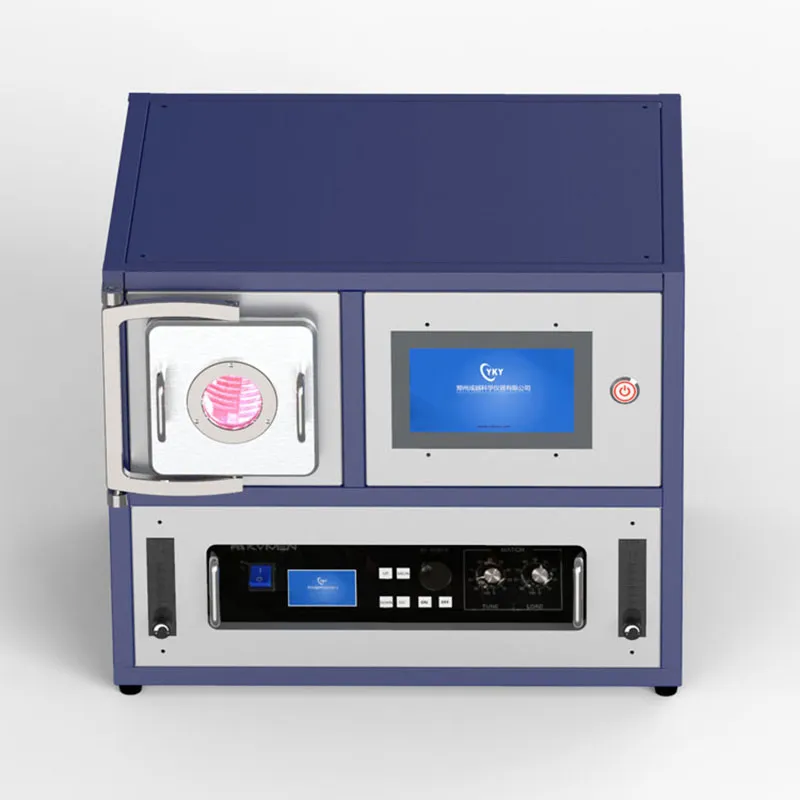

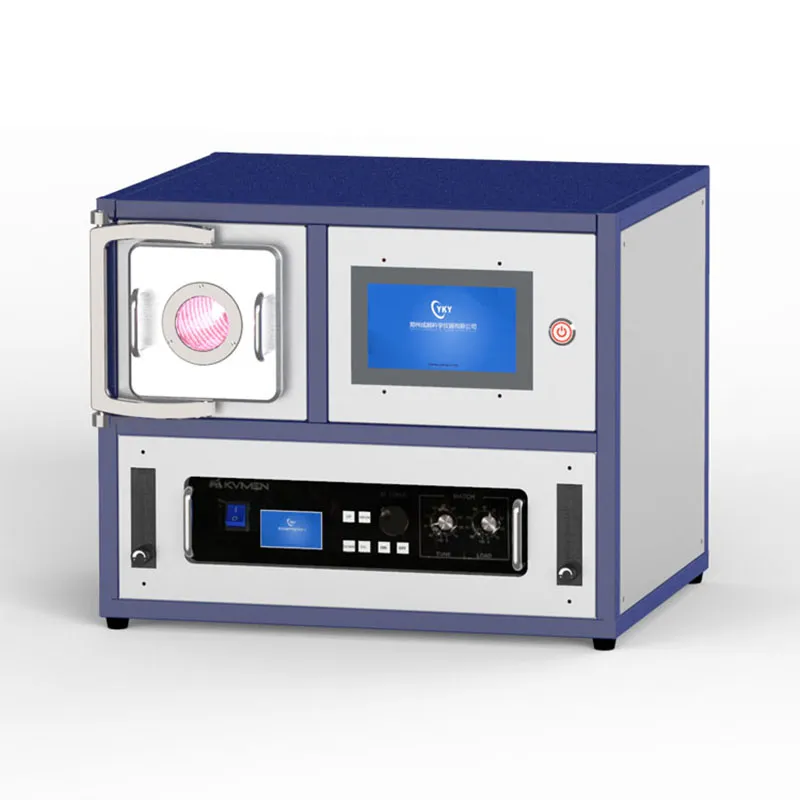

Product Gallery

Frequently Asked Questions

Q: What is the warranty period for the plasma cleaner?
A: The standard warranty period is 12 months. We also provide lifetime maintenance and technical support through our professional after-sales departments.
Q: How long does delivery usually take?
A: For standard models in stock, delivery is typically 5-10 days. For customized instruments, it generally takes between 30-60 days depending on the specific requirements.
Q: Can the power supply and plug be adjusted for our country?
A: Yes, we can provide transformers and power plugs compatible with your local electrical standards and requirements.
Q: What are the primary payment options?
A: We accept multiple payment methods including T/T, L/C, and D/P. Trade Guarantee is highly recommended for security.
Q: How is the equipment packaged for international shipping?
A: We use standard export fumigation-free wooden boxes to ensure safety. Delivery can be arranged via express, air, or sea based on your preference.
Q: Does this equipment require secondary cleaning?
A: No, the plasma cleaning process is dry and non-destructive, leaving no residues, which eliminates the need for secondary cleaning with liquids.
