Surface Cleaning Dustless Wet Sand Blasting Equipment

Customization: Available
Warranty: 12 Months
Drive: Electric

Product Description

⚙️ Basic Specifications

Model NO.KF-1212W
PrinciplePress-in
ControlPLC
LayoutVertical
AutomationManual
KindWet Sandblaster
ConditionNew
CertificationCE
ItemDustless Blasting Machine
Working Size1200*1200*800 mm
Motor2.2 Kw
Voltage380V/220V 3 Phase

📝 Product Overview

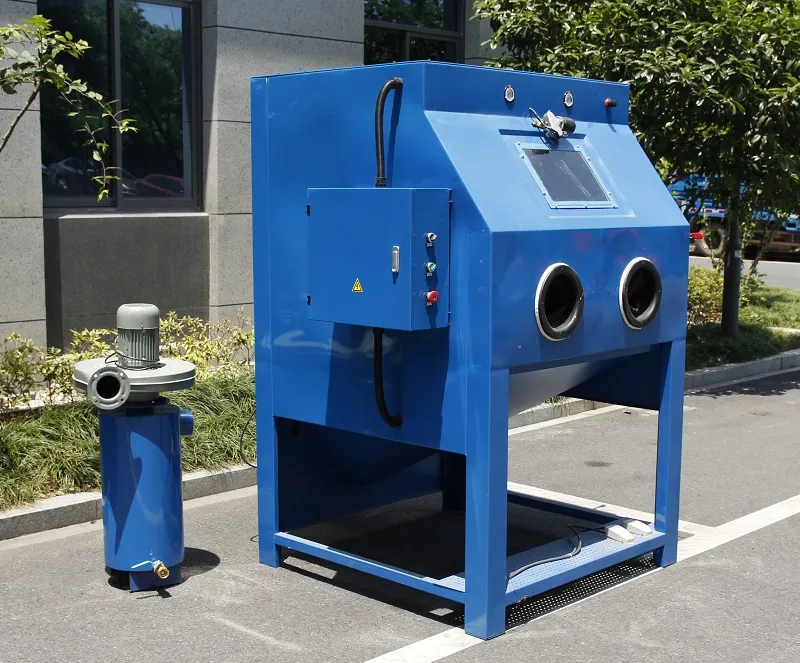

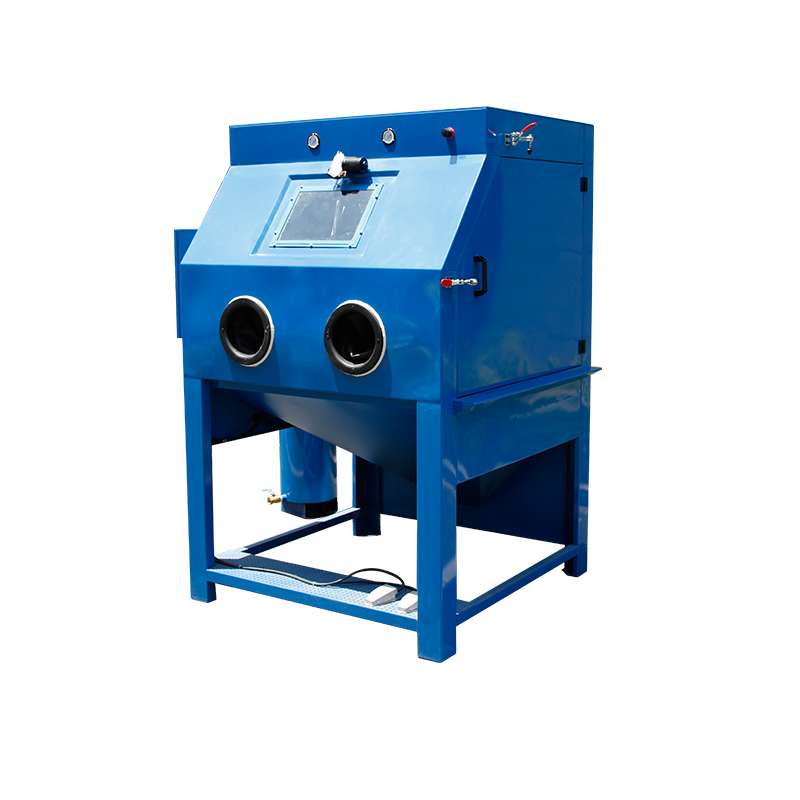

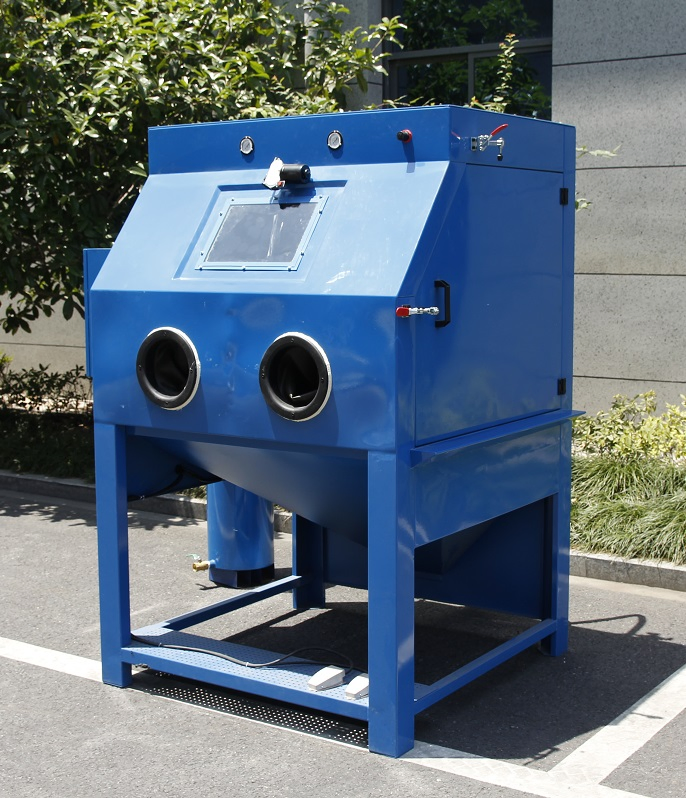

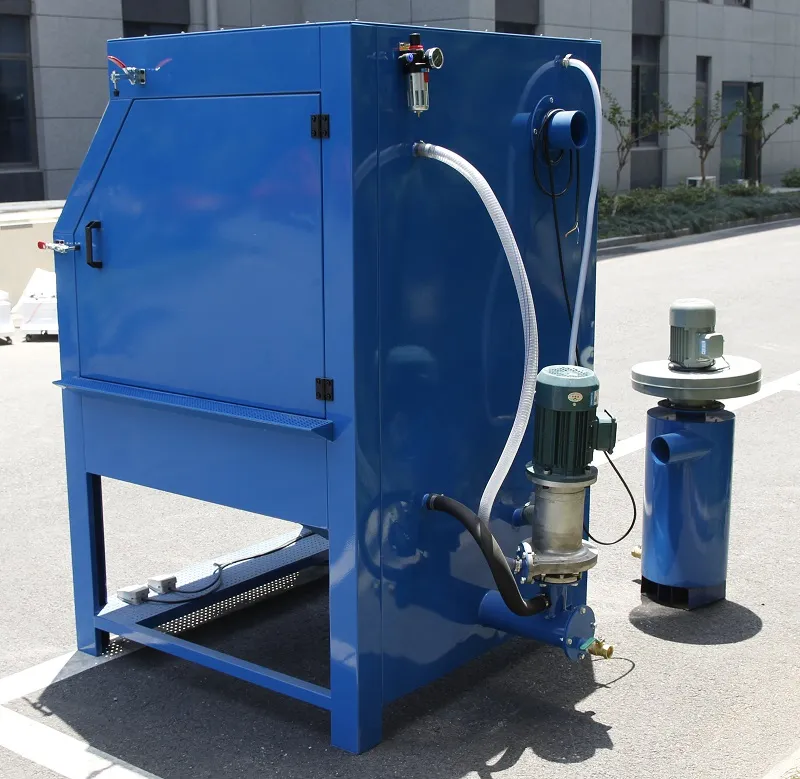

Surface cleaning dustless wet sand blasting equipment

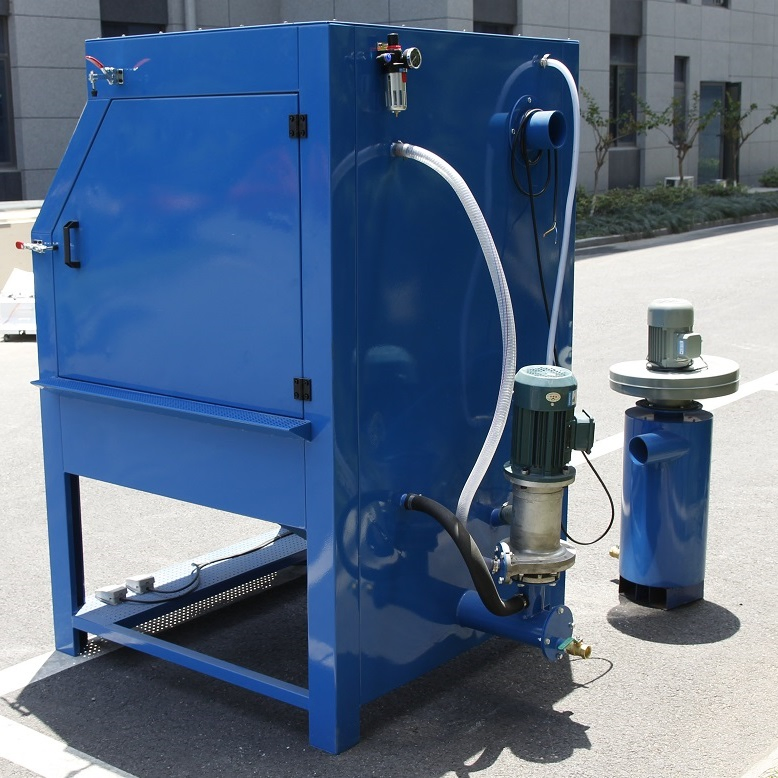

The KF-1212W wet blasting process utilizes a slurry pump to mix abrasive media with water. This mixture is delivered to the blasting gun, where compressed air provides the acceleration power. When cleaning surfaces, the grit removes rust, oxides, and coatings while the water simultaneously washes them away. For finishing, the abrasive smooths the surface while the water cushions the impact for a superior finish.

📊 Technical Data

Parameter Specifications (KF-1212W)
Outside Size (L*W*H mm)1300*1700*2000
Working Size (L*W*H mm)1200*1200*800
Air Requirement Flow0.5-1.1m³/min

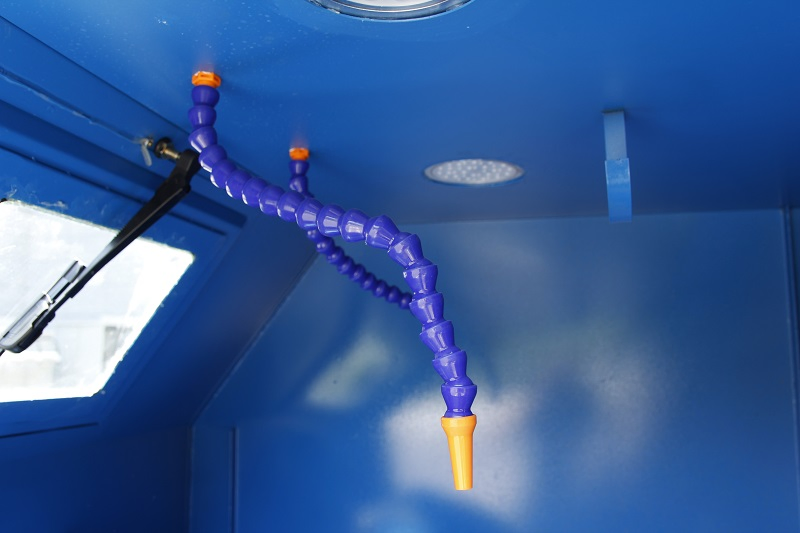

Blast Gun1 pc wet blast gun with 8mm Boron Carbide nozzle
Volume of Abrasive & Water25L
Feed Abrasive4-6 kg
Abrasive : Water Ratio1:3

🌟 Key Benefits & Features

  • Produces an extra smooth surface finish compared to dry blasting with zero dust pollution.

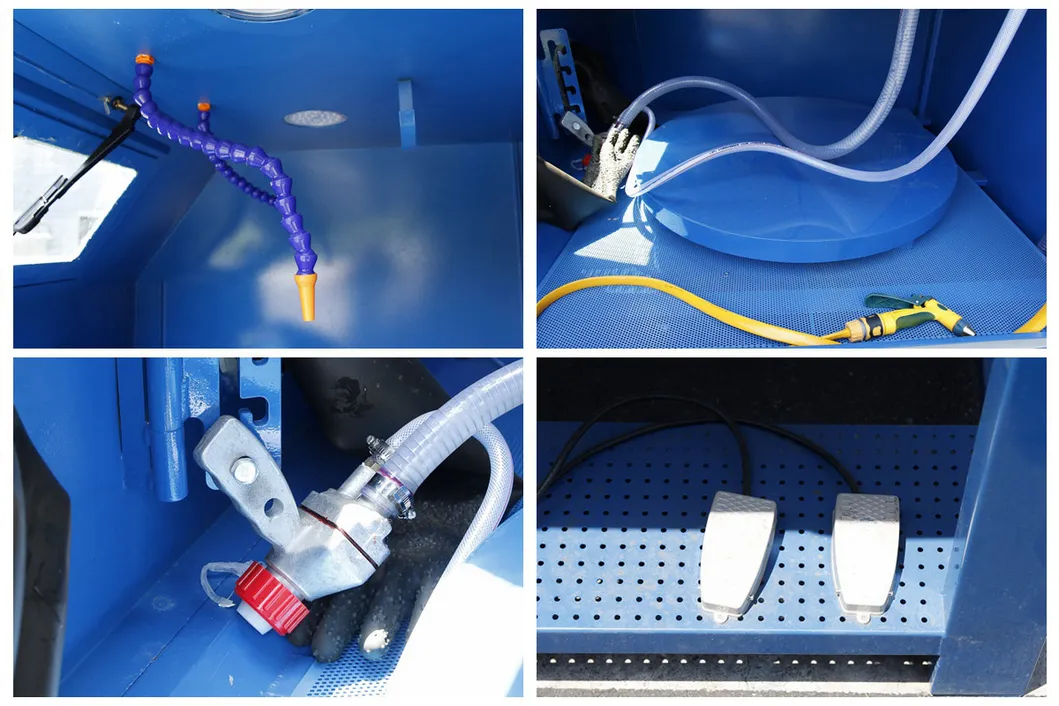

  • Compact design with foot-pedal control for easy, safe, and reliable operation.
  • Anti-rust stainless steel body construction with a durable rubber-lined inner chamber.
  • Equipped with high-quality abrasive pumps and boron carbide nozzles for extended service life.
  • Effective abrasive recycling system reduces consumption and operational costs.

🛠️ Industry Applications

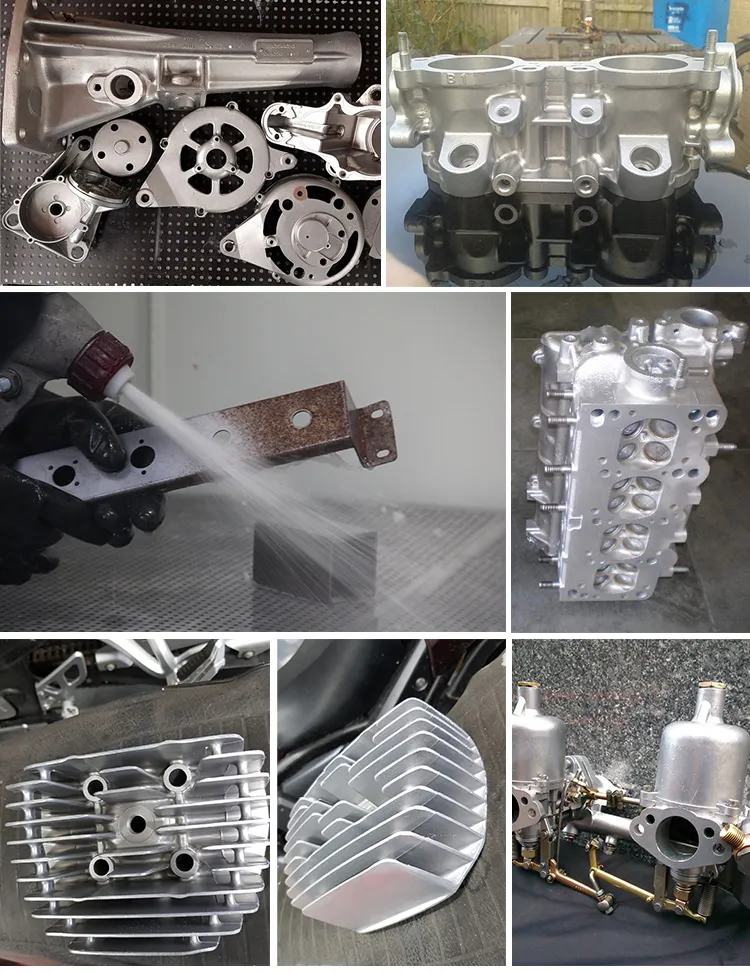

Ideal for cleaning, renovating, and finishing various parts including forgings, castings, welded components, electrical parts, stainless steel products, aluminum, plastics, and crystal glass.

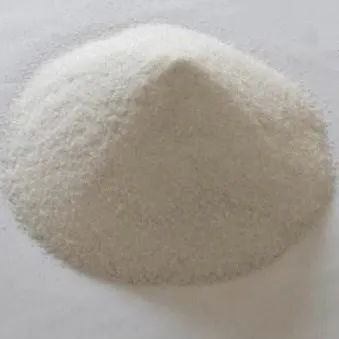

Compatible Abrasives: White Corundum, Brown Aluminum Oxide, Black Corundum, Plastic Abrasives, Ceramic Sand, etc.

📋 Available Models

Model Outer Dimension (mm) Working Dimension (mm)
KF-7070W800*1100*1900700*700*800
KF-9080W1000*1200*2000900*800*800
KF-1010W1100*1500*20001000*1000*800
KF-1212W1300*1700*20001200*1200*800
KF-1610W1700*1500*20001600*1000*800

❓ Frequently Asked Questions

1. What is the main advantage of wet sandblasting over dry sandblasting? Wet sandblasting eliminates dust completely, making it safer for operators and the environment. It also provides a much smoother, "satin" finish and prevents media impingement in the workpiece.
2. Is the blasting media recyclable in this machine? Yes, the abrasive media is mixed with water in a slurry and can be reused multiple times, which significantly reduces production costs.
3. Can I use different types of abrasives? Absolutely. You can use white corundum, glass beads, ceramic sand, and other fine abrasives depending on the required surface finish.
4. What material is the machine cabinet made of? The entire machine body is constructed from high-quality stainless steel to prevent rust and corrosion, ensuring a long operational lifespan.
5. Does the machine require a large air compressor? The KF-1212W requires an air flow of 0.5-1.1m³/min at a pressure of 0.4-0.8 Mbar per gun to operate effectively.
6. How is the machine controlled? The machine features PLC control for stability and a convenient foot pedal switch to control the blasting gun, allowing the operator to use both hands to handle the workpiece.
