Blatrixo Machine
Blatrixo Machine

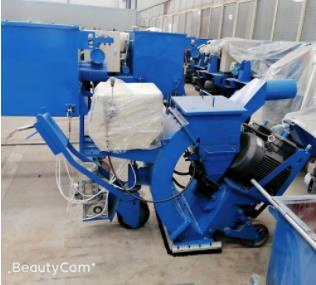

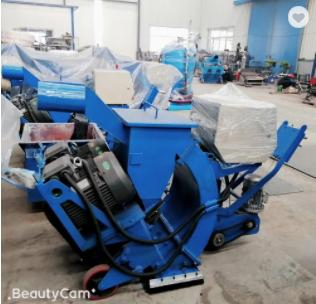

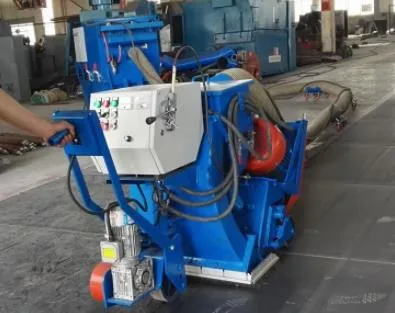

The Road shot blasting machine system works using a high performance airless, centrifugal blast wheel for propelling blast media at a high velocity in a controlled pattern and direction. Different surface profiles can be achieved by varying shot size, shot flow rates and machine travel speed. Shot blasting is a time saving process that strips, cleans and profiles simultaneously.
| Model: 850 | Power input: 3-phase 380V, 50Hz, 80A |
| Rated input: 2*15kw | Outer shell: Performance index -54 |
| Rated input: 1.1kw | Rated speed: 3000 rpm |
| Throwing head size: 220mm | Machine size: 2050*1050*1250mm |
| Machine weight: 820KG | On cement surface: ≥450 m²/hour |
| On steel plate: ≥120 m²/hour | Shot blasting width: 850mm |
| Forward speed: 0.5-20m/min | Vacuum pipe diameter: Φ200mm |
| Steel shot consumption: < 100 g/m² | Air compression power: 3KW |
| Dust removal power: 7.5KW | Total power: 41.6KW |
| Dust collector size: 2160*1030*1560mm | Dust collector weight: 710KG |
Shot material in the lower part of the separation box enters the blasting components via the feeding tube, driven by the motor. The high-speed rotating shot is propelled against the workpiece surface at 80m/s. Under negative pressure, the shot abrasive and dust are returned to the separation box, where impurities are filtered out, allowing clean shot material to be reused.
1. Installation: Professional technicians to assist with setup and commissioning.
2. Warranty: 12 months from commissioning or 18 months from delivery.
3. Documentation: Full English manuals, wiring diagrams, and maintenance guides.
