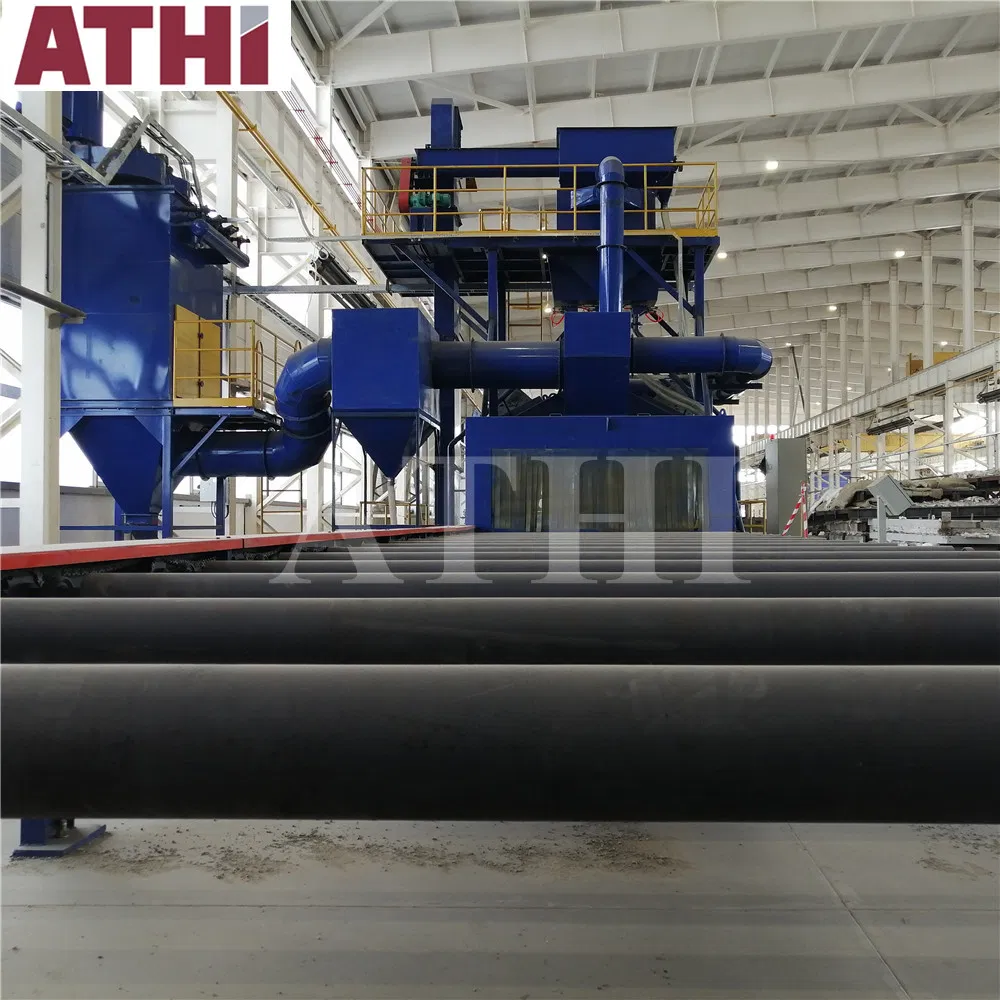

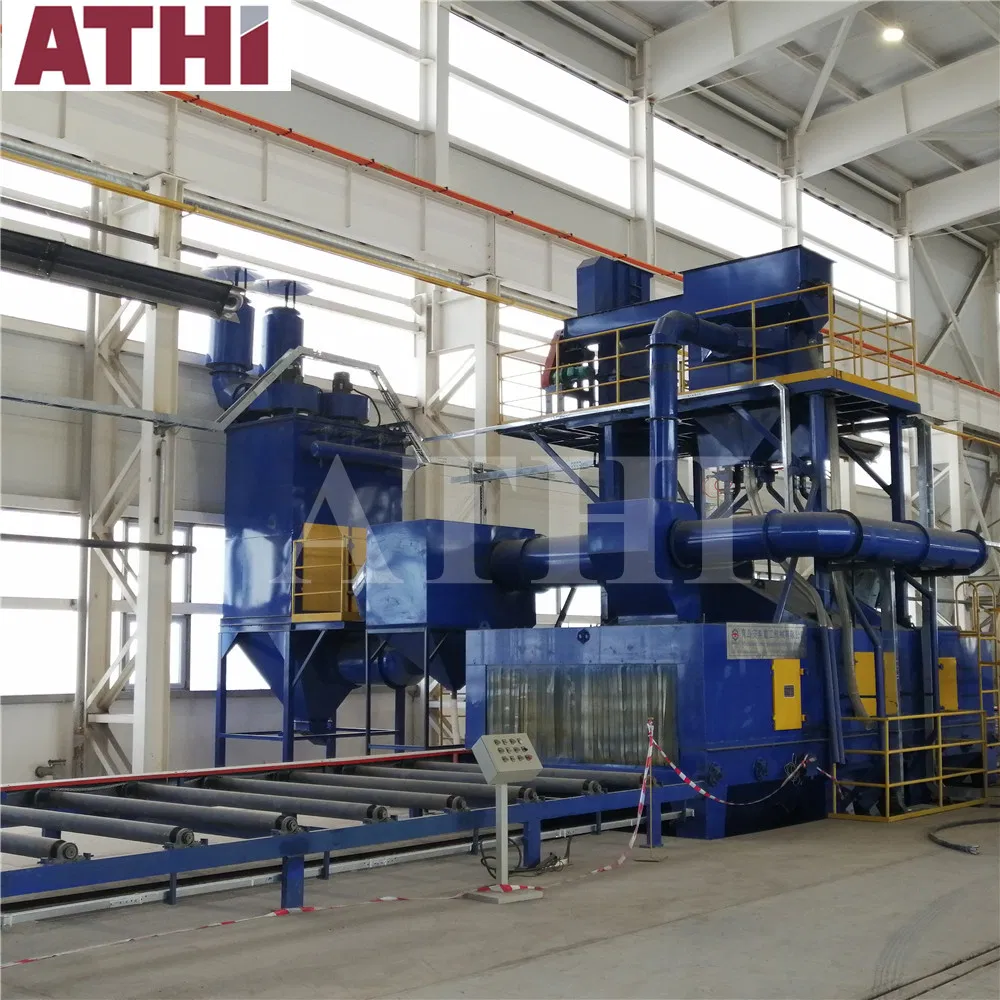

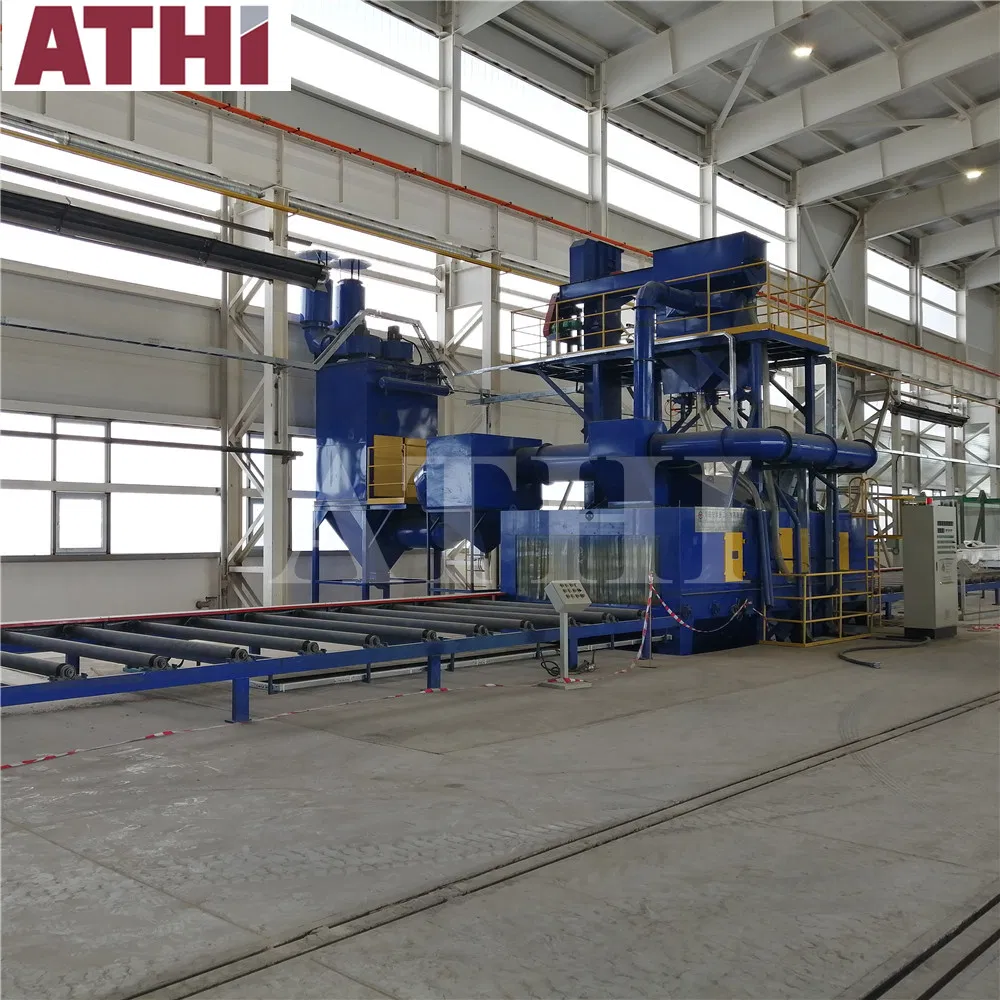

Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line
Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line
Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line
Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line
Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line
1 / 5
Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line
Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line
Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line
Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line
Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line

Steel Structural Plate Shot Blasting and Painting Machine Surface Treatment Complete Line

Customization: Available
After-sales Service: Included
Warranty: Included
Send Inquiry

Product Description

Basic Information & Overview
Model NO.
Q698 Q6912 Q6915 Q6920 Q6925 Q6930 Q6940
Application
Electronic Industry
Fuel
Electric
Type
Catenary-Through Abrator
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE
Feature
Rust / Corrosion Proof
Color
Named Color
Roller Length
6000-12000mm
Dust Collector
Bag Type
Protective Liner
Spmn13, 5 Years Life
Product Description
⚙ Roller Conveyor Shot Blasting Machine for Truck Sections & Welding Scales
H beam structural steel cleaning roller conveyor type shot blast machines are designed as an optimal processing solution for steel plate/sheet metal, steel profile/beam/sections (H-beam, I beam, C-beam), steel pipes/tubes and steel structural framing. The system effectively handles residue via a blowing and brushing system that ensures every last trace is removed.
Scope of Shot Blasting:
• Descaling and removal of oxide and welding rest.
• Surface preparation for painting, plasticization, and enameling.
• Preparation of the surface for subsequent machining.

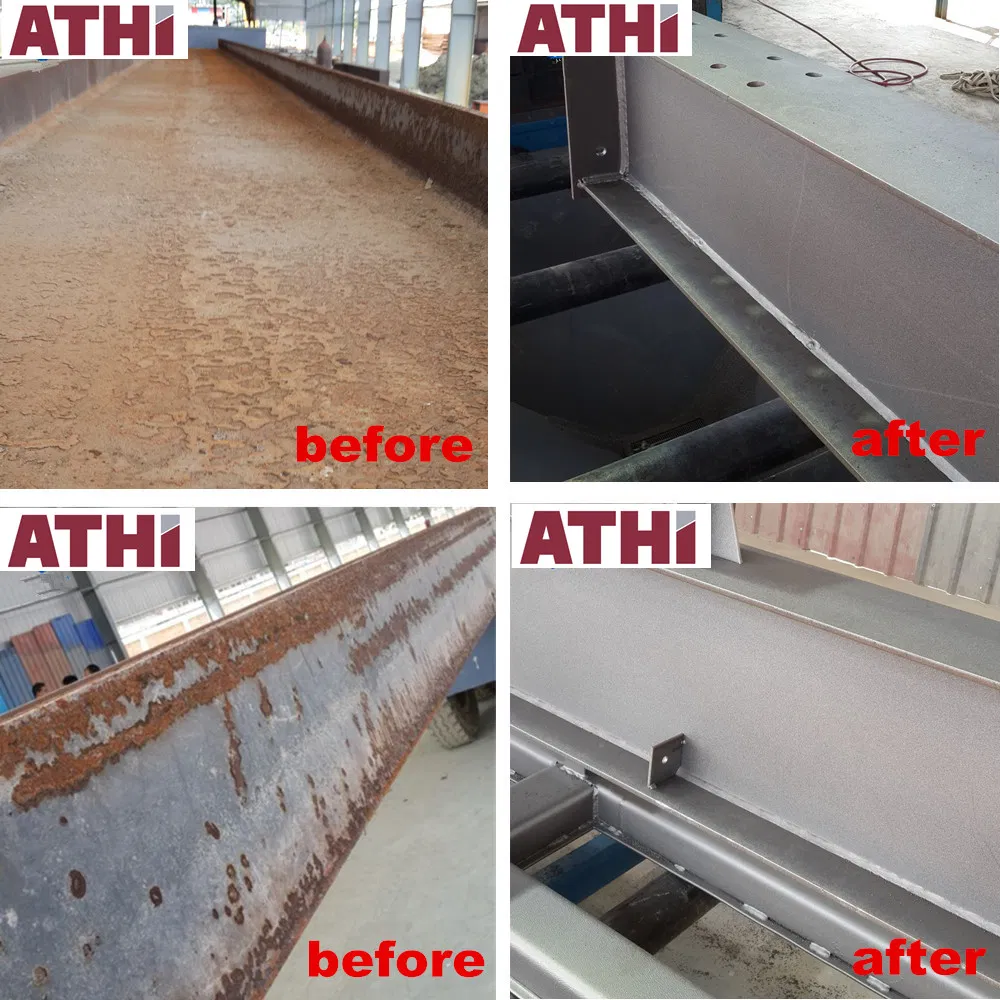

Shot Blasting Machine Overview
The QH69 series adopts a high-efficient blast wheel and full shutter type shot sand separator. The sweeping system utilizes specially made high-strength nylon rolling brushes and high-pressure ventilators. The complete equipment is controlled by PLC, representing international advanced standards for metal structural cleaning.
Technical Parameters
Feature Unit Q698 Q6912 Q6915 Q6920 Q6925 Q6930 Q6940
Width of workpiecemm800120015002000250030004000
Size of inlet openingmm800*16001200*4001500*4002000*4002500*8003000*8004000*400
Length of workpiecemm1200-120001200-60001200-120001200-120003000-120002400-120004500-18000
Roller speedm/min0.5-40.5-40.5-50.5-40.5-4.50.5-42-8
Thickness of platemm3-603-601.5-603-603-603-1104.5-110
Abrasive flow ratekg/min8*1204*2504*2506*2506*2506*3608*360
Total power (no dust collector)kw9078.3113.6156.6224.55204.8293.6
Detailed Application Photos

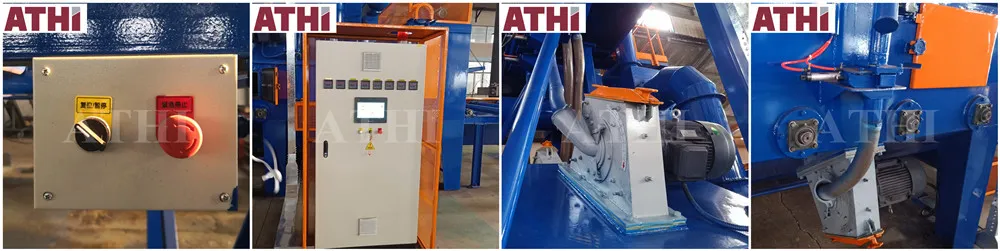

Application 1

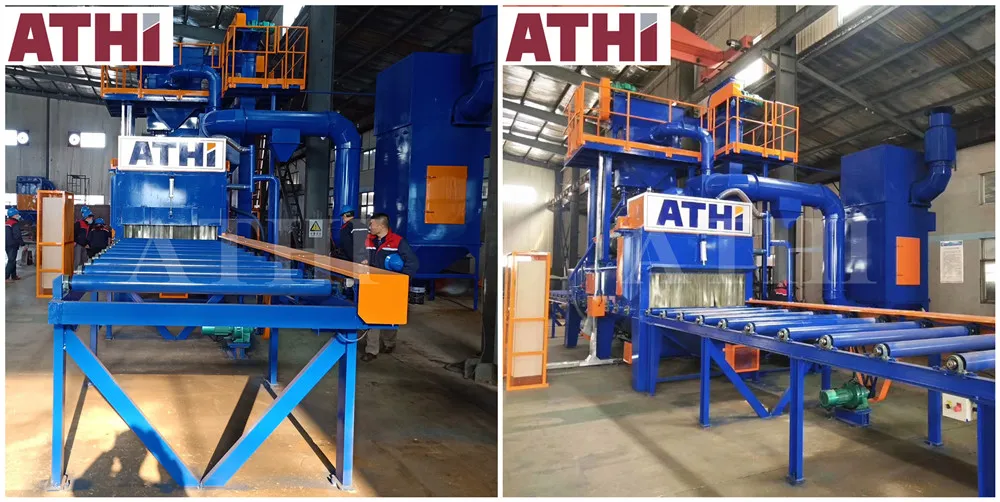

Application 2

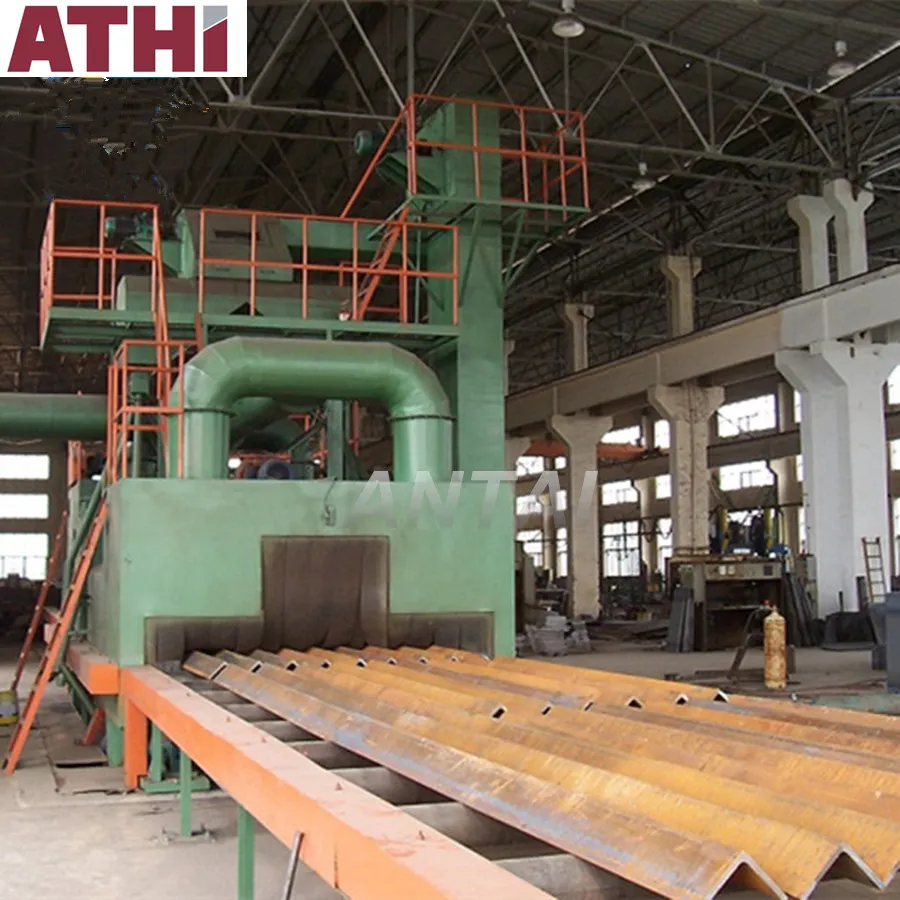

Angle Profile Steel Cleaning

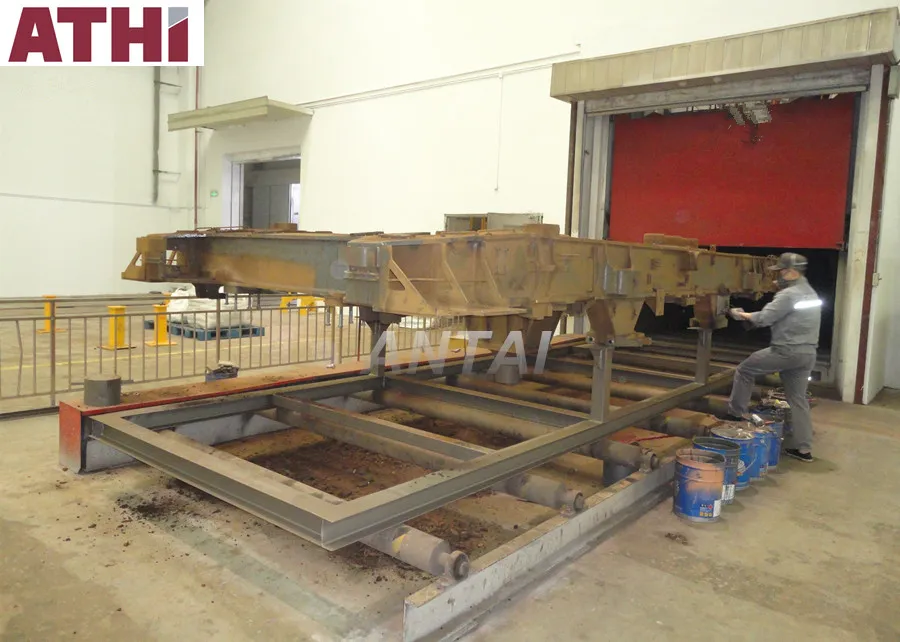

Heavy Bogie Parts Cleaning

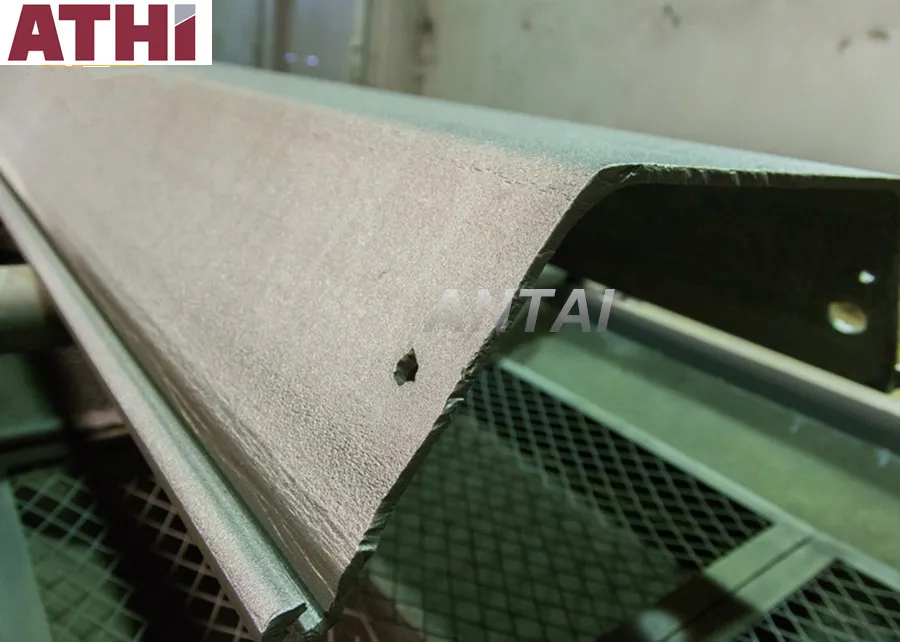

C Beam Channel Cleaning

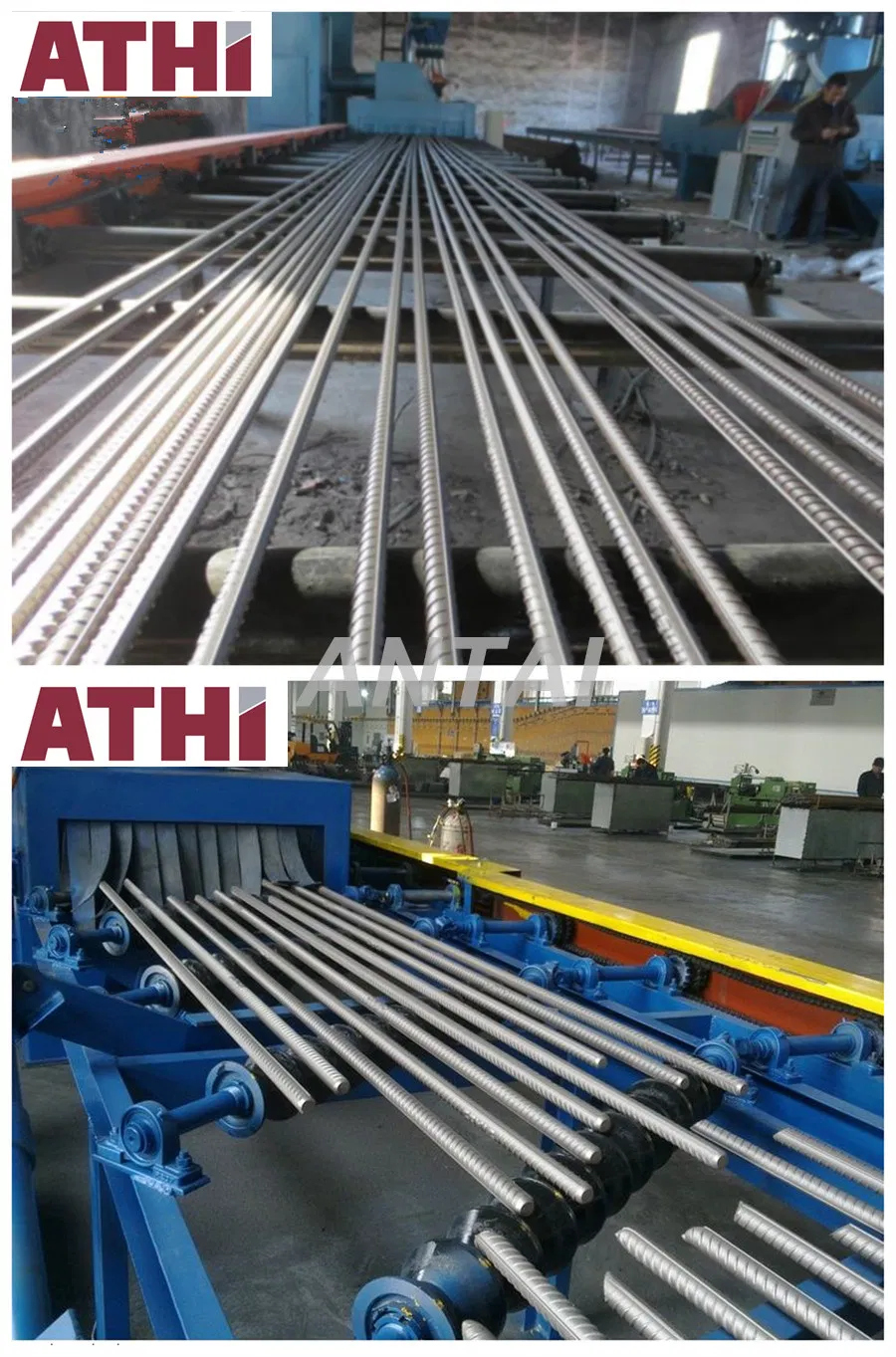

Deformed Steel Bar Cleaning
✔Structural Steel Processing

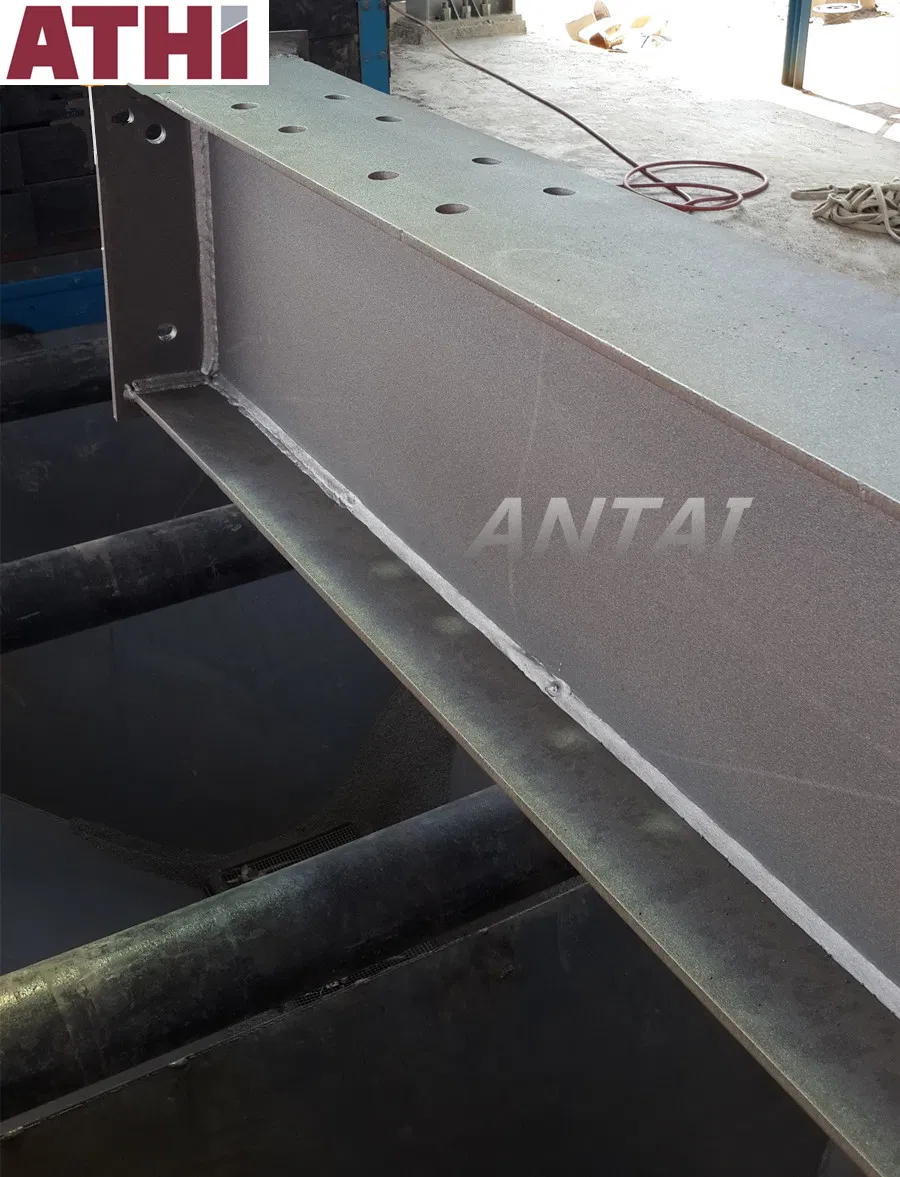

H Beam Steel
✔Steel Plate & Sheet Treatment

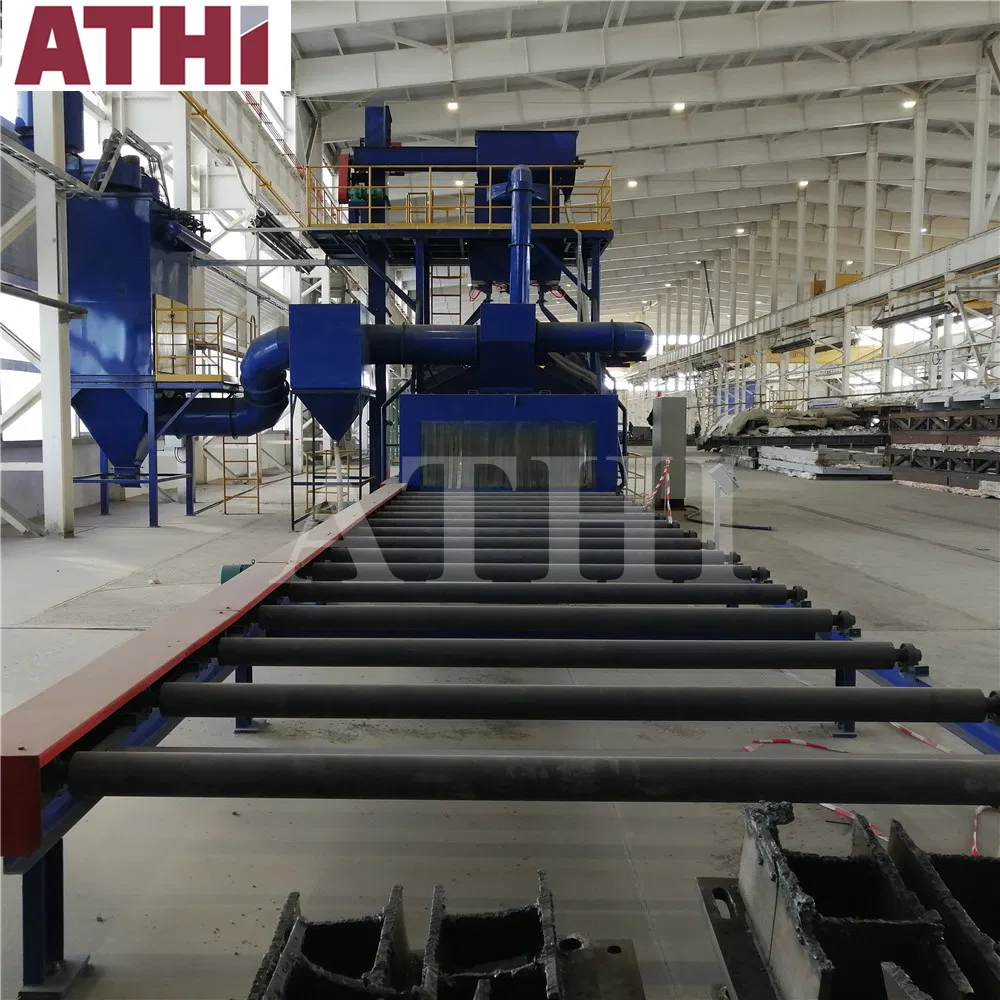

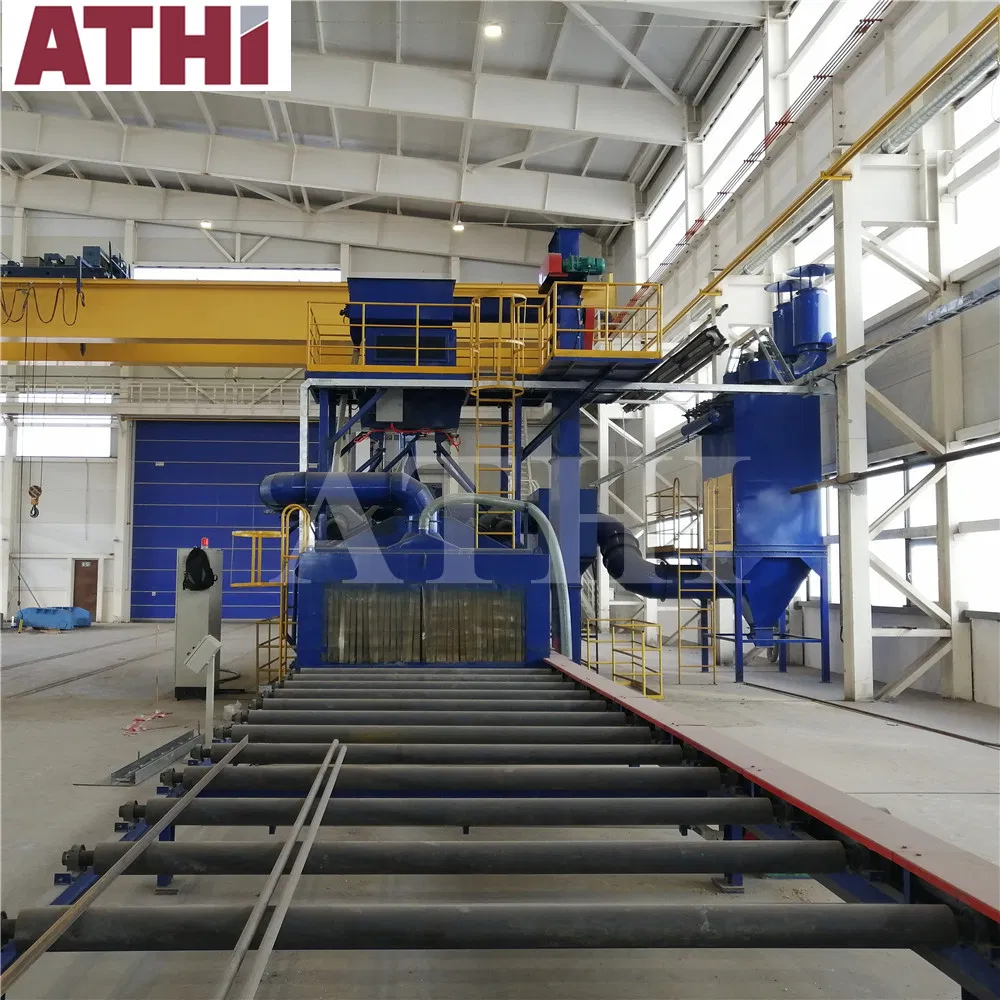

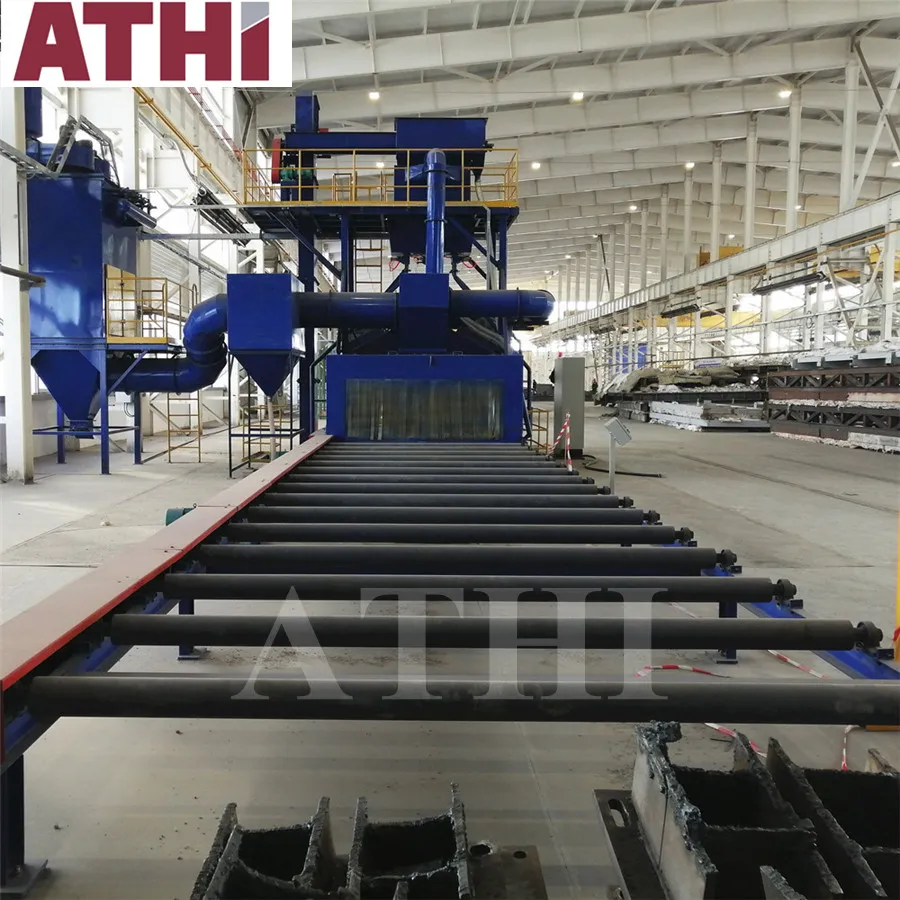

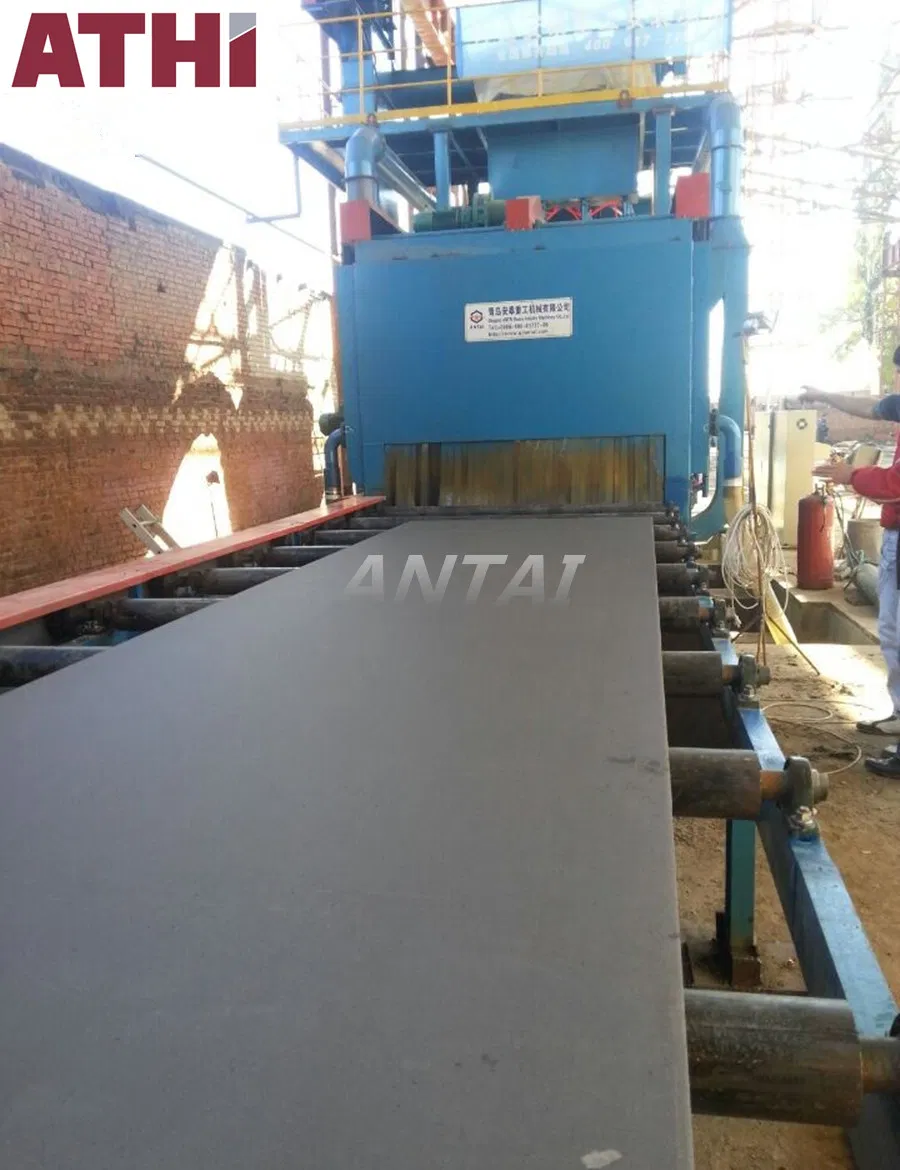

Steel Plate Cleaning Complete Line View
Production Capacity & Quality Control

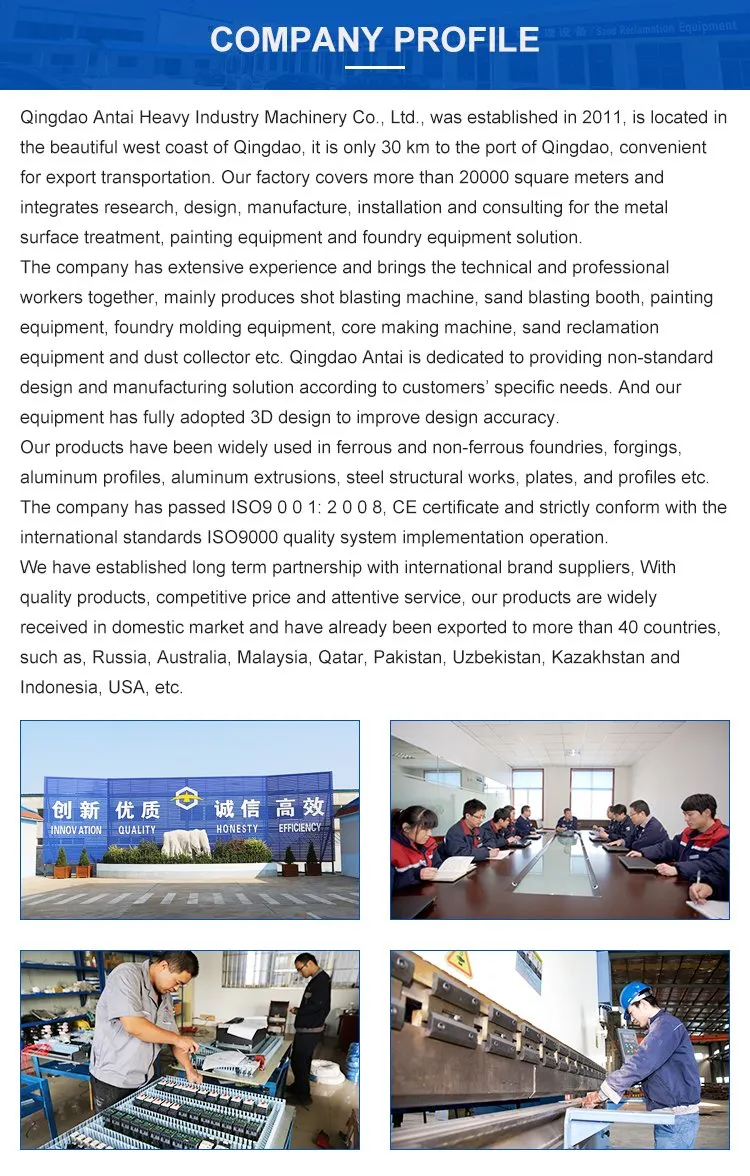

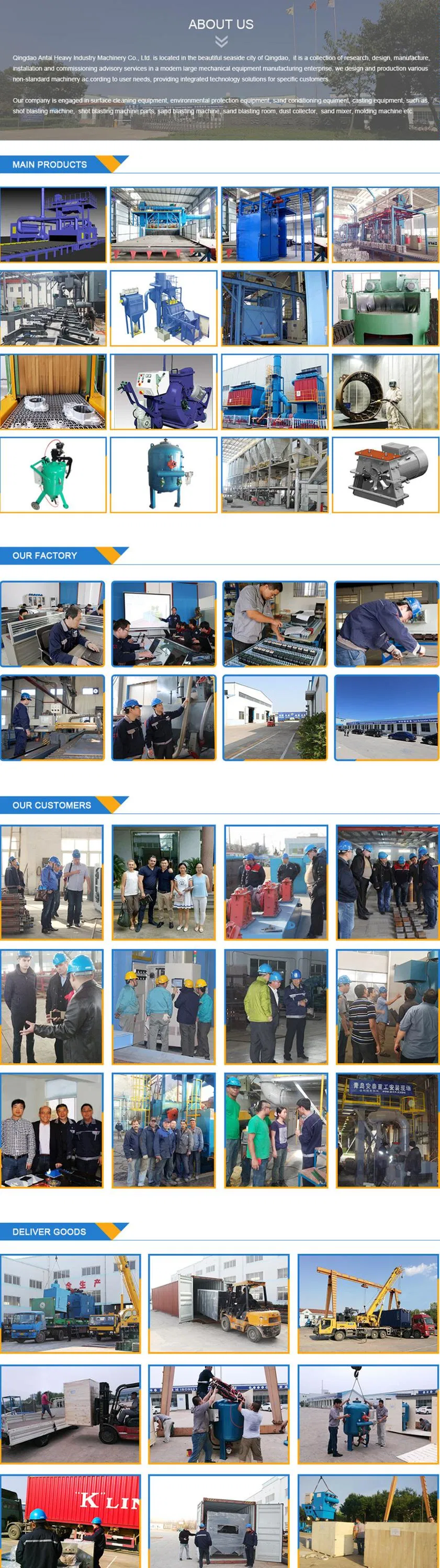

Workshop Process Certifications
Frequently Asked Questions
What types of workpieces can this machine clean?
The machine is designed for steel plates, H-beams, I-beams, C-beams, angle profiles, steel pipes, and various structural framing components.
What is the main purpose of the roller conveyor shot blasting machine?
It is primarily used for descaling, removal of oxide layers and welding scales, and surface preparation for painting or coating.
Is the machine customizable for specific sizes?
Yes, we provide non-standard models designed specifically for the customer's workpiece dimensions, including length, width, and height requirements.
How is the cleaning quality ensured?
The machine uses high-efficient blast wheels combined with a sweeping system (rolling brushes and high-pressure ventilators) to remove all abrasive traces.
What control system does the equipment use?
The complete set of equipment is controlled by an advanced PLC system for automated and precise operation.
What info is needed for a technical proposal?
Please provide the type of workpiece, its maximum dimensions (length, width, height), and your required daily production capacity.
