Basic Info.
Cleanliness
Medium Cleanliness
Feature
Critical Cleaning / Residue Free

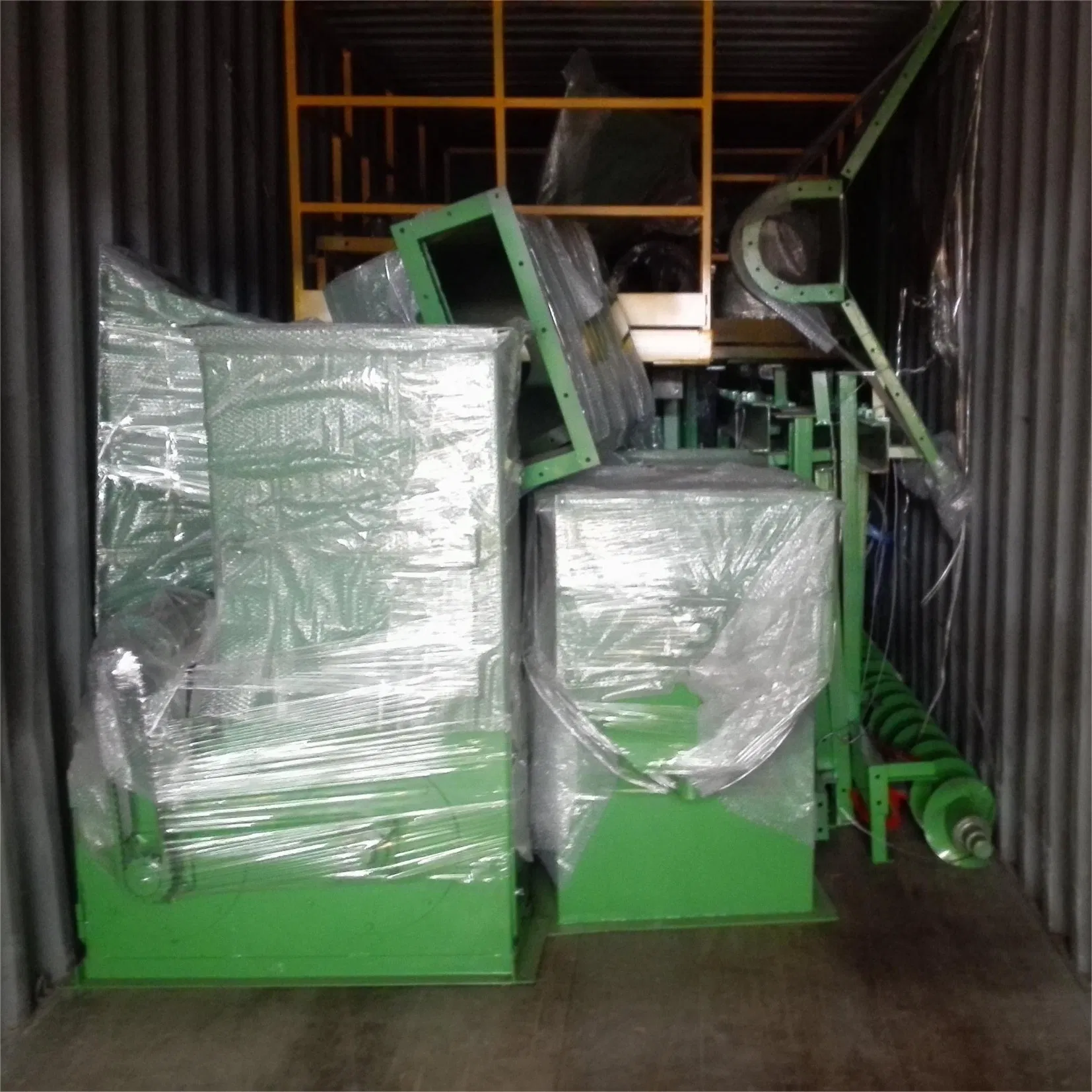

Transport Package
According to Request
Product Description
Q698 Roller Conveyor Shot Blasting Machine for Steel Plate
⚙️
Q69 series steel plate and section steel pretreatment line is mainly composed of such stage as preheating, shot blast cleaning, painting and stove, etc.
🏗️
The shot blasting machine is suitable for the surface derusting and painting craft for steel plates, H section structure and other structures in industries such as ship-making, automobile making, locomotive vehicle, bridge and machinery.
🔄
Components continuously pass through the prechamber, the blasting chamber, and the cleaning chamber on a special roller conveyor. Highly efficient blast wheels make it possible to treat components on all sides to remove scale, rust and paint.
⚡
Equipped with 4 or 8 high power Hurricane blast wheels mounted around the housing, making it possible to treat complex components with difficult to reach areas.
🛡️
A highly wear-resistant wire mesh belt with tension adjustment provides part transport. Special belt guiding enables lower blast wheels to blast through one belt position to minimize masking.

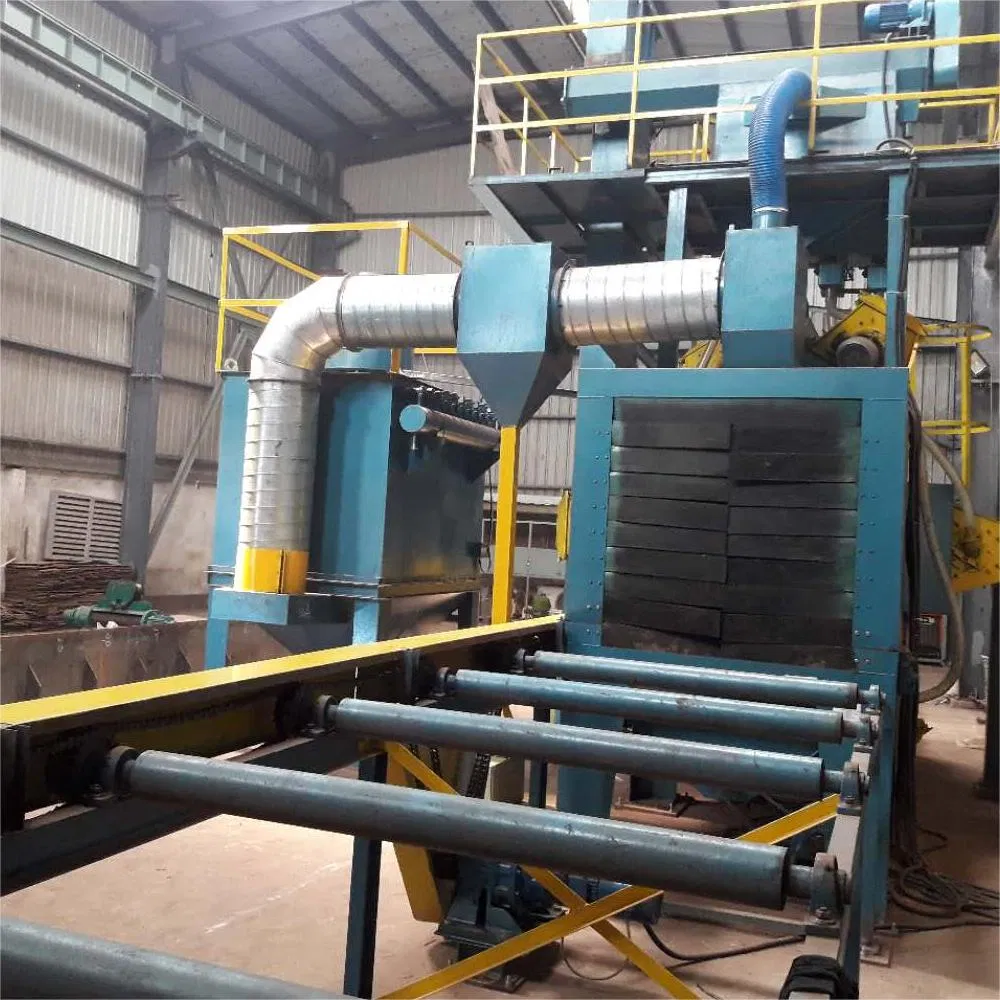

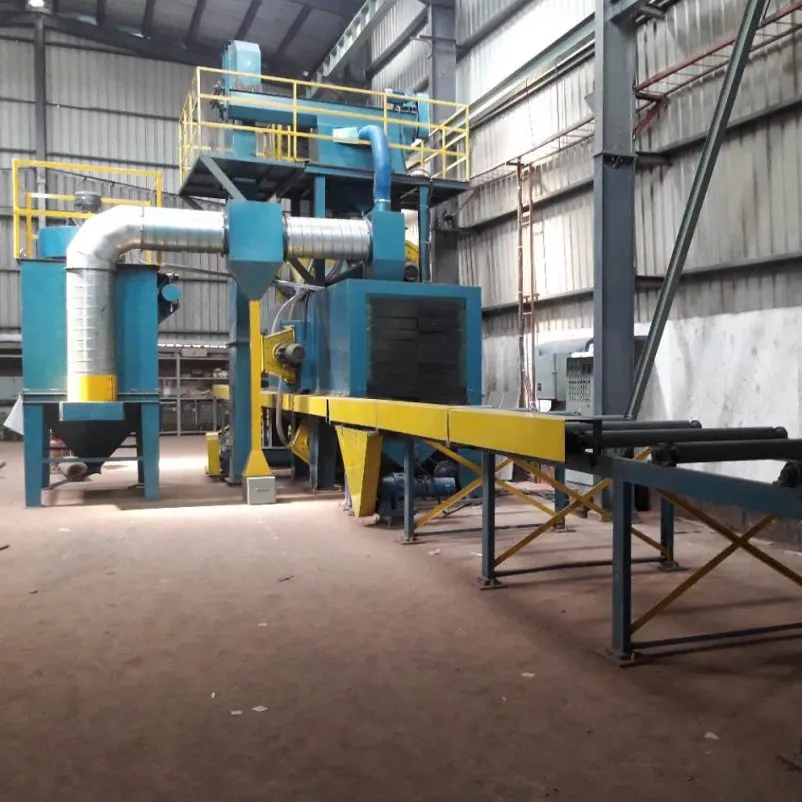

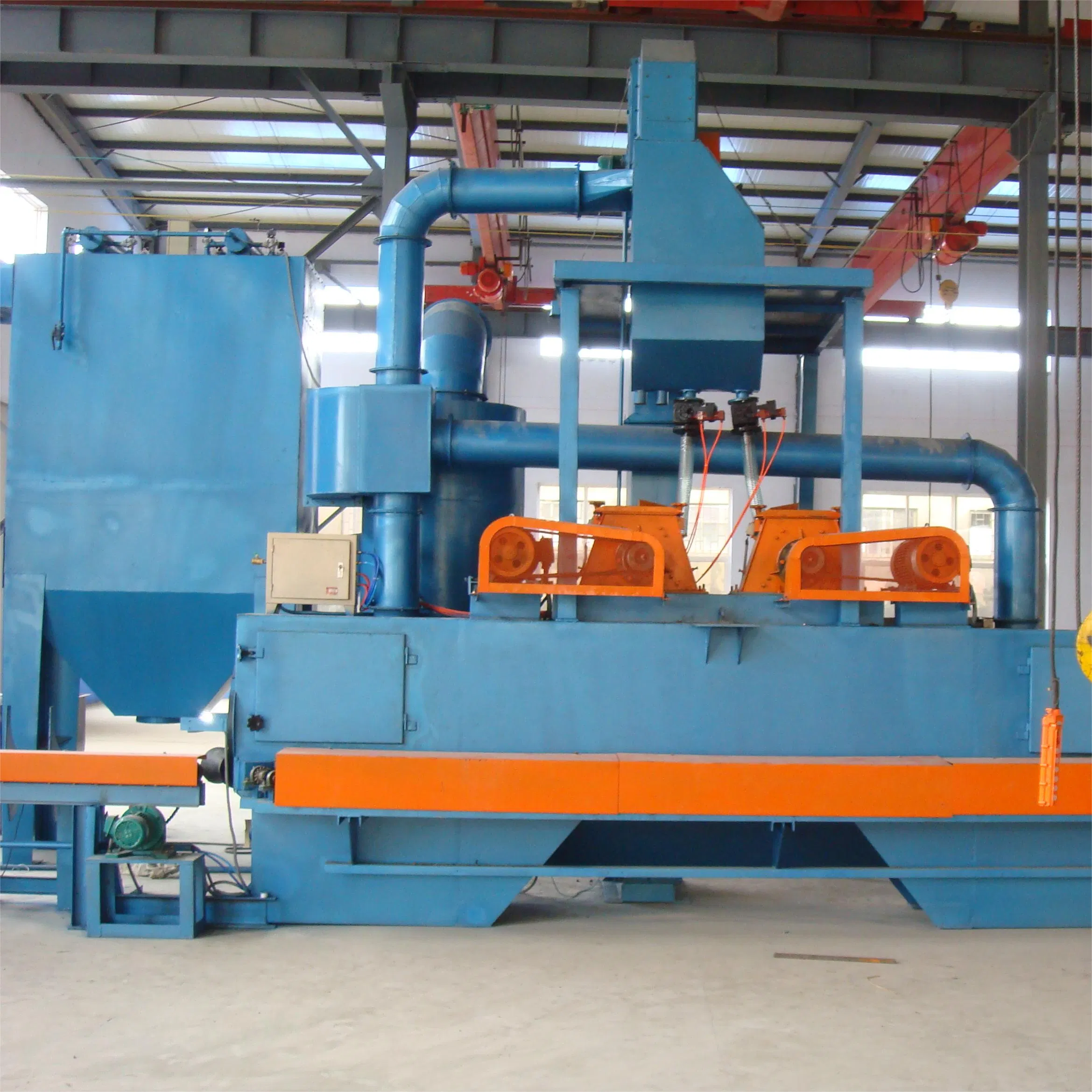

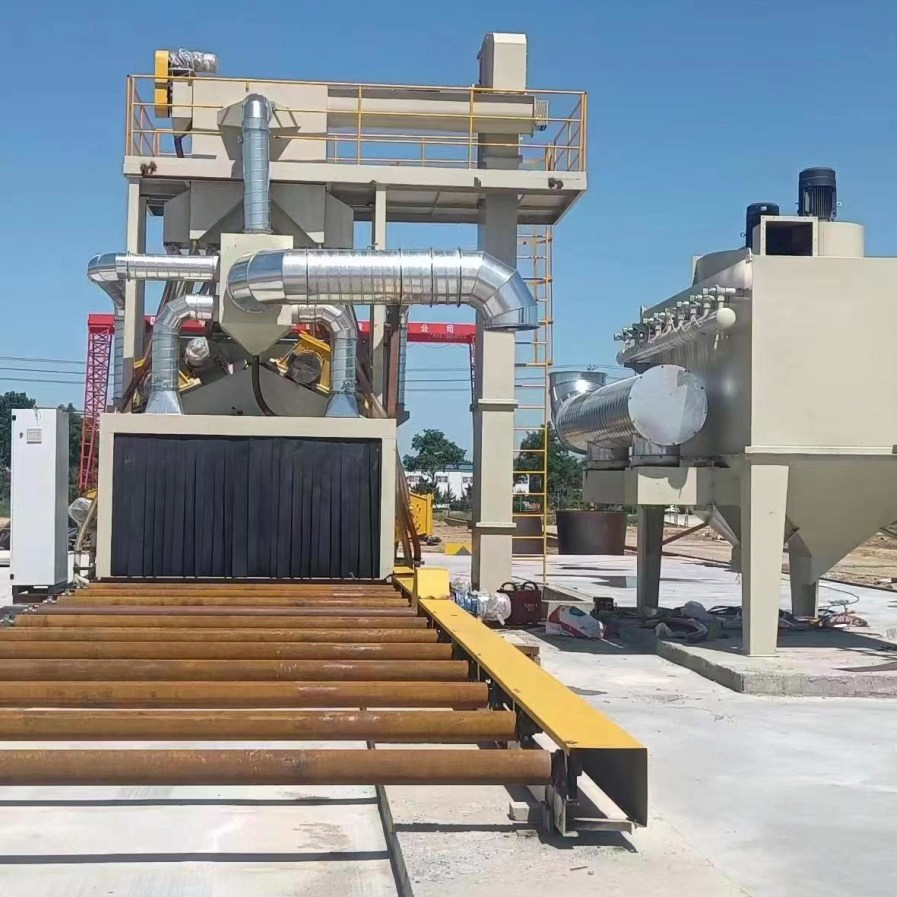

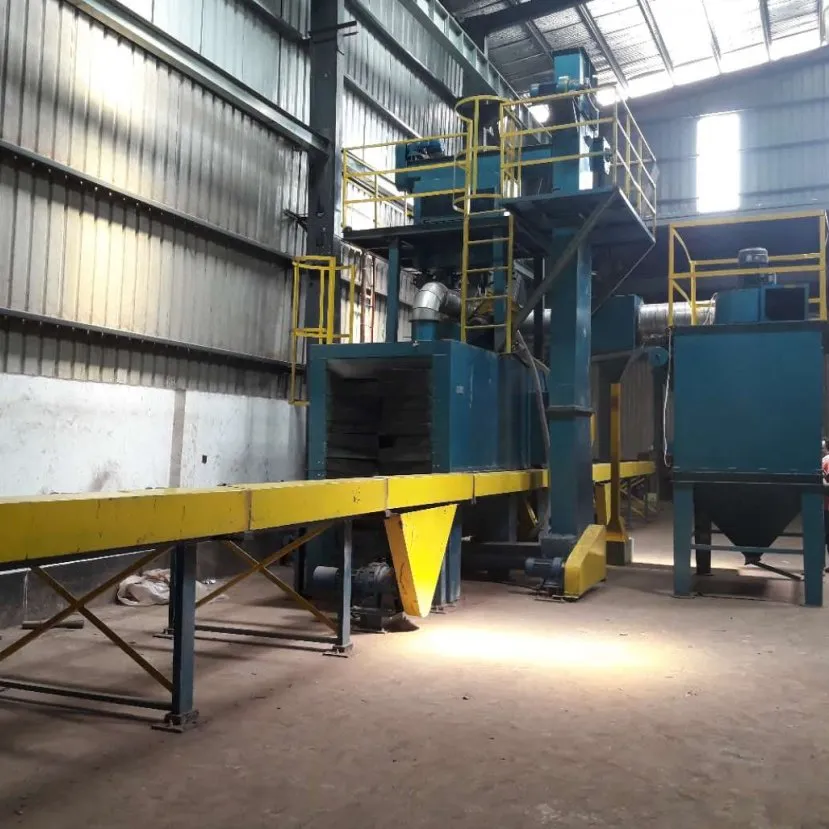

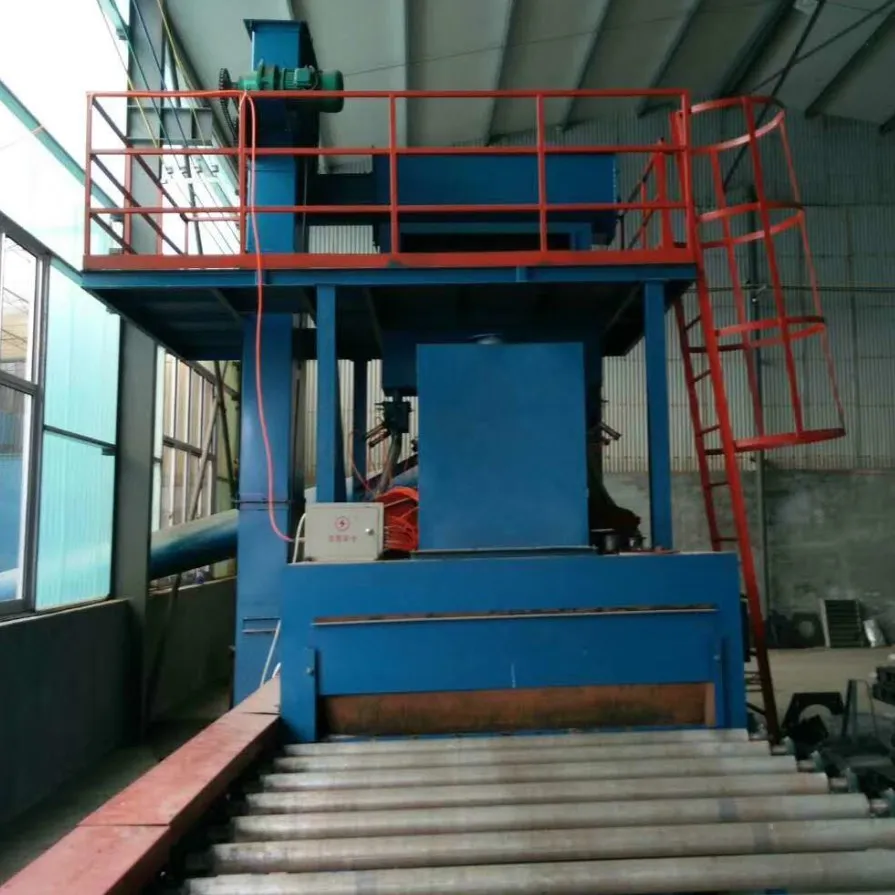

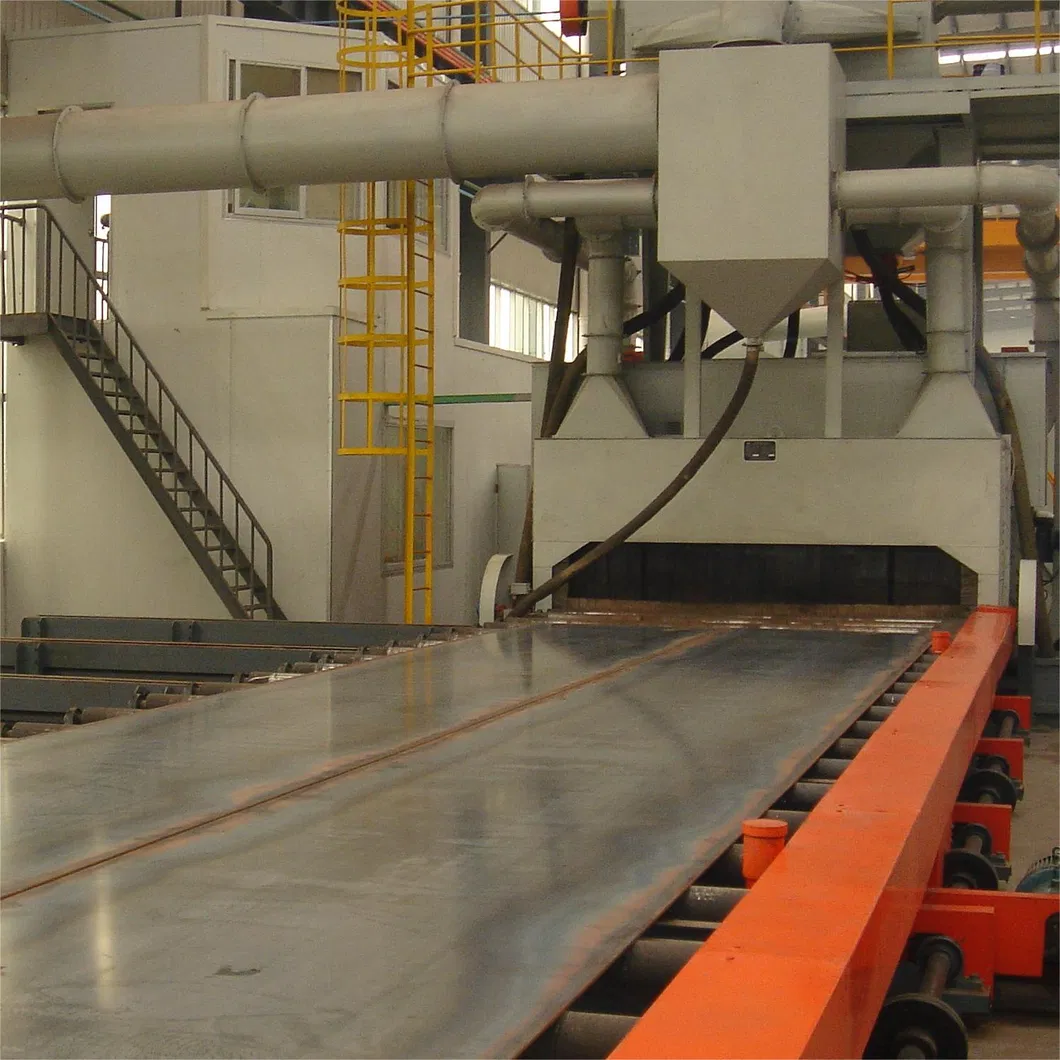

Product Images
Technical Parameters
| Type |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
| Effective Cleaning Width (mm) |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
| Room Feed-in Size (mm) |
1000*400 |
1400*400 |
1700*400 |
2200*400 |
2700*800 |
3200*800 |
4200*400 |
| Workpiece Length (mm) |
1200-12000 |
1200-1600 |
1200-12000 |
1200-12000 |
3000-12000 |
2400-12000 |
4500-18000 |
| Conveyor Speed (m/min) |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
| Steel Thickness (mm) |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-100 |
| Shot Blasting Qty (kg/min) |
4*180 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
8*360 |
| Airness Capacity (m³/h) |
22000 |
17560 |
19000 |
19500 |
27758 |
28050 |
38000 |
| Total Power (kw) |
90 |
78.3 |
113.5 |
156.6 |
204.8 |
224.55 |
293.6 |
Frequently Asked Questions
💬 Q: How many days are needed to produce this machine?
A: Usually 15-25 days depending on the machine and power mode. Customized types take 30-45 days, while full production line equipments take 2-3 months.
💬 Q: How is the product quality controlled?
A: We utilize a professional technical design team and strict production systems. The quality inspection department checks regularly. Smaller machines are tested in-house; larger machines are installed and tested at the customer site until functional.
💬 Q: What is the quality guarantee period for the machine?
A: The quality guarantee is usually one year. We use world-famous brand components to ensure the machine stays in perfect working condition.
💬 Q: Can the machine be installed overseas?
A: Yes, engineers can be arranged for installation assistance. Costs such as round-trip tickets, salary, and living expenses are covered by the customer. Installation usually takes 30-60 days.
💬 Q: What materials and industries is this machine suitable for?
A: It is ideal for steel plates and H-section structures. It serves industries such as ship-building, automobile manufacturing, locomotive vehicles, bridges, and heavy machinery.
💬 Q: What are the main stages of the pretreatment line?
A: The pretreatment line typically consists of stages including preheating, shot blast cleaning, painting, and a stove for curing.
