📋 Product Description

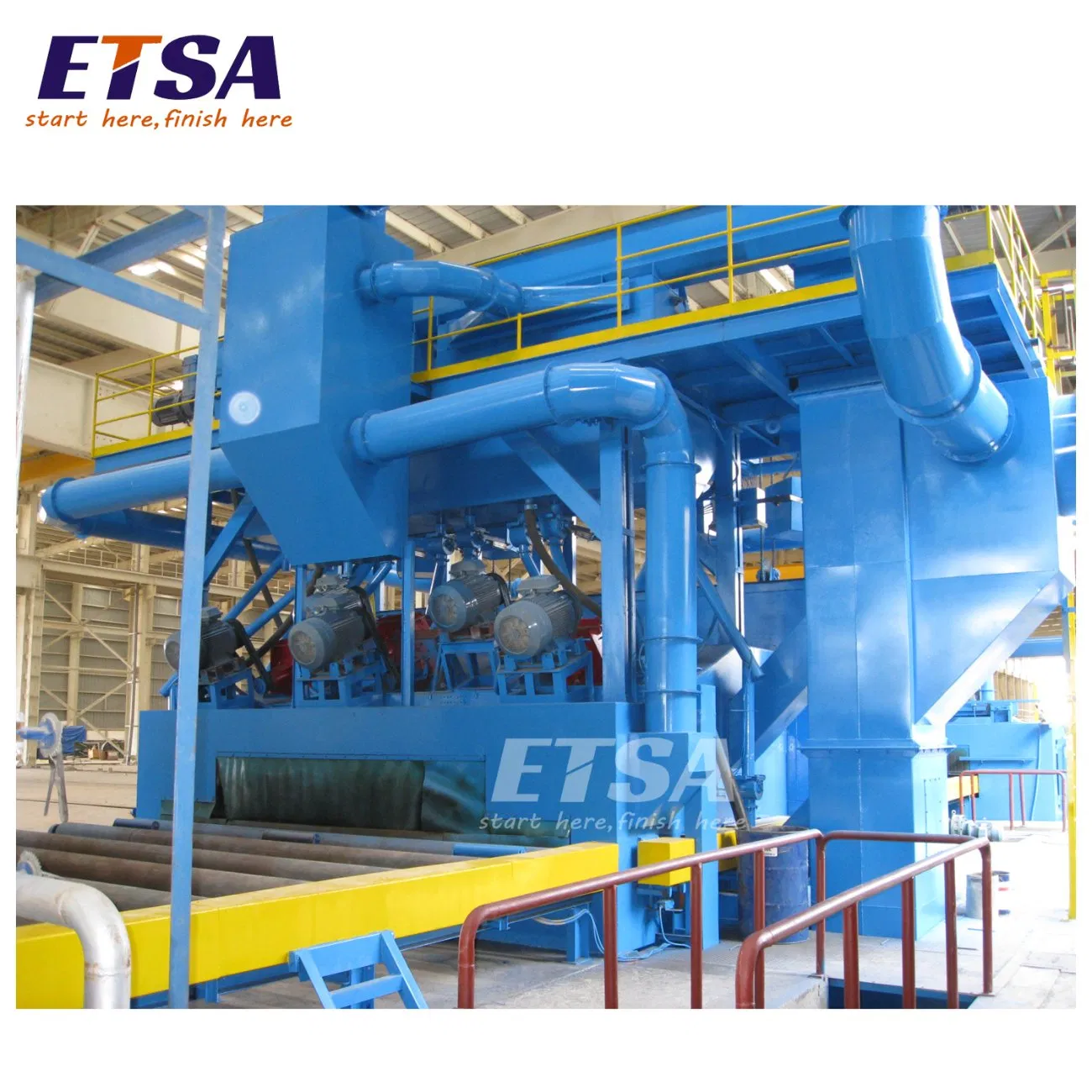

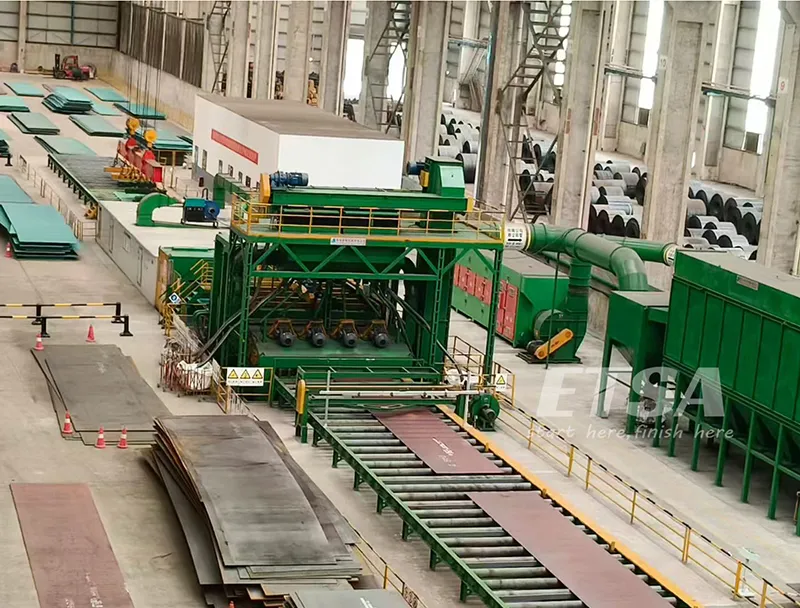

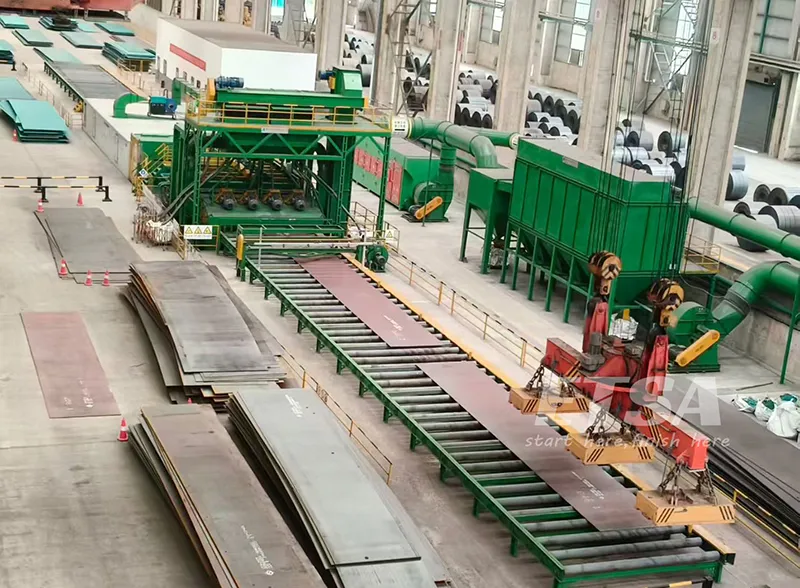

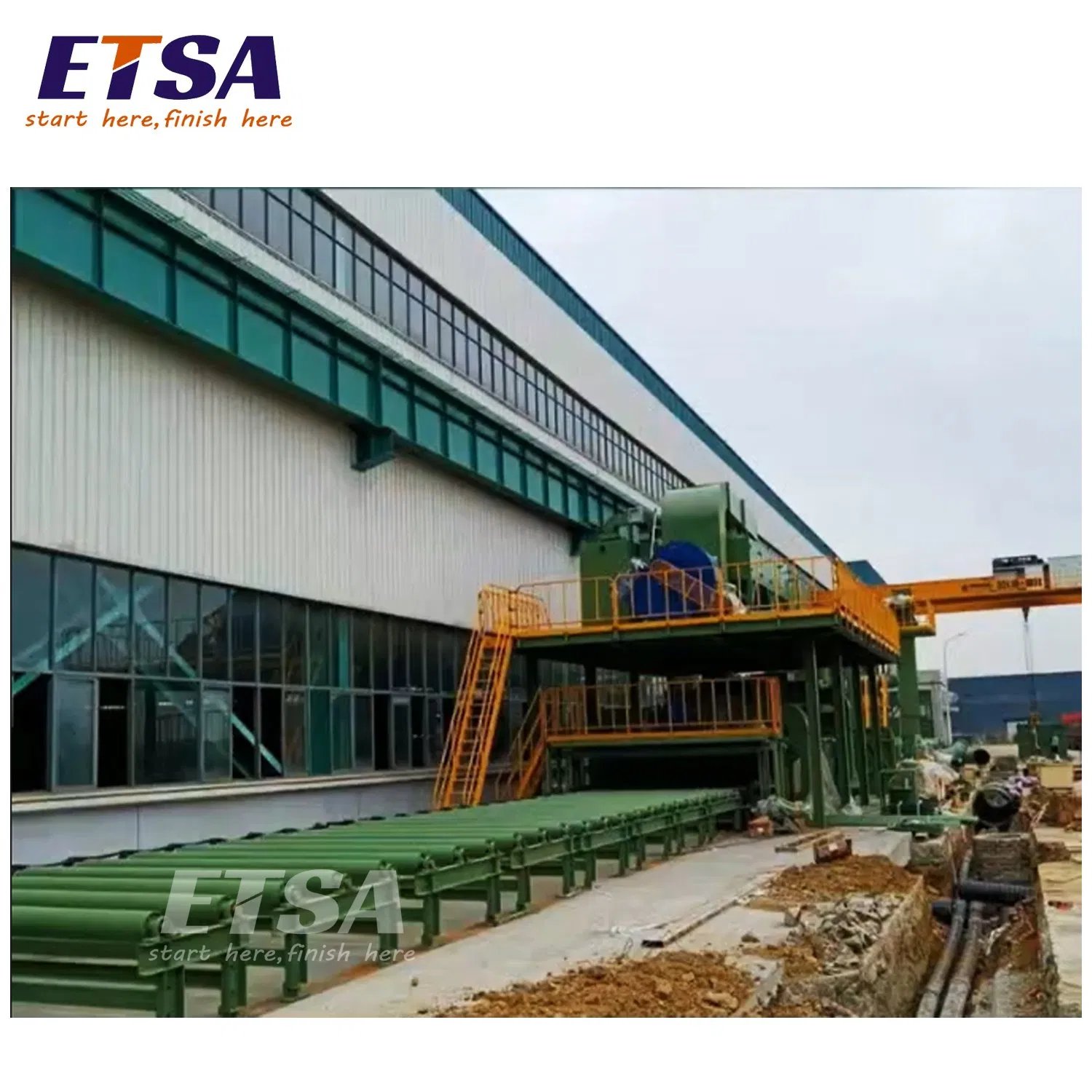

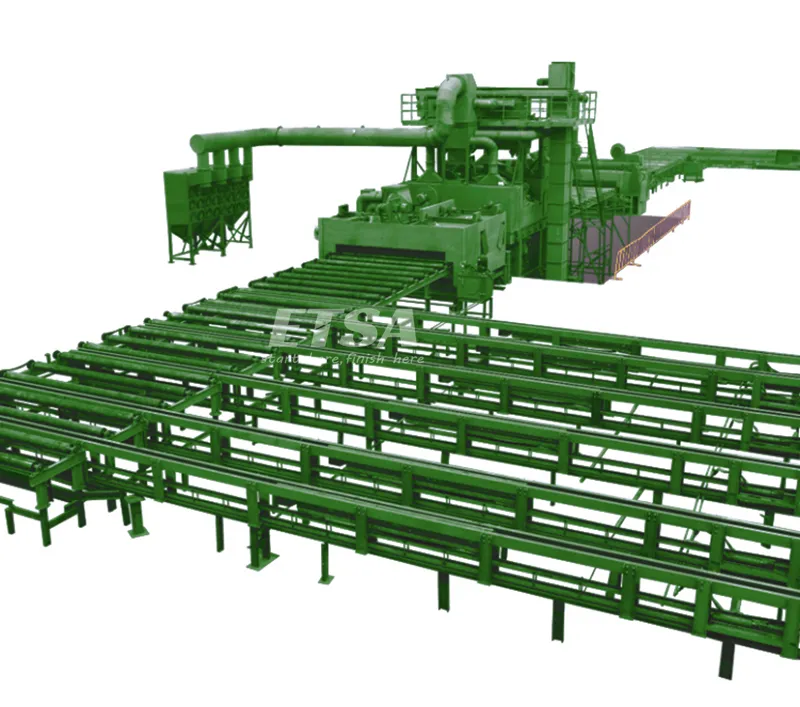

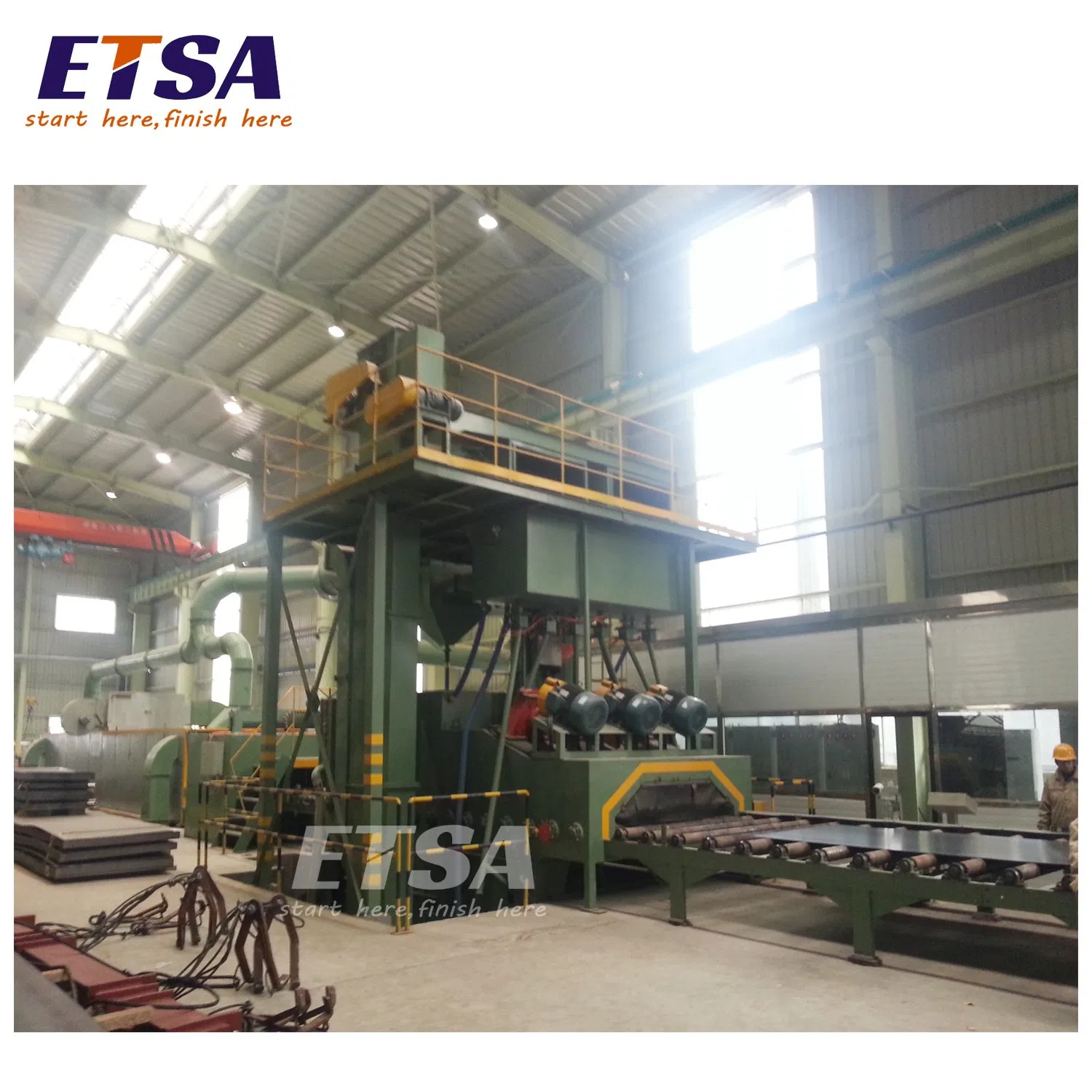

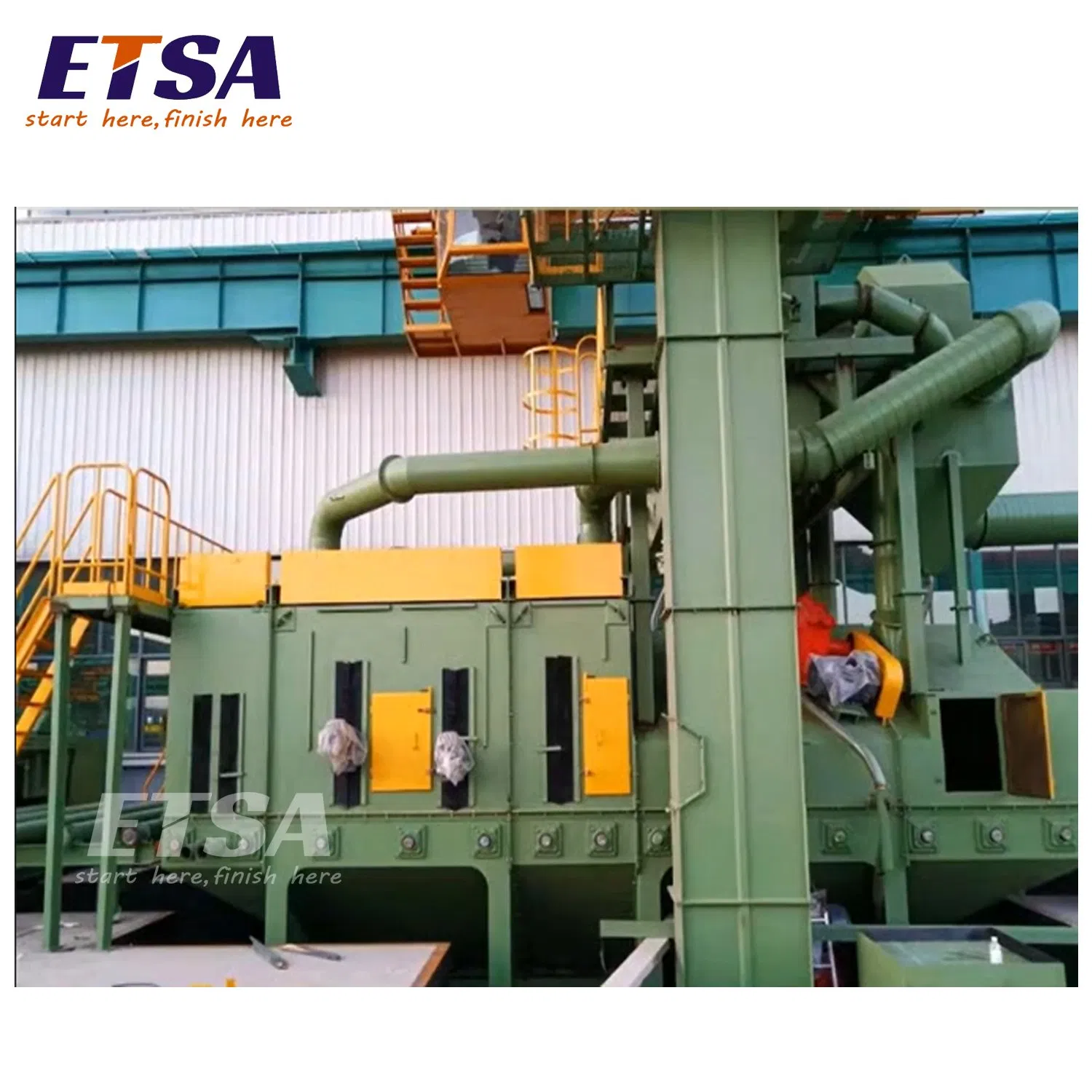

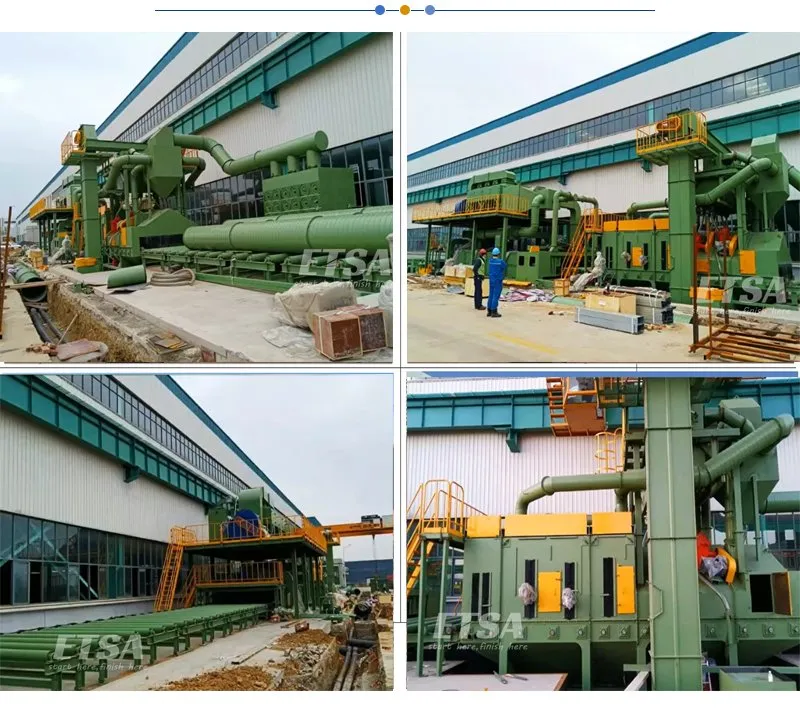

Shot Blasting and Priming Machine combine the blasting, coating and drying of workpieces such as sheet steel, profiles, pipes or steel structures in one automatic line.
The shot blasting and priming machines are ideal when there is a lengthy manufacturing or storage time between blasting and final coating. In order to prevent rust returning, a weld primer is applied to provide corrosion resistance for weeks.
Sheet widths of up to 5000mm can be processed, with passage speeds varying from 1.0m/min to 5.0m/min.

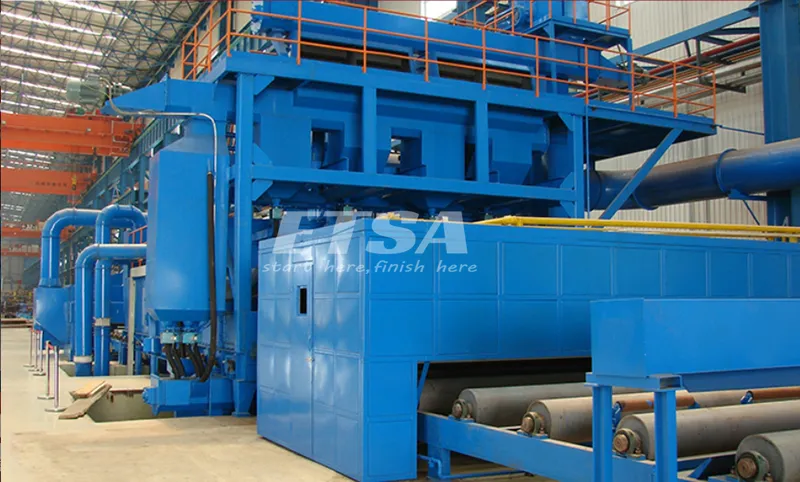

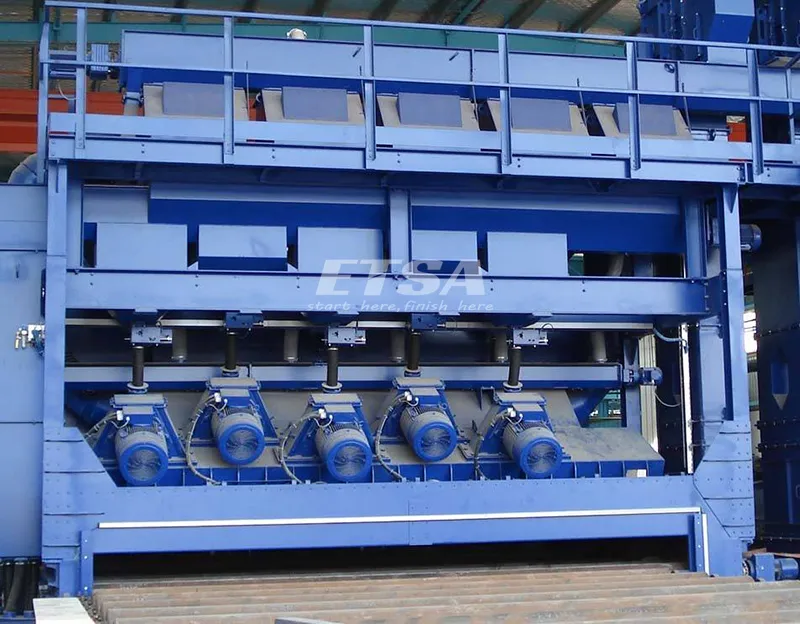

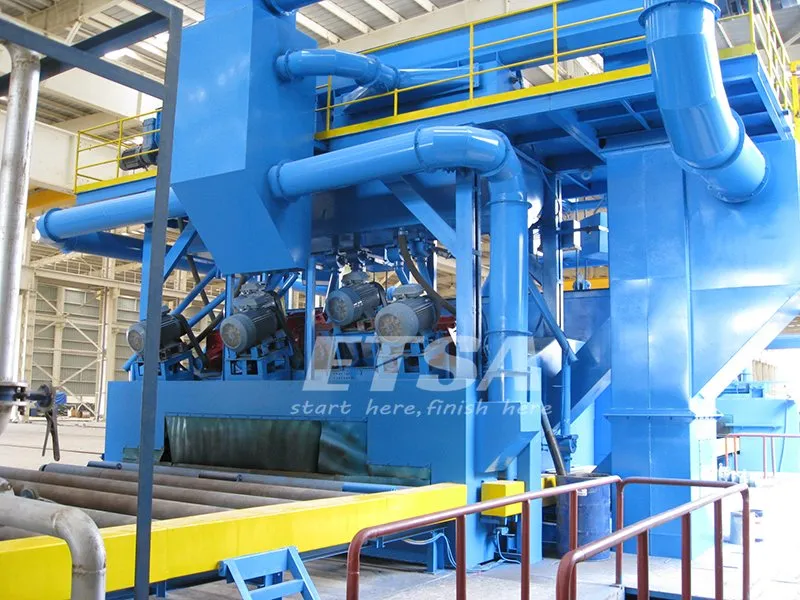

Blasting Chamber
Liner is manufactured completely from high manganese, which is hard enough to deal with shot blasting from 35HRC to more than 60HRC. They are attached from the outside and are easy to replace. Several rubber layers or curtains are fitted in areas of heavy wear to avoid shot leakage.

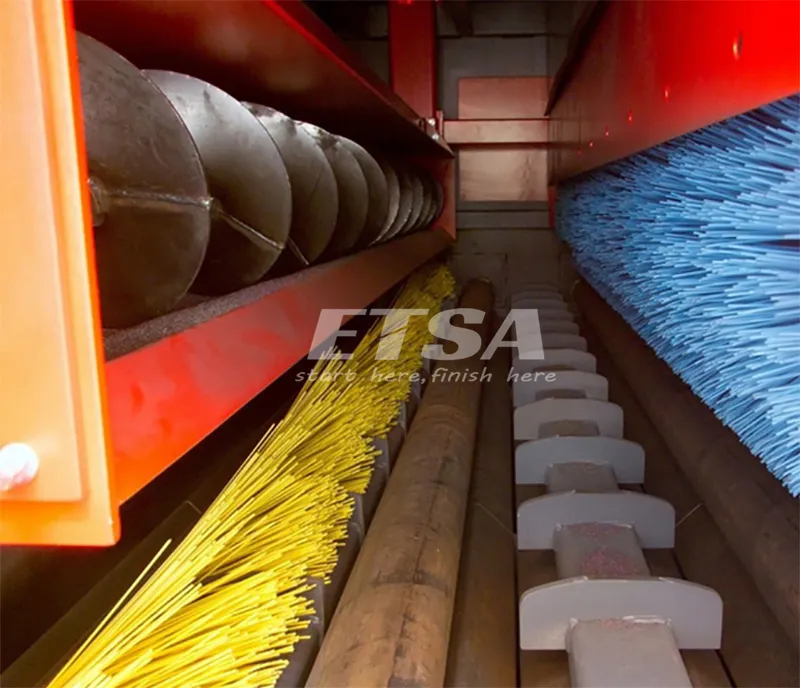

Abrasive Cleaning Up
Rotation brushes remove spent abrasive from the workpiece surface into a specially designed trough with a screw conveyor. Remaining media is removed by a blow-off station using high-pressure ventilators.

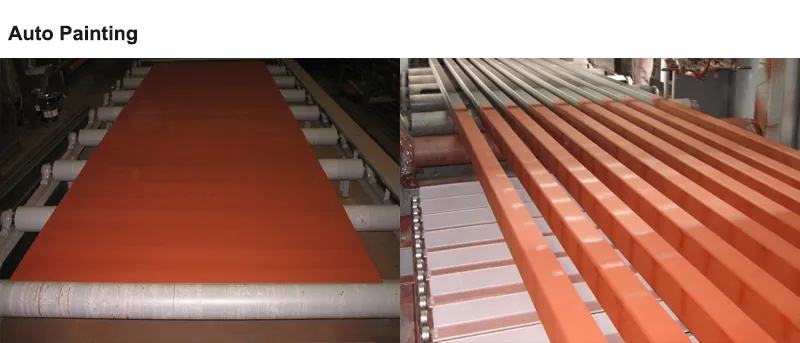

Spray Room

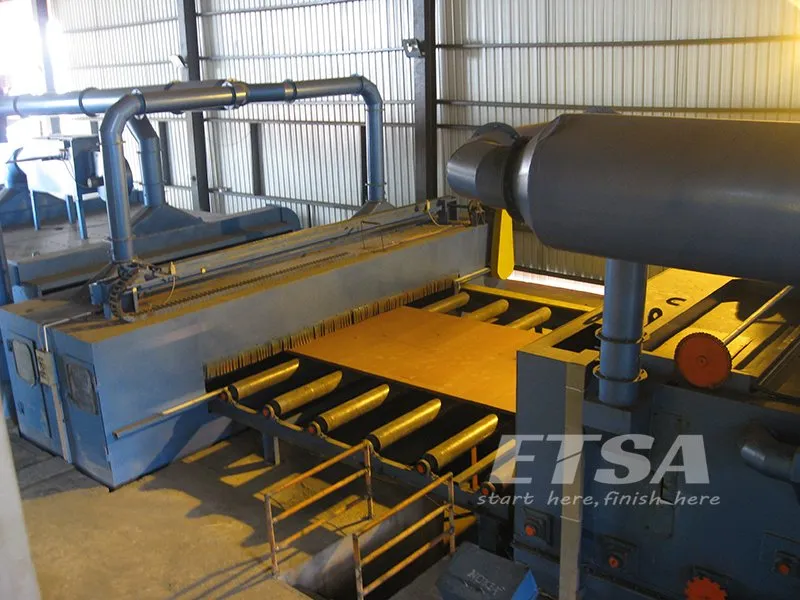

The painting equipment provides a coating thickness of 15-20 micron. Workpieces are transferred by a chain conveyor with bearing elements to ensure minimal contact with the painted surface. Labyrinth filters capture overspray before air is emitted.

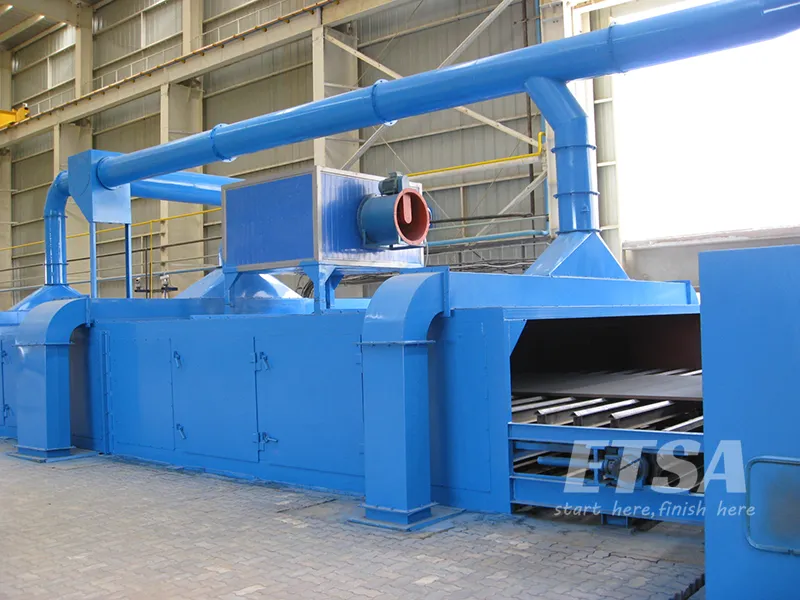

Drying Room
Works in recycling mode with heated air (30°C to 80°C). 10-15% fresh air intake prevents solvent oversaturation. Chain conveyors protect the painted surface from damage during transportation.
❓ Frequently Asked Questions
What types of workpieces can be processed by this pretreatment line?
This automatic line is designed for processing steel plates, beams, profiles, pipes, and various steel structures.

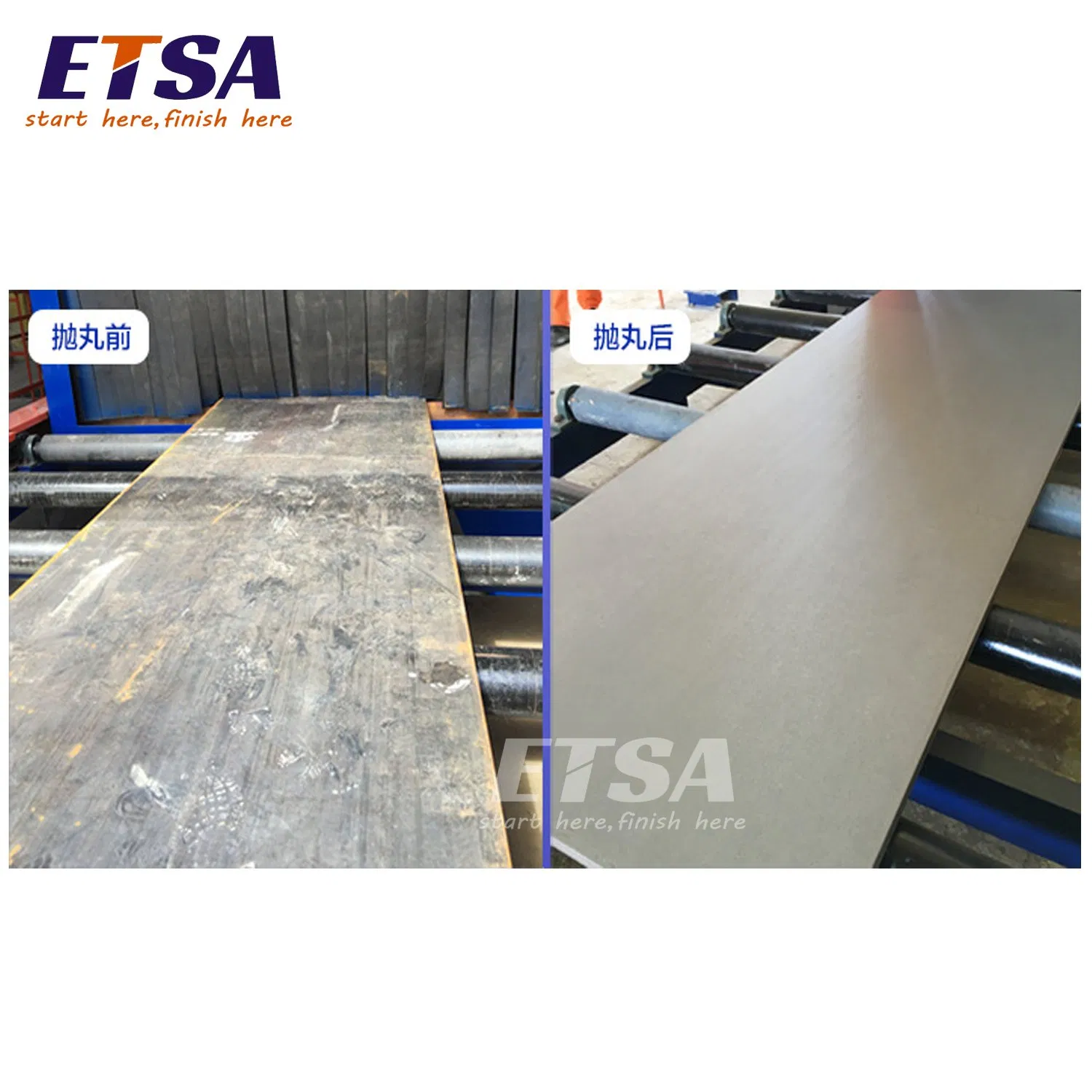

What is the standard surface finish level achieved?
The system achieves a high cleanliness surface finish level ranging from SA2.5 to SA3.0.
What is the thickness of the primer coating?
The painting equipment provides a consistent coating thickness of 15 to 20 microns.
How is the painted surface protected during transport?
Workpieces are moved by a specialized chain conveyor with bearing elements that ensure minimal contact with the painted surface to prevent damage.
What temperature range can the drying room support?
The drying chamber temperature can be set between 30°C and 80°C, depending on the specific type of primer used.
Is the system automated?
Yes, it is a fully automatic preservation line equipped with high-quality PLC systems from brands like Siemens or Omron.
