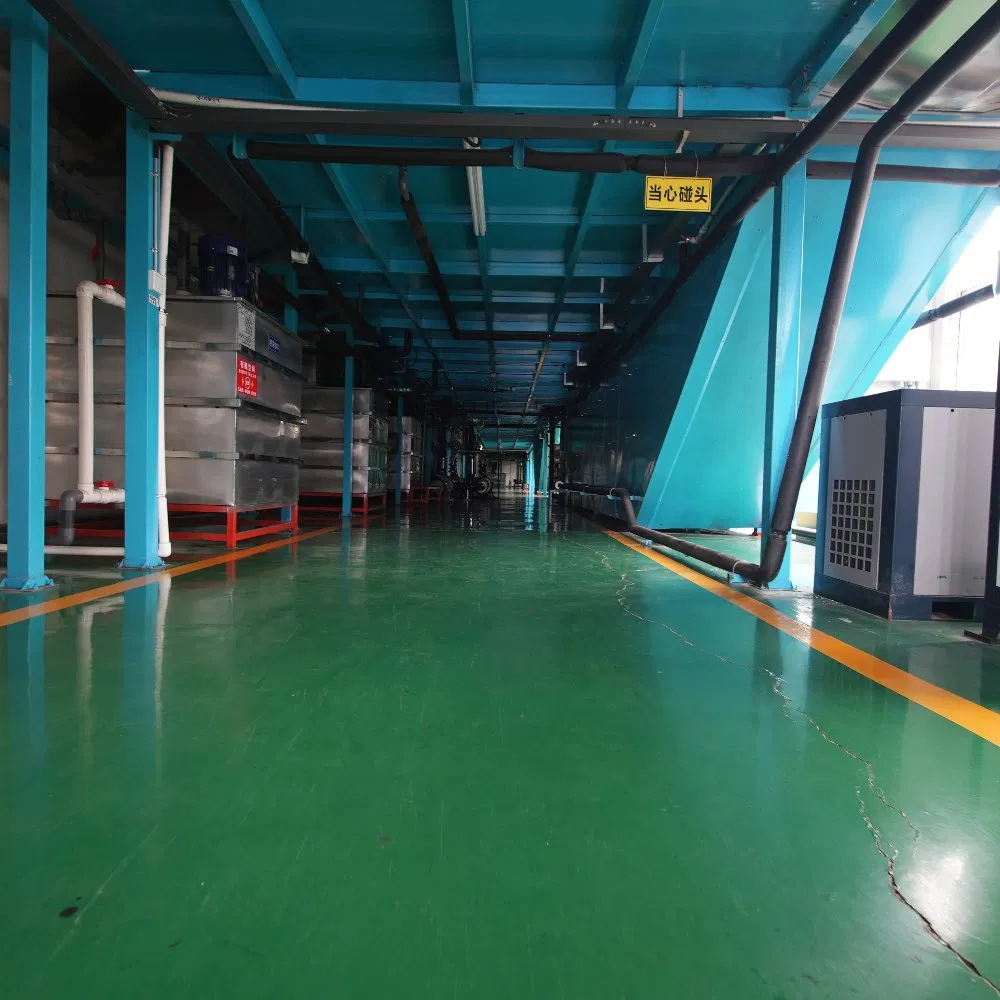

Automatic Metal Surface Finishing Line with Shot Blasting and Coating
Automatic Metal Surface Finishing Line with Shot Blasting and Coating
Automatic Metal Surface Finishing Line with Shot Blasting and Coating
Automatic Metal Surface Finishing Line with Shot Blasting and Coating
Automatic Metal Surface Finishing Line with Shot Blasting and Coating
1 / 5
Automatic Metal Surface Finishing Line with Shot Blasting and Coating
Automatic Metal Surface Finishing Line with Shot Blasting and Coating
Automatic Metal Surface Finishing Line with Shot Blasting and Coating
Automatic Metal Surface Finishing Line with Shot Blasting and Coating
Automatic Metal Surface Finishing Line with Shot Blasting and Coating

Automatic Metal Surface Finishing Line with Shot Blasting and Coating

Customization: Available
Application: Aerospace Industry, Appliance Industry, Construction Industry
Coating Type: Powder Coating
Send Inquiry

Product Description

Automatic Metal Surface Finishing Line

Basic Info & Overview

Heating system
Diesel, electric
Warranty
One-Year Warranty
Certification
ISO
Airflow Direction
Door Inlet, Rear Return
Paint Mist Treatment
Cartridge Filter Dust Collector
Condition
New
Air Flow
3,500 M³/H × 1
Air Speed
0.25-0.5 M/S
Power
2.2 Kw
Power Supply
220V-420V, 3-Phase AC, 50-60Hz
Color Choice
Blue, Red, Orange, White
Air System Position
Door Inlet, Rear Return / Top Inlet, Bottom Return
Wall Panel
2.0mm Galvanized Sheet
Fan Type
CF-11 Centrifugal Fan
Control Panel
Digital Intelligent Control Panel
Internal Size
1.5m × 1.5m × 2.8m
Origin
China
Production Capacity
100 Units/Year

Packaging & Delivery

Package Size
700.00cm * 1000.00cm * 250.00cm
Package Gross Weight
10000.000kg

Product Description

Separator

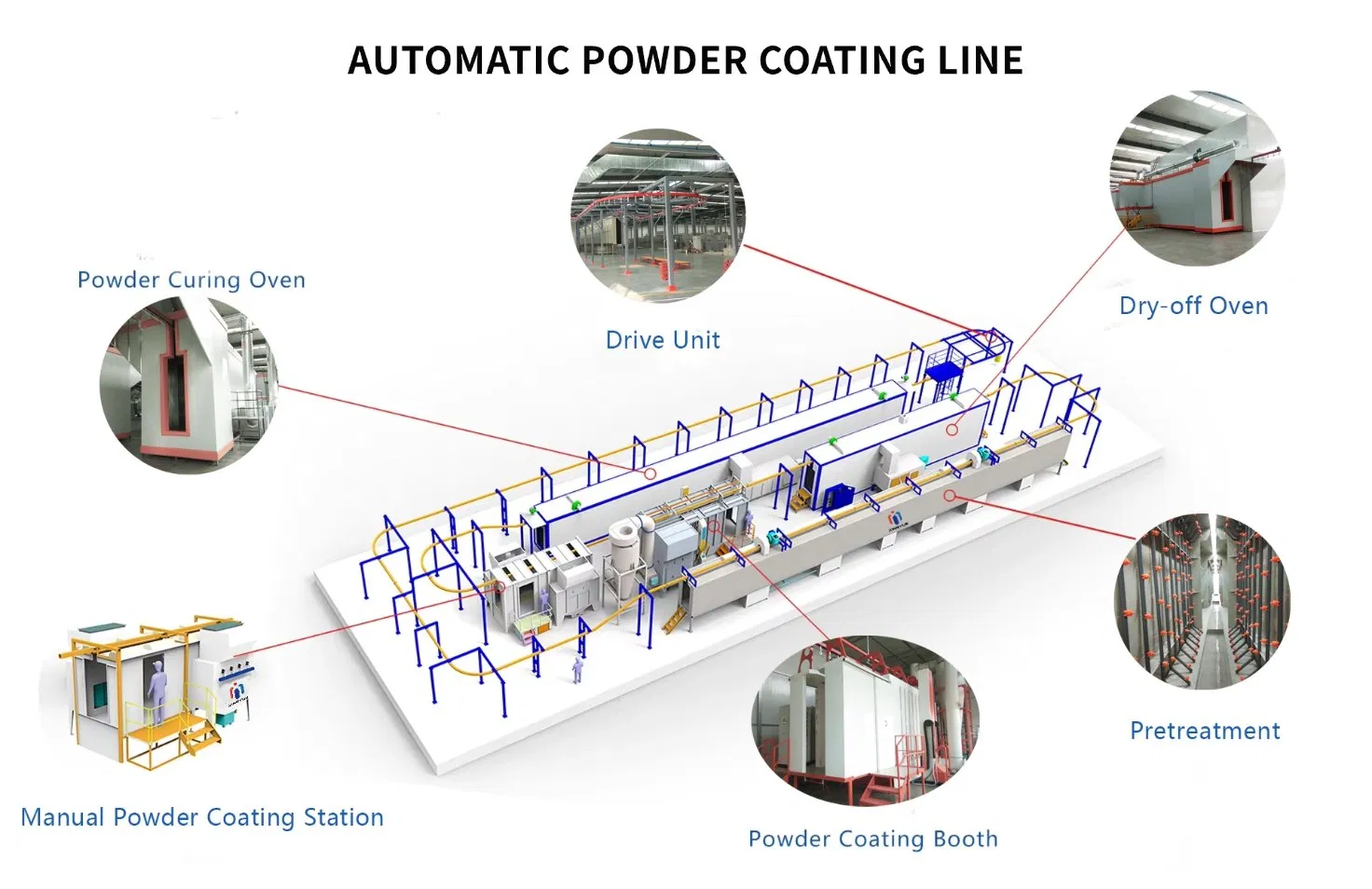

System Detail

Features of Automatic Powder Coating Line

  • Drive unit: closed-circuit overhead conveyor for powder coating.
  • Powder coating booth: booth equipped with a large cyclone recovery device has improved the recovery and utilization of powder.
  • Automatic spray gun and reciprocator: for consistent and uniform powder coating.
  • Powder supply center: maximize the performance of powder feeding, cleaning and control.
  • Customized curing oven: powder coating oven with top rack is designed to match with manual conveyor line, for the purpose of continuous production.

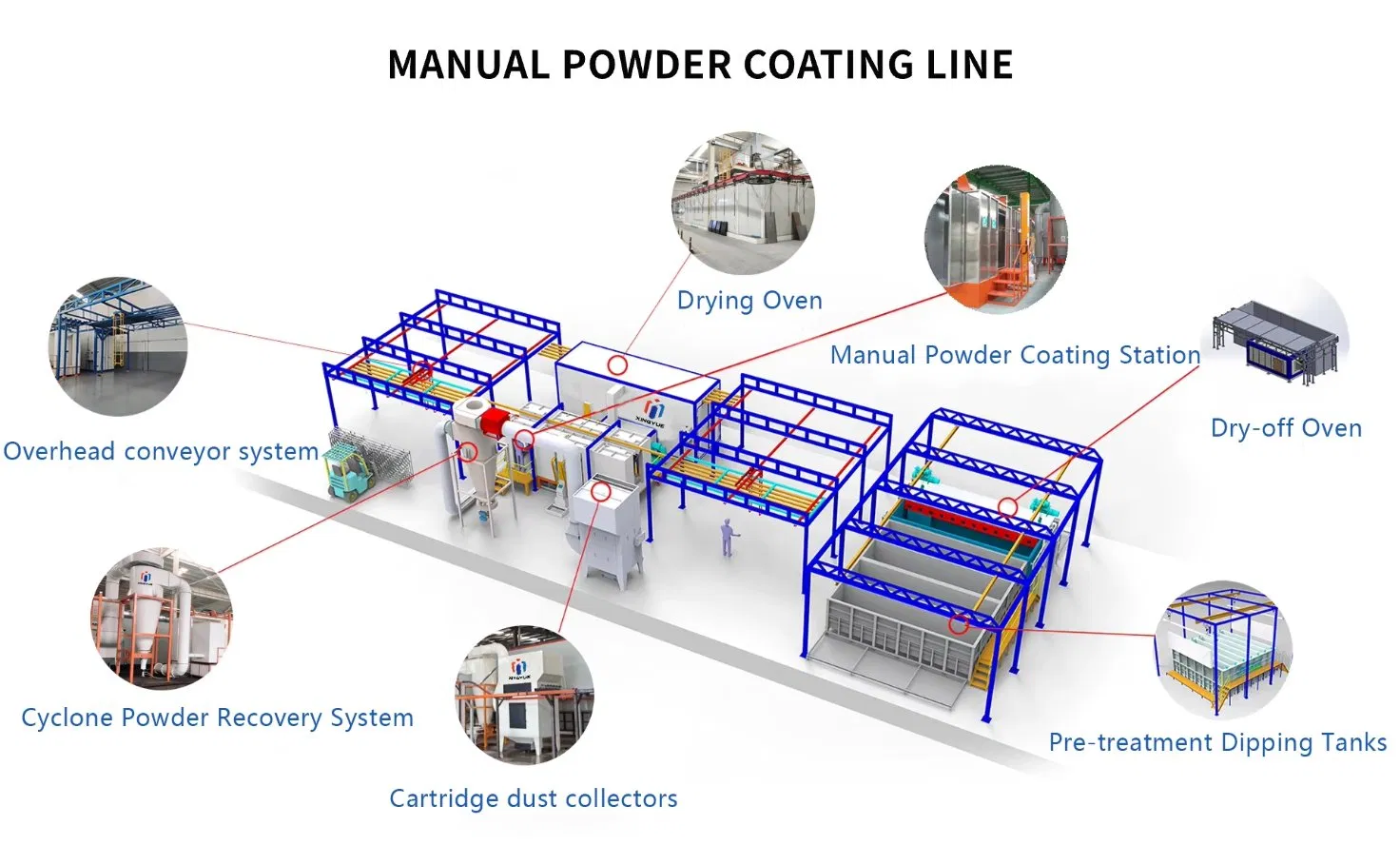

System Overview

Complete Manual Powder Coating Line System for Mass Production

The powder coating line is ideal for continuous batch production based on manual operation. It is ideal for big/long or heavy workparts that requires precise coating jobs, such as metal frames, aluminum profiles.

This manual coating line includes overhead track system, powder coating booth and curing ovens, as well as manual powder painting machines.

The powder coating conveyor is horizontal-pull type, which requires you less efforts to move heavy objects for production processes.

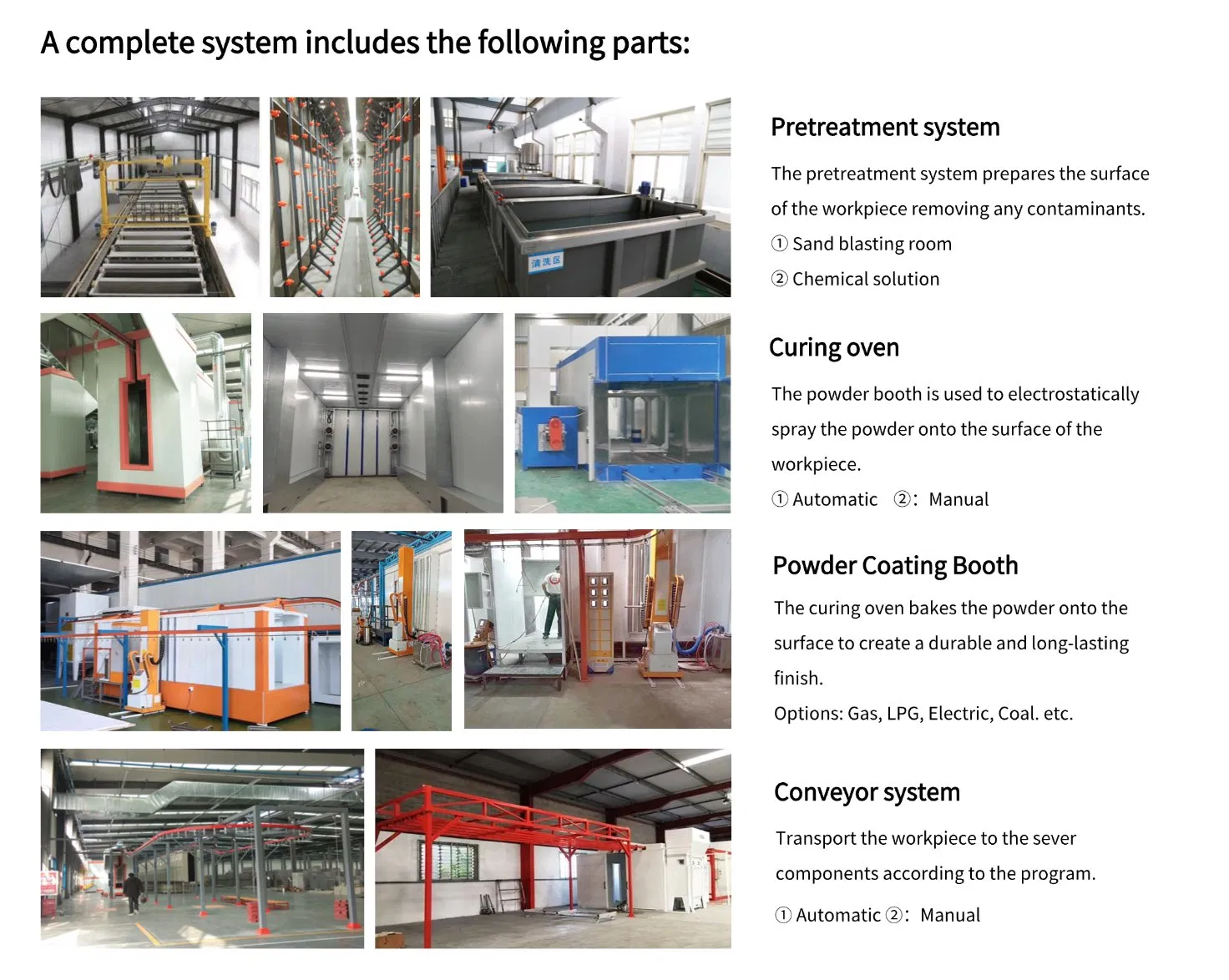

Coating Process
TypePowder Coating line
CertificationISO
Warranty1 Year
Material of Powder Coating RoomStainless steel sheets, galvanized steel sheets, PP sheets
ReciprocatorDesign Matching
Powder Recovery Rate99.2%
Size of The Powder Coating RoomAccording to The Workpiece Size
ConveyorAutomatic
InstallationOnline Offline Installation Both
Heating systemDiesel, electric, gas, LPG
Powder Recovery EquipmentBig Cyclone Fast Automatic Color Change Equipment
Color Changing10–15 Mins
UsageMore Than 10 Years
Control SystemSiemens

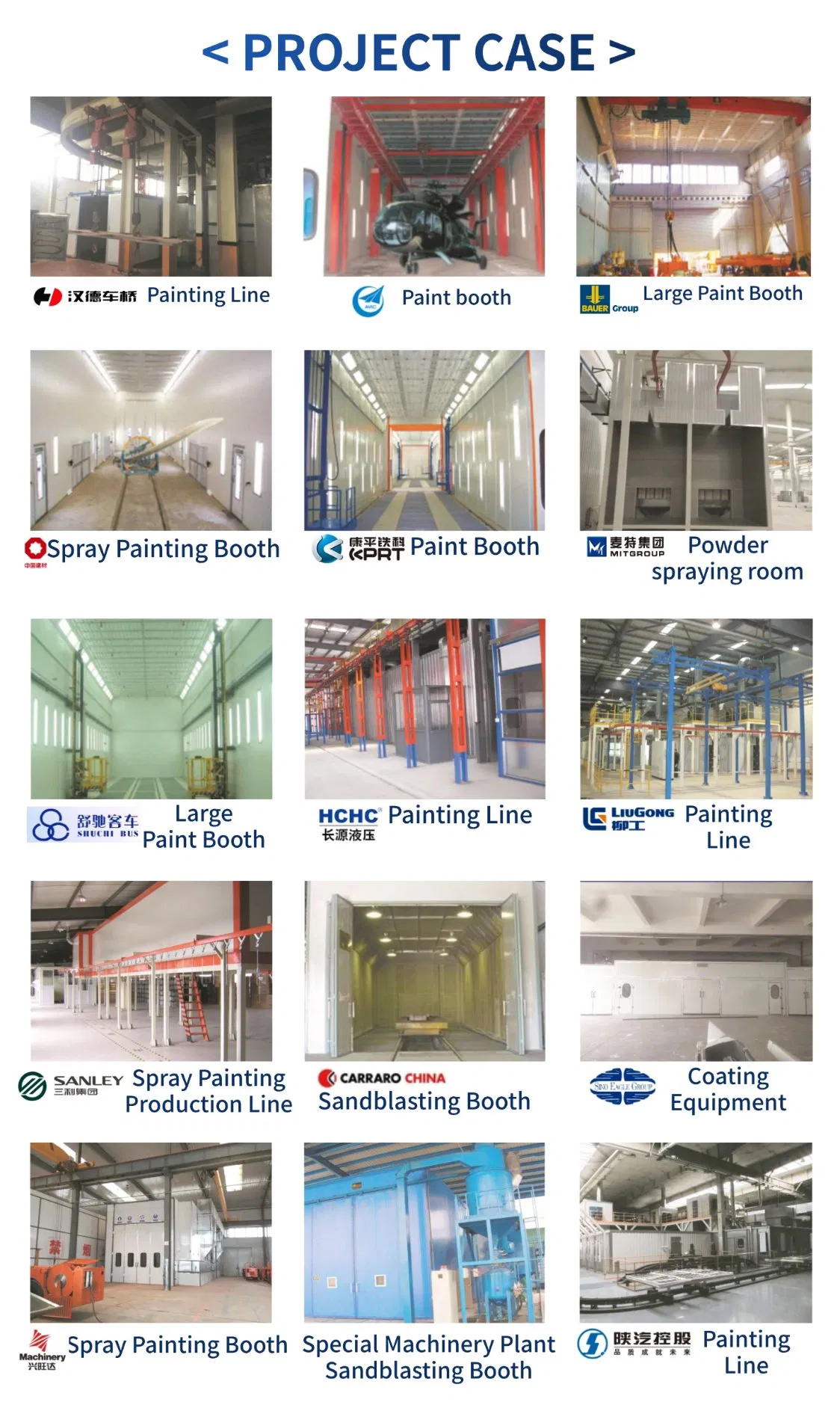

Project Case

Project Case Exhibition

Why Choose Us

Quality Control Professional Team Advanced Tech
Service 1 Service 2 Service 3
Q1: What types of heating systems are available for the curing oven? A1: We provide multiple options including diesel, electric, gas, and LPG to suit your local energy costs and production requirements.
Q2: How efficient is the powder recovery system? A2: The system features a large cyclone recovery device that achieves a powder recovery rate of up to 99.2%, significantly reducing material waste.
Q3: Can the powder coating booth handle different workpiece sizes? A3: Yes, the size of the powder coating room is customized based on the specific dimensions of your workpieces to ensure optimal coating efficiency.
Q4: How long does it take to change colors in the system? A4: With our big cyclone fast automatic color change equipment, the process typically takes only 10 to 15 minutes.
Q5: What control system is used for the automation? A5: We utilize high-quality Siemens control systems to ensure stable, precise, and user-friendly operation of the entire line.
Q6: What is the expected service life of the equipment? A6: With proper maintenance, our powder coating lines are designed for long-term industrial use, typically exceeding 10 years.
