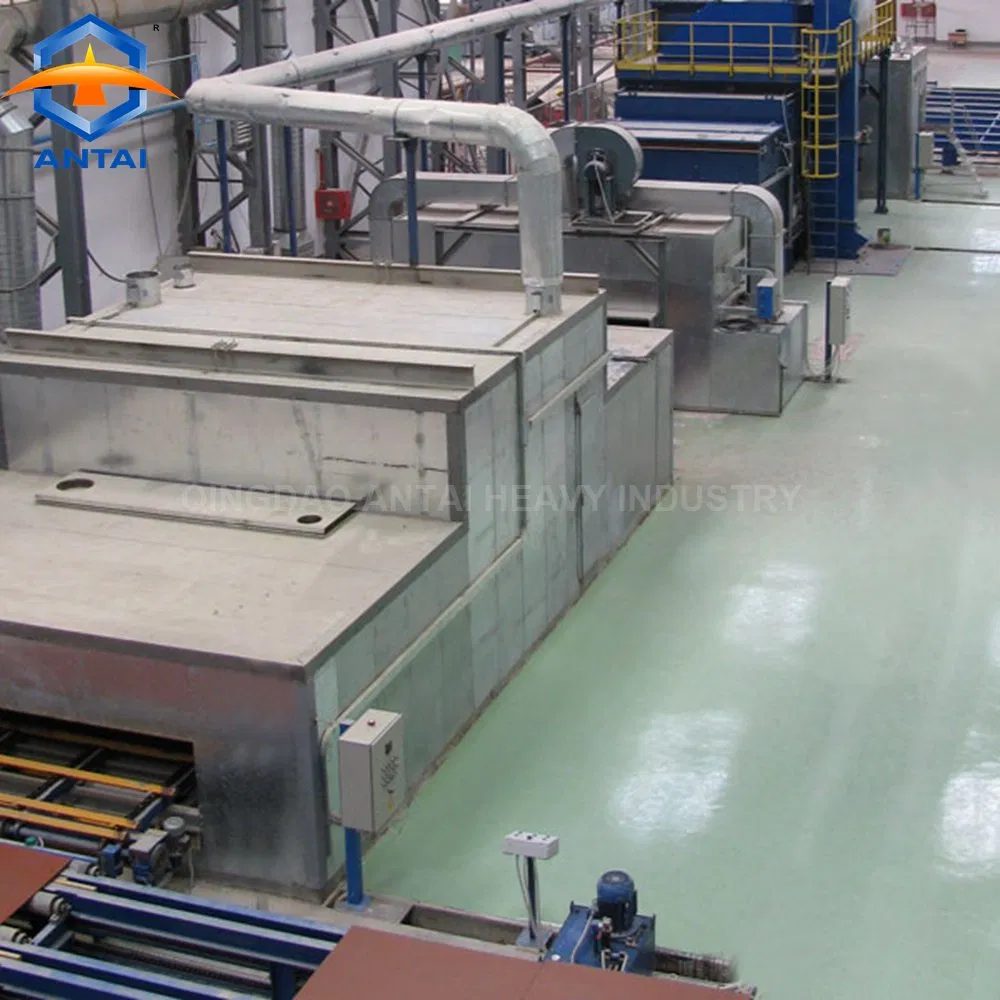

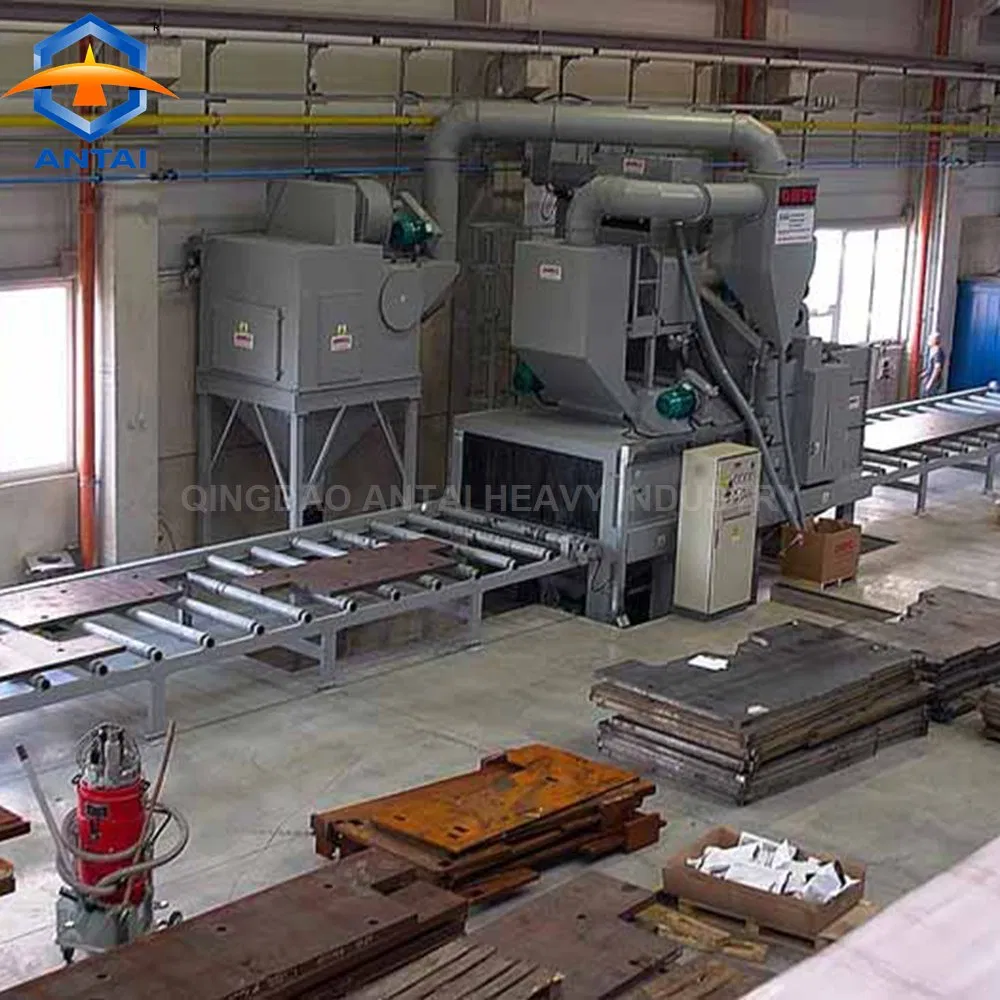

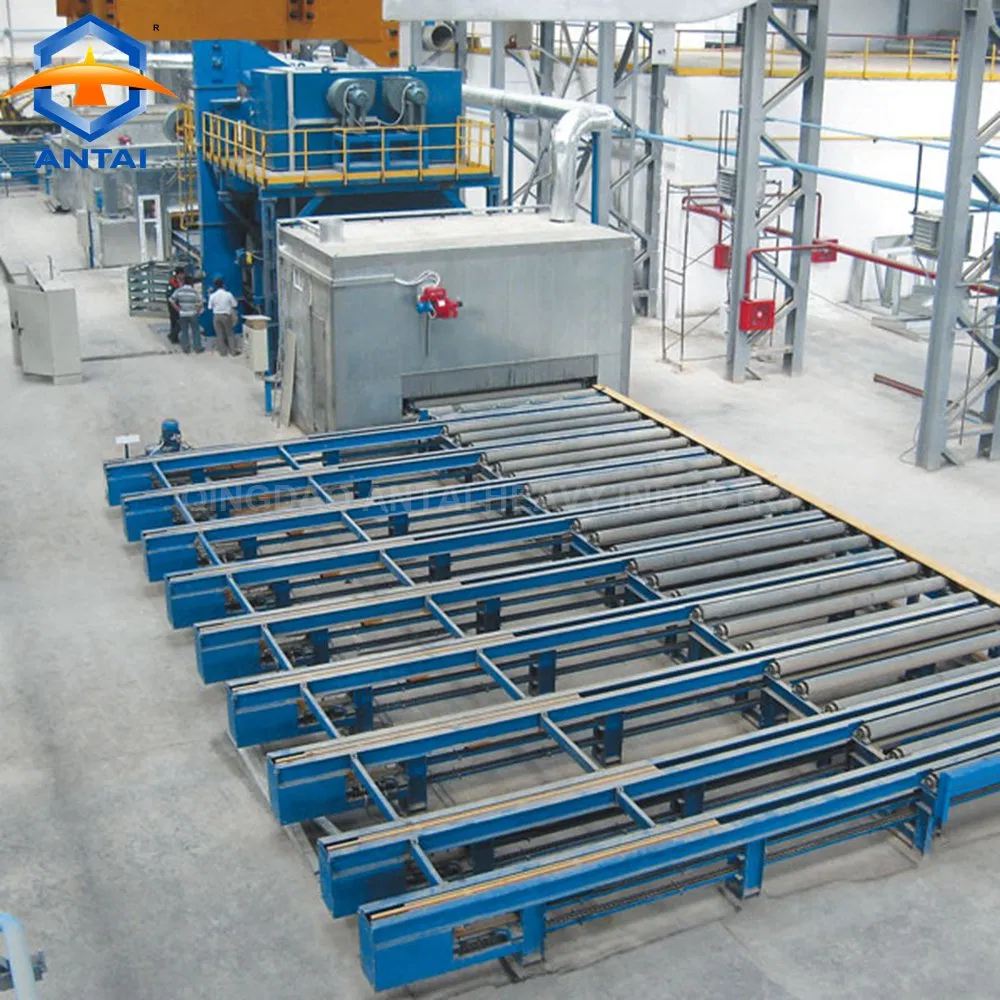

Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line
Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line
Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line
Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line
Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line
1 / 5
Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line
Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line
Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line
Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line
Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line

Qingdao Antai Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line

Customization: Available
After-sales Service: Online Support, Spare Parts, Field Maintenance
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Specification
Model NO.
QAT69
Application
Blasting and Painting of Structural Steel
Fuel
Electric
Type
Automatic
Cleanliness
High Cleanliness
Automation
Automatic
Certification
CE, BV/TUV/ISO9001:2008
Feature
Rust / Corrosion Proof
Condition
New
Customized
Customized
Transport Package
Containers
HS Code
8424300000
🛠️ Product Overview

Steel Plate Roller Conveyor Shot Blasting and Automatic Painting Line

We can design and manufacture different sizes of steel plate pretreatment lines according to specific requirements. This system integrates advanced surface treatment technologies including preheating, rust removal, paint spraying, and drying.

This type of steel plate auto blasting and coating machine adopts high-efficiency blast wheels and full shutter type shot sand separators. The sweeping unit features high-strength nylon rolling brushes and high-pressure ventilators. The painting section utilizes high-pressure airless spraying methods. The complete system is fully controlled by PLC, representing international advanced standards for large-scale equipment.

📊 Technical Parameters
Items Model Details QXY1500 QXY2000 QXY2500 QXY3000 QXY3500 QXY4000
Steel Plate Width (mm) 500-1500 1000-2000 1000-2500 1000-3000 1000-3500 1000-4000
Thickness (mm) 3-20 3-60 5-30 3-60 5-35 5-50
Length (mm) 2000-12000 1500-12000 2000-12000 2400-12000 2000-12000 2400-16000
Roller Conveyor Permissible Load (t) 1 1 1.5 2 2 2
Speed (m/min) 2-4 1-5 2-4 0.5-4 2-4 2-4
Total Power kW 450 413.2 550 614 560 600
🖼️ Project Showcase

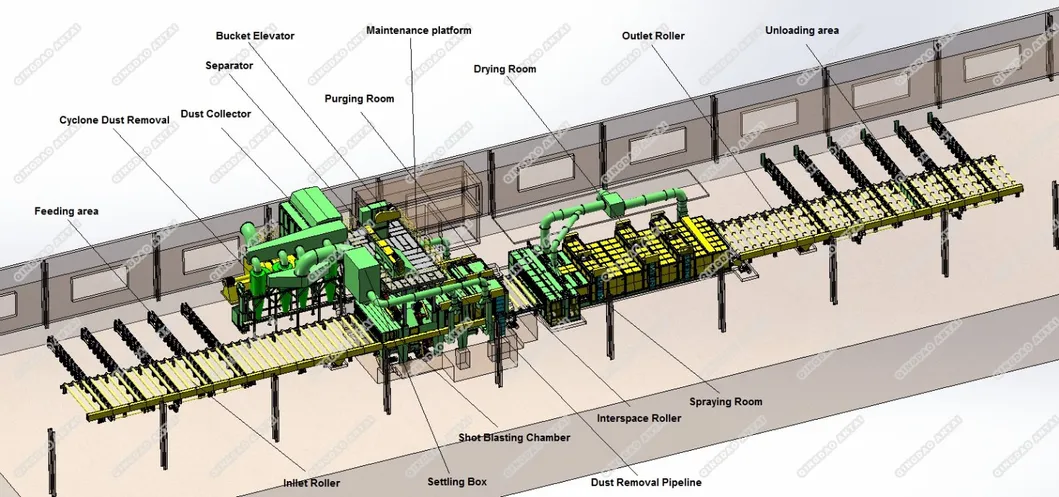

Shot Blasting Line

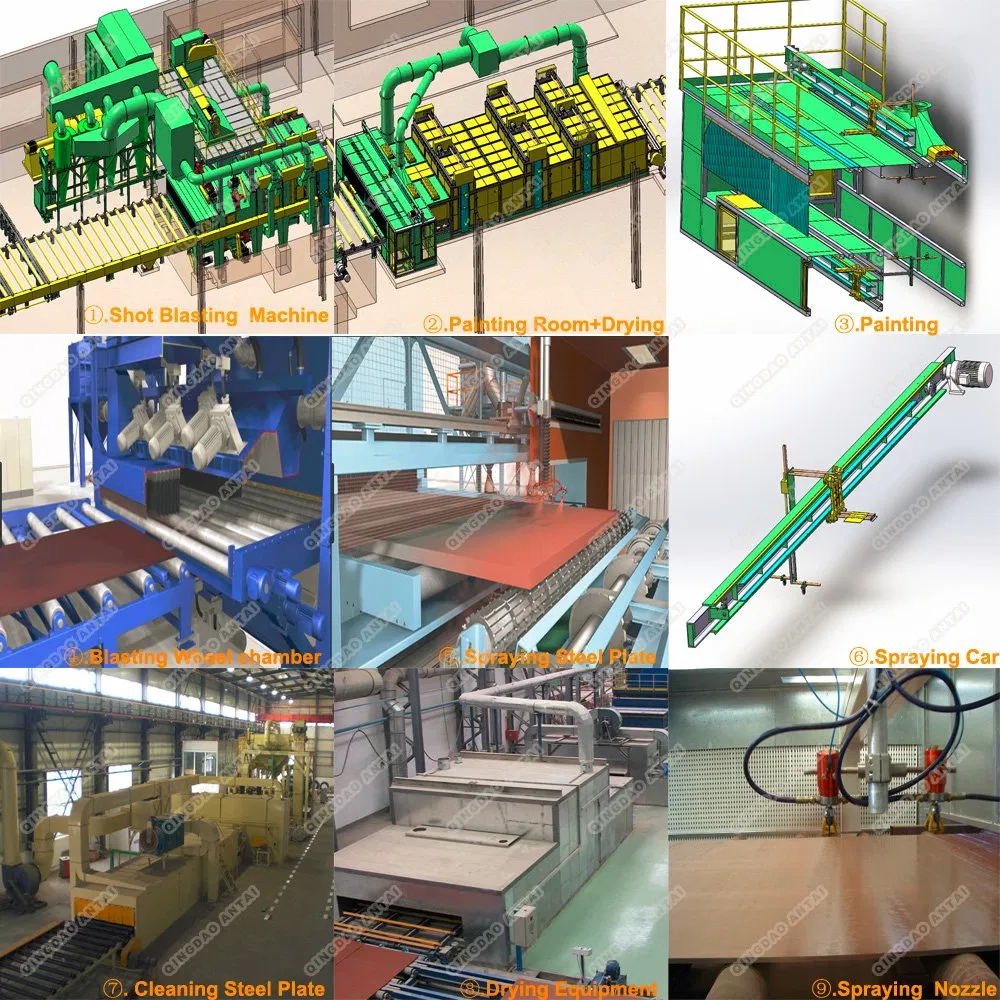

Automatic Painting Line

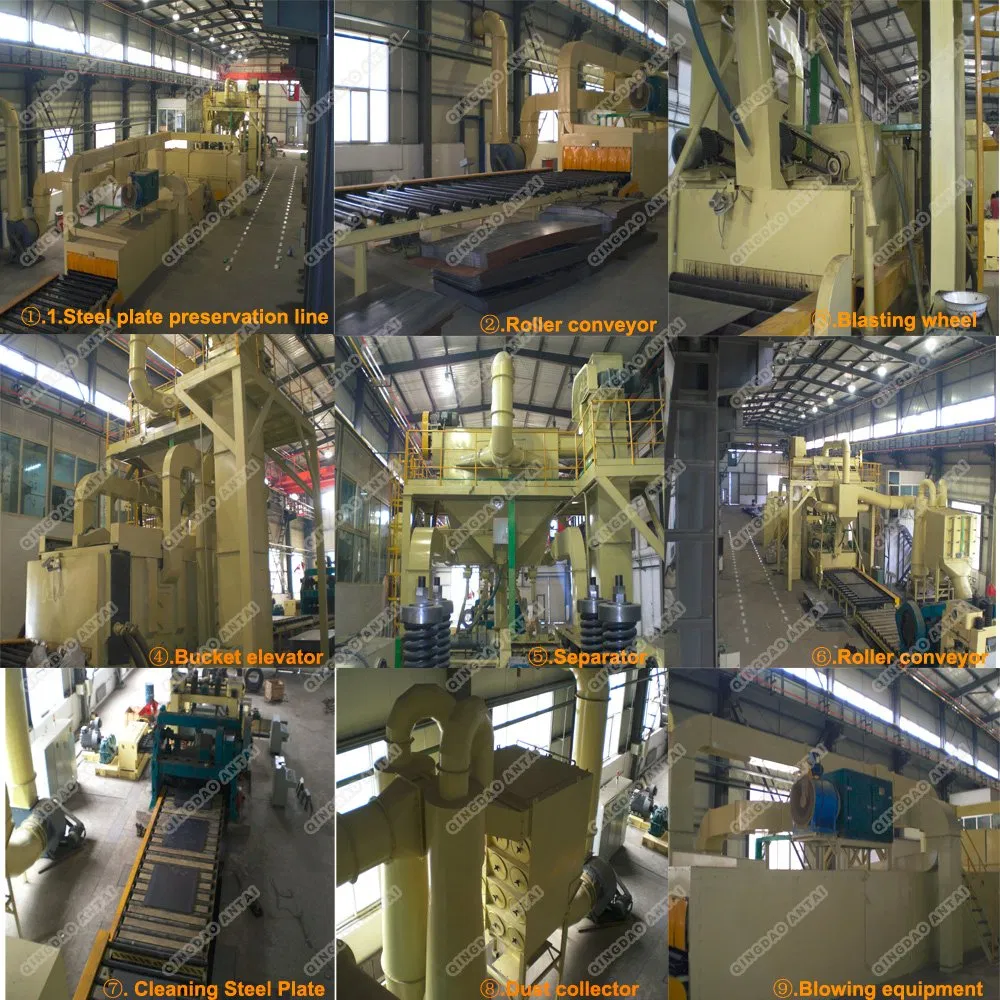

Pretreatment Process

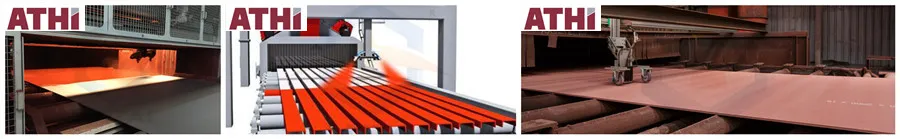

Steel Plate Treatment

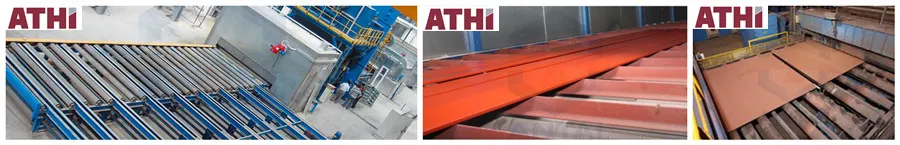

Roller Conveyor System

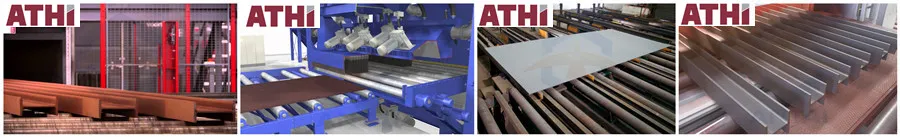

Industrial Shot Blaster

Steel plate pretreatment line installations:

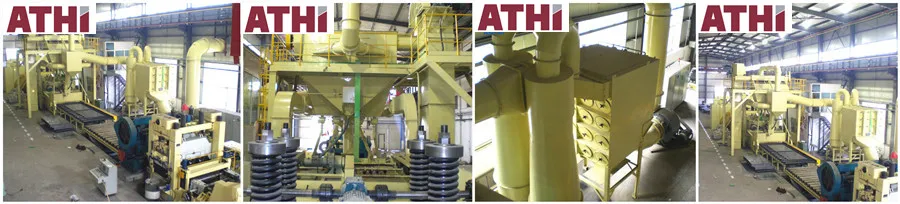

Shandong Project

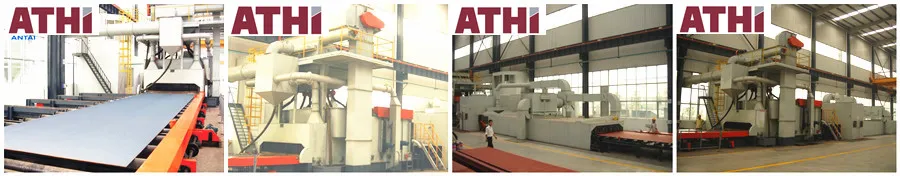

Qingdao Installation

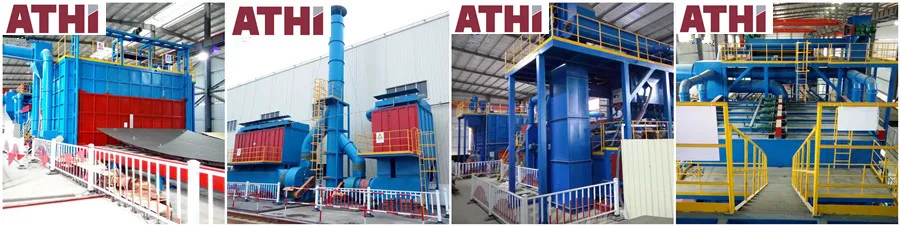

International Projects

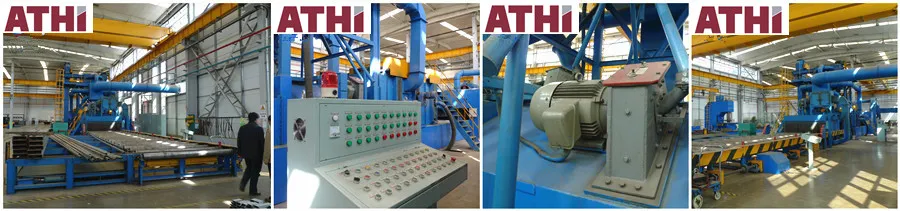

System Detail 1

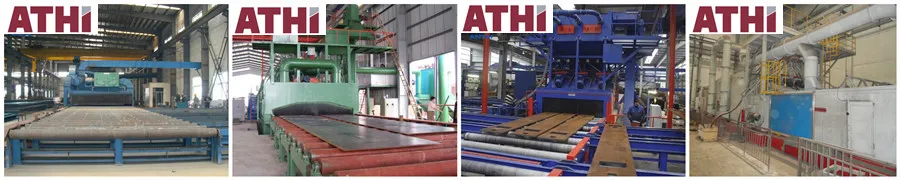

System Detail 2
Full Line Layout
❓ Frequently Asked Questions
1. What is the primary use of this pretreatment line?
It is primarily used for surface treatment of steel plates and structural sections, including preheating, rust removal (shot blasting), automatic paint spraying, and drying.
2. Which industries typically use this equipment?
This machine is widely utilized in shipyards, shipbuilding industries, machinery manufacturing, and metal structure processing industries.
3. How is the machine's operation controlled?
The entire set of equipment is controlled by a high-performance PLC (Programmable Logic Controller) system, ensuring precise automation and ease of operation.
4. What cleaning efficiency can be expected?
By using high-efficient blast wheels and advanced separators, the line achieves high cleanliness levels and superior surface roughness suitable for high-quality coating.
5. Can the machine be customized for specific dimensions?
Yes, we design and manufacture the steel plate pretreatment line according to the customer's specific requirements regarding plate width, thickness, and workshop layout.
6. What painting method does the system use?
The paint spraying section adopts the high-pressure airless spraying method, which ensures an even and durable coating on the metal surface.
