Maximising savings in labour, machine configuration, and power consumption.

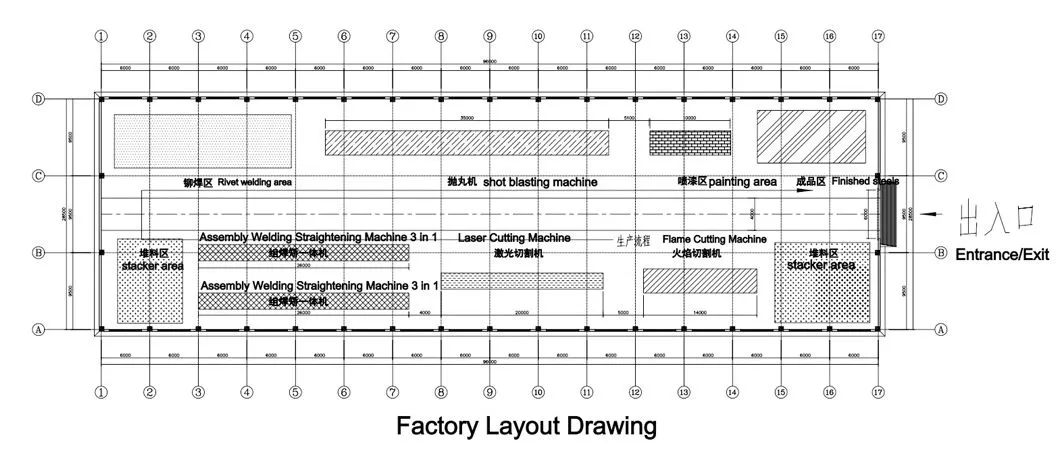

Most efficient and rational site layout for your factory space.
Maximising factory production capacity with automated workflows.

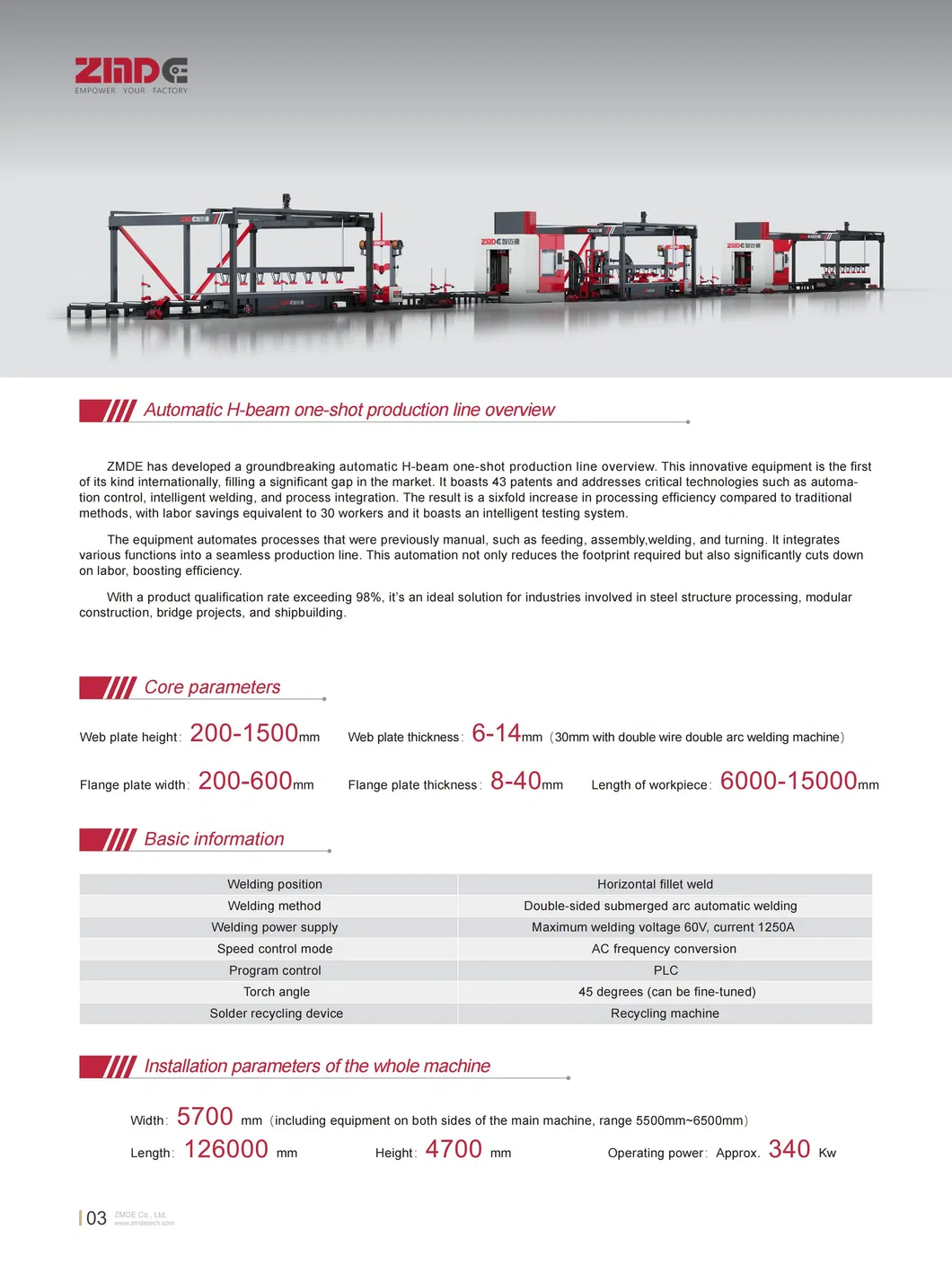

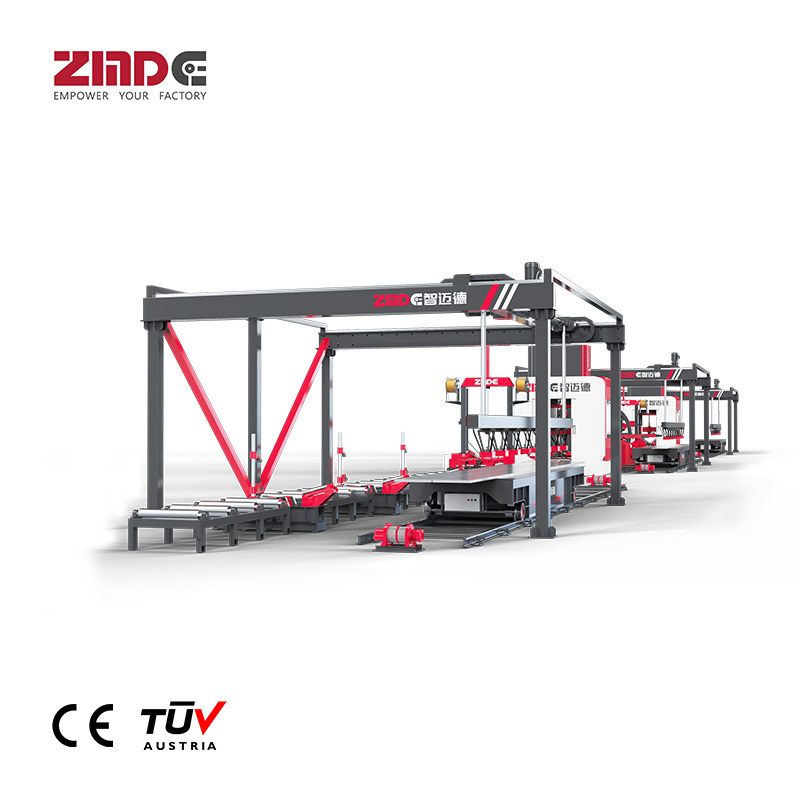

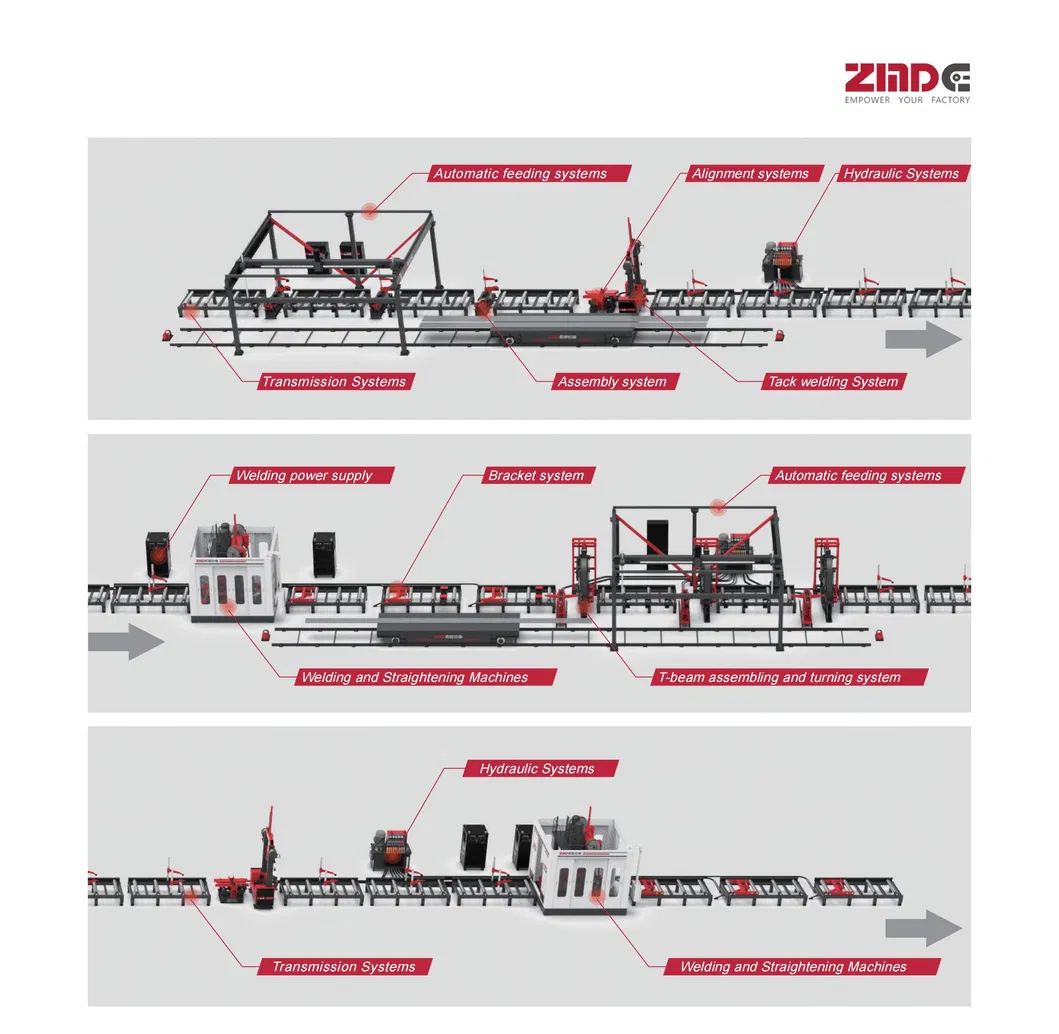

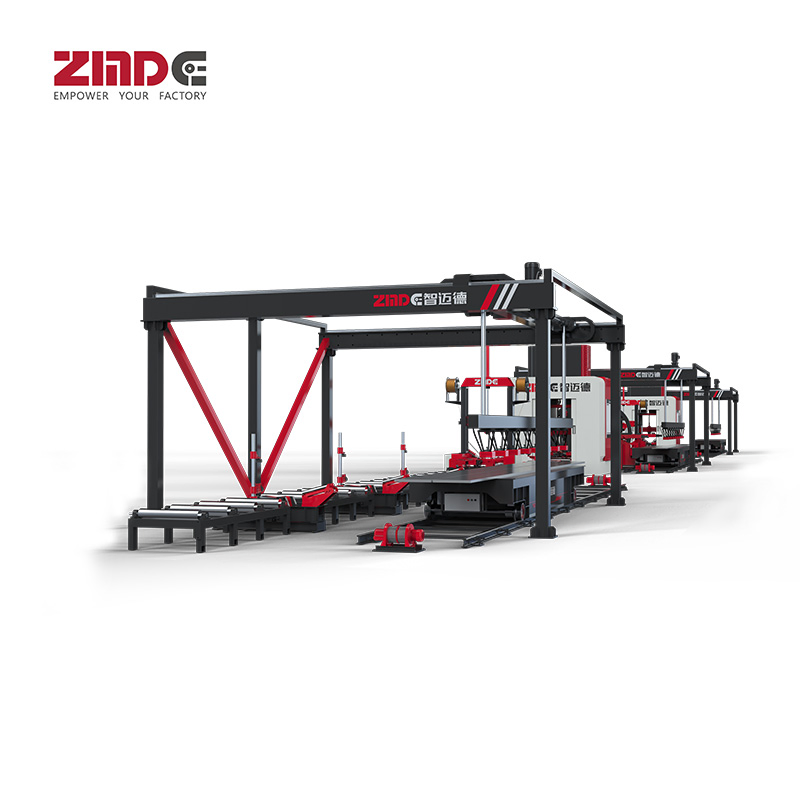

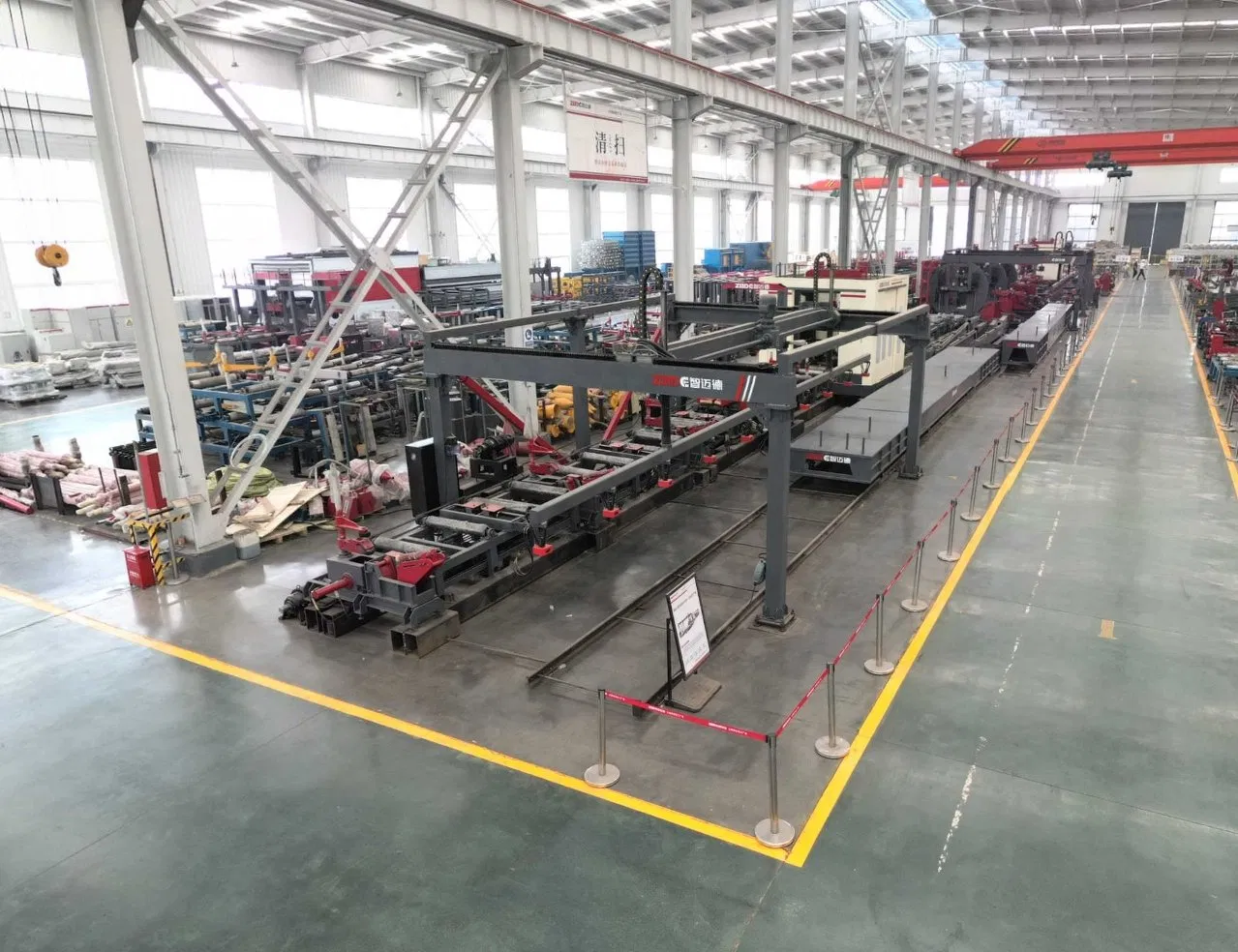

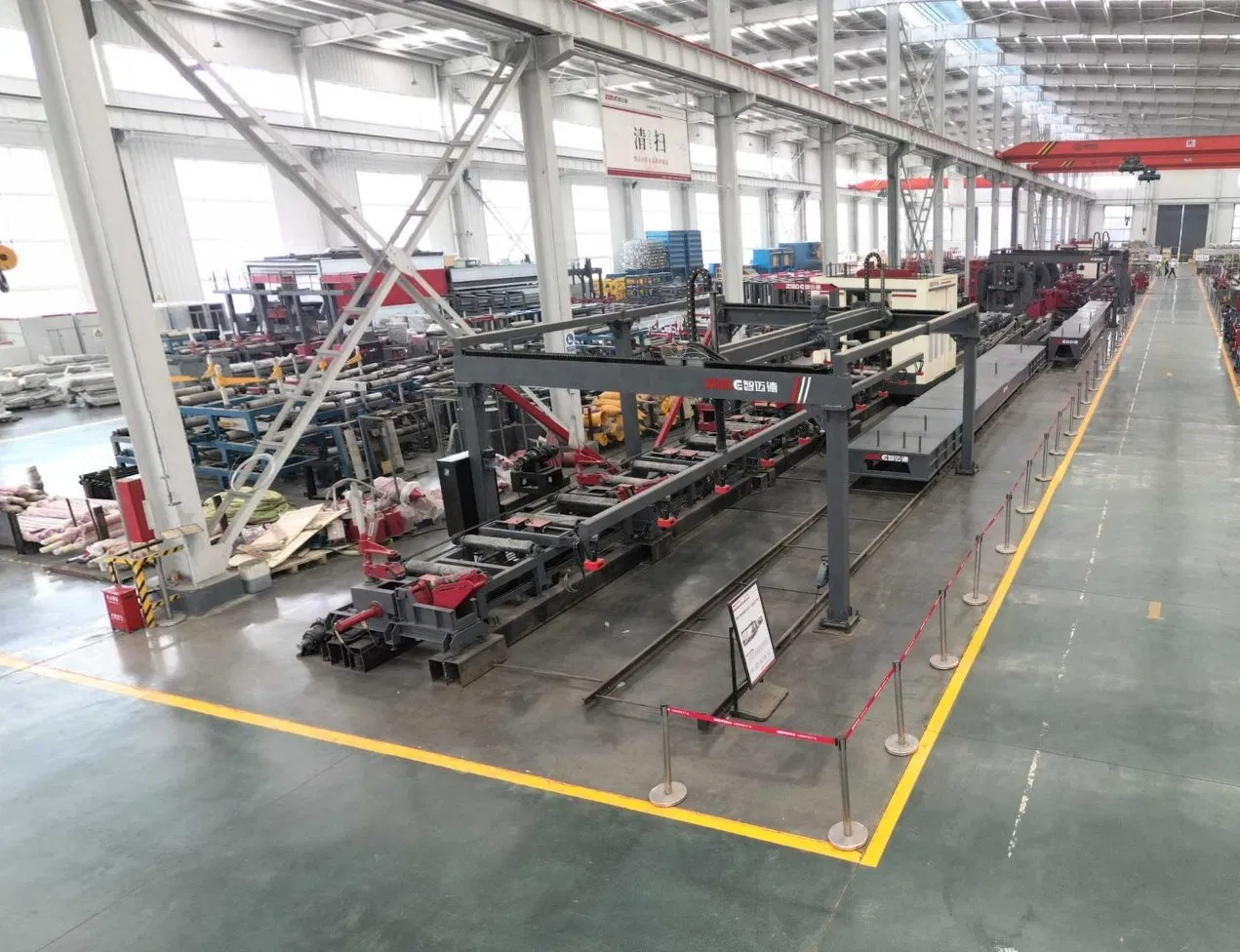

Our fully automated production line for steel beams is meticulously designed for assembled buildings, offering the pinnacle of efficiency. This system includes high-efficiency forming machines, advanced gantry welding technology for superior weld quality, and state-of-the-art straightening and turning units.
| Para./Model. | Automatic H-beam one-shot production line | |||||||
|---|---|---|---|---|---|---|---|---|
| Model | ZHJL1500 | ZHJL1800 | ZHJL2000 | ZHJL2200 | ZHJL2600 | ZHJL2800 | ||
| Web Plate | Height (mm) | 200-1500 | 200-1800 | 200-2000 | 200-2200 | 200-2600 | 200-2800 | |
| Thickness (mm) | 6-14 (up to 30mm with dual wire) | |||||||
| Flange Plate | Width (mm) | 200-600 | ||||||
| Thickness (mm) | 8-20 | |||||||
| Workpiece Length (mm) | 6000-15000 | |||||||
| Power Supply | AC 380V 50HZ 3Phase | |||||||

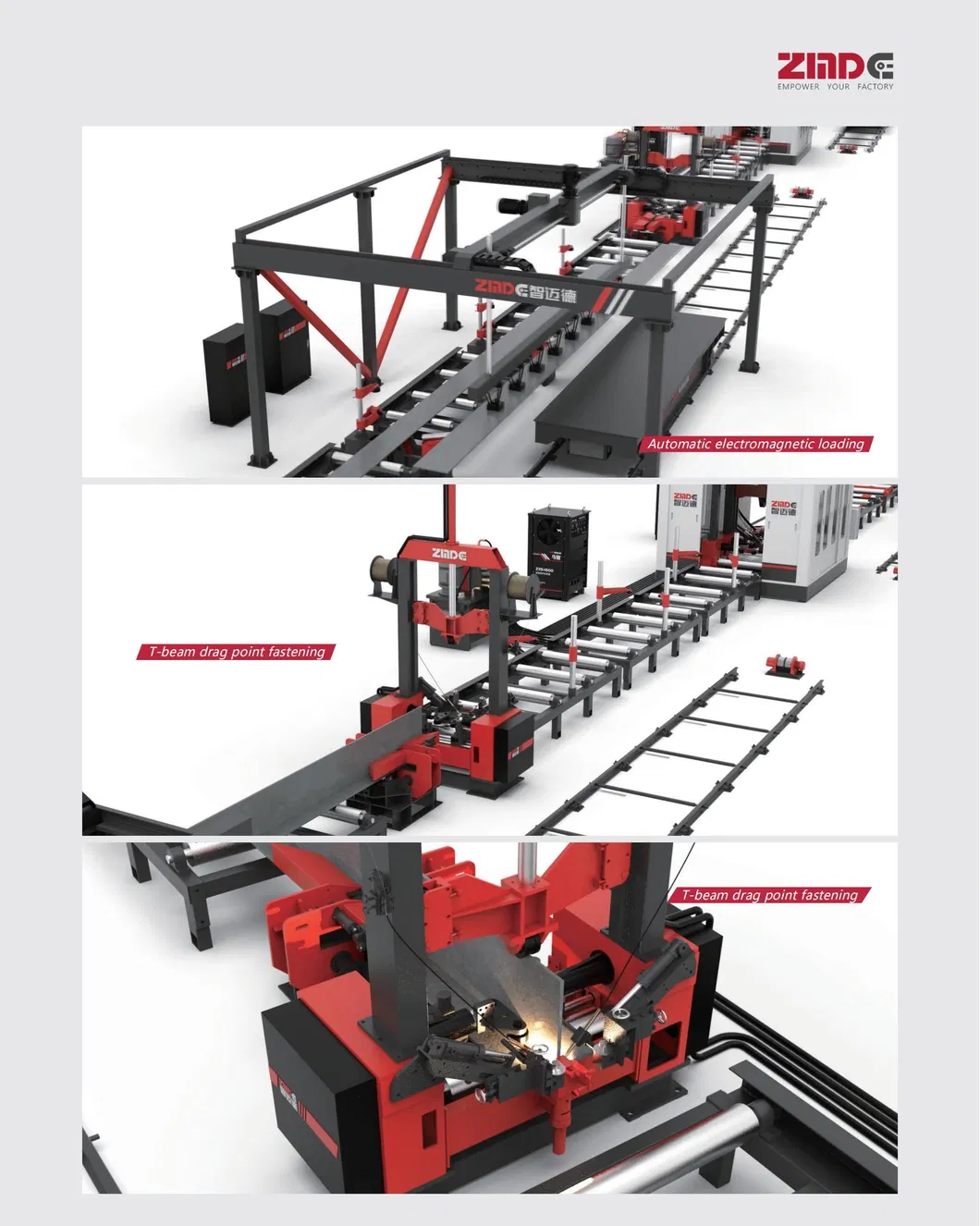

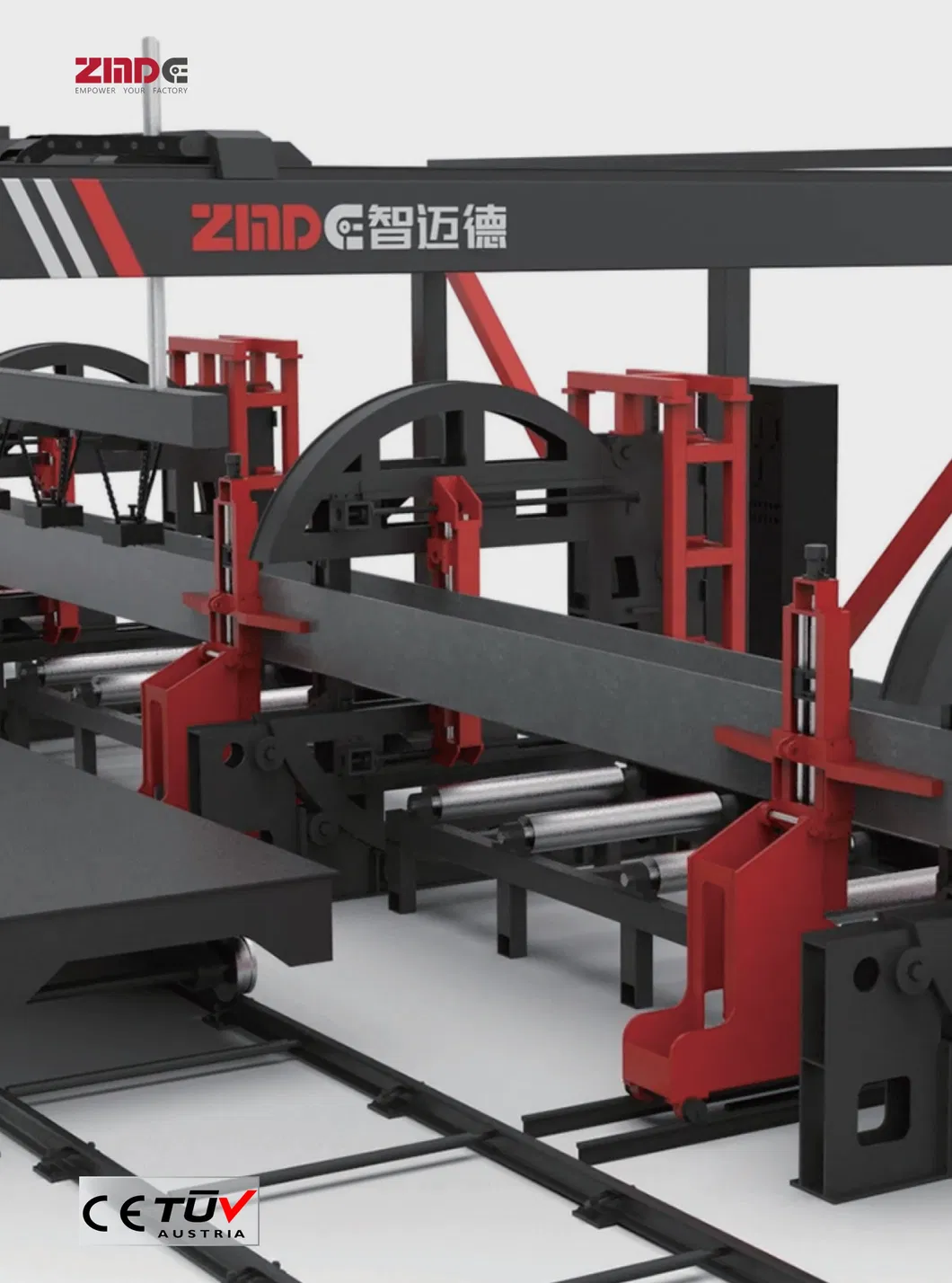

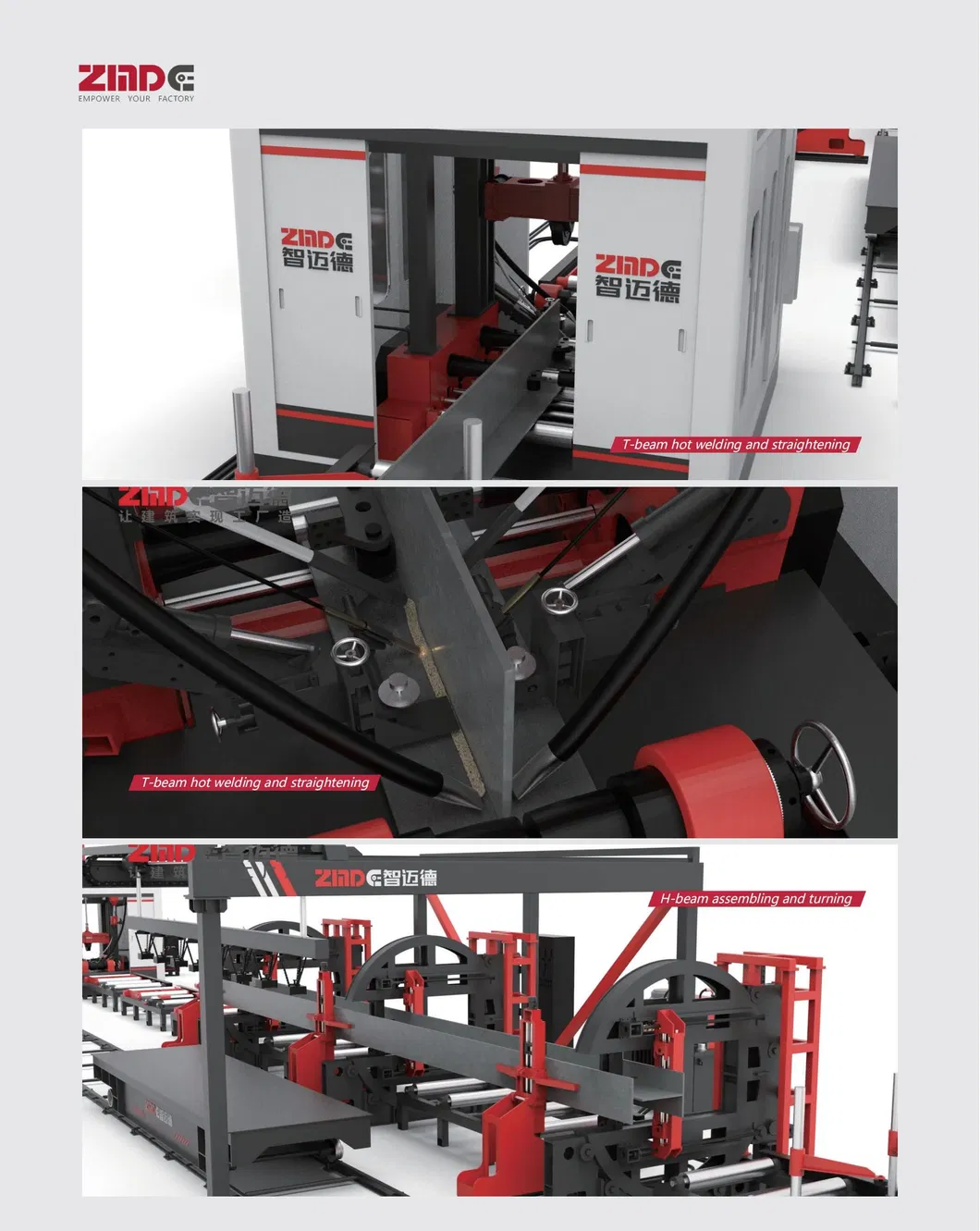

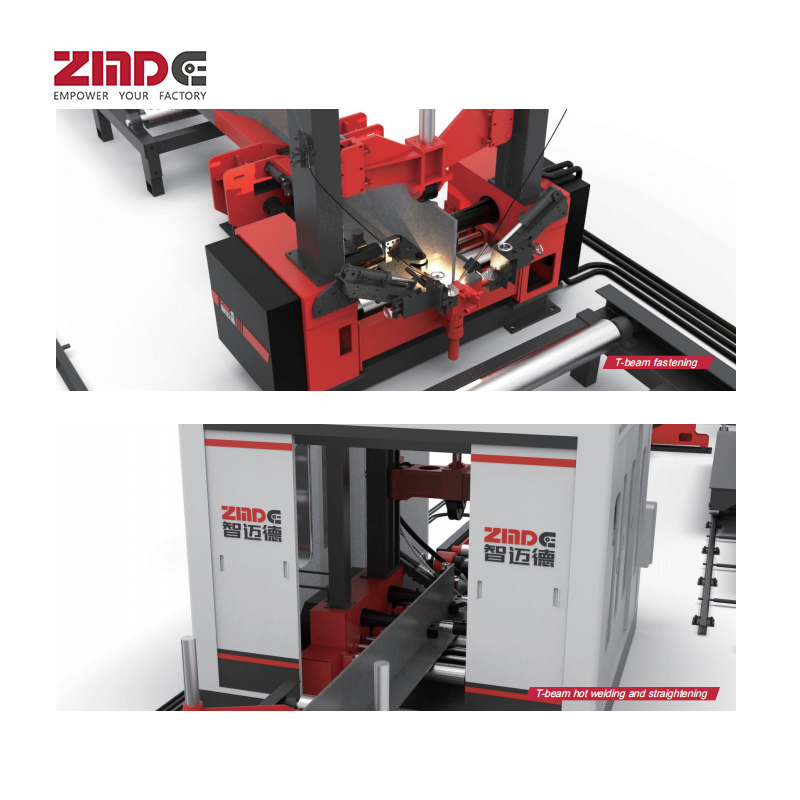

Self-developed CNC system for fully-automatic one-shot forming. Completes forming, welding, turning, and straightening in a single pass.
Finished product welding speed up to 1000mm/min. Reduces lifting cycles by 9 times compared to traditional equipment.
Automated operations allow for the reduction of more than 30 laborers, significantly lowering operational costs.
Compliant with ISO9001 International Quality System and European Union CE certification standards.

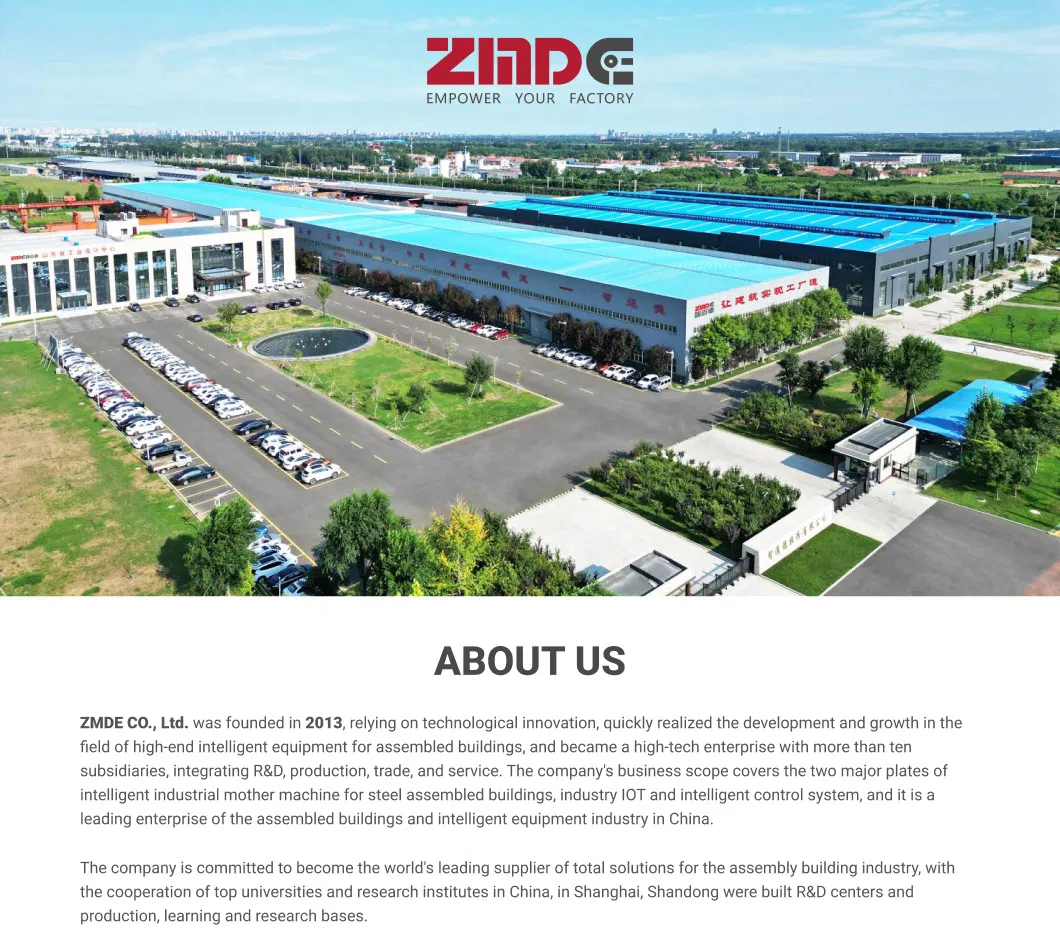

Specializing in intelligent equipment for assembly buildings since 2013, we are recognized as a high-tech enterprise and a national leader in sophisticated machinery for steel structure assembly. Our core expertise lies in intelligent control systems and industrial IoT integration.
