Blatrixo Machine
Blatrixo Machine

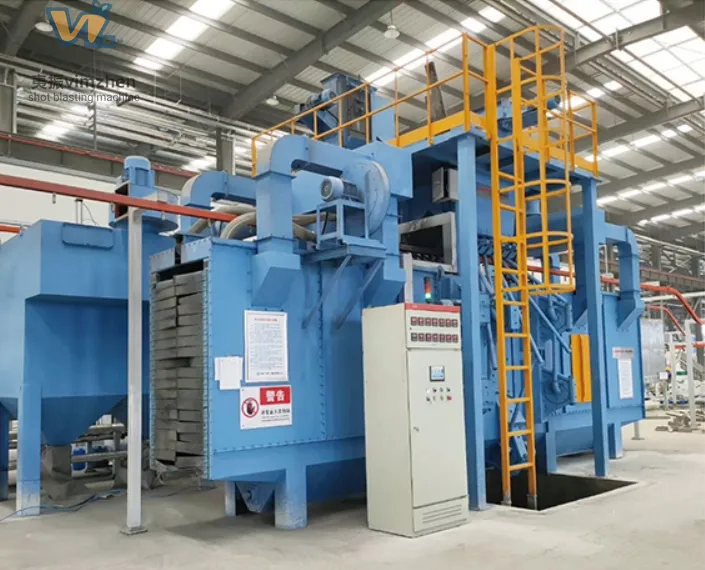

Our hanging chain through-type shot blasting machines can be divided into continuous, step, and accumulation types. These machines are suitable for cleaning and shot peening multi-species, large quantities of cast iron, cast steel, forgings, and structural steel parts. Ideal for engine block covers, motor shells, wheel hubs, cylinders, and more. This is the professional choice for automobile, tractor, diesel engine, motor, and valve industries.

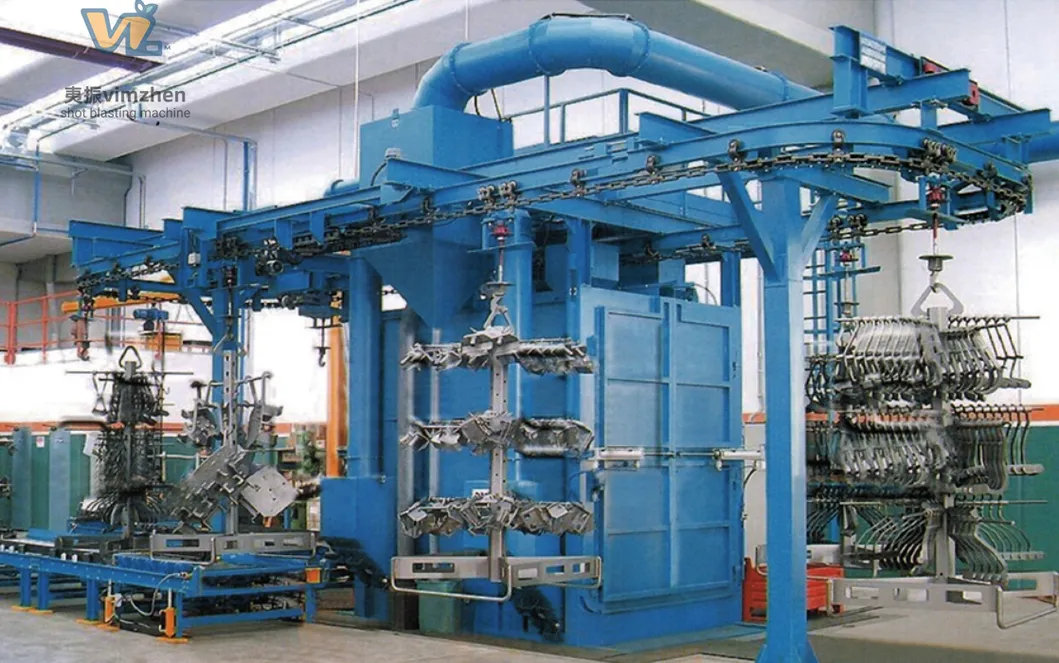

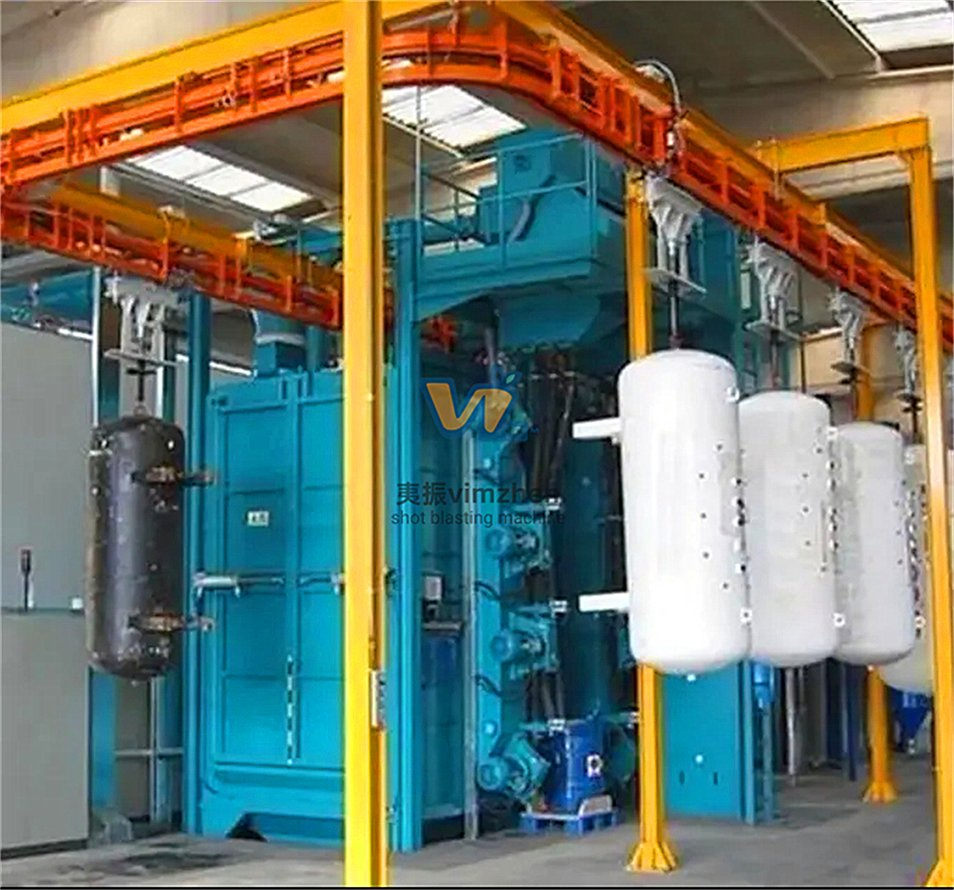

Continuous Type: Workpieces are hung on chain hooks and move through the shot blasting room at a uniform speed while rotating for complete cleaning.
Walking Type: Workpieces move in groups (2-3 hooks). The sequence follows: loading - waiting - shot blasting (rotation) - waiting - discharging.

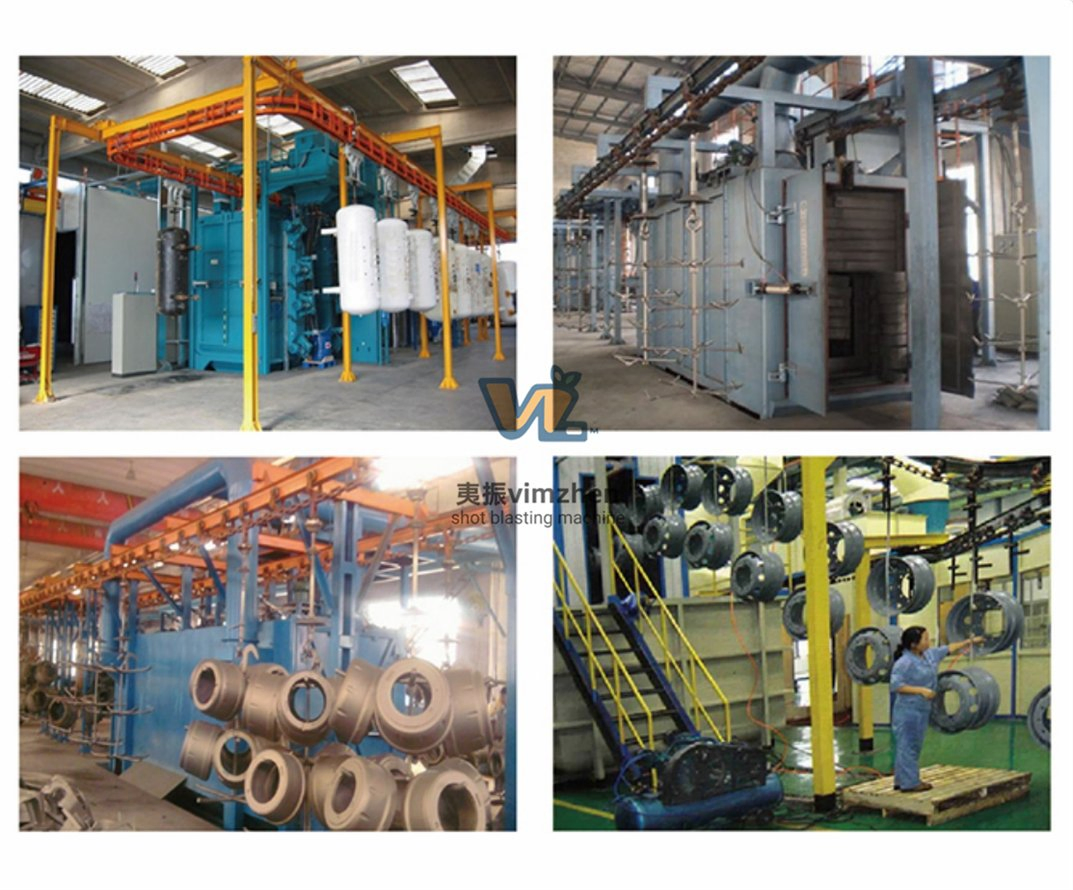

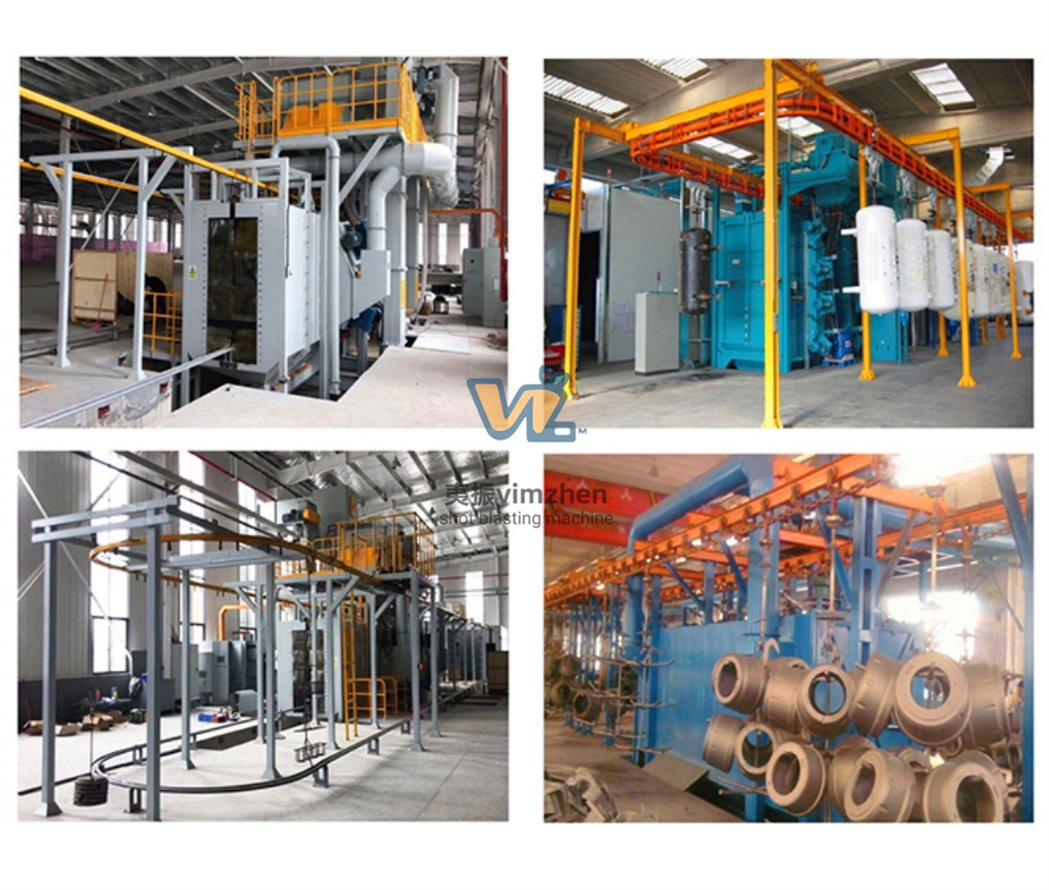

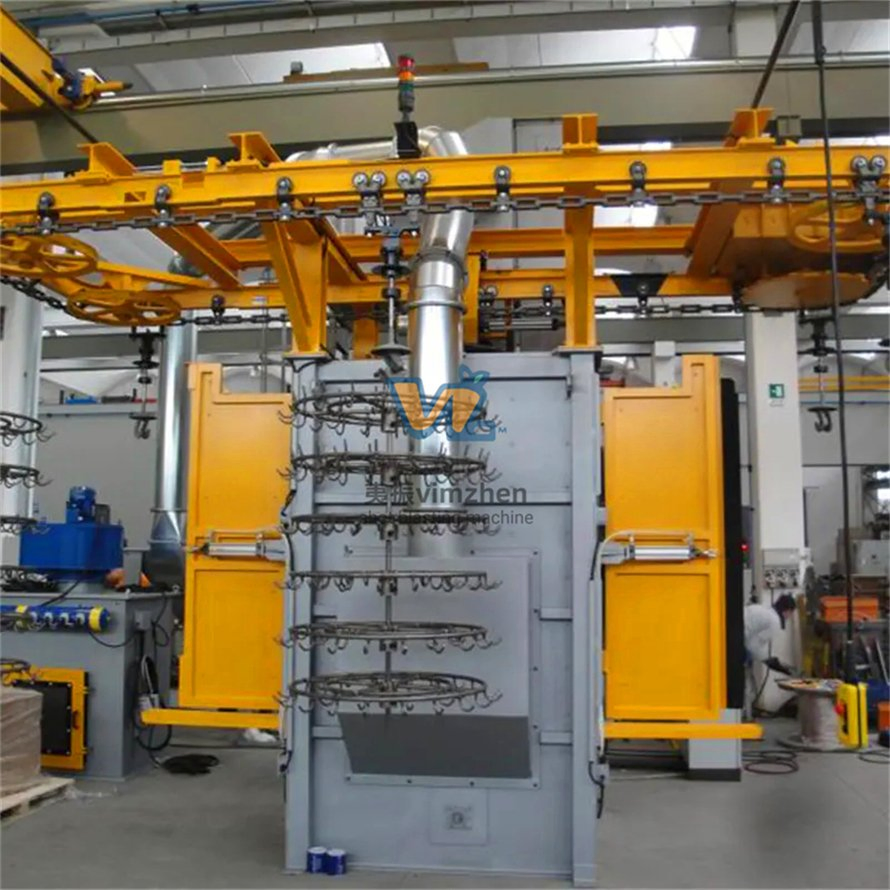

Accumulation Type: Features a fixed-point parking system where trolleys wait for loading and release automatically. This ensures high-efficiency cycle work for large production lines.
| Model | Single hook lifting weight (kg) | Workpiece Size (mm) | Production efficiency (hook/hour) | Type |
|---|---|---|---|---|
| Q382 | 200 | Ф500*1200 | 30-60 | Continuous type |
| Q383C | 250 | Ф700*1200 | 30-60 | |
| Q384C | 400 | Ф700*1500 | 40-70 | |
| Q483 | 300 | Ф1060*1200 | 10-25 | Walking type |
| Q485 | 500 | Ф1500*1200 | 10-25 | |
| Q488 | 800 | Ф1400*1800 | 10-25 | |
| Q583 | 300 | Ф1000*1500 | 30-60 | Accumulation type |
| Q585 | 500 | Ф5500*1200 | 30-60 | |
| Q588 | 800 | Ф1300*2400 | 30-60 |
Suitable for surface rust removal or shot peening of workpieces in multi-variety, large- and medium-batch production. Ideal for castings and heat-treated parts that can withstand collisions. Features automatic loading/unloading options to reduce labor intensity.
Available in single and double-hook configurations. Best for small to medium-sized castings, forgings, and welded components. Pit-free structural design with a fully enclosed chamber to prevent shot spillage.

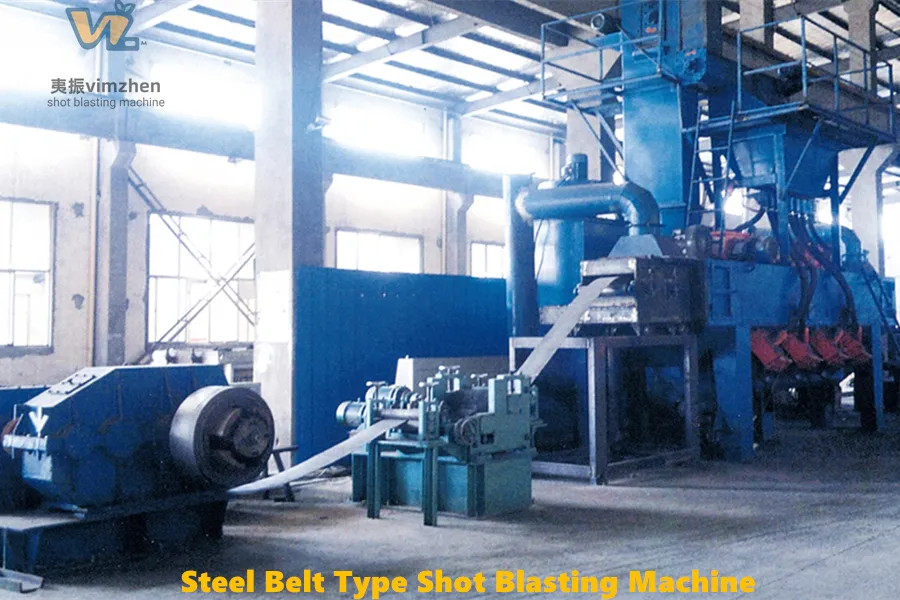

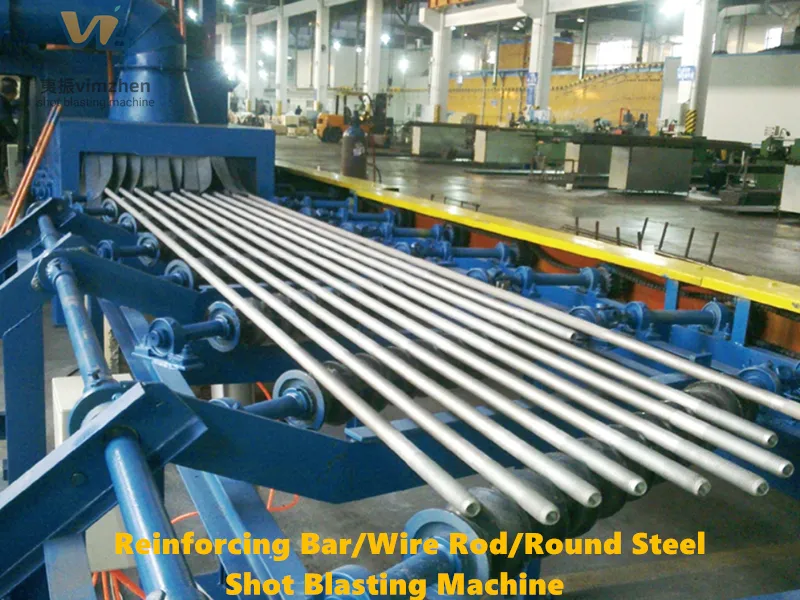

Capable of continuous descaling and pretreatment for steel plates, beams, and pipes. High-velocity steel shots detach rust and contaminants rapidly, providing a clean finish with optimal roughness.

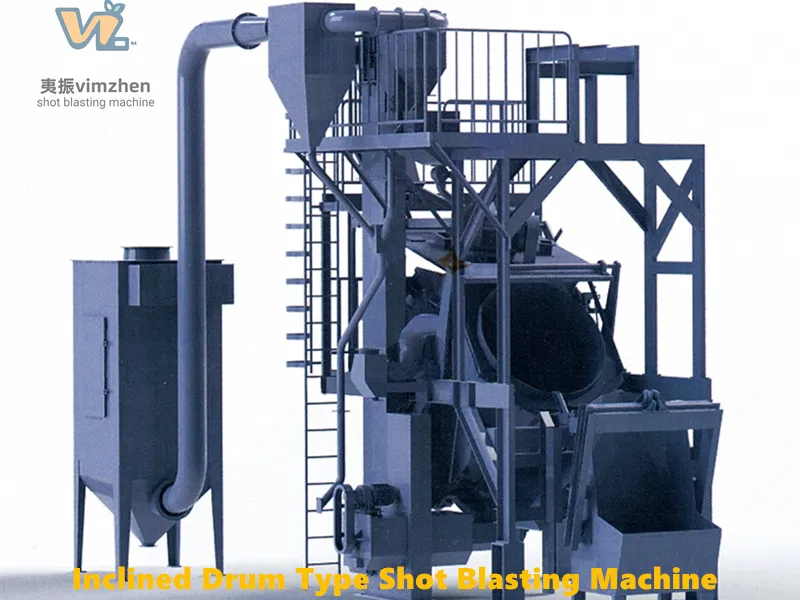

Designed for thin-walled castings, fragile iron/aluminum parts, and ceramic components. Ensures superior cleaning while preventing damage caused by mutual collisions during the automated process.

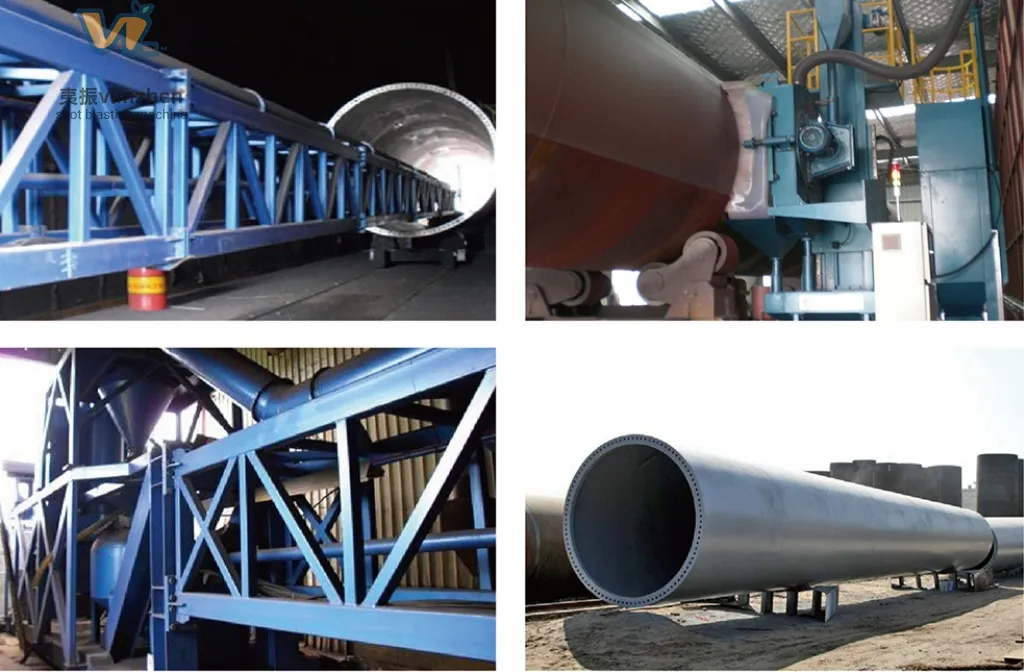

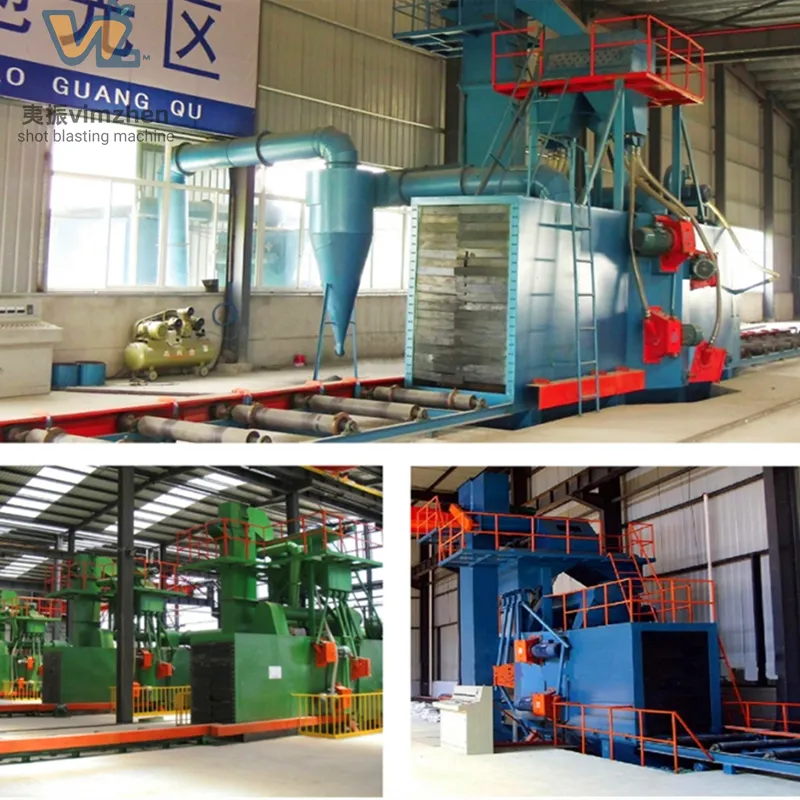

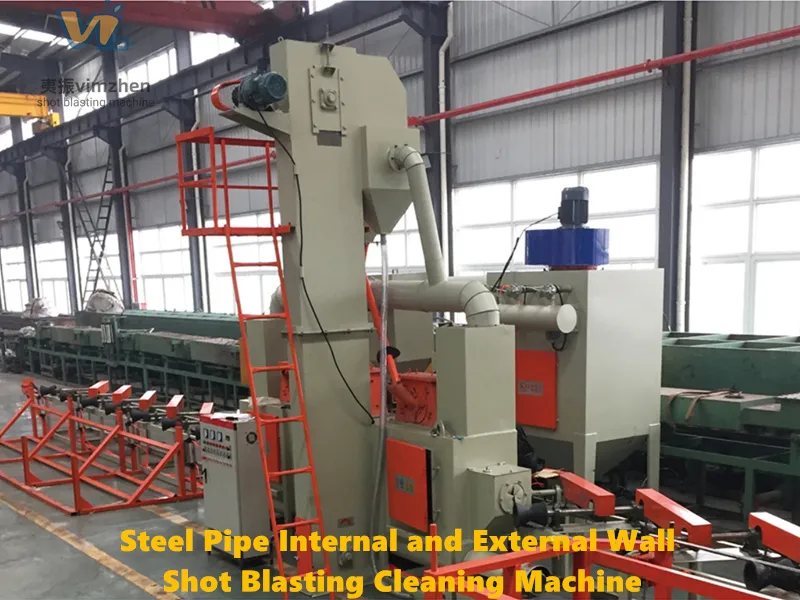

Tailored for internal and external cleaning of large pipelines and wind turbine tower drums. Enhances paint adhesion and extends the service life of large steel tanks.
Specialized for marble, granite, and ceramic tiles. Enhances surface friction for slip resistance and creates an aesthetic three-dimensional texture on natural and artificial stone.

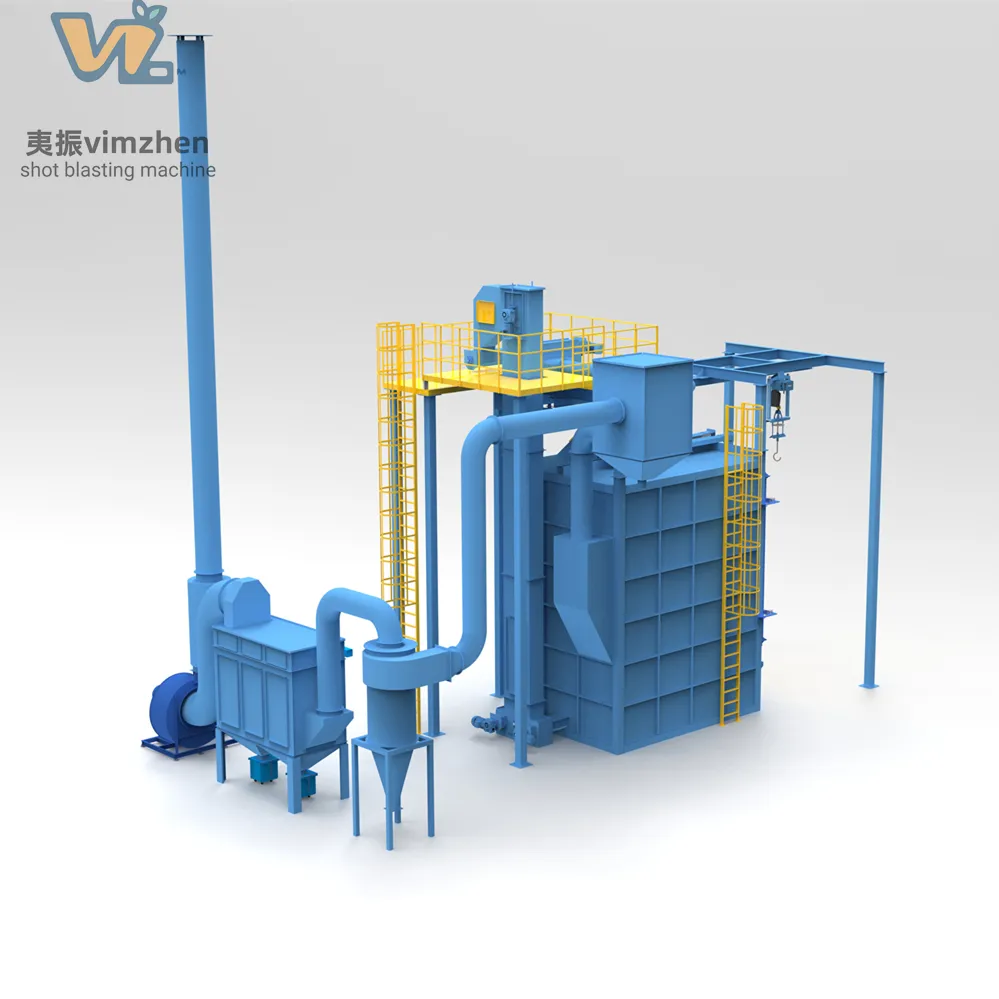

As a leading manufacturer in surface treatment technology, we specialize in high-quality shot blasting machines including Q32, Q35, Q37, Q38, and Q69 series. Our products incorporate advanced international technologies complying with ASTM A532 standards.
To provide the most suitable machine, please provide the following details:
