Custom Crawler Tumble Belt Wire Mesh Hook Type Casting Metal Parts Auto Parts Steel Pipe Steel Plate Shot Sand Blasting Cleaning Sandblasting Machine

1 / 5

Custom Crawler Tumble Belt Wire Mesh Hook Type Casting Metal Parts Auto Parts Steel Pipe Steel Plate Shot Sand Blasting Cleaning Sandblasting Machine

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	12 Mouths

Send Inquiry

Product Description

Basic Information

Model NO.:Q37

Application:Electronic Industry

Fuel:Gasoline / Petrol

Type:Crawler Abrator

Cleanliness:High Cleanliness

Automation:Automatic

Certification:CE

Condition:New

Product Description

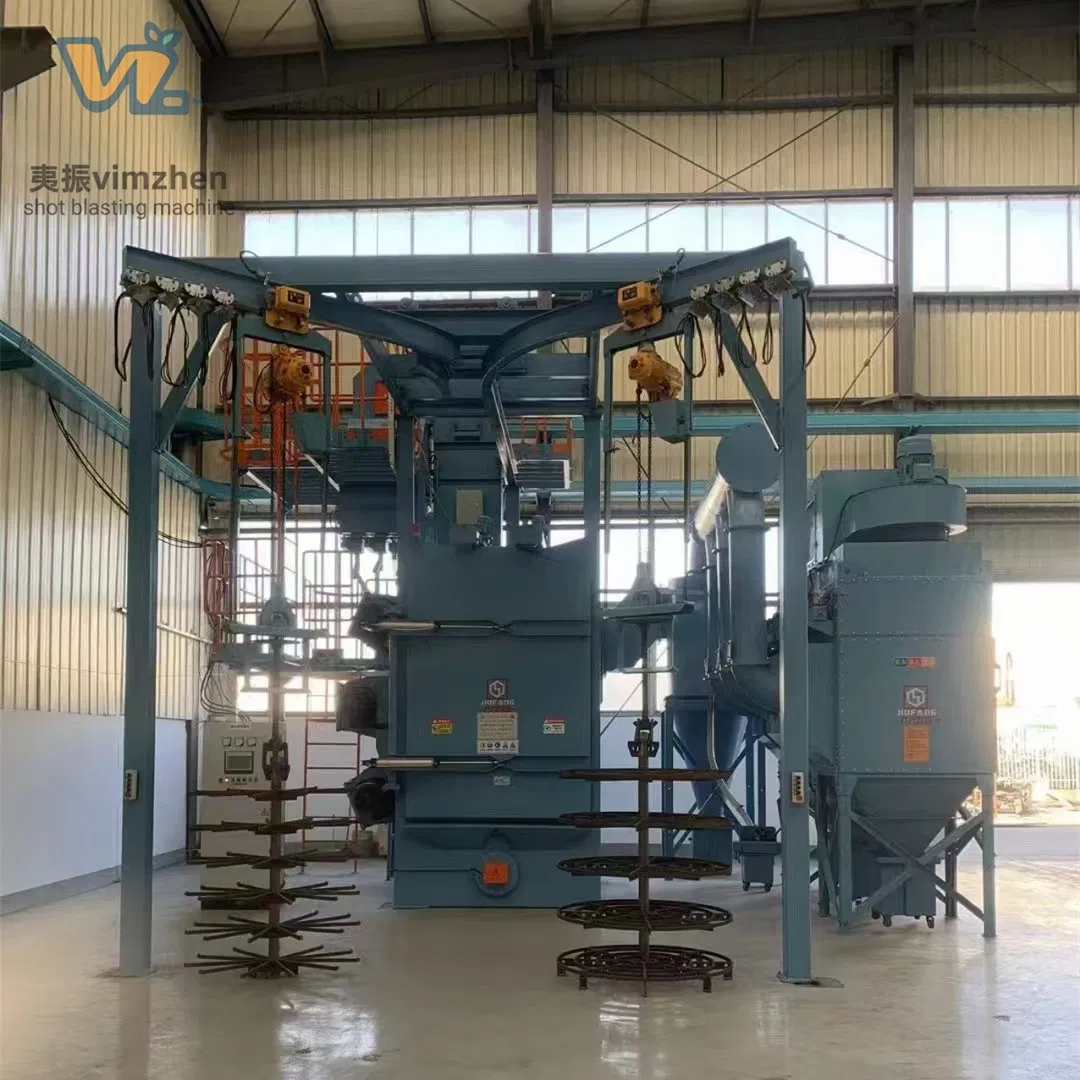

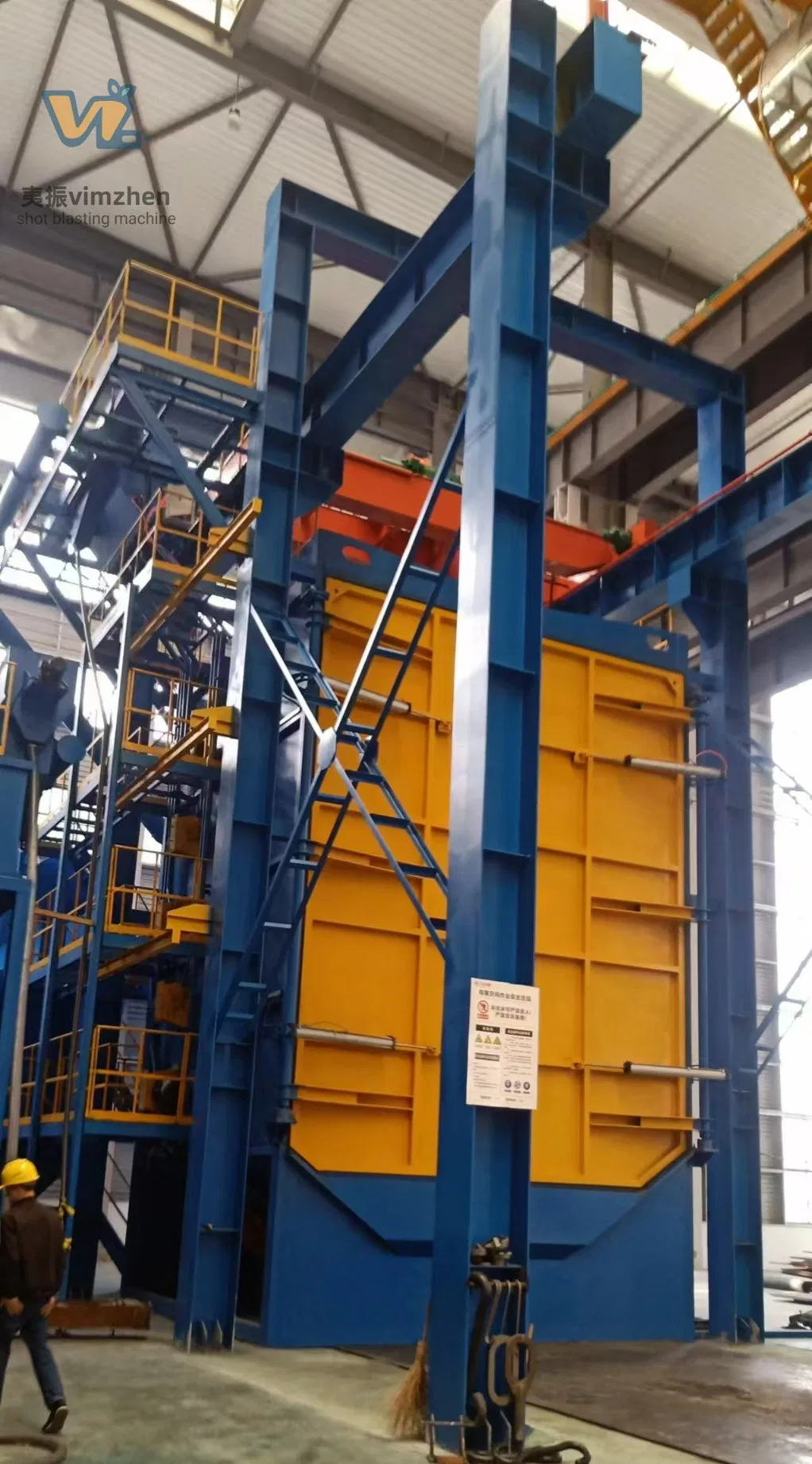

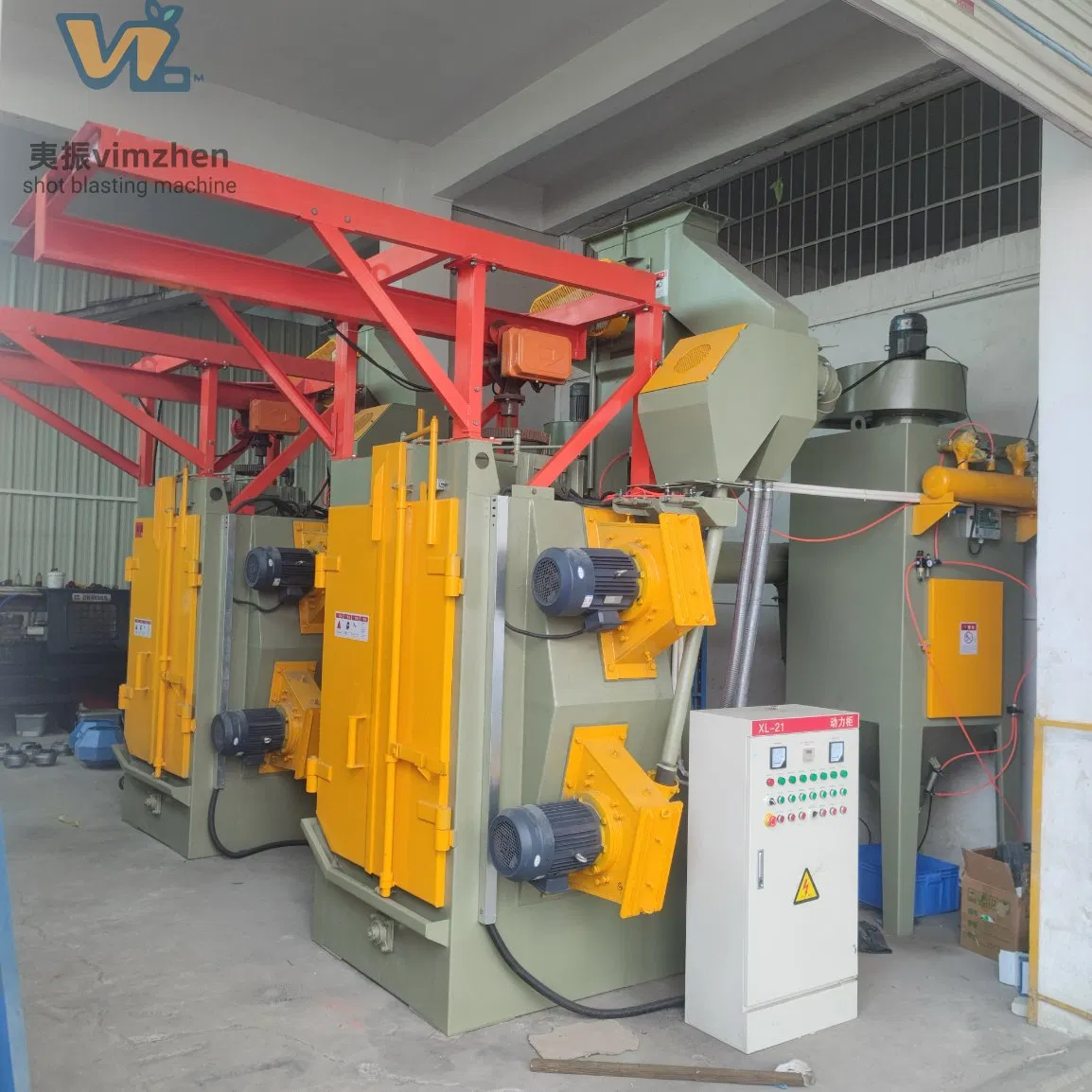

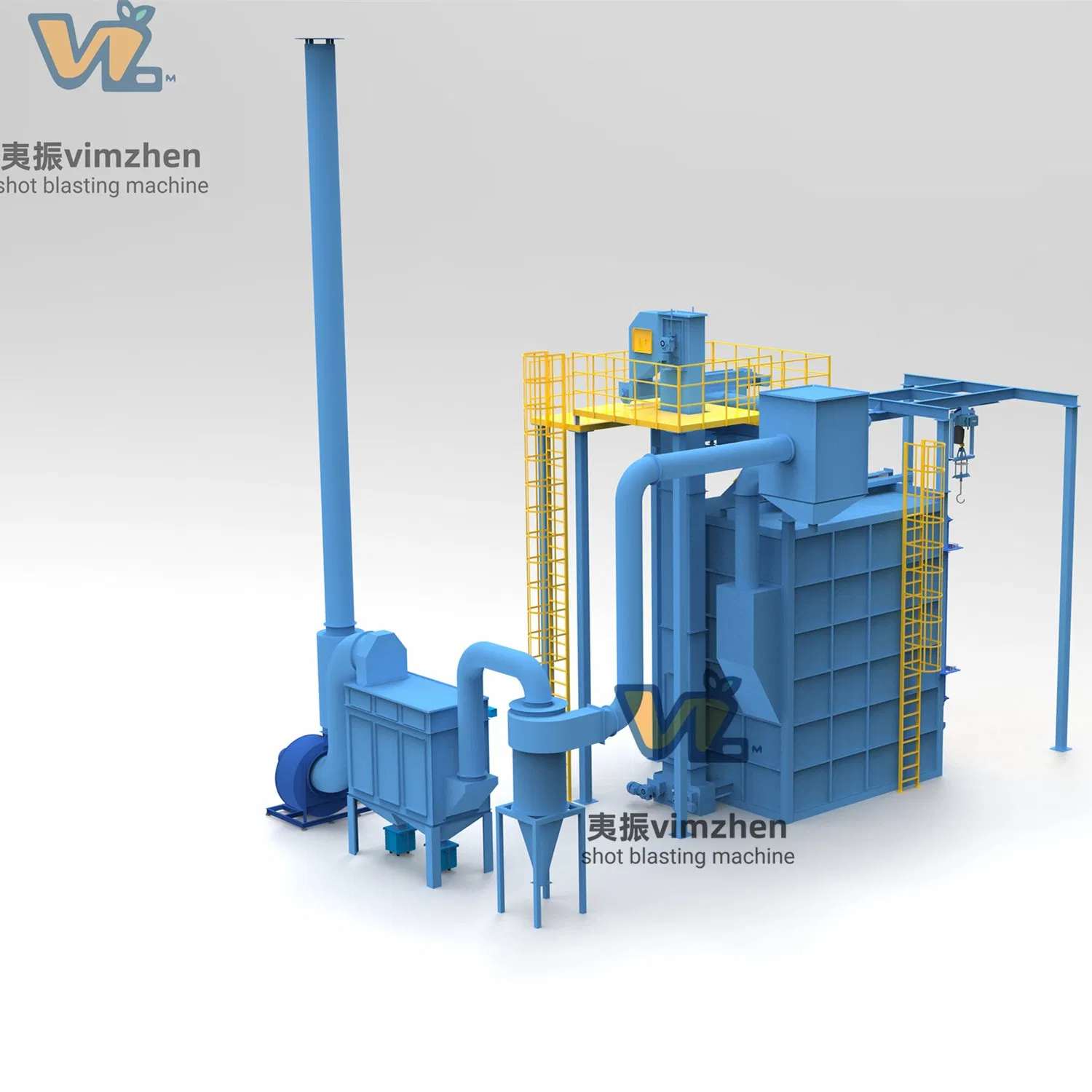

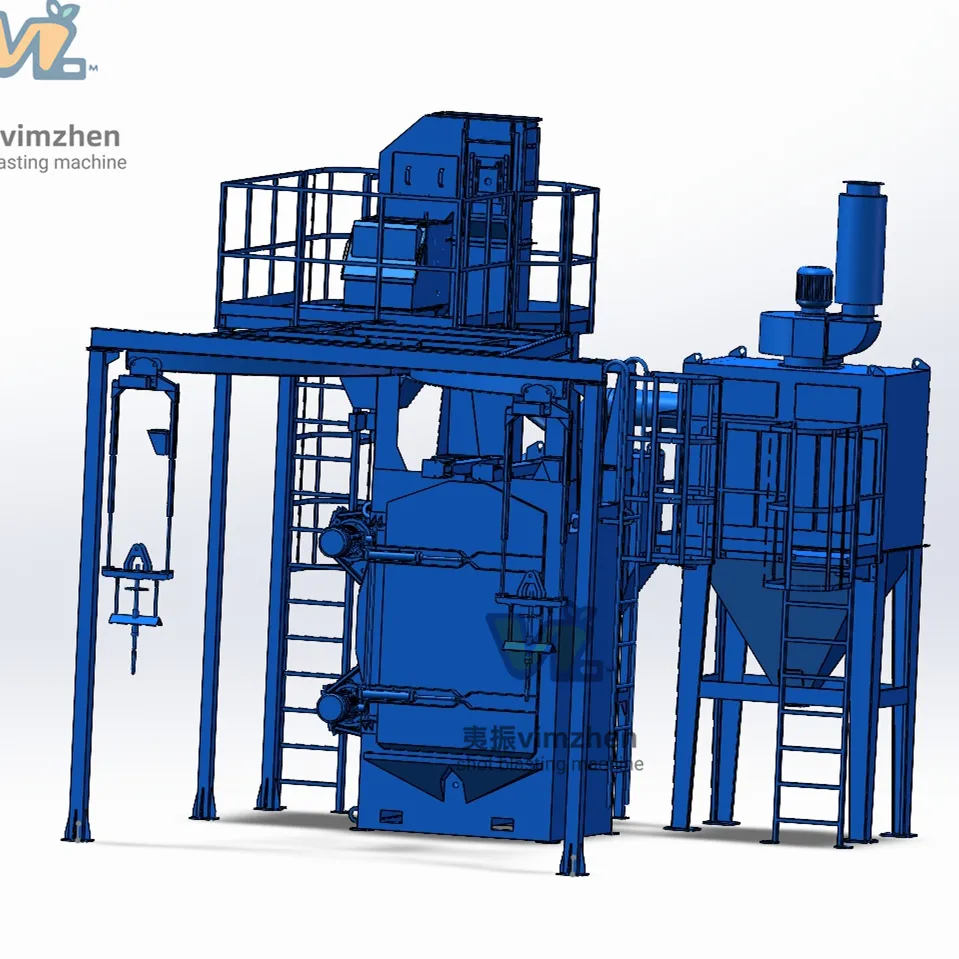

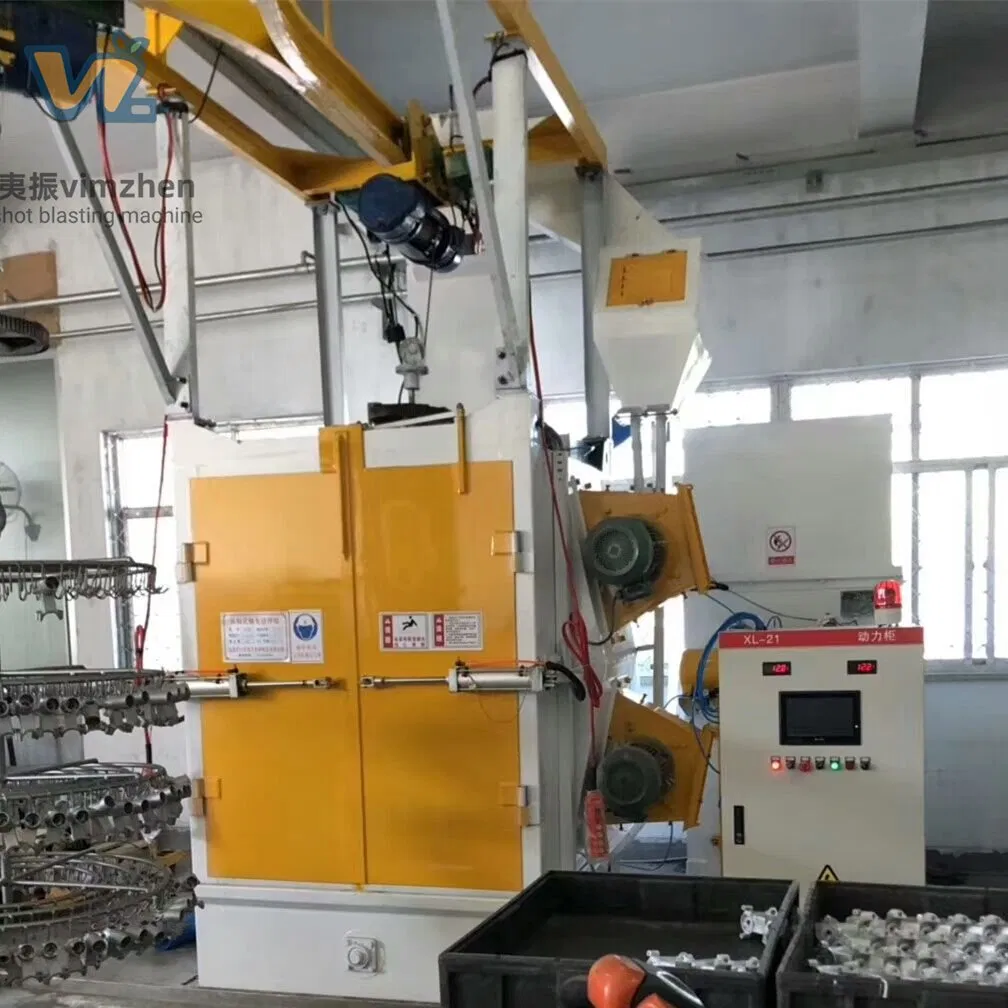

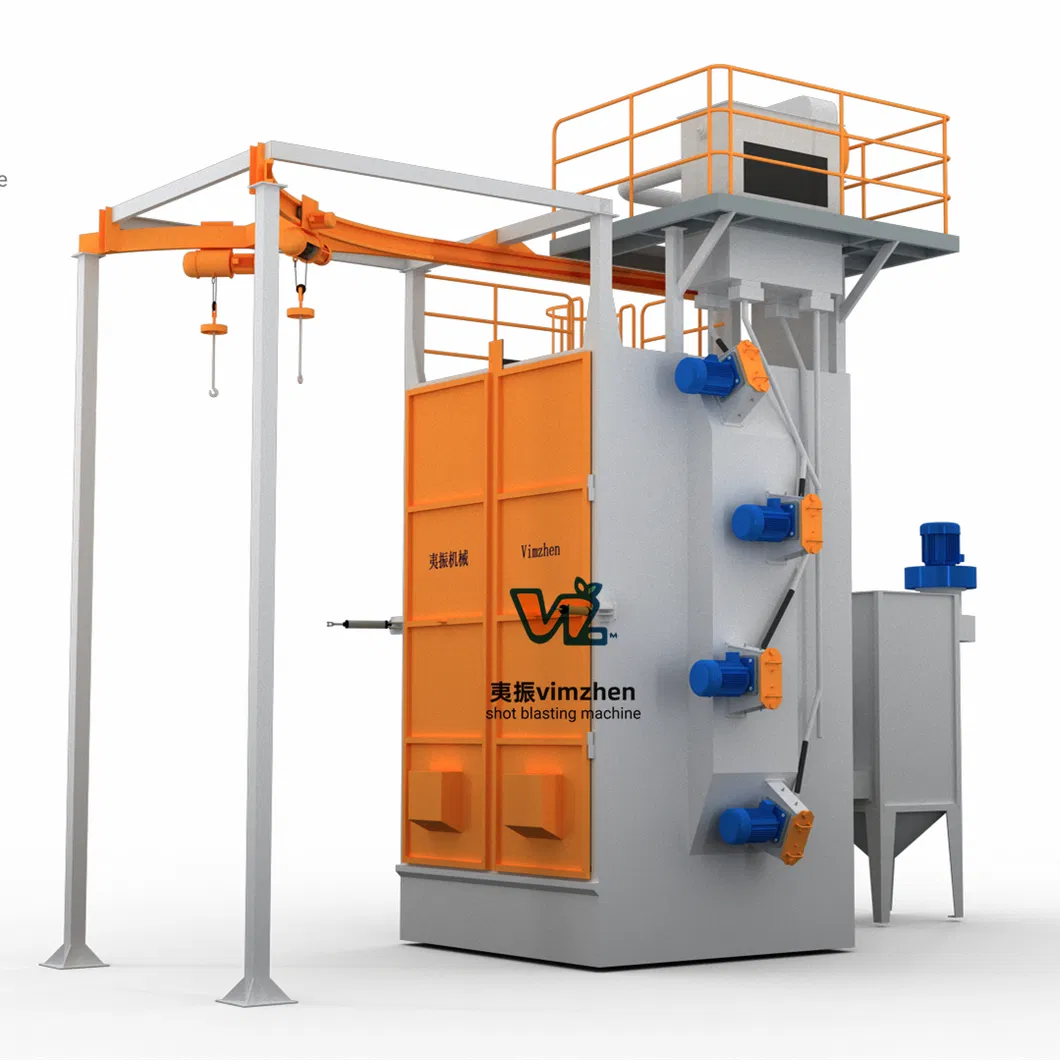

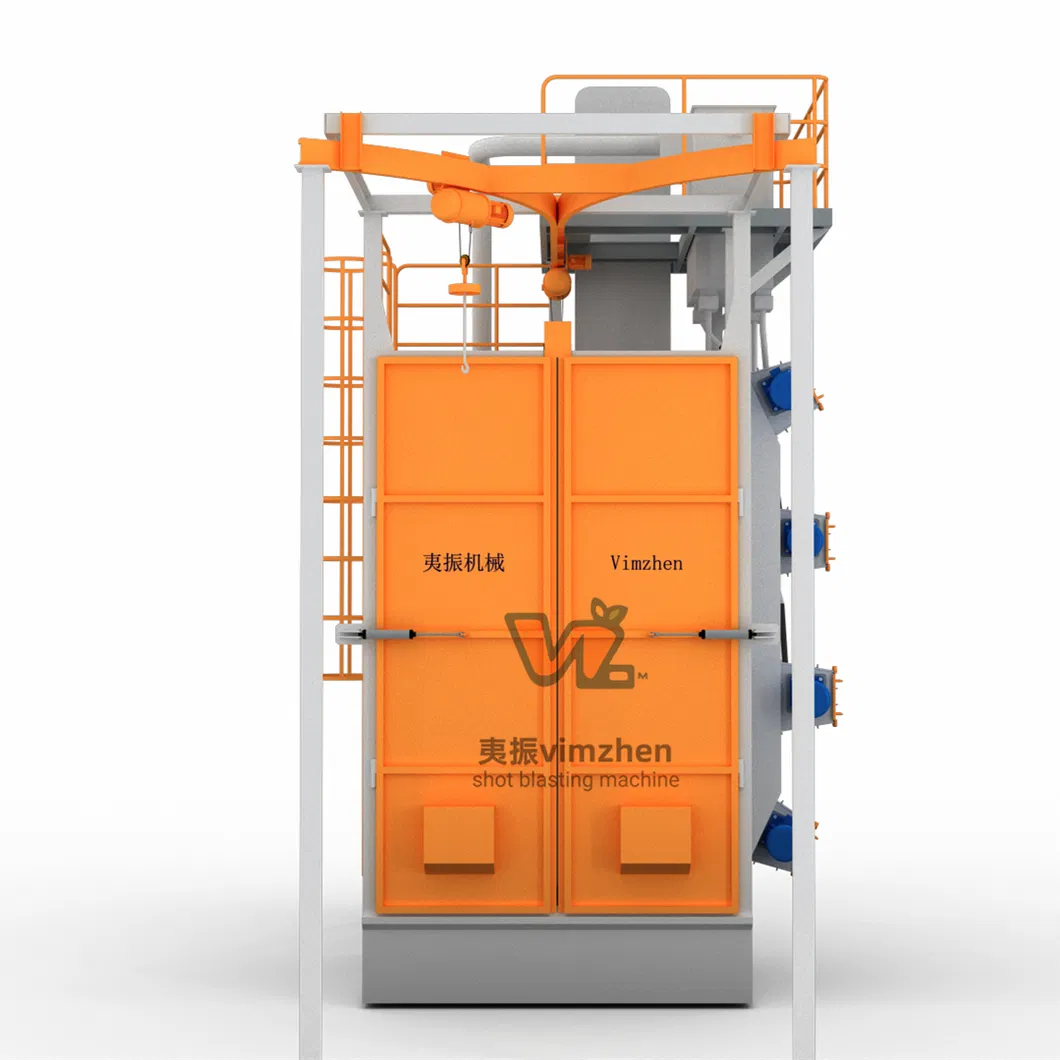

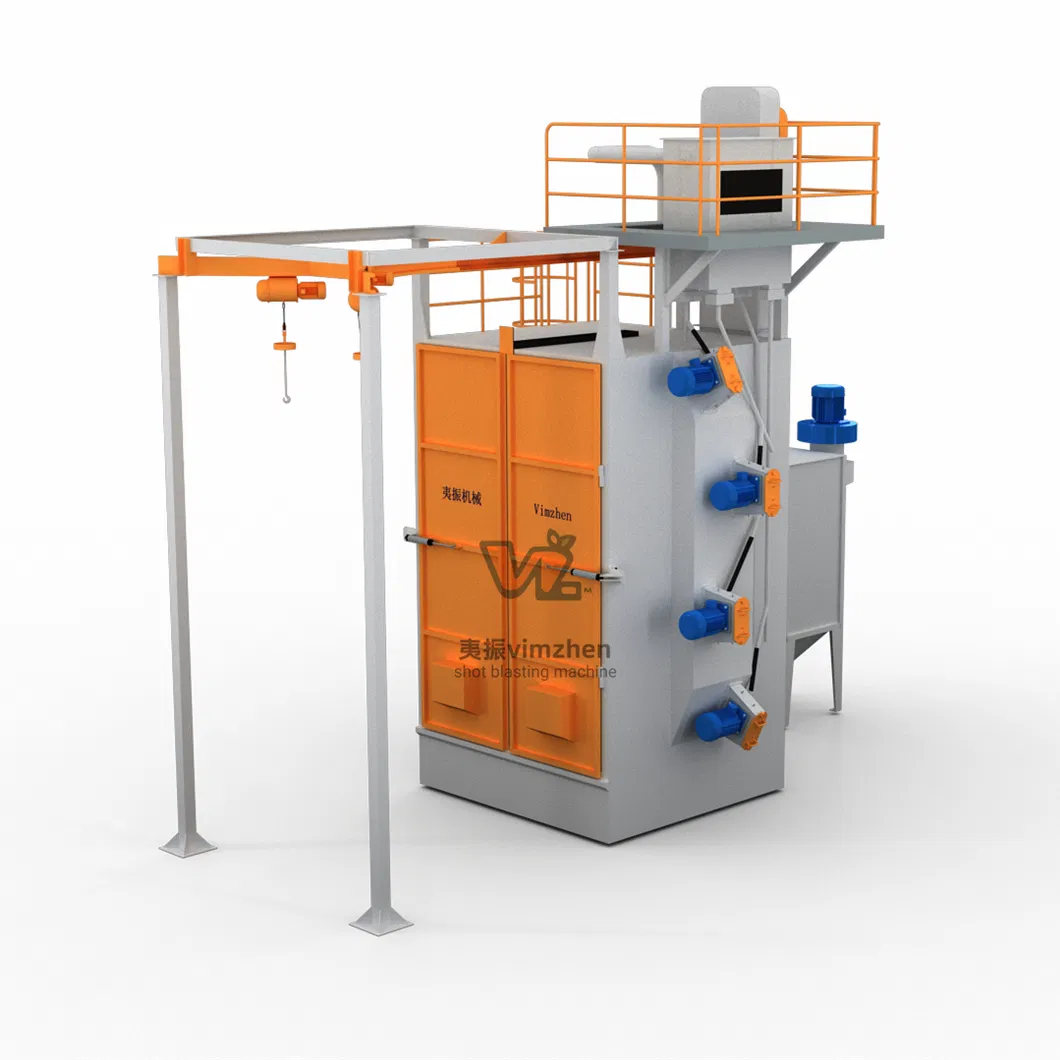

Q37 Series hook-type shot blasting machine is primarily available in two configurations: single-hook and double-hook models. It is suitable for surface cleaning or strengthening of small to medium-sized castings, forgings, welded components, and heat-treated parts across various industries. It is particularly well-suited for cleaning and strengthening parts that are prone to damage from collisions.

Pit-free structural design for compact layout and stable operation.
Fully enclosed structure eliminates shot blast spillage.
Interior protected with wear-resistant alloy cast iron guard plates.
Electric hoist for efficient loading, lifting, and moving of workpieces.

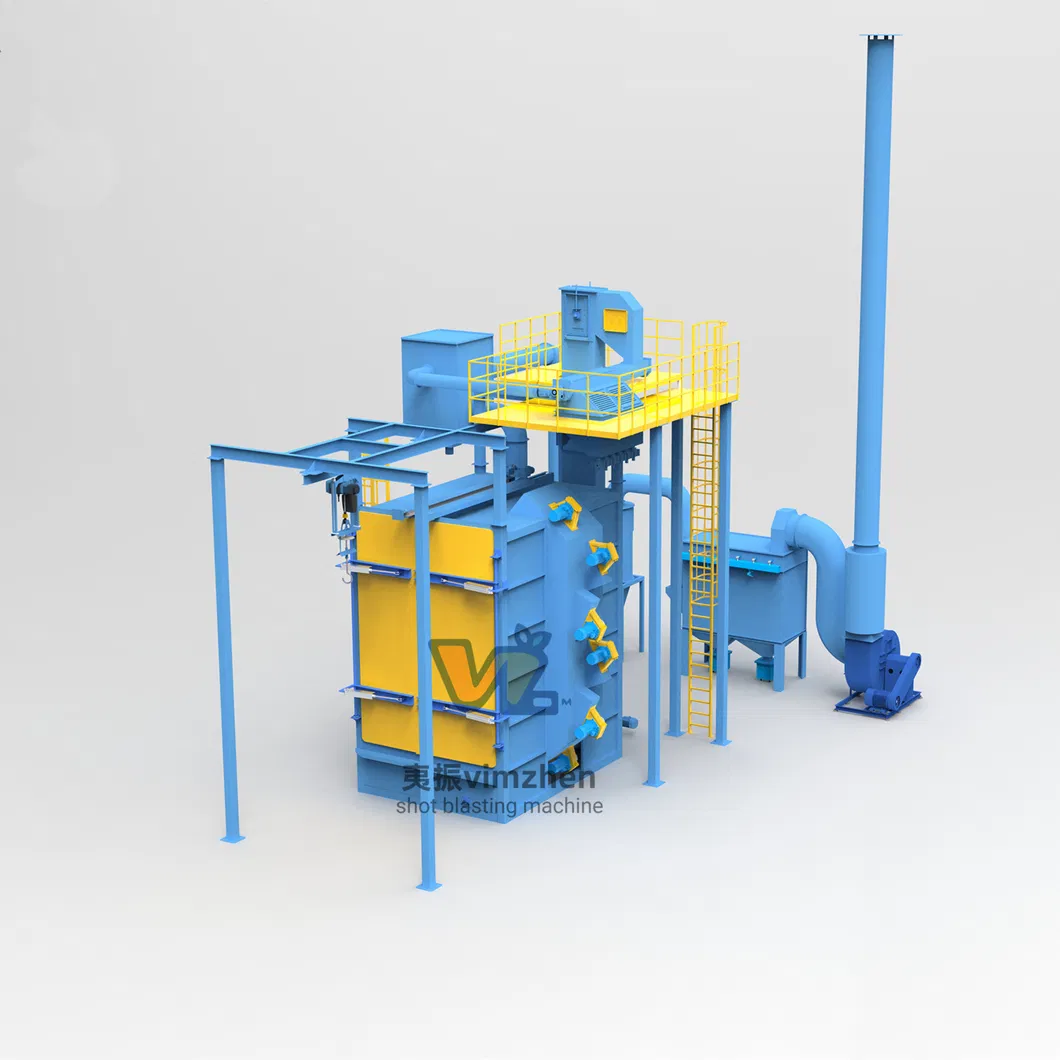

Detailed Photos

Product Parameters

Model	Q376	Q378	Q379	Q3710	Q3720	Q3730	Q3740	Q3780
Single hook lifting weight (kg)	600	1000	1000	1000	2000	3000	5000	10000
Shot blasting capacity (kg/min)	2*150	2*200	2*200	2*200	3*220	3*250	6*250	8*250
Cleaning workpiece size (mm)	Ф600*1200	Ф800*1500	Ф900*1600	Ф1000*2000	Ф1200*2200	Ф400*2700	Ф1600*3000	Ф2500*5100
Total power (kW)	≈23	≈34	≈34	≈48	≈60	≈67	≈80	≈150

Hot Product Solutions

Q32 Series Apron/Belt Type Shot Blasting Machine

Suitable for surface rust removal or shot peening of workpieces in multi-variety, large- and medium-batch production. Ideal for castings and heat-treated parts that can withstand collisions.

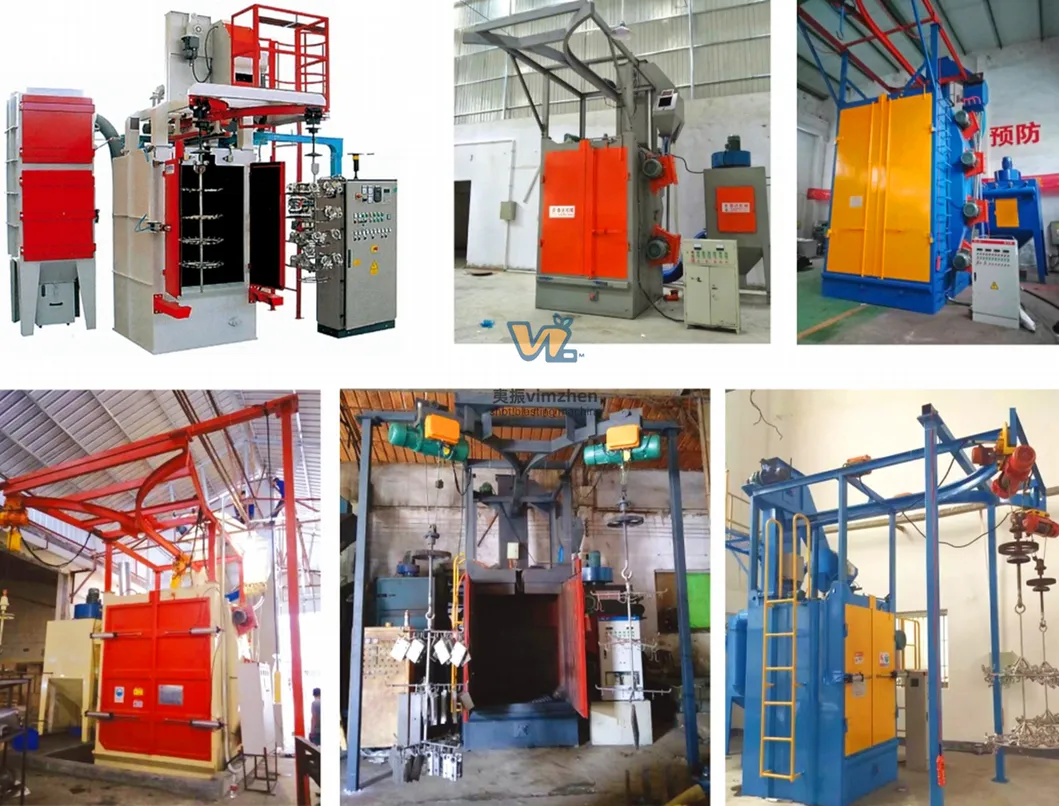

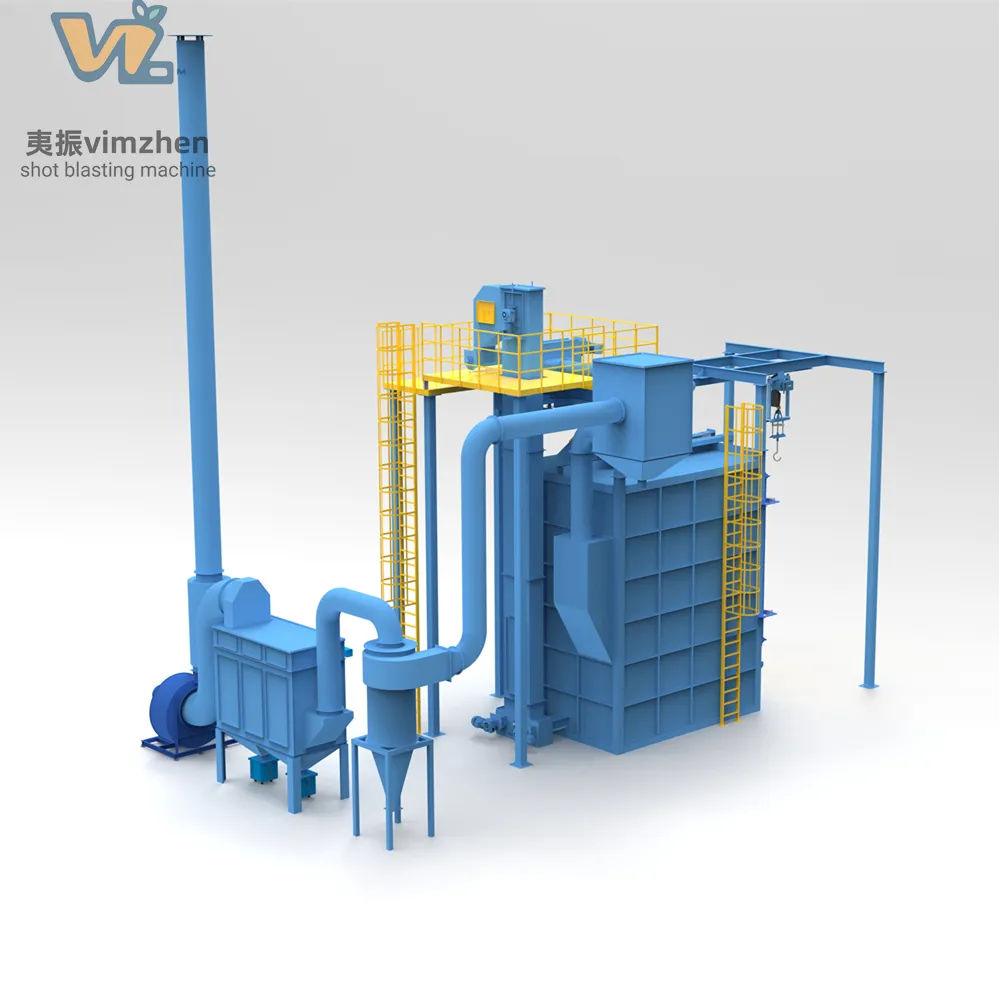

Q37 Series Hook-Type Shot Blasting Machine

Available in single and double-hook models. Perfect for small to medium-sized castings and welded components. Features a pit-free design and fully enclosed chamber.

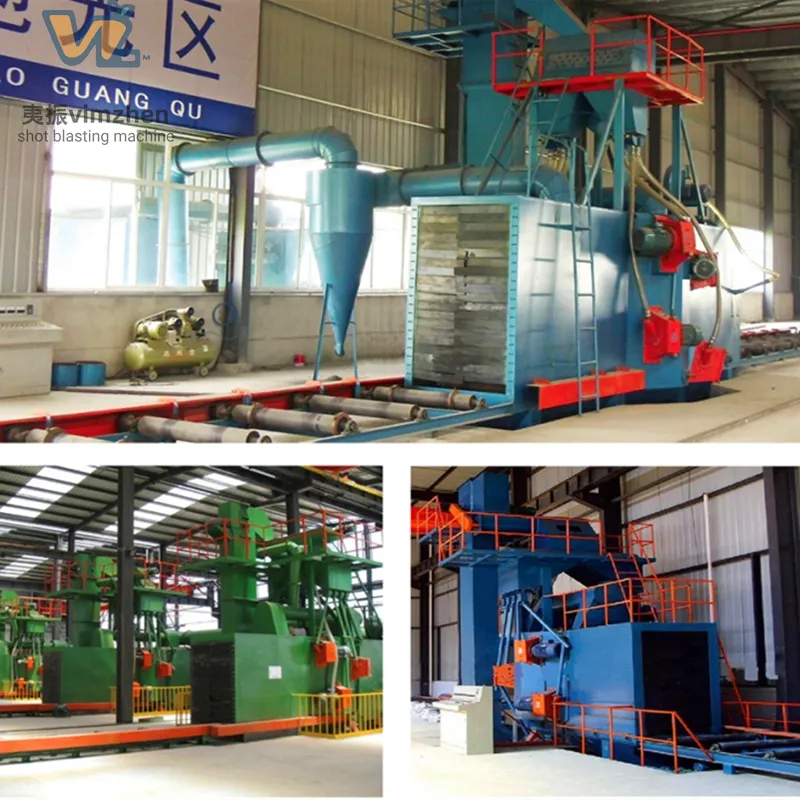

Q69 Roller Conveyor Shot Blasting Machine

Designed for continuous descaling and pretreatment of steel plates, bars, beams, and pipes. Features adjustable-speed conveyor rollers and high-velocity steel shot impacts.

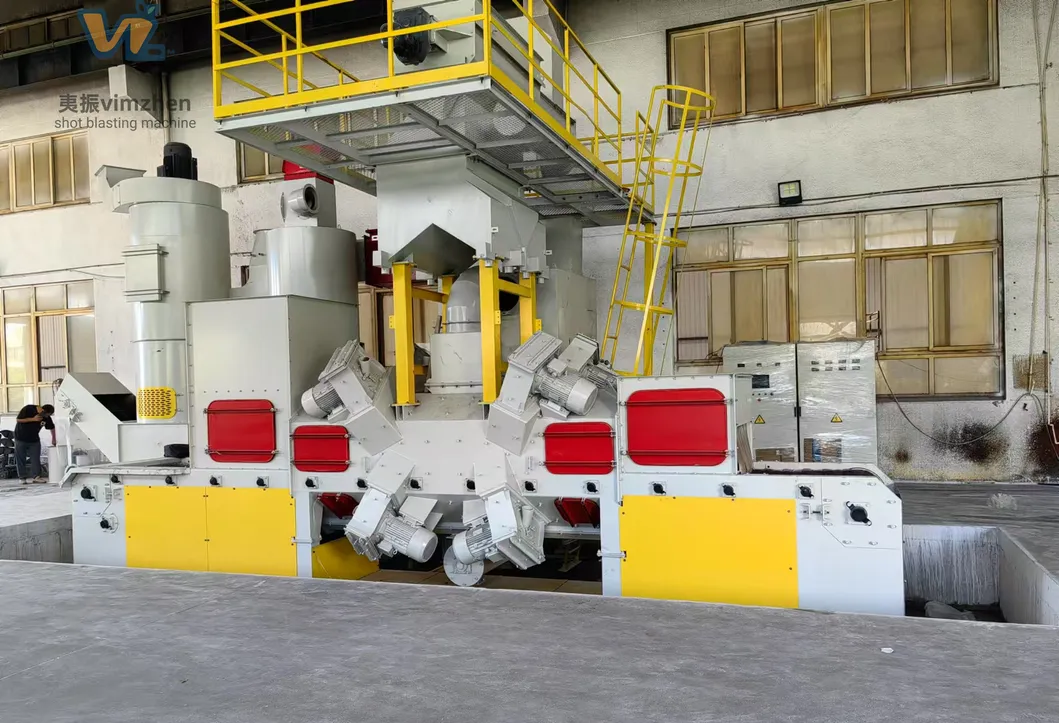

QWVD Series Mesh Belt Shot Blasting Machine

Primarily for surface cleaning of thin-walled castings, fragile iron/aluminum alloy castings, and ceramic parts. Offers high cleaning efficiency and minimal workpiece deformation.

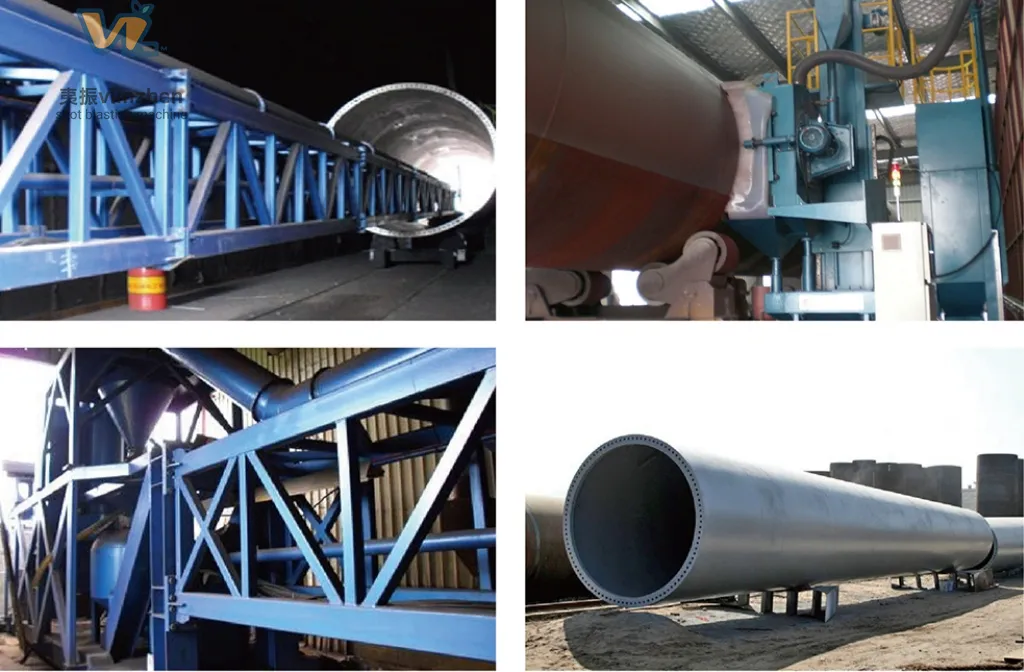

Tower Drum Internal and External Wall Machine

Specifically tailored for large pipelines and wind turbine tower drums. Removes oxide scale and old paint to enhance coating adhesion and extend service life.

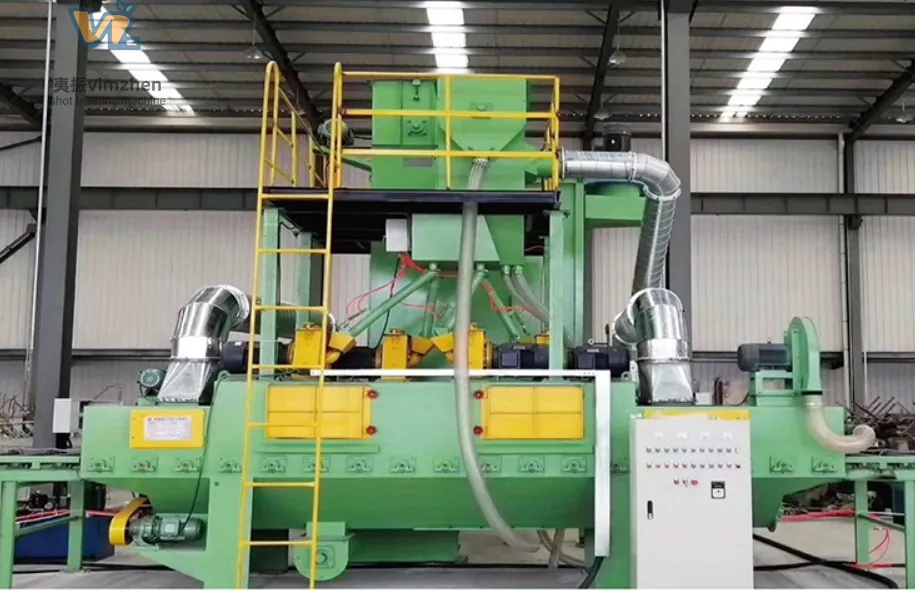

Stone Shot Blasting Machine

Designed for surface roughening of marble, granite, and tiles. Improves slip resistance and creates a beautiful three-dimensional texture on stone surfaces.

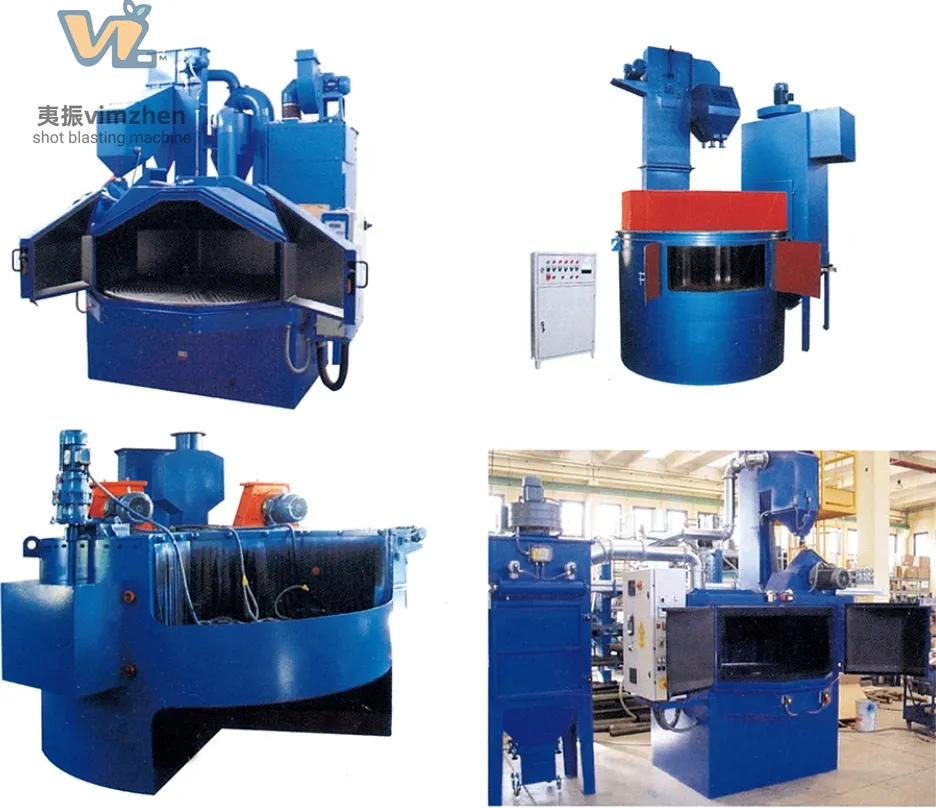

Q35 Series Rotary Table Shot Blasting Machine

Ideal for cleaning flat, thin-walled, and collision-sensitive parts. Effectively removes rust and contaminants while improving internal stress distribution for strengthening.

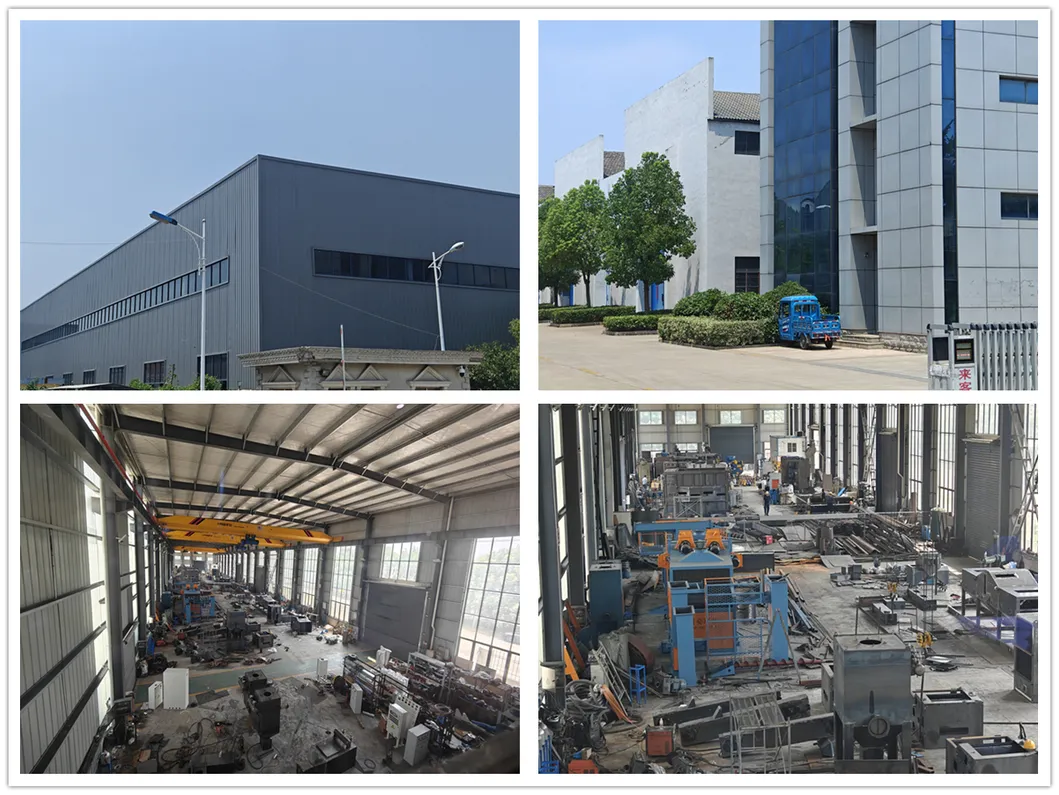

Company Profile & Technical Excellence

As a leading manufacturer in surface treatment technology, we specialize in producing high-end shot blasting machines (Q32/Q35/Q37/Q69/QWVD series), sand mixers, and wear-resistant castings. Our products incorporate advanced international technologies refined by an expert engineering team and comply with ASTM A532 standards.

Our Advantages

24-hour rapid response to all inquiries.
Experienced technical staff providing professional support.
Fully customized design solutions based on specific needs.
Direct manufacturer pricing with high-quality quality control.
Exclusive solutions provided by well-trained engineers.

Service & Consultation

To provide the most suitable machine for your requirements, please provide the following details:

Workpiece material, shape, and dimensions (Max Length/Width/Height).
Maximum and minimum weight of the workpiece.
Required productivity (tons or pieces per day/month).
Local power supply specifications (e.g., 380V, 3PH, 50HZ).
Workpiece photos or technical drawings for better assessment.

Frequently Asked Questions

What standards are followed during production?

All equipment is manufactured strictly according to ISO9001 and ISO14001 quality and environmental management rules, as well as ASTM A532 standards for wear-resistant components.

How is the installation of the machine handled?

We can arrange for professional engineers to visit your facility to guide the installation, assembly, and initial commissioning of the machinery.

Do you provide the blasting media like steel shots?

Yes, we have dedicated production lines for steel shots, steel grit, stainless steel shots, and aluminum shots to ensure you have the right media for your specific application.

Can the machines be customized for specific workpiece sizes?

Absolutely. We specialize in customized designs. We can adjust the chamber size, number of blasting wheels, and conveyor systems to match your unique production requirements.

Is a foundation pit required for installation?

Many of our models, such as the Q37 series, feature a pit-free structural design, which simplifies installation and reduces civil engineering costs.

What is the typical lead time for a custom machine?

Lead times vary depending on the complexity of the customization, but our efficient manufacturing process ensures competitive delivery schedules for all international orders.
