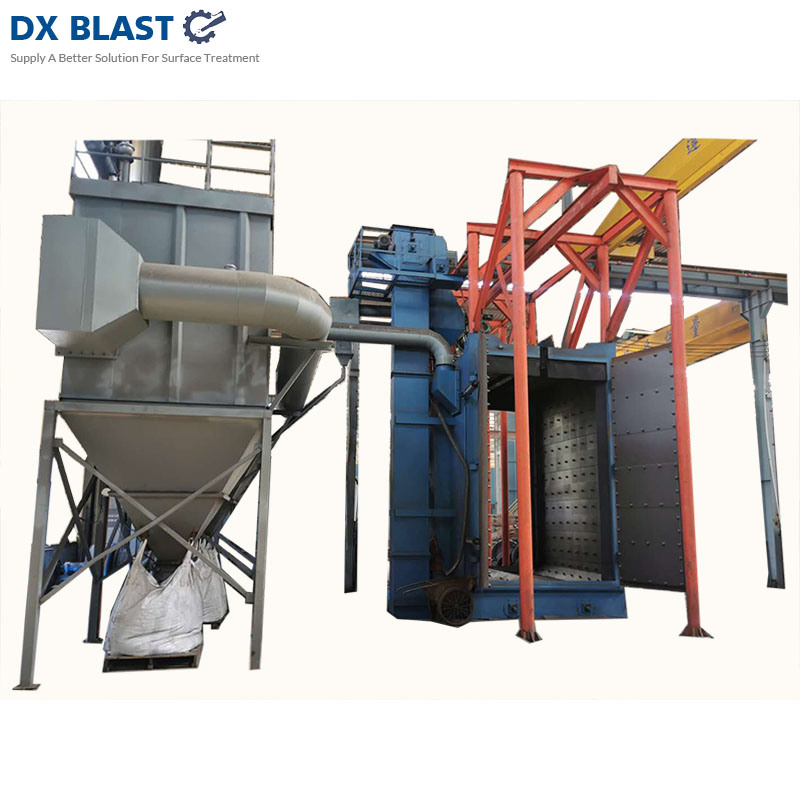

Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine
Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine
Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine
Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine
Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine
1 / 5
Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine
Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine
Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine
Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine
Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine

Hook Type Shot Blasting Machine, Automatic Shot Blasting Machine, Shot Blast Machine, Hanger Shot Blast Machine

Customization: Available
Warranty: 1 Year
Application: Surface Treatment
Send Inquiry

Product Description

■ Basic Information
Fuel:
Electric
Type:
Hook Type Abrator
Cleanliness:
High Cleanliness
Automation:
Automatic
Certification:
CE, CB, ETL, RoHS, UR
Feature:
Rust / Corrosion Proof
Condition:
New
Customized:
Available
Surface Finish:
SA2.5 to SA3.0
PLC System:
Siemens, Omron or Famous Brand
■ Product Description

The hook shot blast machines are installations with operational flexibility. It is suitable for many types of workings, such as: castings, forgings, weldments, heat treatment devices, including fragile and irregularly shaped workpieces, and steel structures.

  • Big inclination angle of mold cavity, meeting different product casting techniques.
  • Adjustable rotating speed of mold cavity, improving mold exhausting.
  • PLC control with full hydraulic drive for high dependability.
  • Convenient installation and regulation.
  • Integrated urgent stop button for safe operation.

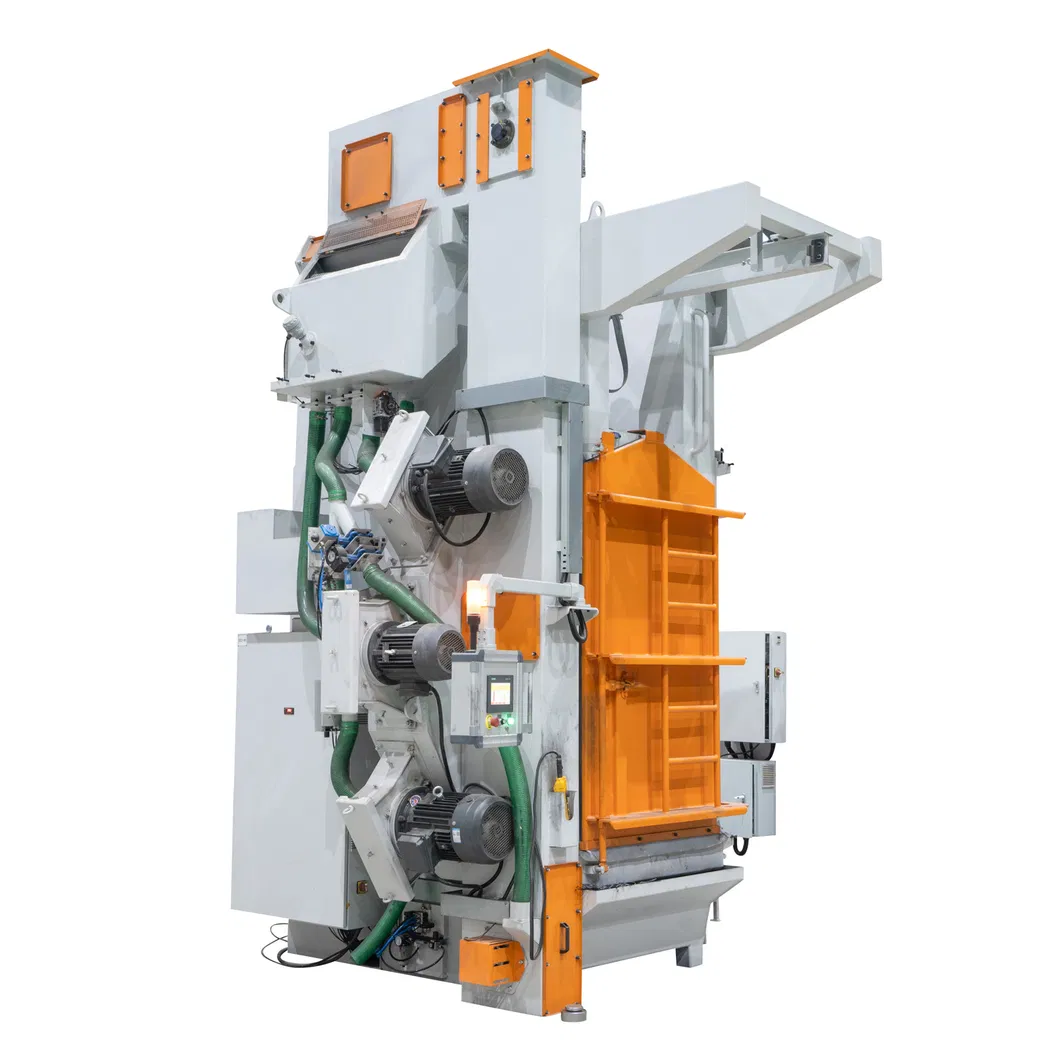

Shot Blasting Machine

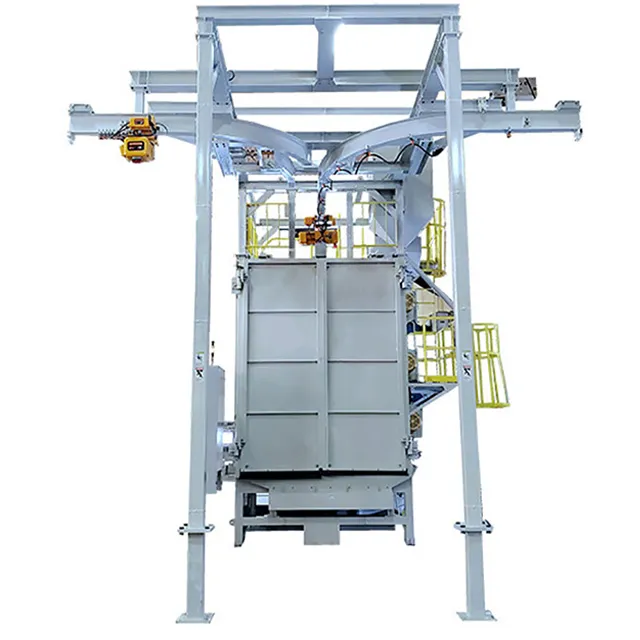

Automatic Shot Blasting

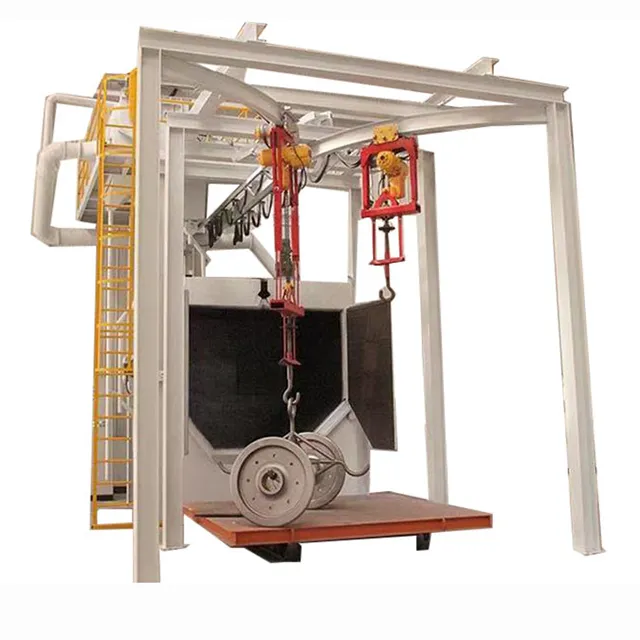

Hanger Shot Blast

Product Application

The Spinner double hanger hook type shot blaster machine is designed for surface cleaning or strengthening treatment of small castings and forging parts in the foundry, building, chemical, motor, and machine tool industries.

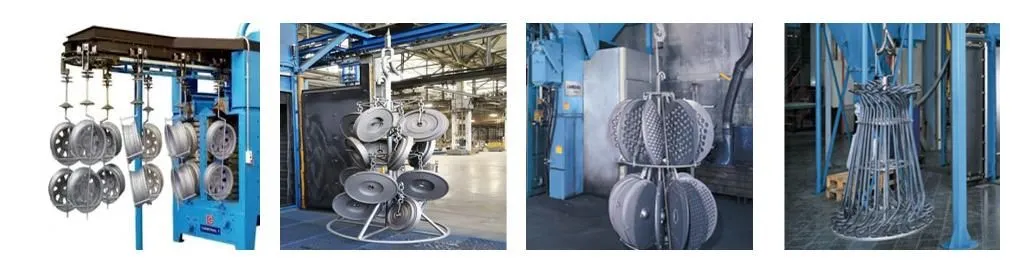

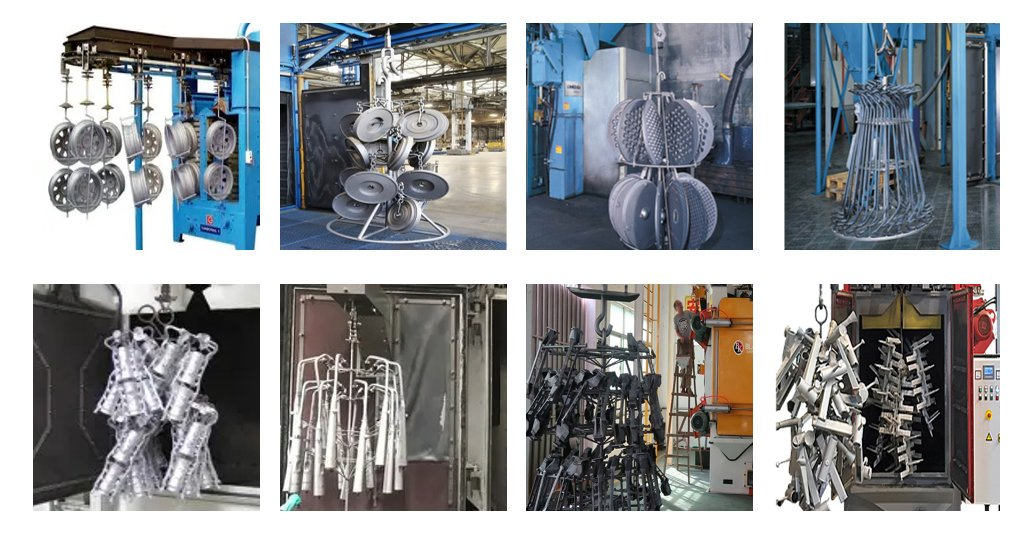

Application Overview

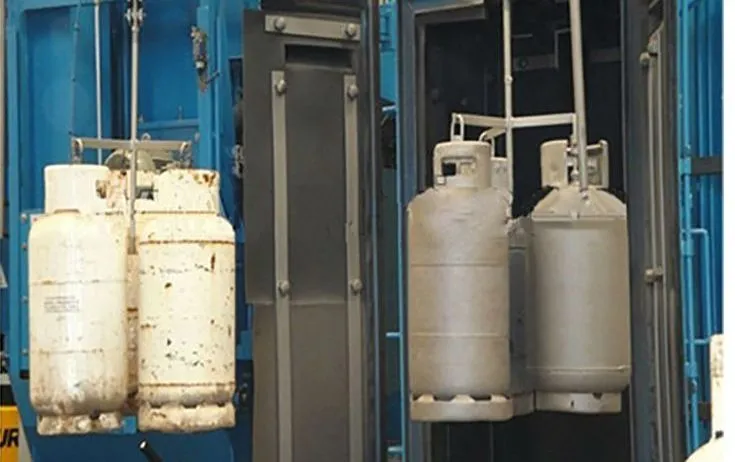

Process Detail 1

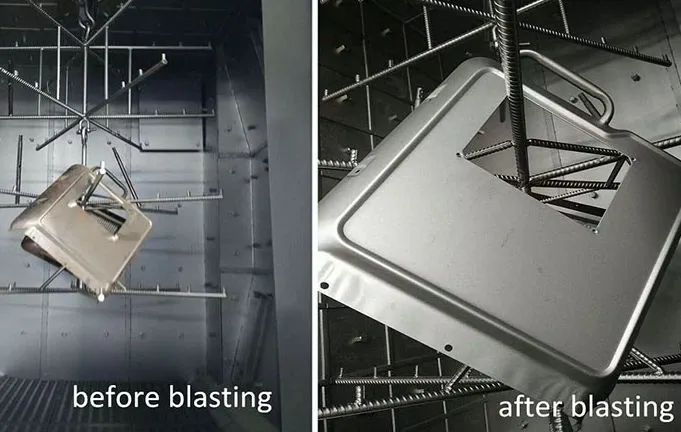

Process Detail 2

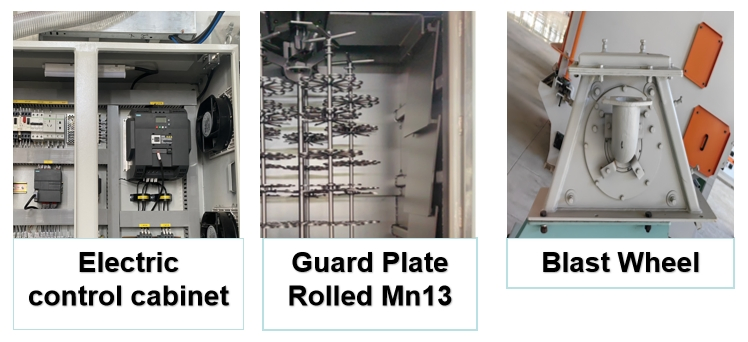

Key Components

1. Main Blast Cabinet with inspection Door.
2. Blast Wheel Units with Drive Mechanism.
3. Abrasive circulation unit.
4. Bucket Elevator unit.
5. Abrasive Separation/Cleaning system.
6. Dust Collector with Cleaning Mechanism.
7. Hook with crane system.
8. Control Panel with PLC System.

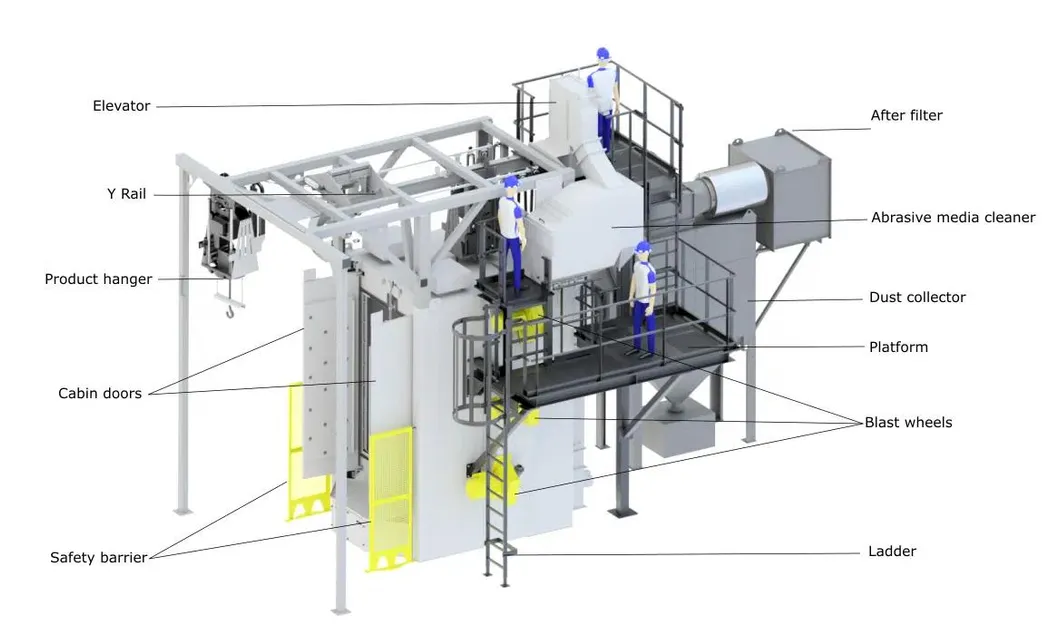

Machine Structure

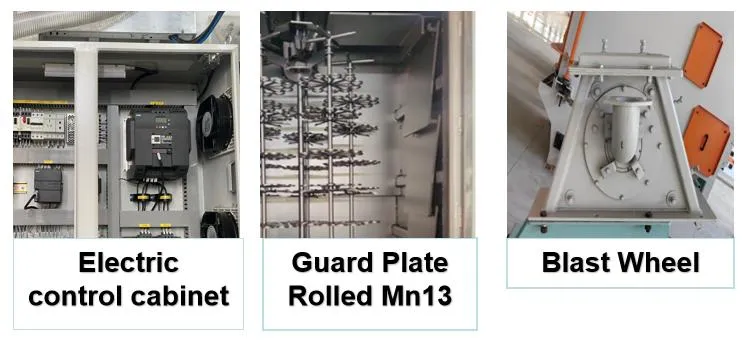

Internal View
■ Product Parameters
Item Unit DX376 DX378B DX378C DX3710 DX3720 DX3730 DX3750 DX37100
Max. weight of cleaning kg 500 600 800 1000 2000 3000 5000 10000
Abrasive flow rate kg/min 2*200 2*200 2*250 2*250 3*250 3*250 4*250 4*250
Ventilation capacity m³/h 5000 5000 5000 5000 9000 11000 14000 16000
Lifting amount of elevator t/h 24 24 30 30 45 45 60 75
Max dimensions of suspender mm Ø600*1200 Ø700*1200 Ø1000*1600 Ø1200*1800 Ø1400*2200 Ø1600*2300 Ø1800*2500 Ø3000*3000

* Parameters can be customized according to specific requirements.

■ Production & Workshop

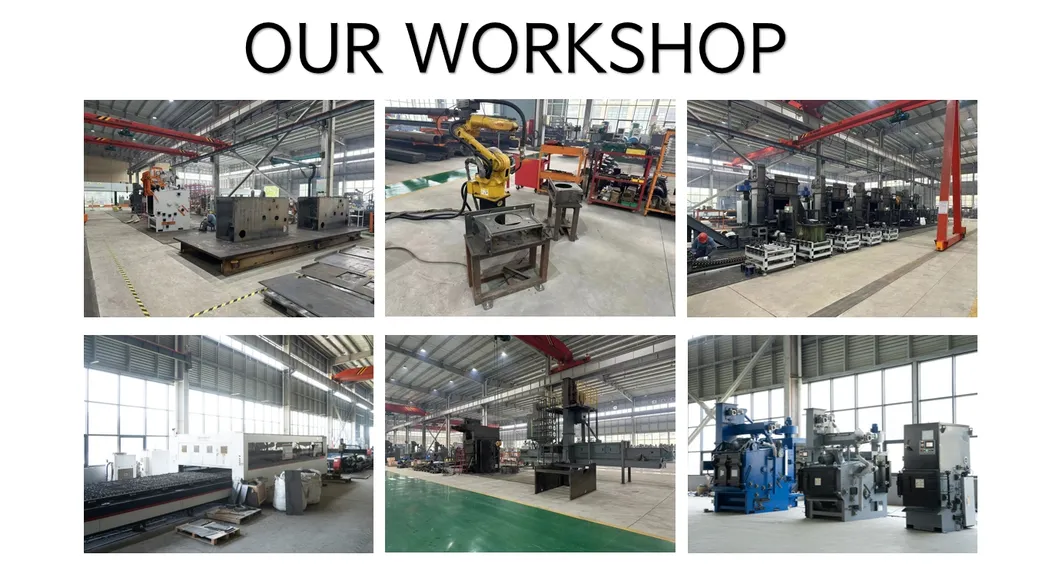

Factory View 1 Factory View 2 Factory View 3 Factory View 4 Factory View 5
? Frequently Asked Questions
Q: How to choose the right blast machine type? A: The choice depends on your workpiece size, material, and required productivity.
Q: What kind of abrasive media can be used? A: Common media include steel shot, steel grit, cut wire shot, and stainless steel shot.
Q: What is the quality warranty period? A: We provide a 1-year warranty along with long-term after-sales support.
Q: Is a foundation pit essential for installation? A: It depends on the machine size and your workshop specifications.
Q: How many workers are needed to operate the machine? A: The machine is designed for efficient operation by 1 operator.
Q: Do you provide installation assistance? A: Yes, we provide installation tools and experienced workers for operation training.
