Application
Metal Surface Cleaning
Cleanliness
High Cleanliness
Feature
Environmental Protection
Core Selling Point
High Productivity
Production Capacity
5 Sets/Month
Package Size
300.00cm * 191.00cm * 200.00cm

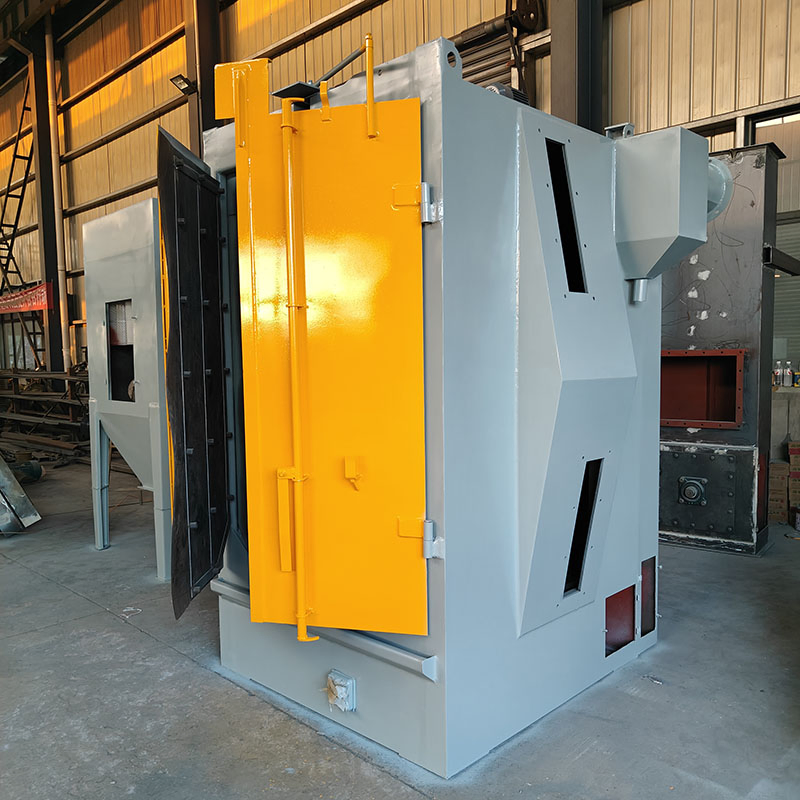

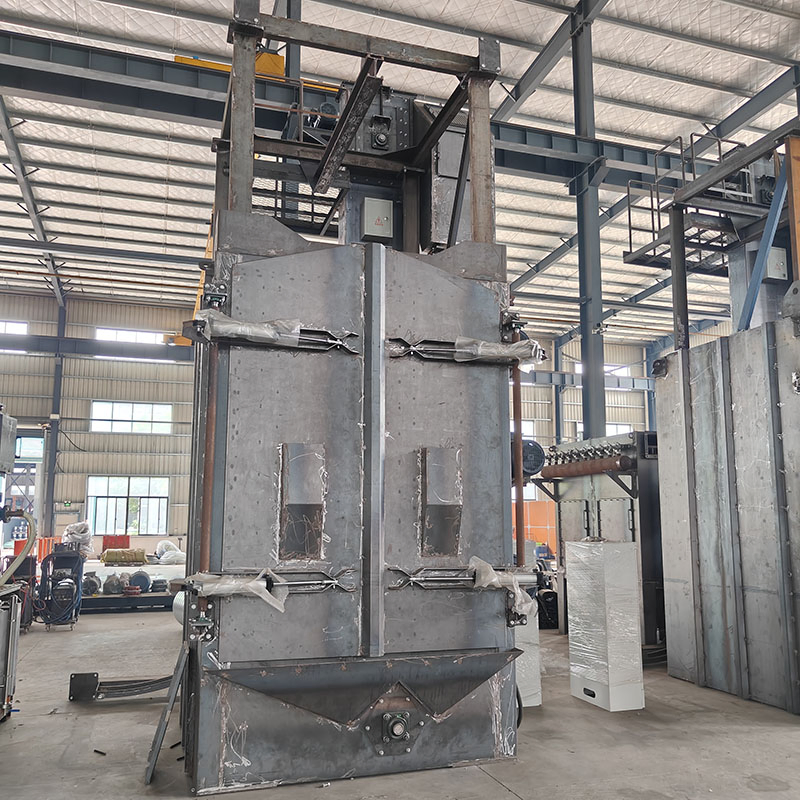

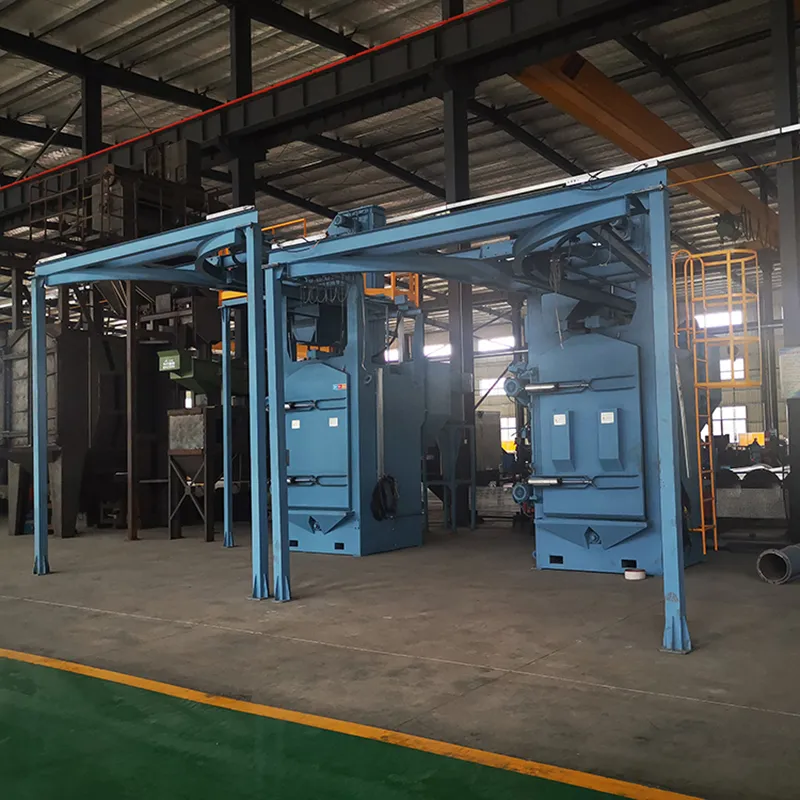

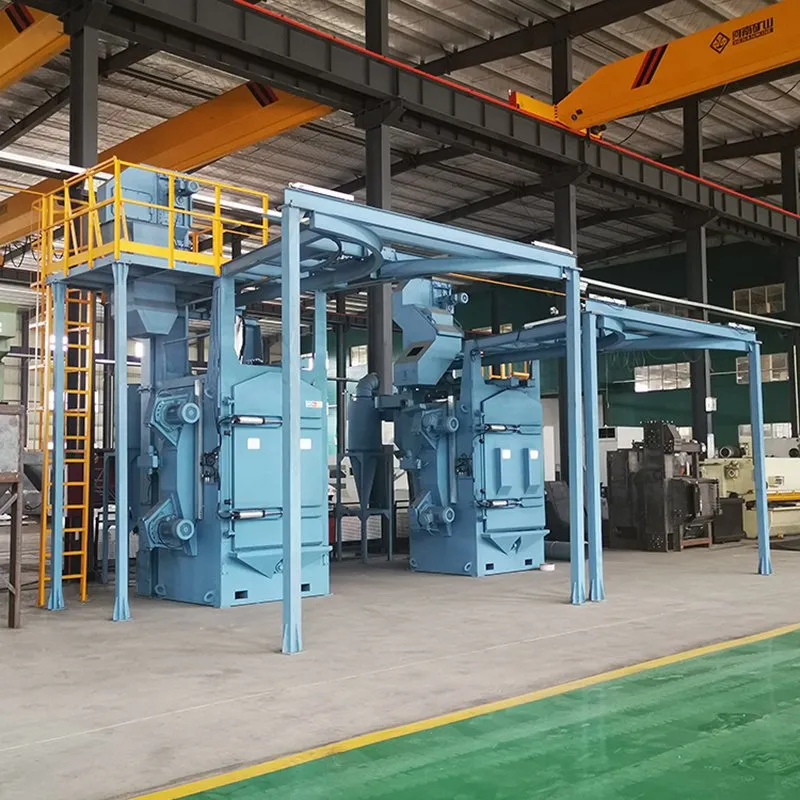

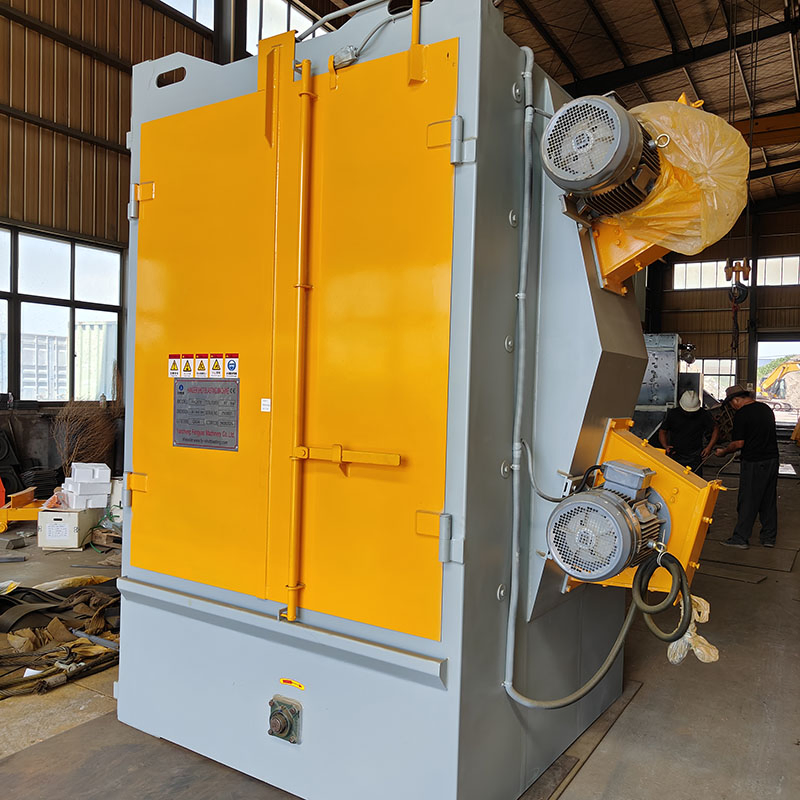

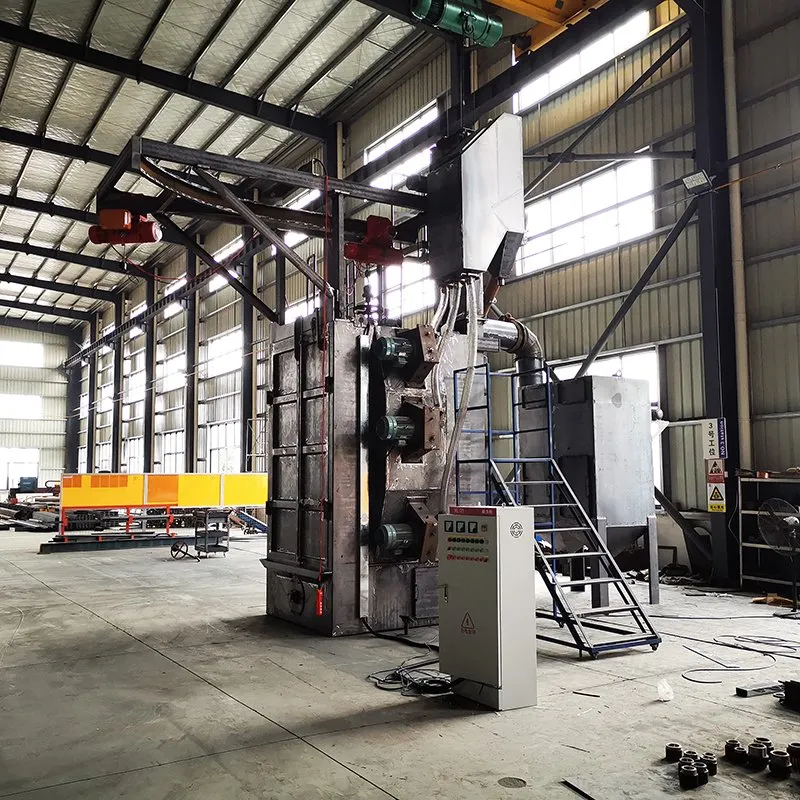

Hook type shot blasting machine usually has single hook shot blasting machine and double hook shot blasting machine. As the two hooks rotate, the auxiliary time of the machine is greatly reduced, and the efficiency of shot peening operation is improved.
Main Features:
1. This machine adopts a pit-free structure, which is easy to install and reduces investment costs.
2. Compact structure, high production efficiency, good cleaning quality, safe and reliable work.
3. The hook has three functions: self-lifting, walking and indoor rotation.
4. Equipped with high-quality electrical components for stable operation.
Components of Hook Shot Blasting Machine:

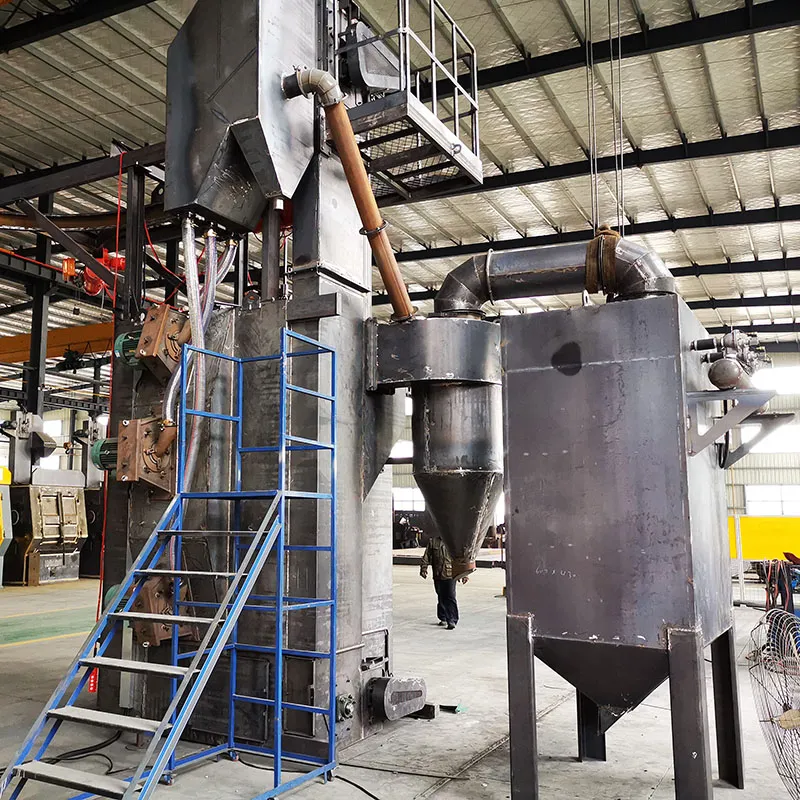

The FYQ37 series consists of shot blasting cleaning room, elevator, separator, screw conveyor, shot blasting assembly, projectile control system, hook walking track, hook system, rotation device, dust removal system and electrical control part.
| Item/Type |
Unit |
FYQ376 |
FYQ378 |
FYQ3710 |
FYQ3720 |
FYQ3730 |
| Cleaning parts size | mm | ∅800×1000 | ∅1000×1200 | ∅1200×1800 | ∅1400×2200 | ∅1600×2300 |
| Single hook load | Kg | 600 | 1000 | 1000 | 2000 | 3000 |
| Blasting capacity | Kg/min | 150×2 | 200×2 | 200×2 | 250×3 | 250×3 |
| Elevator capacity | t/h | 18 | 24 | 24 | 45 | 45 |
| Air volume | m³/h | 2800 | 6000 | 9000 | 15000 | 15000 |
| Total power | Kw | 22 | 37 | 46 | 61 | 64 |
Frequently Asked Questions
What is the main application of the FYQ37 series shot blasting machine?

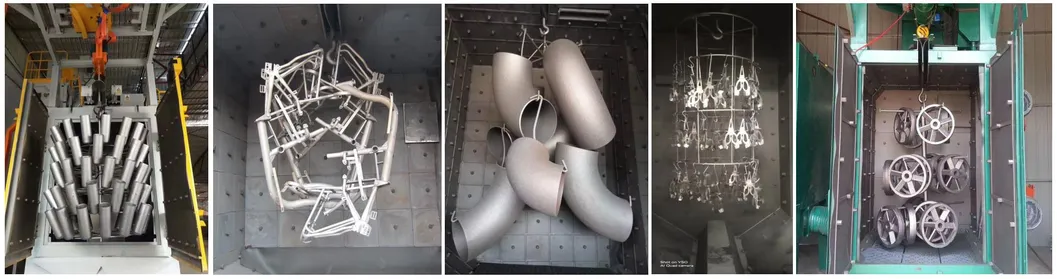

It is primarily used for surface cleaning, welding slag removal, and descaling of castings, forgings, and riveting parts, especially for thin-walled parts sensitive to collision.
What are the advantages of a double hook system over a single hook?
While the double hook system has a higher initial cost, it significantly improves production efficiency by reducing auxiliary time through simultaneous rotation and operation.
Does this machine require a special foundation or pit?
No, the FYQ37 series features a pit-free structure, which makes it much easier to install and significantly reduces construction and investment costs.
What are the core functions of the hook system?
The hook is designed with three integrated functions: automatic self-lifting, walking along the track, and rotation within the cleaning chamber for thorough coverage.
Is the equipment environmentally friendly?
Yes, the machine includes an integrated dust removal system and is designed as an "Environmental Protection" feature to meet modern industrial standards.
Can the specifications be customized for specific needs?
Yes, various parameters including power, dimensions, and weight can be customized to meet specific workpiece requirements and production capacities.
