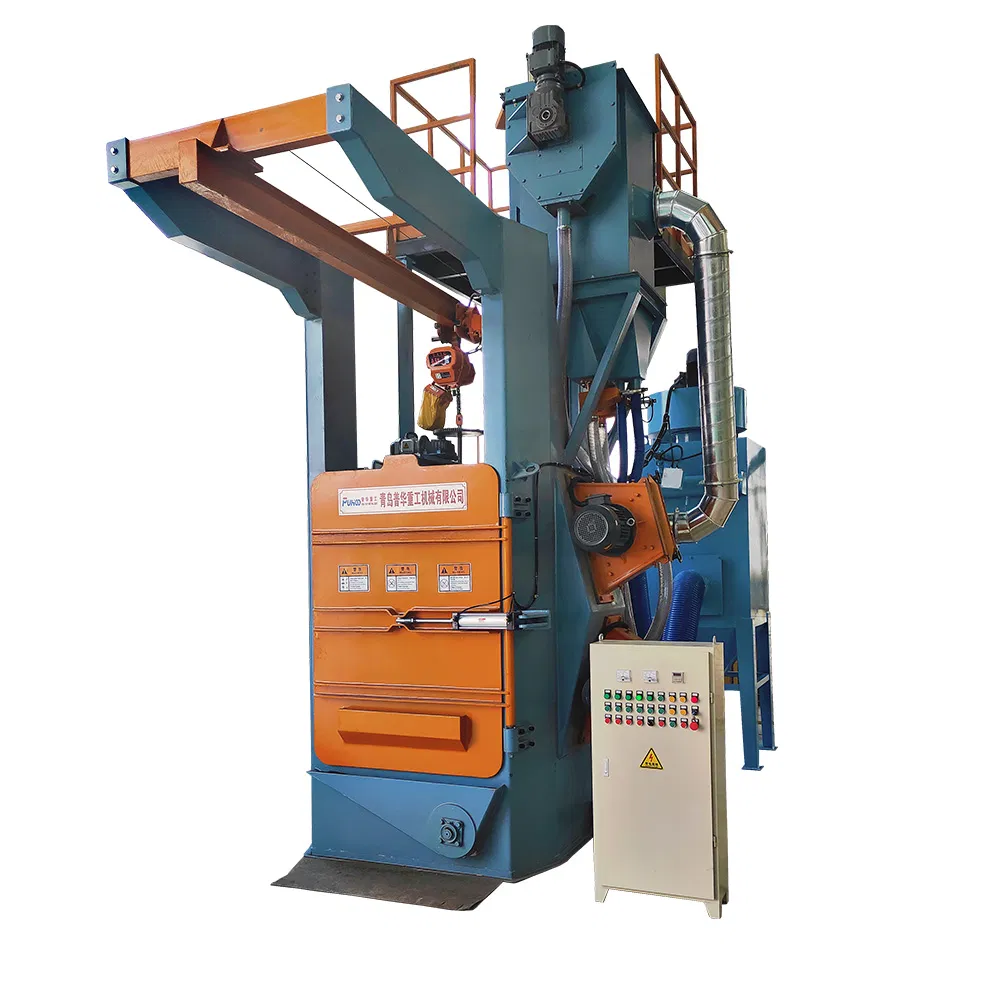

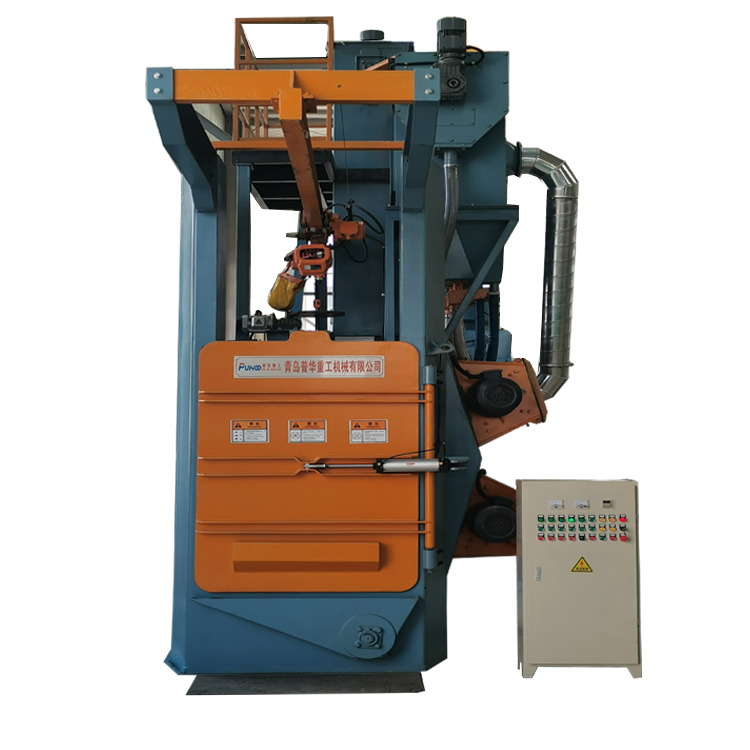

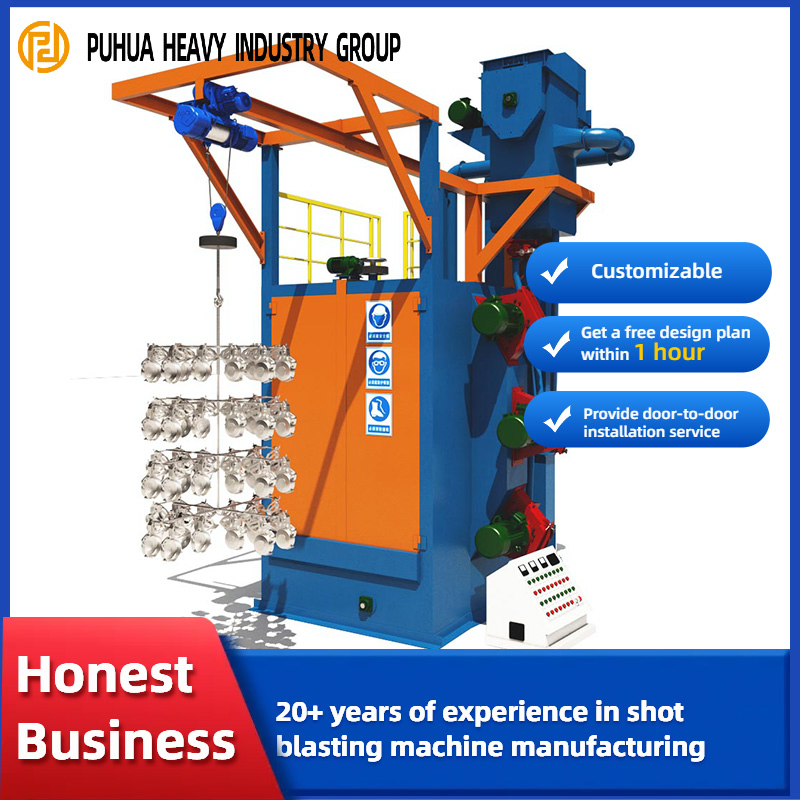

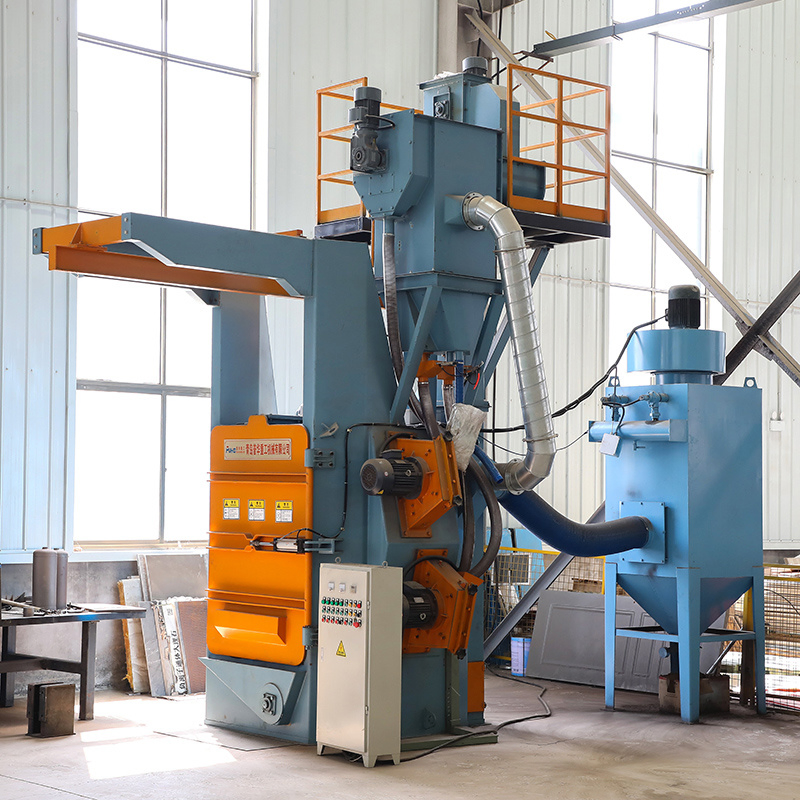

Q37 Hook type shot blasting machine / Hook shot blasting equipment
This machine is designed for surface cleaning or strengthening treatment of small castings, forging parts in industries such as foundry, building, chemical, motor, and machine tool production. It excels at surface cleaning and blasting strengthening on various types of production castings, forging parts, and steel construction parts to clear viscous sand, sand cores, and oxide skin. It is also highly suitable for surface cleaning and strengthening on heat treatment parts, especially for delicate or thin-walled parts sensitive to impact.
| Model | Q376 (Customizable) |
| Maximum weight of cleaning (kg) | 500 - 5000 |
| Abrasive flow rate (kg/min) | 2*200 - 4*250 |
| Ventilation capacity (m³/h) | 5000 - 14000 |
| Lifting amount of elevating conveyor (t/h) | 24 - 60 |
| Separating amount of separator (t/h) | 24 - 60 |
| Max overall dimensions of suspender (mm) | 600*1200 - 1800*2500 |

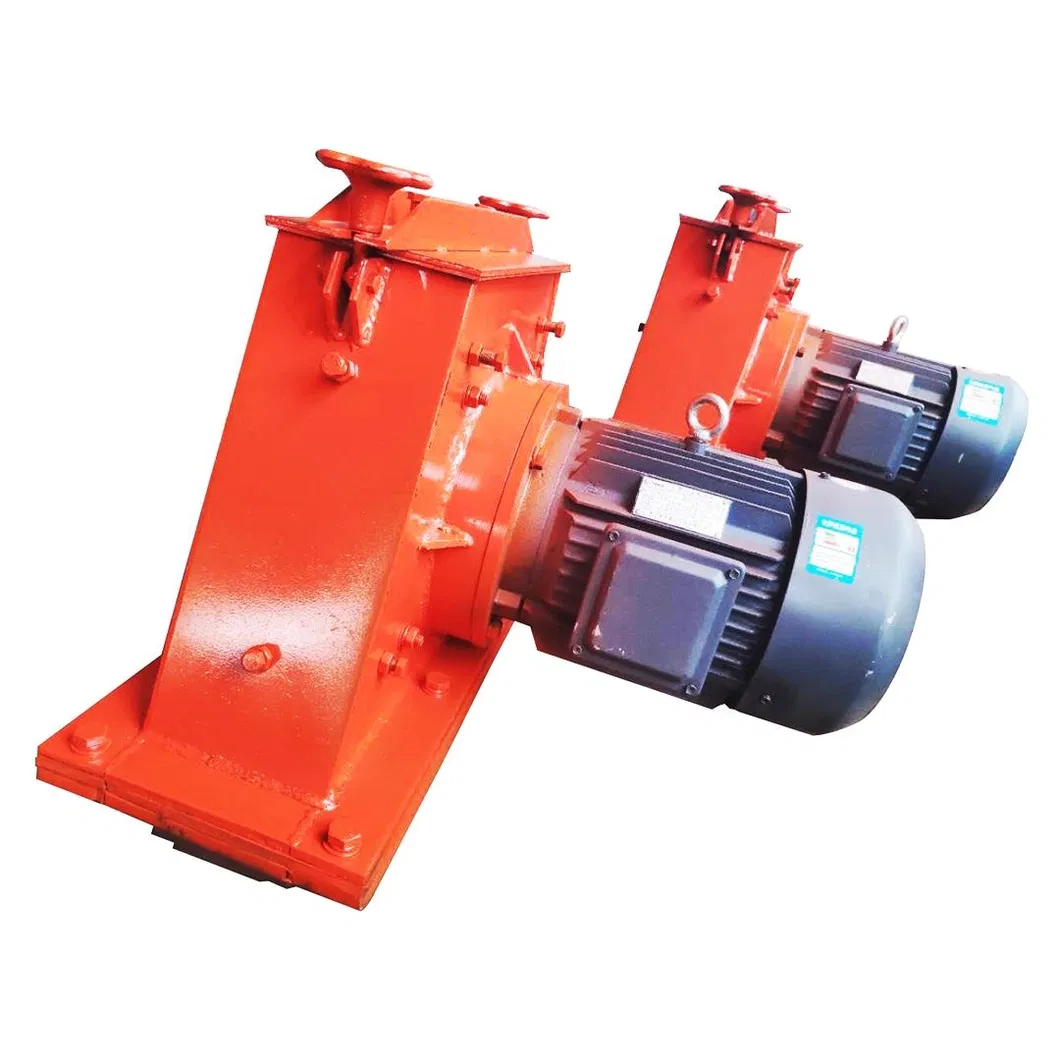

Equipped with abrasive distributor and control cage made of high chrome. The special material blades provide a significantly long service life.

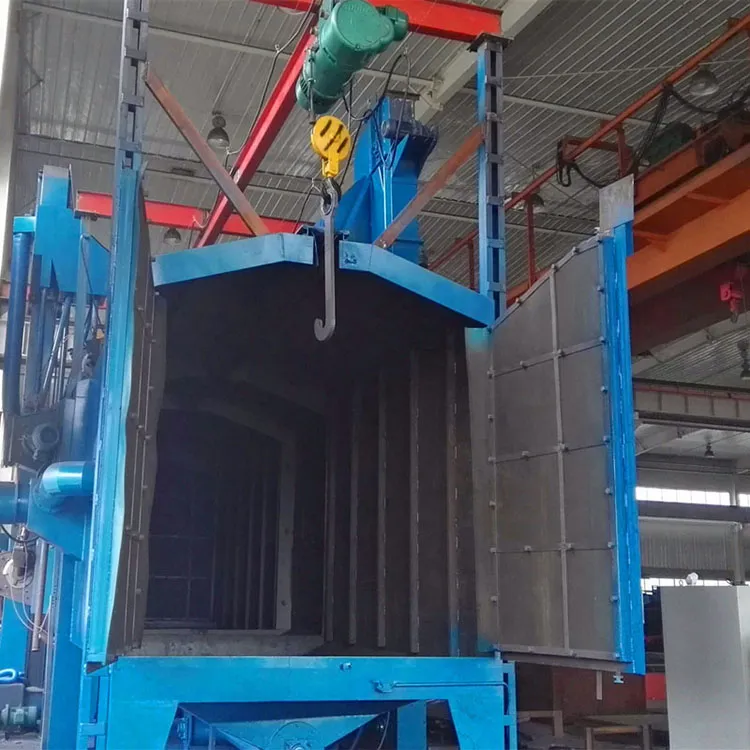

Features lining made of high manganese wear-resistant steel plate. Thicker guard boards and a reinforced frame ensure a longer equipment lifetime.

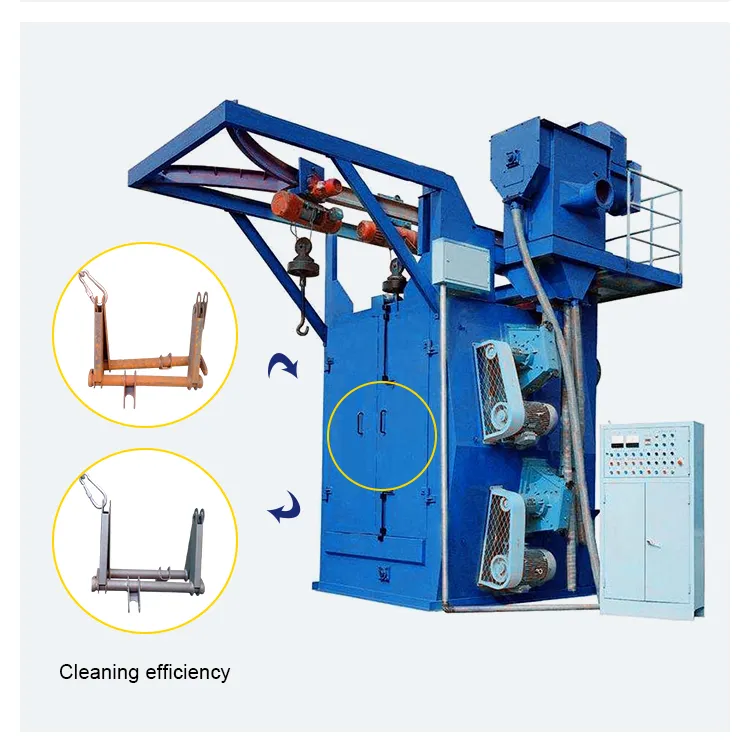

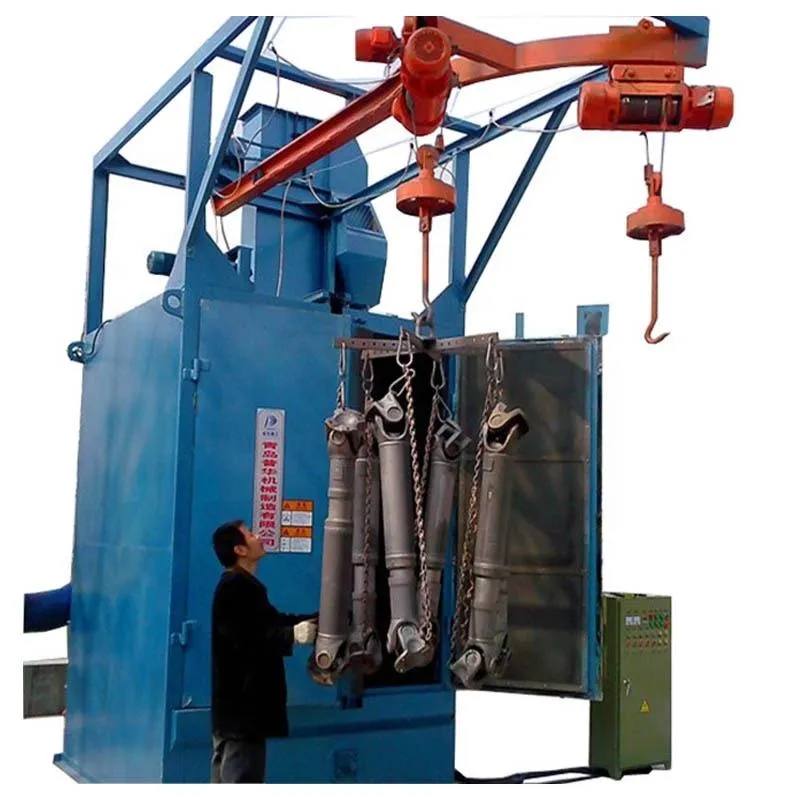

Utilizes 2 sets of electric hoists and hooks with inversion and rotation functions. Workpieces are blasted while rotating to ensure 360-degree coverage.

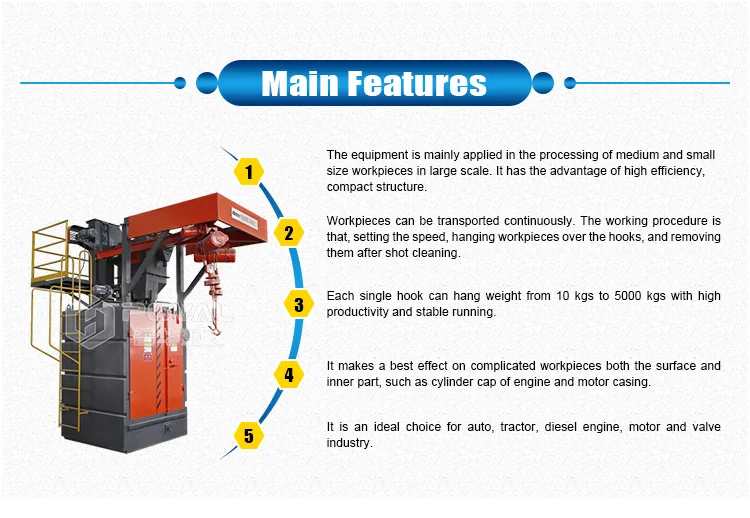

1). Ideal for processing medium and small size workpieces at scale with high efficiency and compact structure.
2). Supports continuous transportation; simply set the speed, hang the workpieces, and remove after cleaning.
3). Each hook can handle weights from 10 kg to 5000 kg, ensuring stable and high-productivity runs.
4). Exceptional cleaning effect on complicated geometries, including inner surfaces like cylinder caps.
5). Perfect for industries such as automotive, tractor, diesel engine, motor, and valve manufacturing.
