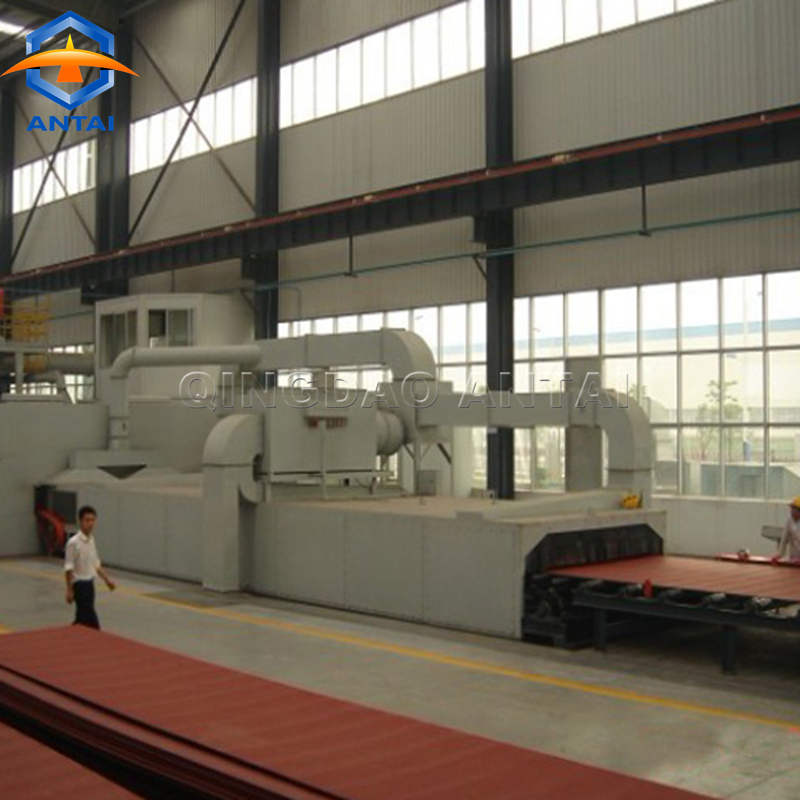

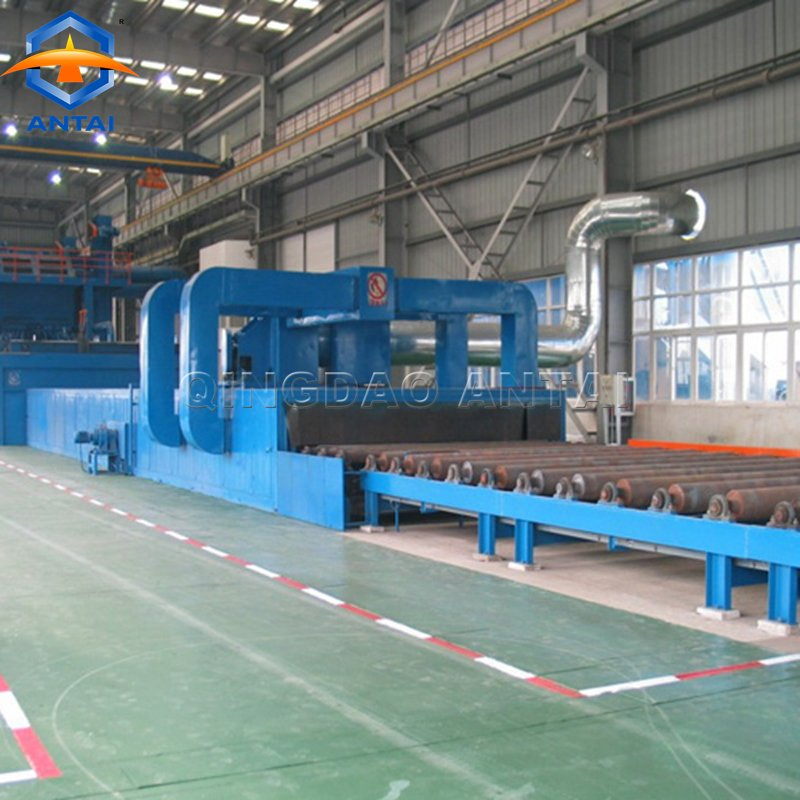

H Beam Shot Blasting Machine & Coating Line

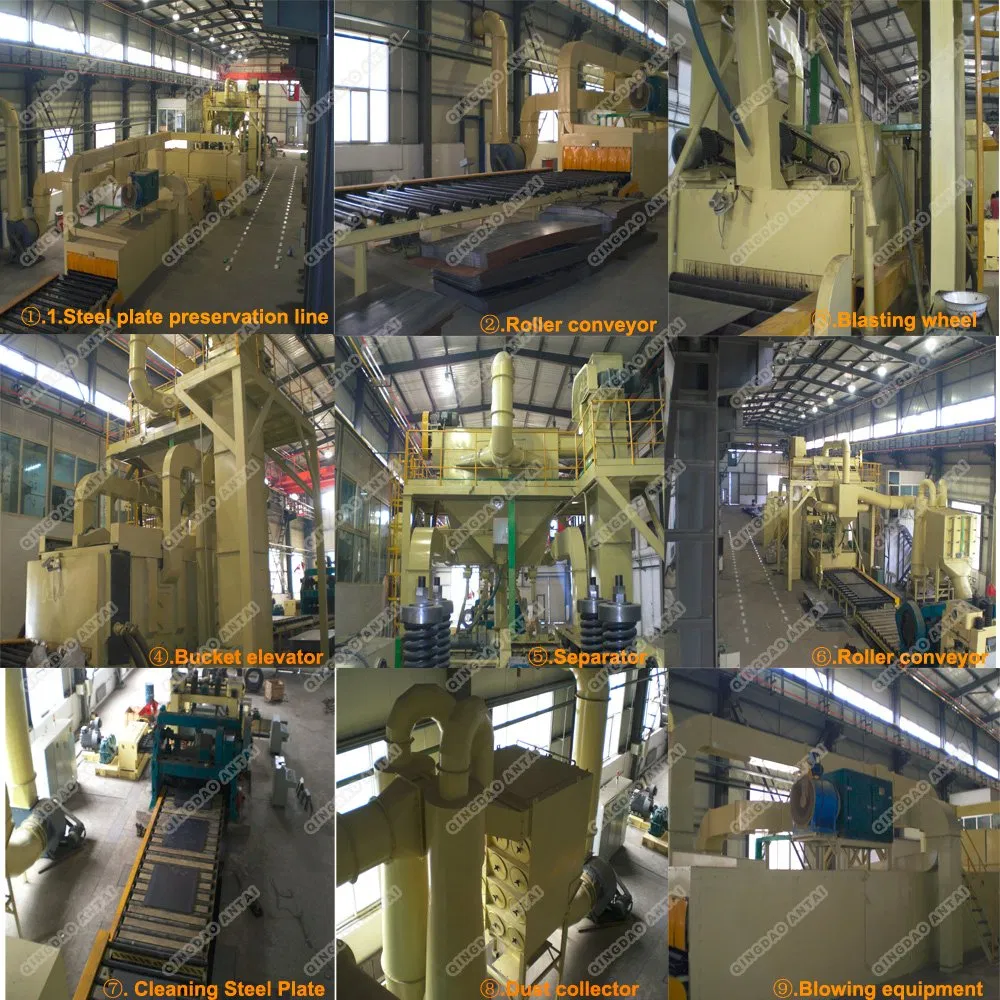

Steel Plate Preservation Line:

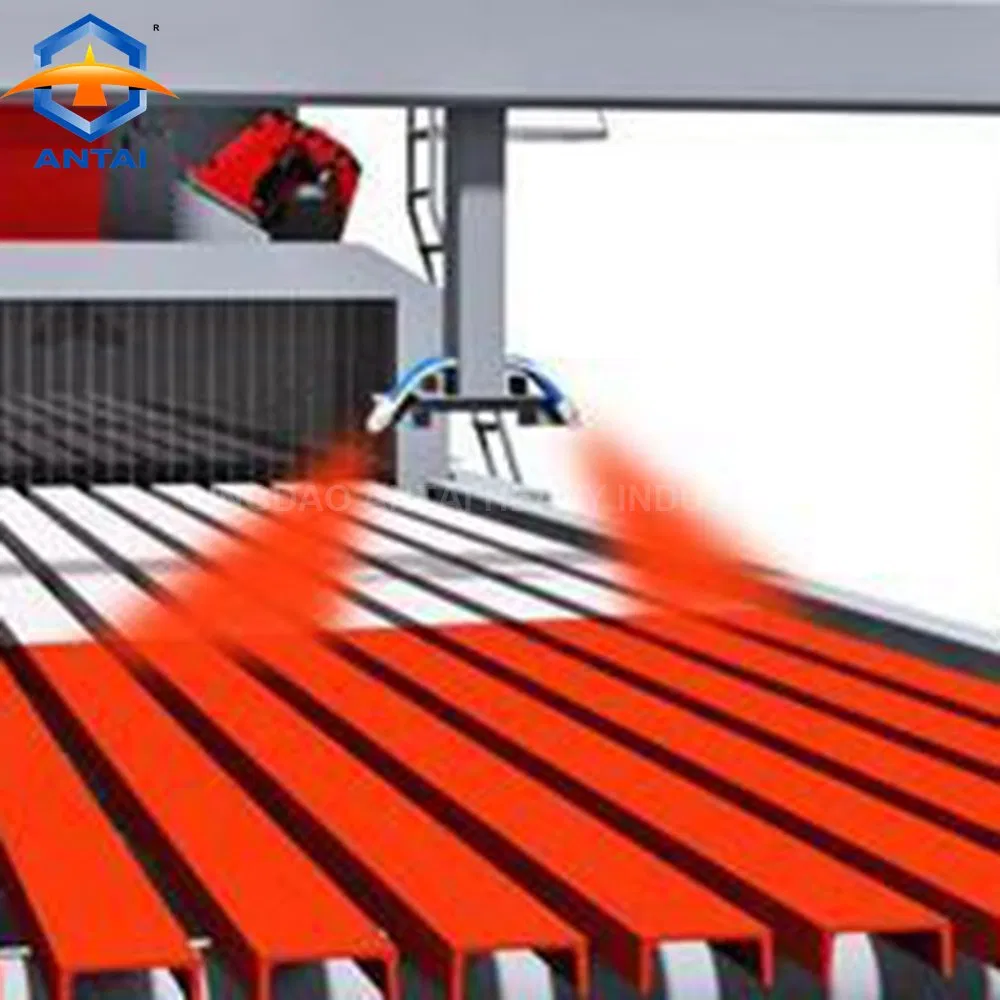

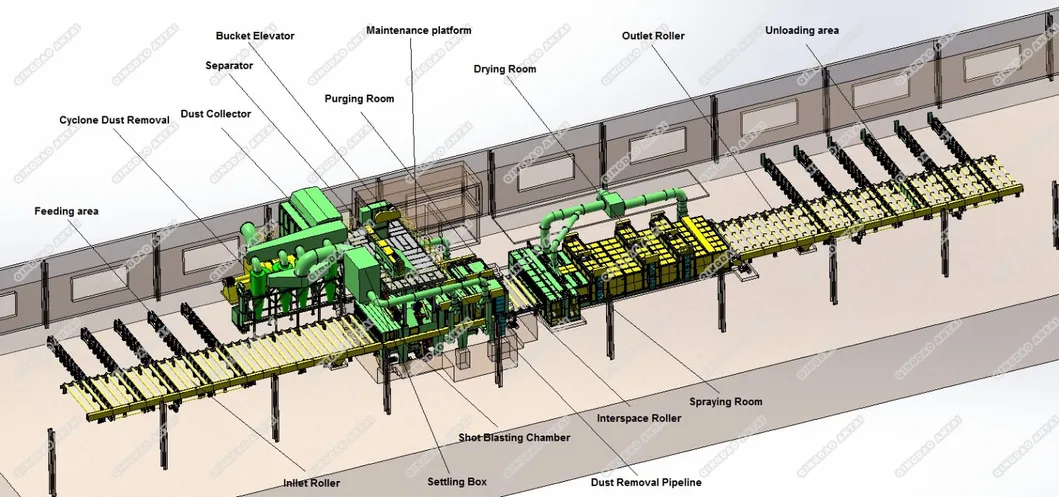

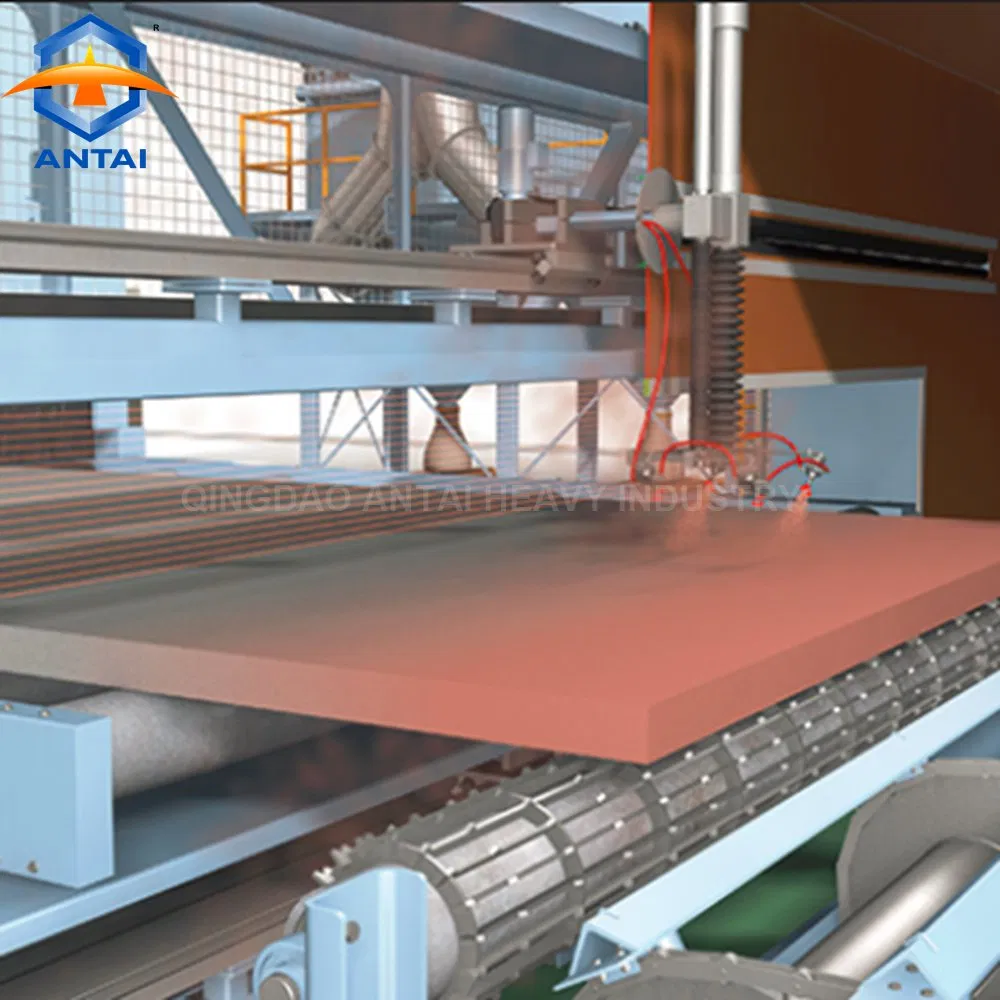

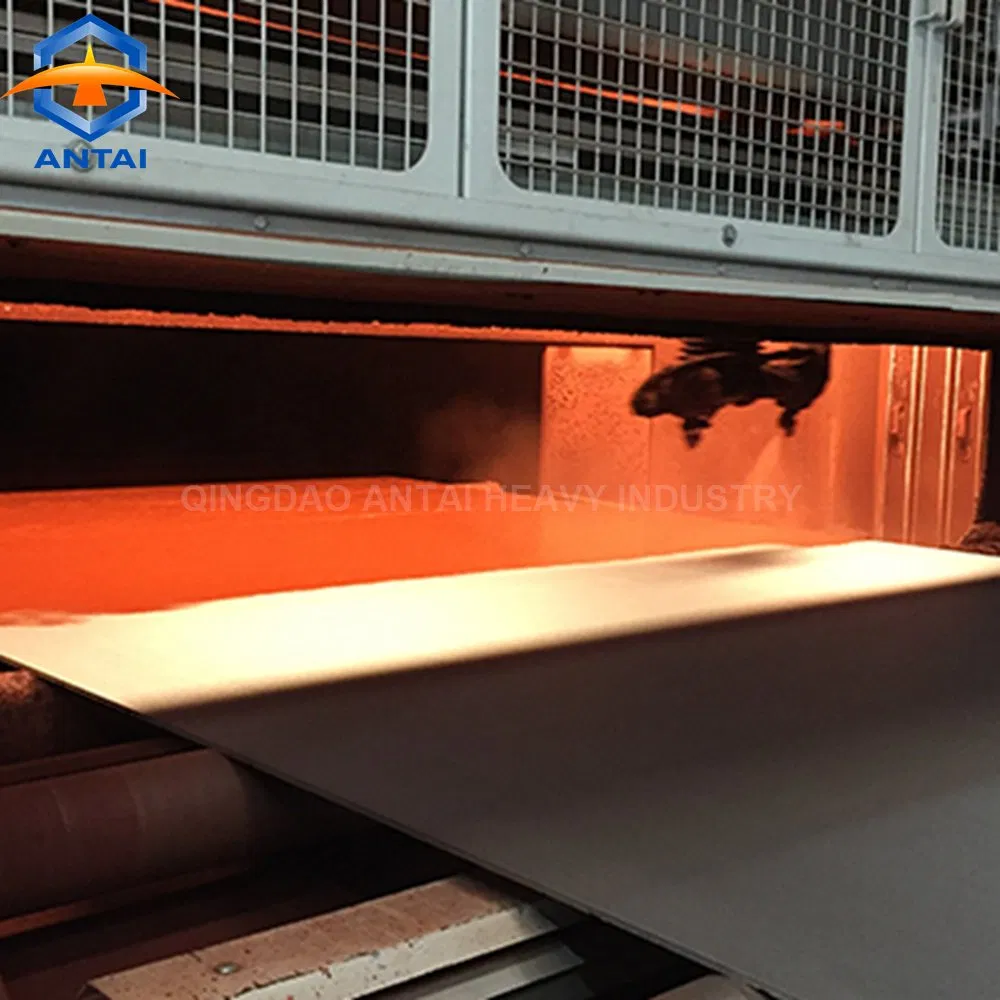

This type of steel plate auto blasting and coating machine is designed by adopting international advanced technologies. The shot blast cleaning part utilizes high-efficient blast wheels and a full shutter type shot sand separator. The sweeping system features high-strength nylon rolling brushes and a high-pressure ventilator. The drying part supports multiple heating methods, while the painting section uses a high-pressure airless spraying method. The entire equipment is PLC-controlled for precision and reliability.
This integrated line is primarily used for the surface treatment of steel plates and structural sections, including preheating, rust removal, painting, and drying. It is widely applied in shipbuilding, machinery manufacturing, and metal structural industries.
| Category |
Parameter |
QXY1500 |
QXY2000 |
QXY2500 |
QXY3000 |
QXY4000 |
| Steel Plate |
Width (mm) |
500-1500 |
1000-2000 |
1000-2500 |
1000-3000 |
1000-4000 |
| Thickness (mm) |
3-20 |
3-60 |
5-30 |
3-60 |
5-50 |
| Length (mm) |
2000-12000 |
1500-12000 |
2000-12000 |
2400-12000 |
2400-16000 |
| Conveyor |
Speed (m/min) |
2-4 |
1-5 |
2-4 |
0.5-4 |
2-4 |
| Power |
Total Power (kW) |
450 |
413.2 |
550 |
614 |
600 |
All systems are inspected and tested prior to delivery to ensure fast installation on site. The management follows international standards for quality system implementation. Key components are sourced from international brands such as ABB motors, SEW gear boxes, Mitsubishi/SIEMENS electric components, and SKF/NSK bearings.
Frequently Asked Questions
What materials can be treated with this machine?
This line is designed for the surface treatment of steel plates, H-beams, and various metal structural sections.
Is the coating process fully automated?
Yes, the entire process—including preheating, shot blasting, paint spraying, and drying—is fully controlled by a PLC system for automatic operation.
Can the equipment be customized for specific sizes?
Absolutely. We provide non-standard designs and can manufacture pretreatment lines in different sizes to meet specific workpiece requirements (length, width, and weight).
How does the system handle energy conservation?
The final drying process is designed to utilize waste heat energy from the pre-heater, significantly reducing overall energy costs.
What are the main industrial applications?
It is widely used in shipyards, shipbuilding, machinery manufacturing, and the steel structure industry for high-efficiency rust removal and protection.
What kind of after-sales service is provided?
We provide international technical support including equipment installation, debugging, operator training, and 24-hour online consultation.
