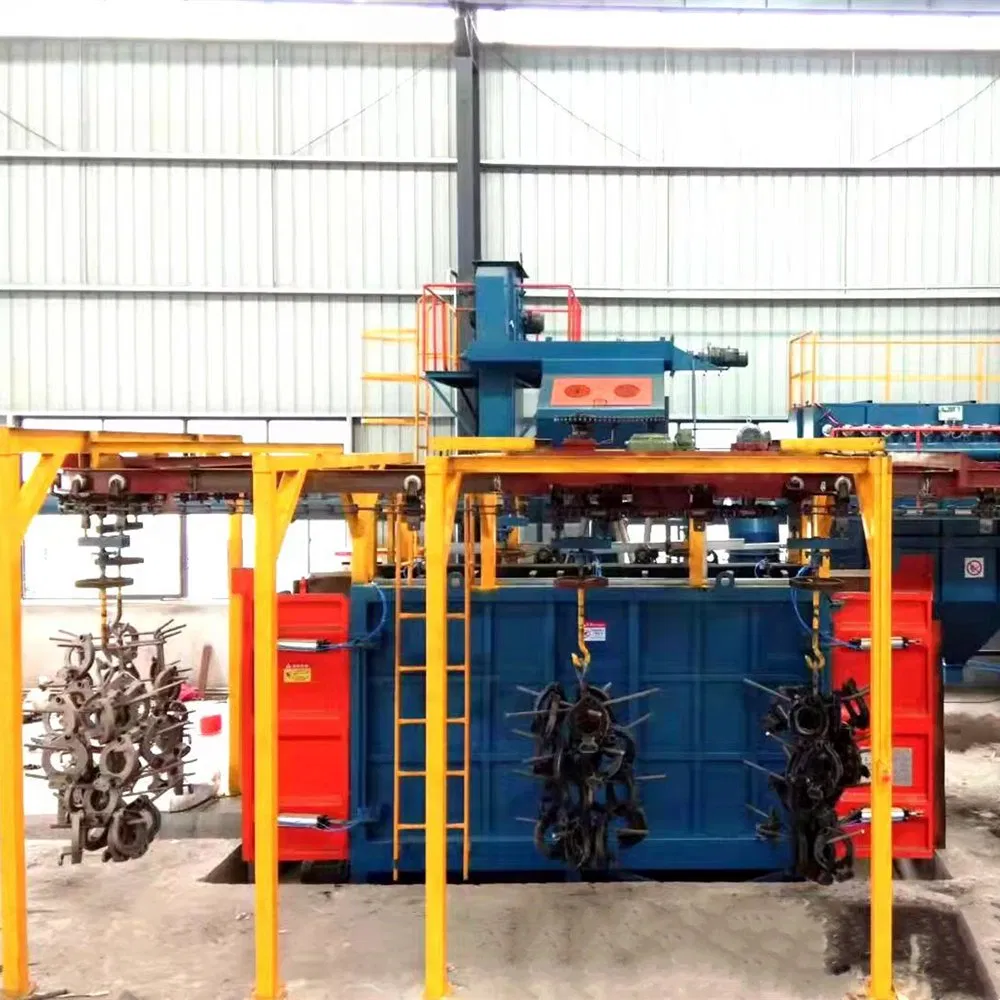

Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO
Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO
Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO
Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO
Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO
1 / 5
Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO
Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO
Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO
Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO
Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO

Hanger Hook Type Shot Blasting Machine/Sand Blasting Machine for Hot Rolled Bars with Certificate CE ISO

Customization: Available
After-sales Service: Provided
Warranty: Provided
Send Inquiry

Product Description

▌ Basic Information
Model NO.:HLT
Application:Industrial Processing
Fuel:Electric
Type:Hook Type Abrator
Cleanliness:High Cleanliness
Automation:Automatic
Feature:Rust / Corrosion Proof
Condition:New
Customized:Customized
Workpiece Size:Φ600X1200~Φ2800X5400
Ventilation:5000-28000m³/H
Lifting Capacity:25-150t/H
Origin:China
Production Capacity:300 Sets Per Year
▌ Product Description

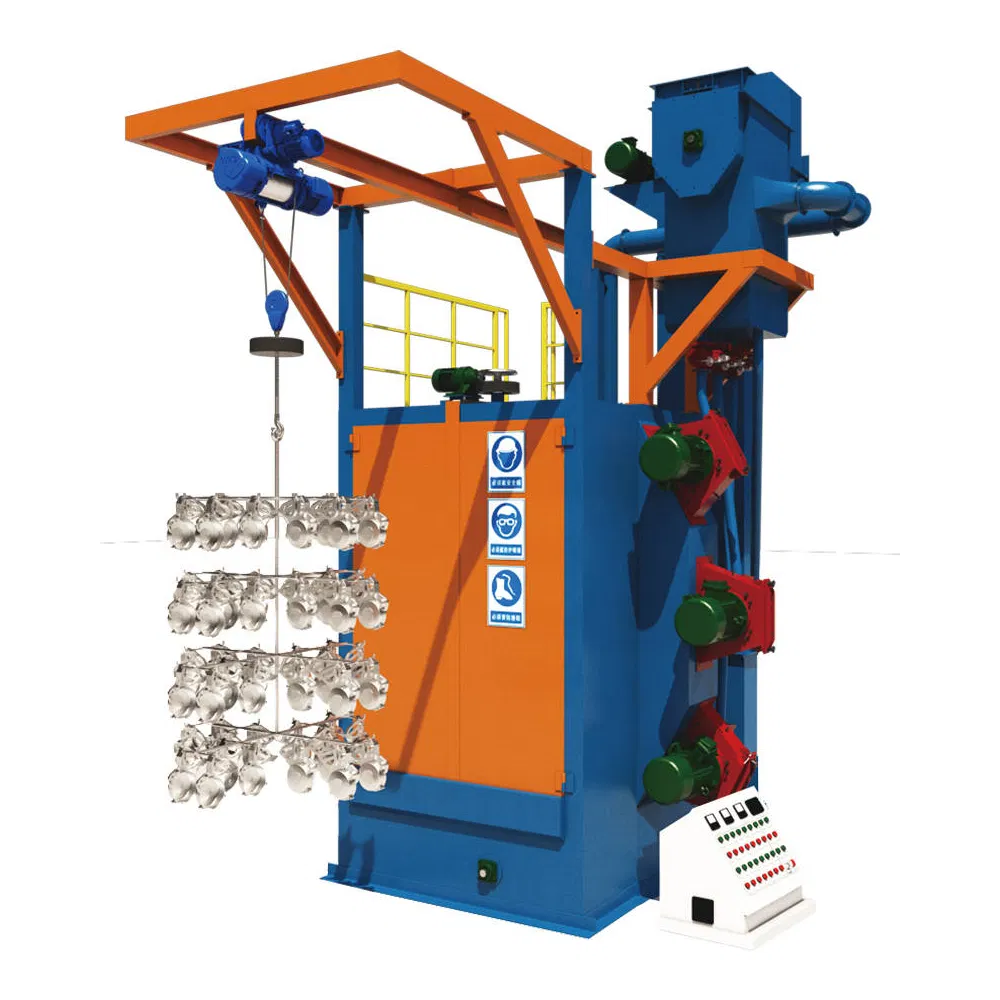

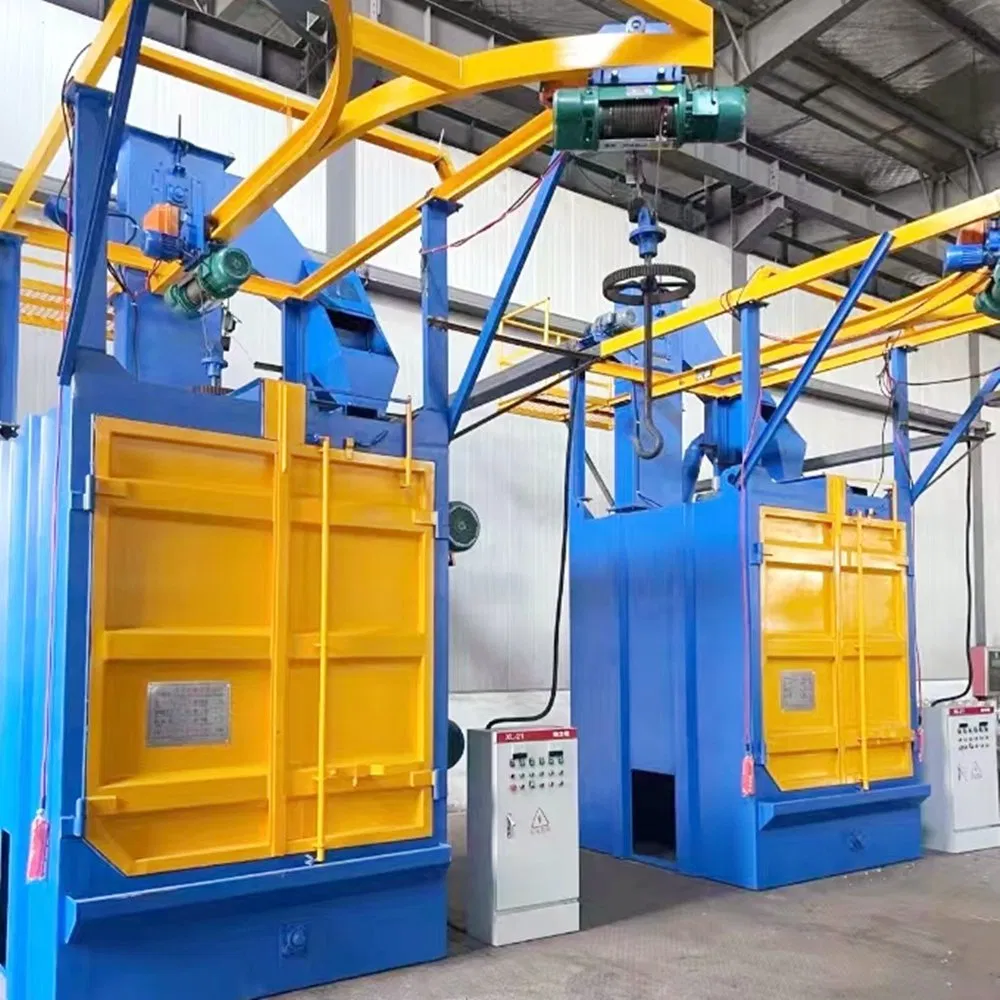

Hanger Hook Type Shot Blasting Machine

1. Q37 Hook Type Shot Blasting Machine

This equipment is suitable for surface cleaning or strengthening of castings, forgings, welded parts, and heat-treated parts across various batch sizes. It is available in single hook and double hook configurations.

  • Fully enclosed chamber with special wear-resistant alloy cast iron guard plates.
  • Electric hoist for loading, lifting, and walking; self-rotation device for thorough cleaning.
  • Available in automatic or manual control modes.
  • Features a compact structure, high productivity, and no pit requirement.
Item Unit Q376 Q3710 Q3740 Q37100
Single hook lifting weight kg 600 1000 5000 10000
Shot blasting capacity kg/min 2X150 2X220 6X250 8X270
Max product size mm Φ600X1200 Φ1000X2000 Φ1600X3000 Φ2800X5400
Total power kw ≈23 ≈48 ≈80 ≈180

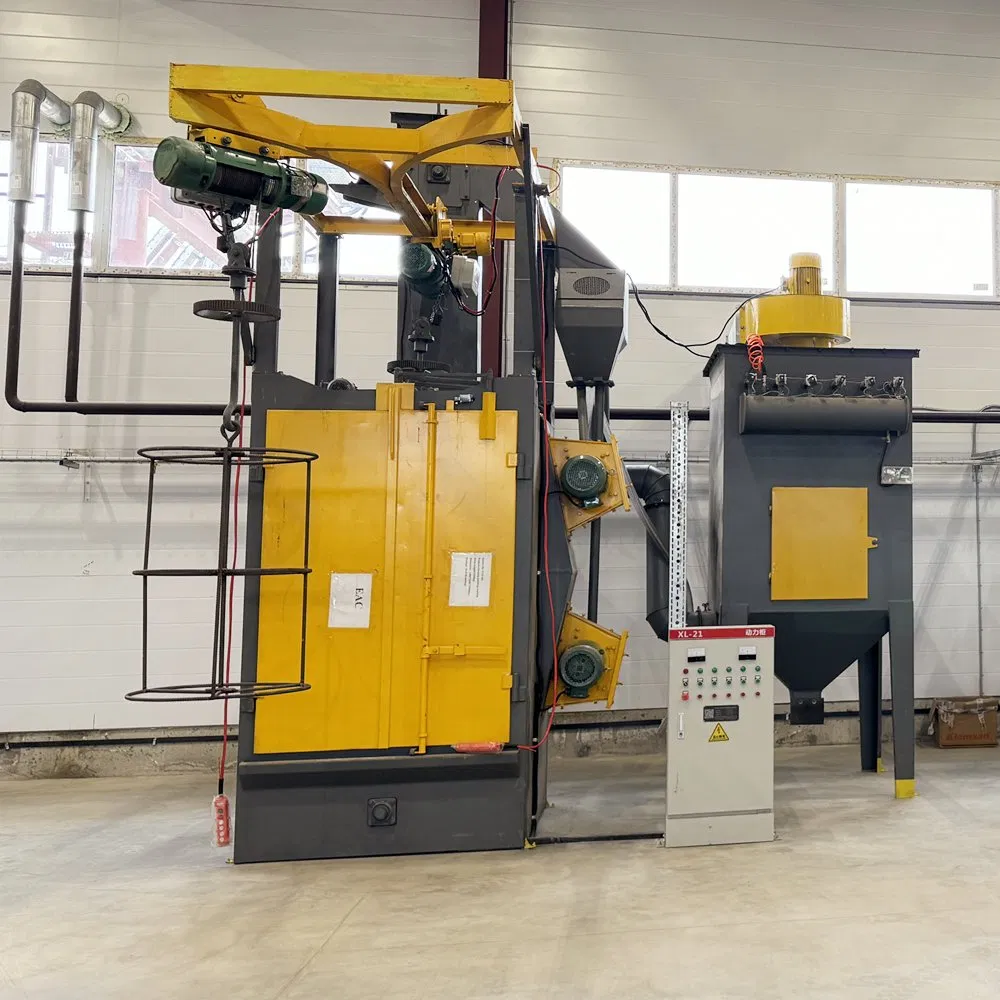

Equipment Detail 1
Equipment Detail 2

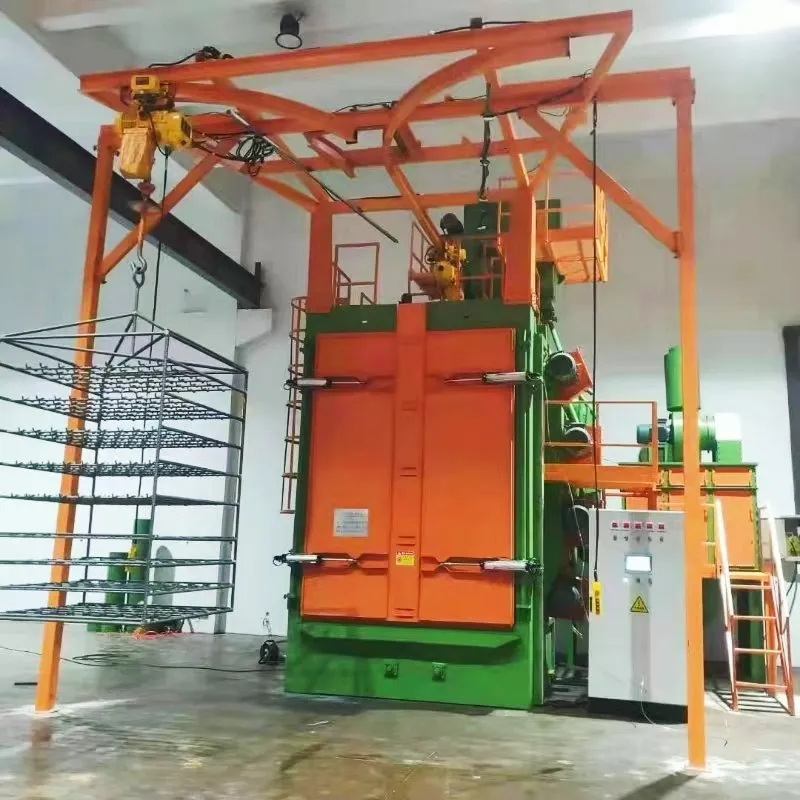

Equipment Detail 3

2. 37 Series Membrane Shell Shot Blasting Machine

Specifically developed for wax mold casting companies, this machine integrates shelling, shot blasting, and screening. It eliminates the traditional shell shaking process and allows for the recycling of modeling sand, significantly reducing operational costs.

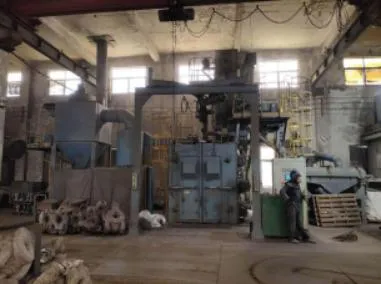

Membrane Shell Blasting 1

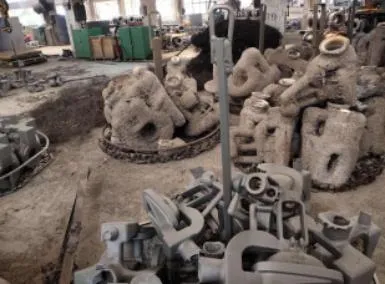

Membrane Shell Blasting 2

3. Q38/48/58 Series Catenary Shot Blasting Machine

Suitable for continuous or step-by-step surface cleaning of medium and small parts. Features advanced accumulation-release push rod catenary conveying for fixed-point loading and unloading in a stopped state.

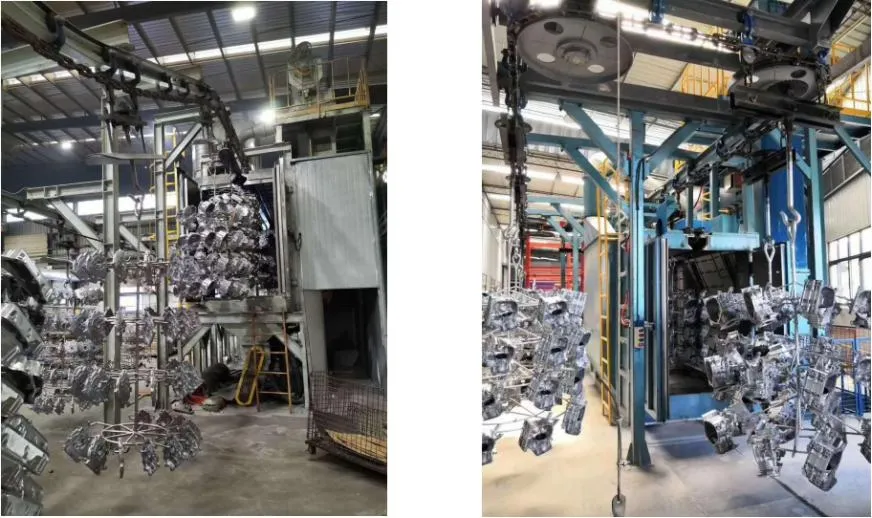

Catenary Shot Blasting Machine
▌ Logistics & Service
Packaging
Shipping
Overseas Installation and Commissioning

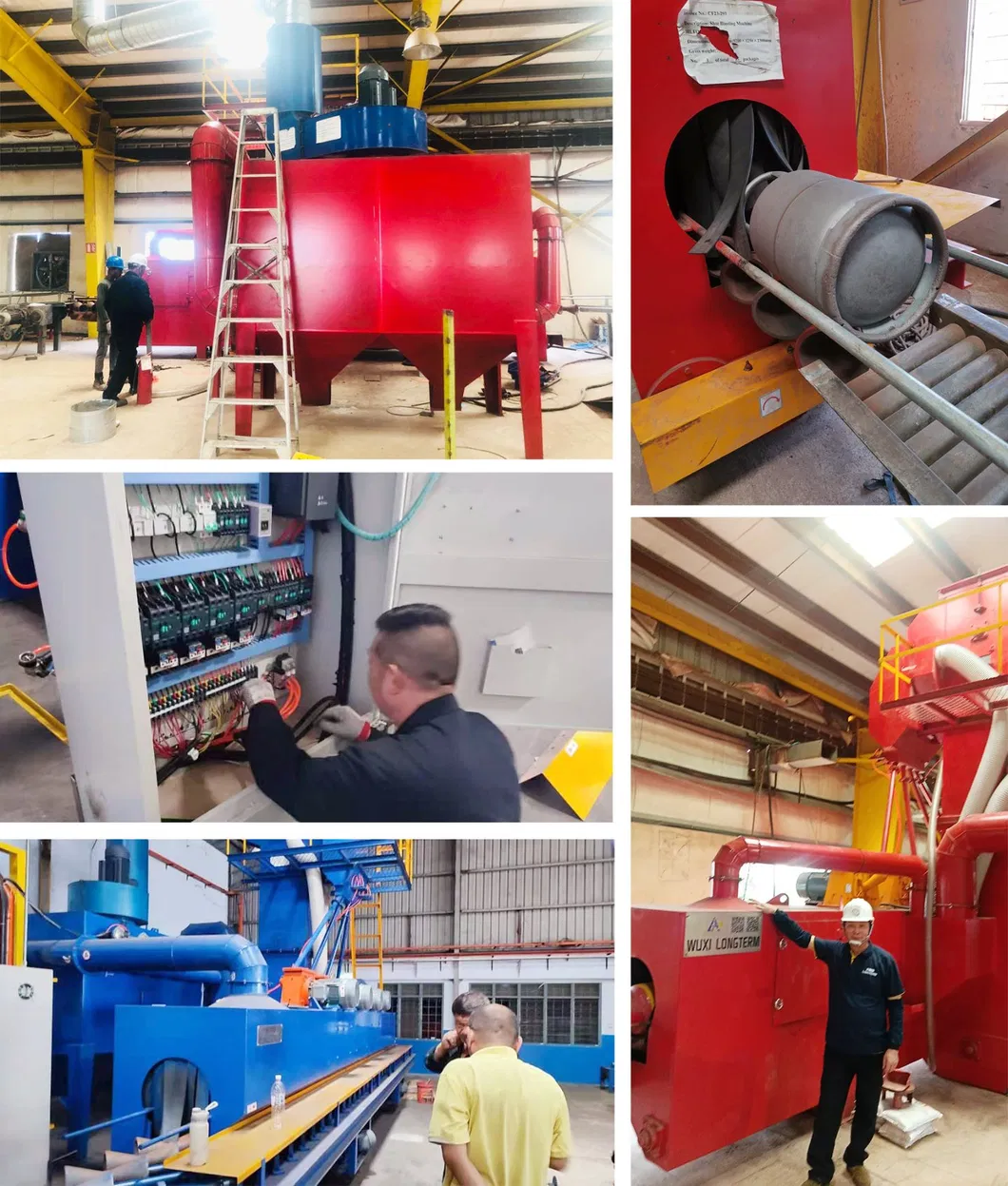

Service Personnel
▌ Company Profile & Exhibition

As an advanced manufacturing enterprise, we integrate shot blasting, waste gas treatment, and coating equipment manufacturing. Our product range includes Q32/Q35/Q37/Q69 series, large-scale pretreatment equipment, dust removal systems, and alloy wear-resistant parts.

Factory Overview
Exhibition
▌ FAQ
What is a shot blast machine?
A shot blaster is a machine that controls the flow or stream of fine metal beads as they are forcibly projected against a surface by mechanical acceleration.
What material is used for shot blasting?
Abrasives include steel grit, copper shots, aluminum pellets, silica sand, glass beads, and synthetic materials like sodium bicarbonate.
Will shot blasting remove rust?
Yes, it effectively removes rust, dirt, and contaminants by hurling a high-speed stream of stainless steel particles, also allowing for deburring and texturing.
What is the difference between sandblasting and shot blasting?
Sandblasting uses compressed air to propel media, while shot blasting employs centrifugal force from a mechanical device to propel treatment media.
What are the primary types of hook shot blasting machines?
The machines are generally divided into two main forms: single hook type and double hook type, suitable for various batch sizes.
What are the advantages of the membrane shell shot blasting machine?
It integrates shelling, shot blasting, and screening into one process, eliminating manual shell shaking and allowing for sand recycling to save costs.

Inquiry Now!

Please provide your workpiece size, weight, and required productivity for an accurate quotation.
