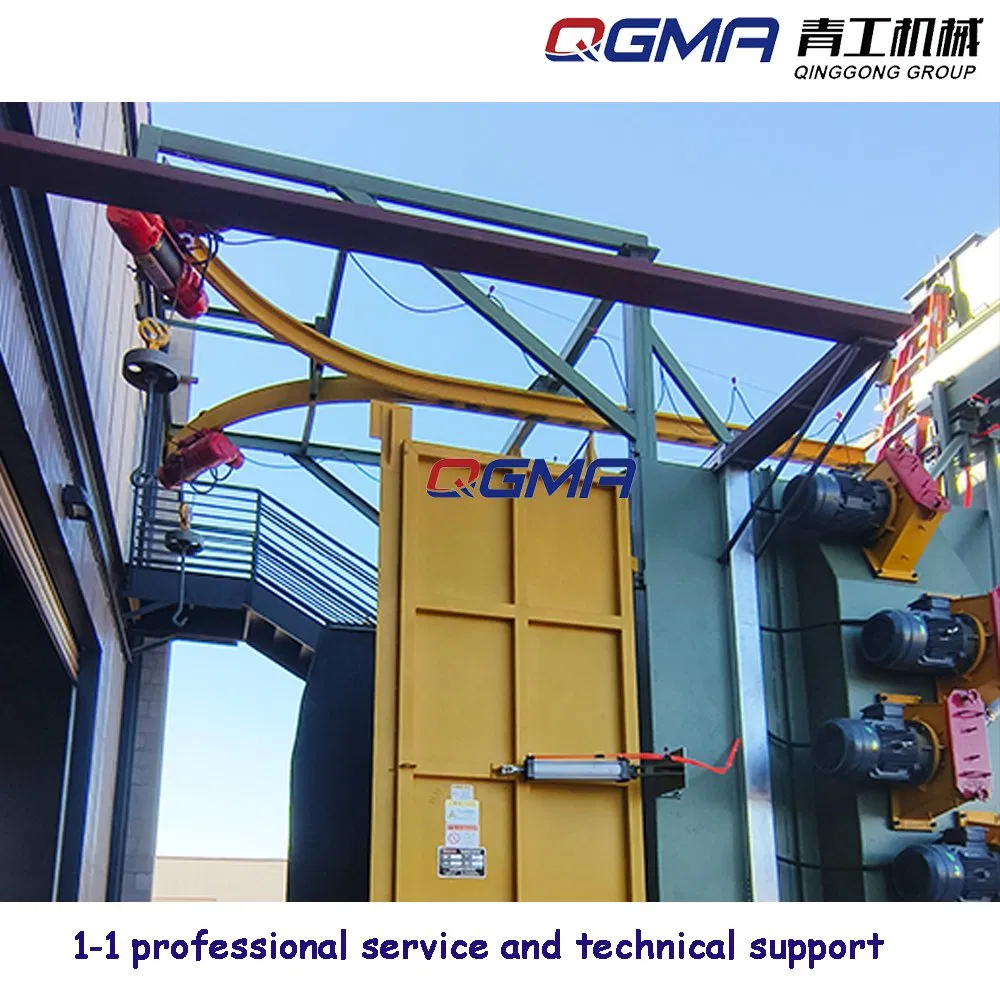

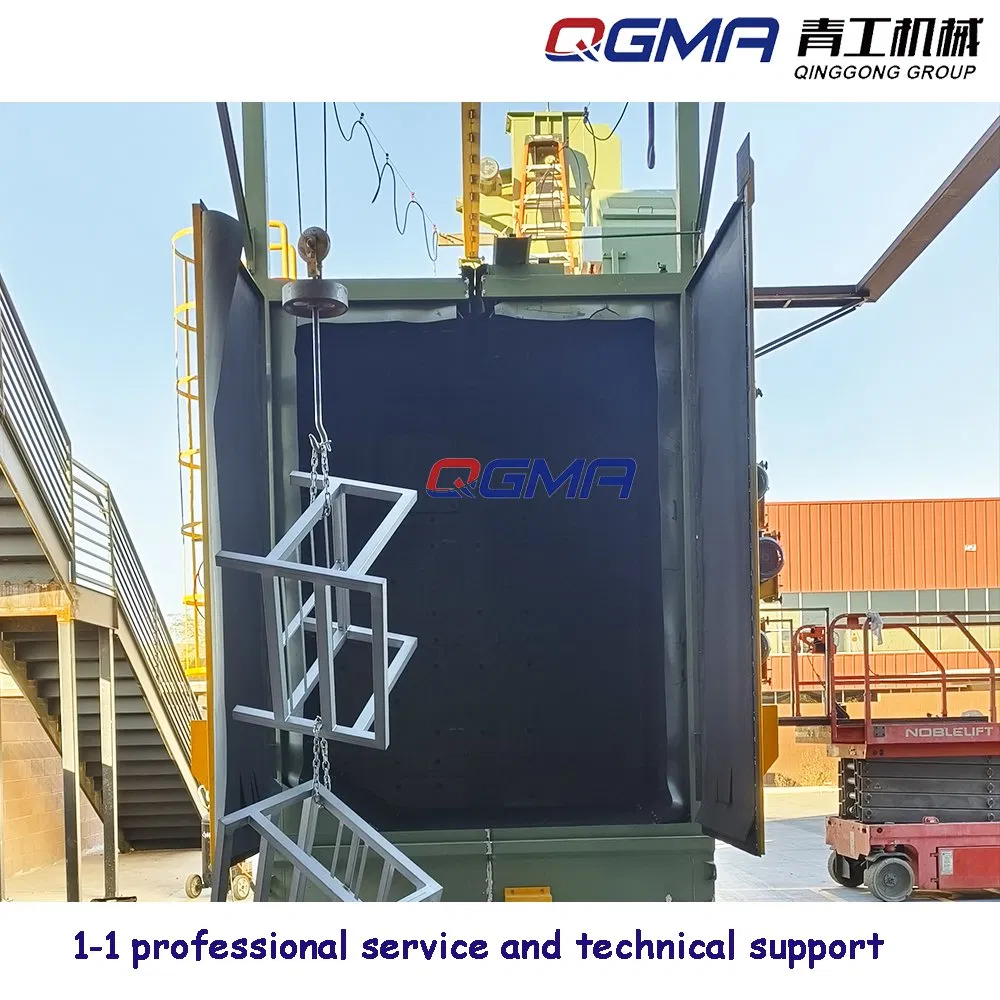

Hanger Hook Type Shot Blasting Machine Welding forgings Wheel Abrator for Surface Burnishing

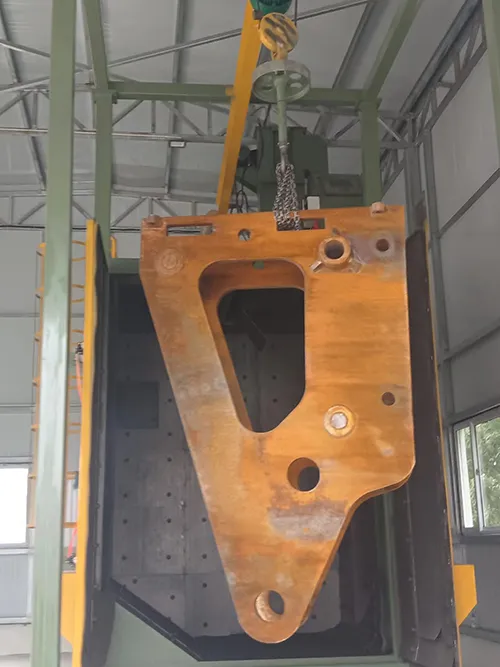

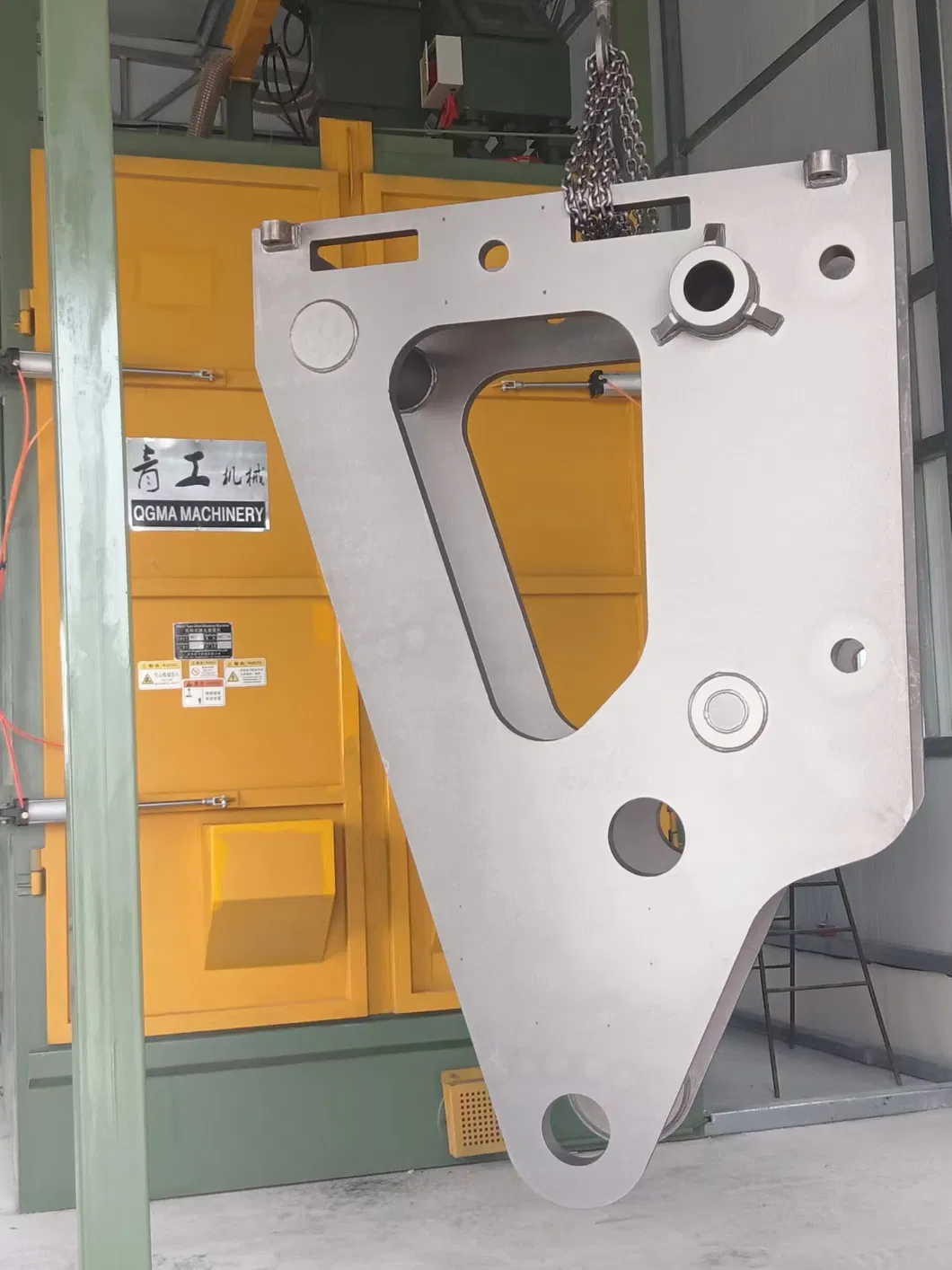

Hook type shot blasting machine is suitable for cleaning or reinforcing various medium and large batch forged pieces, gas cylinders, gears, brake pads, motor covers, casting and sheet metal parts. It is also highly effective for frosting surfaces after rust removal and increasing the adhesive force of spraying.
☆ Workpiece Range: Casting, forging, weldment, wheel hub, bicycle frame, motor shell, machinery parts, cylinder and more for industries including aerospace, automotive, foundry, and steel construction.

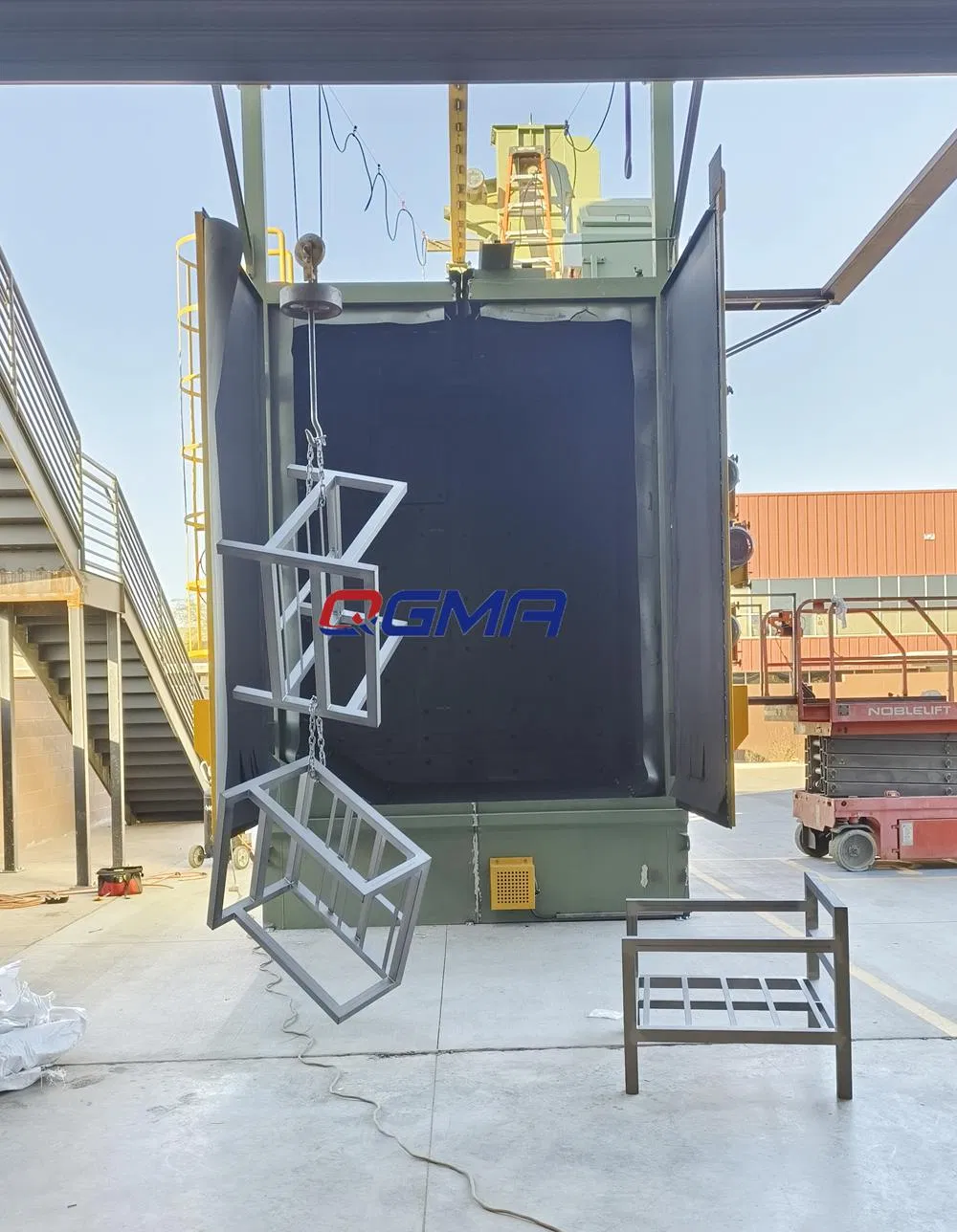

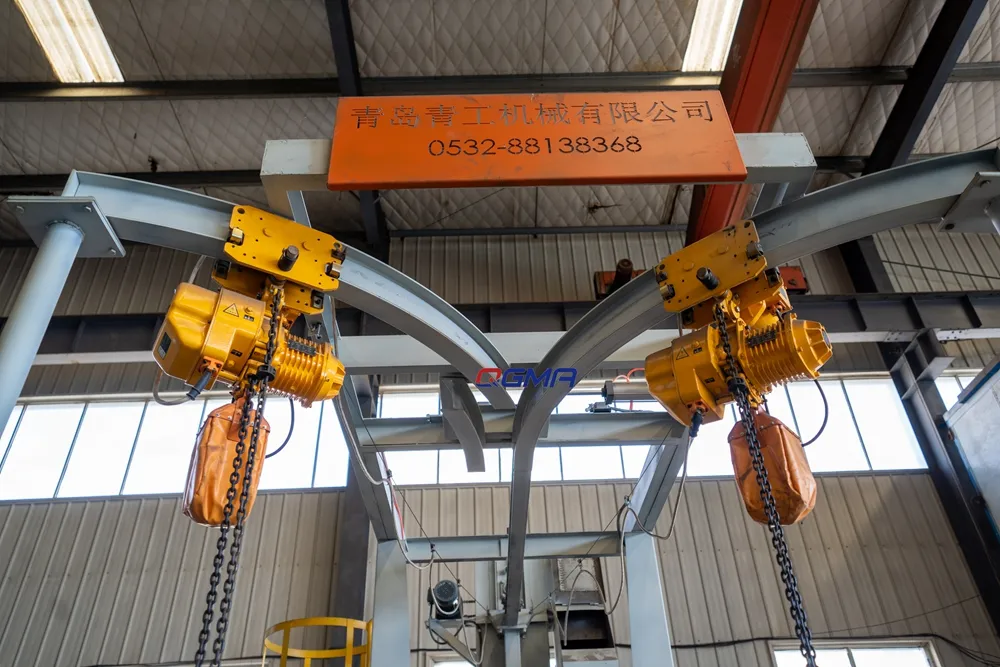

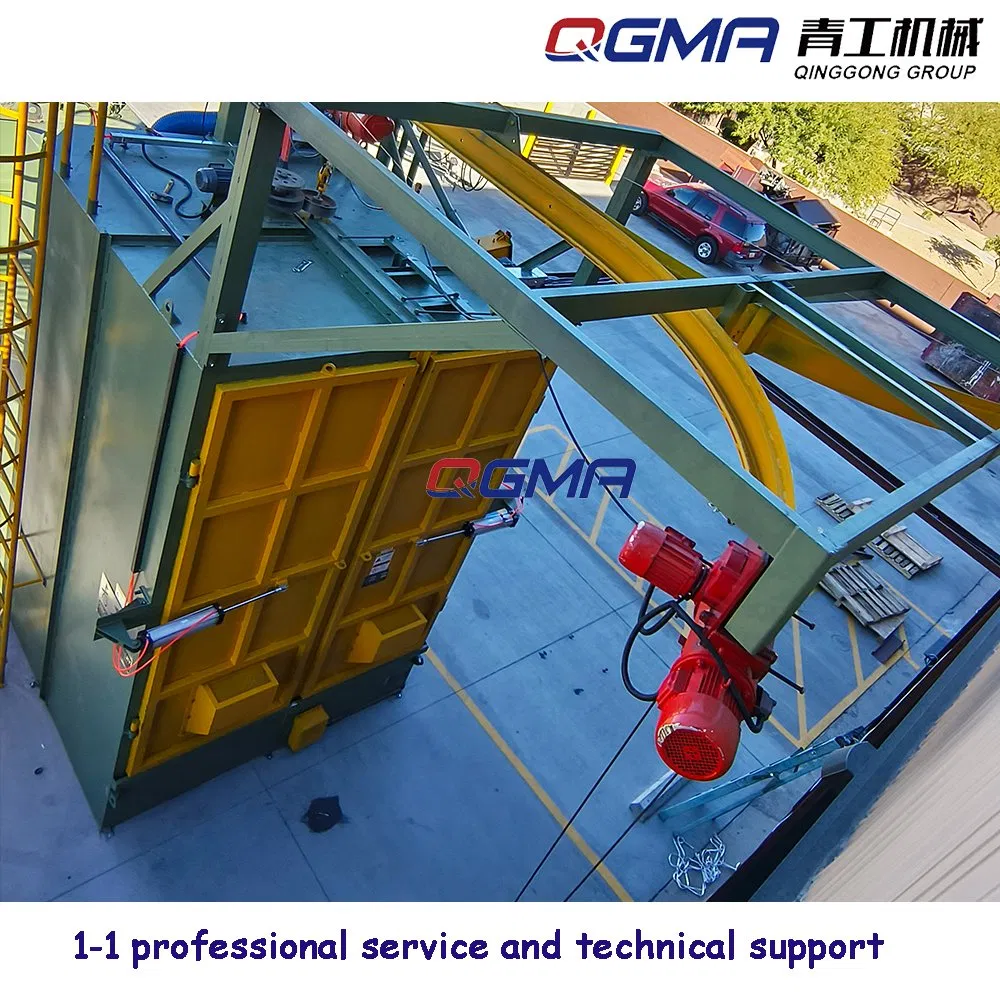

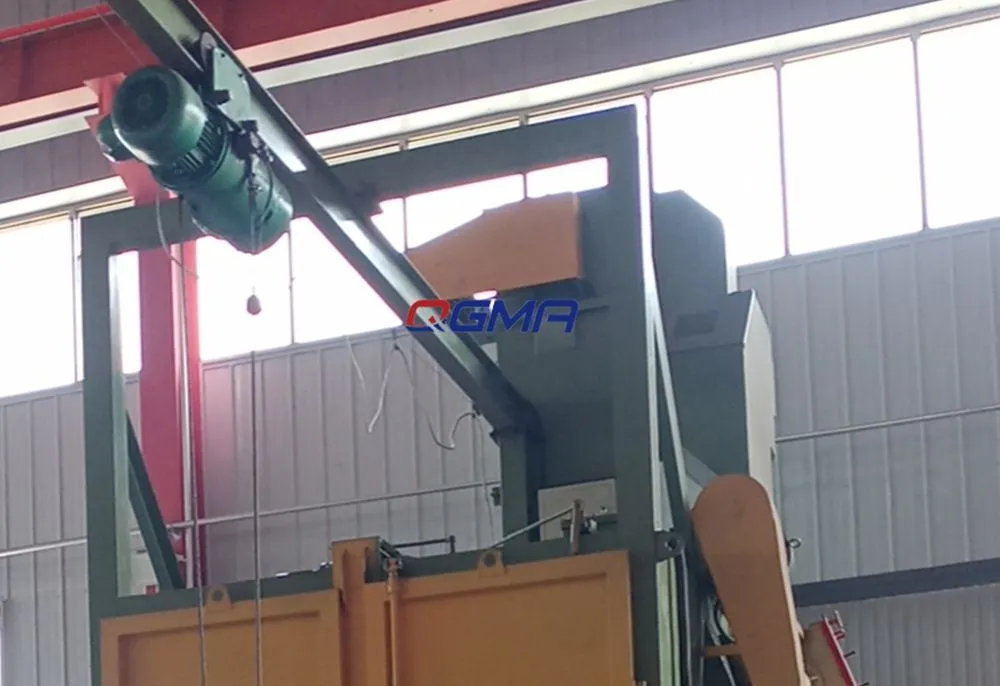

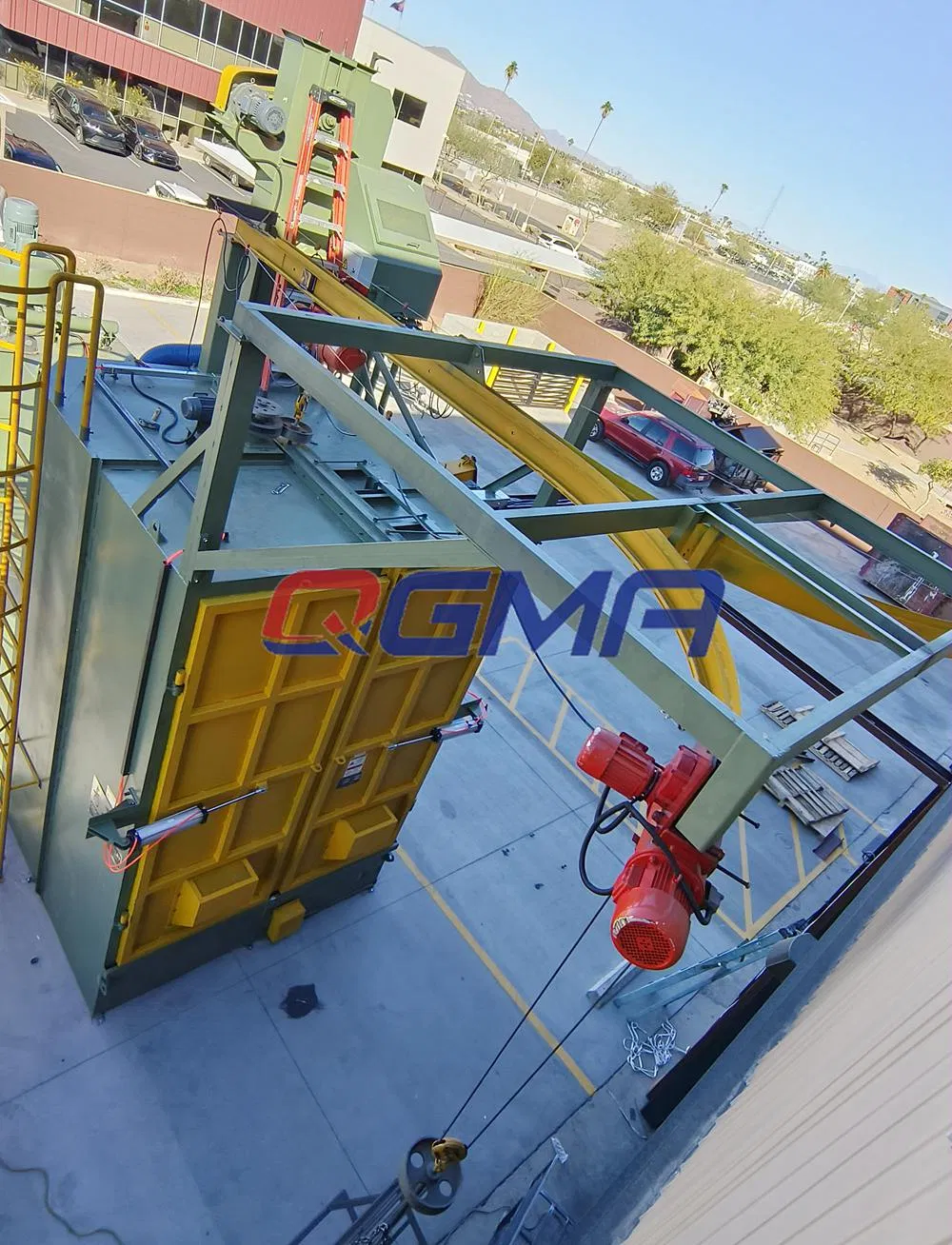

☆ Transportation System: I/Y type rail with rotation system. Loading capacity: 500-10000kg.

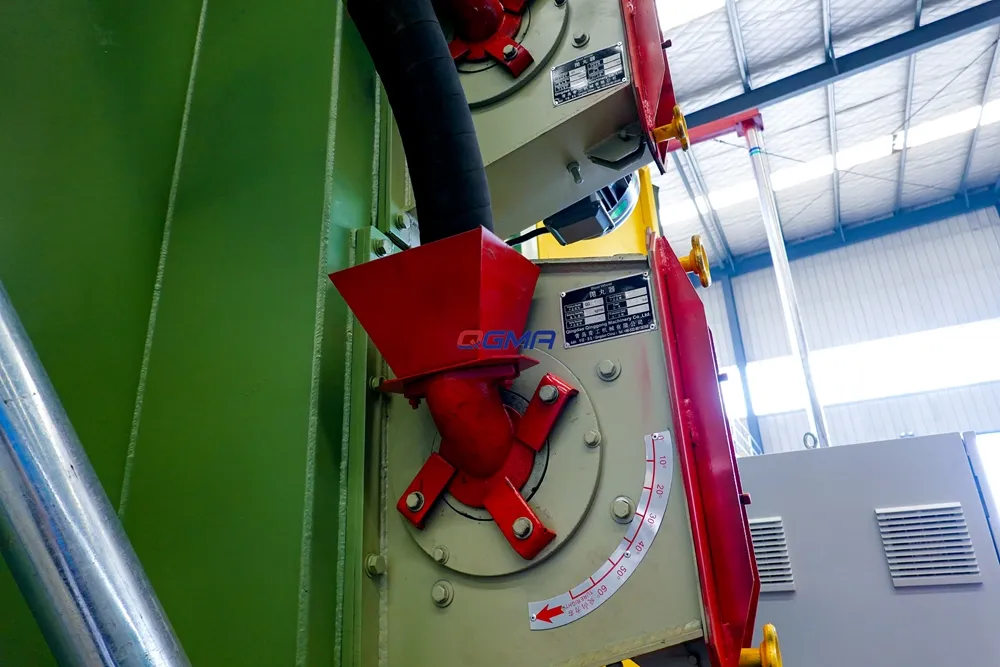

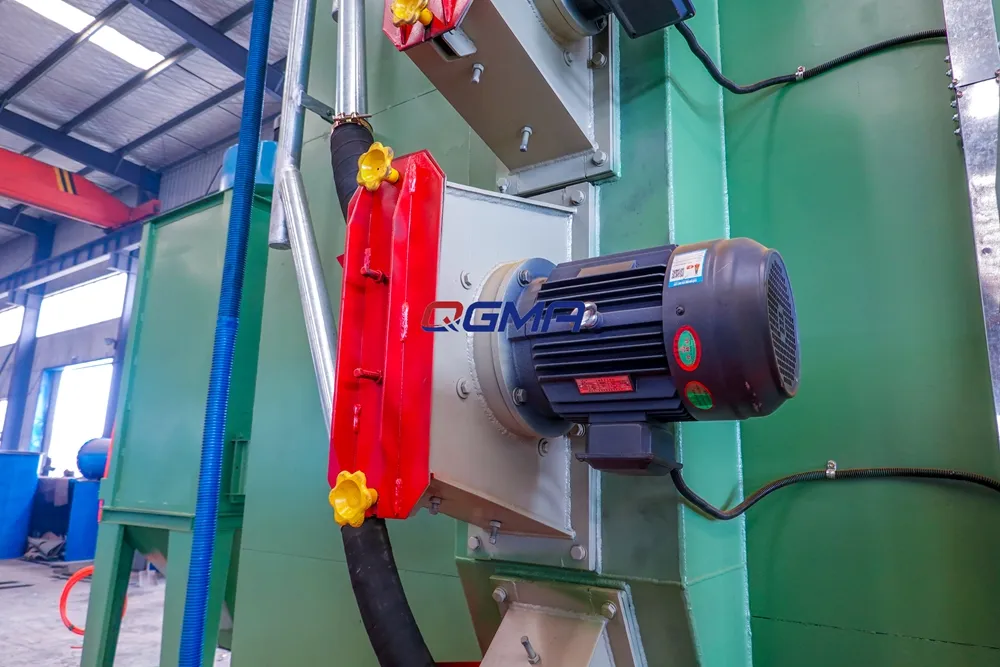

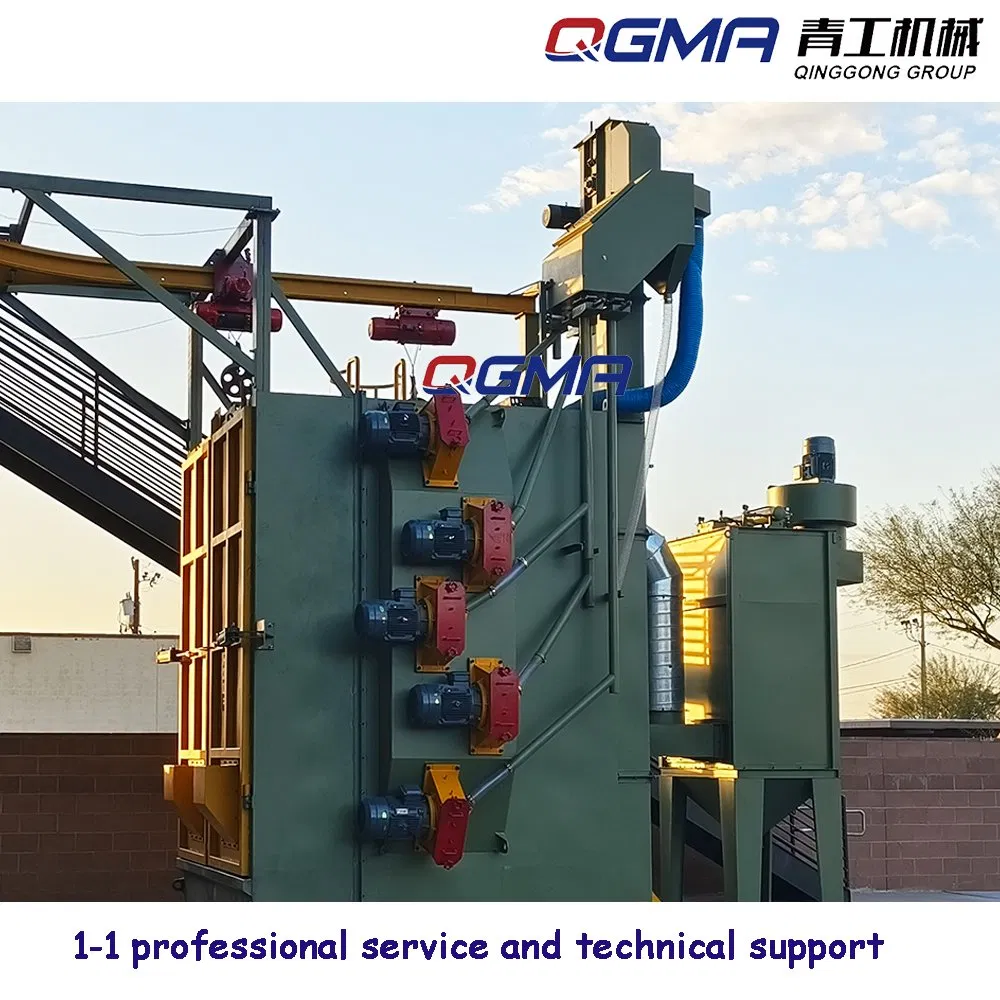

☆ Blast Turbine: Equipped with 2-6 turbines, motor power ranging from 7.5 to 18.5 kw.

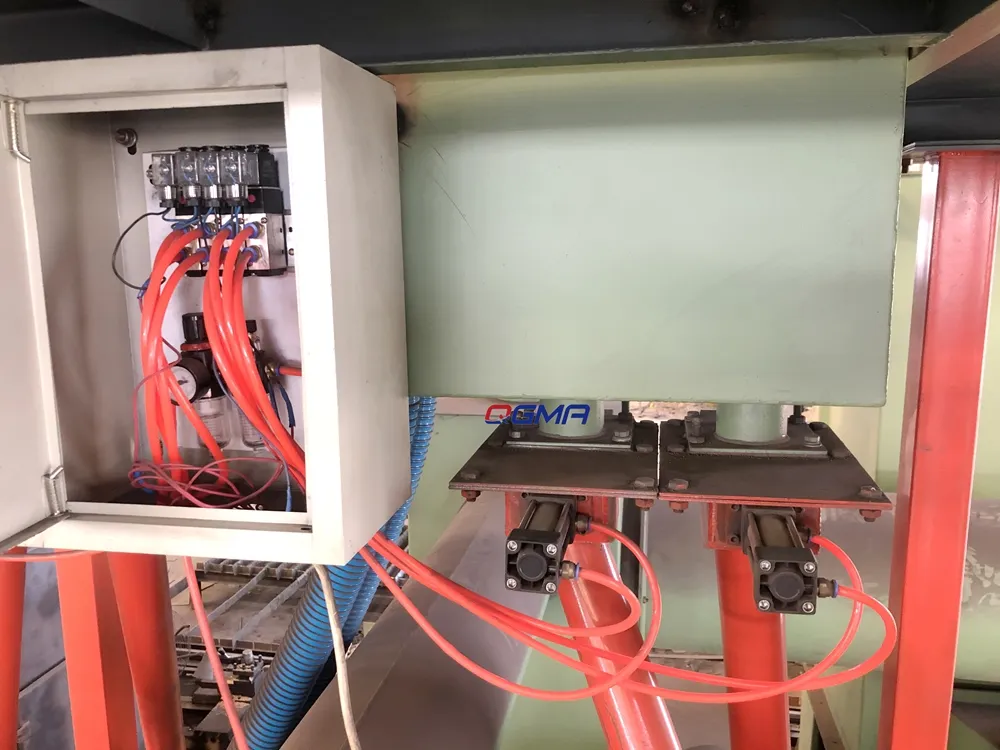

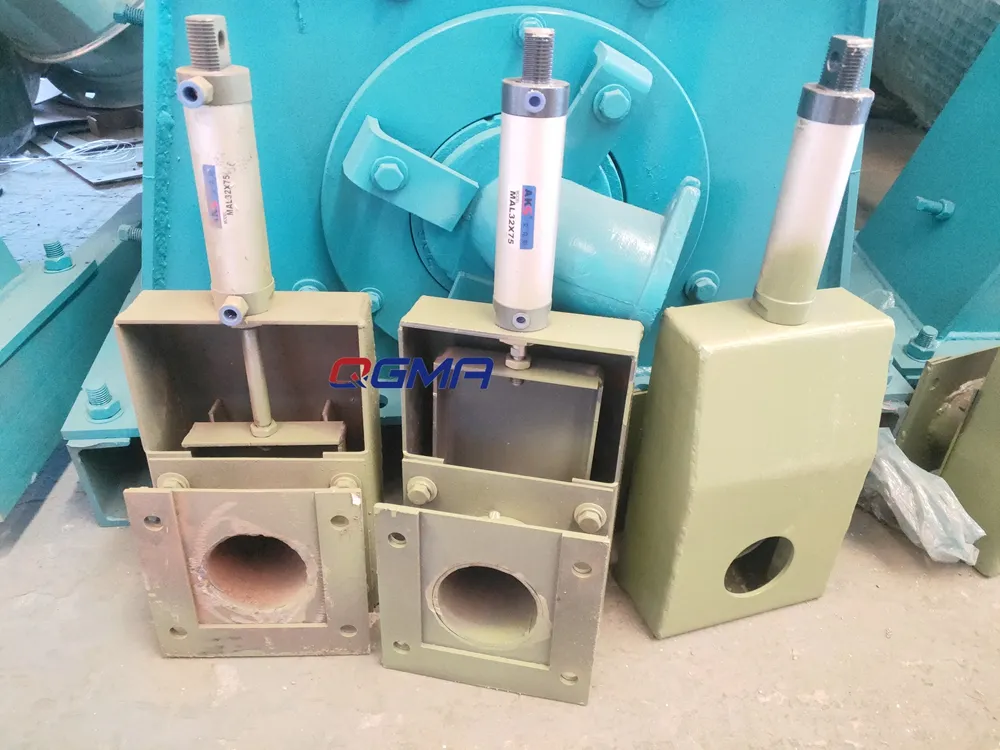

☆ Intelligent System: Abrasive dosing system increases service time by up to 20% and saves energy up to 30%.

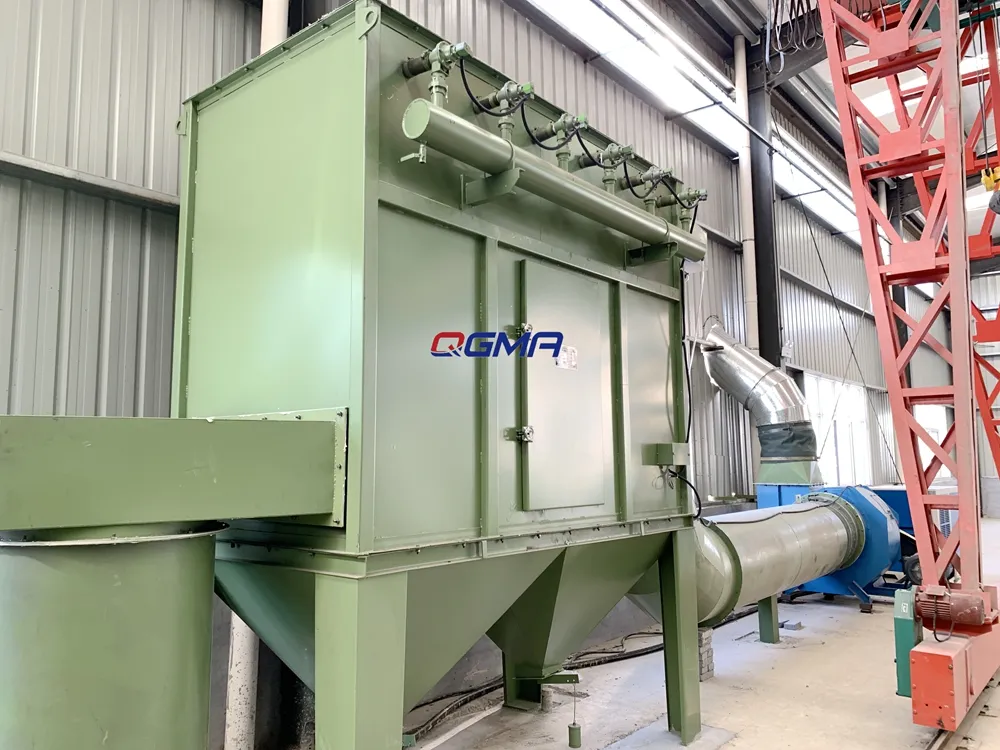

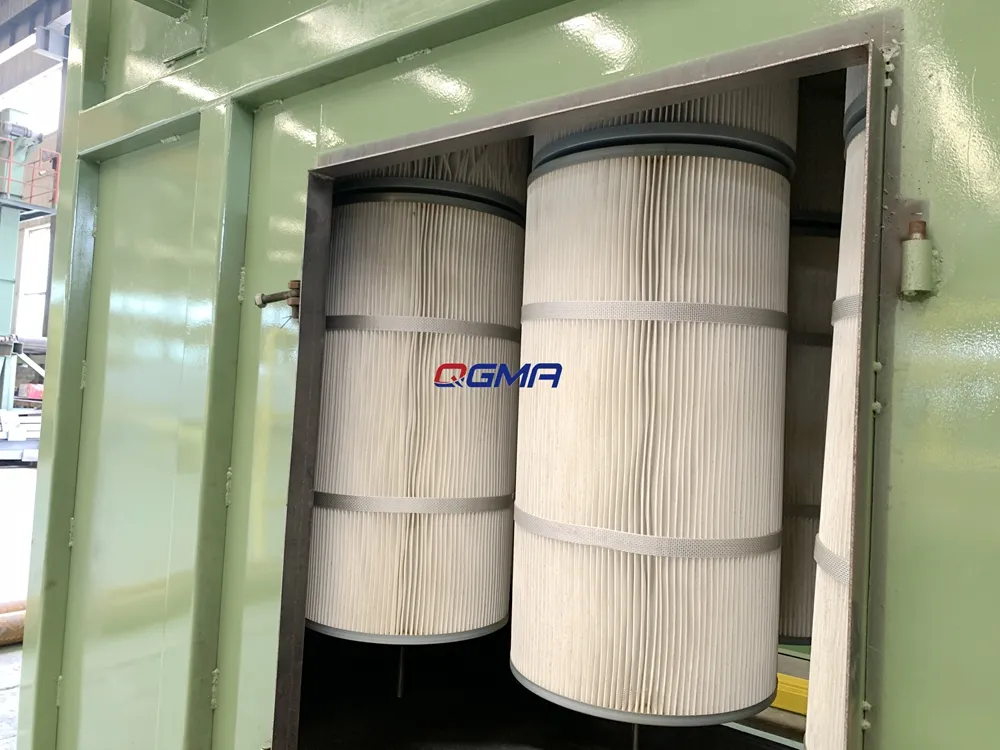

☆ Dust Collector: Features a settling chamber and cartridge-type dust collector with a 5-year service life.

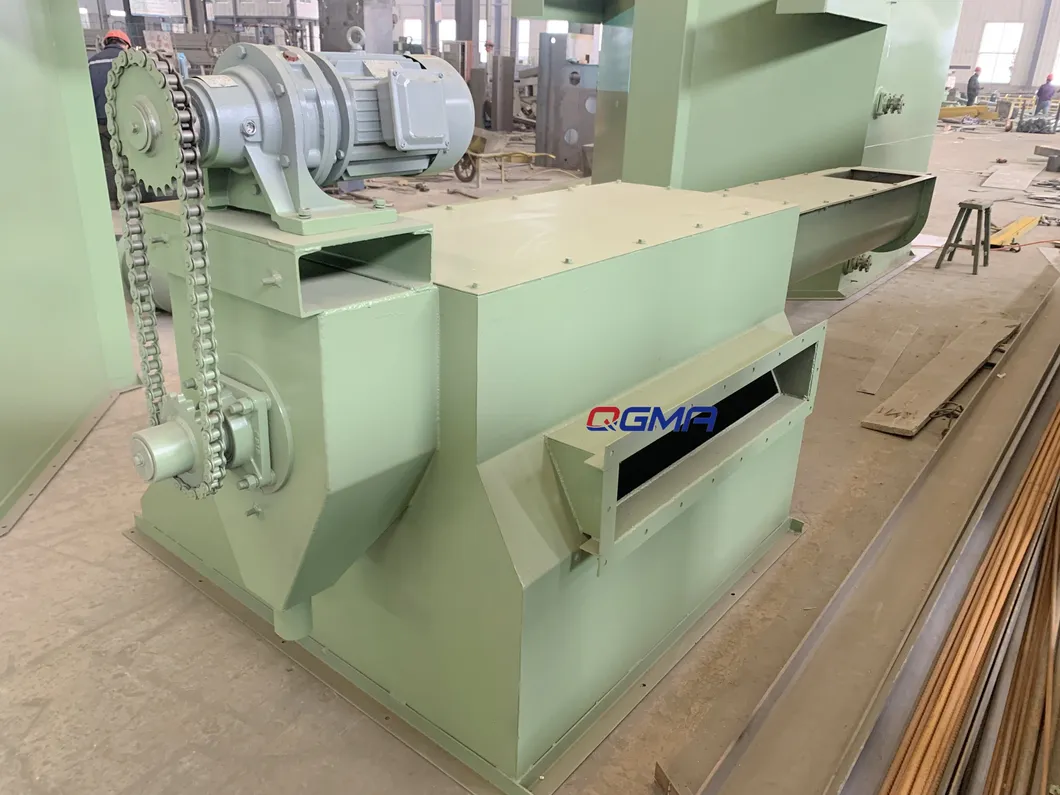

☆ Separator: Highly efficient abrasive-dust separation at 99%.
| Machine Type | QGH7/12 | QGH10/16 | QGH12/18 | QGH14/22 | QGH16/23 | QGH18/25 | QGH30/30 |
|---|---|---|---|---|---|---|---|
| Max. Diameter (mm) | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | 3000 |
| Max. Height (mm) | 1200 | 1600 | 2000 | 2200 | 2300 | 2500 | 3000 |
| Max. Weight (kg) | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Wheel Power (kw) | 2x 7.5 | 2x 11 | 2x 15 | 3x 15 | 3x 15 | 4x 15 | 5x 15 |
| Foundation Pit | No | No | No | No | Yes | Yes | Yes |
Our team provides perfect solutions for shot blasting machines, preservation lines, blasting rooms, and spray booths to users worldwide. We focus on efficient, intelligent, and environmentally friendly product development.
With strong production bases, abundant manufacturing experience, and a professional engineering team, we offer one-to-one after-sales service to ensure the sustainable operation of your equipment.
