Basic Information
Cleanliness
High Cleanliness
Certification
CE, CB, ETL, RoHS, UR
Feature
Rust / Corrosion Proof
Service
Field Installation & Training
Surface Finish
SA2.5 to SA3.0
Operation
Fully Automatic Continuous
Product Description

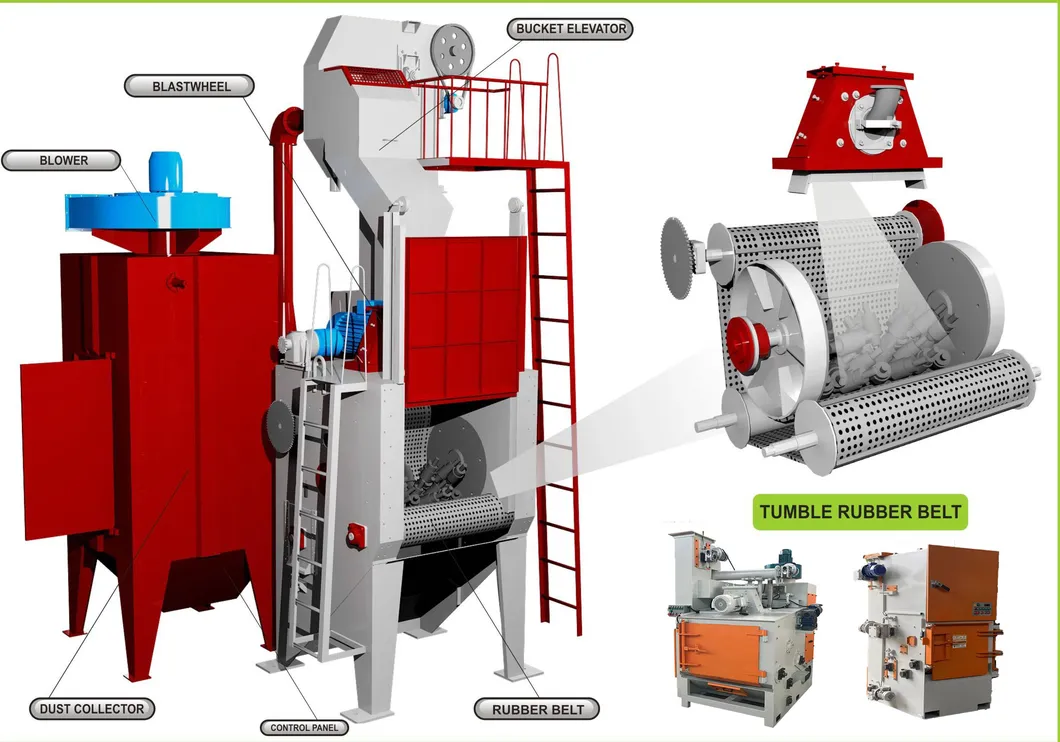

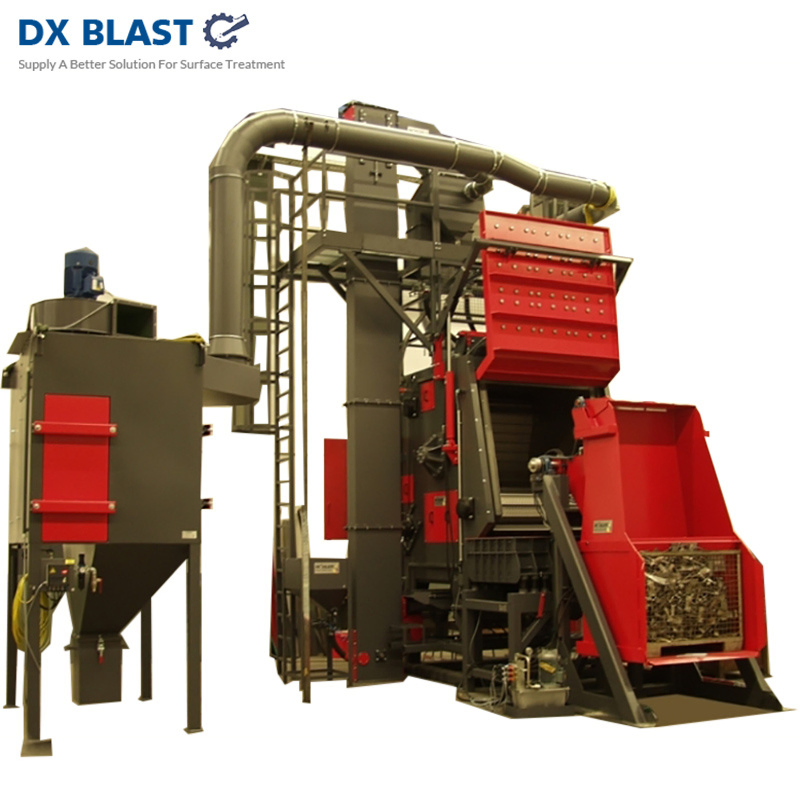

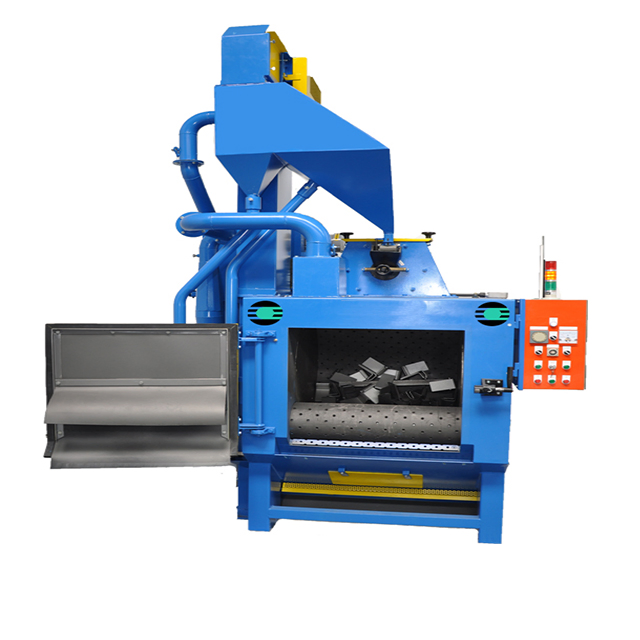

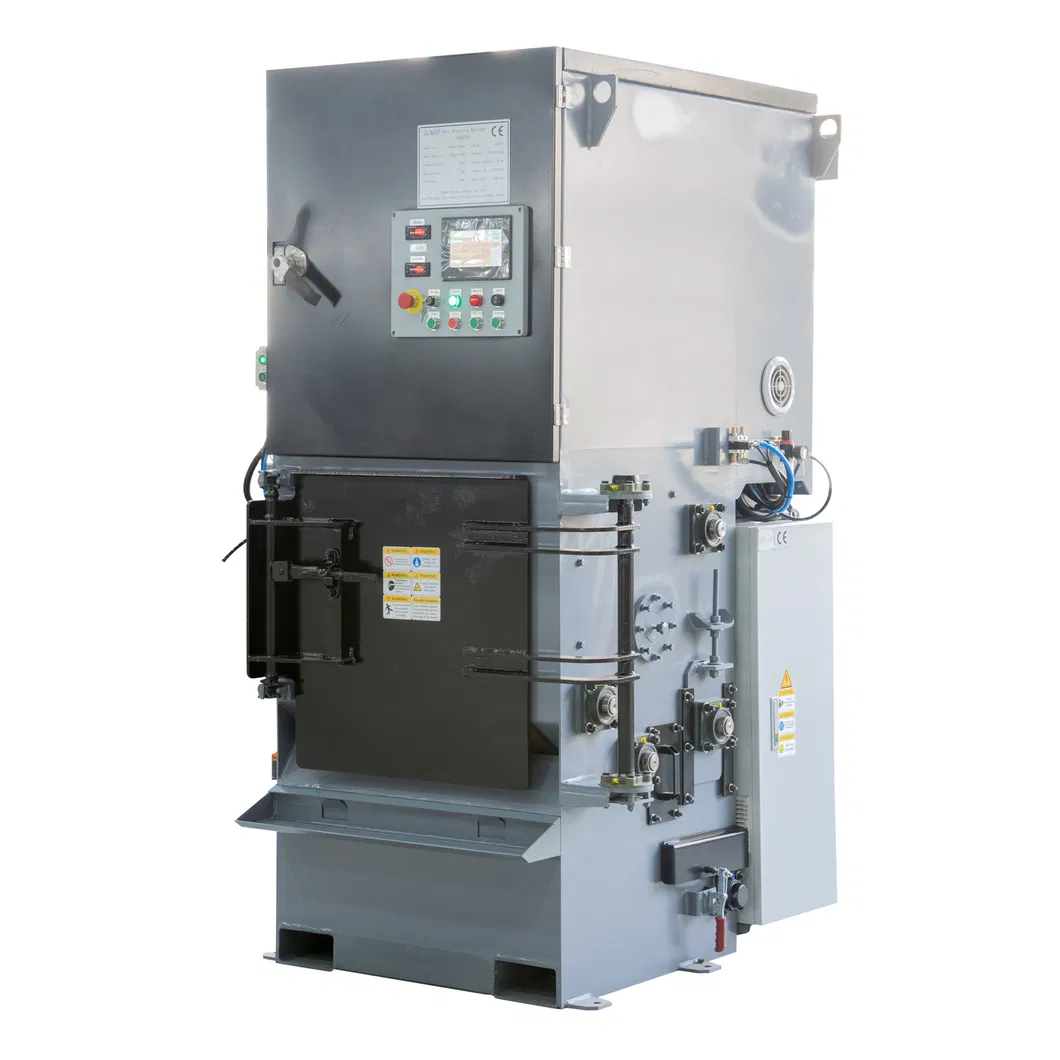

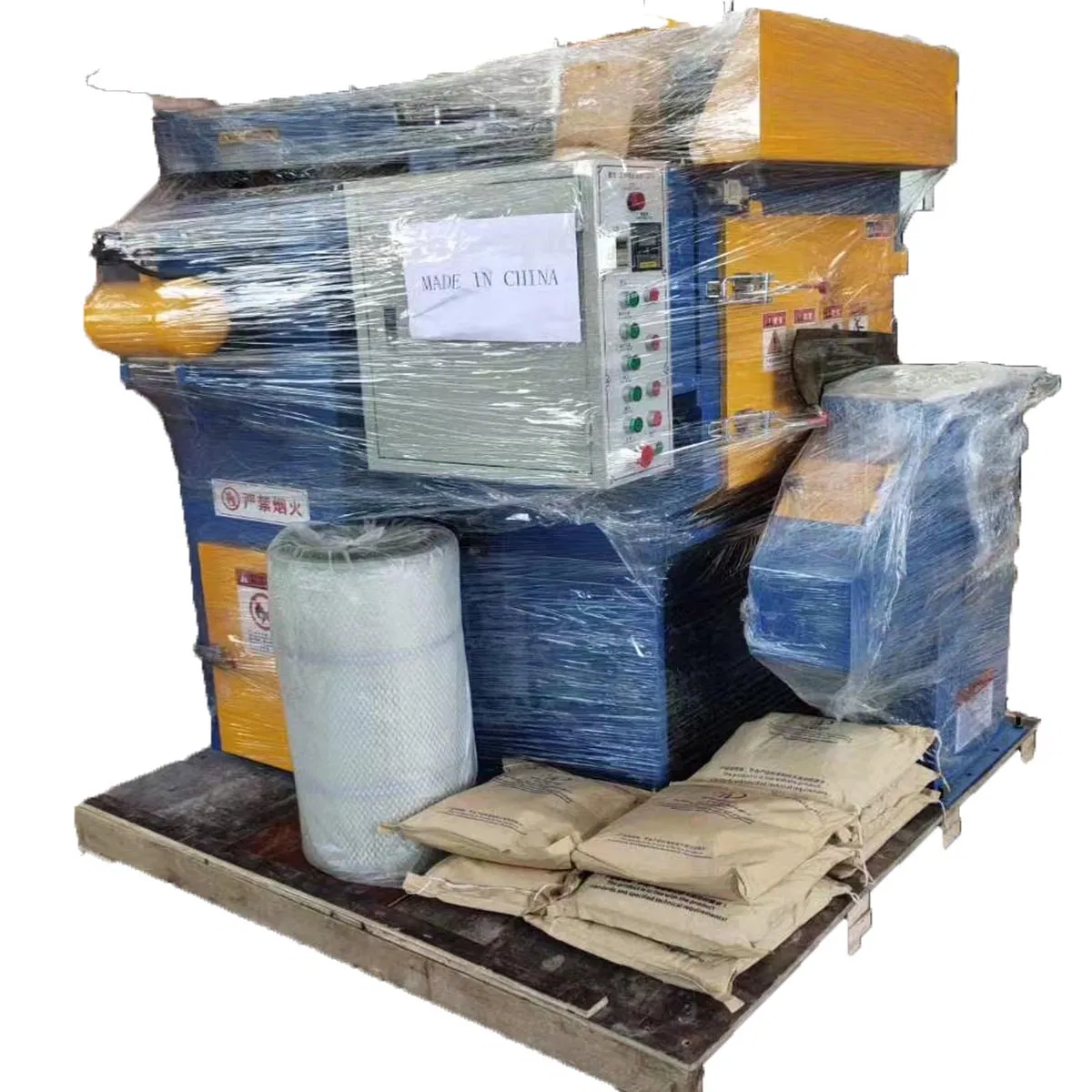

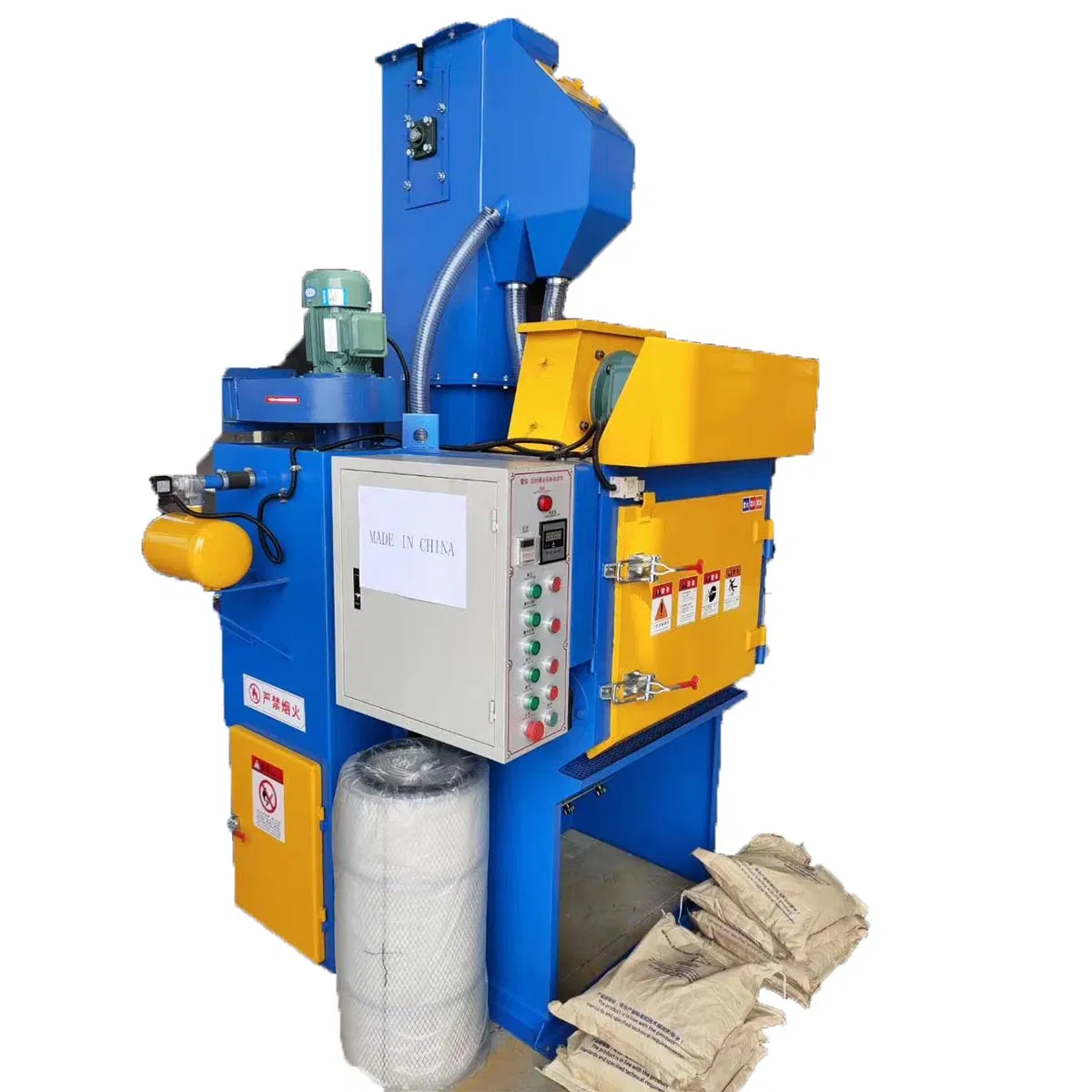

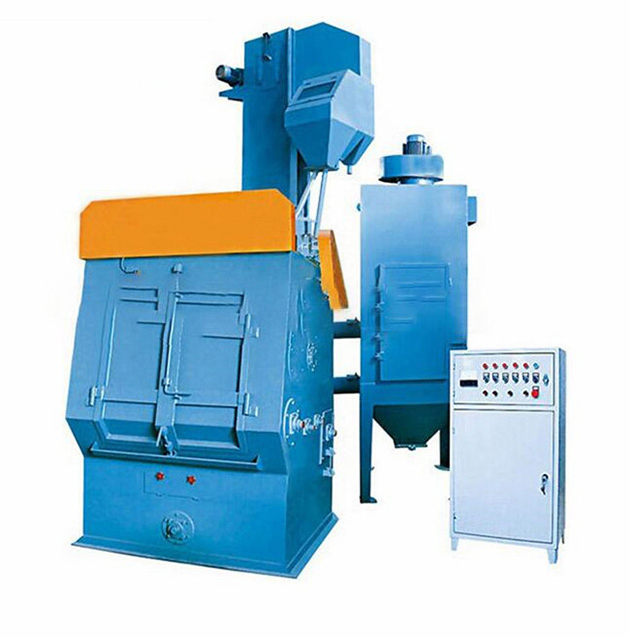

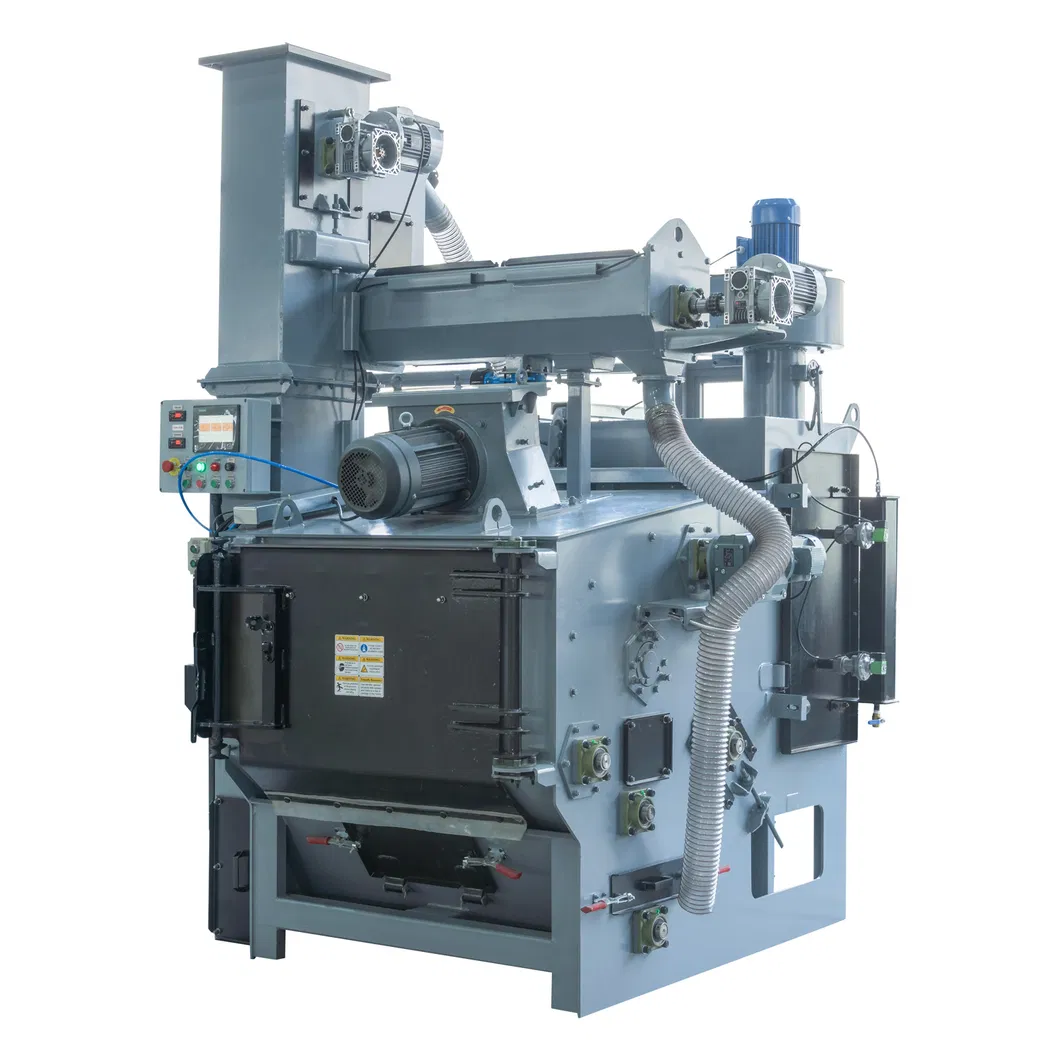

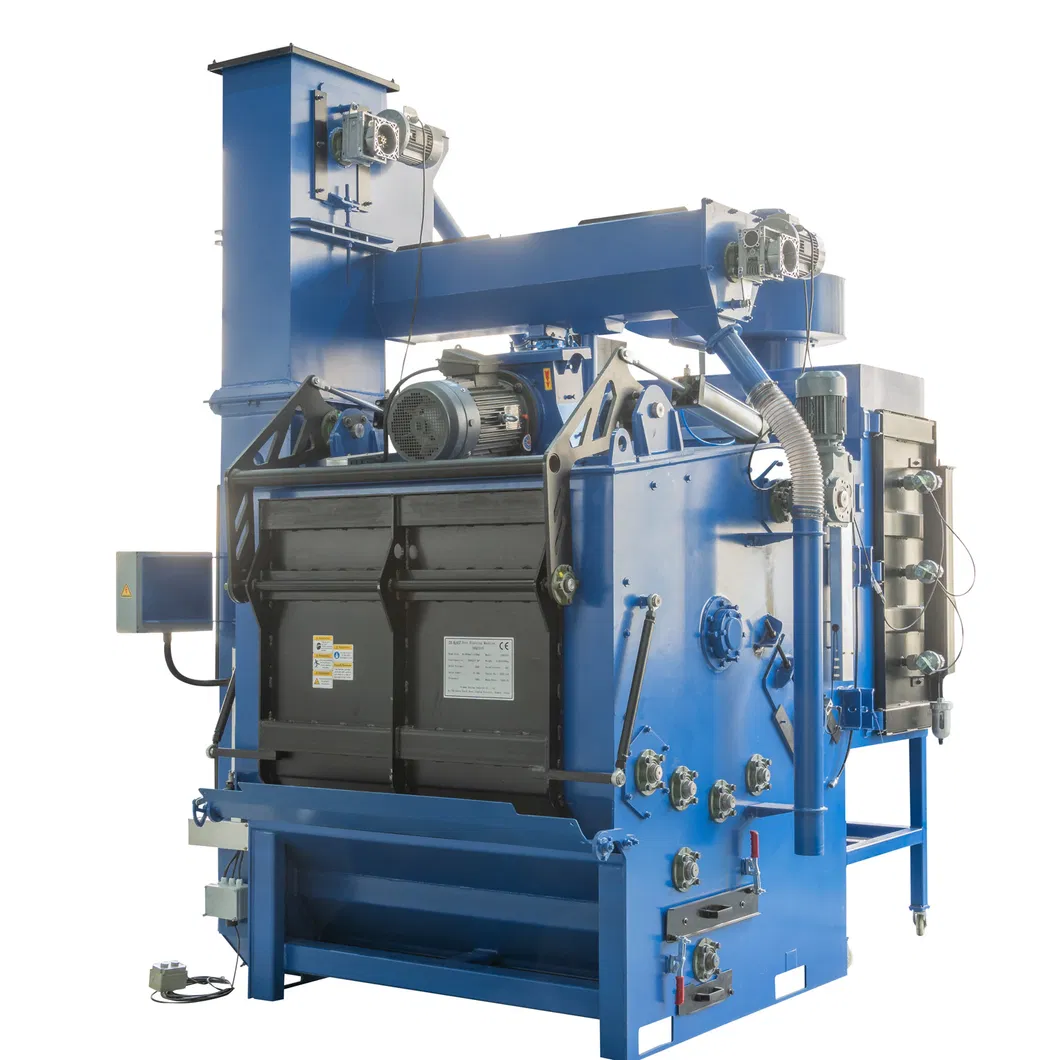

The rubber tumblast shot blast machines are the ideal way to clean and finish batches of components such as castings and small fabrications. Designed as a No-Pit system, it offers easy installation and operation. All models are self-contained and include advanced abrasive reclaim systems, efficient separators, and integrated dust collectors.

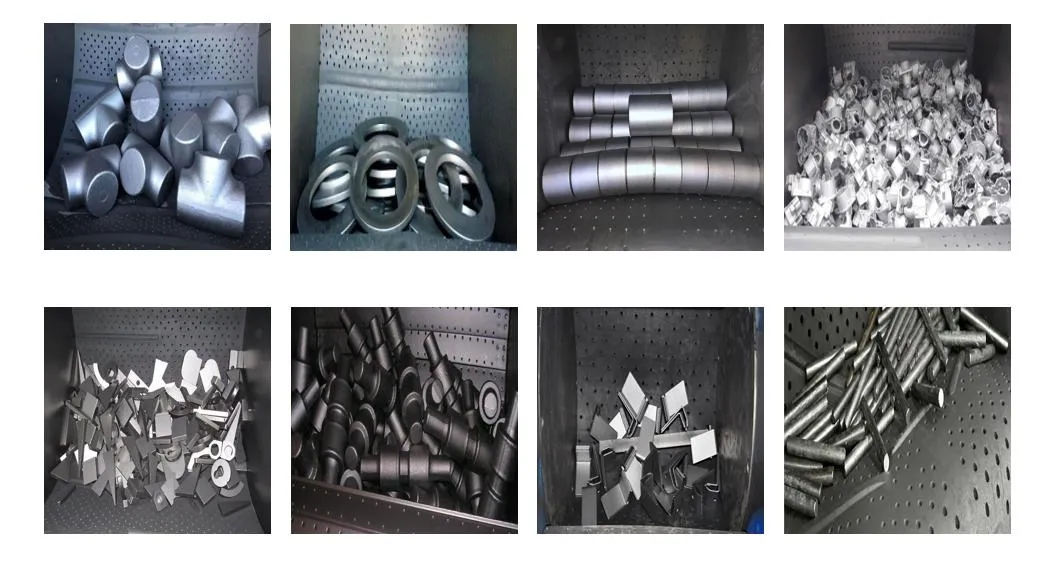

Product Application
Tumblast machine is versatile and engineered to undertake the following critical industrial applications:
- Desanding and decoring of castings
- Descaling of castings, forgings and heat treated parts
- Shot peening for enhanced surface durability
- Deburring of plastic and rubber components
Technical Specifications
| Model Detail |
Model 324 |
Model 326 |
Model 3210 |
| MAX. Loading Weight |
80KG |
200kg |
500kg |
| MAX. Worksize Weight |
5kg |
10kg |
25kg |
| End Disk Diameter |
φ400mm |
φ600mm |
φ1000mm |
| Rotation Rate |
3.6rpm |
3.6rpm |
3.6rpm |
| Grey Castings Capacity |
250-400kg/h |
600-1200kg/h |
2000-2800kg/h |
| Blast Wheel Power |
4kw |
7.5KW |
11KW |
| Blast Capacity |
70kg/min |
130kg/min |
180kg/min |
| Total Power |
7KW |
12.7kw |
23kw |
Note: We provide both standard machines and fully customized models based on your specific detail requests.
Industrial Excellence
Frequently Asked Questions
How to choose the right blast machine type?
Selection is based on your specific work-piece size, material type, and required productivity rates.
What kind of abrasives are suitable for these machines?
Commonly used media include steel shot, steel grit, cut wire shot, and stainless steel shot, depending on the desired finish.
What is the quality warranty period?
We provide a 1-year warranty. Long-term after-sales service and support are available through our global network.
Is a foundation pit essential for installation?
This depends on the machine size and your workshop height; many of our models are designed to be "No-Pit" for easier setup.
How many operators are required?
Our automatic systems are designed for efficiency, typically requiring only 1 operator.
Do you provide installation assistance?
Yes, we provide specialized installation tools and experienced staff for comprehensive operation training.
