Desirable Q32 Tumble Belt Shot Blast Clean Machine for Brass Fittings Cleaning

1 / 5

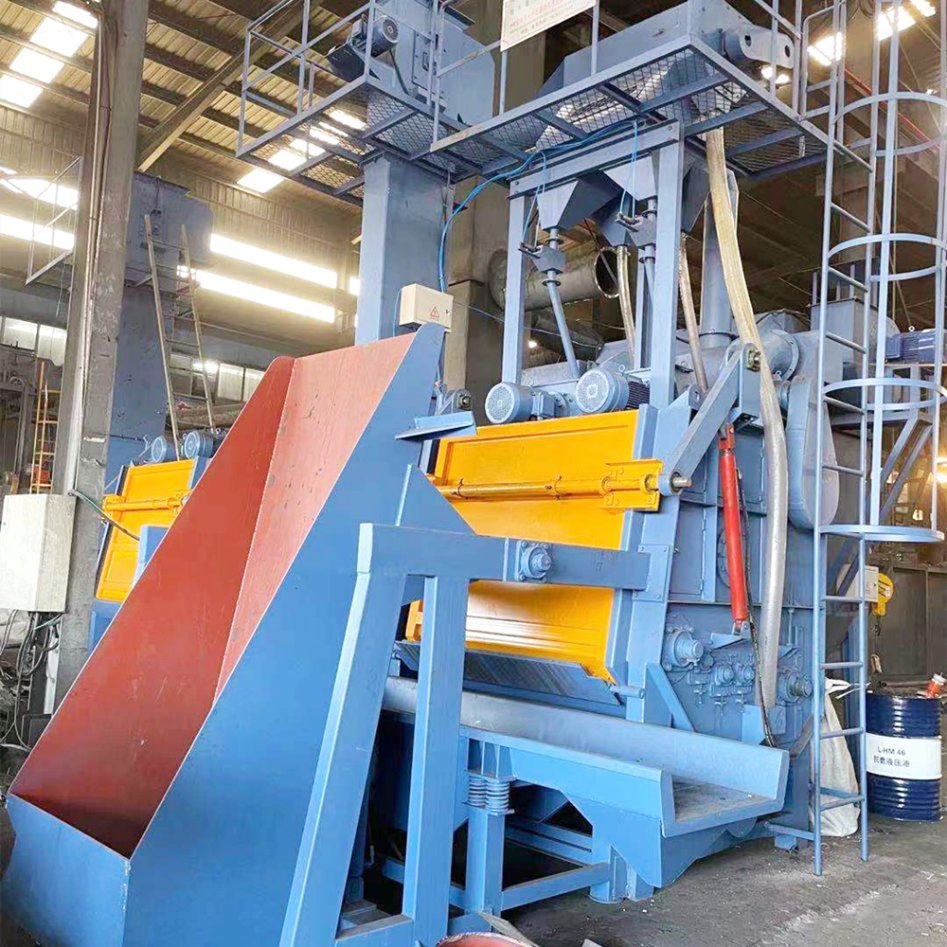

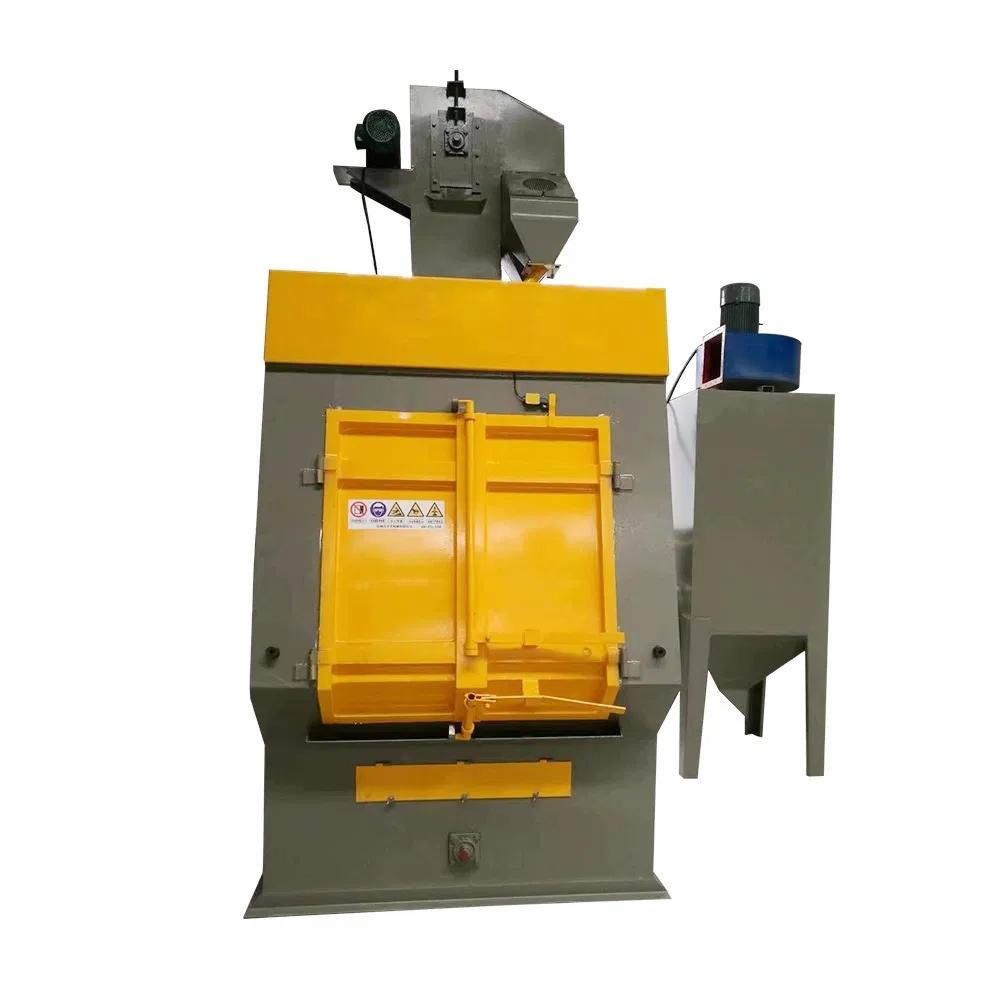

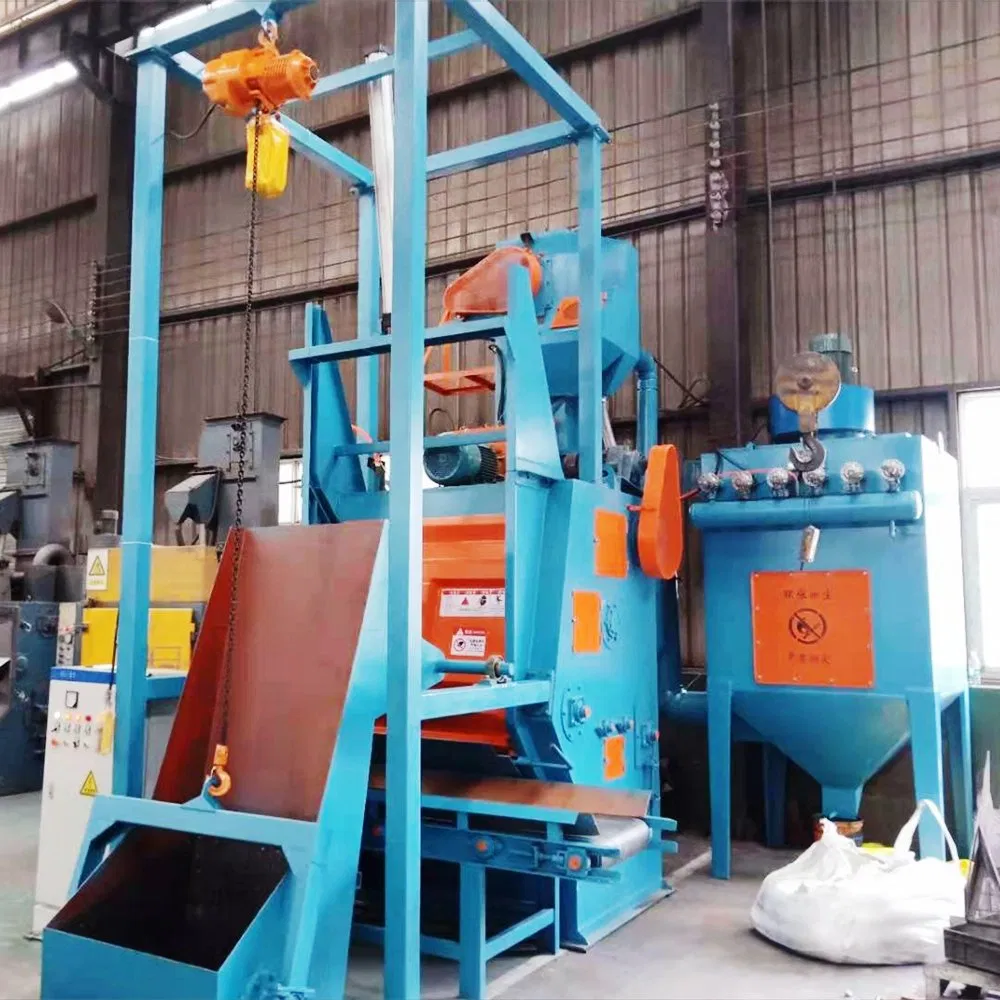

Desirable Q32 Tumble Belt Shot Blast Clean Machine for Brass Fittings Cleaning

Customization:	Available
After-sales Service:	Provided
Warranty:	Provided

Send Inquiry

Product Description

Basic Specifications

Model NO.

Q32

Application

Industrial Processing

Fuel

Electric

Type

Hook Type Abrator

Cleanliness

High Cleanliness

Automation

Automatic

Certification

Feature

Rust / Corrosion Proof

Max. Weight

5-25kg

Effective Volume

0.05m3-0.3m3

Product Description

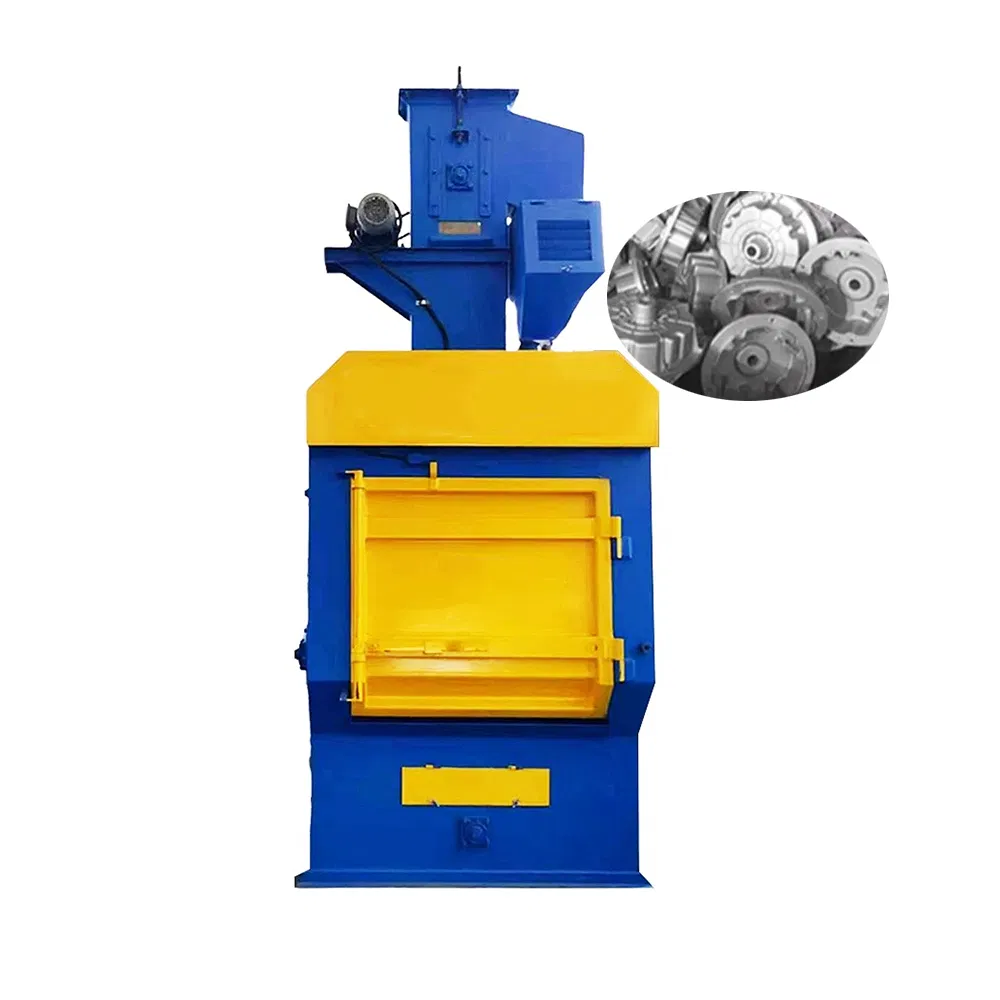

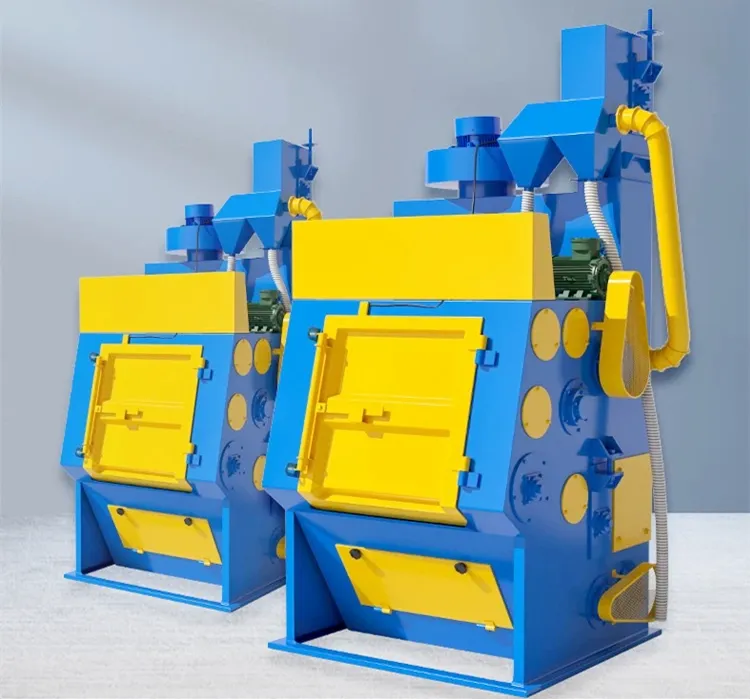

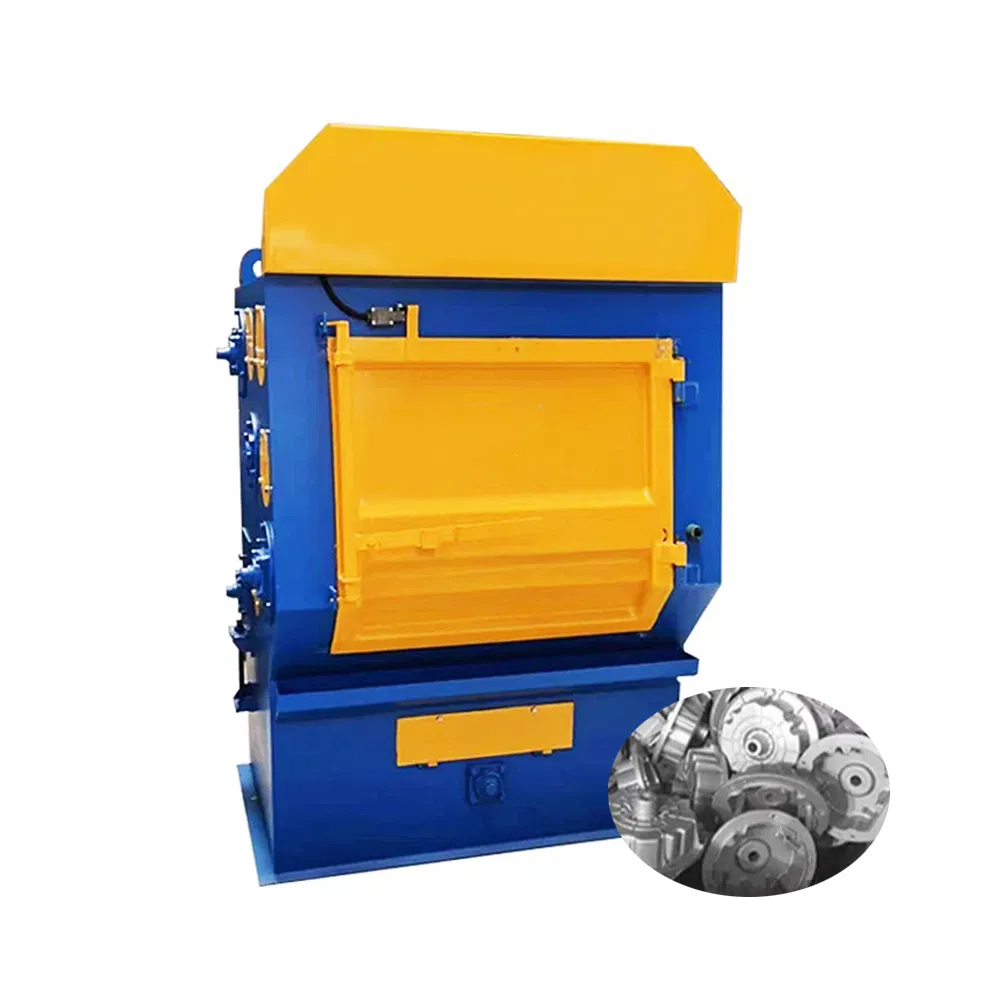

Desirable Q32 Tumble belt shot blast clean machine for brass fittings cleaning

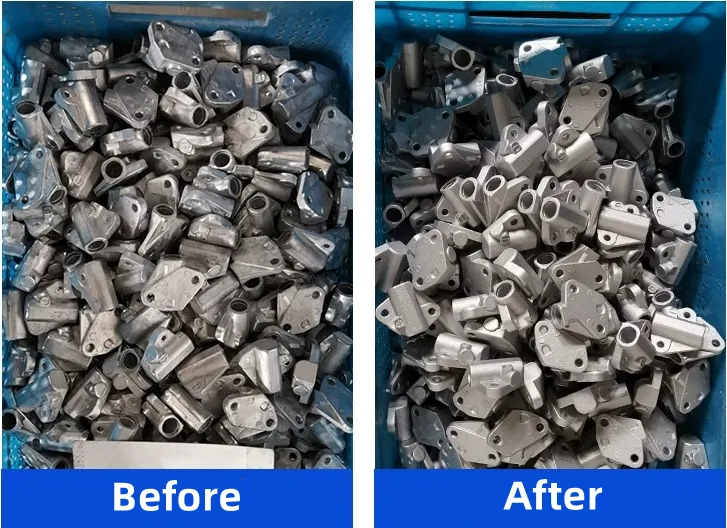

This machine is a medium-sized shot blasting equipment, suitable for sand removal, rust removal, oxide skin removal and surface strengthening of small castings, forgings, stampings, gears, springs and other parts in machine tools, automobiles, textile machinery, metallurgy, chemical industry, aerospace and other industries. It is especially suitable for cleaning and strengthening parts that are afraid of bumps.

Technical Parameters

This series of equipment is suitable for surface rust removal or shot blasting of various types and large and medium batches of workpieces. The workpieces must be castings and heat-treated parts with a unit weight of less than 25kg.

Model	Q324	Q326	Q328	Q3210
Capacity	0.3-0.6t/h	0.6-1.2t/h	1.2-2.0t/h	2.0-2.8t/h
Max Single Weight	5kg	10kg	15kg	25kg
End Plate Diameter	Φ400mm	Φ600mm	Φ800mm	Φ1000mm
Effective Volume	0.05m3	0.15m3	0.2m3	0.3m3
Blasting Volume	40kg/min	150kg/min	220kg/min	250kg/min
Total Power	≈6kw	≈13kw	≈19kw	≈26kw

Main Features

✓

High Efficiency: Adopts a cantilevered centrifugal shot blaster for convenient blade replacement and high cleaning efficiency.

✓

Protective Track: Wear-resistant rubber track reduces collision damage and equipment noise.

✓

Eco-Friendly: Pulse filter cartridge dust collector ensures emissions are lower than national standards.

✓

Automatic Operation: Workpieces can be unloaded automatically after management is completed.

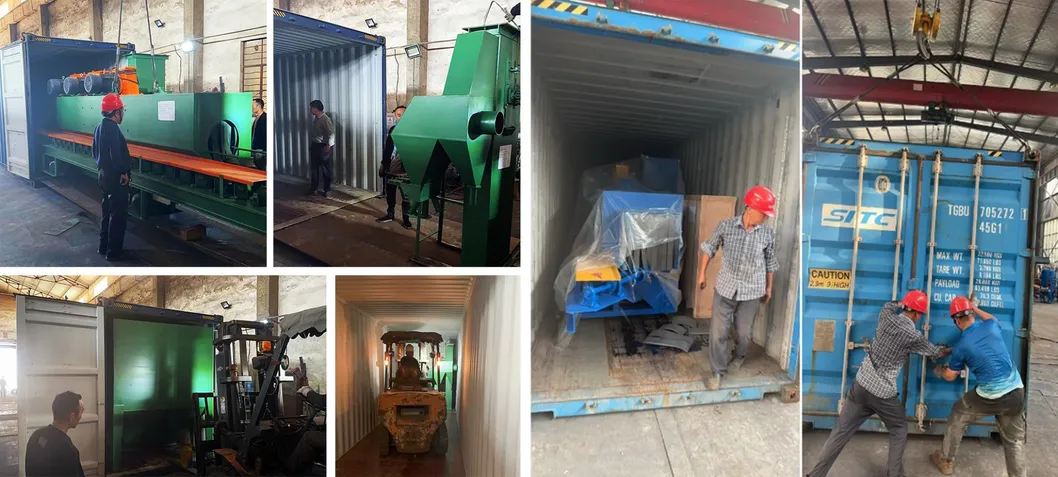

Packaging & Shipping

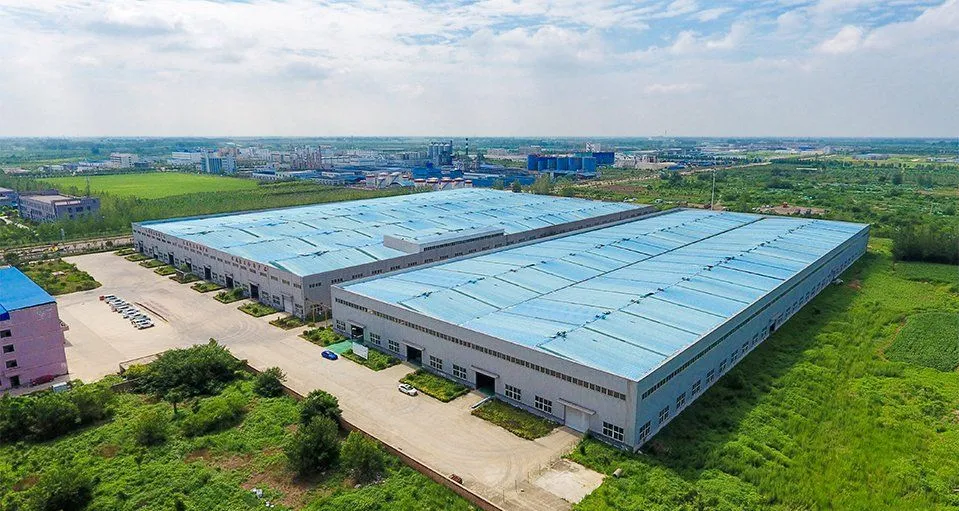

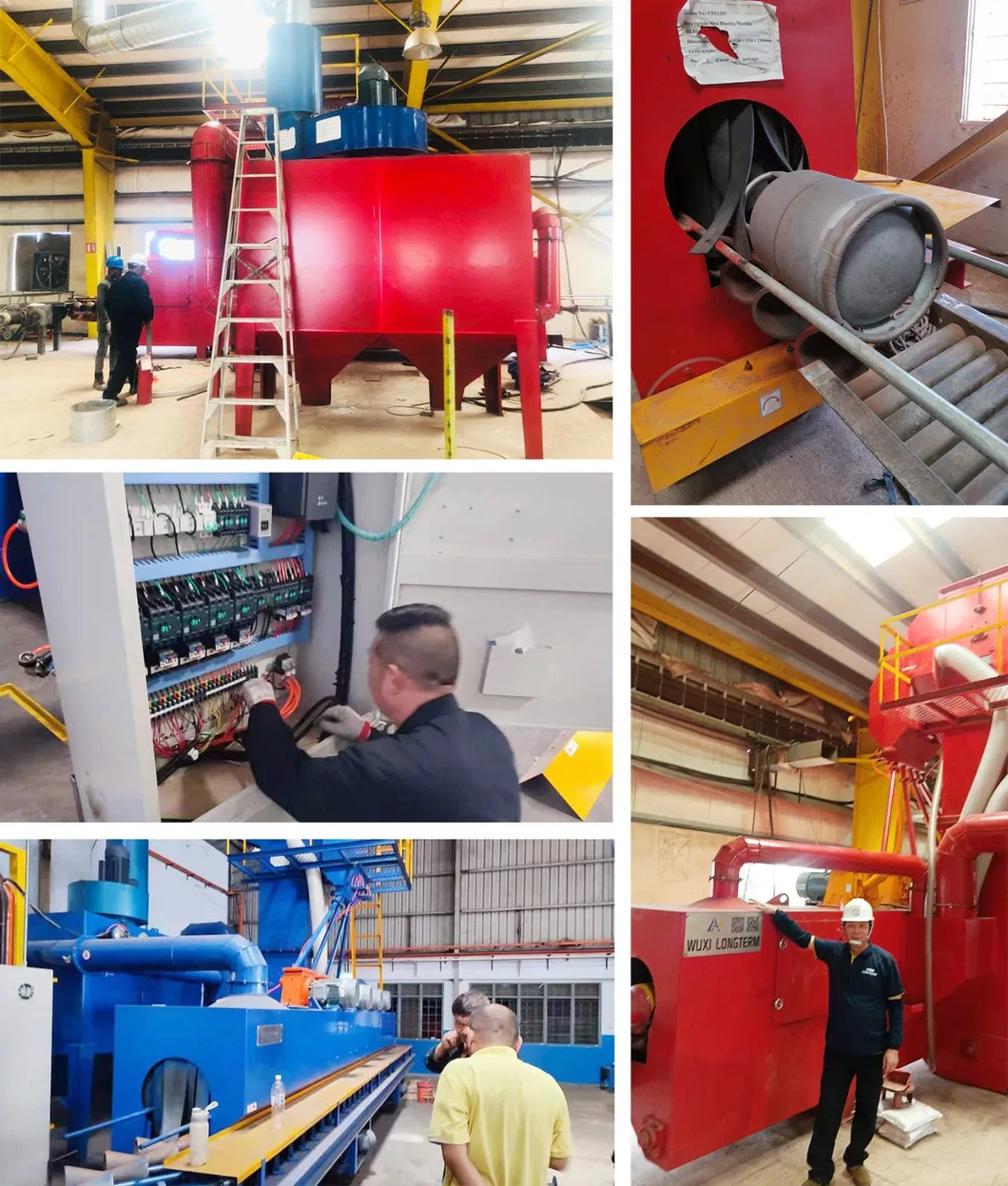

Company Overview & Project

Integrating shot blasting, waste gas treatment, and coating equipment manufacturing. We leverage strong technical strength and professional teams to continuously improve manufacturing levels. Main products include Q32/Q35/Q37/Q69 series, dust removal equipment, and wear-resistant accessories.

Frequently Asked Questions

What is a shot blast machine?

A shot blaster is a machine that controls the flow or stream of fine metal beads as they are forcibly projected against a surface by mechanical acceleration.

What material is used for shot blasting?

Types of metal abrasives include steel grit, copper shots, and aluminum pellets. Other methods use silica sand, glass beads, or synthetic materials.

Will shot blasting remove rust?

Yes, it is highly effective for removing rust, dirt, and solidified contaminants while providing deburring and texturing capabilities.

What is the difference between sandblasting and shot blasting?

Sandblasting uses compressed air to shoot abrasive media, while shot blasting employs centrifugal force from a mechanical device to propel media.

How do I choose the right model?

Choice depends on your workpiece size, weight, daily production capacity, and the specific cleaning results required.

Is maintenance difficult?

Modern machines are designed with accessible parts, such as easy-to-replace blades and durable rubber tracks, making routine maintenance straightforward.
